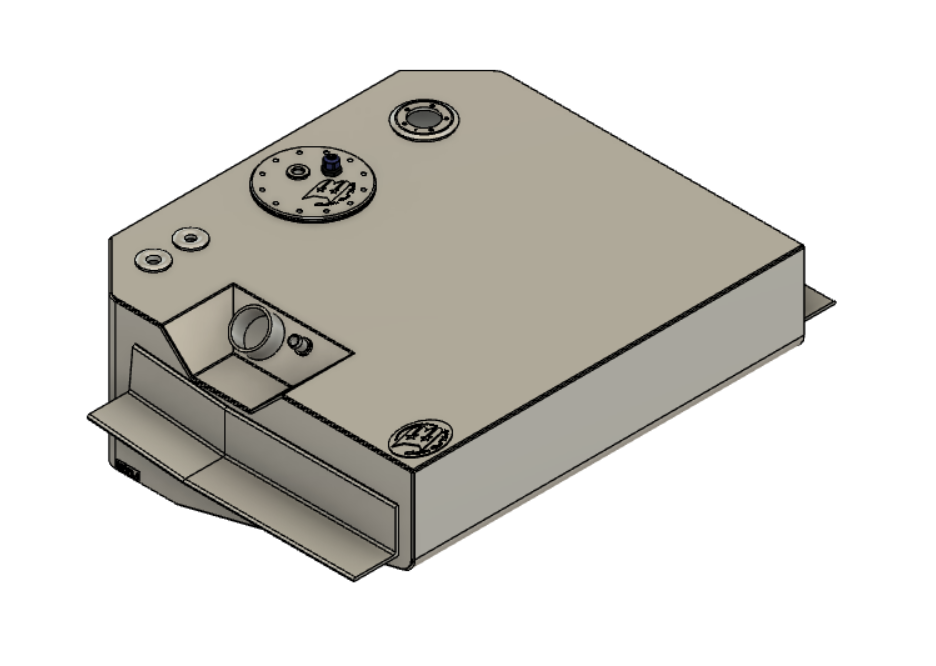

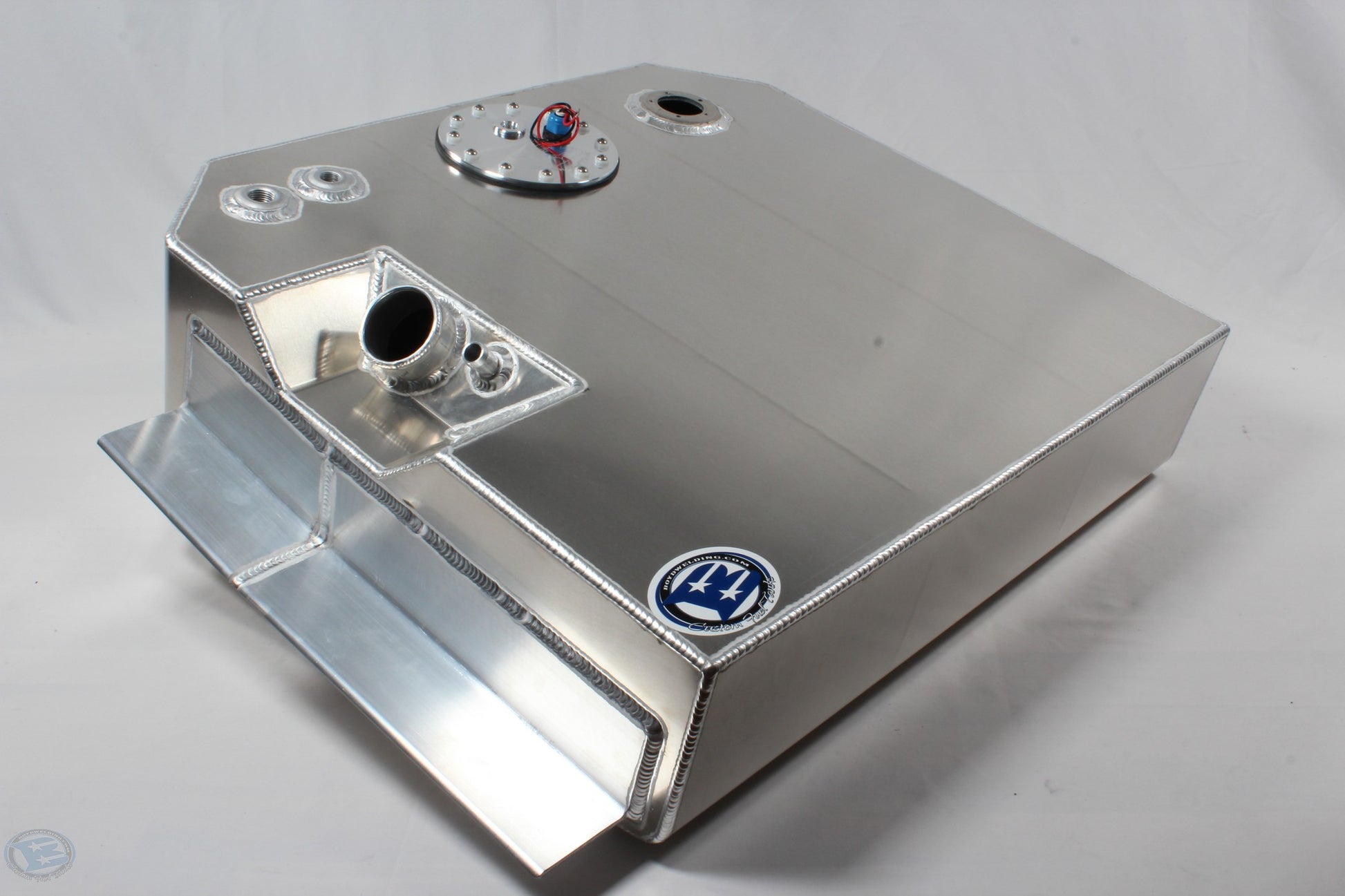

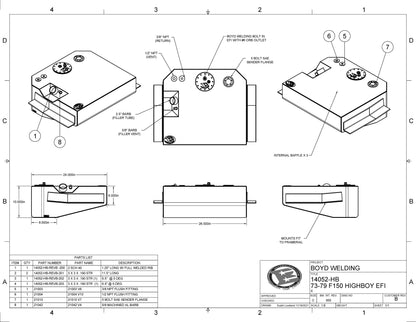

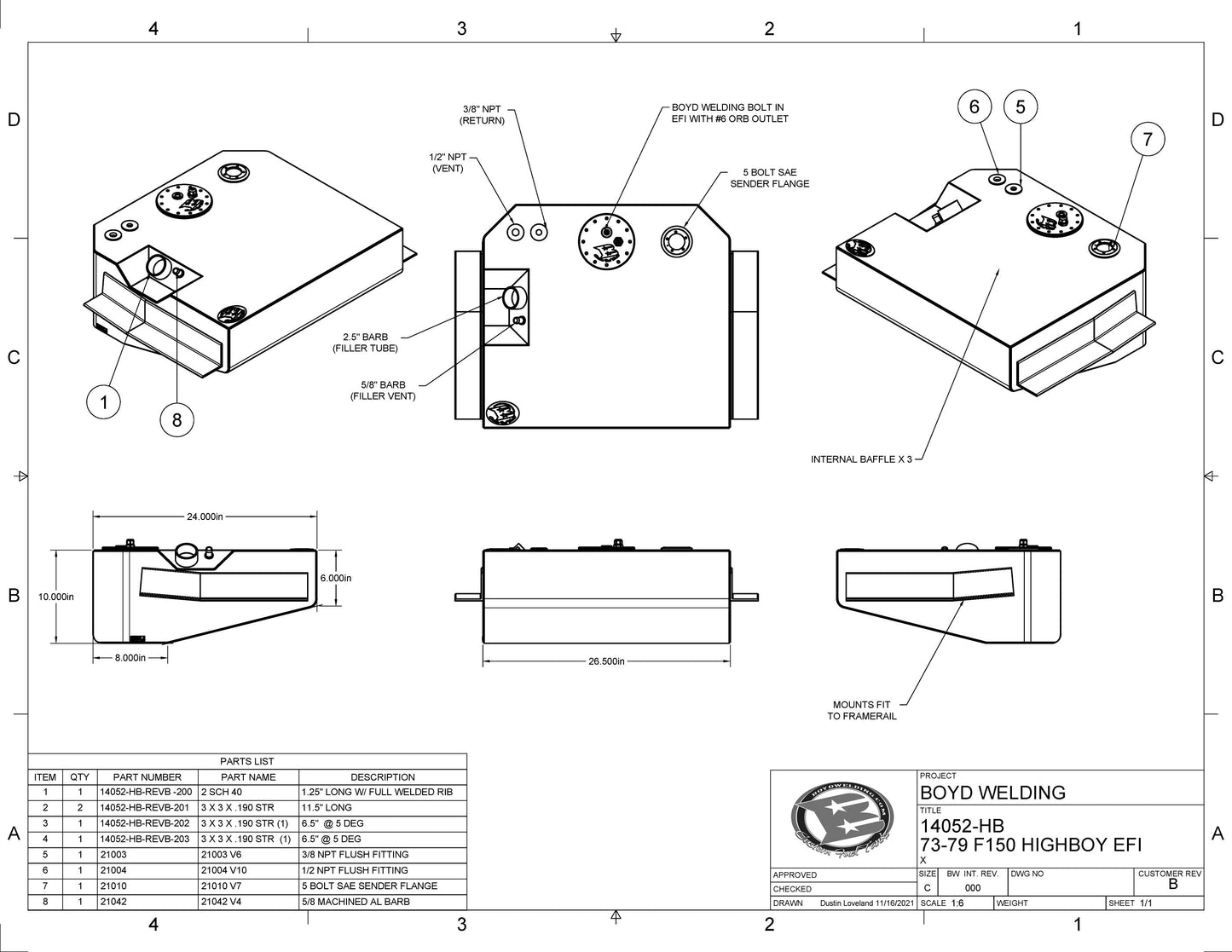

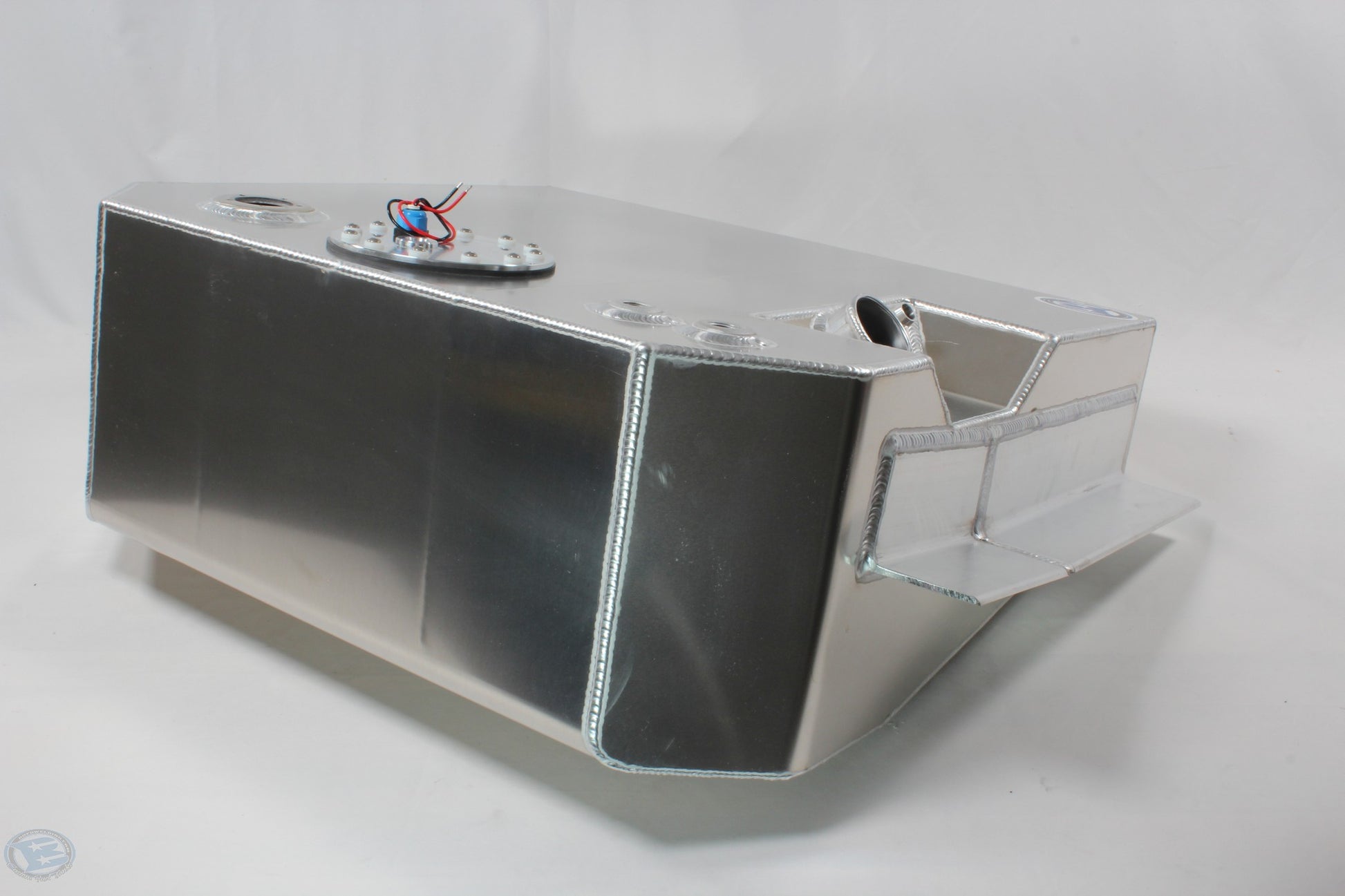

73-79 Ford F100 HIGHBOY Rear Mount EFI Tank W Aeromotive 340 Pump

SKU# 14052-HB

Regular price $786.00

Shipping calculated at checkout.

LEAD TIME IS 2 WEEKS + SHIPPING

Tank Material:  1/8” 5052-H32 Aluminum
Tank Dimensions: 26.5” x 24” x 10” Taper to 6”
Approx Gallons: 20
Fuel Fill:  2.25” Ribbed for Hose
Vent 1: 5/8” Ribbed for Hose Fill Vent
Vent 2: ½” NPT Tank Vent

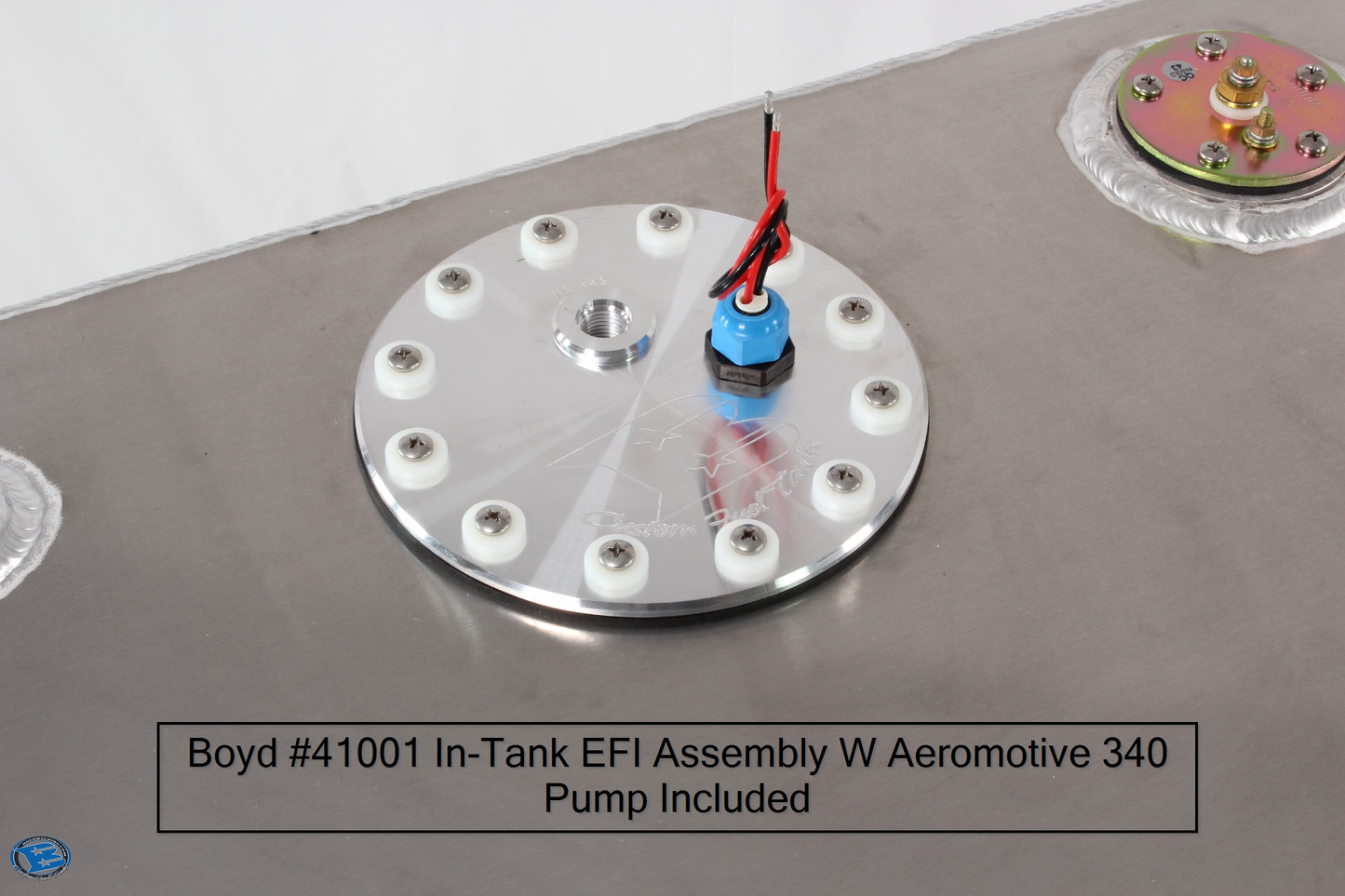

Fuel Feed:  Boyd 41001 In-Tank Aeromotive Pump
Return:  3/8” NPT

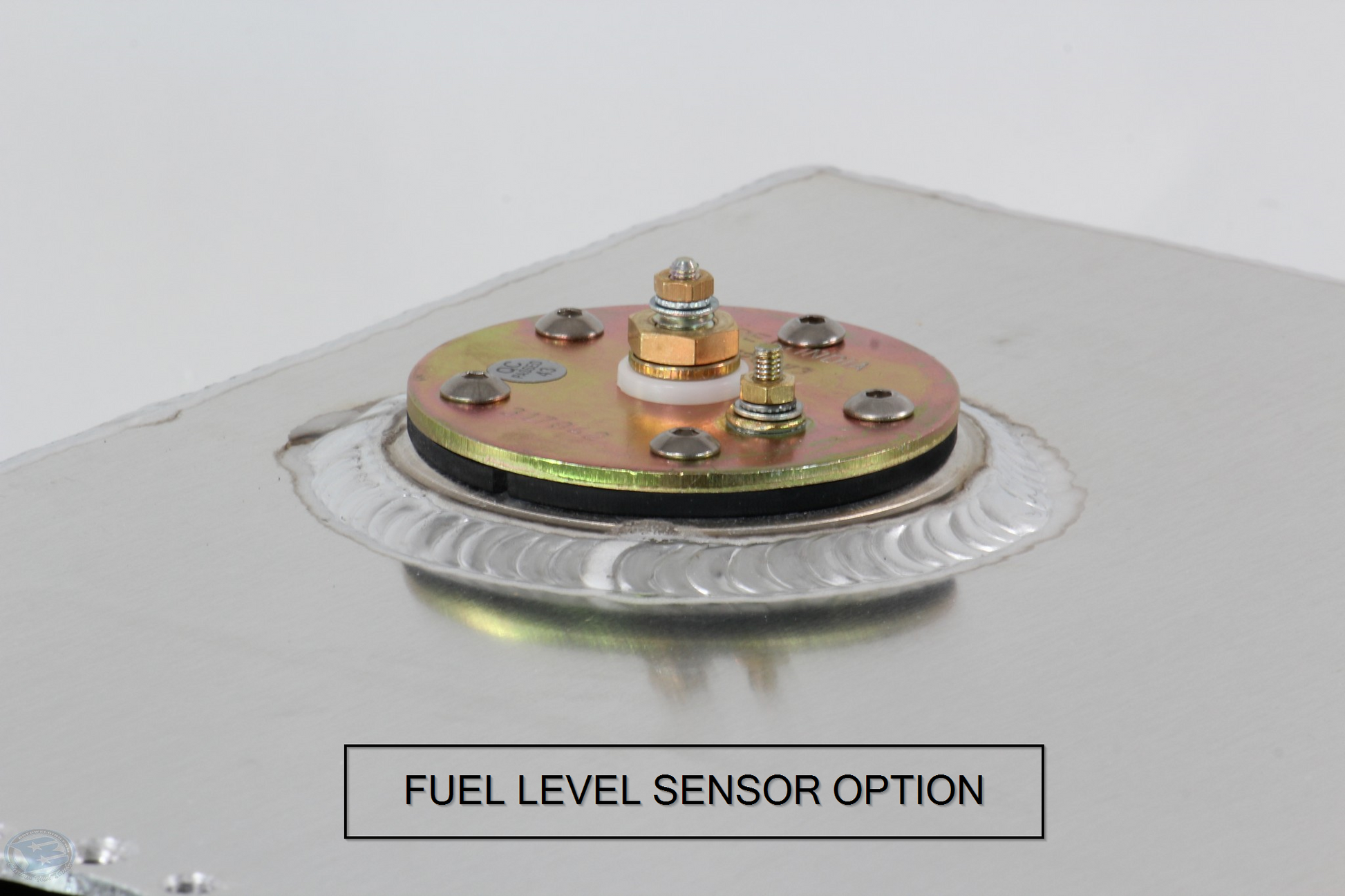

Sending unit Flange:  YES
Baffles:  YES x3
Mount Tabs:  YES  3 x 3 x 3/16 Angle x2 places

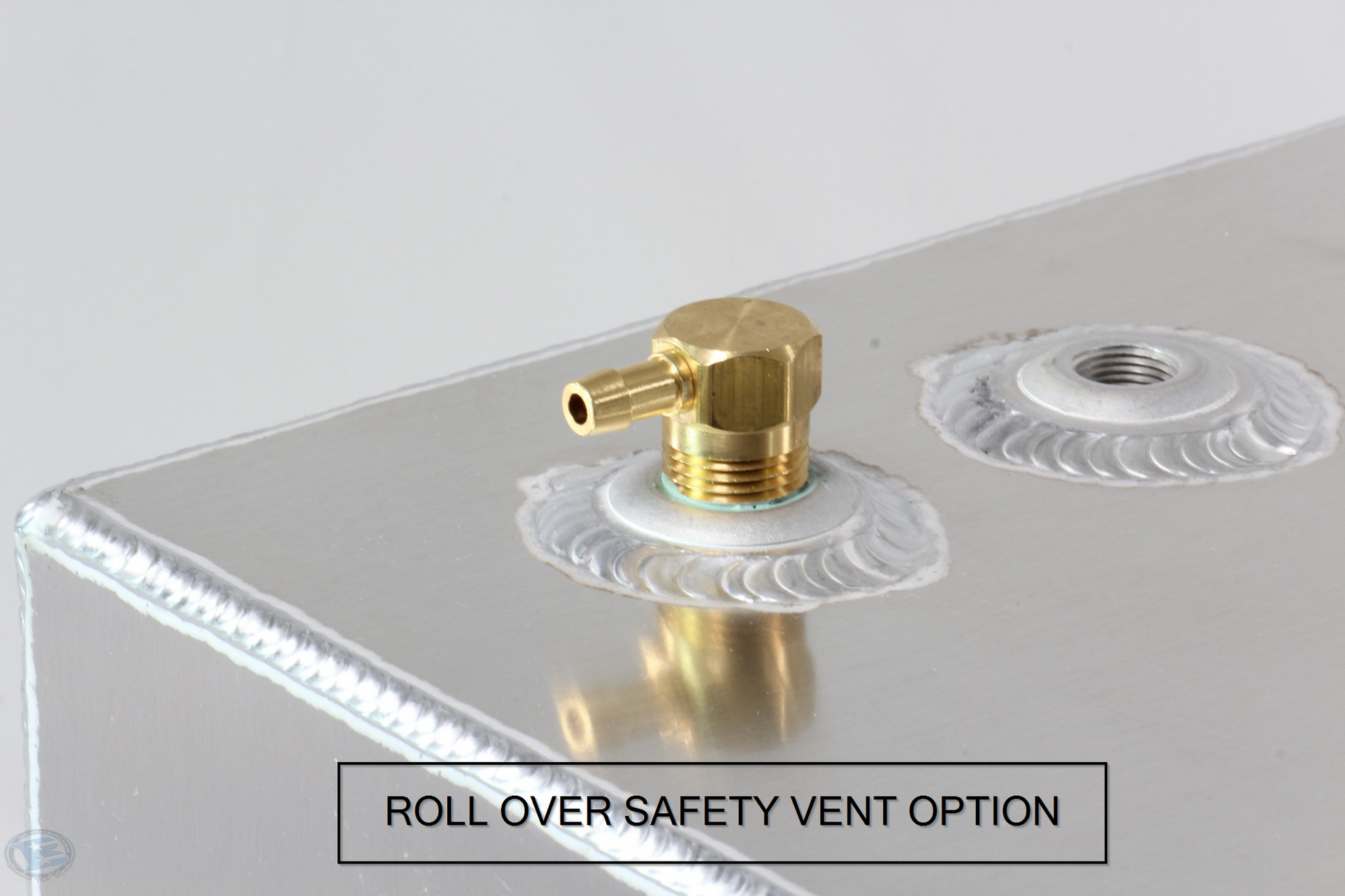

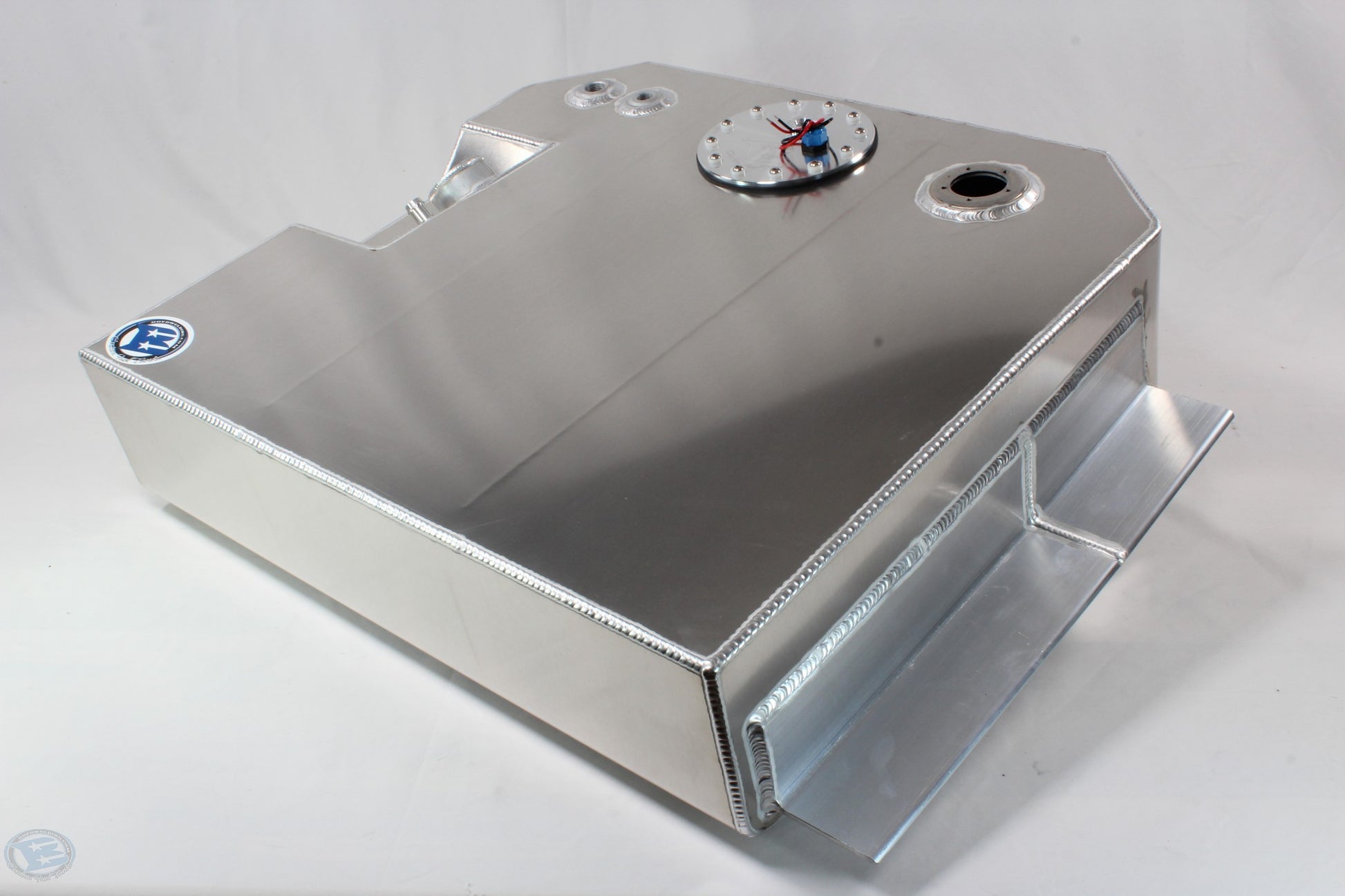

* Pictures show optional accessories installed.
