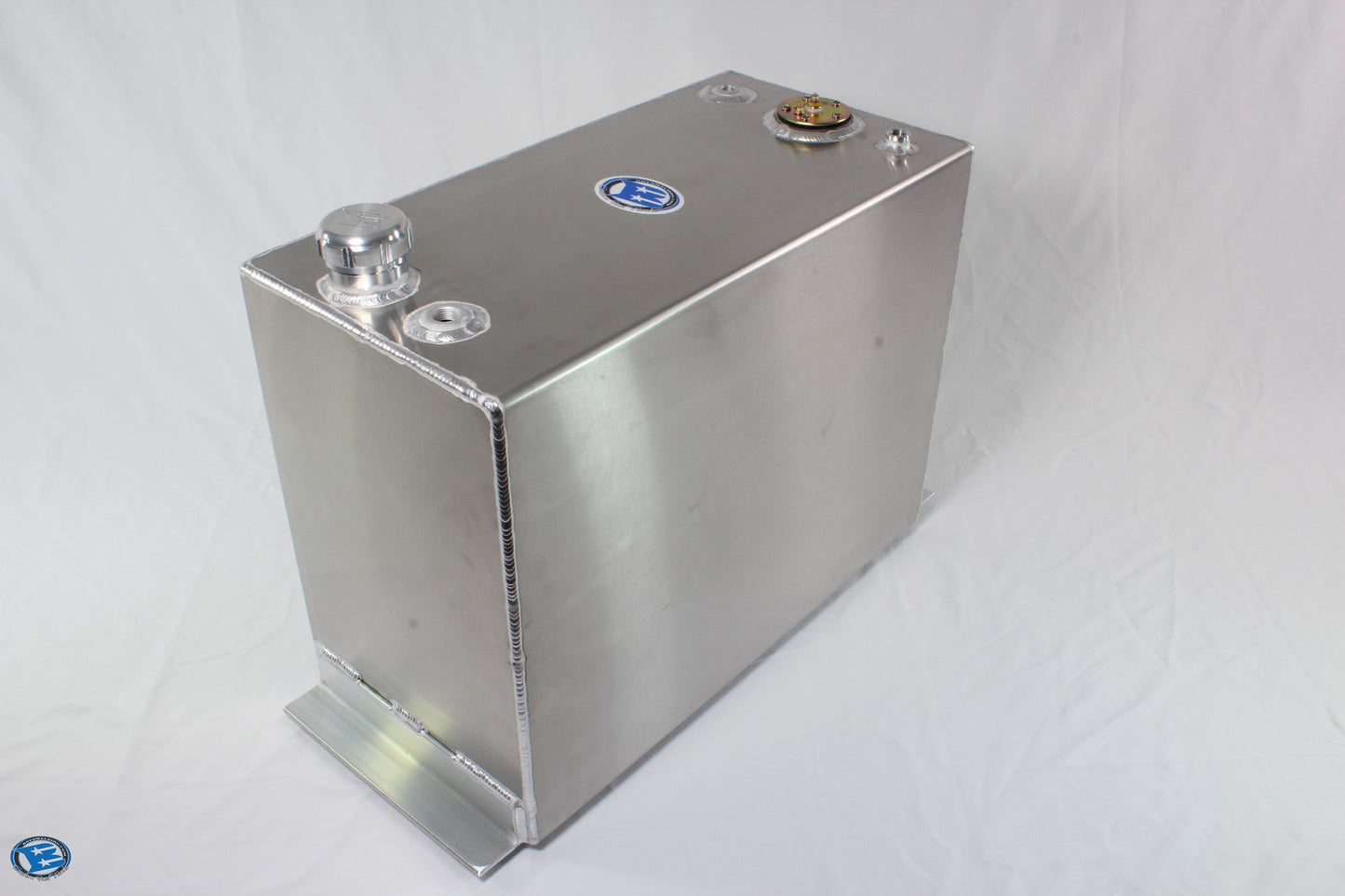

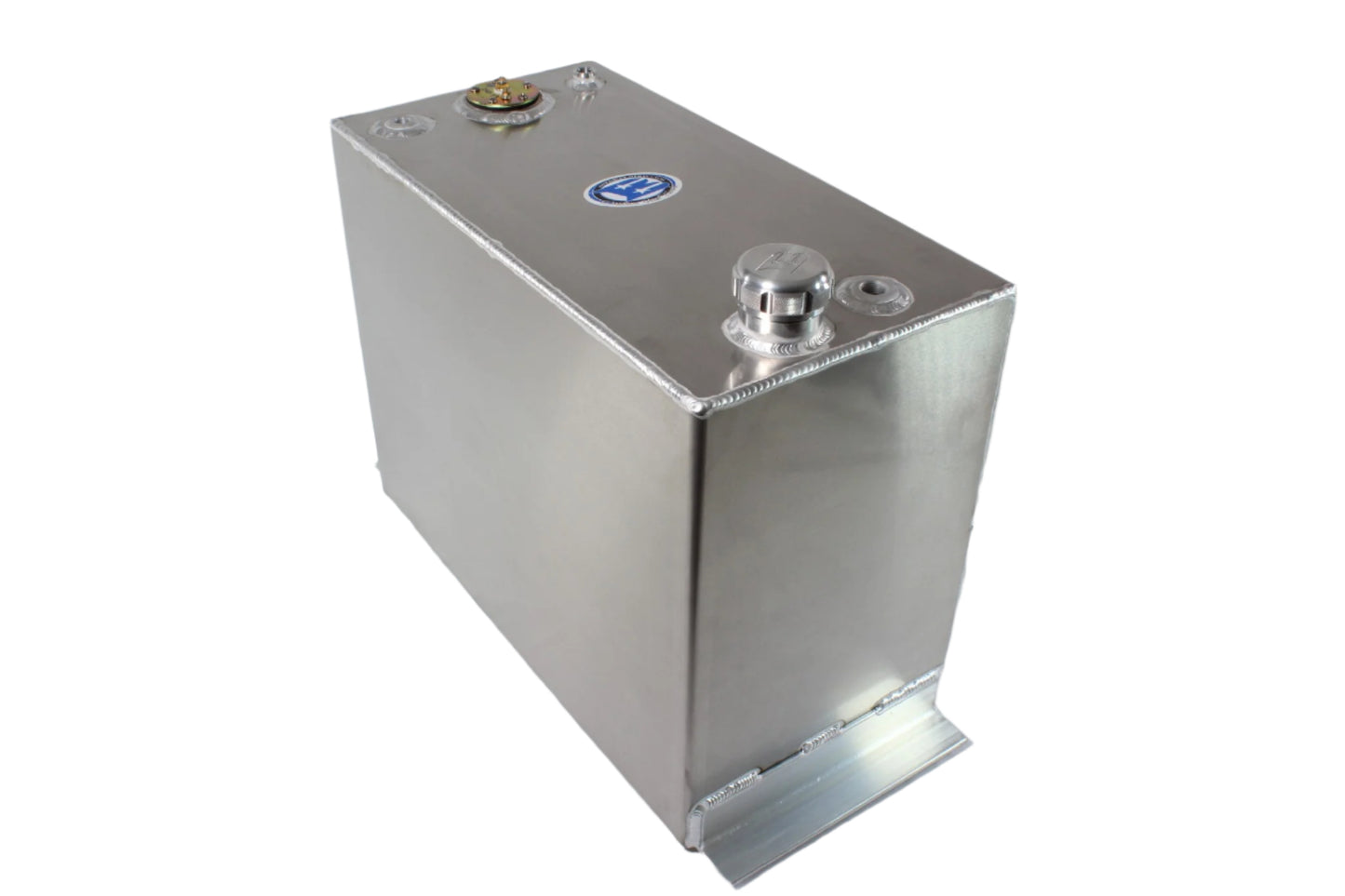

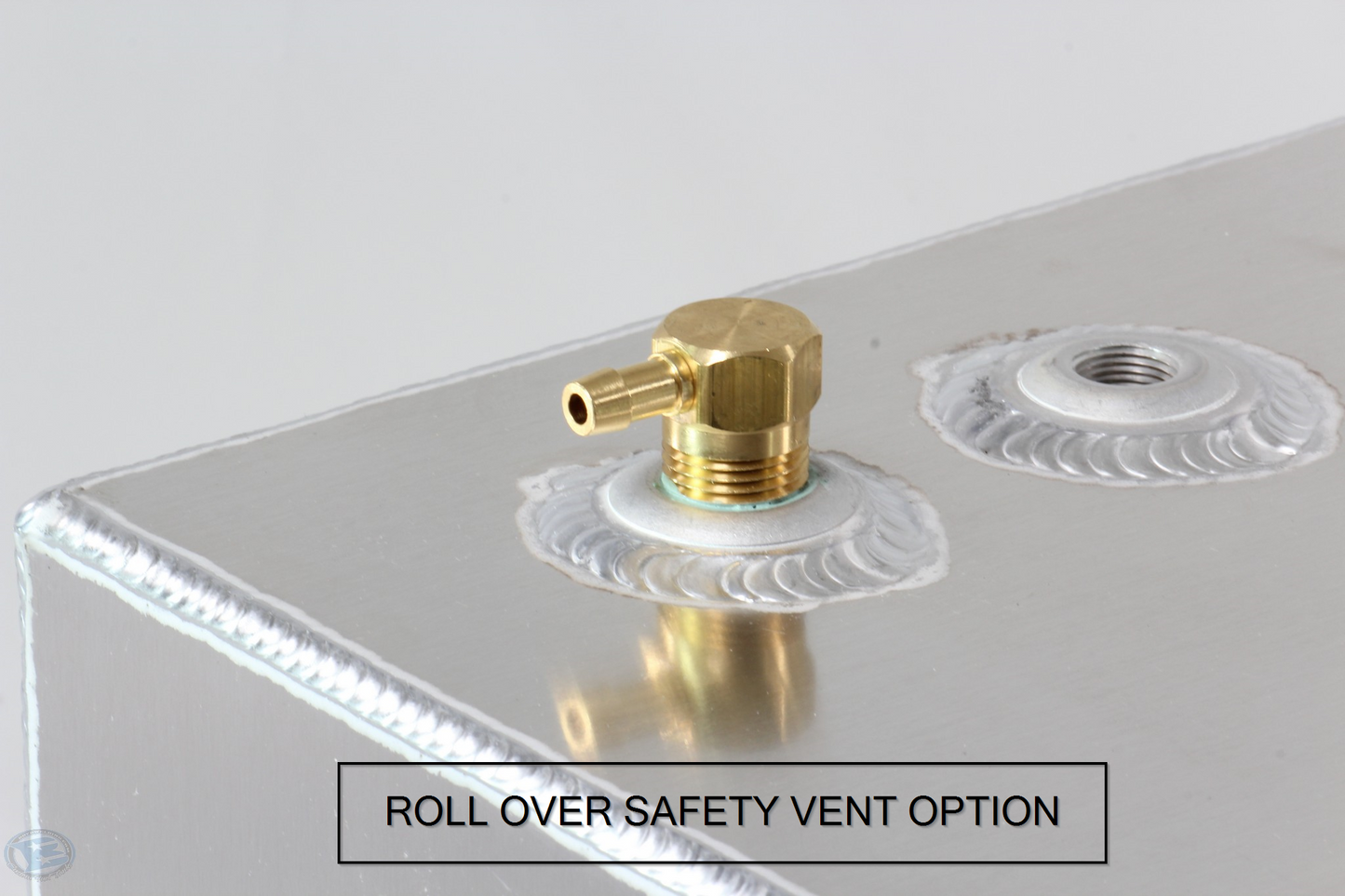

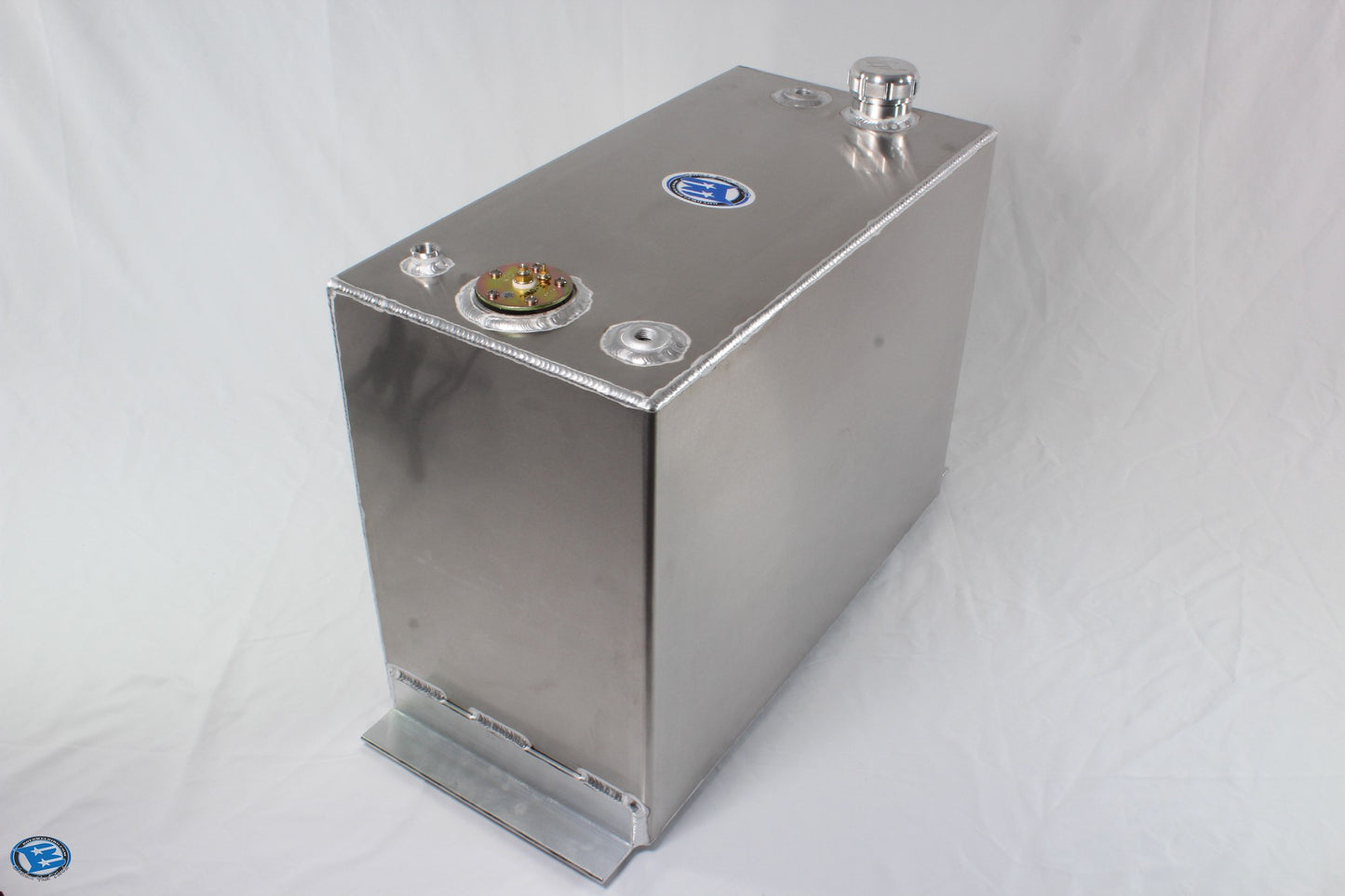

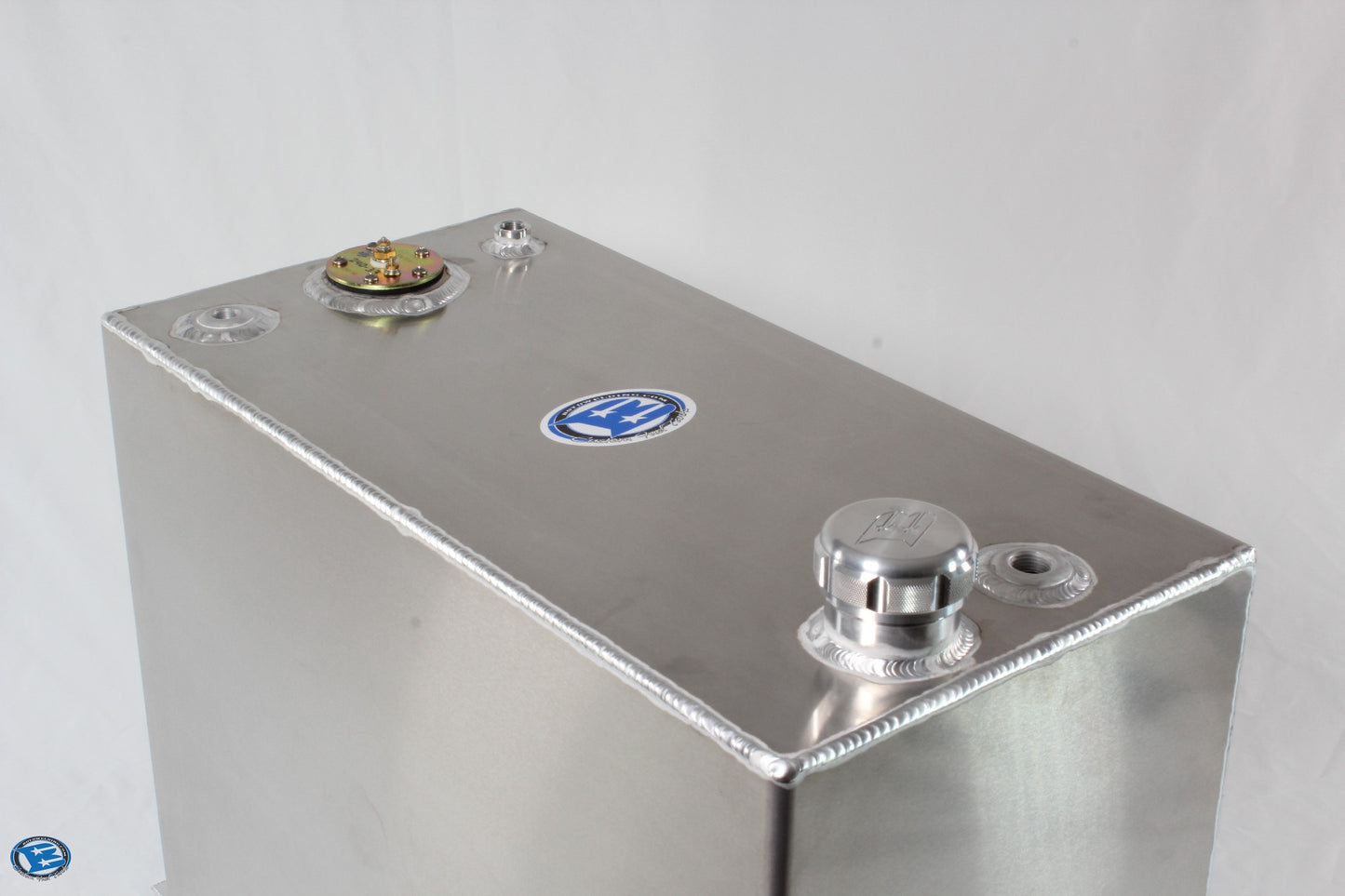

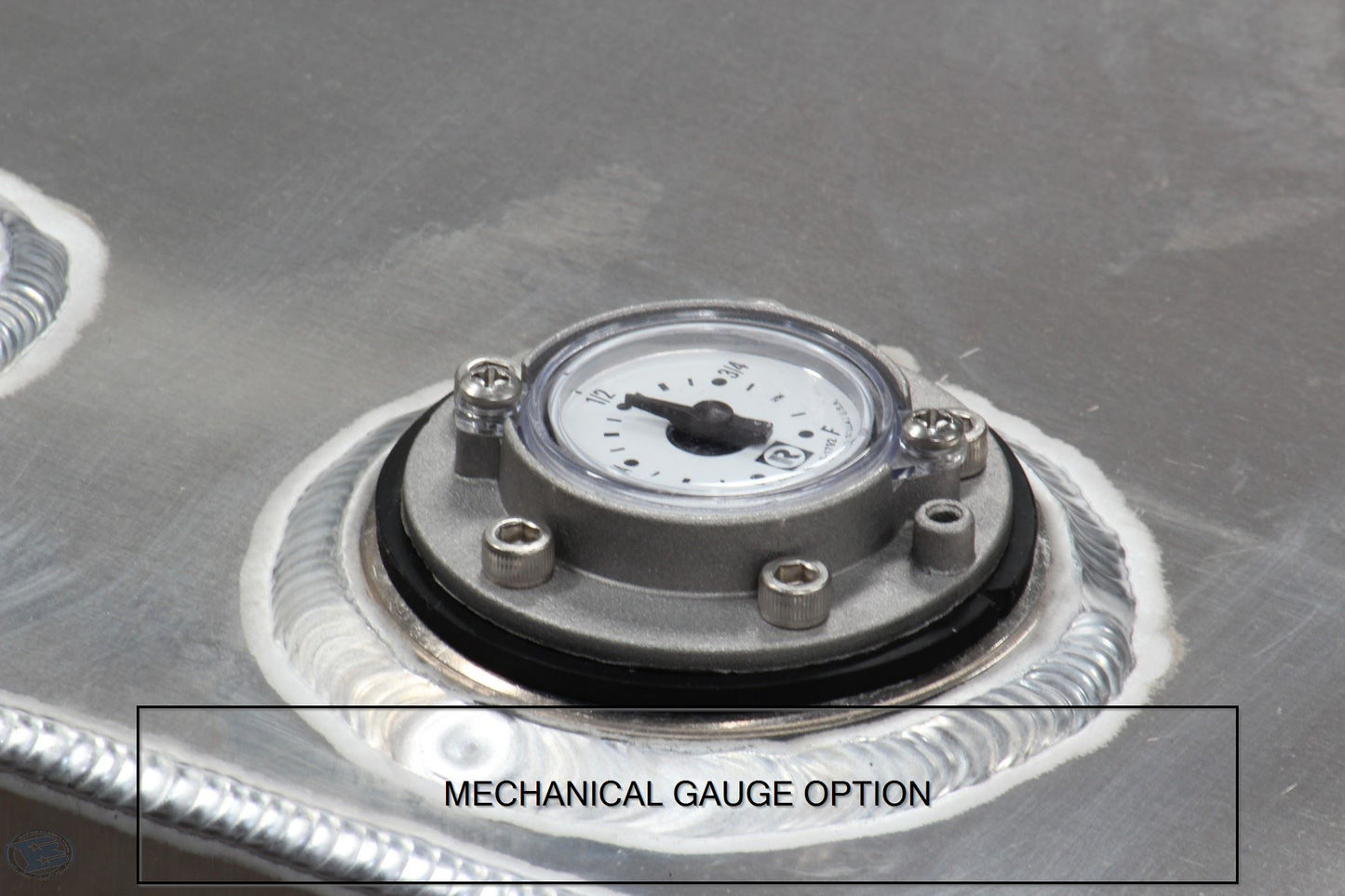

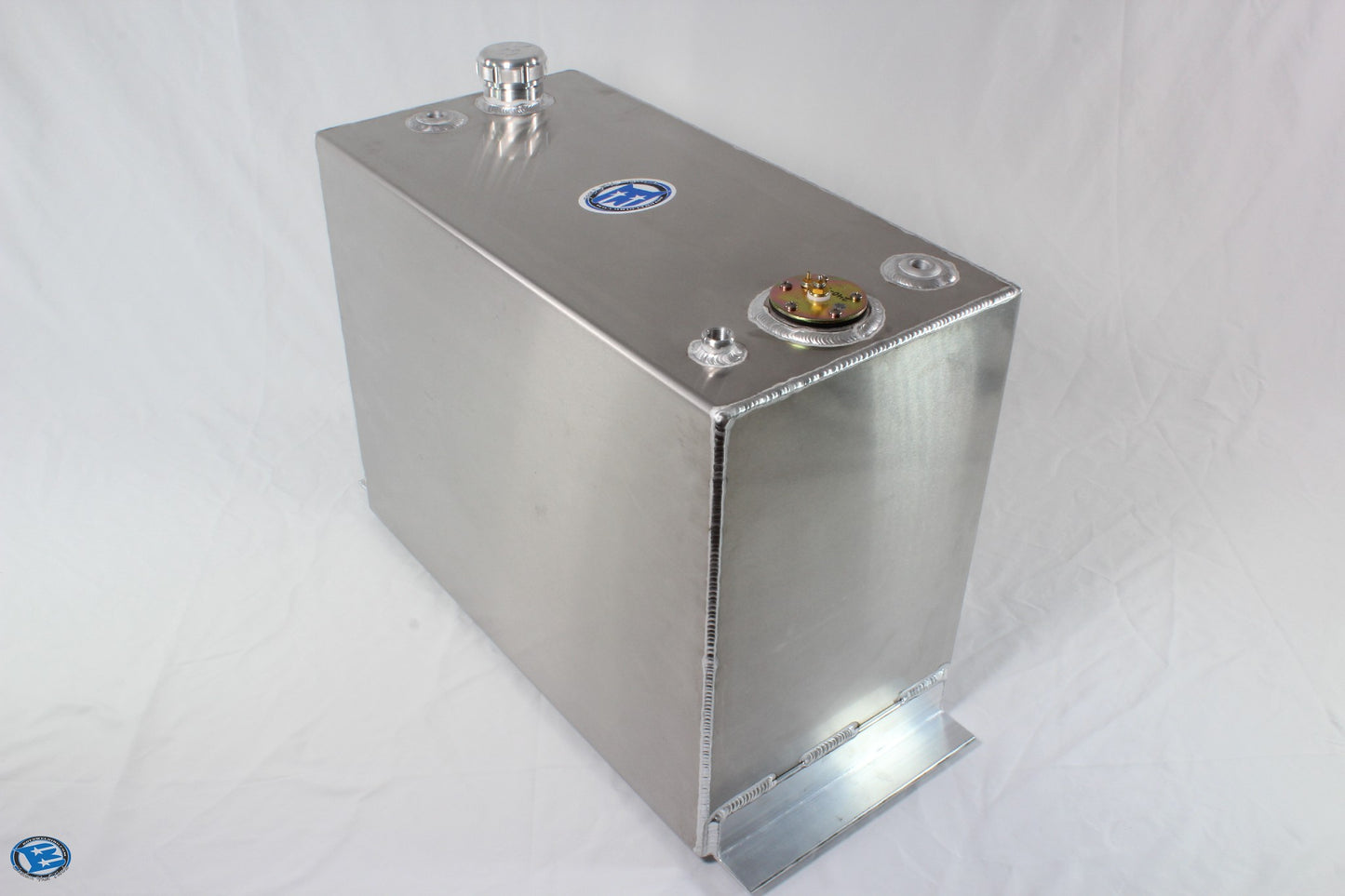

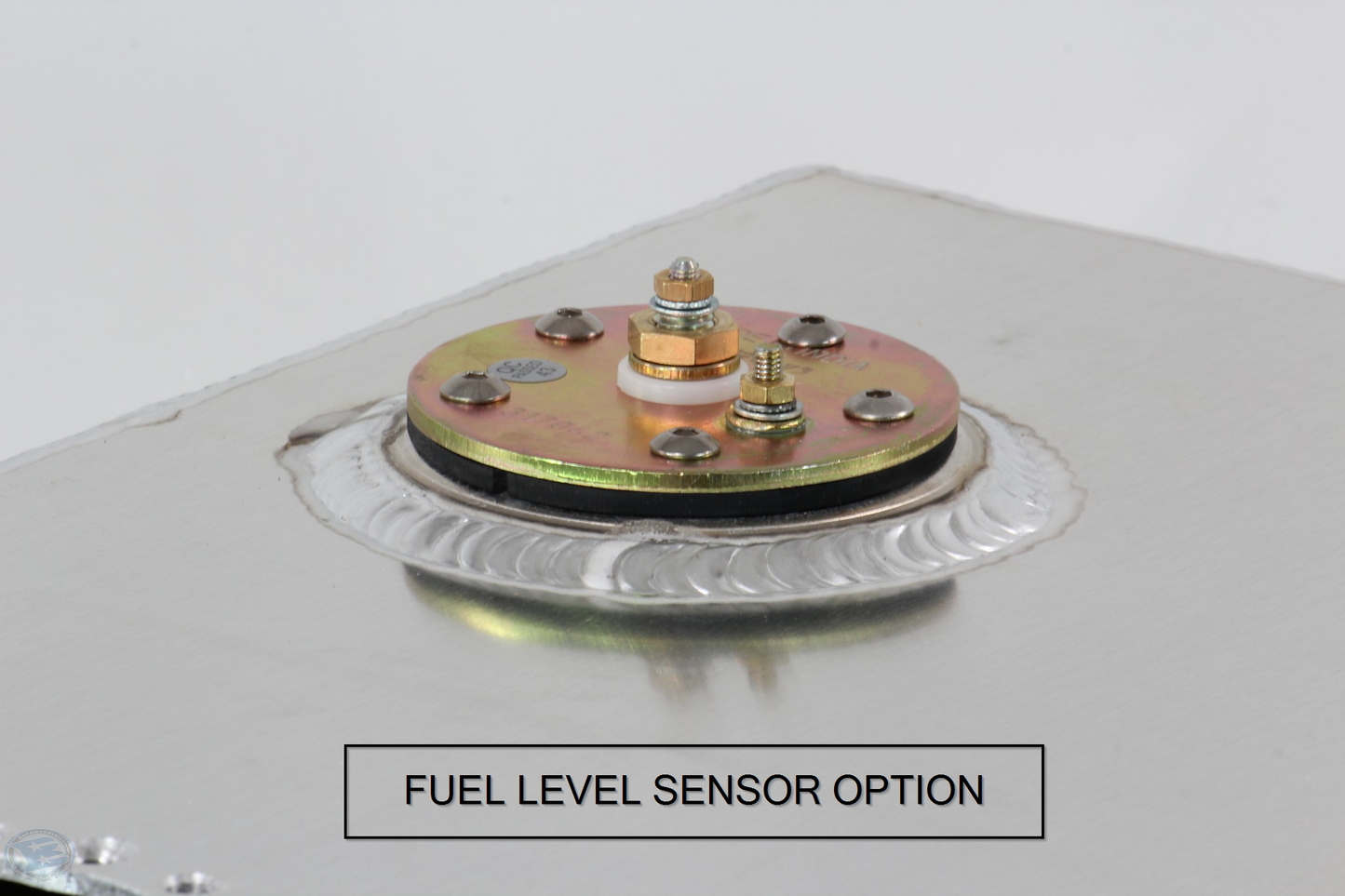

*Pictures show optional Level Sensor and Vent installed.
Tank Dimensions: 24 x 12 x 18
Tank Thickness: 1/8"
Material Grade: 5052 Mill Aluminum
Approx Weight: 33 lbs
Tank Baffles: No

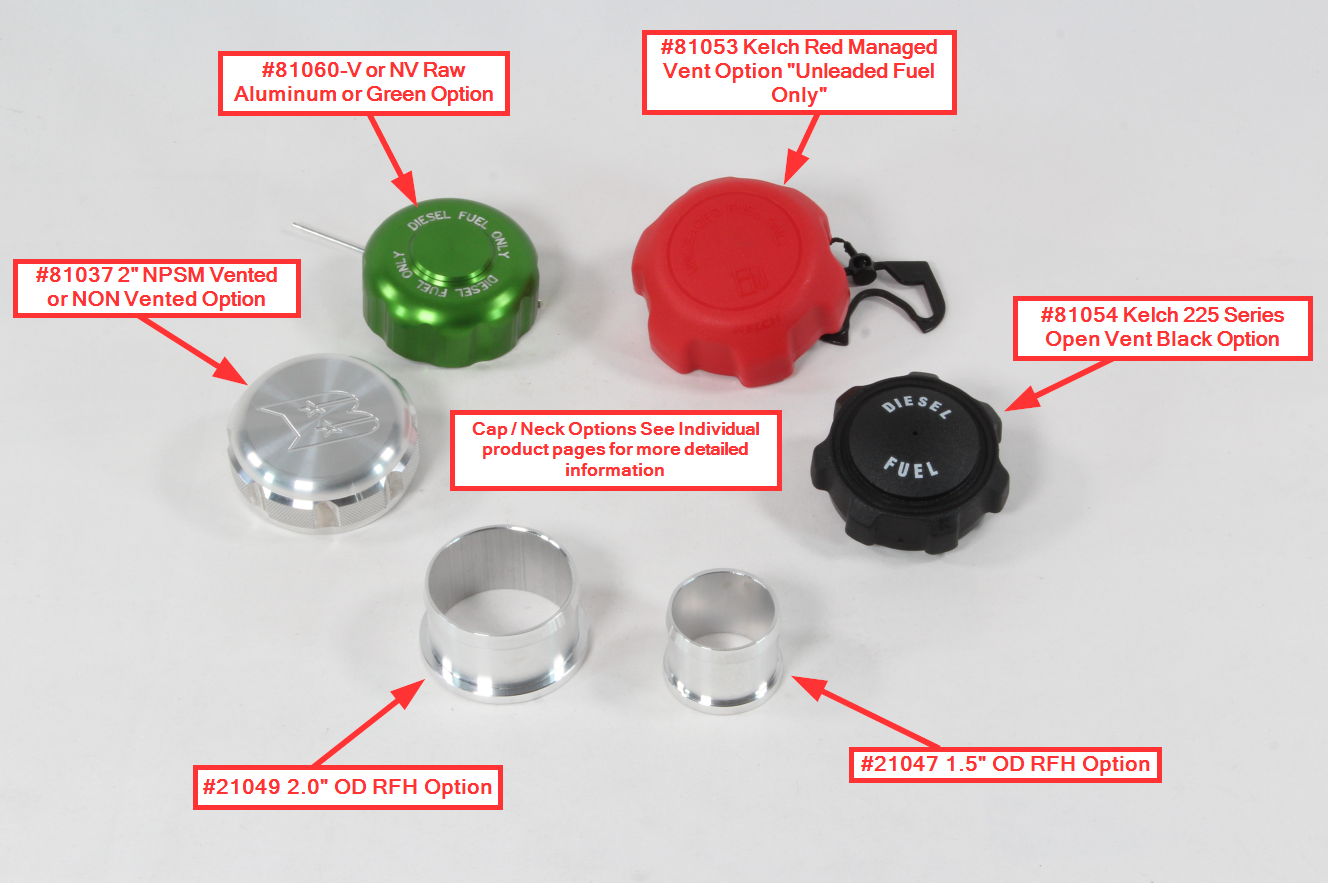

Fill Cap: NON Vented Twist Cap
Vent: 1/2" NPT
Draw: 3/8" NPT Pickup Tube
Return: 3/8" NPT
Drain: No

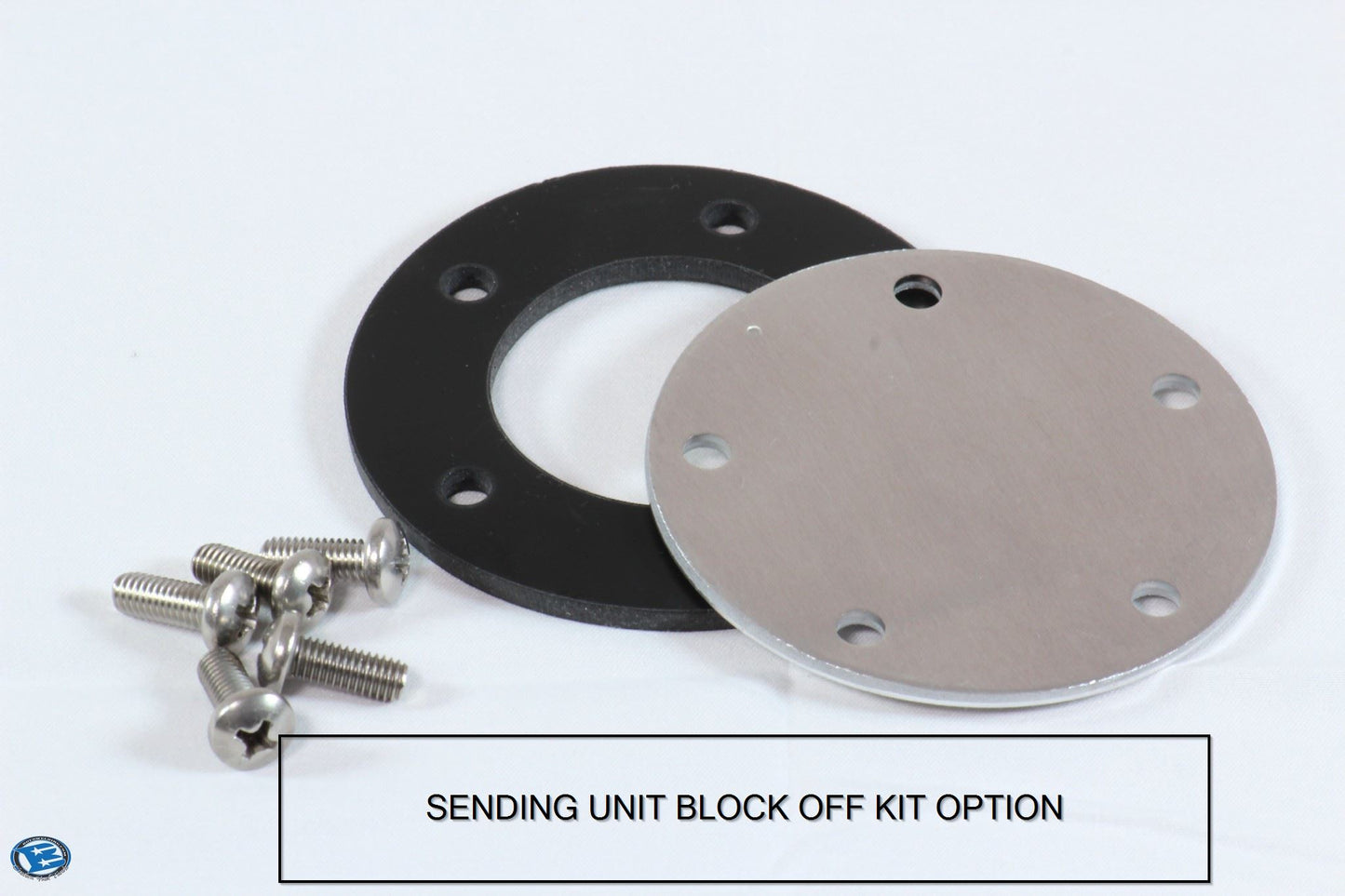

Sending Unit Flange: Yes
Mounting Tabs: (2) 2 x 2 x 11" Long

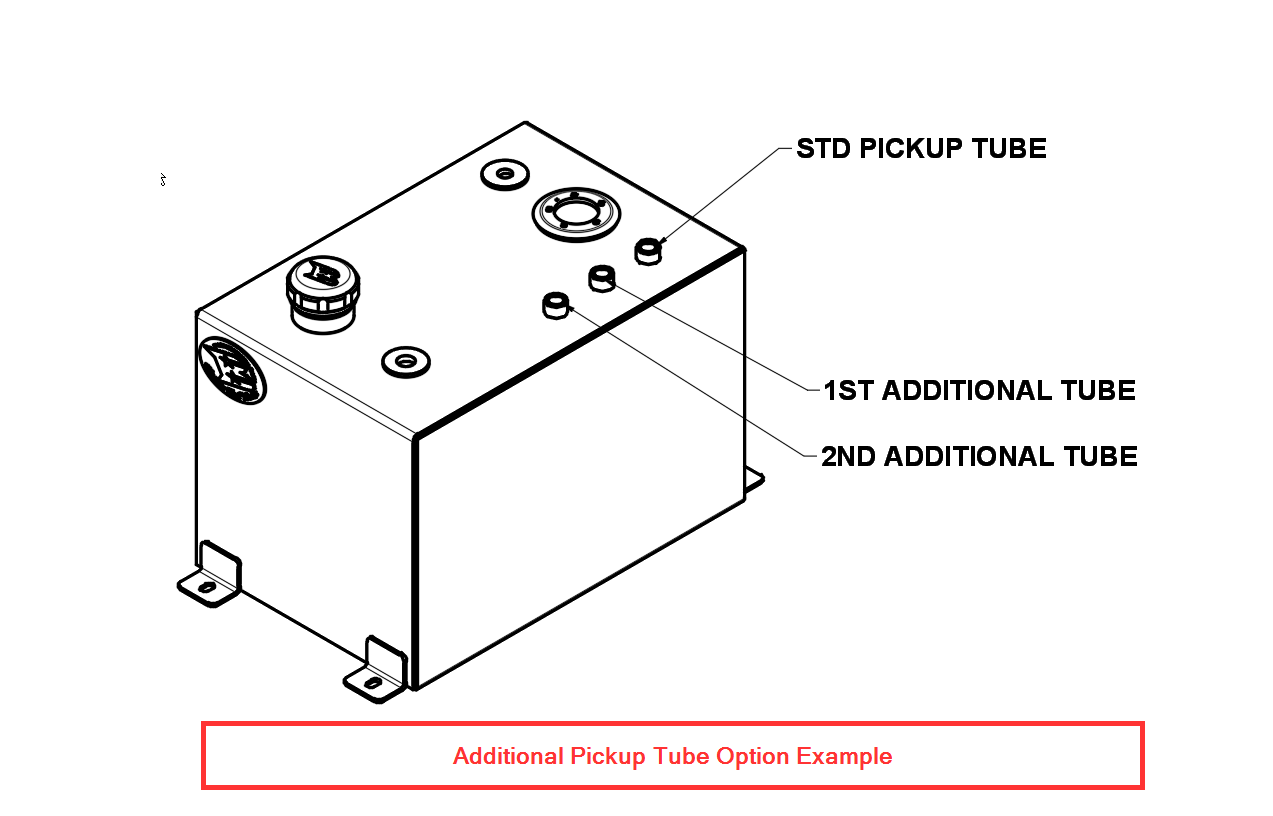

This tank comes standard with 1 pickup tube installed. You can add ADDITIONAL pickup tubes via the option drop downs. If you don't need additional pickup tubes then you choose "no additional pickup tube"
You will need to supply threaded fittings, plugs and hardware to complete your install based on your unique application.
