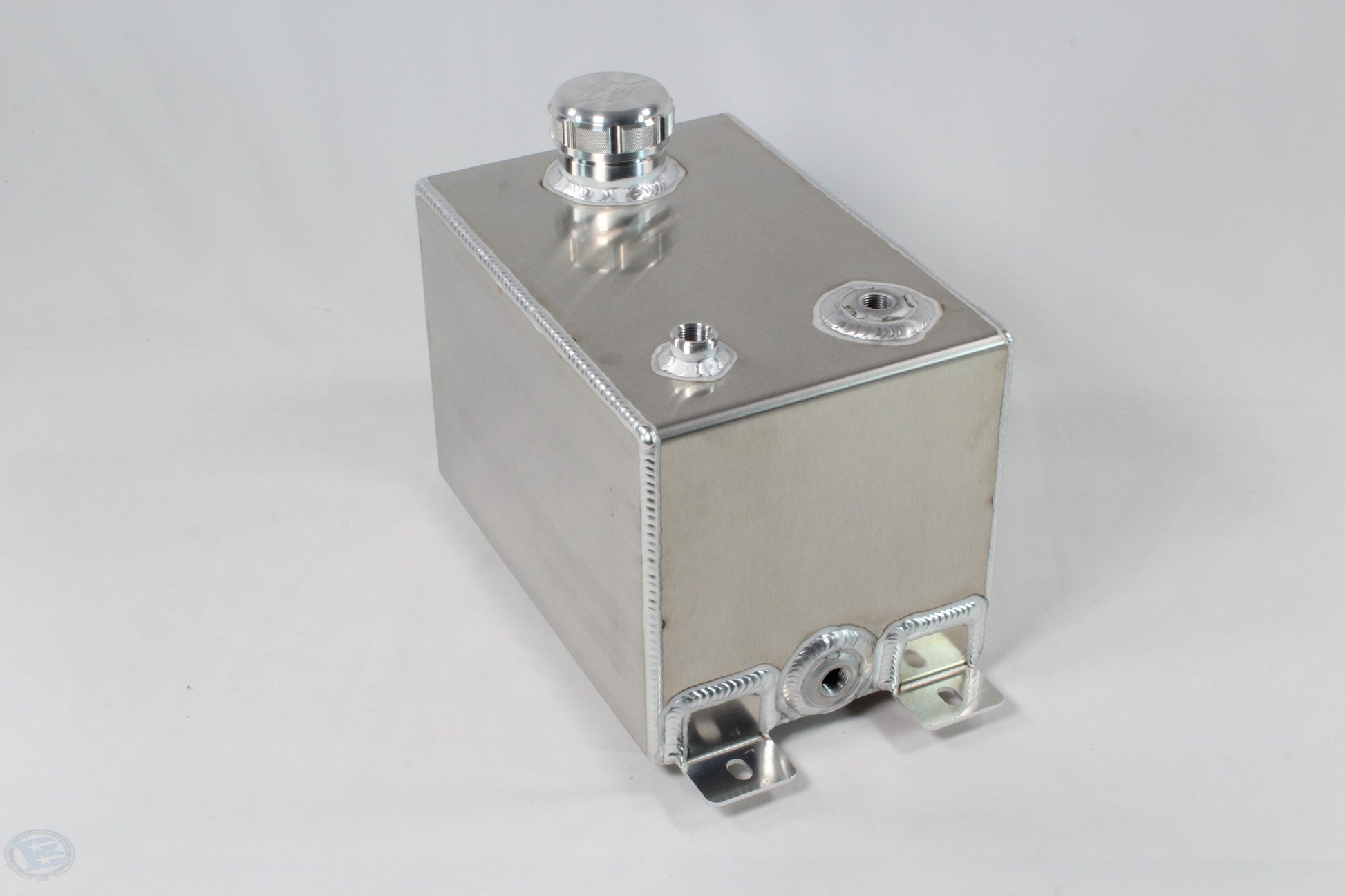

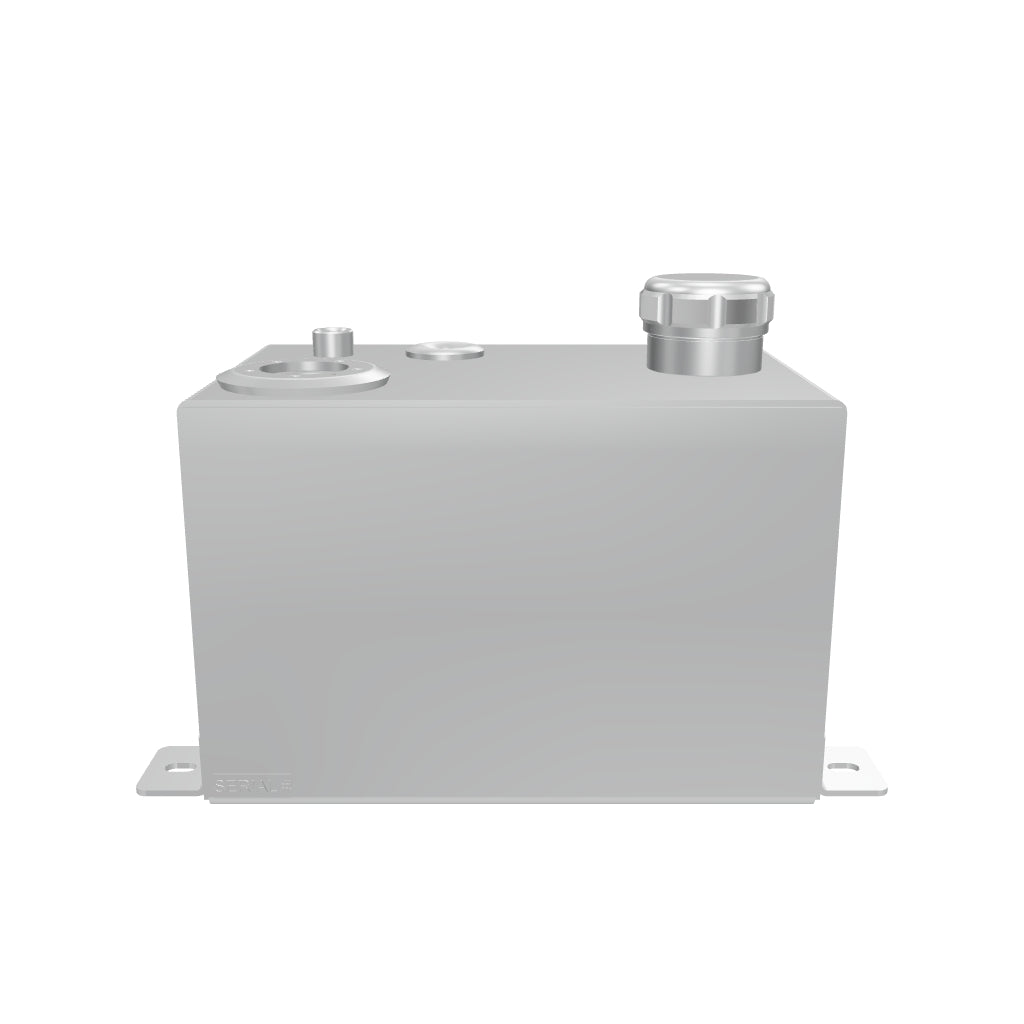

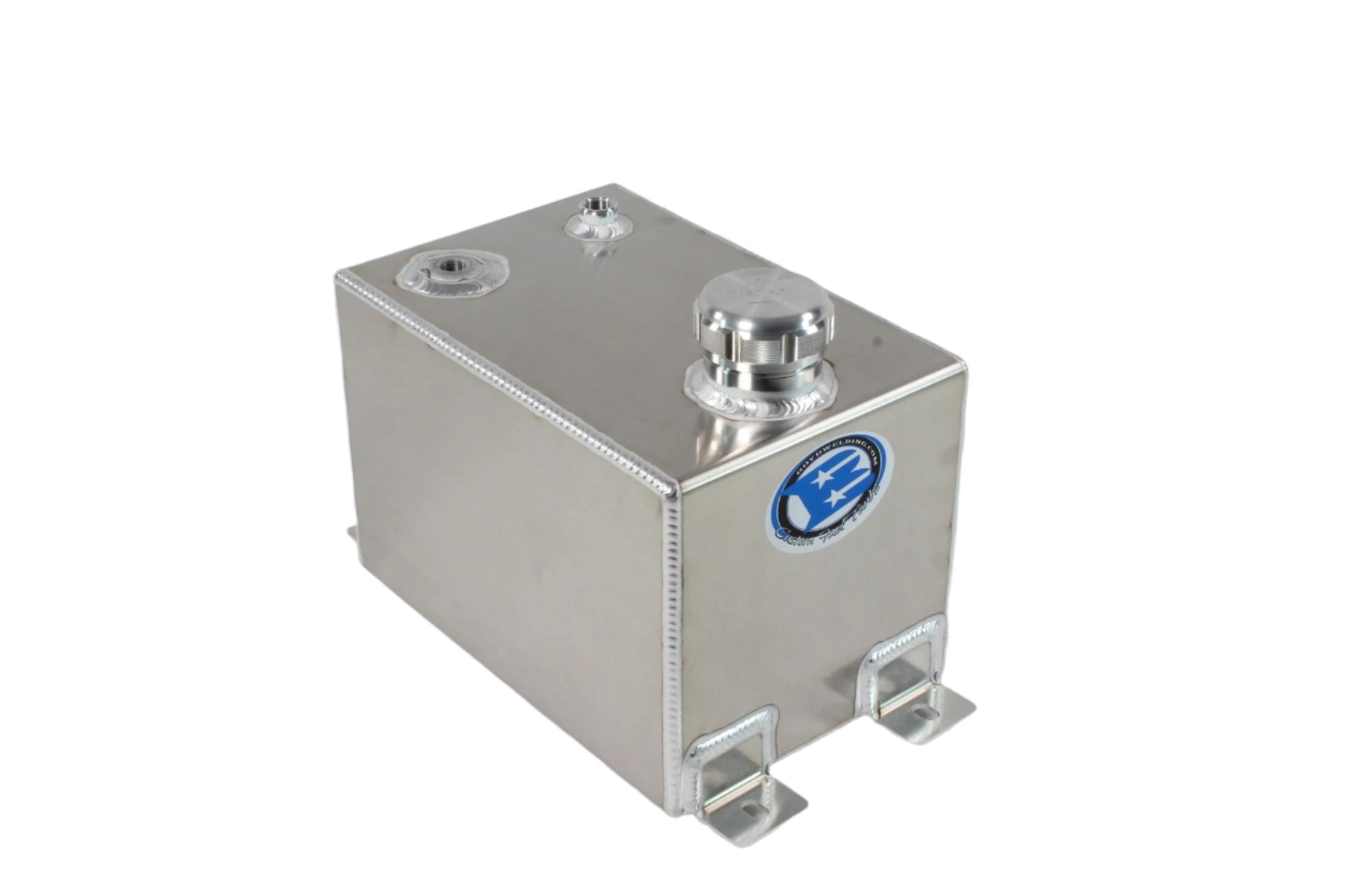

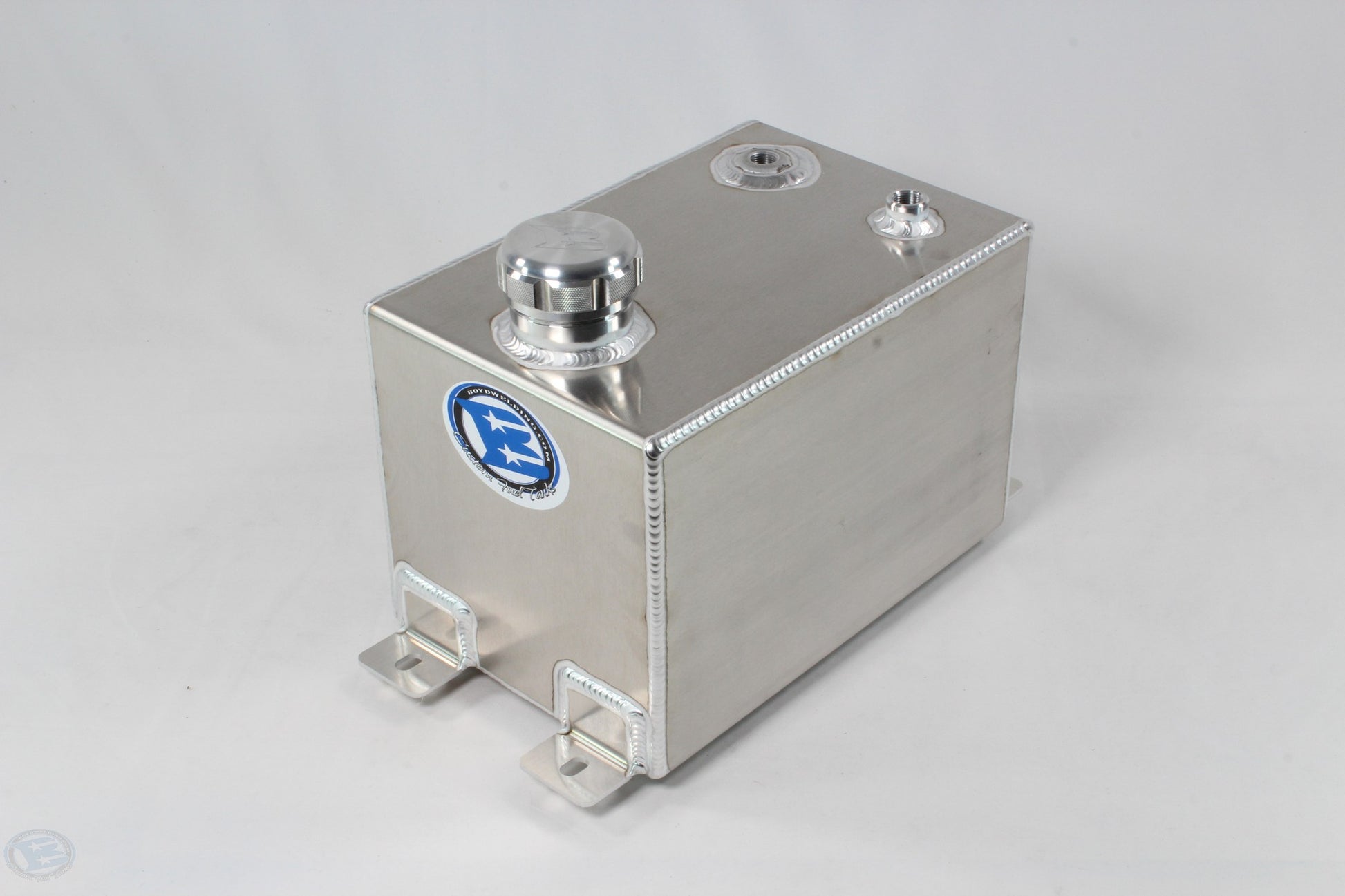

3 Gallon 12x8x8 Aluminum Tank

3 Gallon 12x8x8 Aluminum Tank

Availibilty : Ships in 2-4 Weeks or Less

11017

$141.24
$0.00 $141.24
Sale Sold out
Shipping calculated at checkout.

Tank Dimensions: 12"L x 8"W x 8"H

Tank Footprint: 15" x 8"
Tank Overall Height W/CAP: 10"
Tank Thickness:  1/8"
Material Grade: 5052 Mill Aluminum
Approx Weight: 8 LBS
Tank Baffles: NO

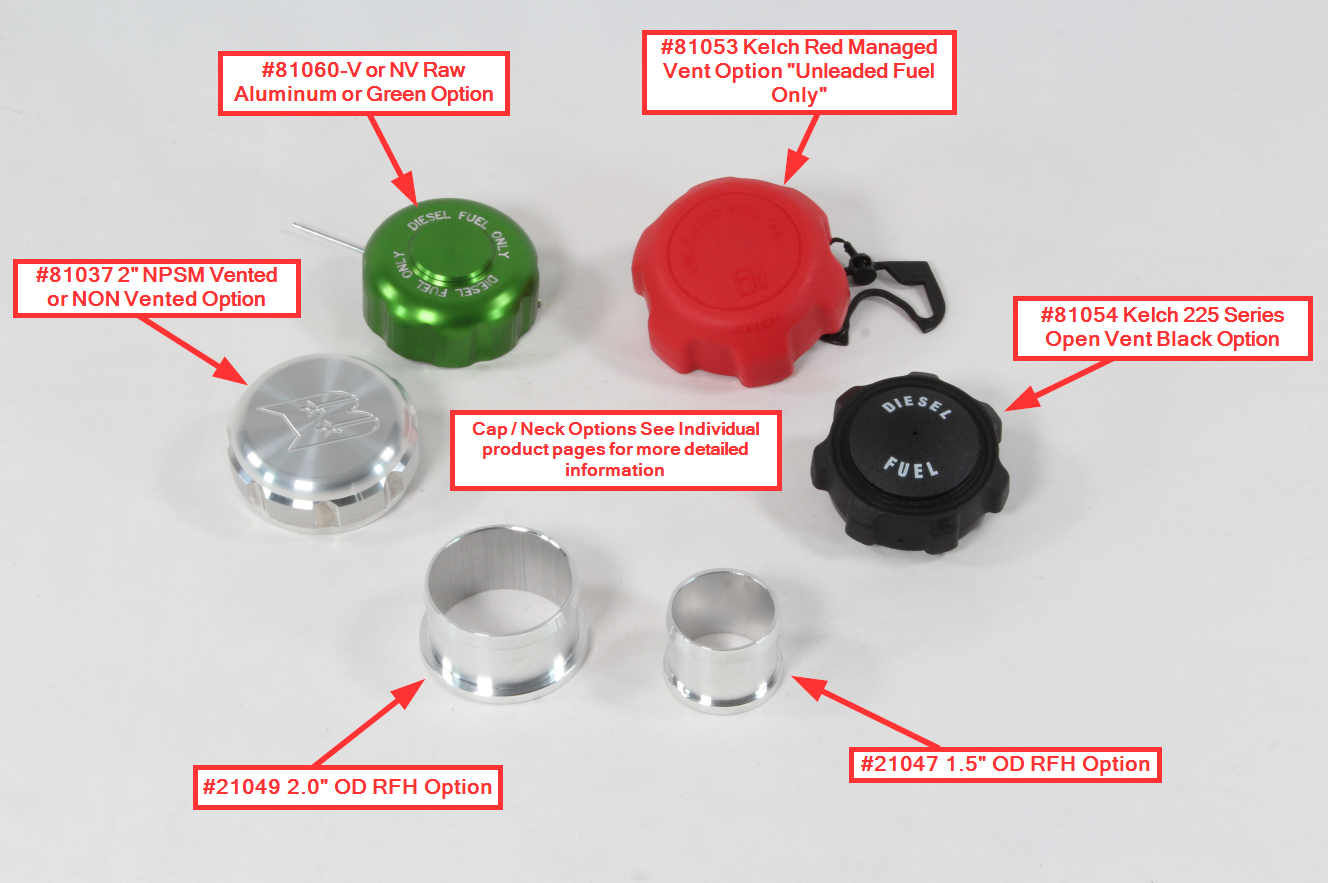

Fill Cap: Based On Selection
Vent: Cap
Draw: 3/8" NPT Pickup Tube
Return: 3/8" NPT
Drain: Yes 3/8 NPT
Mounting Tabs: (4) 1.5" x 1.5" x 2" Angle

You will need to supply threaded fittings, plugs and hardware to complete your install based on your unique application.

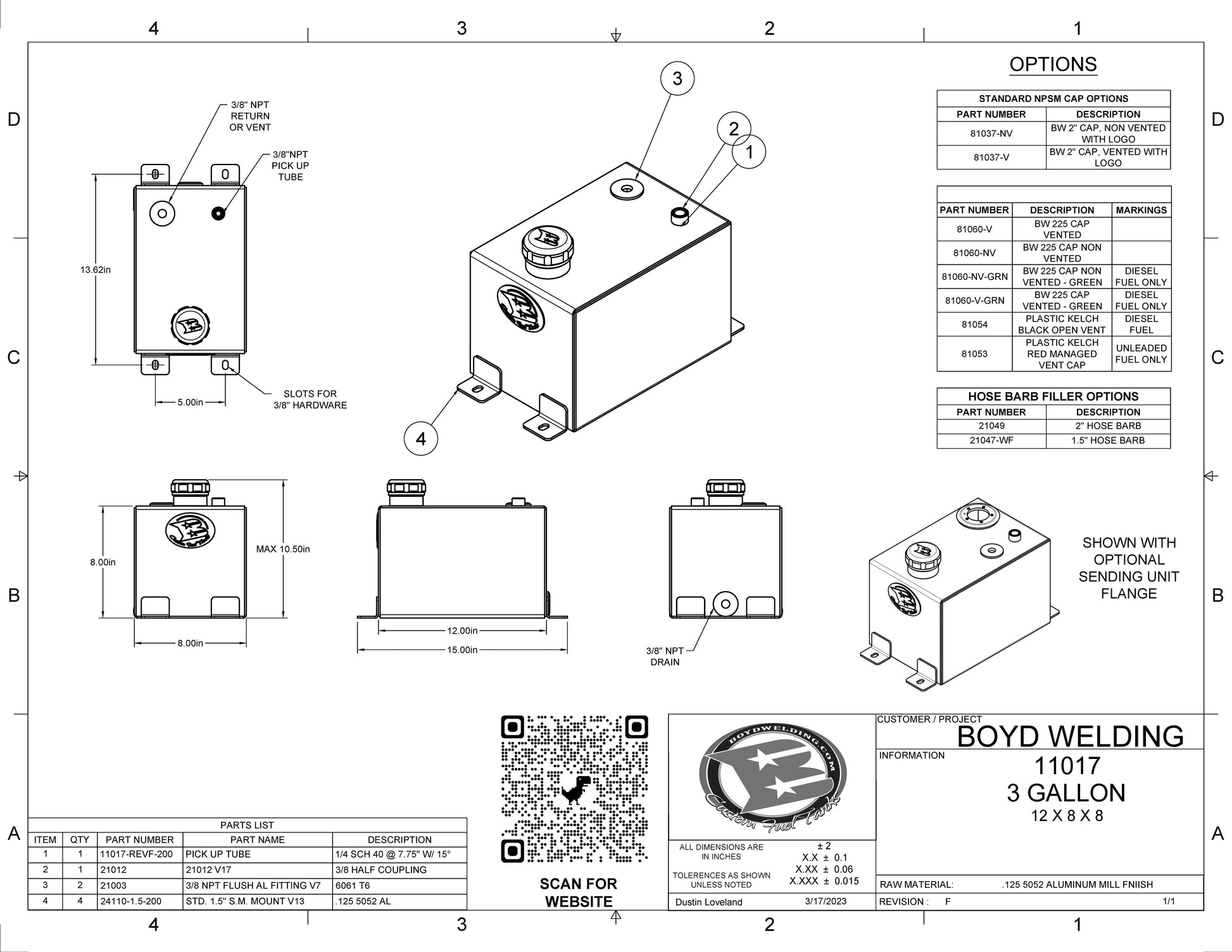

Download Reference Drawing Here
