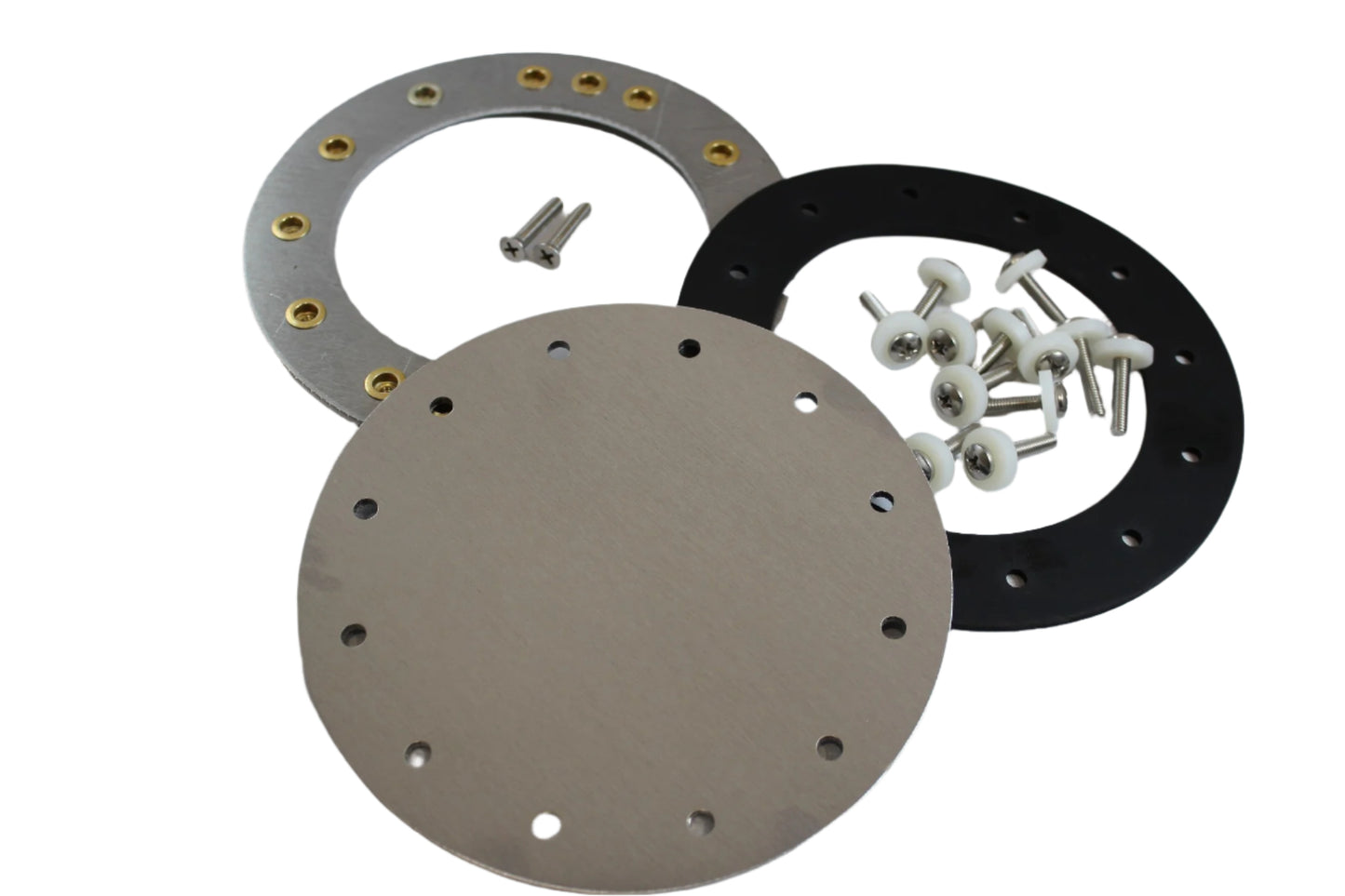

This cleanout is perfect for many applications where access to a tank is needed for cleanout or inspection. These are best used on flat firm surfaces and will create a tight seal without any type of sealants as long as there is not any distortion of the tank surface, upper plate or loose screws.
it has come to our attention that many customers are utilizing this kit for a more economical repair to the Kubota BX series tractor tanks. You must be aware, we did not design this kit for this application, have not performed this repair ourselves. This kit may not be appropriate for this application it is 100% up to you, the customer, to determine if this kit and its components are appropriate. Our guarantee is only that we will ship the components as shown. We DO NOT GUARANTEE that you can create an appropriate seal in your application.
Material: 5052 Aluminum
OD: 6.0"
ID: 4.0"
Bolt CL : 5.0"
Installed Height: .250 +/-
Threads: 10-32 Zinc Plated Rivnut
Hardware Included: YES 10-32 Stainless hardware w Nylon Washers.
Gasket: YES - FKM Viton
Cover Plate Thickness: .125" (1/8")
Bolt in Assembly, No Welding needed.

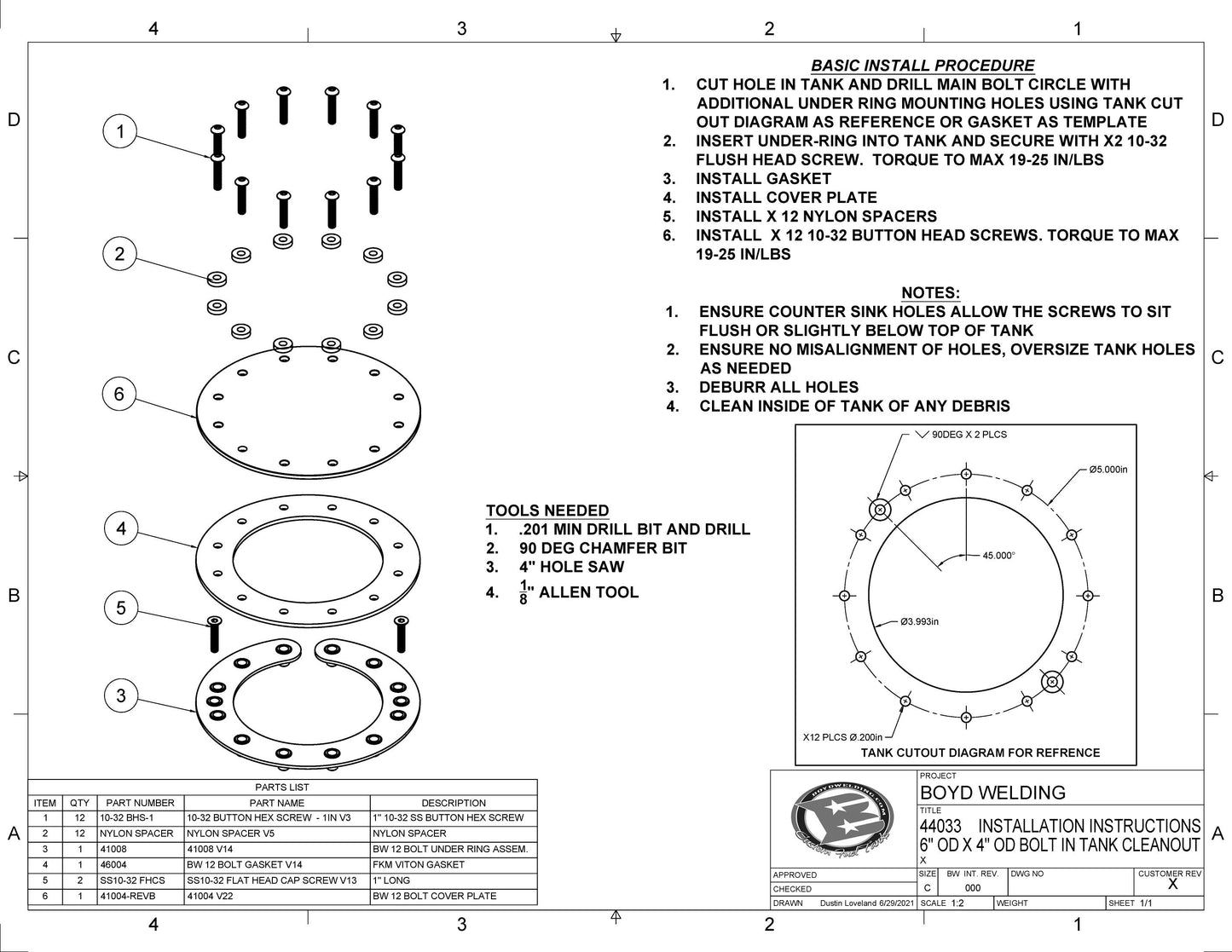

Will work with any type of tank, Aluminum, Plastic, Steel or Stainless. Installation Tip: Use the Gasket as a template to trace the bolt pattern and center hole cut if laying out manually.
Top-notch materials in workmanship; well worth the money; would suggest cap socket screws might be better than the rounded top socket screw; if you take your time and measure everything out, it will work just great; I do wish that they would have included a full size template to mark the opening in the school holes.
S
Scott
Used on my BX23s
Very easy install. Used cover and internal split ring to lay out the cut. Came out perfect.
J
James Wondra
Aluminum 6"OD x 4"ID Bolt In Tank Clean Out Access Plate
