This cleanout is perfect for many applications where access to a tank is needed for cleanout or inspection. These are best used on flat firm surfaces and will create a tight seal without any type of sealants as long as there is not any distortion of the tank surface, upper plate or loose screws.
it has come to our attention that many customers are utilizing this kit for a more economical repair to the Kubota BX series tractor tanks. You must be aware, we did not design this kit for this application, have not performed this repair ourselves. This kit may not be appropriate for this application it is 100% up to you, the customer, to determine if this kit and its components are appropriate. Our guarantee is only that we will ship the components as shown. We DO NOT GUARANTEE that you can create an appropriate seal in your application.
Material: 5052 Aluminum
OD: 6.0"
ID: 4.0"
Bolt CL : 5.0"
Installed Height: .250 +/-
Threads: 10-32 Zinc Plated Rivnut
Hardware Included: YES 10-32 Stainless hardware w Nylon Washers.
Gasket: YES - FKM Viton
Cover Plate Thickness: .125" (1/8")
Bolt in Assembly, No Welding needed.

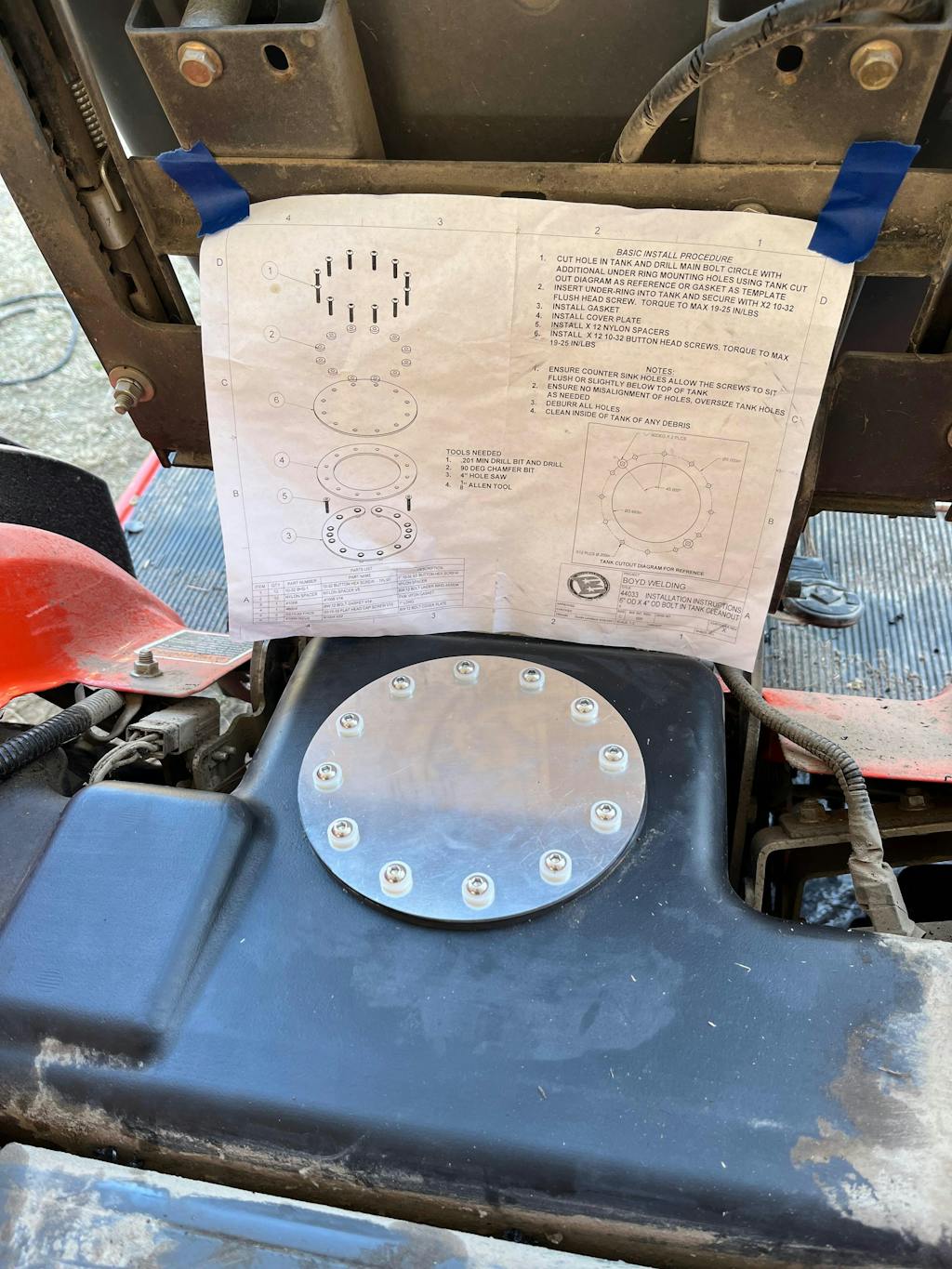

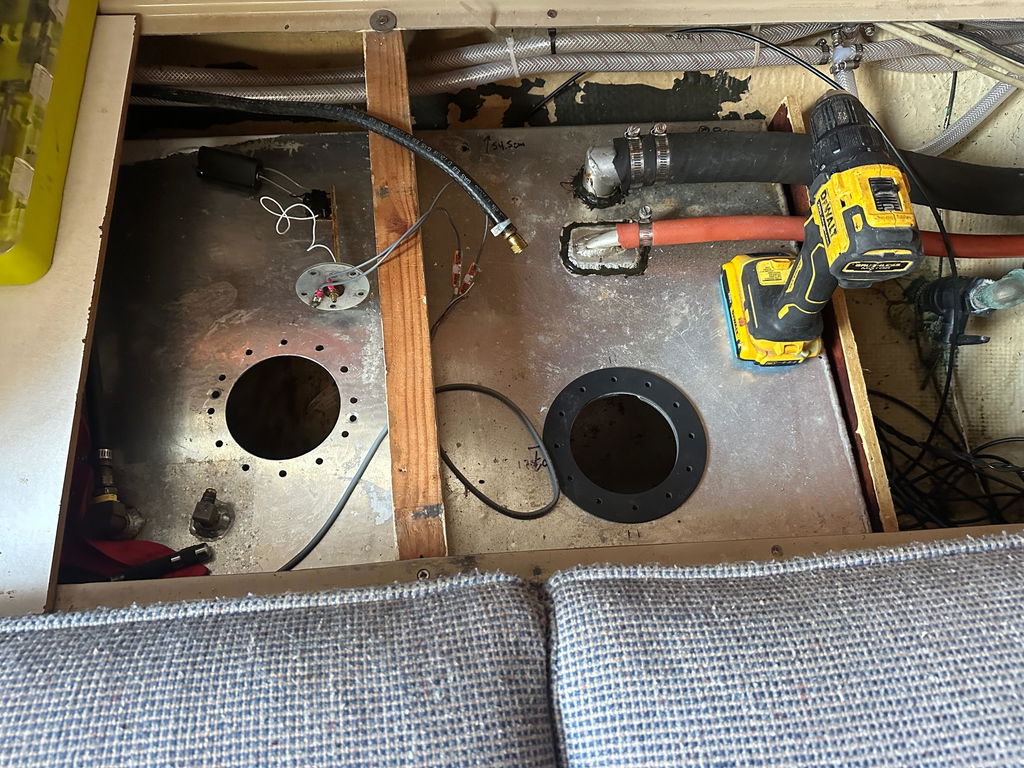

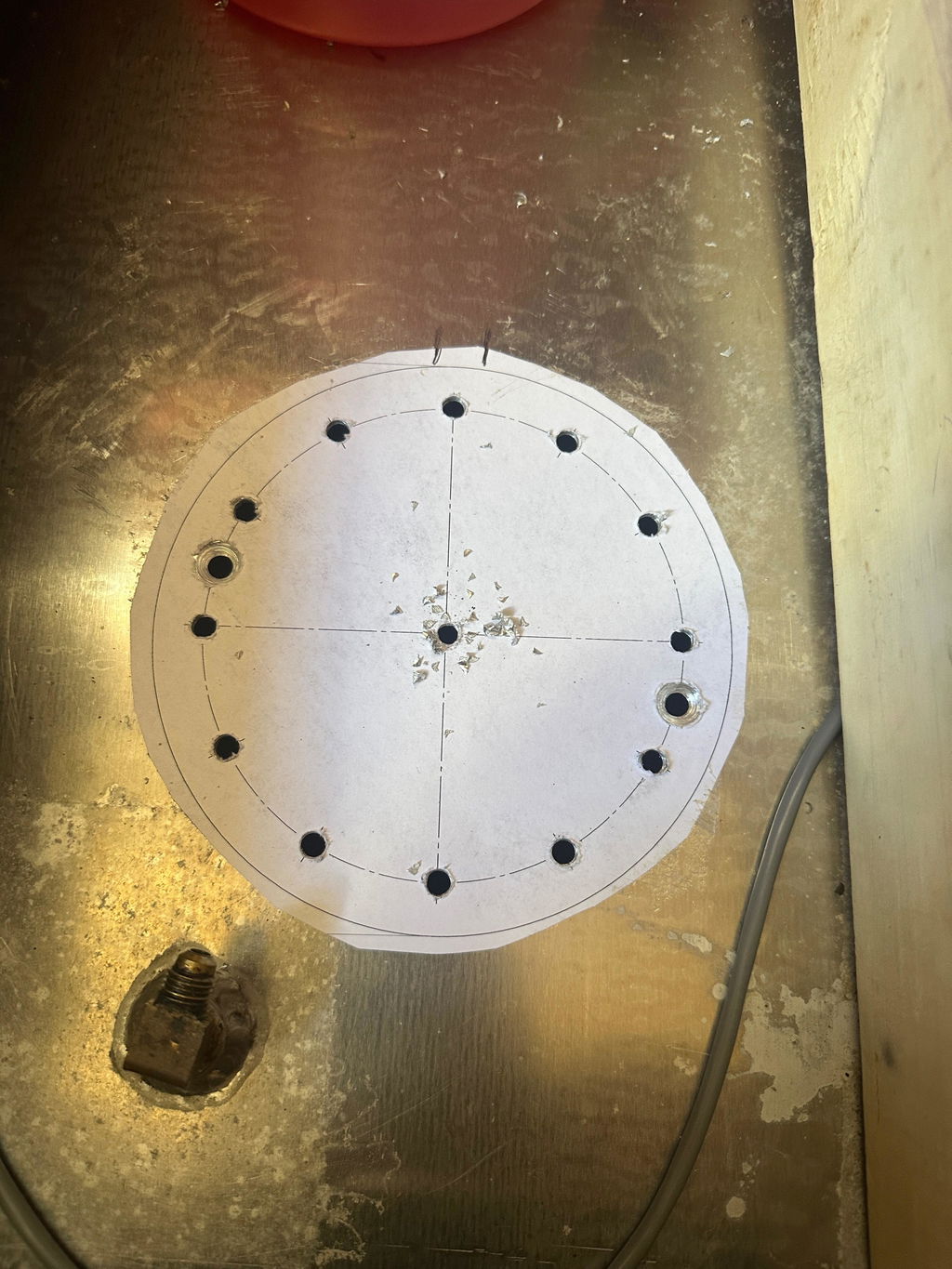

Will work with any type of tank, Aluminum, Plastic, Steel or Stainless. Installation Tip: Use the Gasket as a template to trace the bolt pattern and center hole cut if laying out manually.

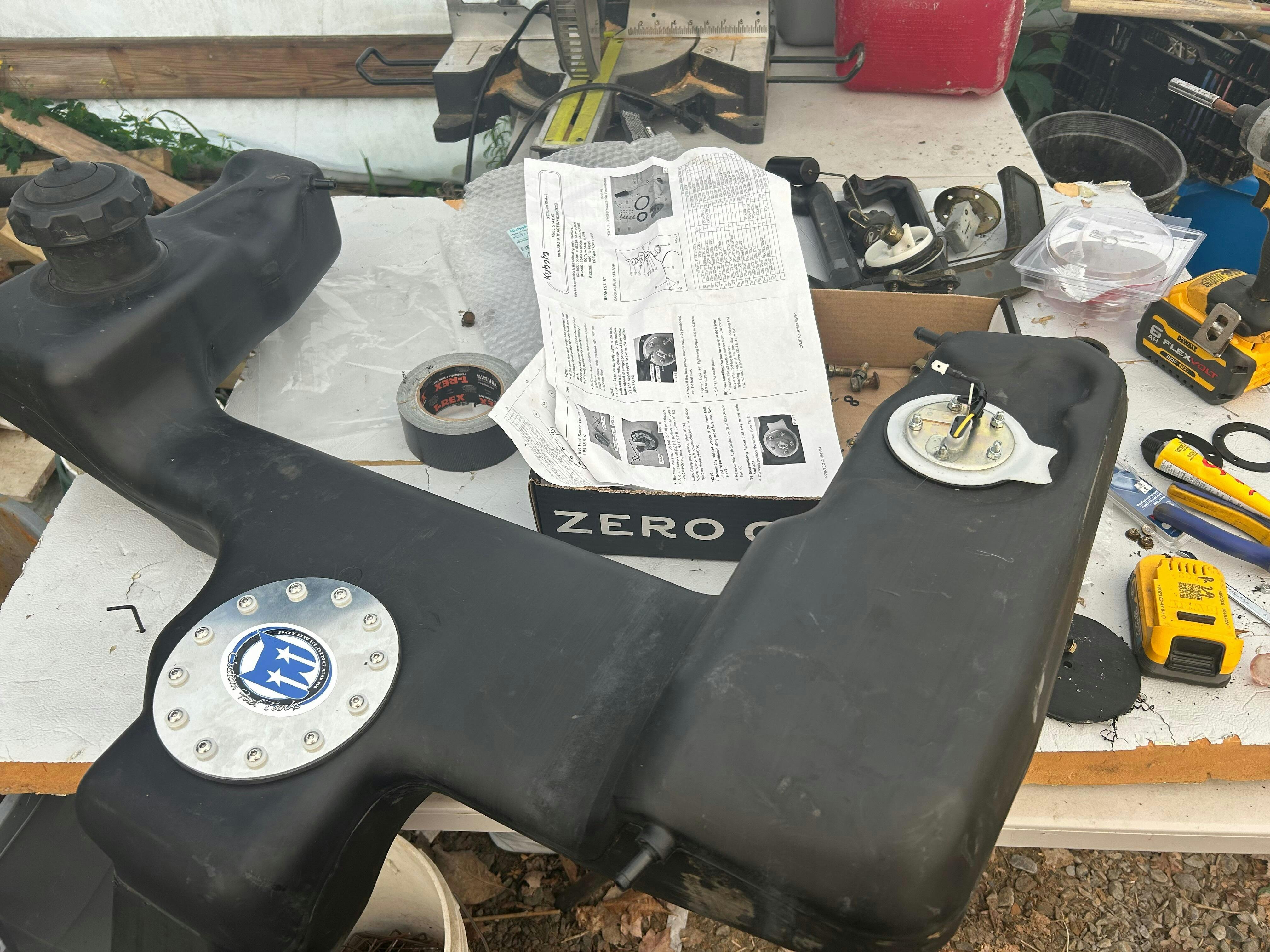

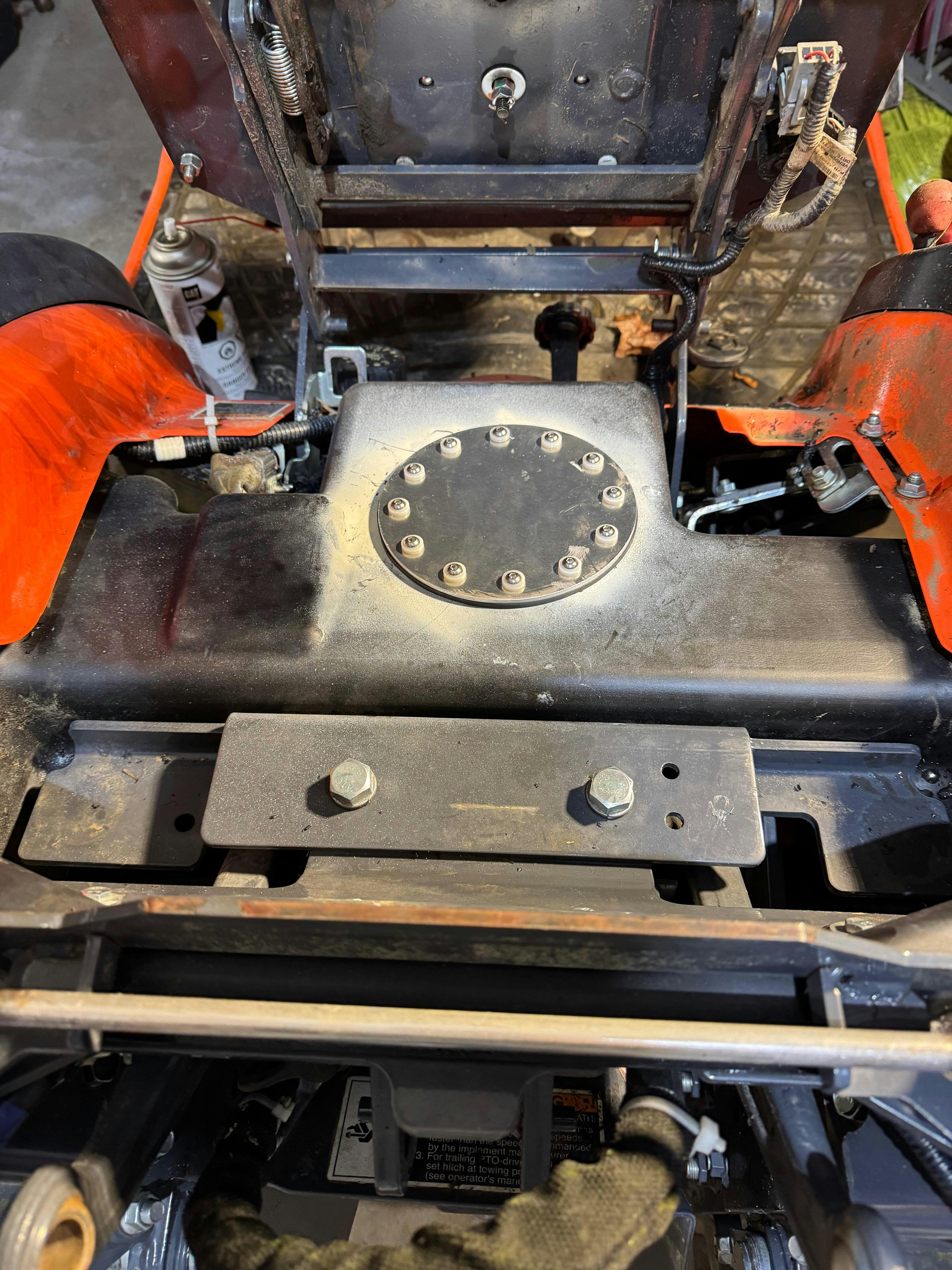

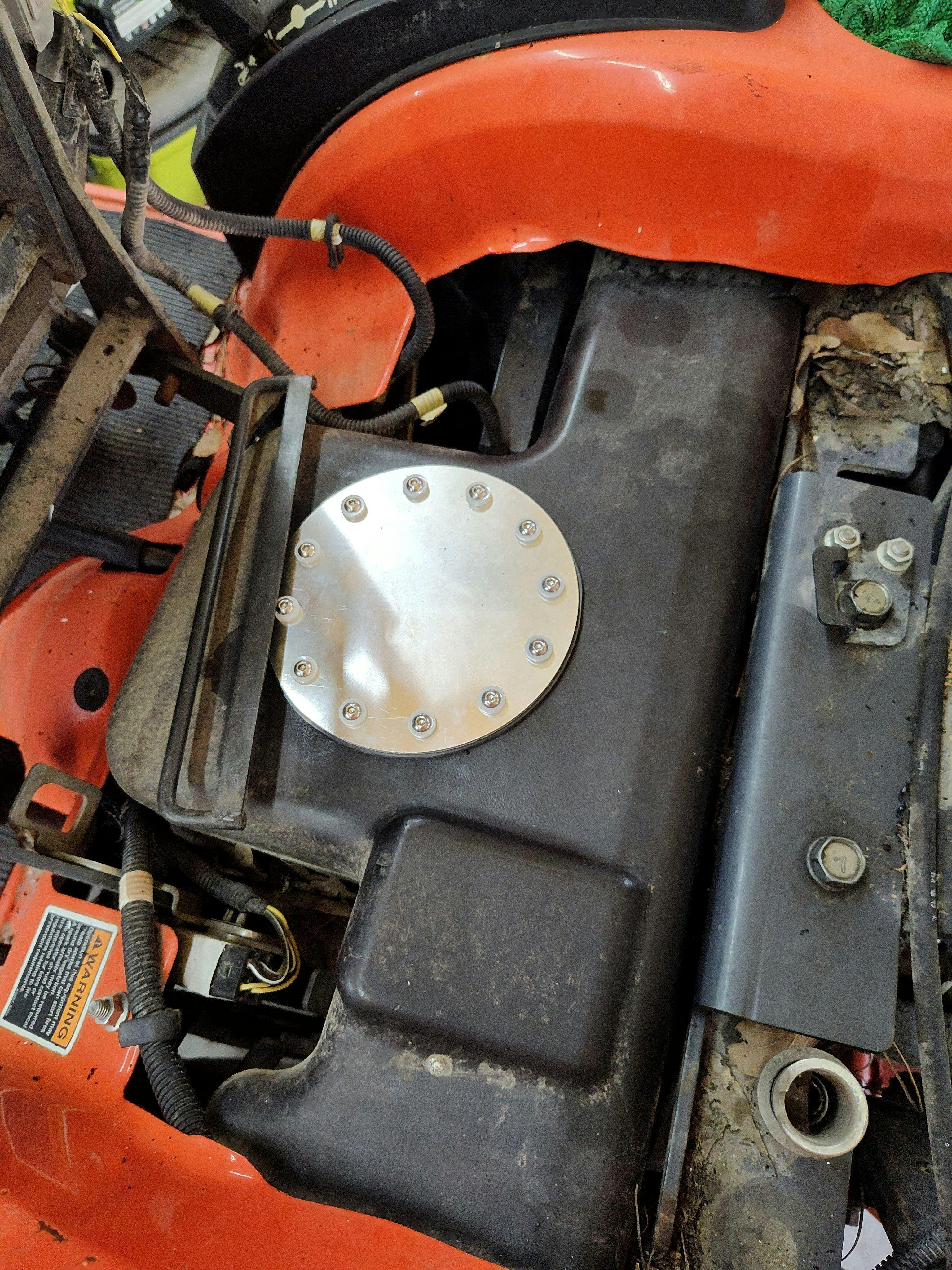

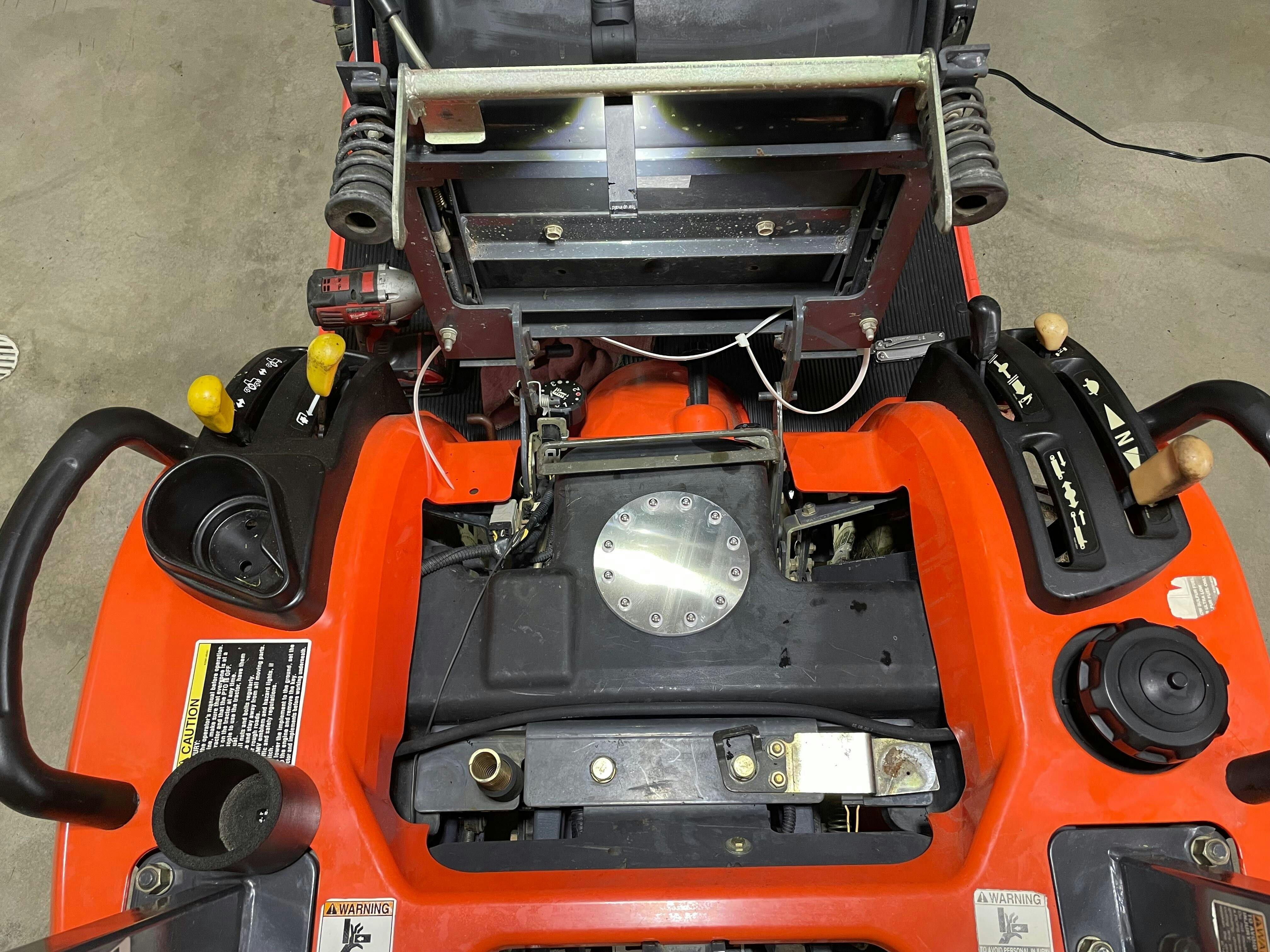

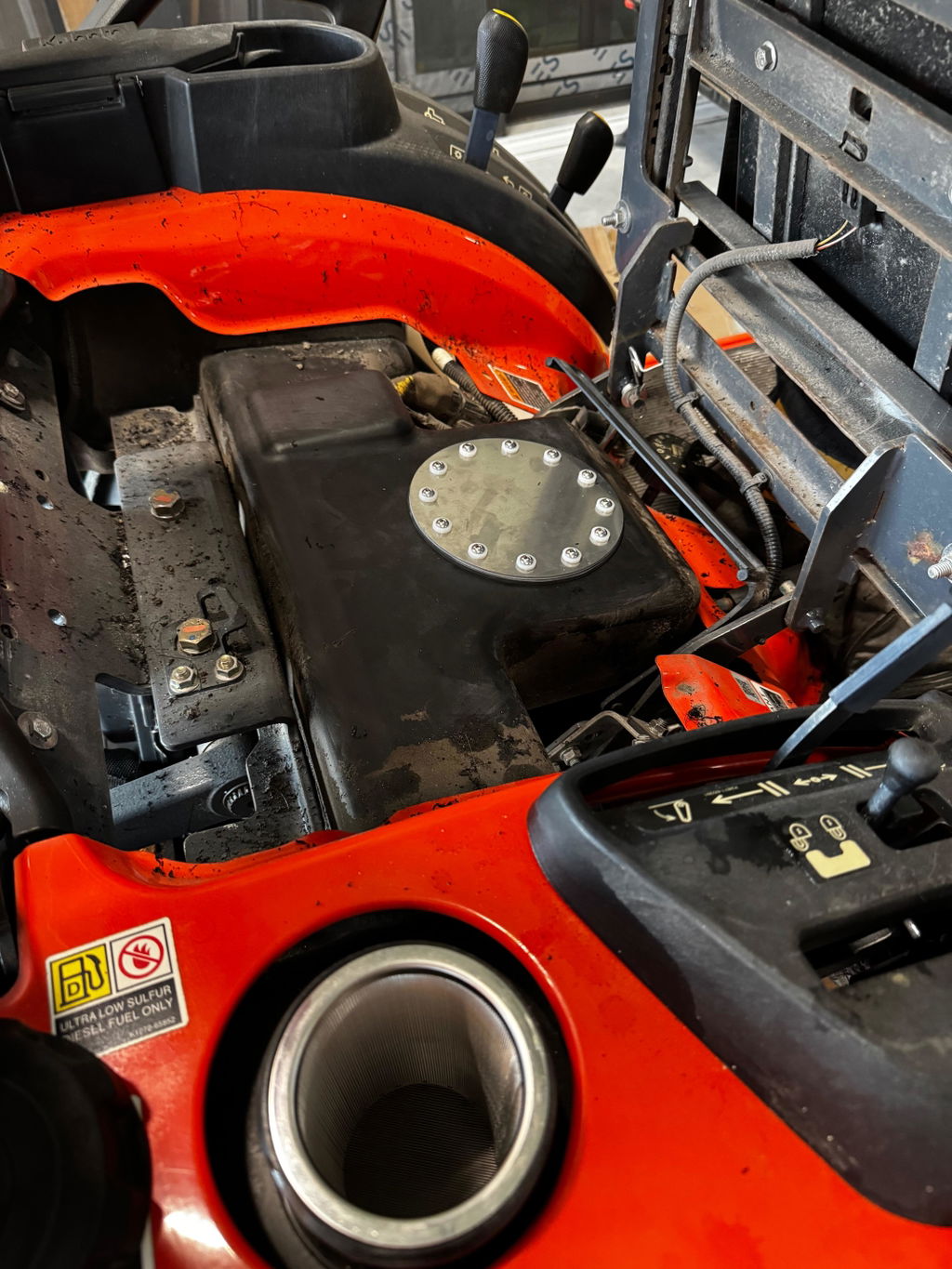

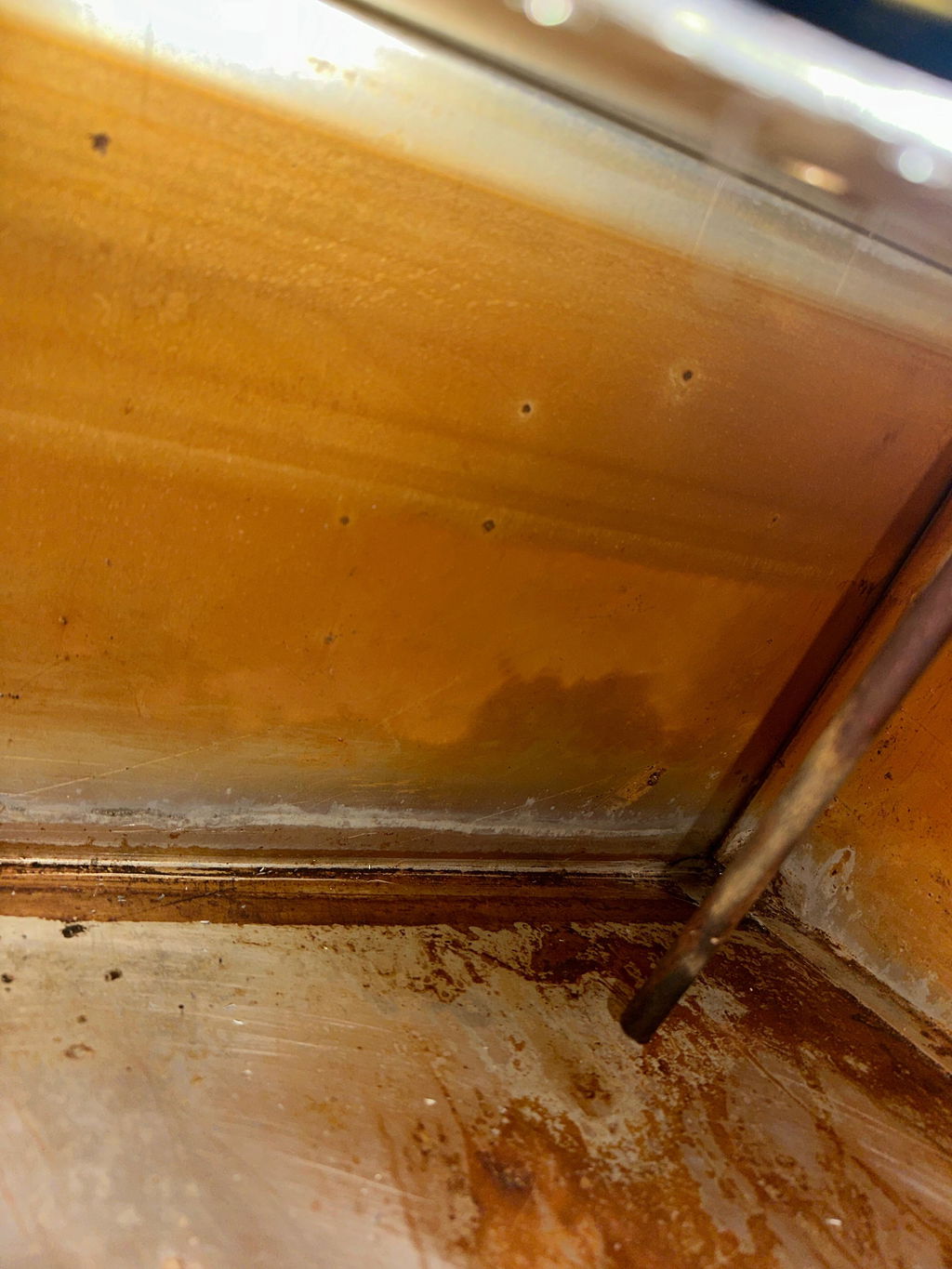

I just finished installing the 4"access port on my BX25 Kubota tractor. Took about 30 min, and allowed me to clean out my tank with absolute ease.
K
Kevin Loomis
Tank Clean Out Access Plate
I found a clean out plate on Boyd’s website but it wasn’t available at that time. There was option to be notified when it became available and true to their word, I received a notification approximately a week later. I made the purchase and it promptly shipped. The package arrived in a timely manner and everything was accounted for in the box. Installing it was a breeze and the finished installation looks fantastic. I highly recommend Boyd Welding and would purchase again in the future.
J
Jim Boltjes
tank cleanout
Very impressed with the quality of the parts. Instructions were very good .I probably saved over a days work by not having to remove the fuel tank to clean it.Would recommend to anyone .
