100 Gallon 49 x 24 x 22 Tank W GPI 15GPM Pump Included

100-Gallon Aluminum Fuel Tank for Gasoline or Diesel, with Installed GPI 12V 15 GPM Transfer Pump

The Boyd Welding 100-gallon tank, product number 13015, is built from heavy-duty 3/16-inch (0.190") 5052 mill-finish aluminum with two internal baffles and AWS-certified welds, and every tank is pressure leak tested at 5–8 psi. It ships as a complete unit with an installed GPI 12V 15 GPM transfer pump, a 12-foot hose, a manual nozzle, a rollover vent, and a mechanical fuel gauge.

Choose from driver-side, center, or passenger-side pump pockets. This tank is sold only as a complete tank-and-pump unit. It's backed by a 2-year limited structural warranty from the date of purchase and ships in 1–2 weeks or less, with free LTL freight shipping to the lower 48 states.

Premium 3/16-Inch Aluminum Construction

Our 100-gallon tanks are the premium builds in our lineup. When you're carrying our largest fuel load, the extra material is worth it.

• The thickest aluminum we offer. These are the only tanks in our catalog built from 3/16-inch (0.190") 5052 aluminum. Every other tank we make uses 1/8-inch (0.125").
• Built for our biggest loads. At 100 gallons, these tanks carry more fuel than any other tank we sell, and their heavier walls are matched to that weight.
• More aluminum in every panel. The thicker walls make a heavier, more rugged tank, built for road vibration, moving fuel, and everyday work truck use.

Fuel and Use

This tank and all included components are compatible with both gasoline and diesel. Every tank is fully pressure tested and inspected following the 49 CFR 393.67 liquid fuel tank guidelines.

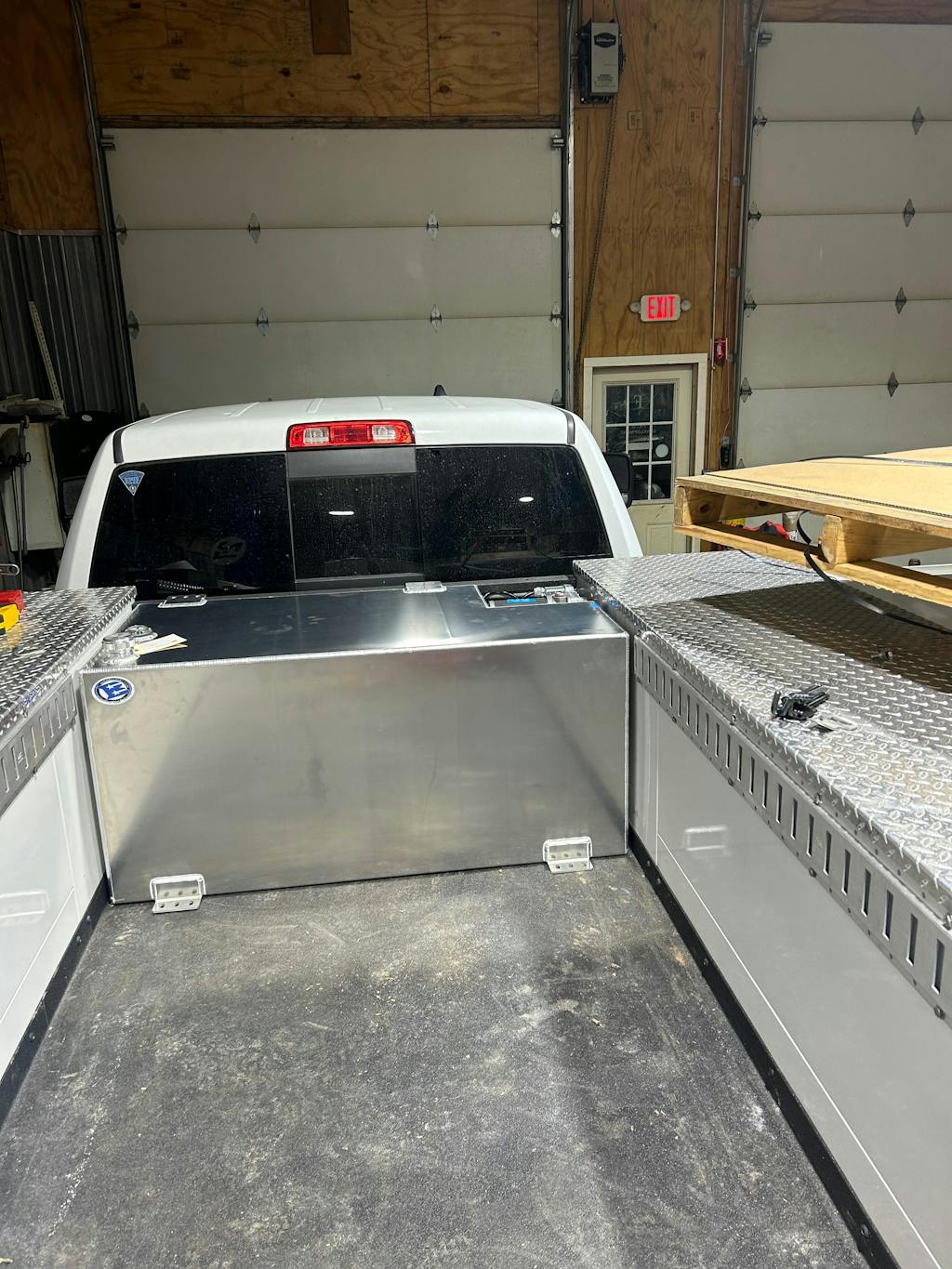

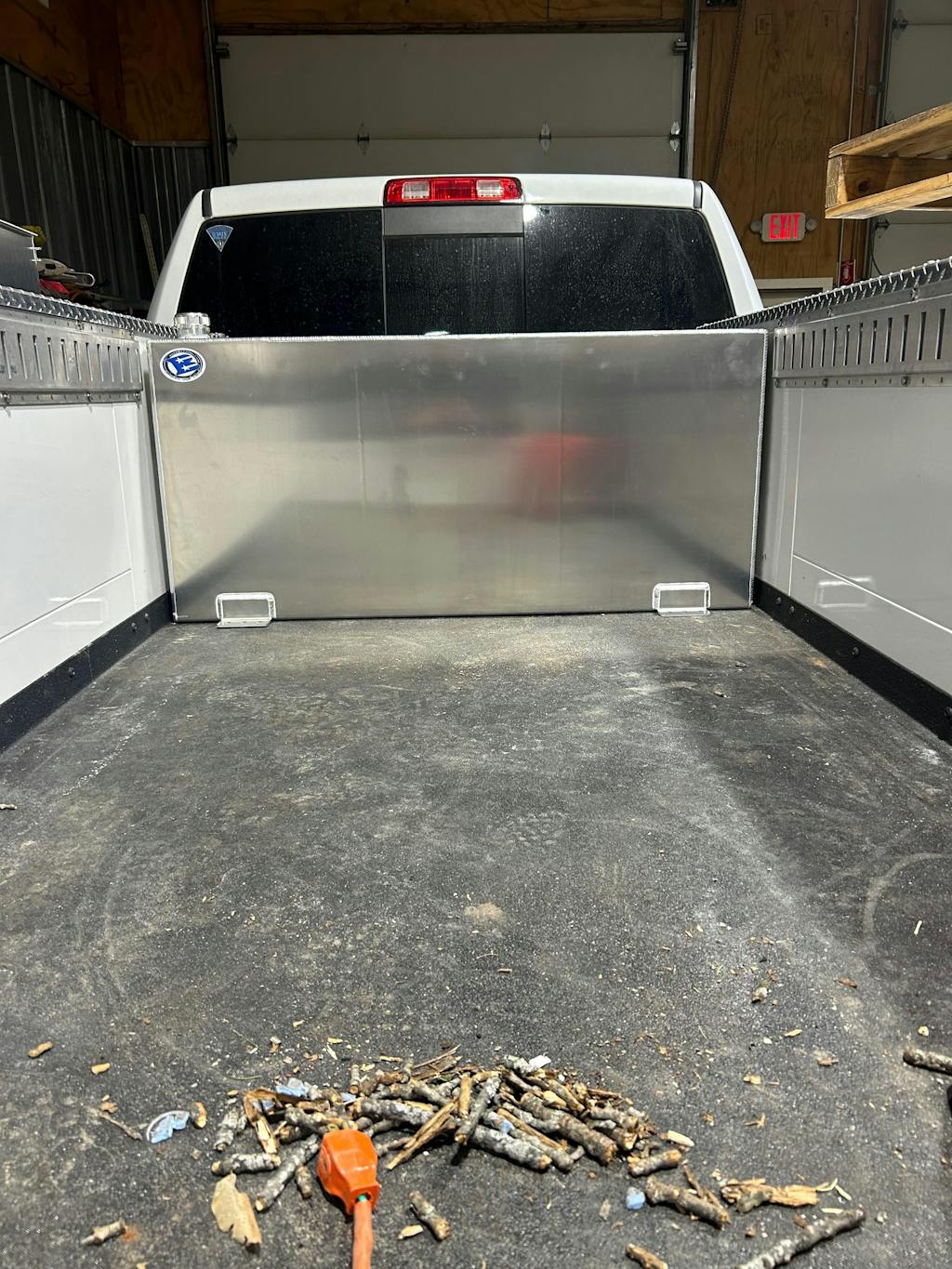

Truck Bed Fit

This is our largest standard tank, built for full-size truck beds where maximum capacity matters. Fit depends on your truck and bed, so measure before you order.

Measure your specific application before ordering. The tank body measures 49" L × 24" W × 22" H. Make sure the 49" × 26" mounting footprint fits your bed space and that the 24" overall height, including the fill cap, works for your setup. Allow for any mounting materials or supports, and for the pump and its connections in the position you choose. A full tank weighs roughly 745 lb with gasoline or 845 lb with diesel, so confirm that your truck and mounting can handle the load.

Before you order, see our Transfer Tank Install and Fitment Guide for fit checks, pump positions, and install steps.

Construction and Quality

• Made in Ocala, FL USA using USA Materials
• CNC Machined Billet Weld Fittings, Cap and Neck
• Every tank pressure leak tested at 5–8 psi
• AWS-certified welds
• Boyd-exclusive pump mounting and pump securement brackets
• 3/16-inch (0.190") 5052 mill-finish aluminum construction with two internal baffles

Tank Specifications

• Product number: 13015
• Capacity: 100 gallons
• Tank body dimensions: 49" L × 24" W × 22" H
• Mounting footprint: 49" L × 26" W
• Height including fill cap: 24"
• Material: 5052 mill-finish aluminum
• Material thickness: 3/16" (0.190")
• Listed tank dry weight: 136 lb
• Approximate full weight: About 745 lb with gasoline, about 845 lb with diesel
• Internal baffles: 2
• Fill cap: Boyd machined non-vented cap, part number 81037
• Vent connection: 1/2-inch NPT
• Pump draw connection: Custom EZ-Spin adapter for GPI EZ-Spin pumps
• Sending-unit flange: Included
• Return connection: None
• Drain connection: None
• Mounting tabs: Four tabs, 2" × 2" angle, 4" long
• Pressure test: 5–8 psi, every tank tested
• Compatible fuels: Gasoline and diesel
• Warranty: 2-year limited structural warranty from the date of purchase

Pump-Position Options

• Driver-side pocket, 13015-DP
• Center pocket, 13015-CP
• Passenger-side pocket, 13015-PP

On all three, the fill is 10.5" from the back of the tank to its center. Choose the side you'll fuel from most often, and check the drawing for that position before you order. The notch in this tank is compatible only with the GPI M150S 12-volt pump with an EZ-Spin collar.

Included Equipment

• Installed GPI 12V 15 GPM transfer pump
• 12-foot hose and manual nozzle
• 1/2-inch NPT rollover vent
• Mechanical fuel gauge
• Roll of PTFE thread-seal tape

Required Items Not Included

• Mounting hardware
• Vent hose and small filter
• Electrical connectors for wiring the pump cord to your battery

Installation Notes

Protect the threads. Aluminum threads can cross-thread and gall easily. Start plugs and fittings by hand, and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.

Brass fittings are recommended.

Frequently Asked Questions

Can I put gasoline in this tank?
Yes. The tank and all included components are compatible with both gasoline and diesel.

Is it DOT compliant?
Our tanks are not guaranteed to meet DOT requirements, and no special permit is provided. Check the regulations for your use before installing.

Will it fit in my truck bed?
The tank is 24" tall including the fill cap, with a 49" × 26" mounting footprint. Measure your available bed space and height clearance, and allow for any mounting materials. Also make sure your truck and mounting can handle the weight of a full tank.

Does it have a drain?
No. This tank does not have a drain port.

What else do I need to install it?
Mounting hardware, a vent hose and small filter, and electrical connectors for your battery.

Which pump position should I choose?
Choose the side you'll fuel from most often, and check the drawing for that position before you order.

Can I buy the tank without the pump?
No. It's sold only as a complete tank-and-pump unit.

What's the warranty?
A 2-year limited structural warranty from the date of purchase.

How long does shipping take?
It ships in 1–2 weeks or less, and LTL freight shipping is free to the lower 48 states.

Reference Drawings and Pump Details

• Driver-side pocket drawing, 13015-DP
• Center pocket drawing, 13015-CP
• Passenger-side pocket drawing, 13015-PP
• GPI 12V 15 GPM transfer pump details
