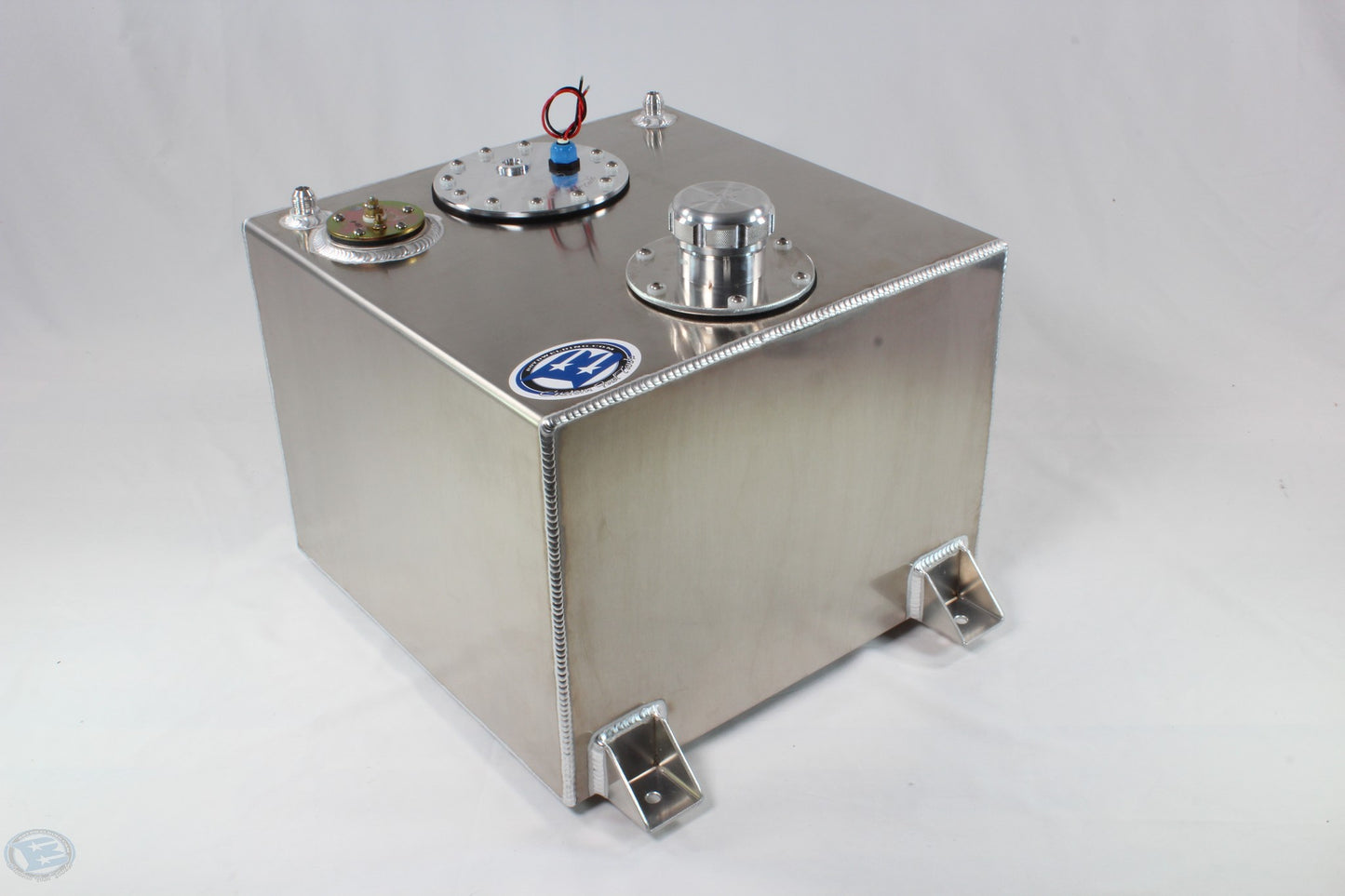

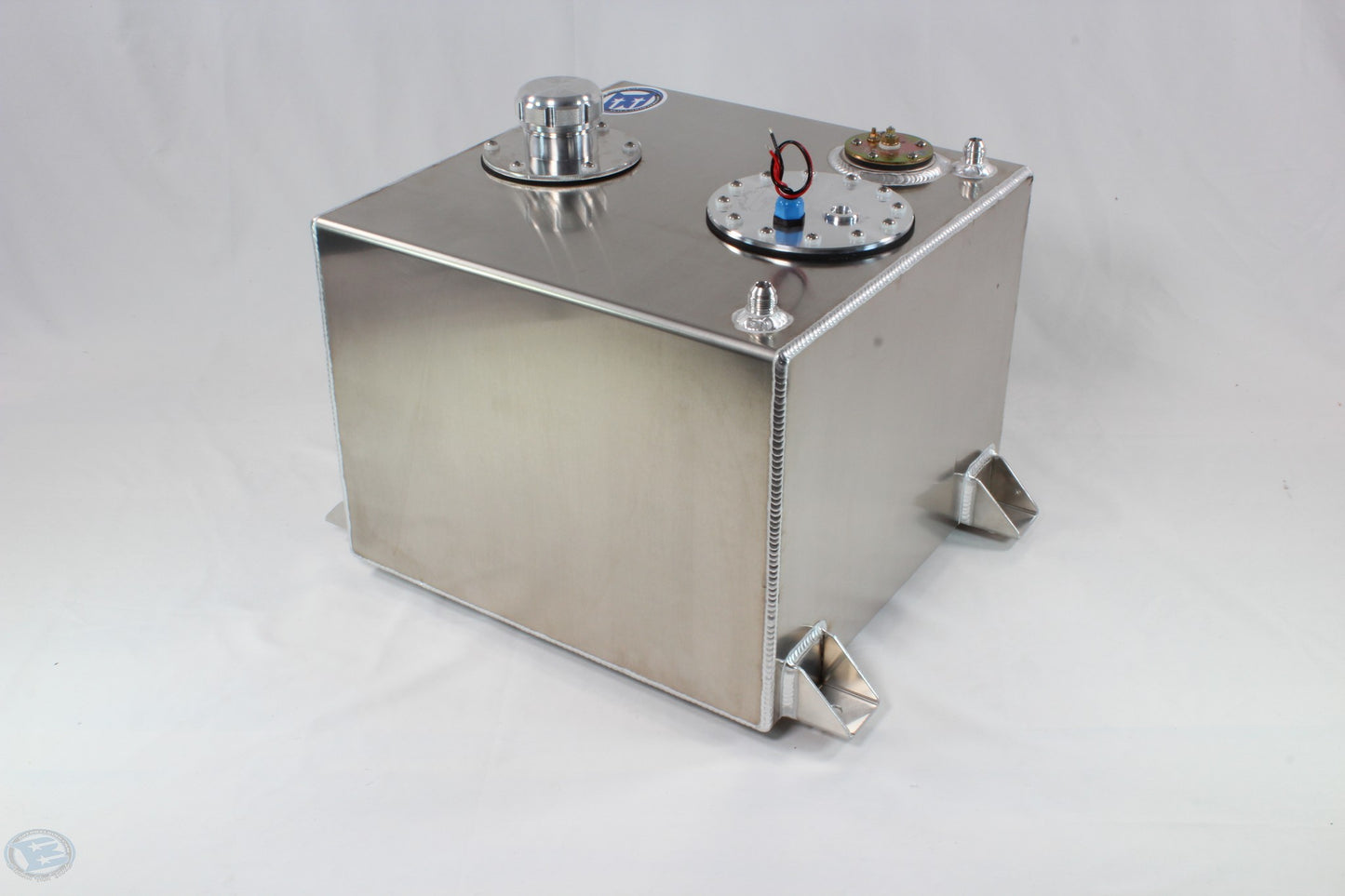

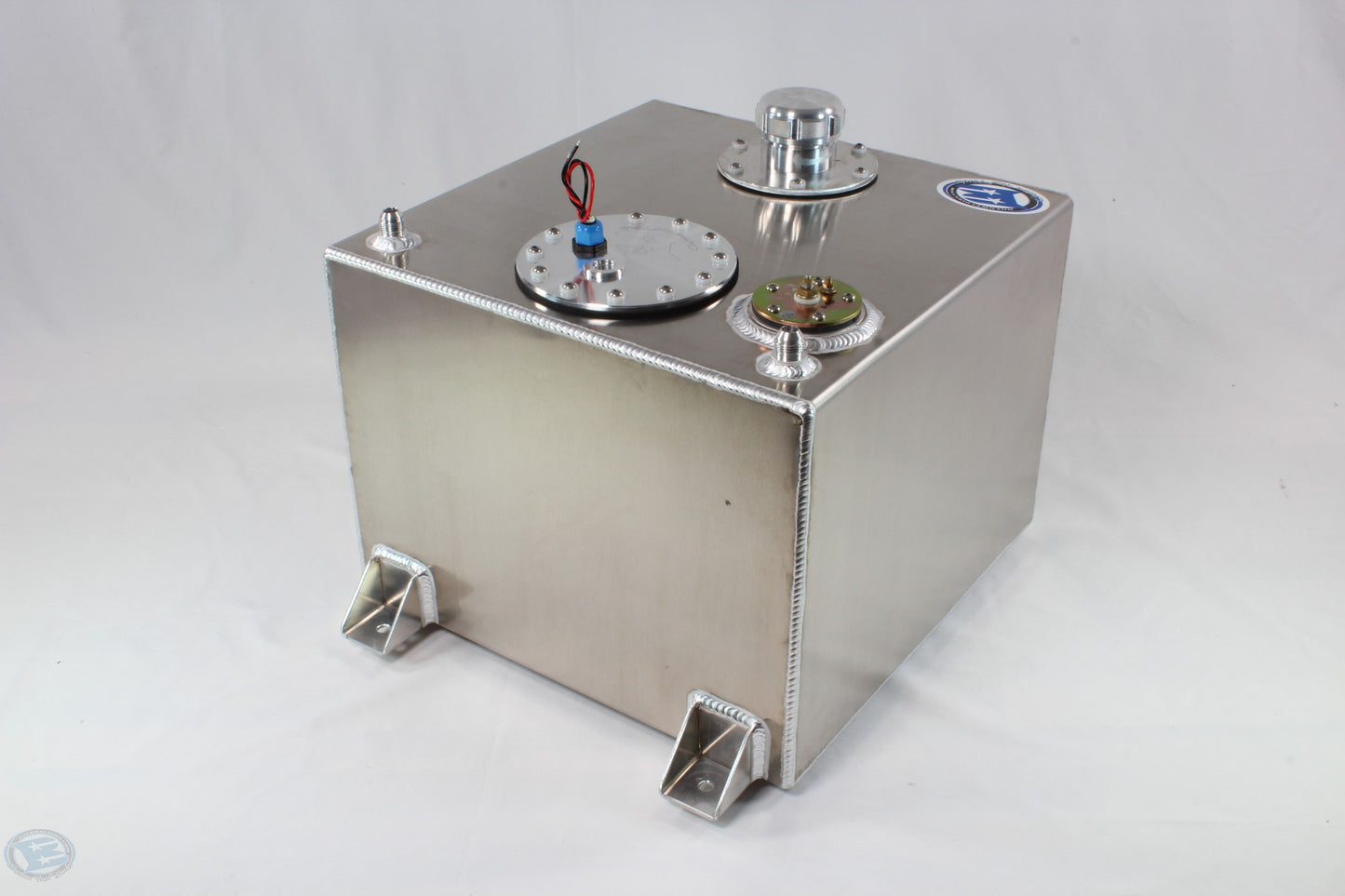

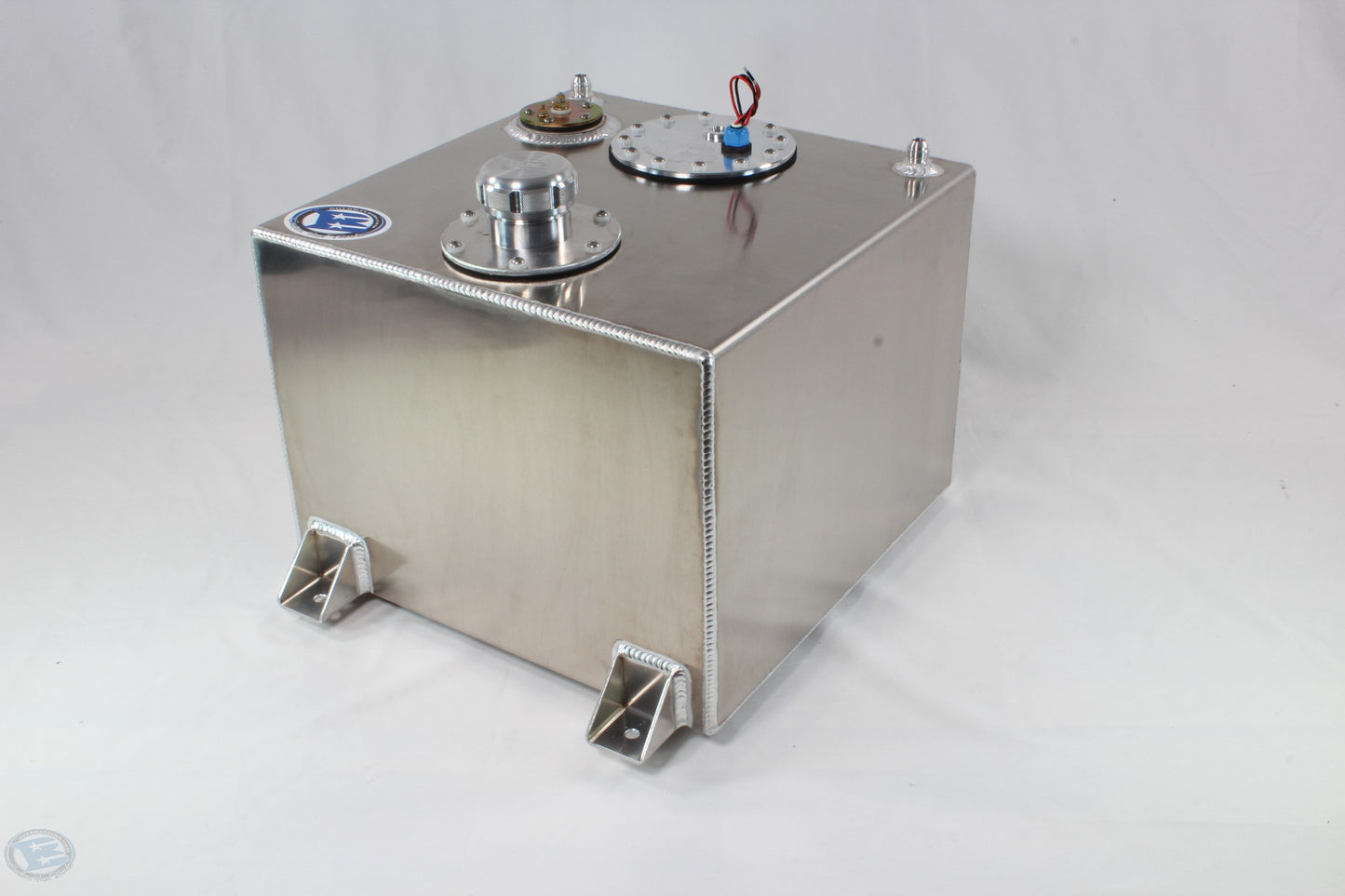

12 Gallon 16x16x12 Aluminum EFI Tank W Aeromotive 340 In-tank pump

SEE BANNER FOR CURRENT LEAD TIMES

• Tank Dimensions: 16 x 16 x 12

• Tank Thickness:  1/8"
• Material Grade: 5052 Mill Aluminum
• Approx Weight: 18 LBS
• Tank Baffles: Yes

• Fill Cap: NON Vented Threaded Cap (removable)
• Vent: -8 AN Rollover Vent
• Draw:  #6 ORB (Female) On EFI Plate
• Return: -8 AN with Tube
• Drain: No
• Sending Unit Flange: YES (0-90 ohm sender included)
• Mounting Tabs: (4) 2 x 2 x 2" Long Gusseted

* This Tank Includes The Aeromotive Stealth 340 In Tank Pump.
