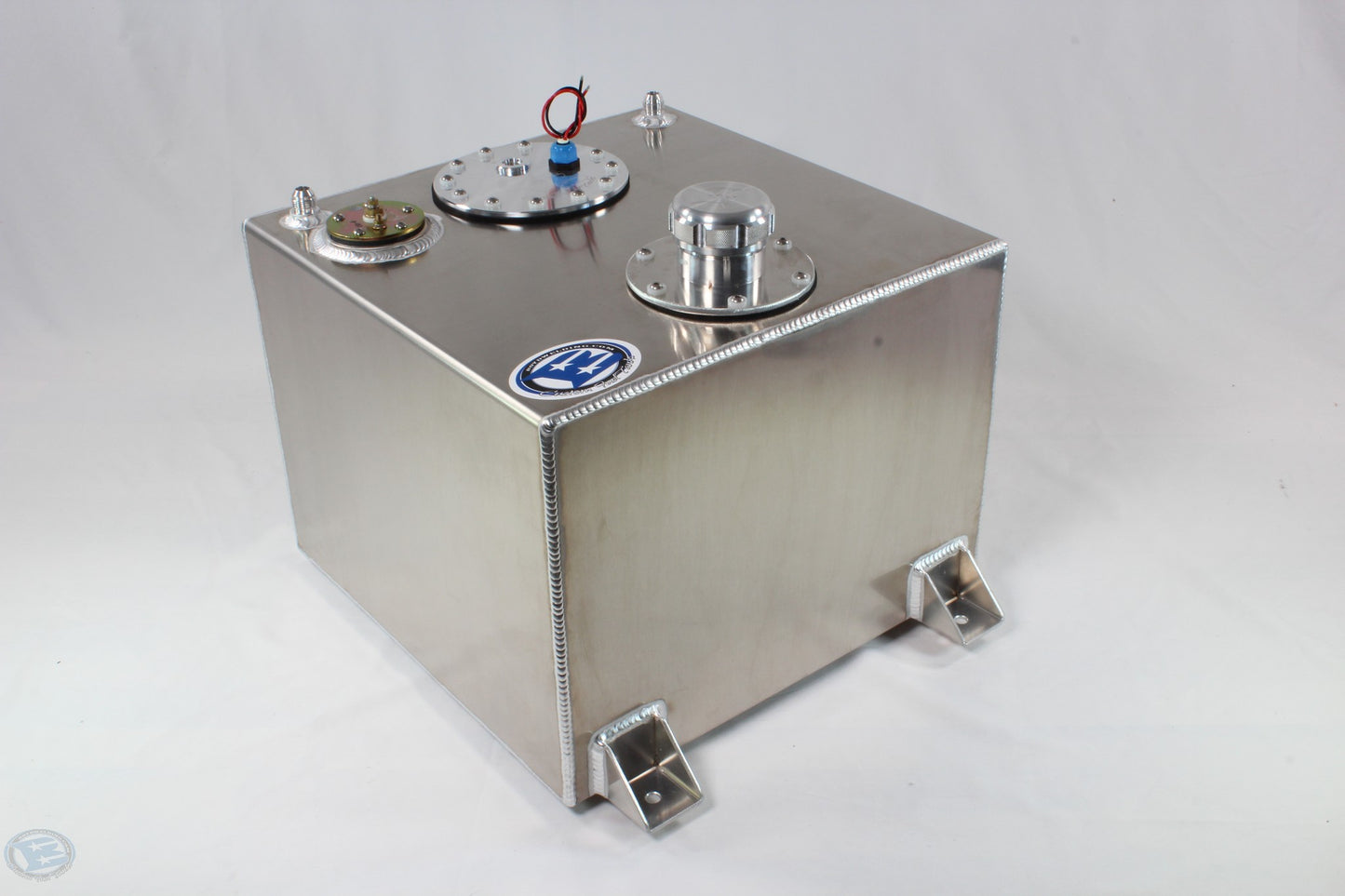

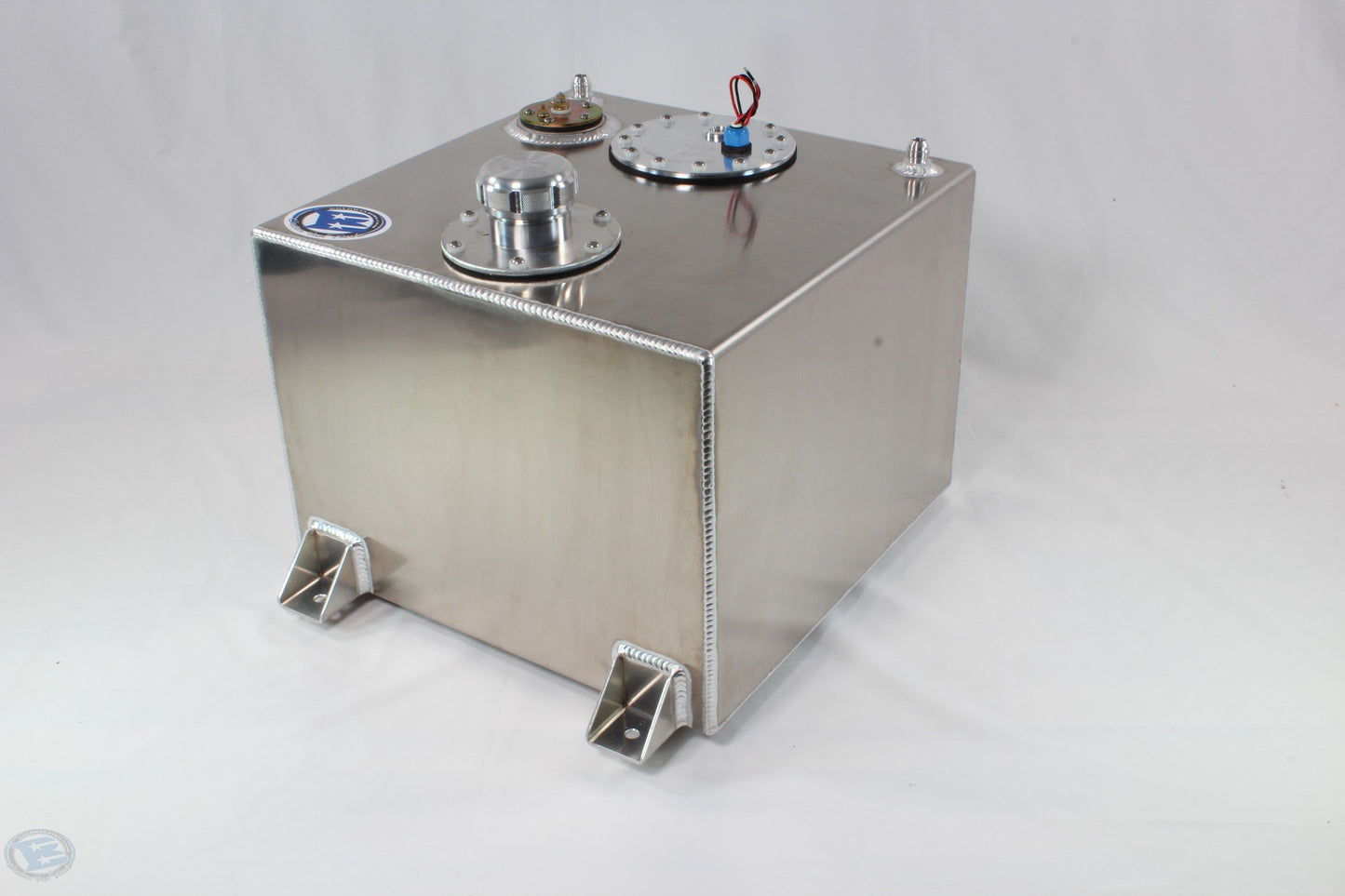

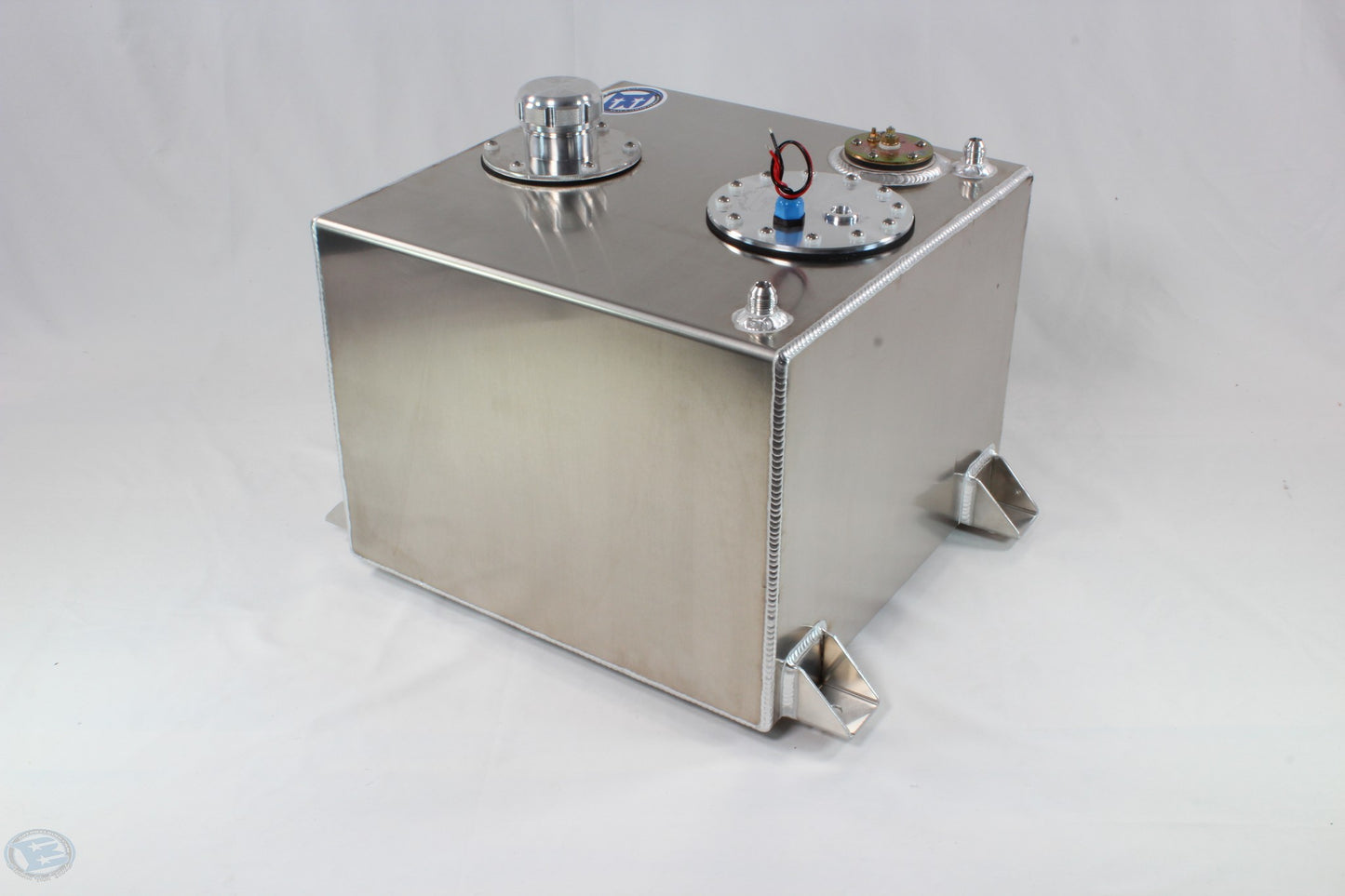

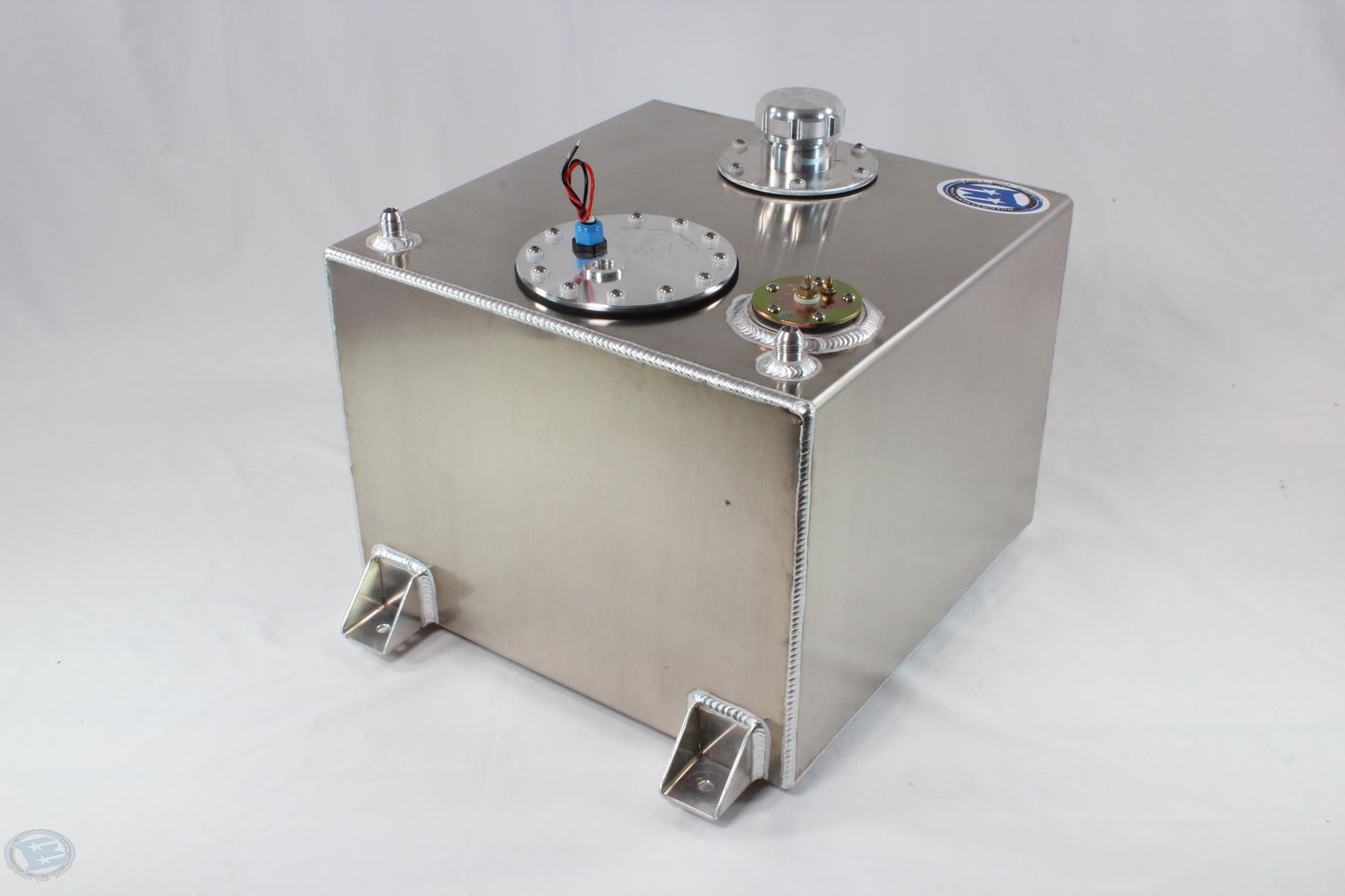

15 Gallon 18x18x12 Aluminum EFI Tank W Aeromotive 340 in-tank pump

Lead times are shown under Availability on each product page.

Tank Dimensions: 18 x 18 x 12
Tank Thickness:  1/8"
Material Grade: 5052 Mill Aluminum
Approx Weight: 20 LBS
Tank Baffles: Yes

Fill Cap: NON Vented Threaded Cap (removable)
Vent: -8 AN Rollover Vent
Draw: #6 ORB (female) On EFI Plate
Return: -8 AN with Tube
Drain: No
Sending Unit Flange: YES (0-90 OHM sender included)
Mounting Tabs: (4) 2 x 2 x 2" Long Gusseted
Drawing: View the drawing (PDF)

* This Tank Includes The Aeromotive Stealth 340 In Tank Pump.
