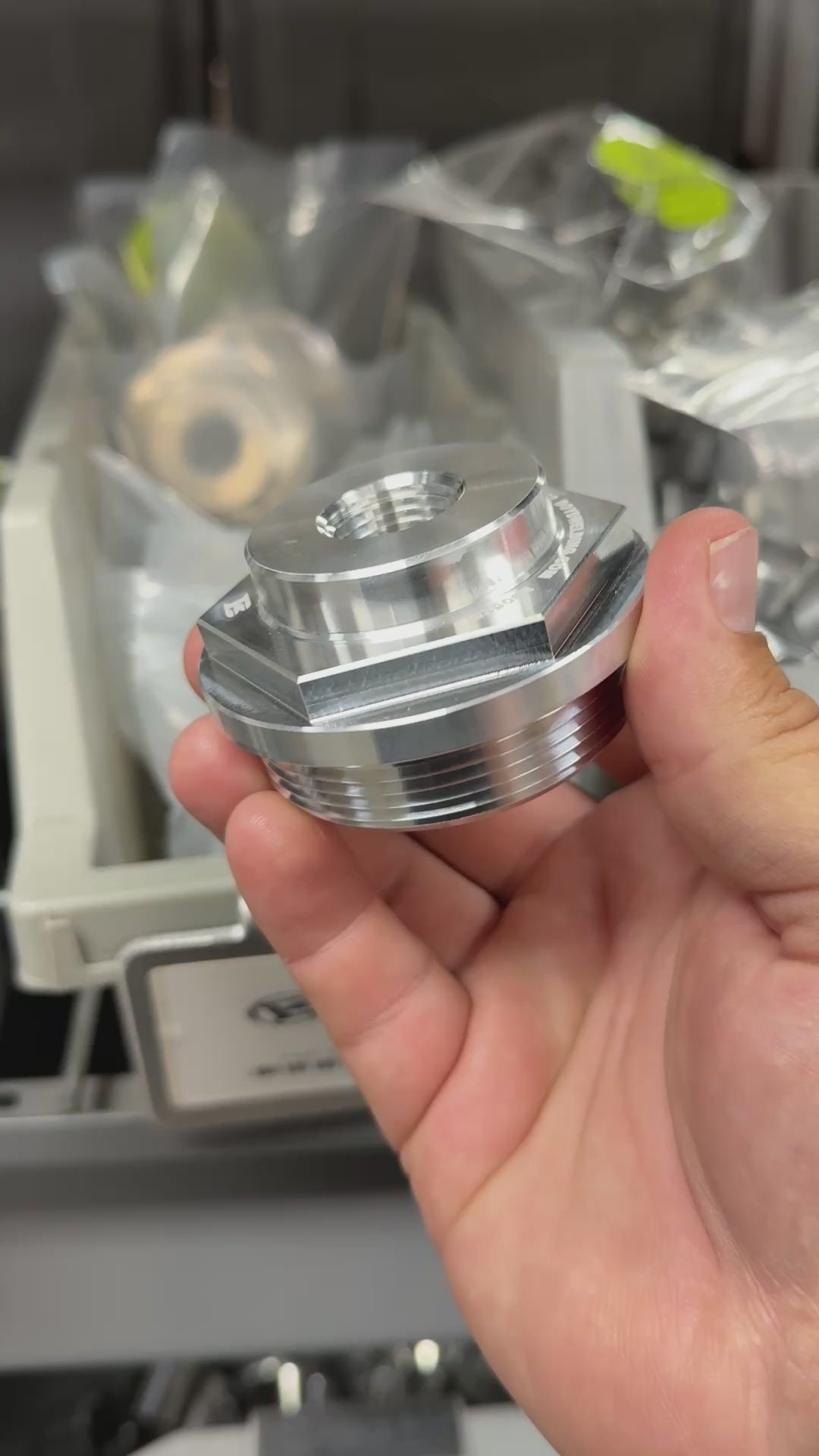

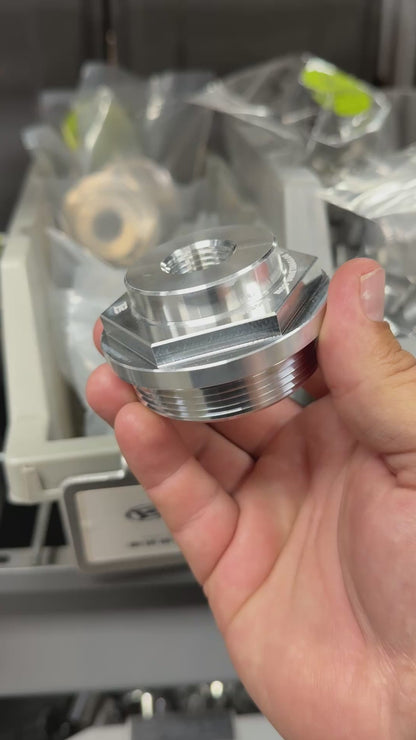

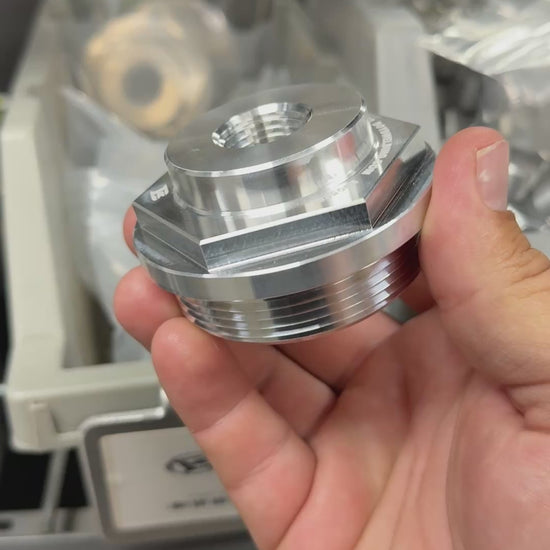

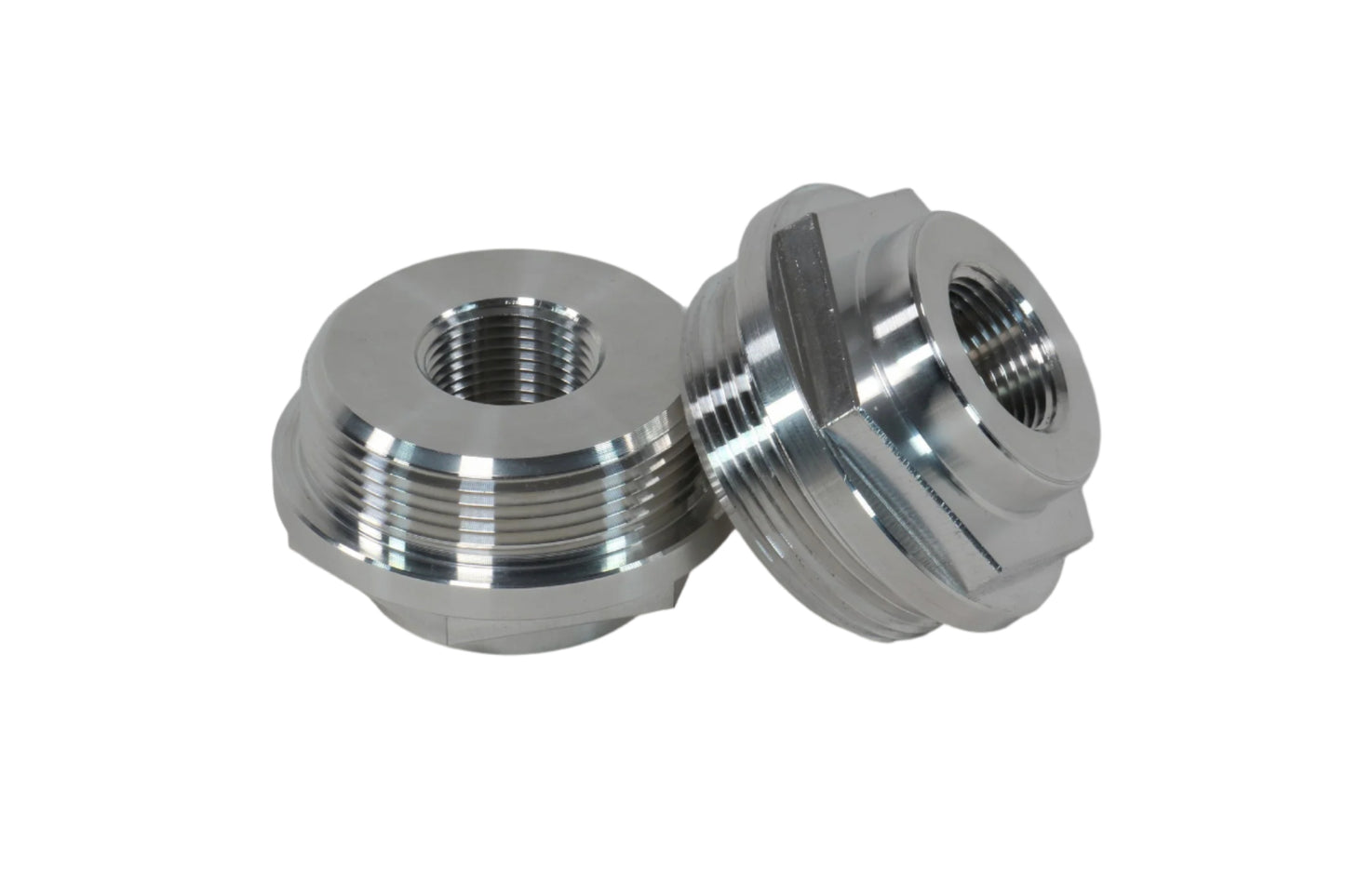

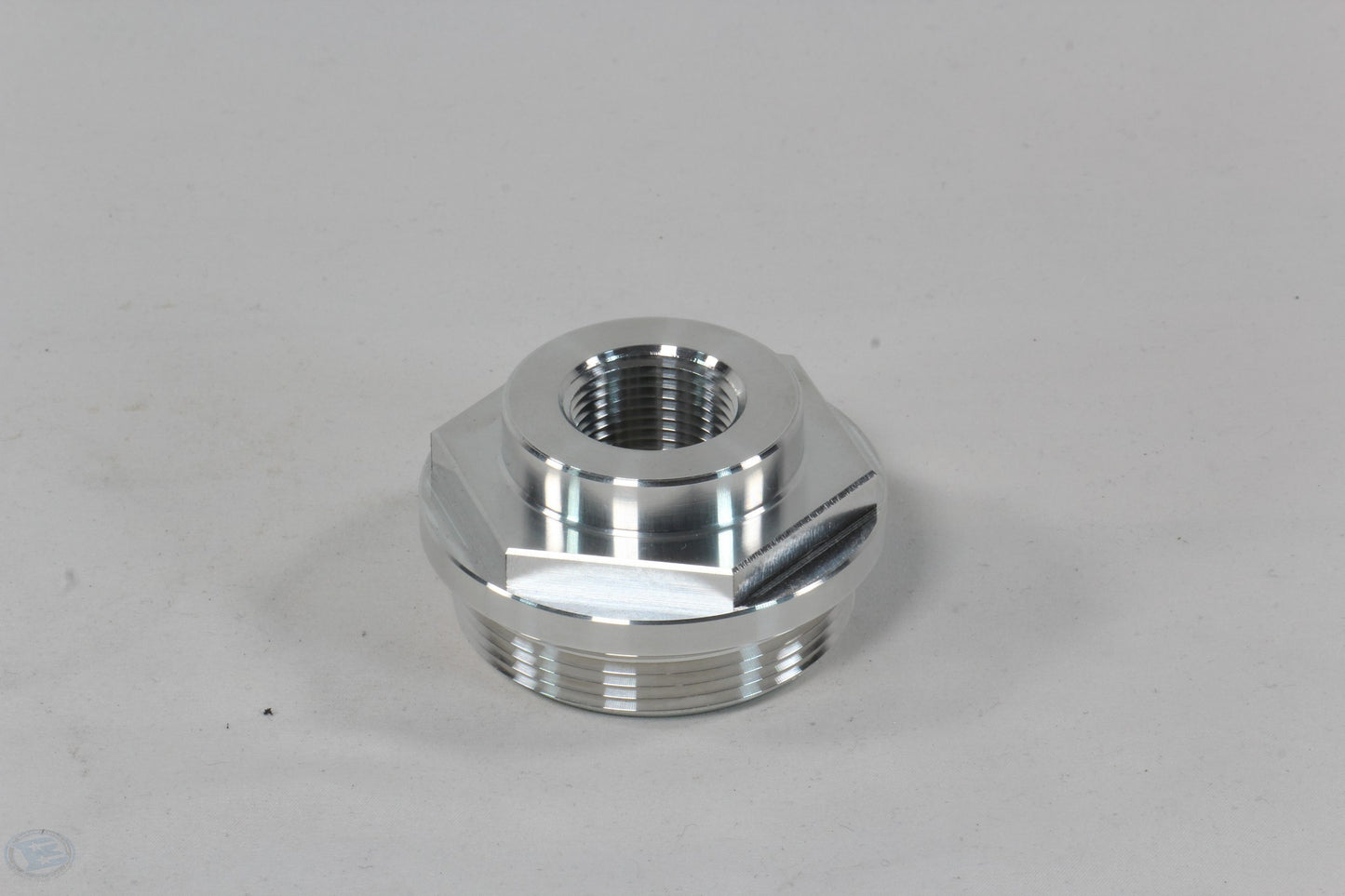

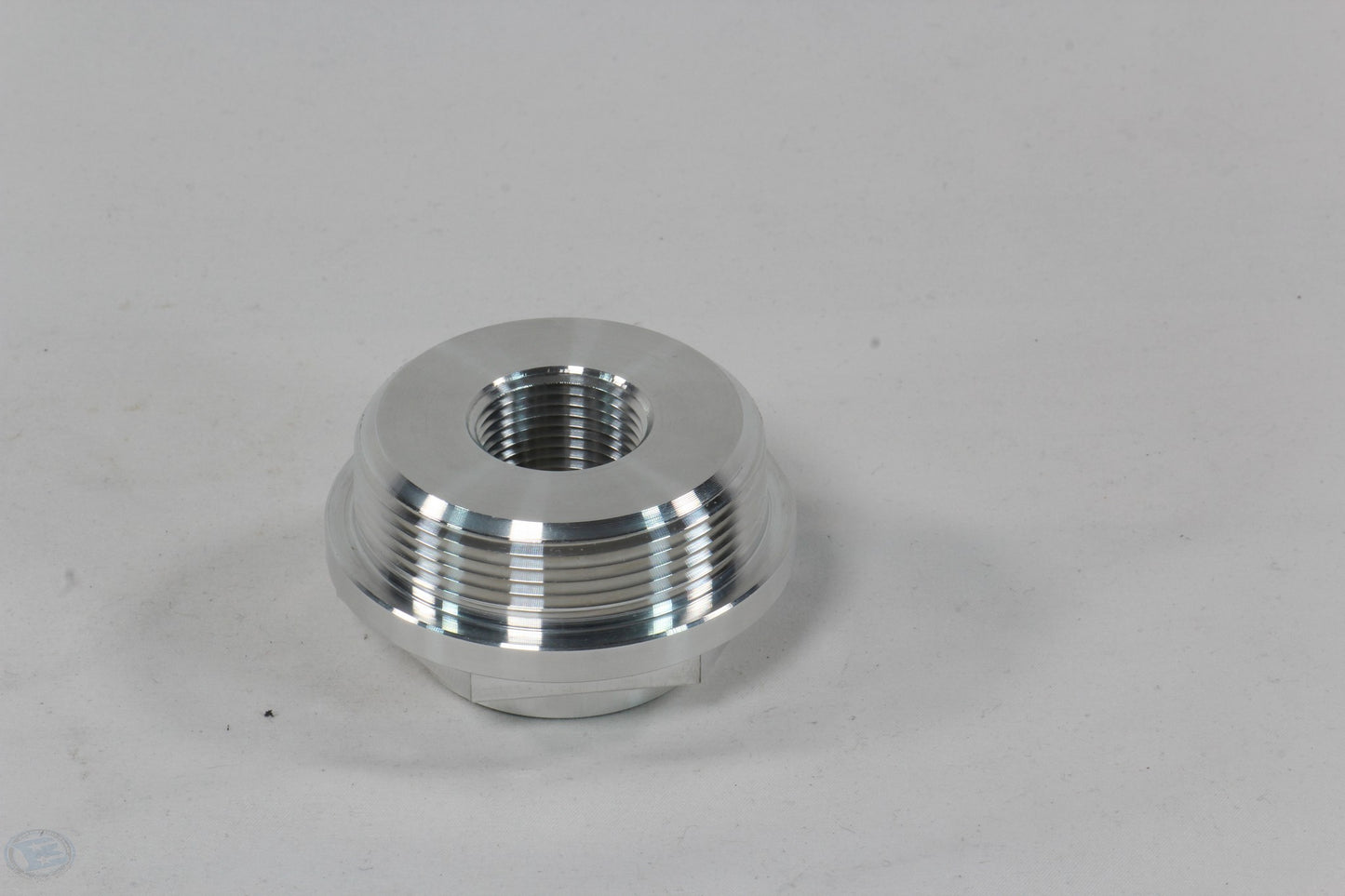

This adapter allows you to convert any 2" NPT tank bung to a large 3/4" or 1/2" NPT Pickup tube. This is perfect for attaching a remotely mounted transfer pump. just thread in your supplied 3/4" or 1/2" NPT pipe or hose and then thread this assembly into the 2" tank / drum bung.
Material = 6061-T6 CNC Machined Tank connection = 2" NPT Top Fitting = CHOOSE 3/4" OR 1/2 Bottom Fitting = CHOOSE 3/4 OR 1/2 Wrench hex = 2.25"

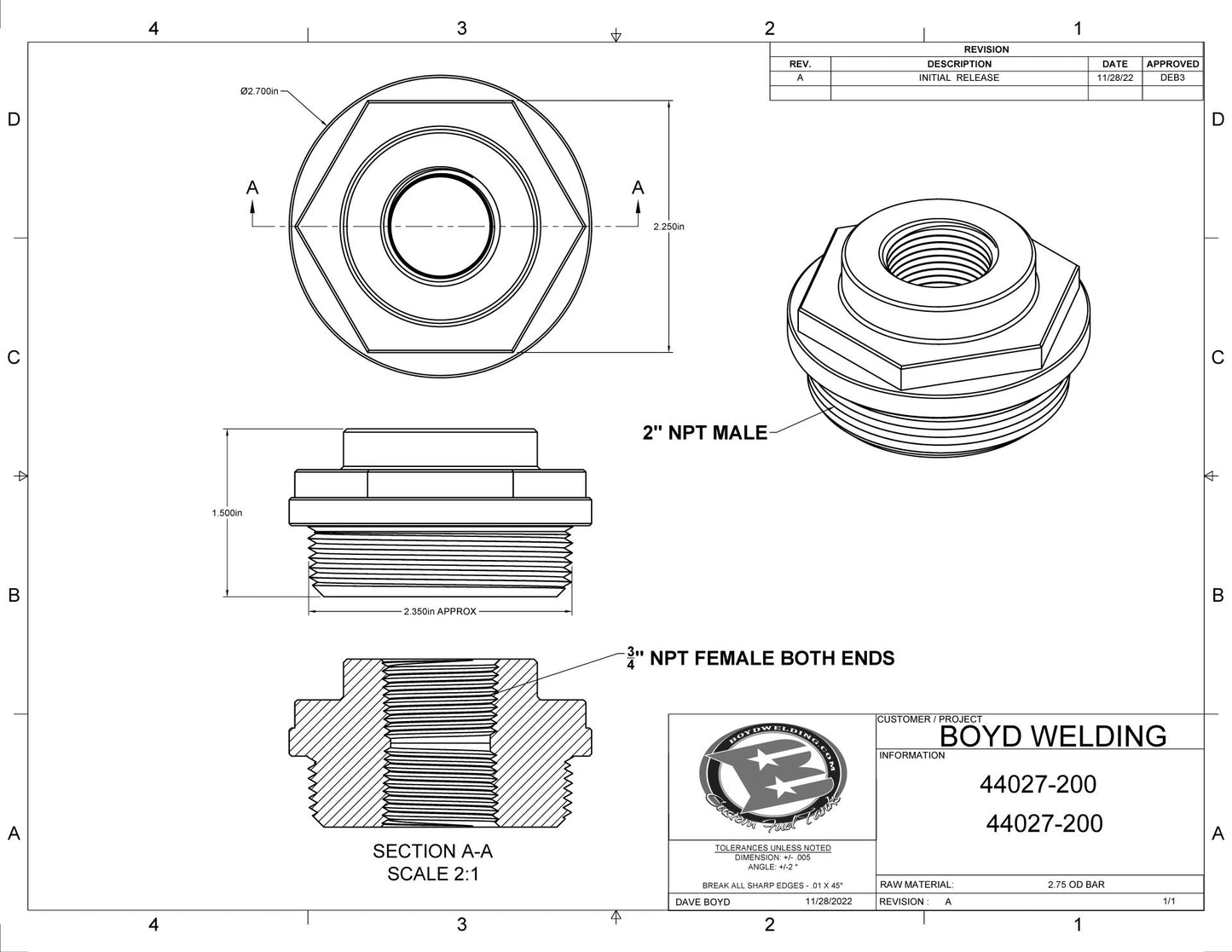

REFERENCE DRAWING FOR 3/4" NPT #44027-200

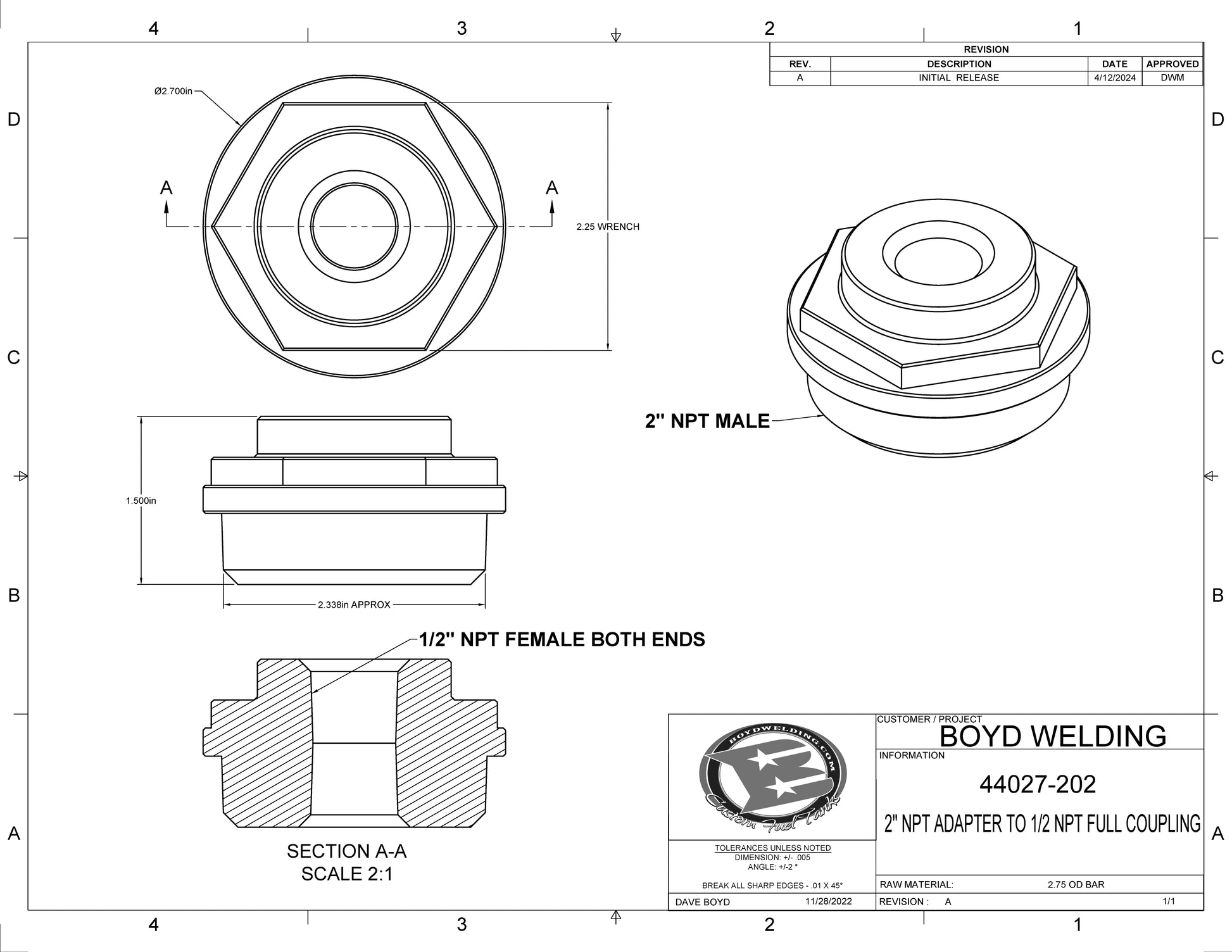

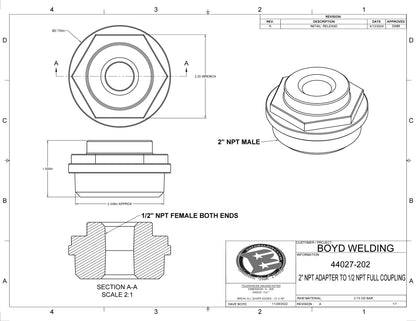

REFERENCE DRAWING FOR 1/2" NPT #44027-202

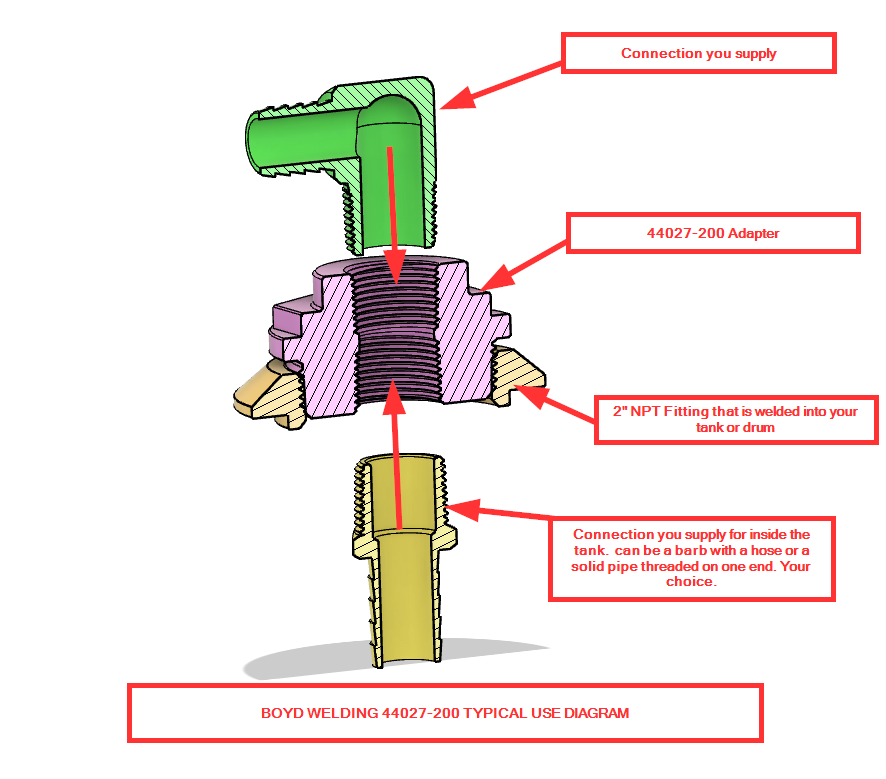

You will need to supply your own 3/4" or 1/2" NPT Connections for the inside and outside of this Adapter.
Extermely impressed with the quality of this fitting. This was a very small item for use, however, our company plans on using Boyd for our other hydraulic and fuel tank needs
