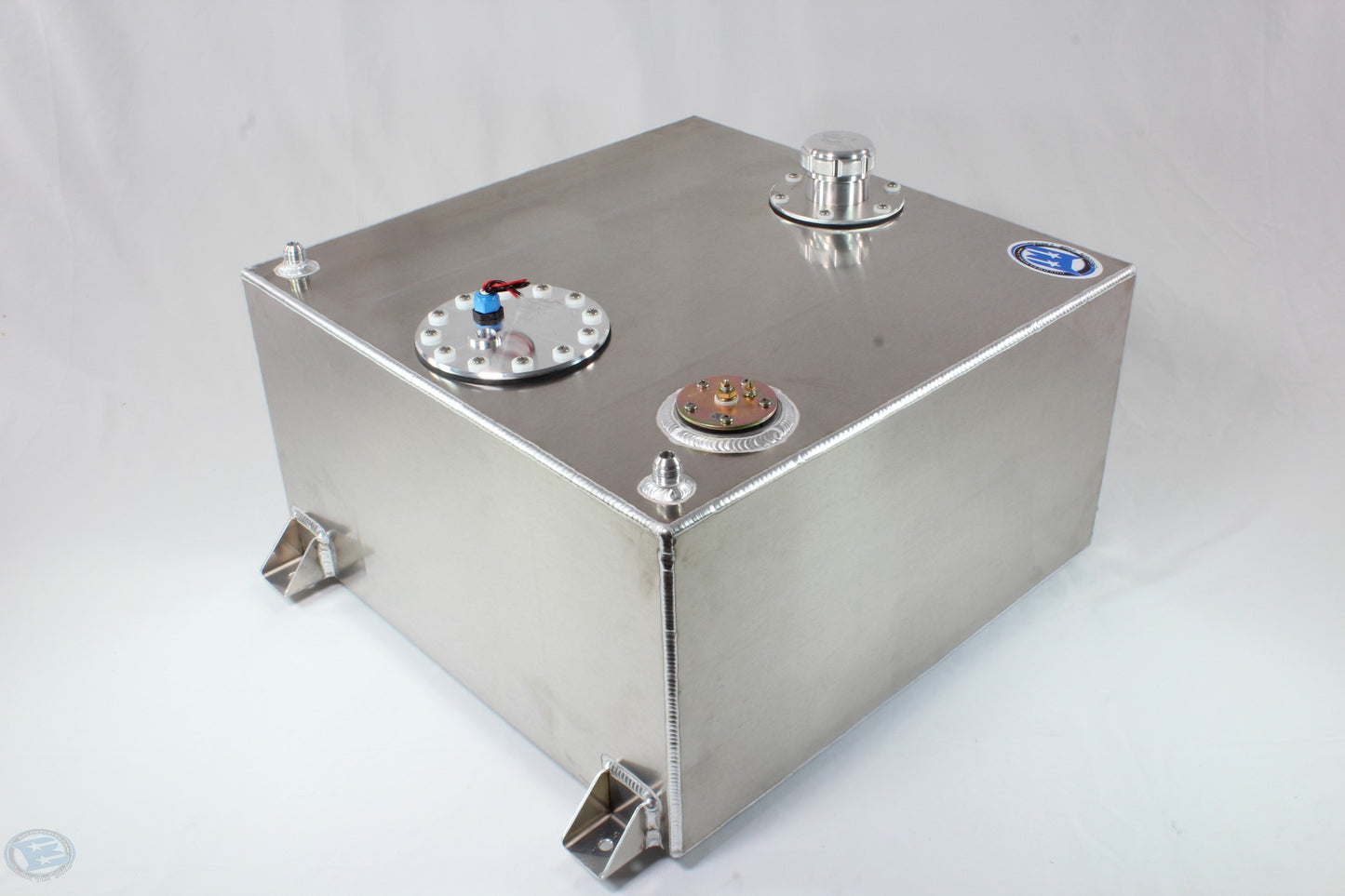

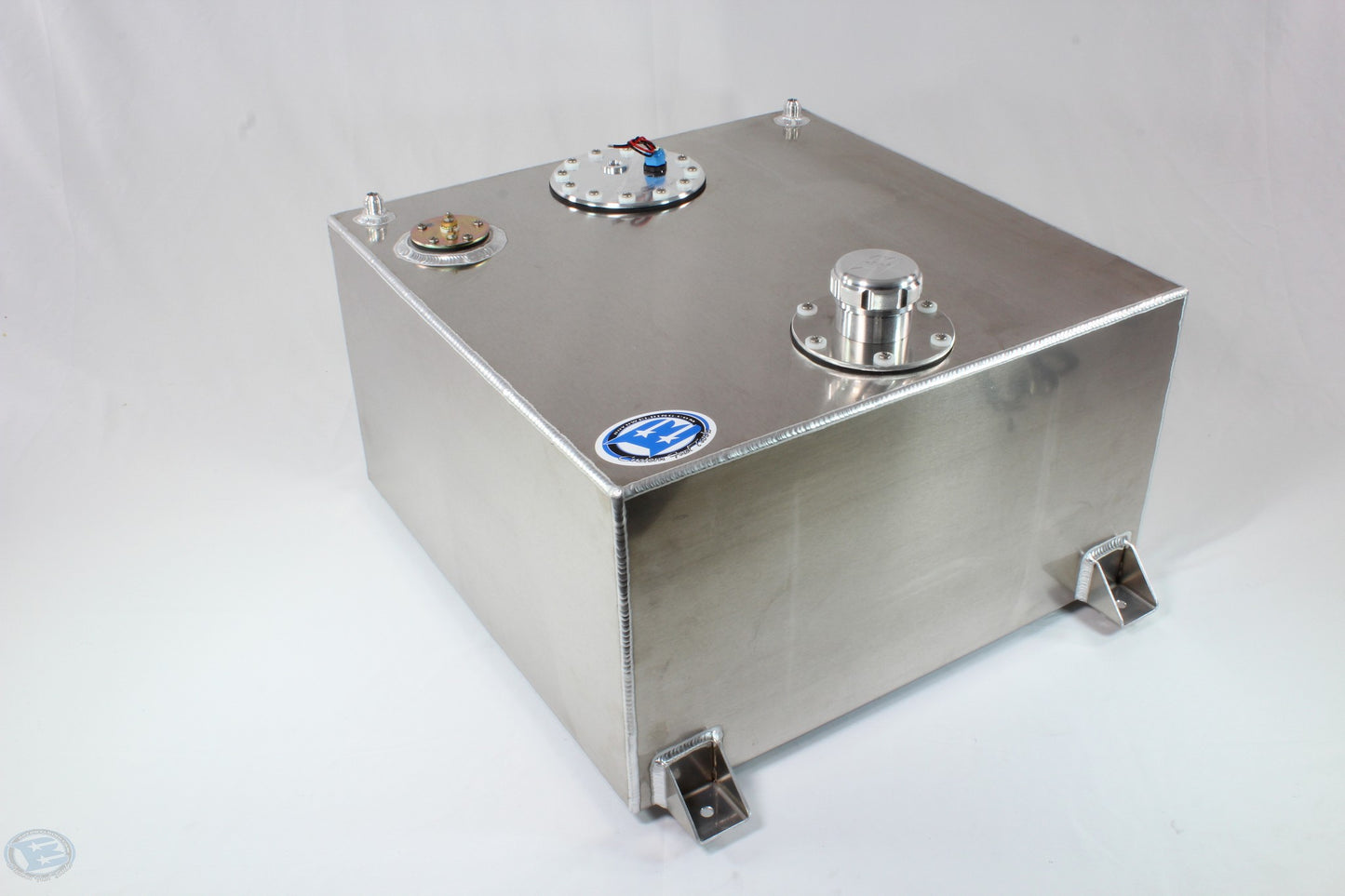

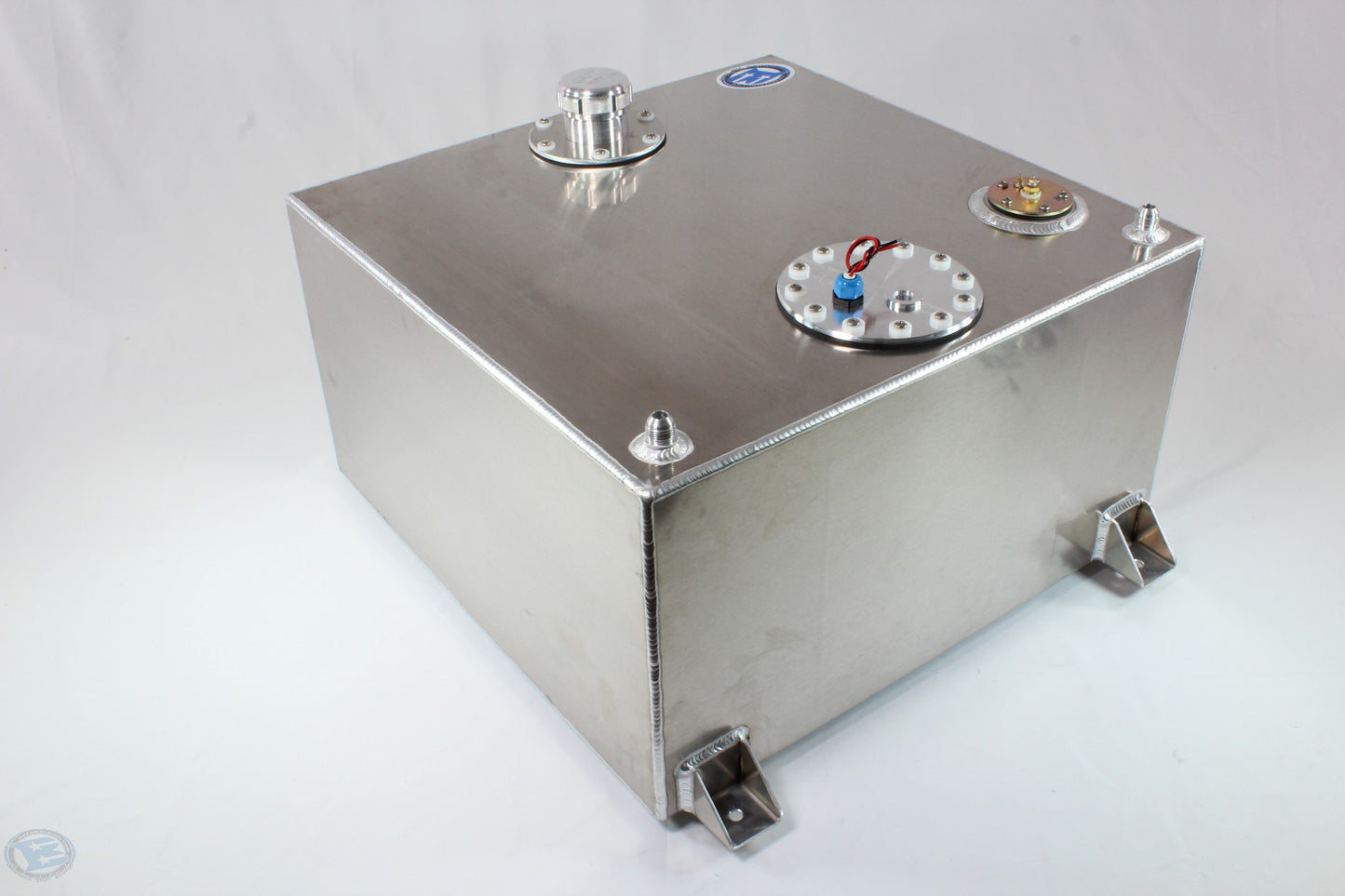

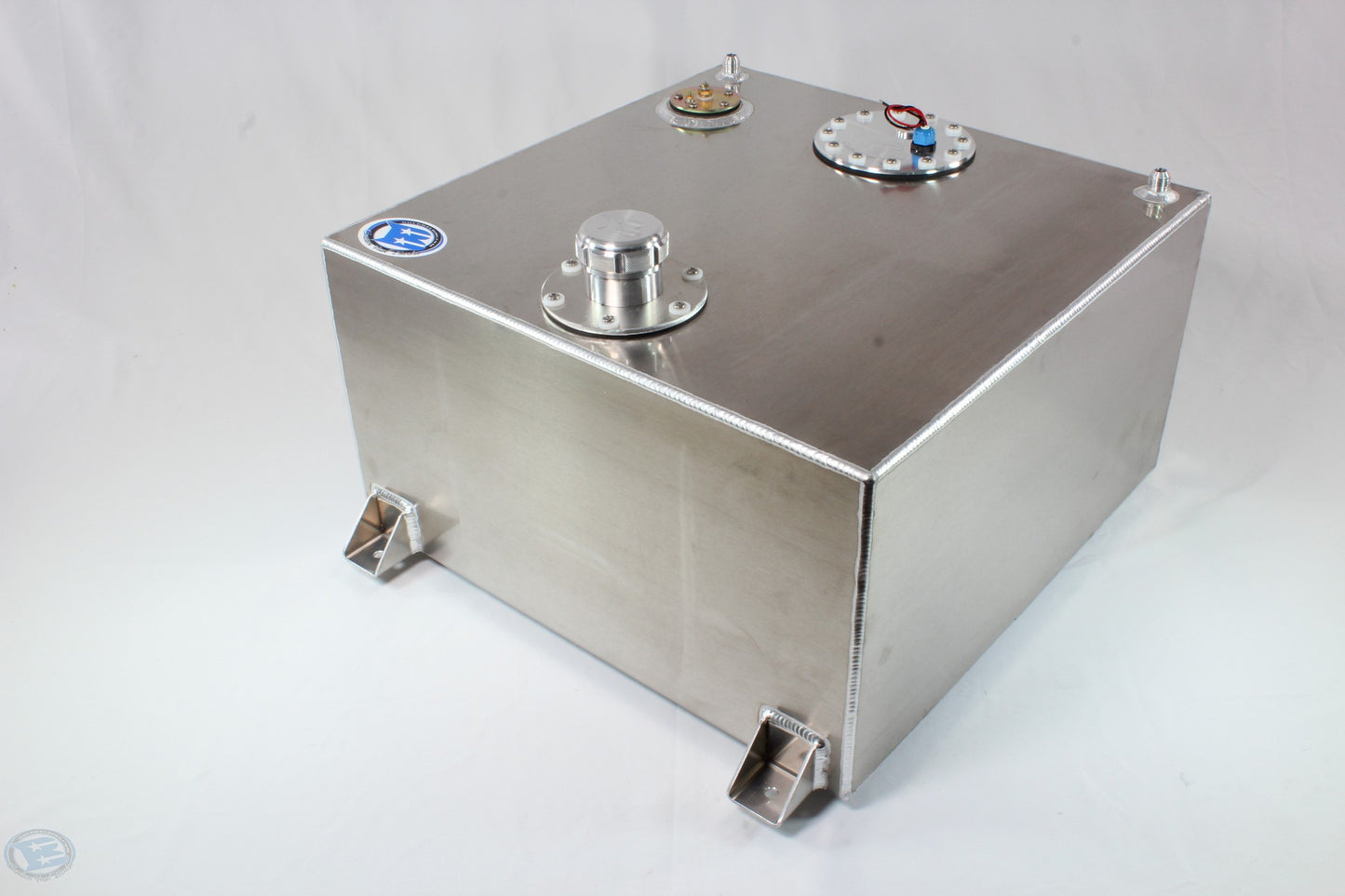

22 Gallon 22x22x12 Aluminum EFI Tank W Aeromotive 340 in-tank pump
22 Gallon 22x22x12 Aluminum EFI Tank W Aeromotive 340 in-tank pump
Availability : Ships in 2-4 Weeks or Less
SKU:16011
Couldn't load pickup availability
Lead times are shown under Availability on each product page.
Tank Dimensions: 22 x 22 x 12
Tank Thickness: 1/8"
Material Grade: 5052 Mill Aluminum
Approx Weight: 28 LBS
Tank Baffles: Yes
Fill Cap: NON Vented Threaded Cap (removable)
Vent: -8 AN Rollover Vent
Draw: -#6 ORB (female) On EFI Plate
Return: -8 AN with Tube
Drain: No
Sending Unit Flange: YES (0-90 OHM sender included)
Mounting Tabs: (4) 2 x 2 x 2" Long Gusseted
* This Tank Includes The Aeromotive Stealth 340 In Tank Pump.
Share this with your friends




Tank was shipped and packaged well. Construction of the tank is top shelf. We are mounting in a Turbo Nova and it will fit like a glove between our frames rails. We will need to change the pump out as we need more volume but we knew when we ordered.
Excellent craftsmanship and exactly what I needed!!!
Freaking great build, hands down!
