4 Gallon 16x6x12 Aluminum Tank

4 Gallon 16x6x12 Aluminum Tank

Availibilty : Made To Order Ships in 2-4 Weeks

SKU:11023

Regular price $174.90
Regular price $0.00 Sale price $174.90
Sale Sold out
Shipping calculated at checkout.

SEE BANNER FOR CURRENT LEAD TIMES

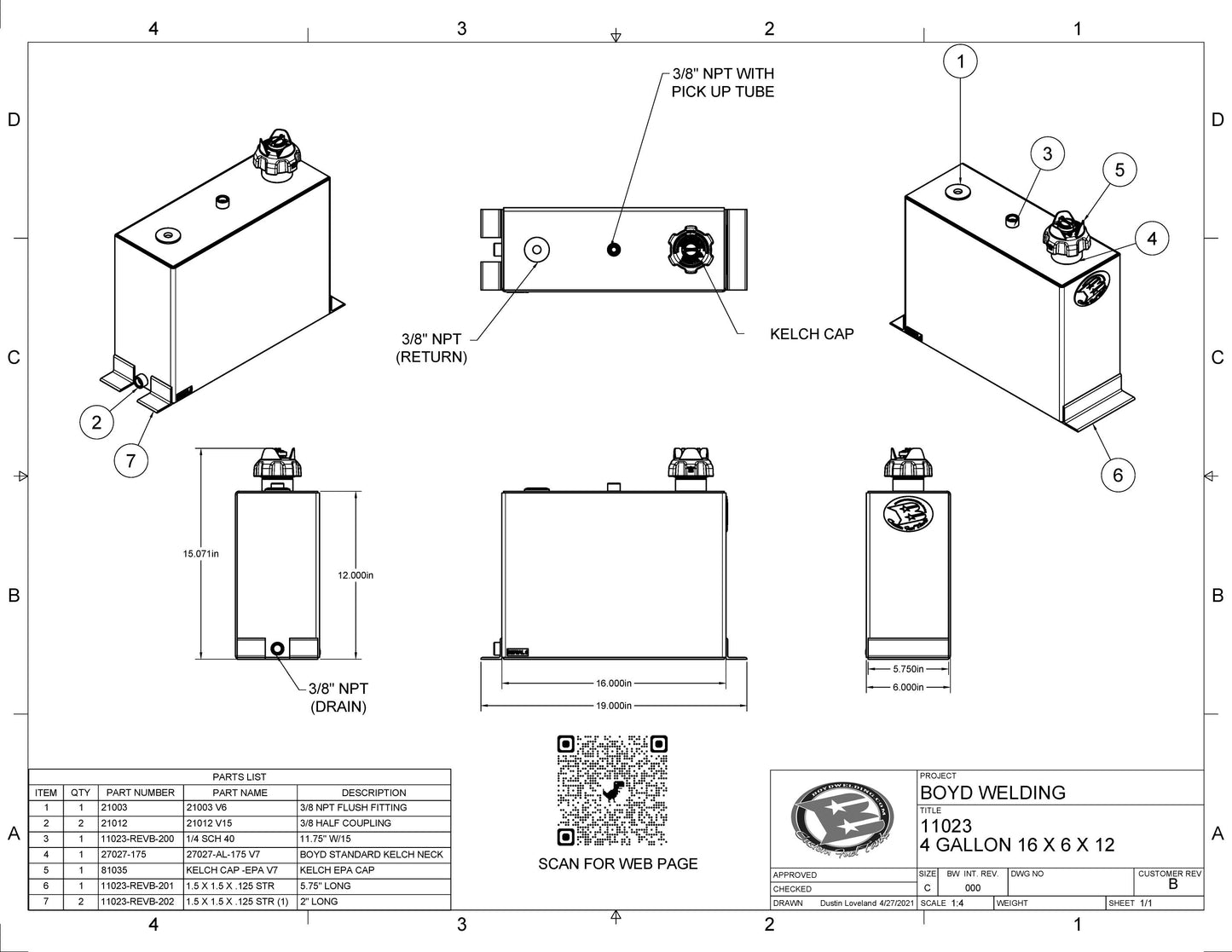

Tank Dimensions: 16 x 6 x 12

Tank Foot Print: 19” x 6”

Tank Total Height W/ Cap: 14.75”

Tank Thickness:  1/8"

Material Grade: 5052 Mill Aluminum
Approx Weight: 10 lbs
Tank Baffles: NO

Fill Cap: Kelch EPA Cap & Neck (Manual Vent Control via knob on cap)
Vent: Cap
Draw: 3/8" NPT Pickup Tube
Return: 3/8" NPT
Drain:  3/8 NPT
Mounting Tabs: (3) 1.5" Mounts

Approx Gallons:  4

This tank comes standard with 1 pickup tube installed.  You can add ADDITIONAL pickup tubes via the option drop downs.  If you don't need additional pickup tubes then you choose "no additional pickup tube"


View full details

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
W
Wade Rowley
Beatiful work.

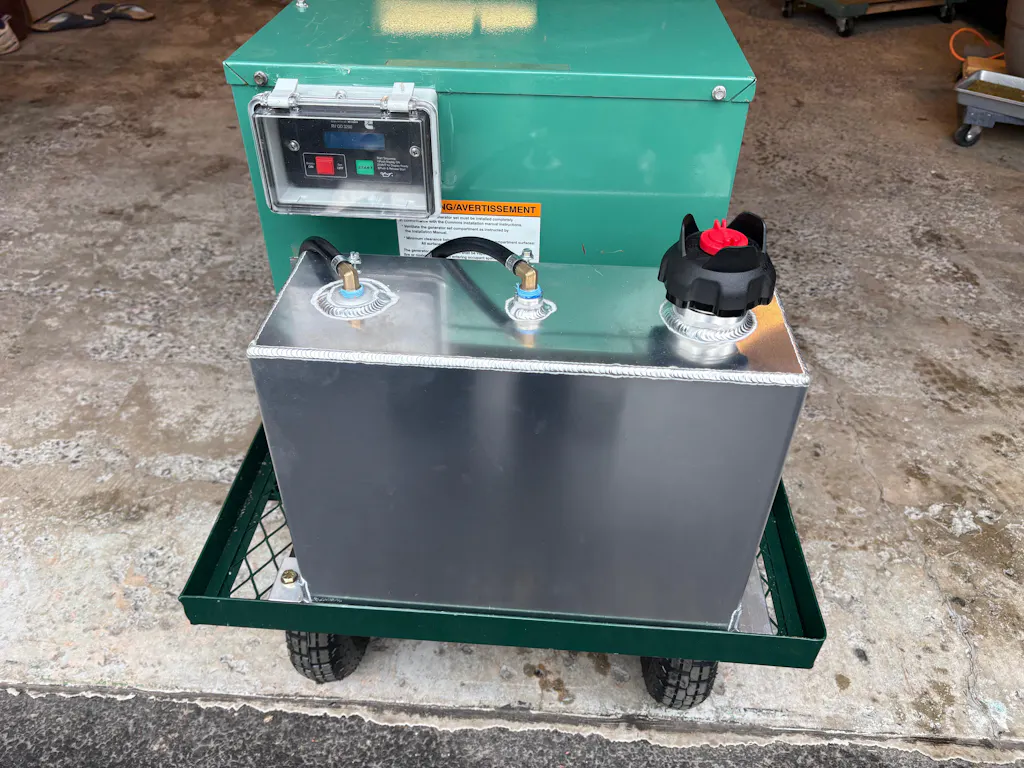

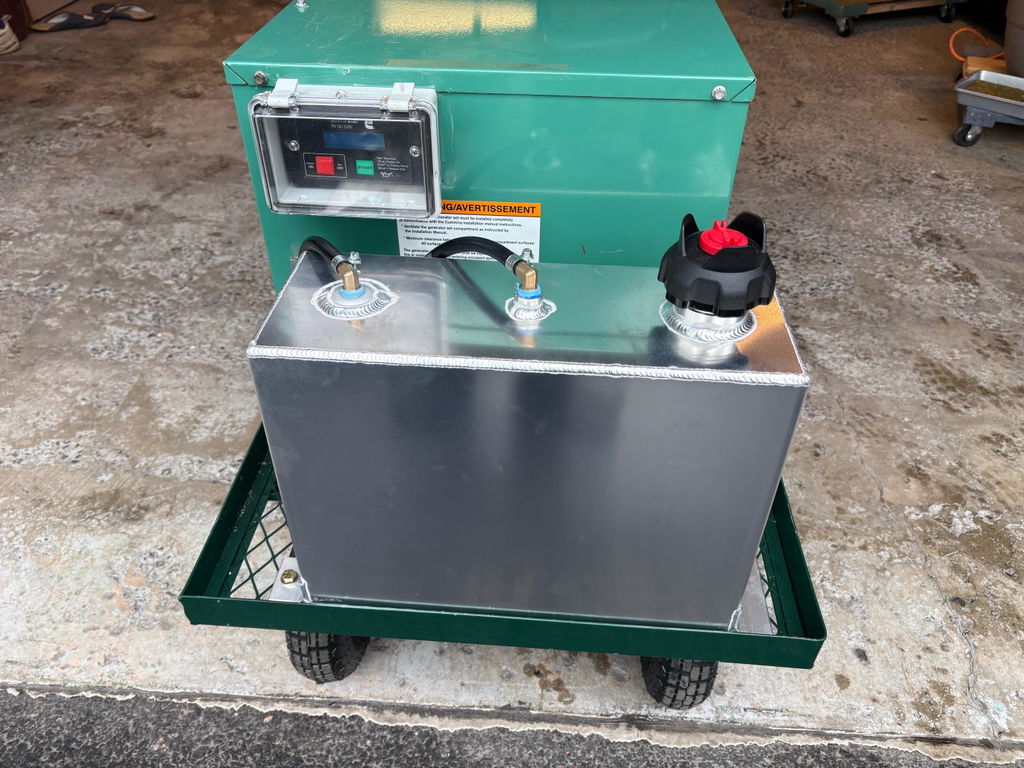

I used it to replace the rusted out steel tank in my tractor. A perfect solution.

P
Phillip Bowman

Supper nice tank and craftsmanship!

S
Scott Ballard
Best thing I have ordered in a long time!

As a Fabricator my self, I decided to buy this tank just to save time on a project that was on a tight deadline. I was skeptical about buying a tank from any one.... but as soon as I opened the box all that was gone. The fit and finish on the tank was top notch, welds where great, no scratches or dings, all around a very nice clean tank at a very good value, I might just never build a tank my self again, heck I don't know if I can afford to not order from Boyd! 10 out of 10
