57XL40 Hydraulic Cap Neck Strainer Hardware

57XL40 Hydraulic Cap Neck Strainer Hardware

Availibilty : Typically In-stock, Additional QTY's available Contact us

Low stock: 5 left


Regular price $25.98
Regular price Sale price $25.98
Sale Sold out
Shipping calculated at checkout.

SKU# 27051

Model = 57XL W/ 40 Micron Screen
Vented = Yes 250 GPM / 35 CFM
Overall Height W/Cap and Weld flange= 2.450" (without flange =2.200")
Lanyard= Yes
Hardware = Yes x6 10-24 machine screws included
Gaskets included= YES

This cap, neck and strainer combo is intended only for hydraulic reservoirs

Screen Keeps Reservoir Fluids Clean, Protects and Prolongs Hydraulic System Life!

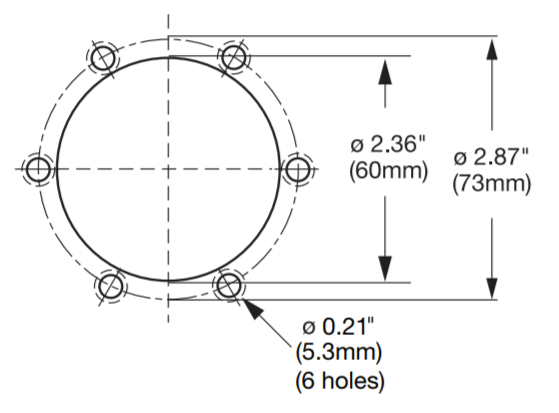

Each unit packaged in kit with instructions, hardware and template for drilling mounting holes if you don't purchase SAE J829 Mounting Flange

Pictures shown with Cap and neck assembly installed on the Aluminum Mounting Flange (not included)

What's Included:

  • 1) Cap
  • 1) Neck
  • 1) Strainer
  • 2) Gaskets
  • 6) 10/24 Machine screws

Optional Parts Available Separately:

Weld in SAE J829 mounting flange offered below. for full description see individual part pages

P# 21101 Aluminum
P# 22011 Steel
P# 23008 Stainless Steel
