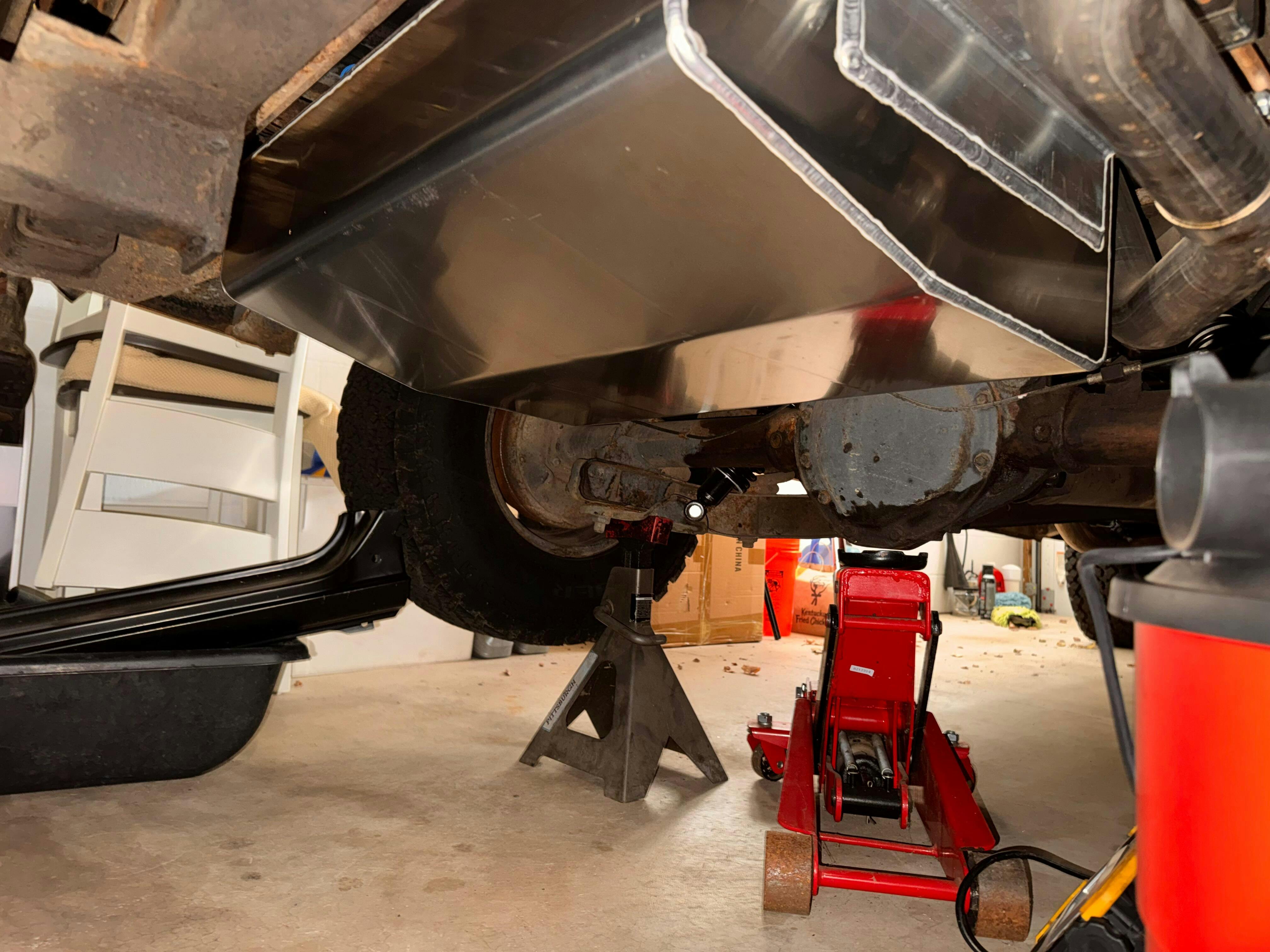

WILL FIT YEARS 63-72 C10 Tank without any modifications to the frame or bed floor when mounted to the bottom.
Years 63-66 K10 & possibly Other year K10's it may be required to modify or move the rear crossmember
-Tank Dimensions: 26.5 x 19 x 10 - Tank Material: .125 Aluminum - CNC Machined Non Vented / Threaded Cap or side fill depending on options chosen - 1/2" NPT Vent - 3/8" NPT Return - 3 Baffles - This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly. (NOT INCLUDED) this pump has proven to be very reliable and will run pretty much any LS or Coyote engine.
Note: This tank will ONLY work with the MU2101 pump assembly.

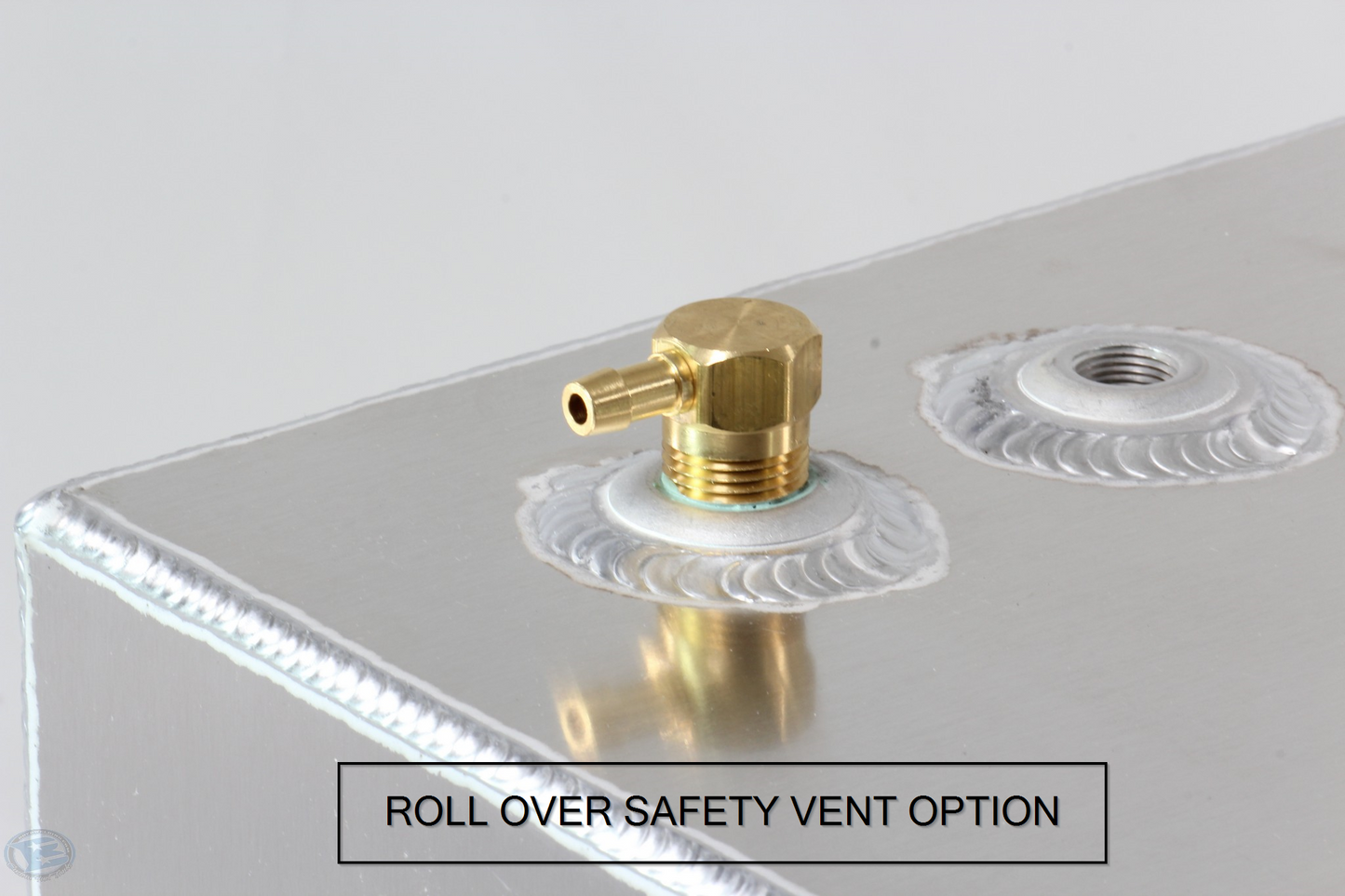

* Pictures show Rollover Safety Vent and Sending Unit Options installed.
- It is not possible to use the OEM fuel level sensor that is supplied with the pump module. since the tank height is different from stock and is custom built into a pocket the sensor float will hit baffling and will not read the fuel level properly.
