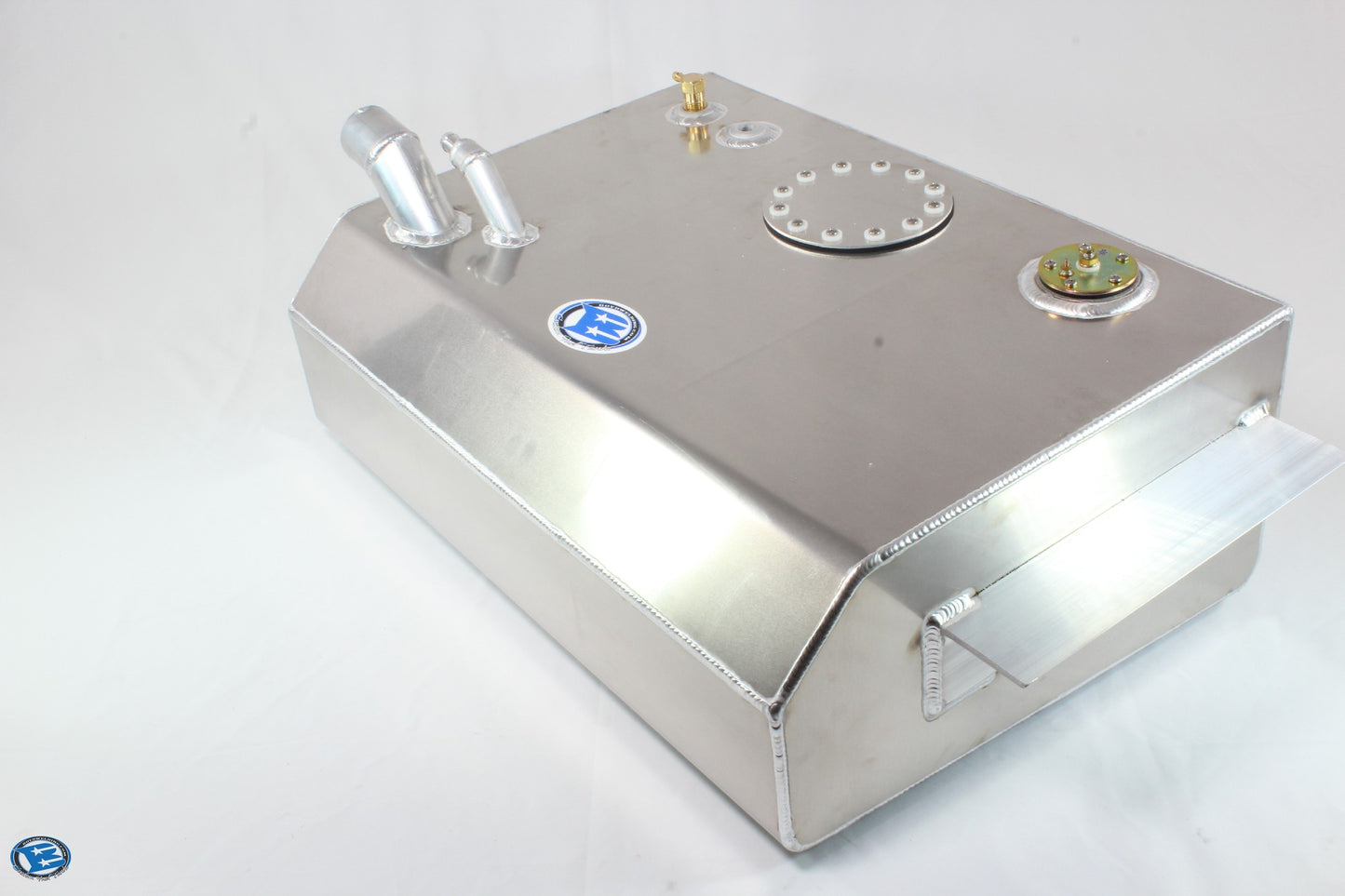

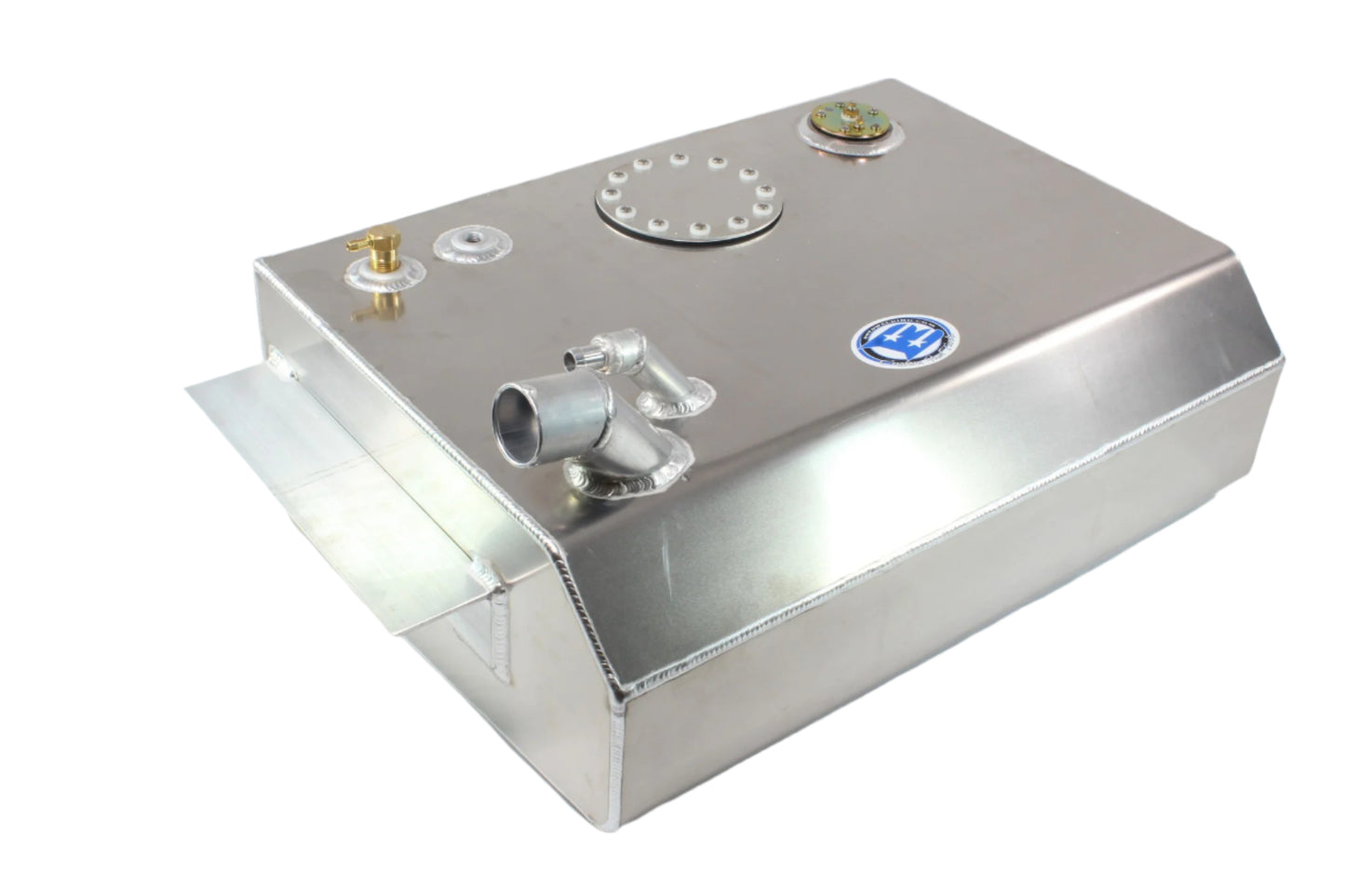

63-72 C10 Side Fill NON EFI Tank

63-72 C10 Side Fill NON EFI Tank

Availibilty : Ships in 1-2 weeks or Less

14002

$388.00
$0.00 $388.00
Sale Sold out
Shipping calculated at checkout.

WILL FIT YEARS 63-72 C10 Tank without any modifications to the frame or bed floor when mounted to the bottom.

Years 63-66 K10 & possibly Other year K10's  it may be required to modify or move the rear crossmember

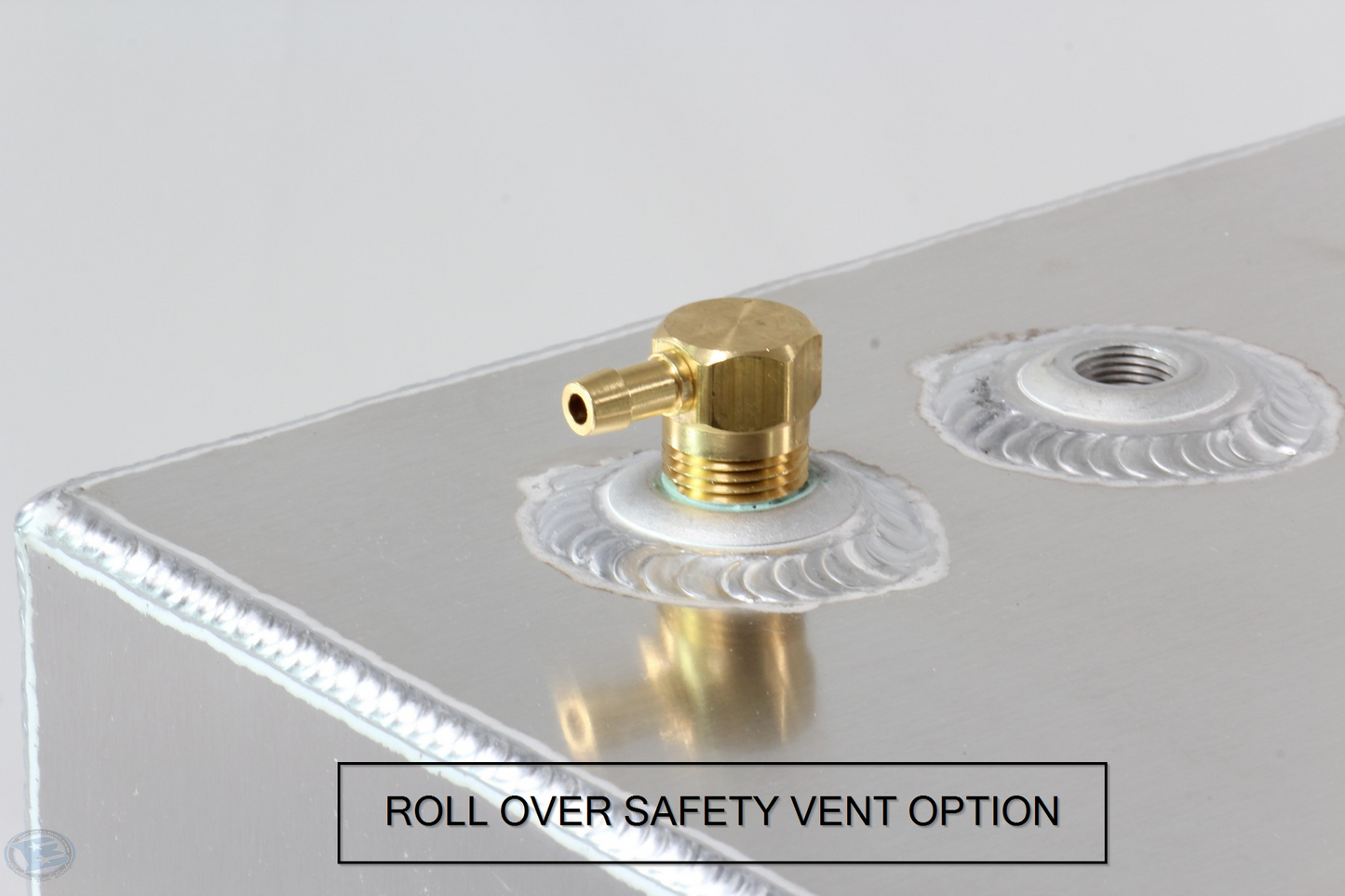

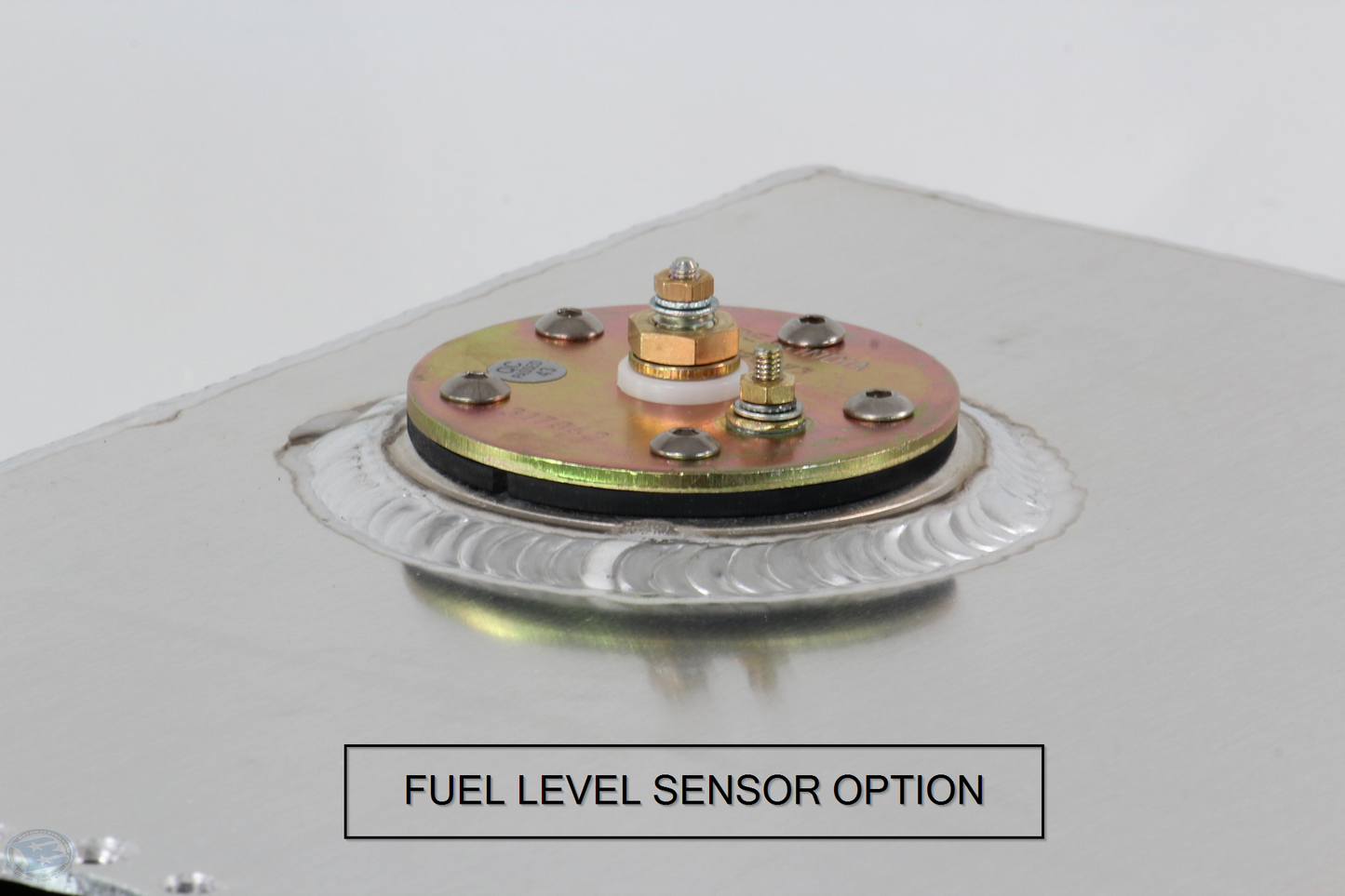

* Pictures show Rollover Safety Vent and Sending Unit Options installed.

*Our Side fill tank does not require any notching or modification to the frame or bed floor when mounted to the bottom of the frame as intended.

-Tank Dimensions: 26.5 x 19 x 10

-Mounting Angle = 3" on both sides

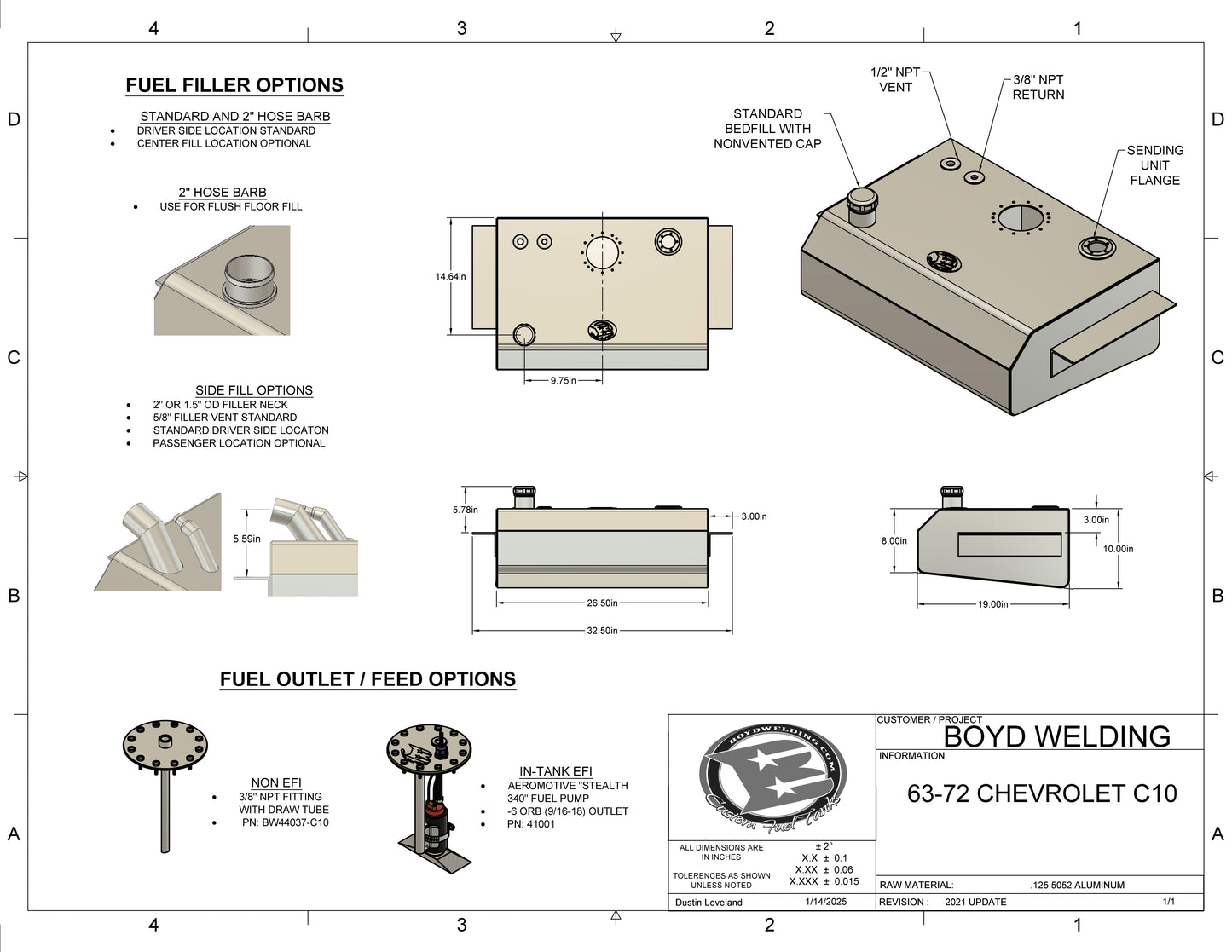

TANK DIAGRAM HERE

  • Tank Material: .125 Aluminum

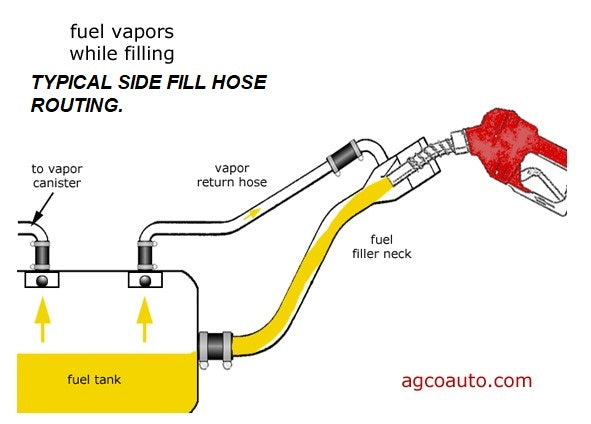

    - 2" OD Ribbed for hose Side Fill
    -5/8" OD Barb Fill Neck Vent
    - 1/2" NPT Vent
    - 3/8" NPT Return

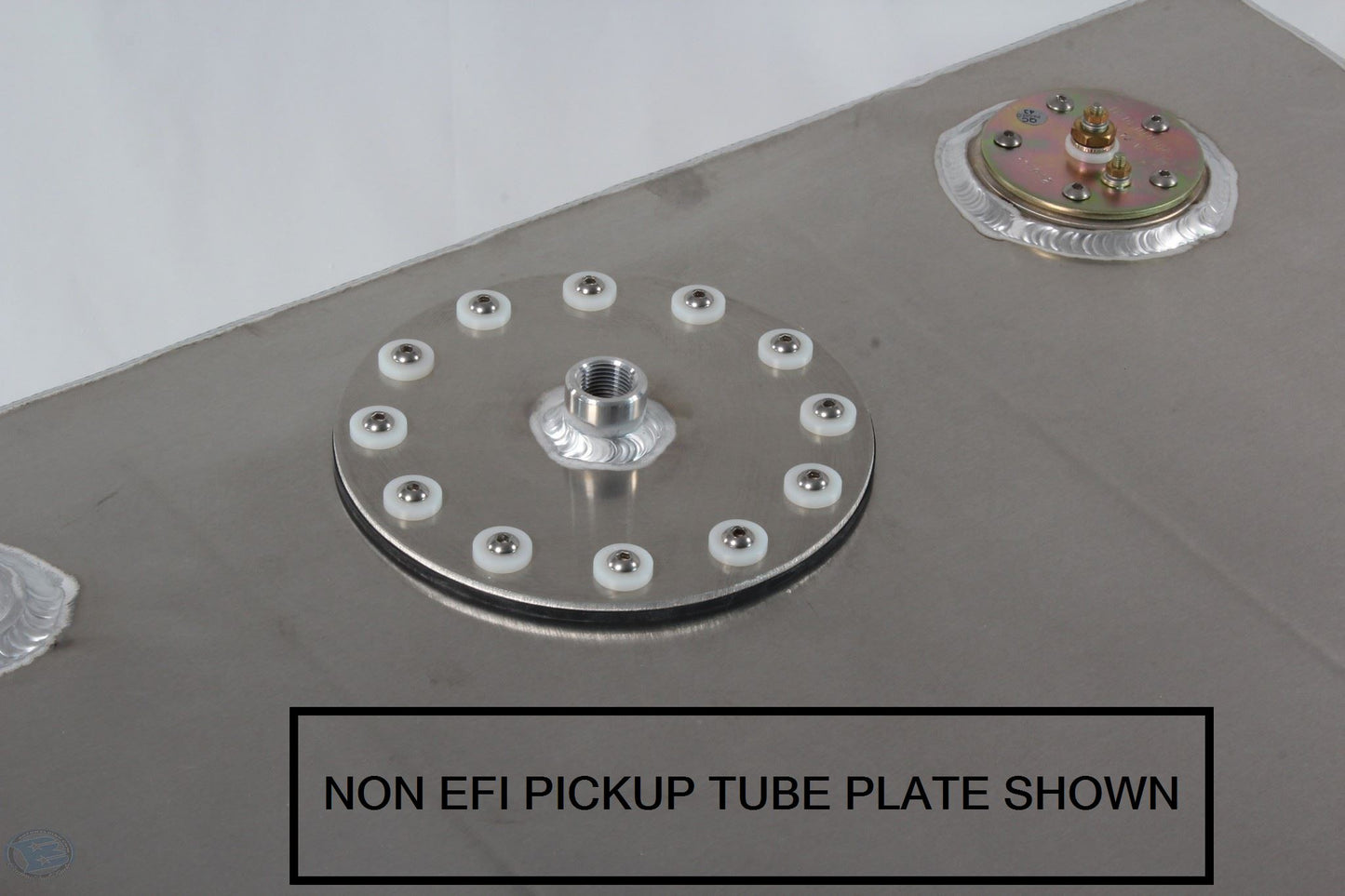

    -3/8" NPT Pickup tube in plate included*
    - 3 Baffles
    -Approx 19 Gallons

- This tank is a NON-EFI but we have constructed the tank so that you can upgrade to our in-tank EFI system in the future just choose SKU # 41001.
