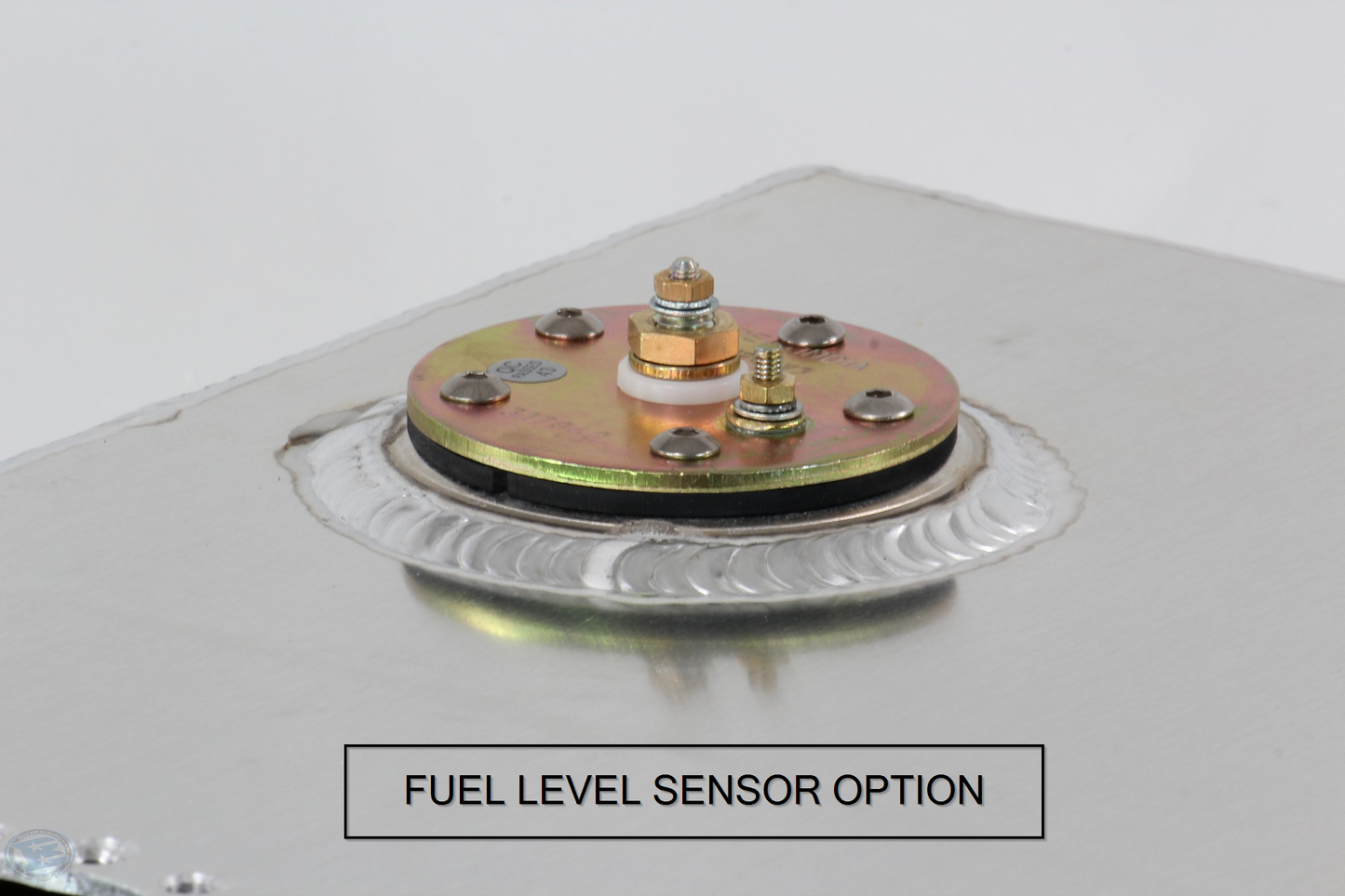

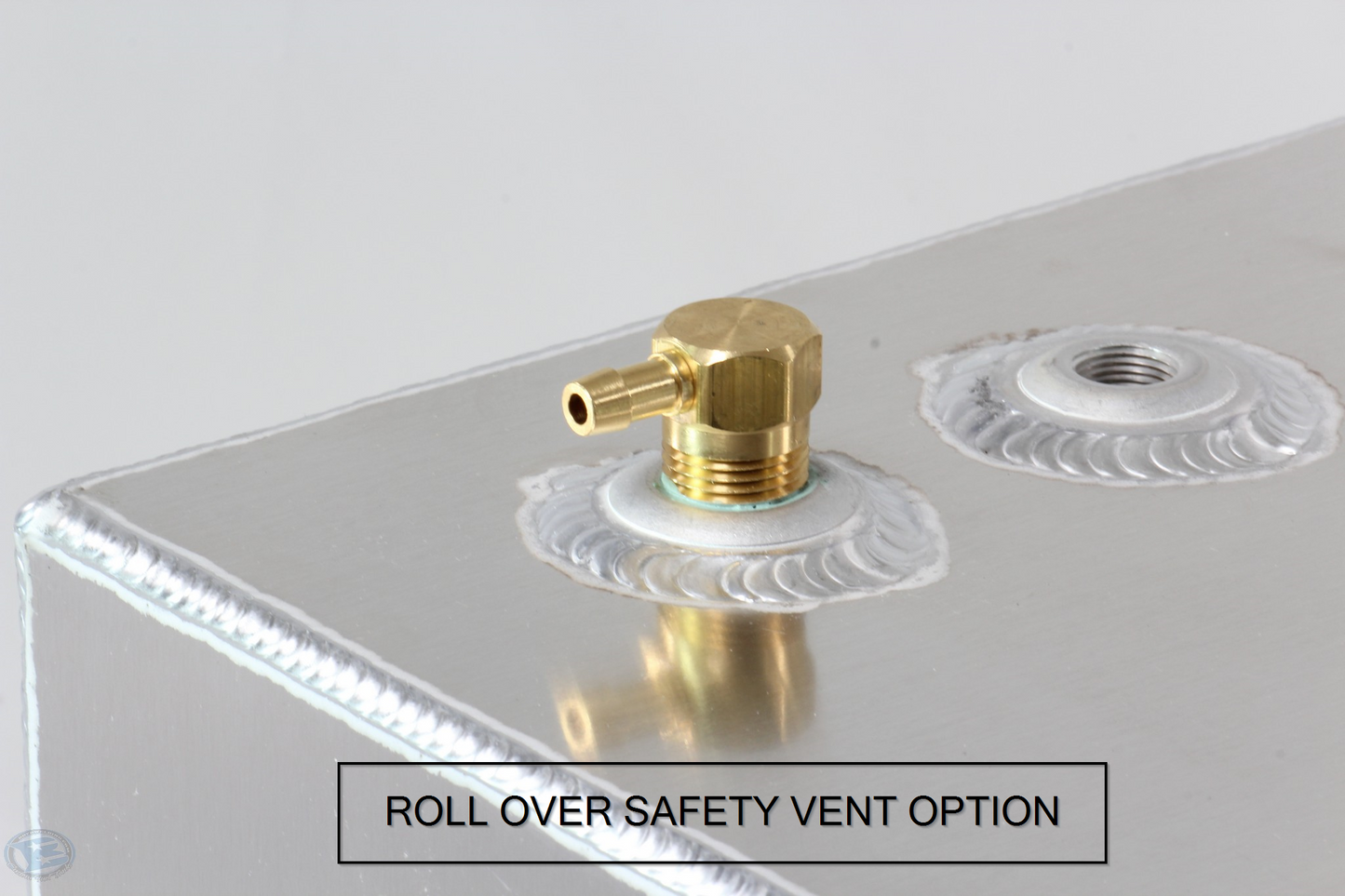

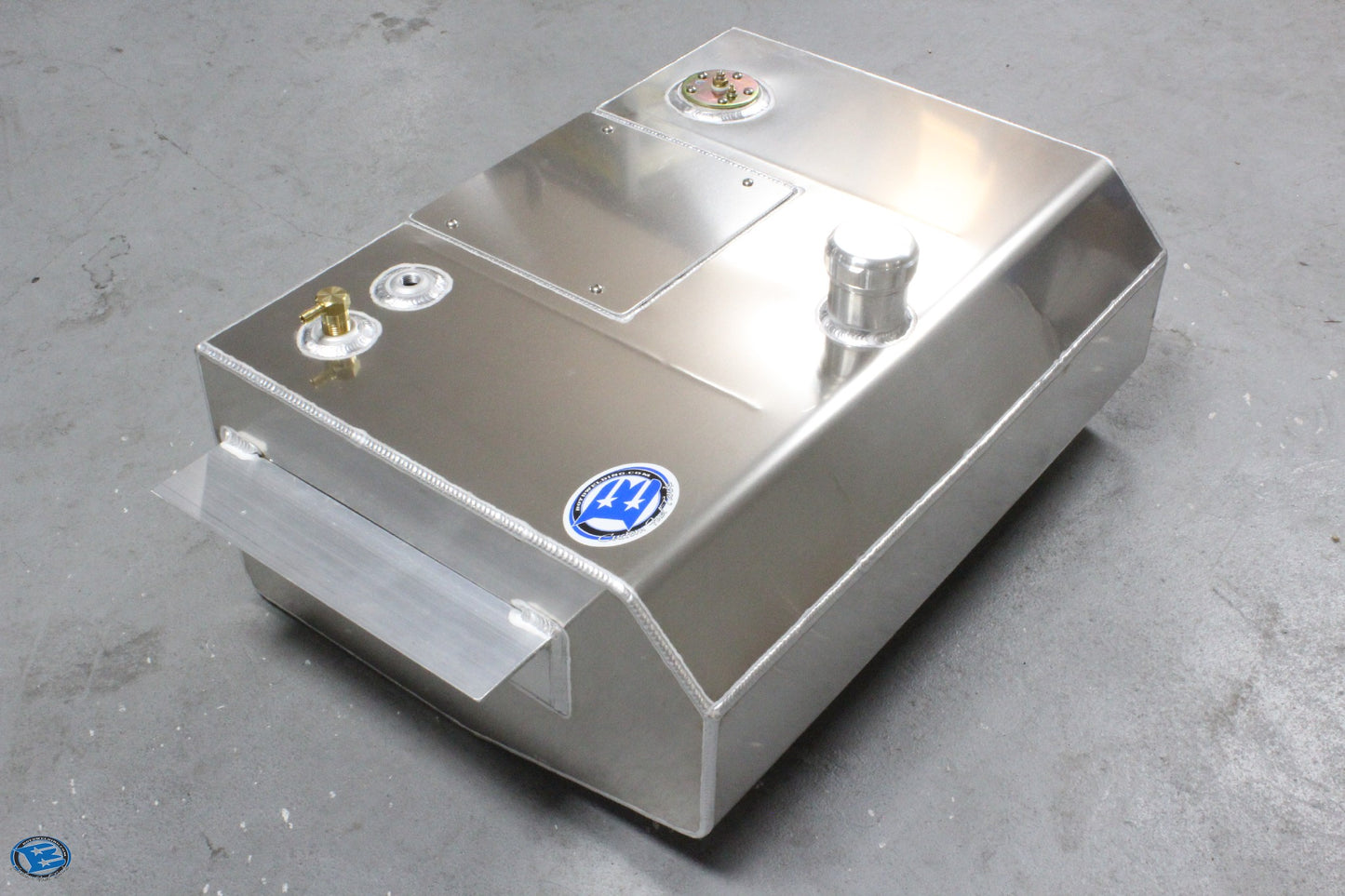

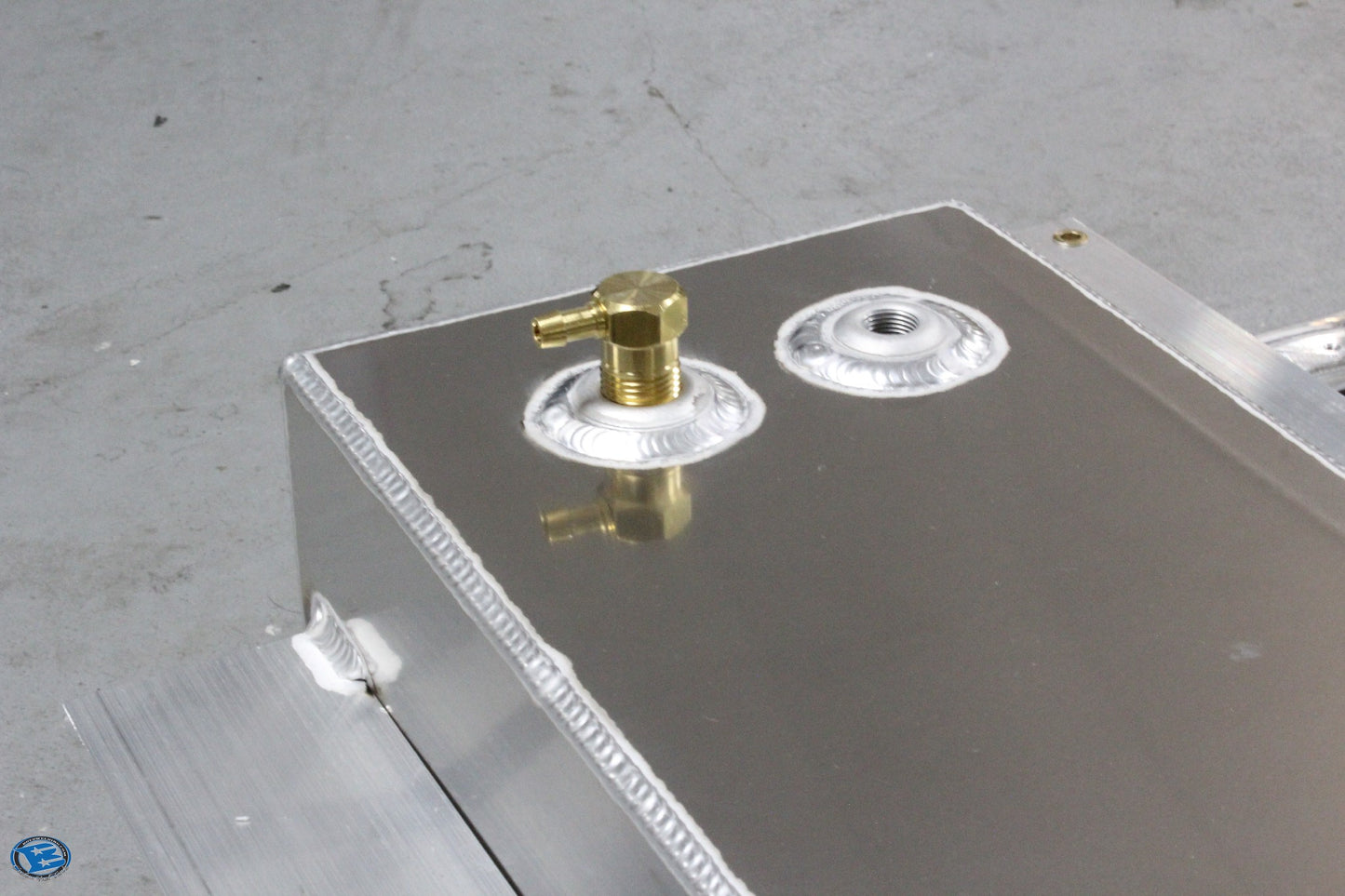

* Pictures show Rollover Safety Vent and Sending Unit Options installed.
SEE BANNER FOR CURRENT LEAD TIMES

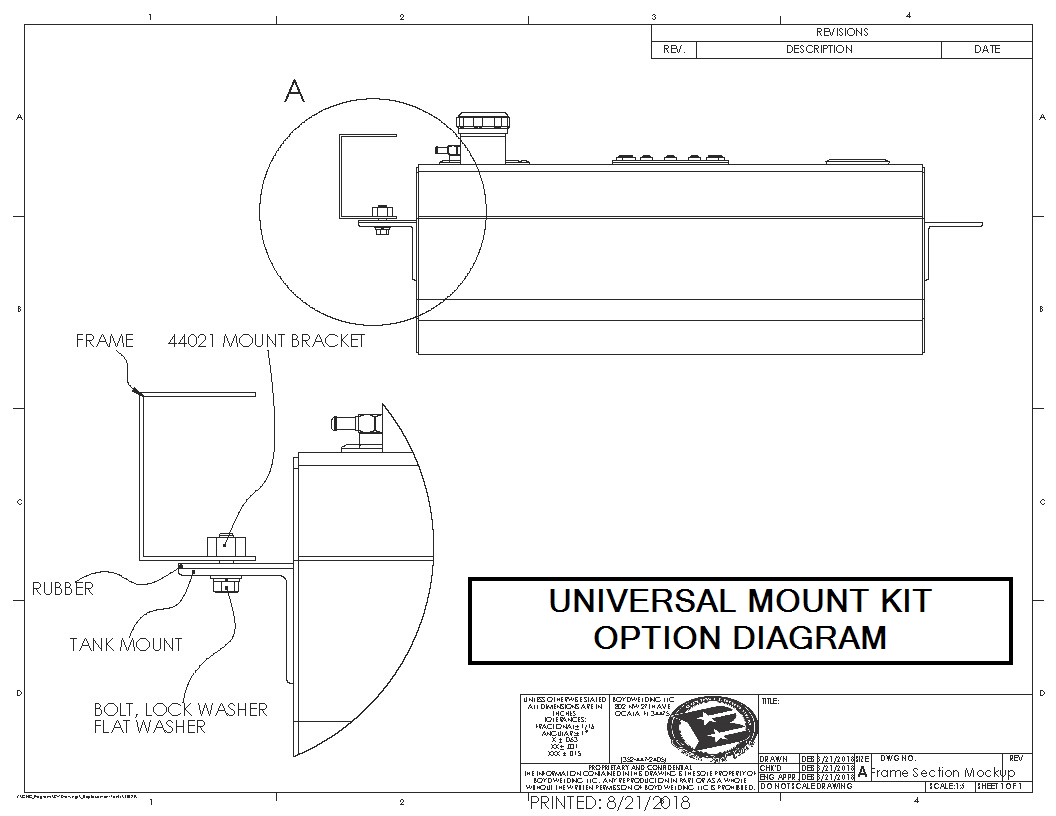

****IF ADAPTING TO A STOCK FRAME, ADDITIONAL NOTCHING TO THE LOWER LEG OF FRAME CROSS MEMBER WILL BE REQUIRED FOR FITMENT.*****

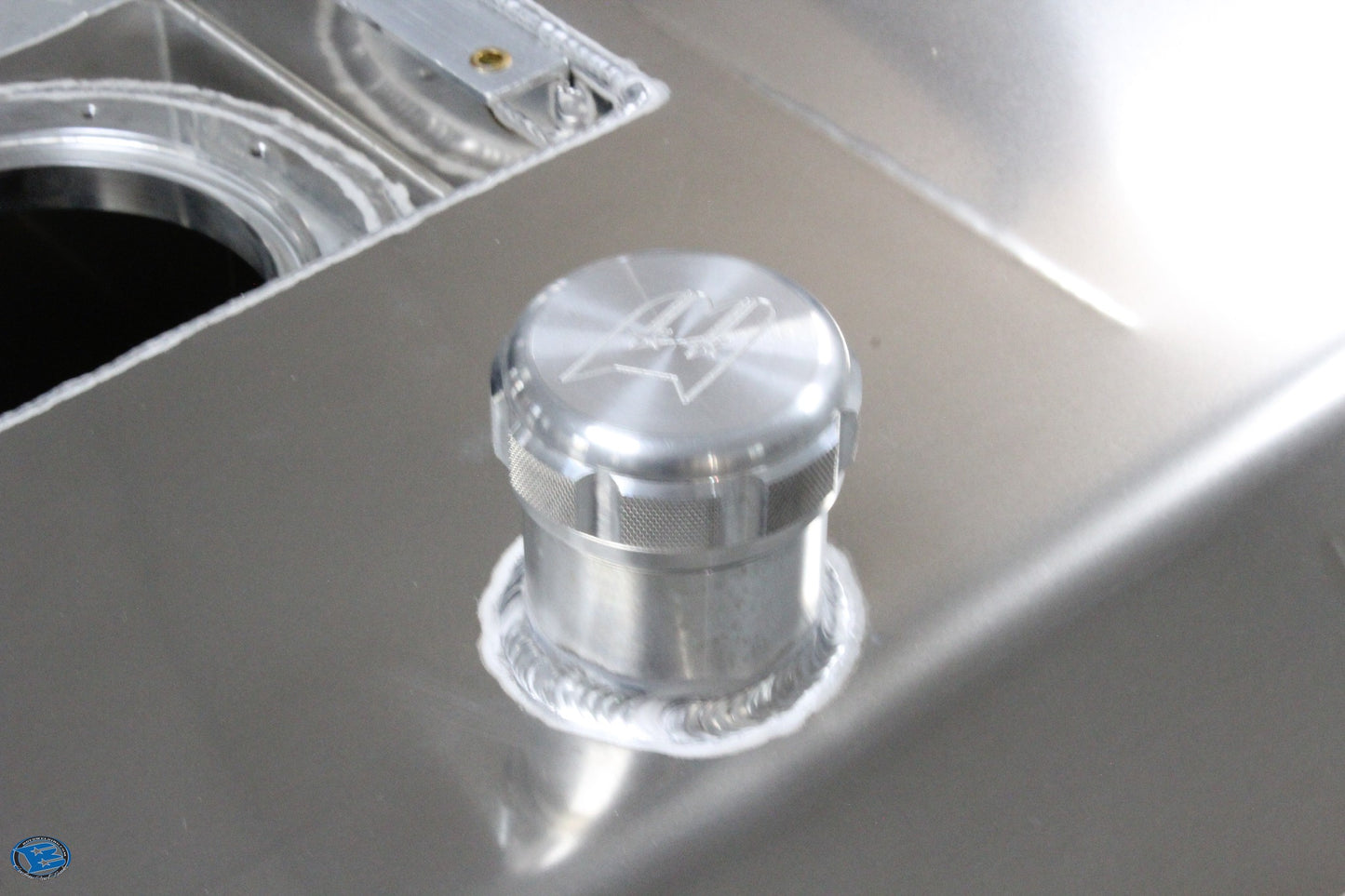

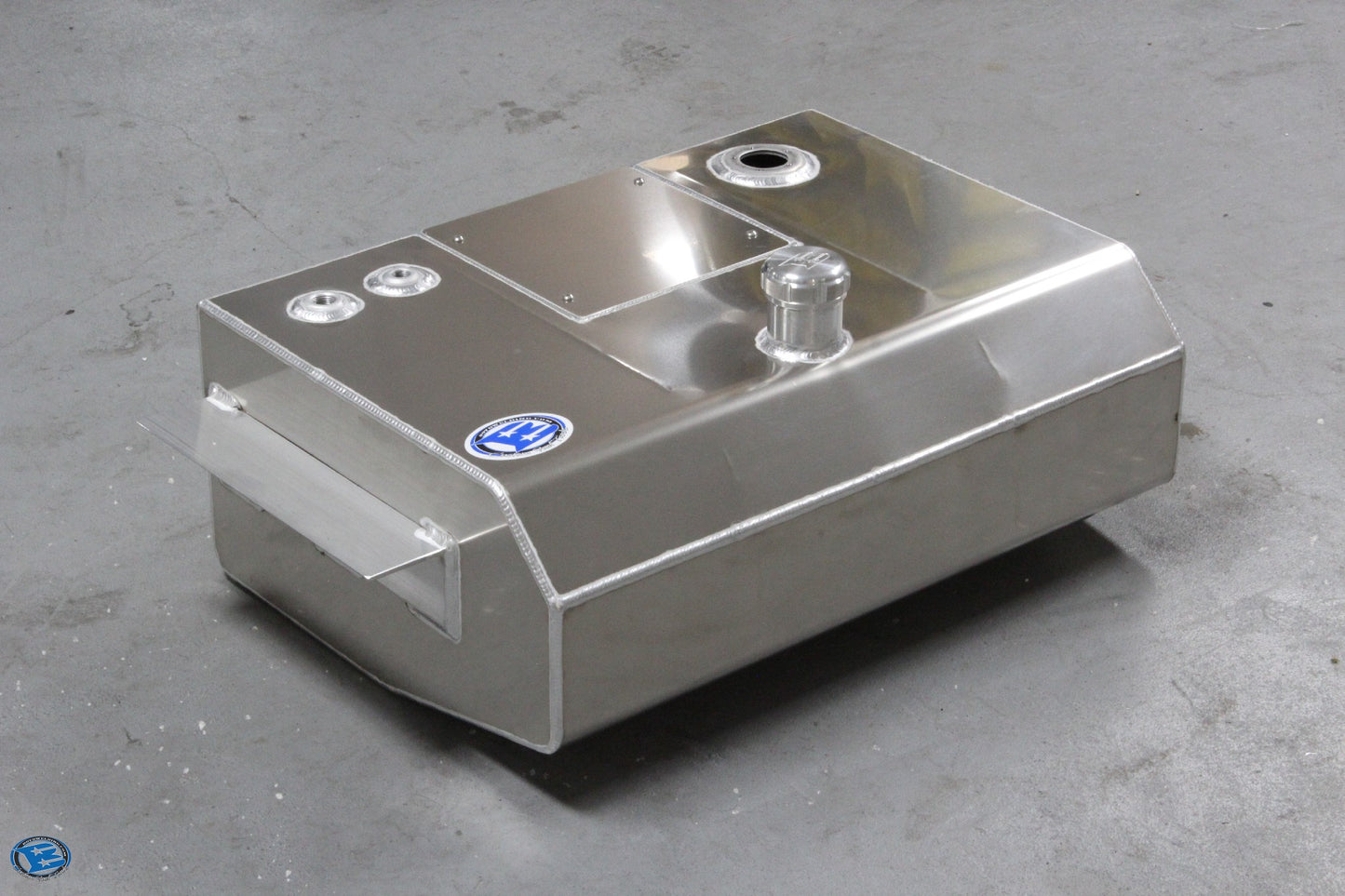

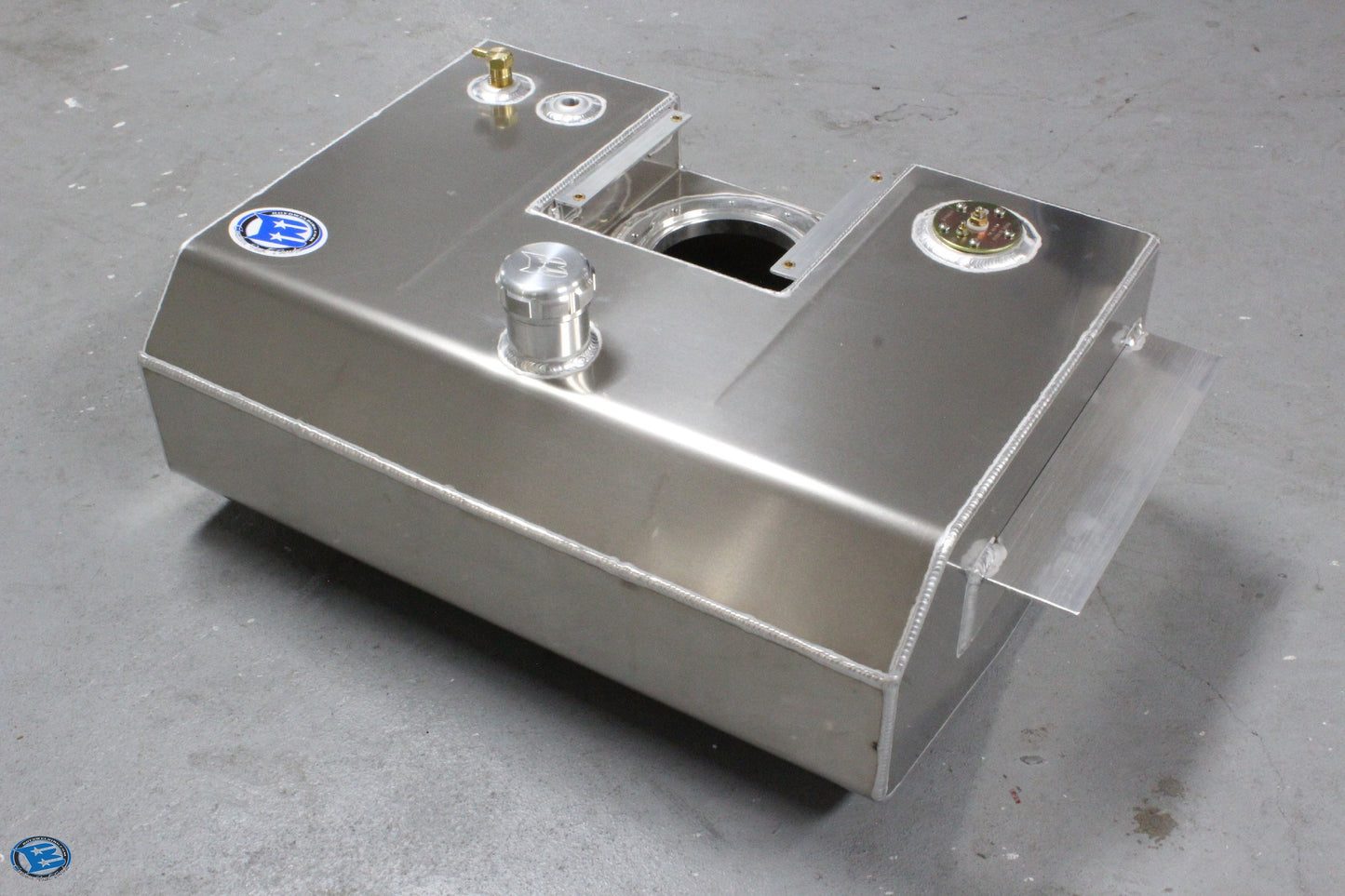

-Tank Dimensions: 26.5 x 19 x 10 - Tank Material: .125 Aluminum - CNC Machined Non Vented / Threaded Cap. on center - 1/2" NPT Vent - 3/8" NPT Return - 3 Baffles -Approx 19 Gallons - This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly. (NOT INCLUDED) this pump has proven to be very reliable and will run pretty much any LS or Coyote engine..
- It is not possible to use the OEM fuel level sensor that is supplied with the pump module. since the tank height is different from stock and is custom built into a pocket the sensor float will hit baffling and will not read the fuel level properly.
Note: This tank will ONLY work with the MU2101 pump assembly.
