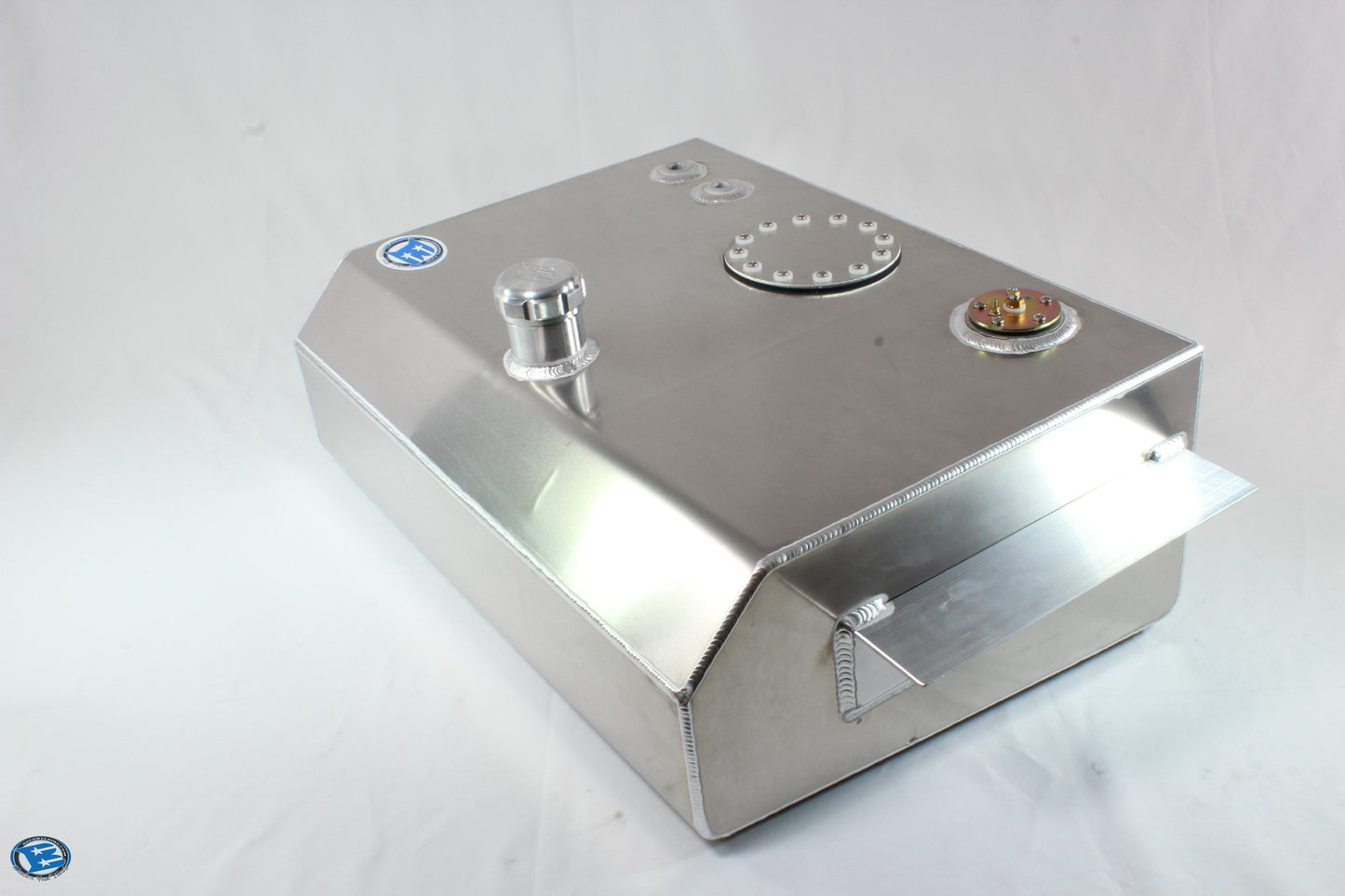

67-72 Ford F100 Rear Mount Tank Bed Fill NON EFI

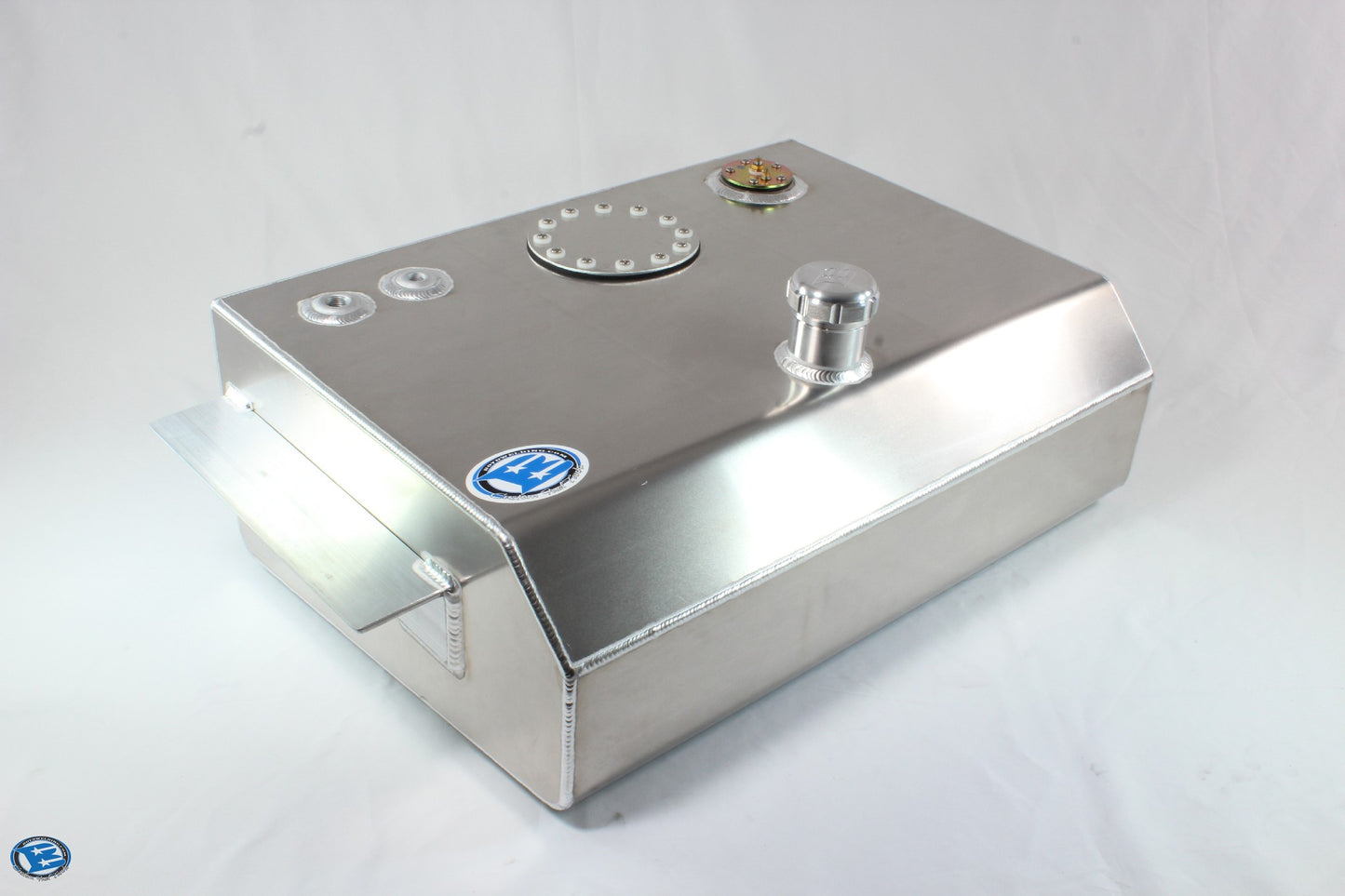

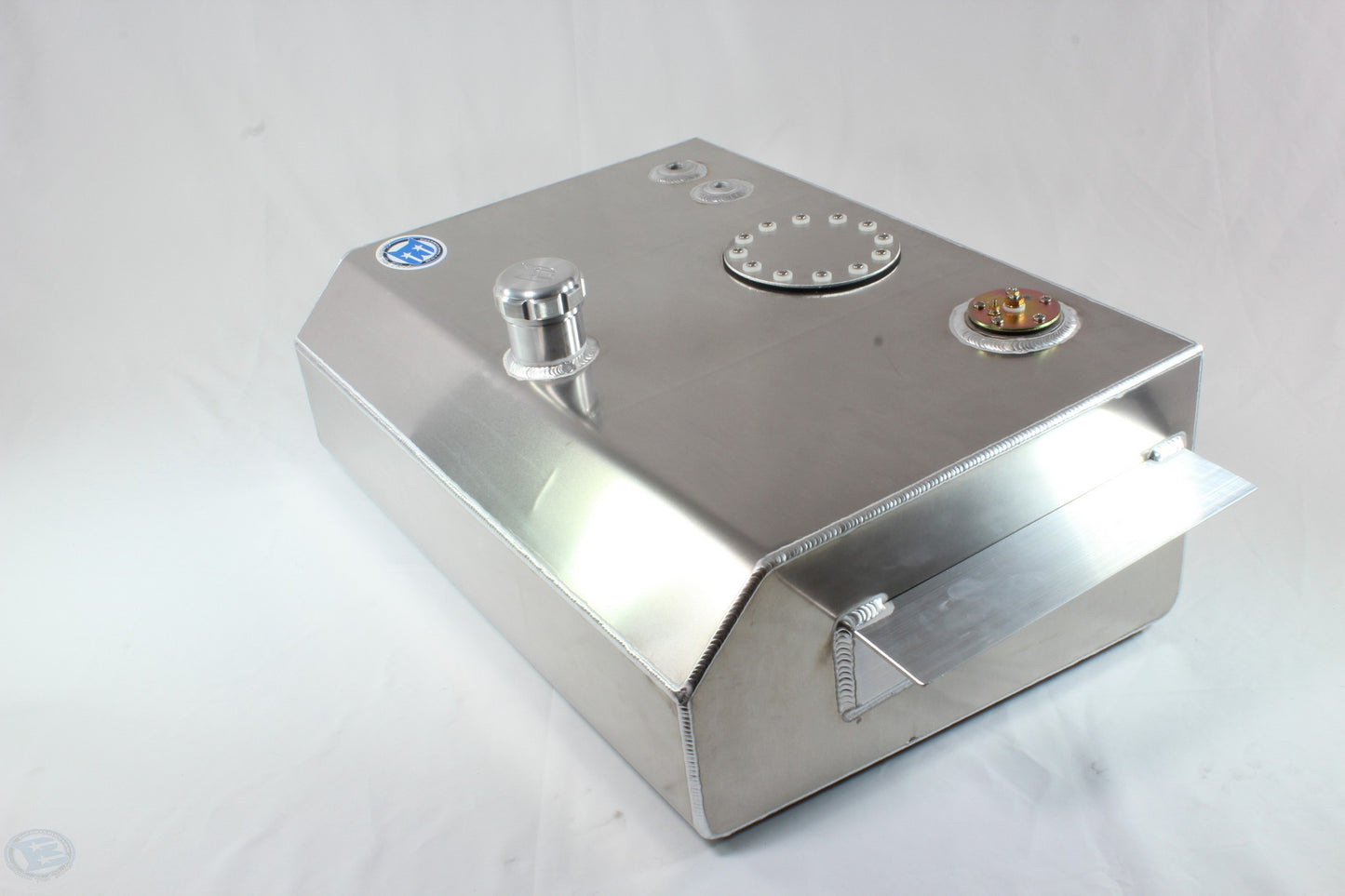

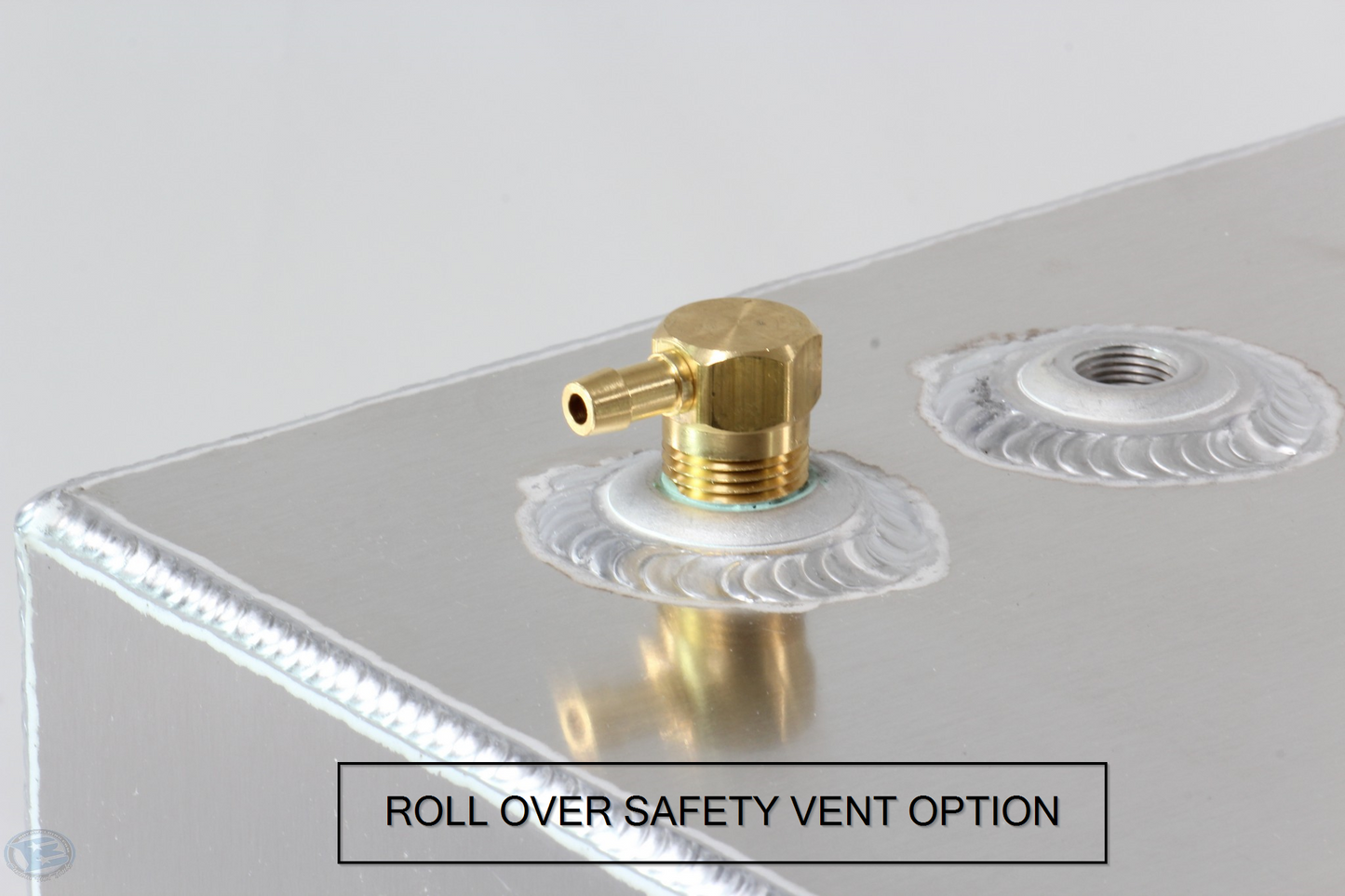

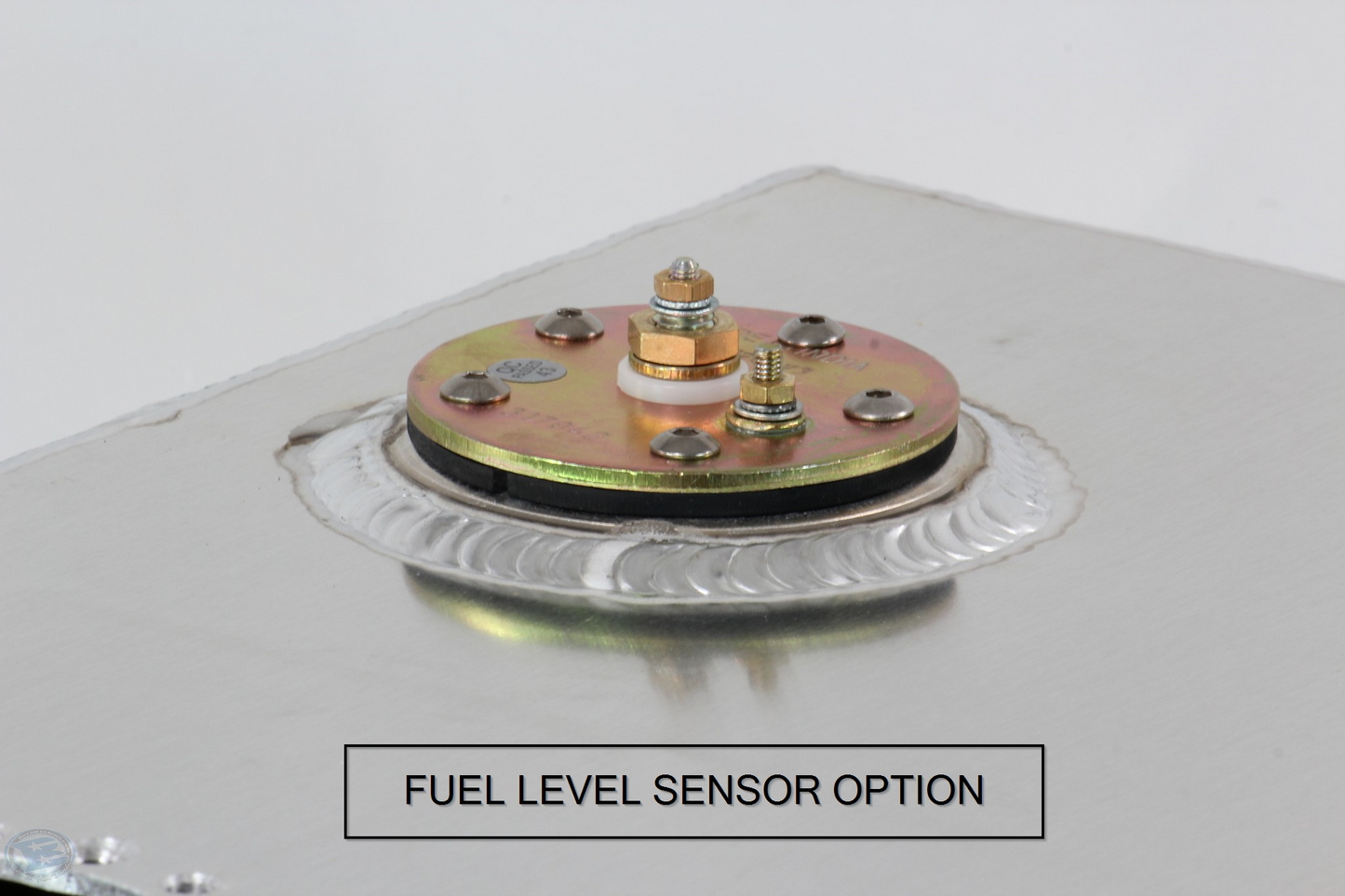

* Pictures show Rollover Safety Vent and Sending Unit Options installed.

SEE BANNER FOR CURRENT LEAD TIMES

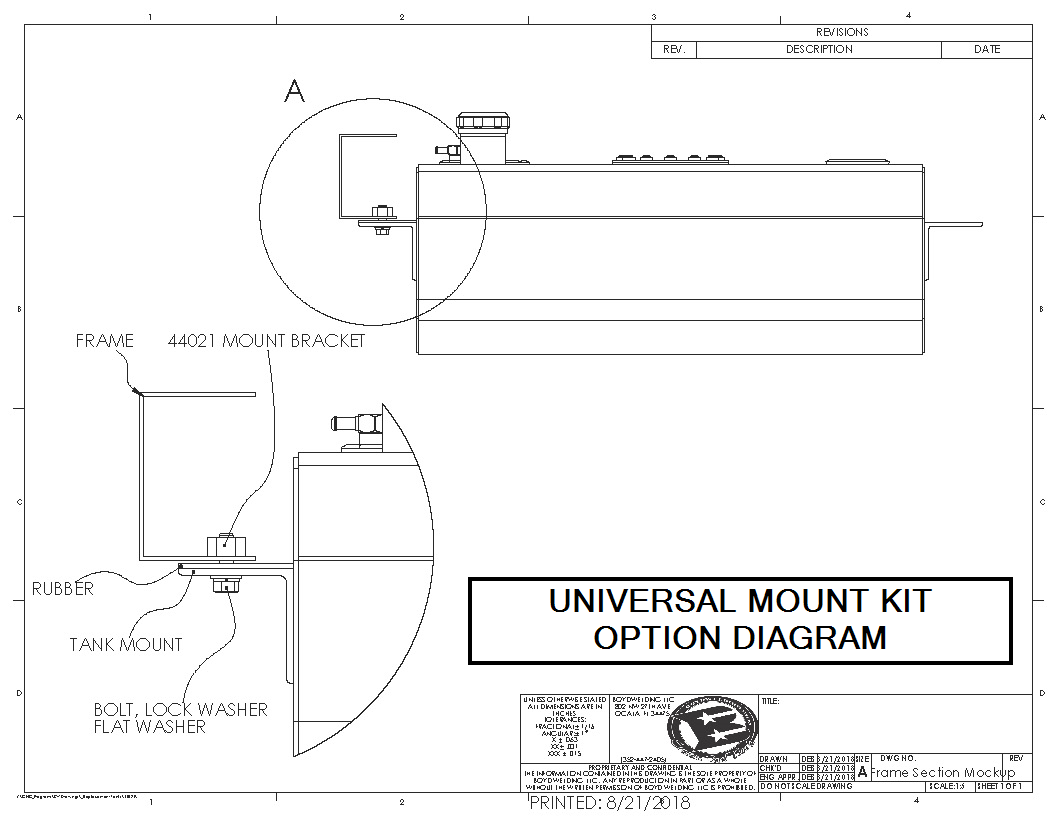

****IF ADAPTING TO A STOCK FRAME, ADDITIONAL NOTCHING TO THE LOWER LEG OF FRAME CROSS MEMBER WILL BE REQUIRED FOR FITMENT.*****

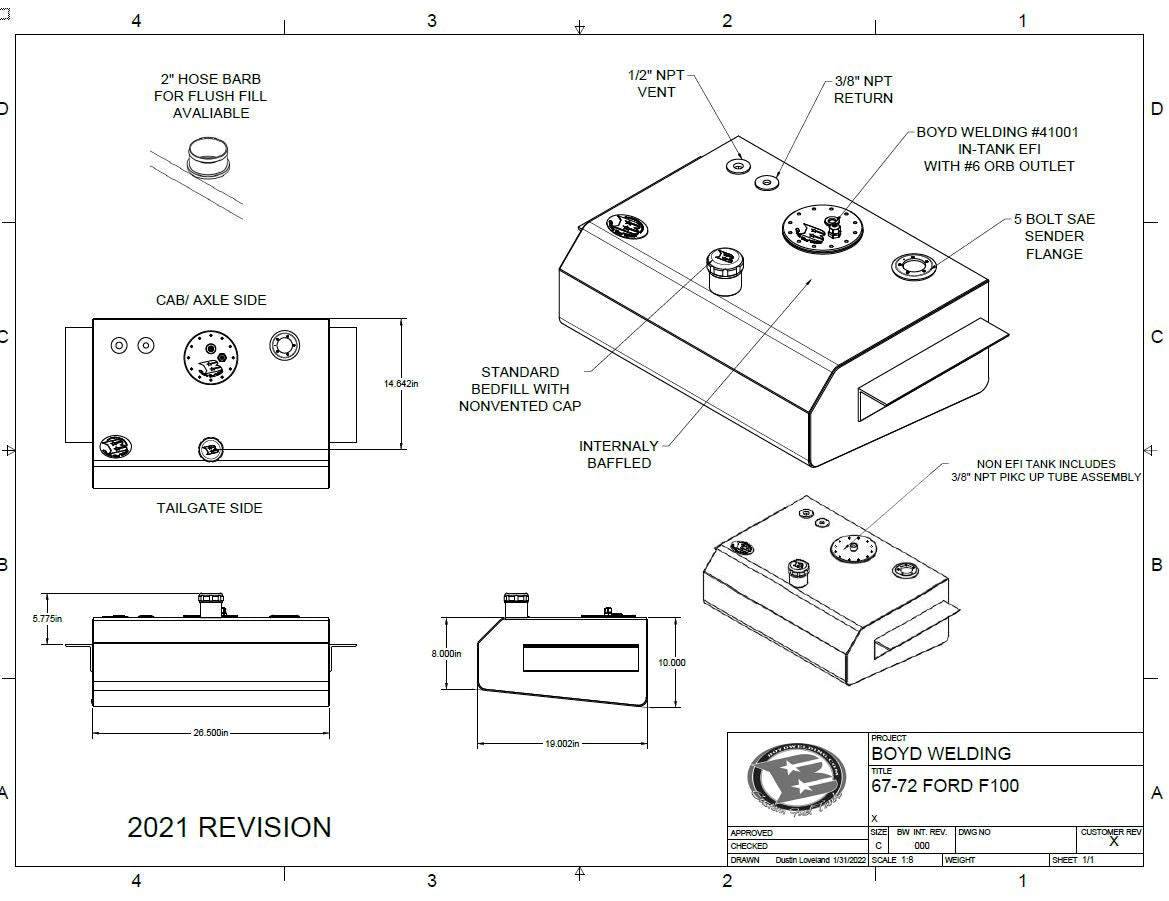

-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- CNC Machined Non Vented / Threaded Cap. on center
- 1/2" NPT Vent
- 3/8" NPT Return

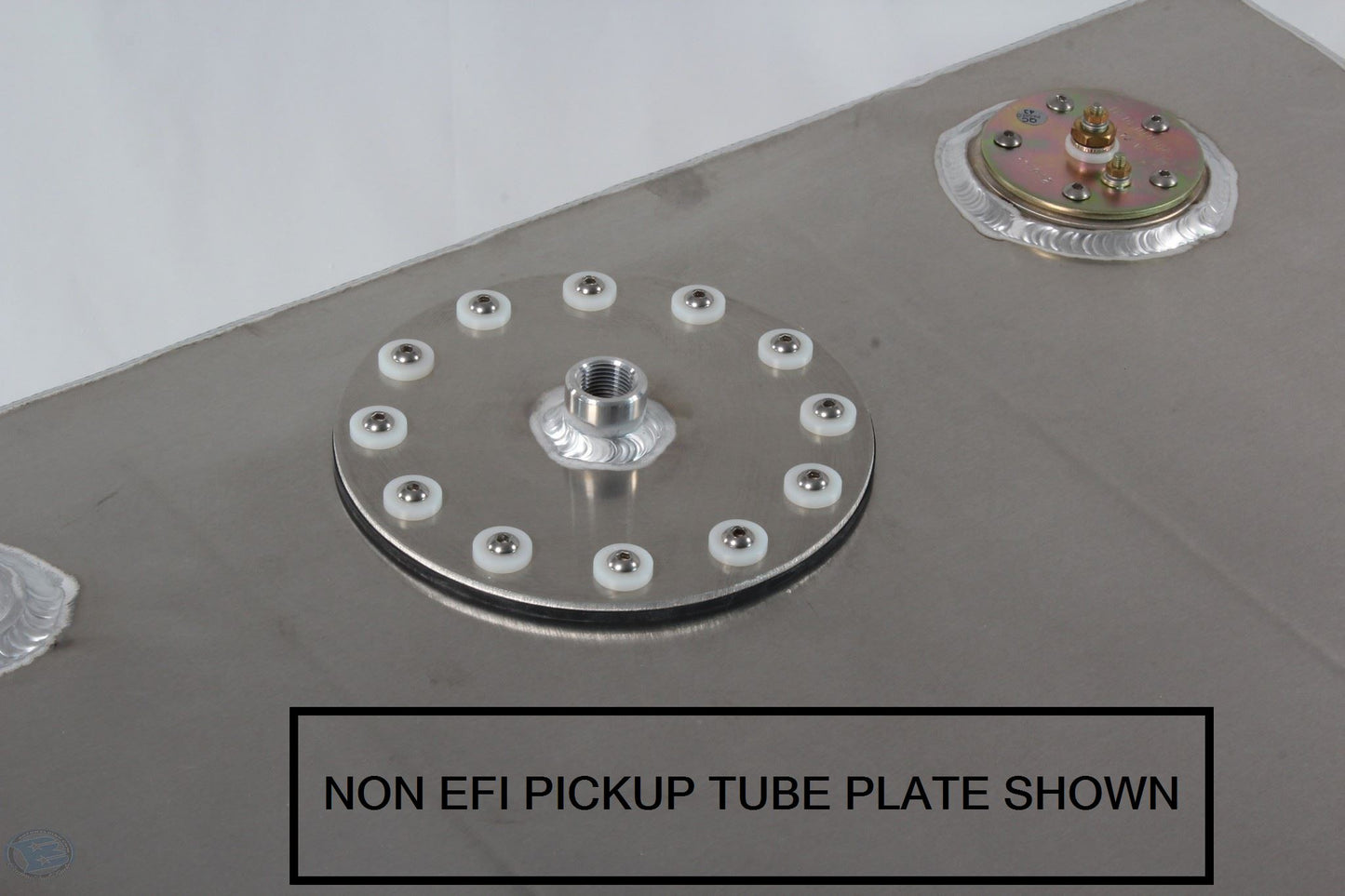

-3/8" NPT Pick up tube
- 3 Baffles
-Approx 19 Gallons

- THIS TANK DOES NOT COME WITH AN IN-TANK PUMP. TO PULL FUEL YOU WILL UTILIZE THE 3/8" NPT PICK UP TUBE
