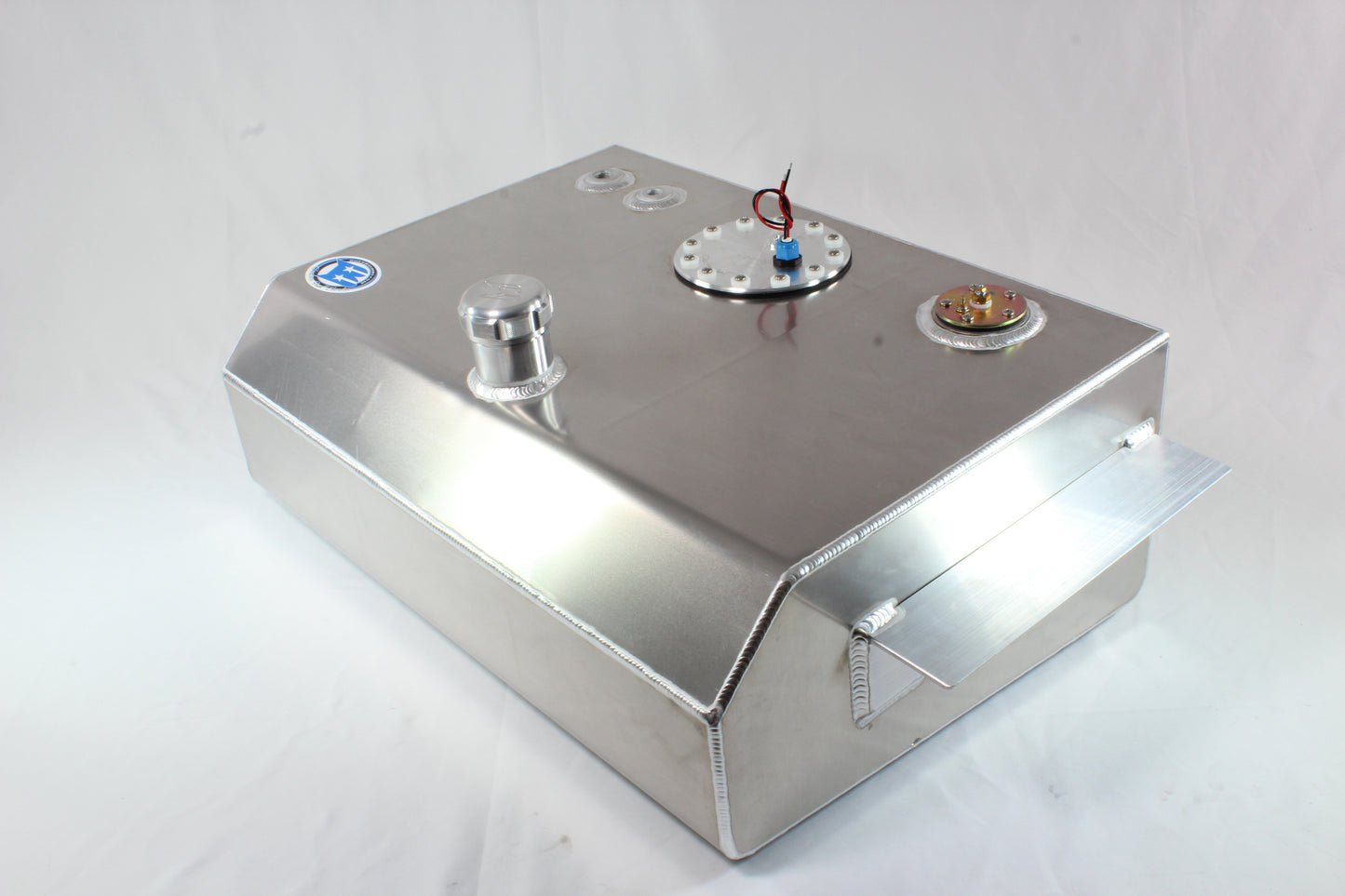

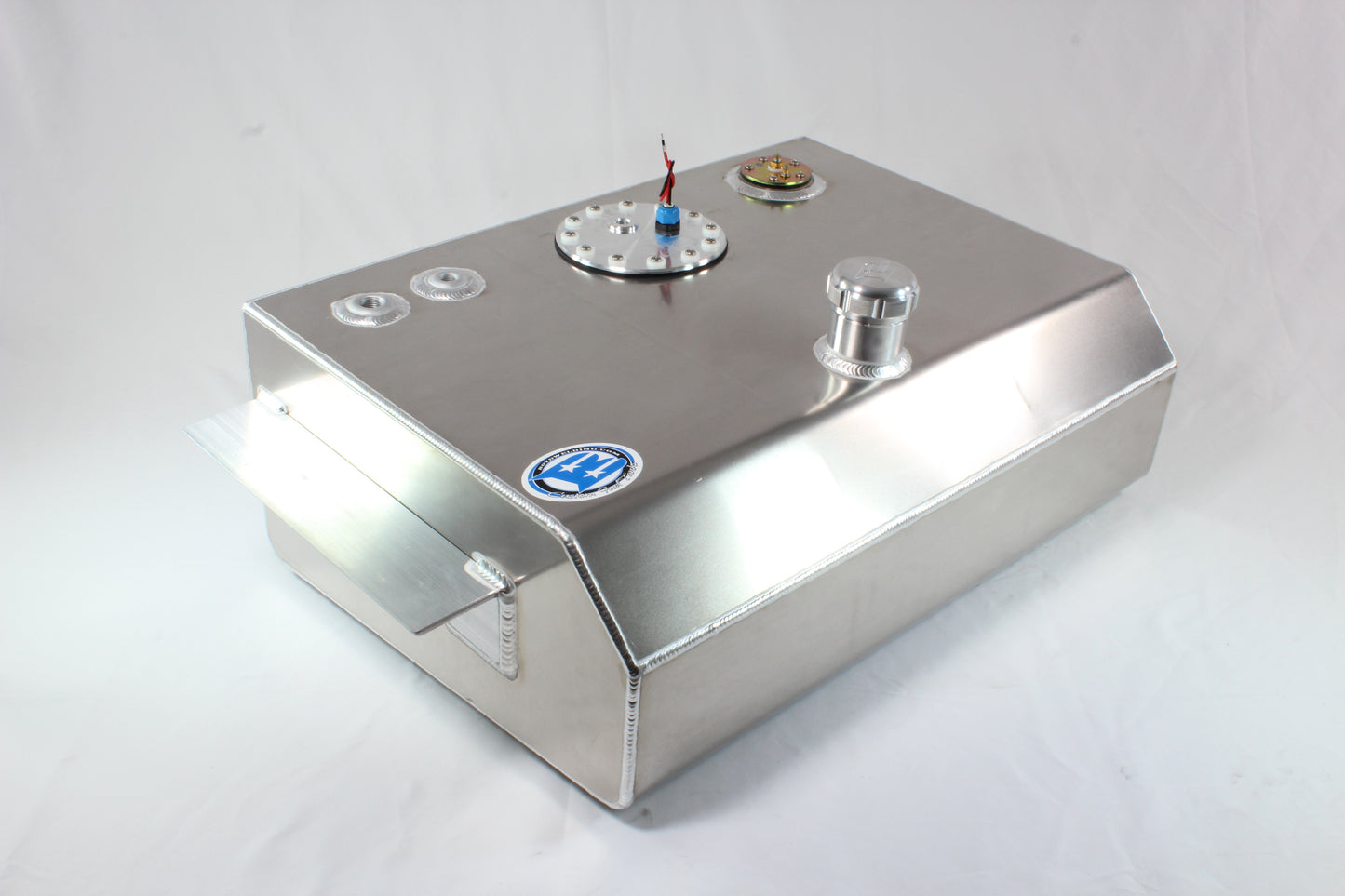

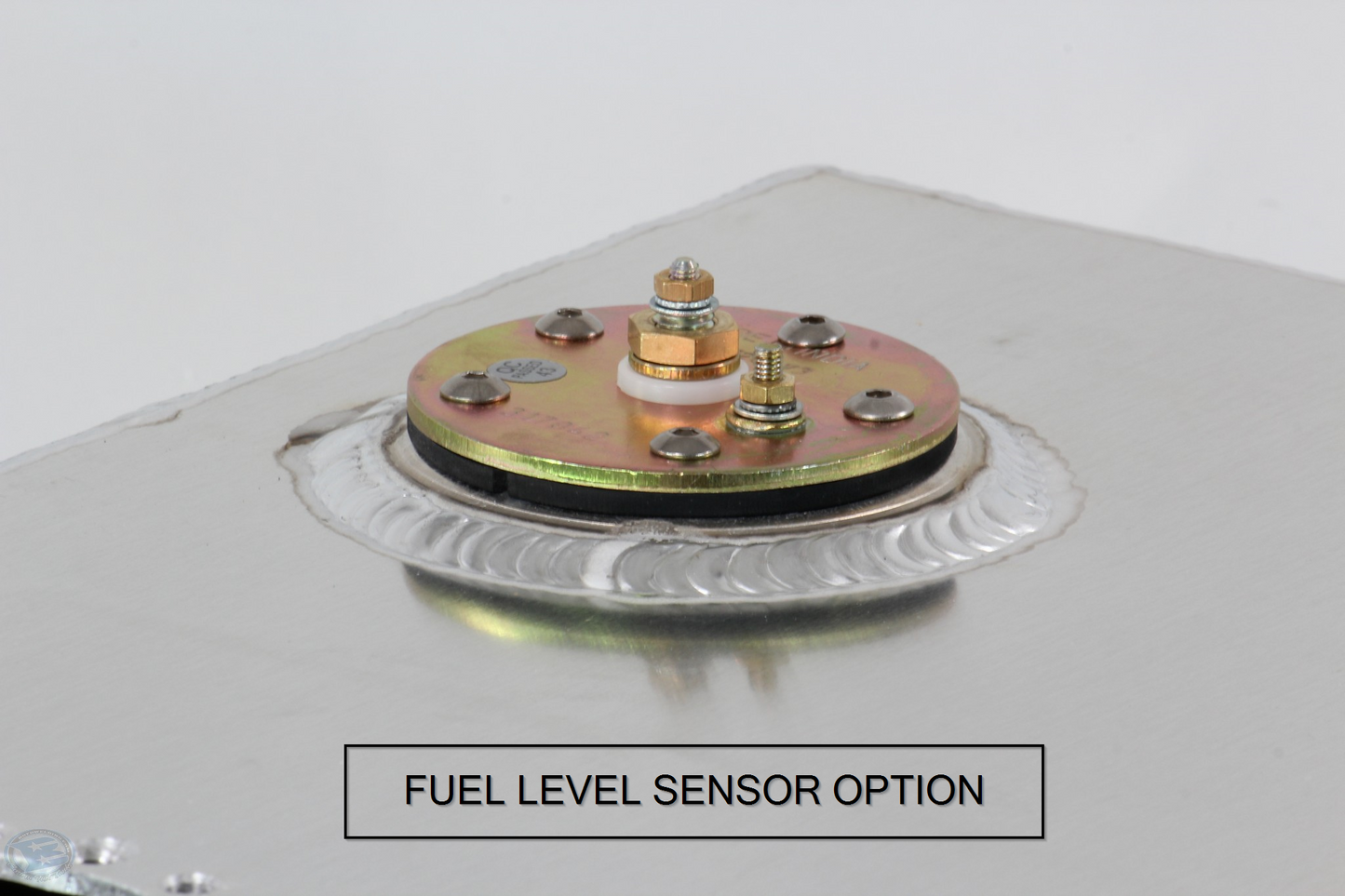

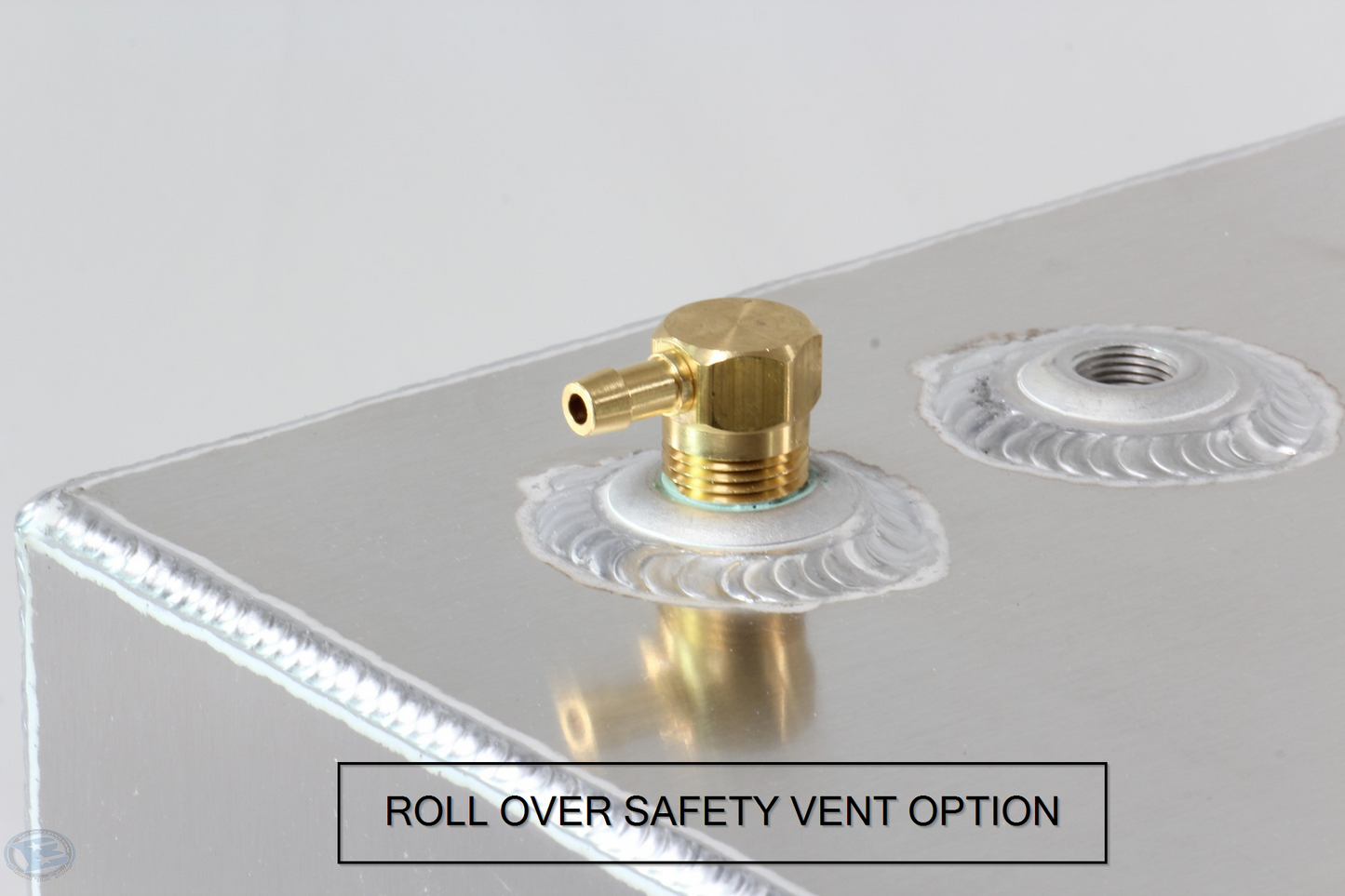

* Pictures show Rollover Safety Vent and Sending Unit Options installed.
SEE BANNER FOR CURRENT LEAD TIMES

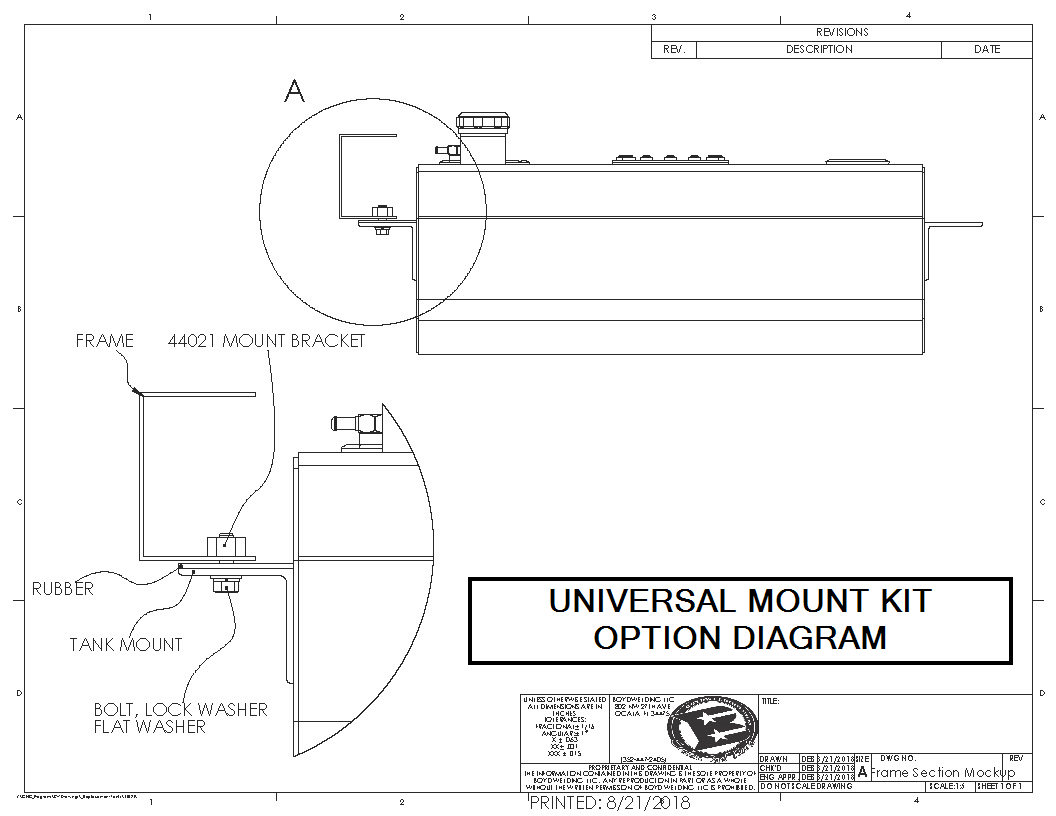

****IF ADAPTING TO A STOCK FRAME, ADDITIONAL NOTCHING TO THE LOWER LEG OF FRAME CROSS MEMBER WILL BE REQUIRED FOR FITMENT.*****

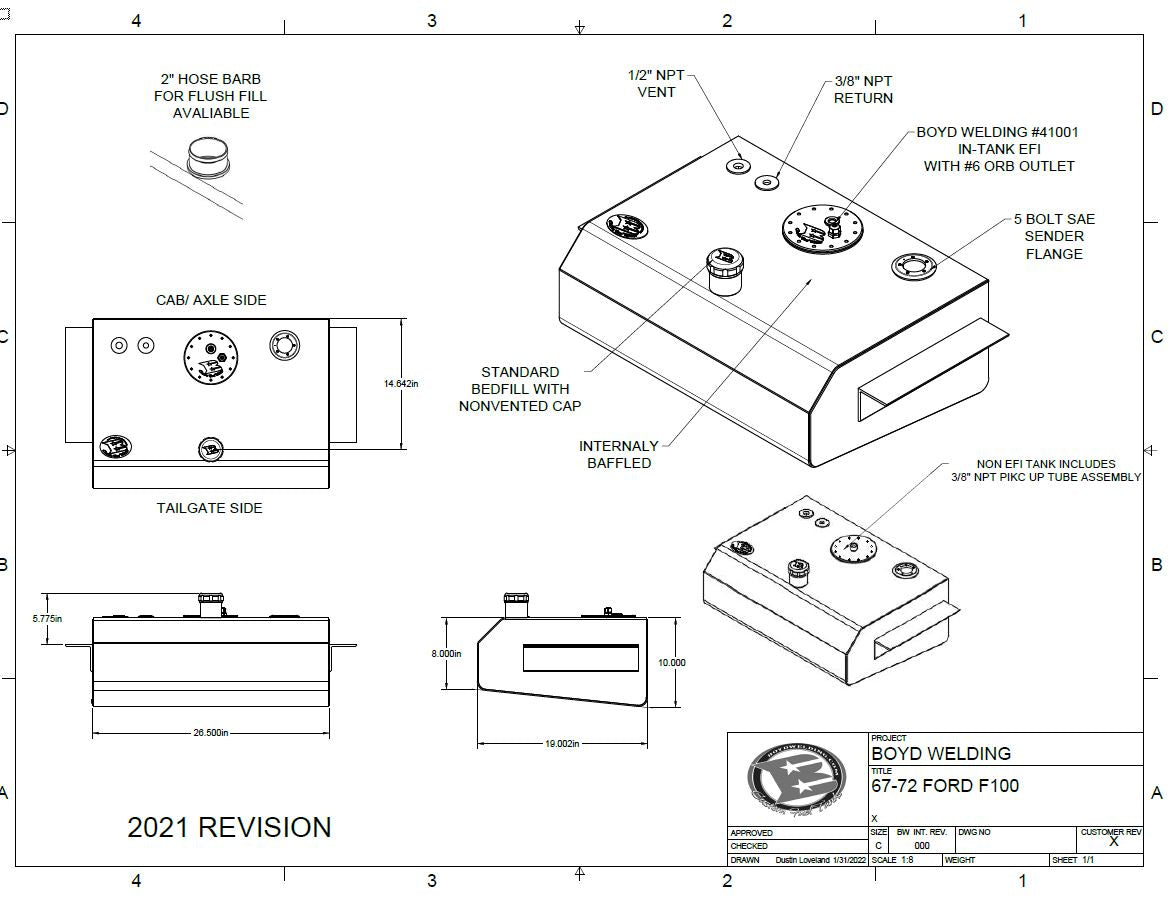

-Tank Dimensions: 26.5 x 19 x 10 - Tank Material: .125 Aluminum - CNC Machined Non Vented / Threaded Cap. on center - 1/2" NPT Vent - 6 ORB Outlet - 3/8" NPT Return - 3 Baffles -Approx 19 Gallons

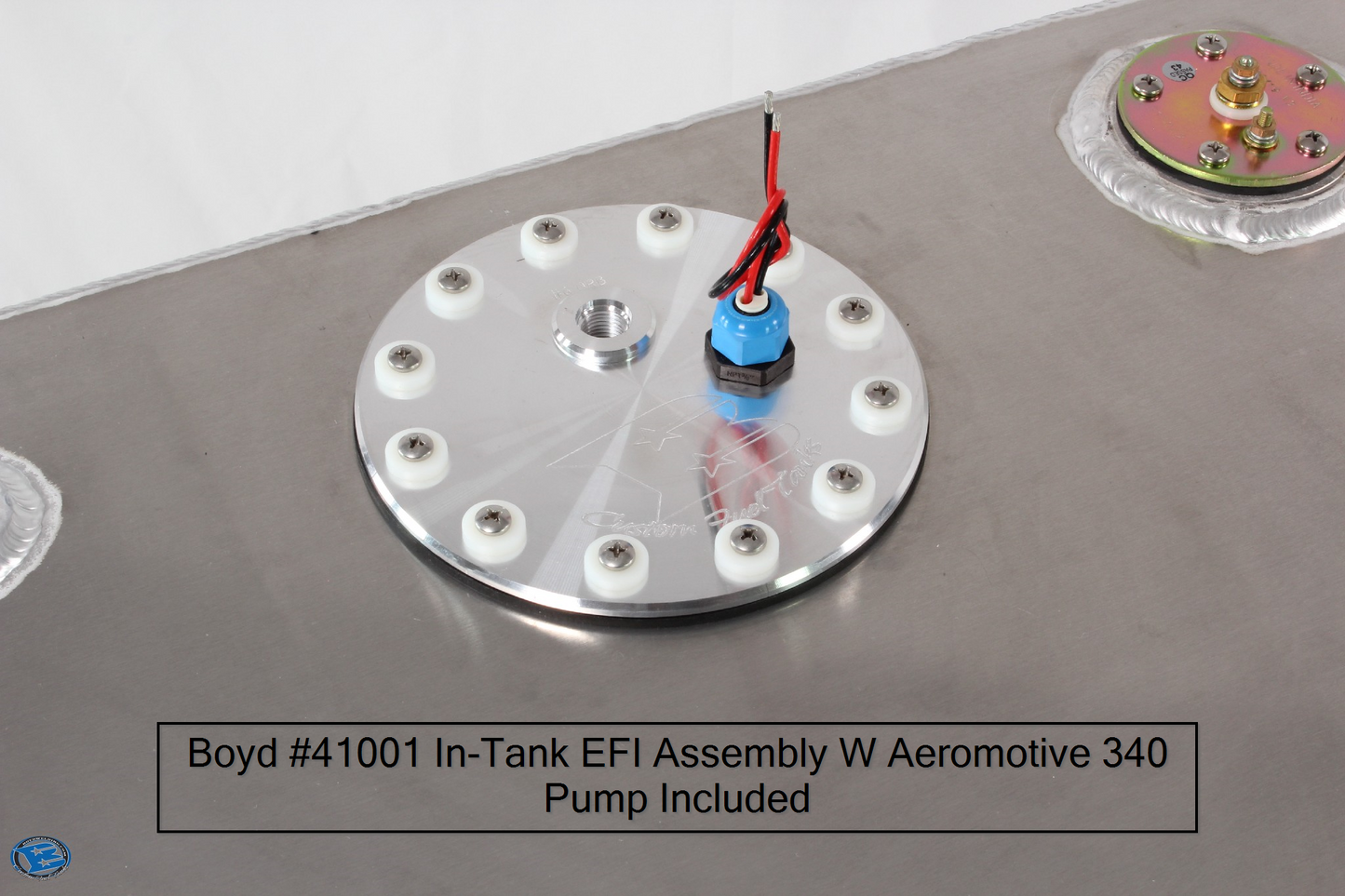

- This tank includes Our Boyd 41001 In-tank pump assembly with an Aeromotive Stealth 340 Pump installed. This will work for most Typical LS engine swaps.
