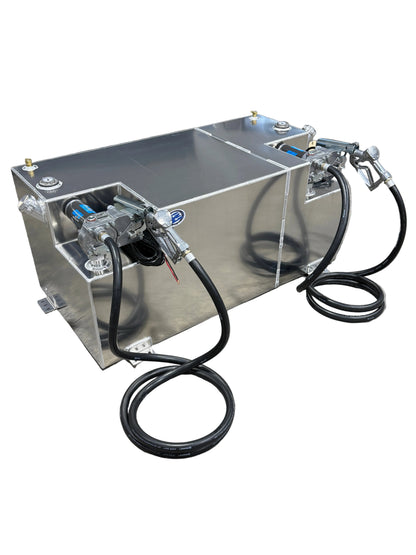

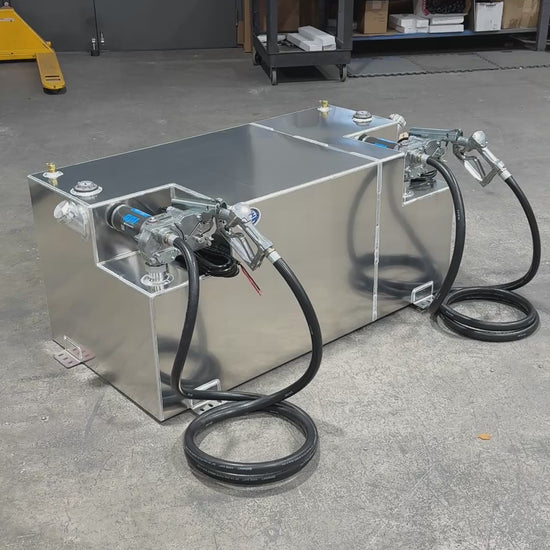

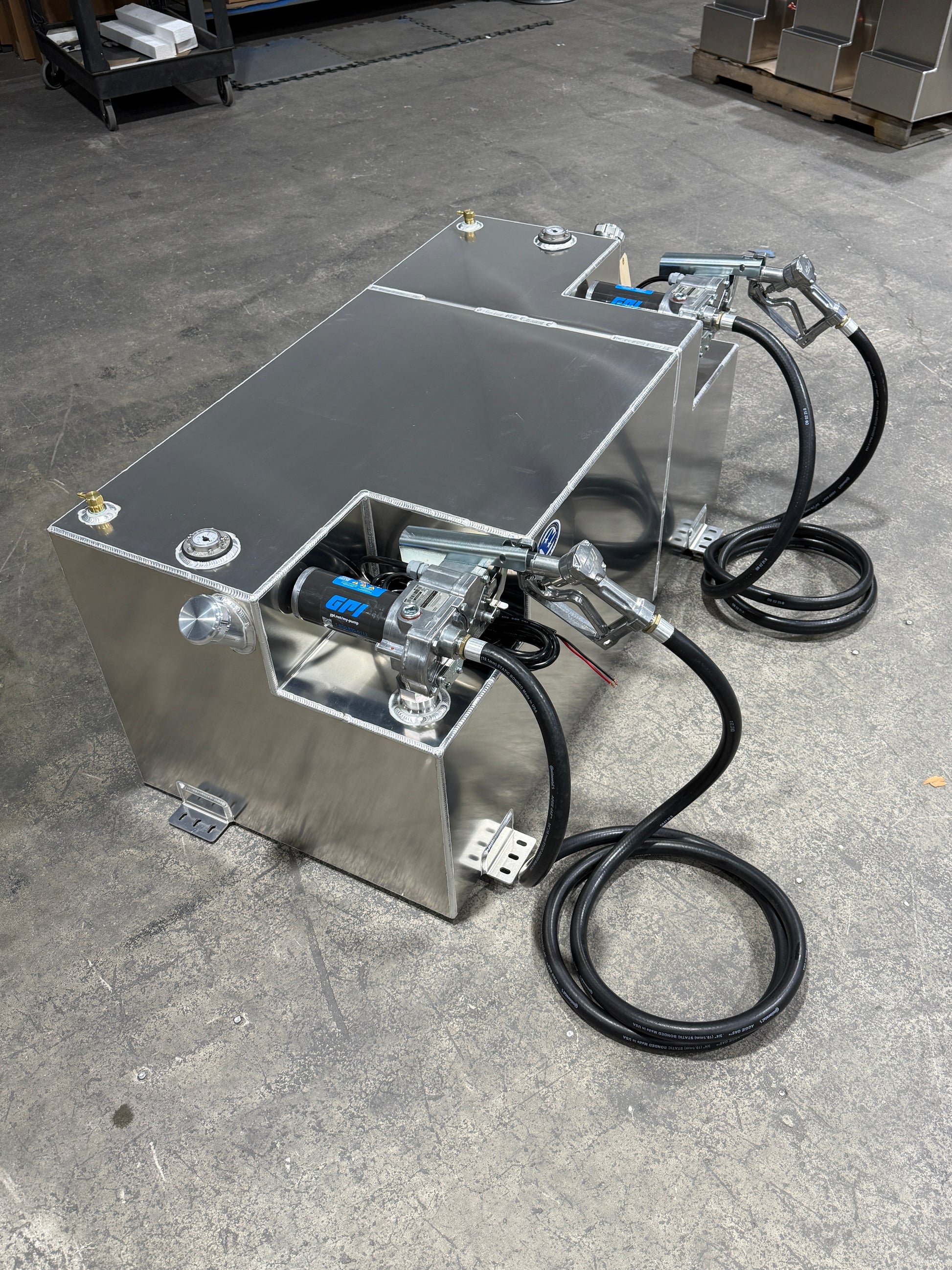

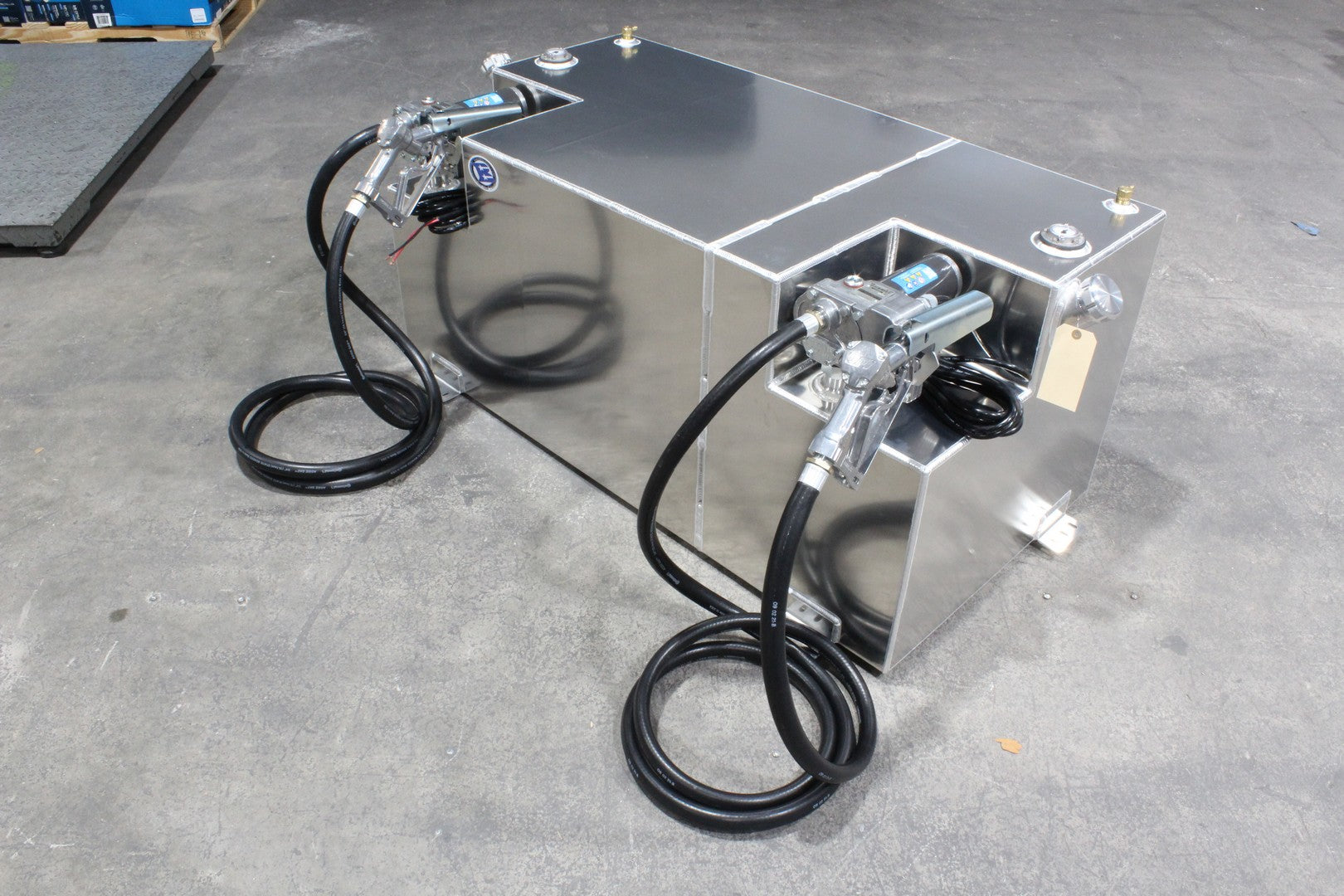

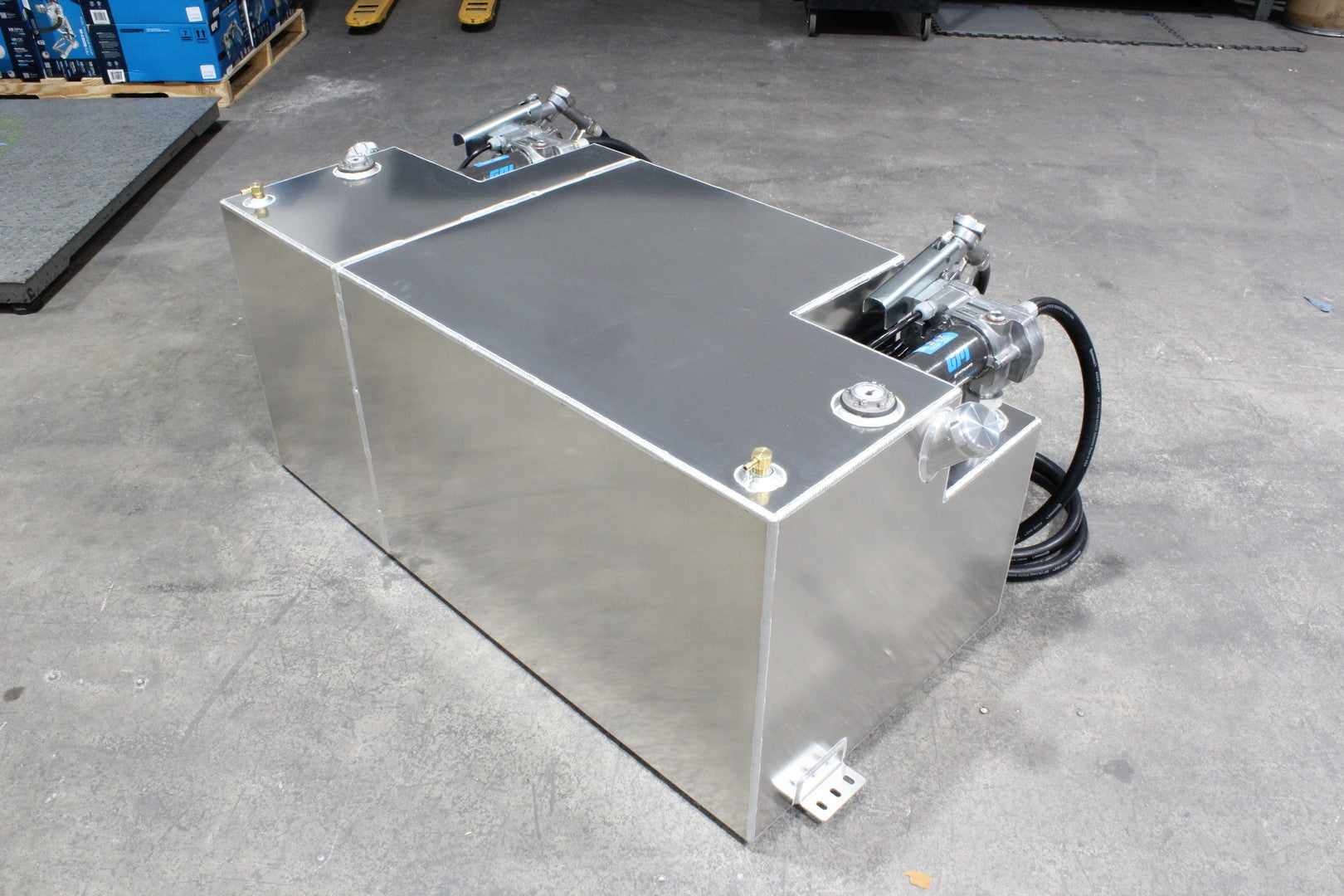

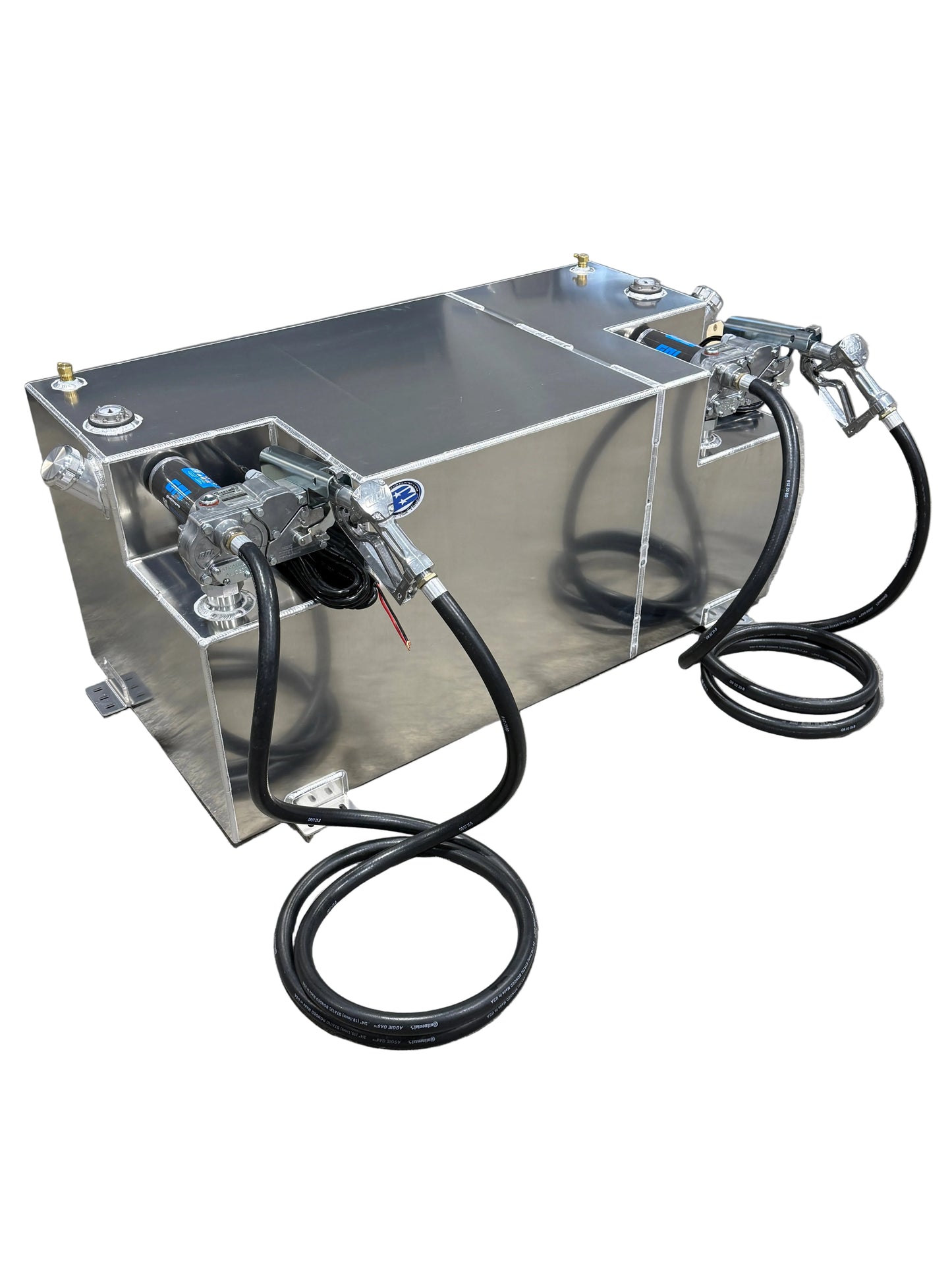

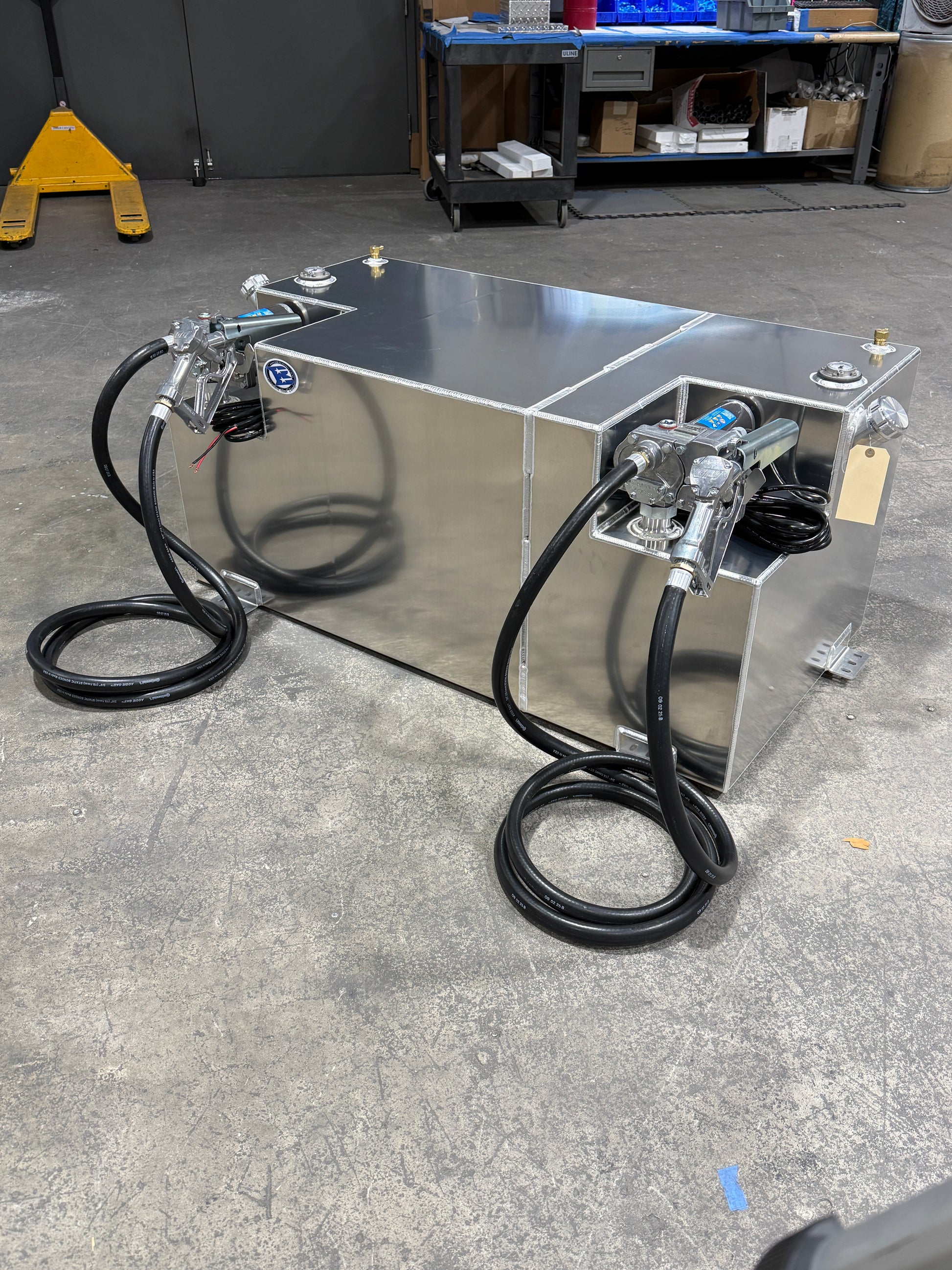

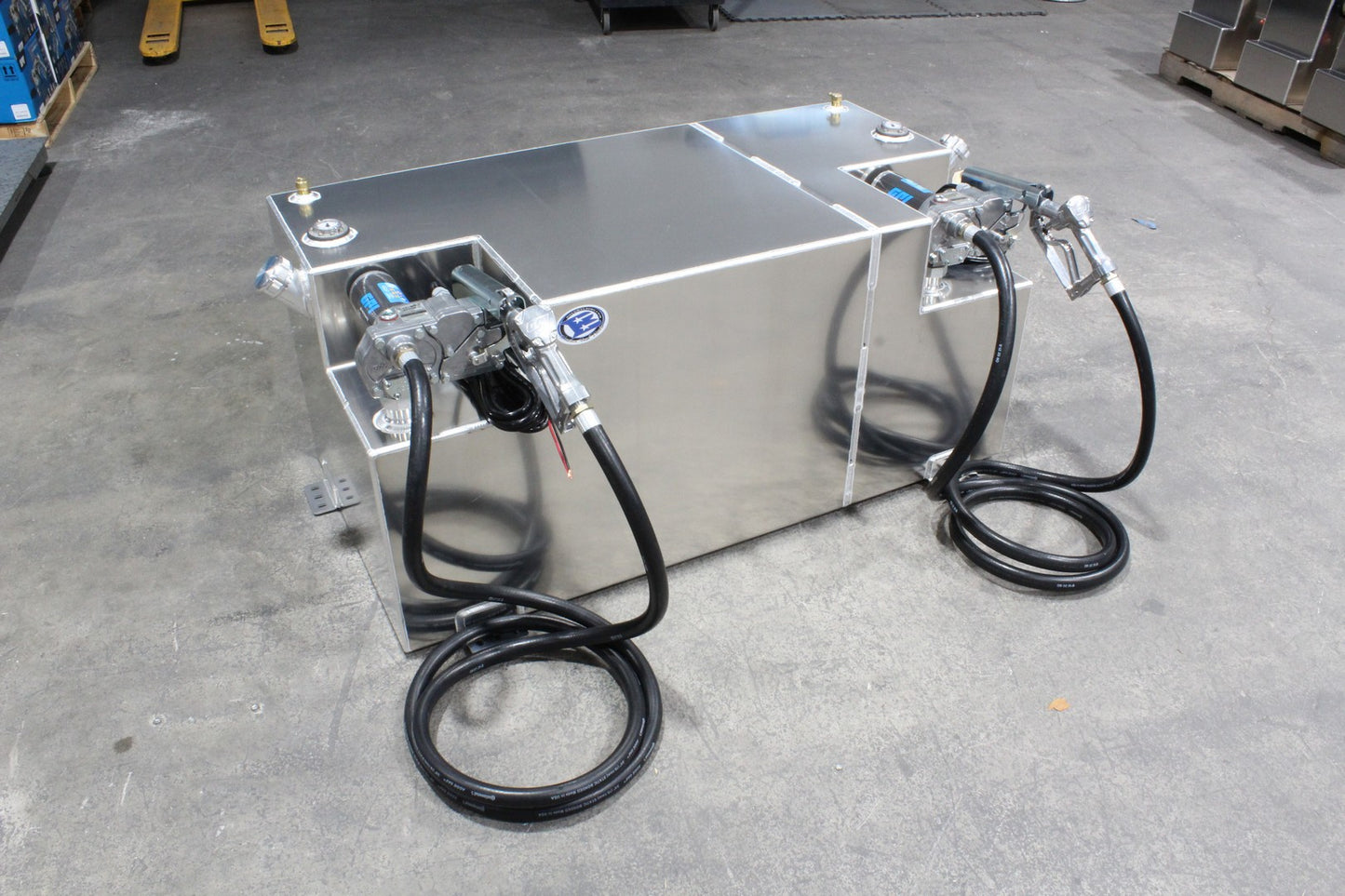

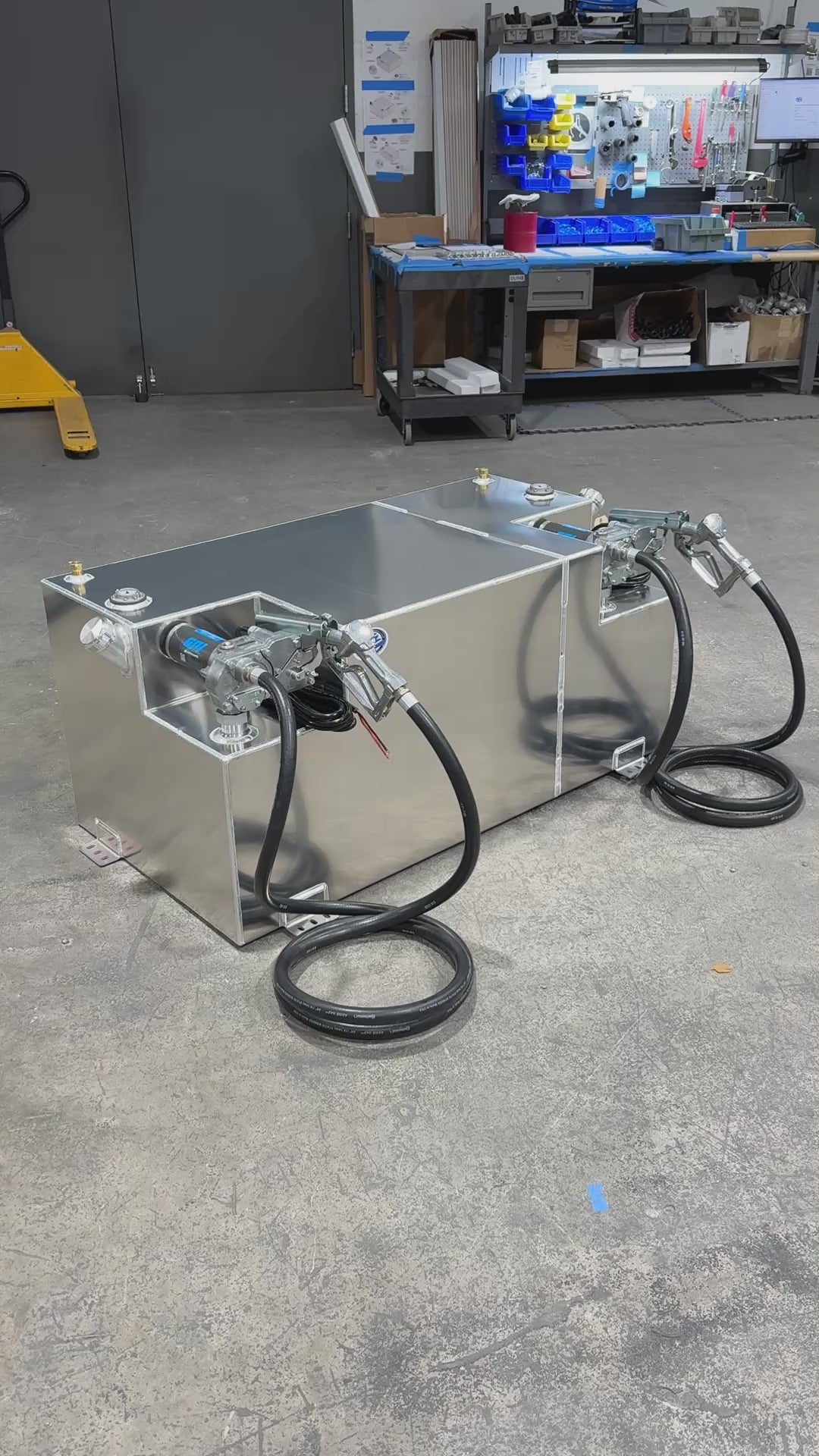

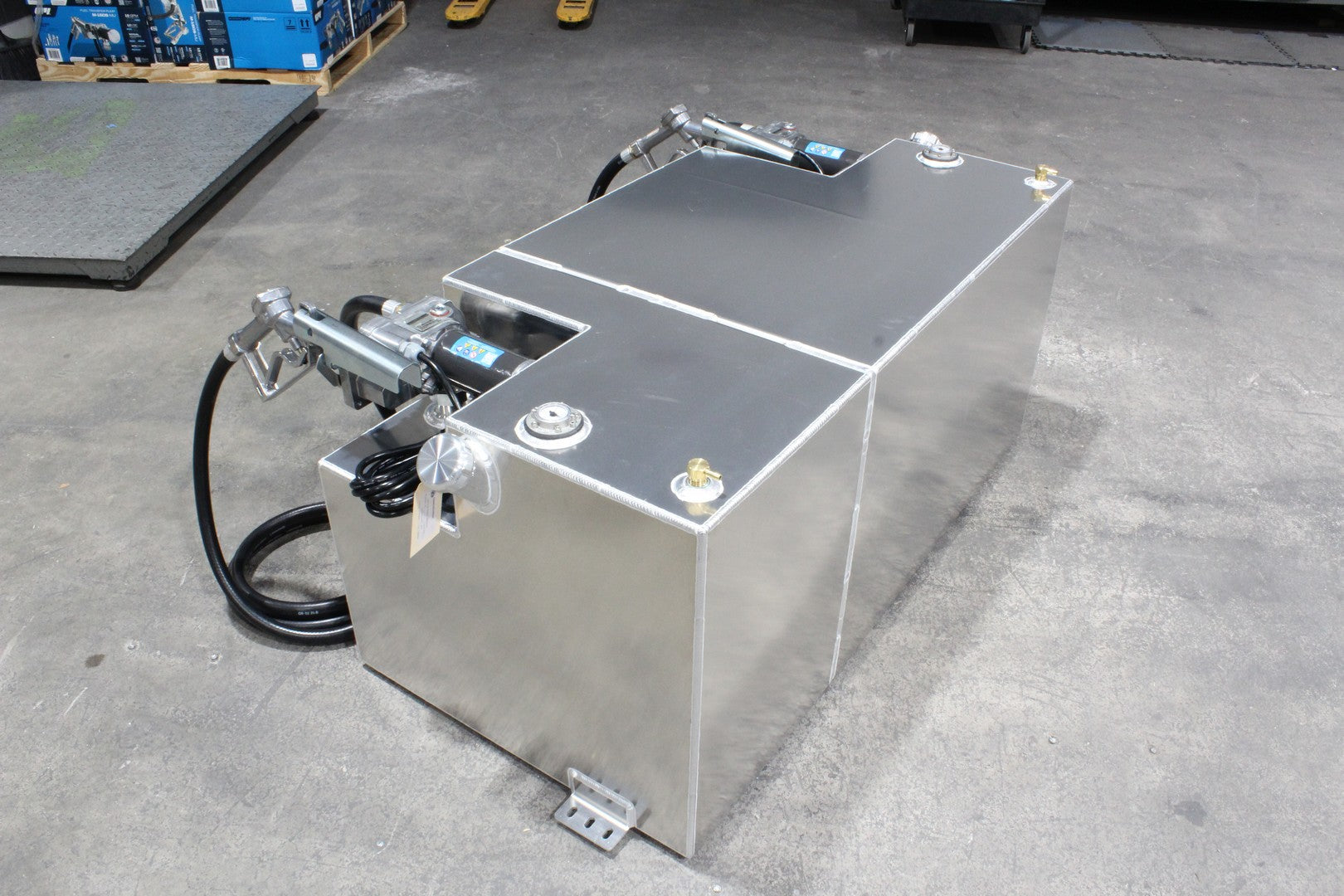

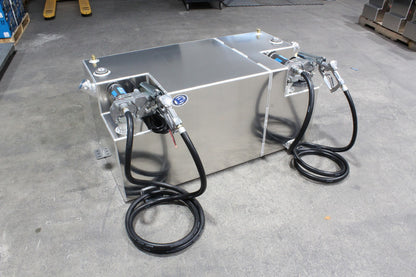

70/30 100 Gallon Aluminum Split Tank 51 x 26 x 23 W GPI Pumps Included

70/30 100 Gallon Aluminum Split Tank 51 x 26 x 23 W GPI Pumps Included

Availibilty : Ships in 1-2 weeks or Less

13029

$4,950.00
$4,950.00
Sale Sold out
Shipping calculated at checkout.

70/30 100 Gallon Aluminum Split Tank 51 x 26 x 23 W GPI Pumps Included.

Product Number: 13029
Tank Body Dimensions: 51" x 26" x 23"
Tank Body Footprint: 55"L x 28"W
Tank MAX Overall Height = 25"
Tank Thickness:  3/16"  (.190)
Material Grade: 5052 Mill Aluminum
Tank Baffles:  YES
Tank Dry Weight = 155 LBS

Dimensions from back of tank to center of fill

    • Driver Pocket = 13"
    • Passenger Pocket = 13"
View Reference Drawing Here

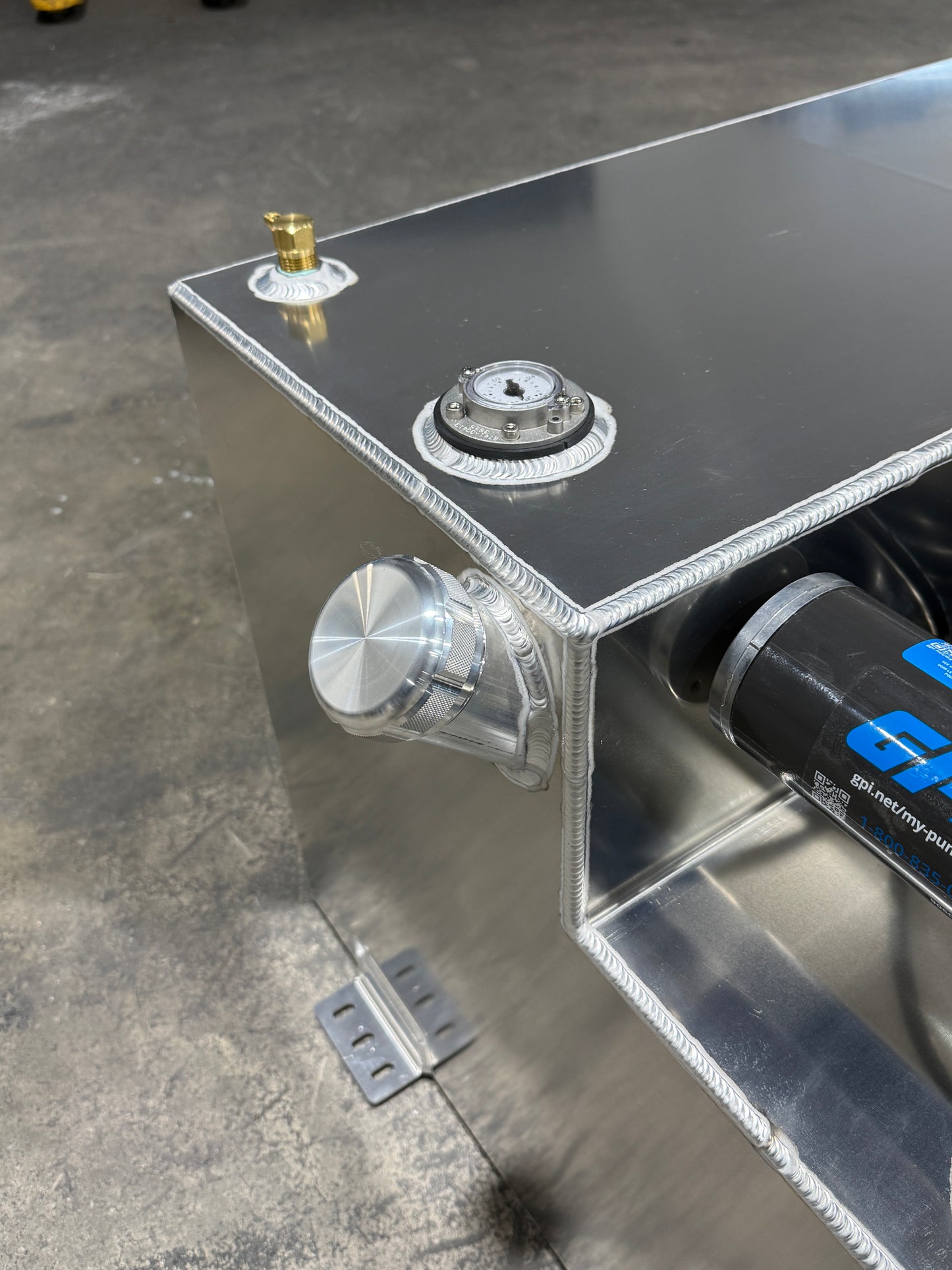

Fill Cap: Boyd Machined Cap NON Vented 81037-NV x2
Vent: 1/2" NPT w Rollover Vents installed

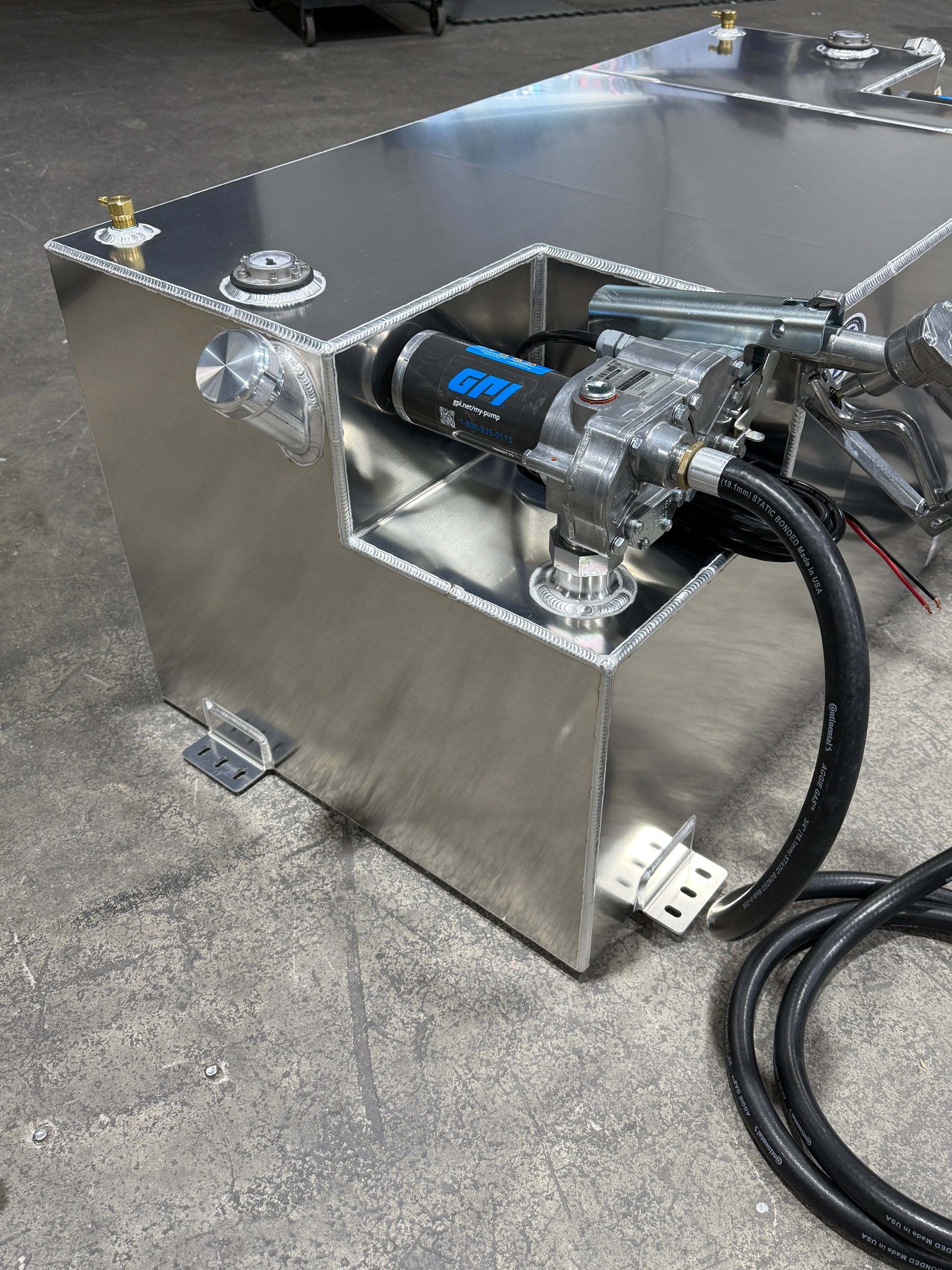

Draw: GPI Pumps Installed
Sending Unit Flange:  YES W Mechanical Gauges installed
Return: NO
Drain:  NO
Mounting Tabs: x4 2 x 2 SM Angle with Slots
*Notch in tank only works with GPI M150S  12Volt pump EZ-SPIN MODELS
**Sold as a complete unit only, We do not sell the tank only without the pump installed.



Items INCLUDED with this tank

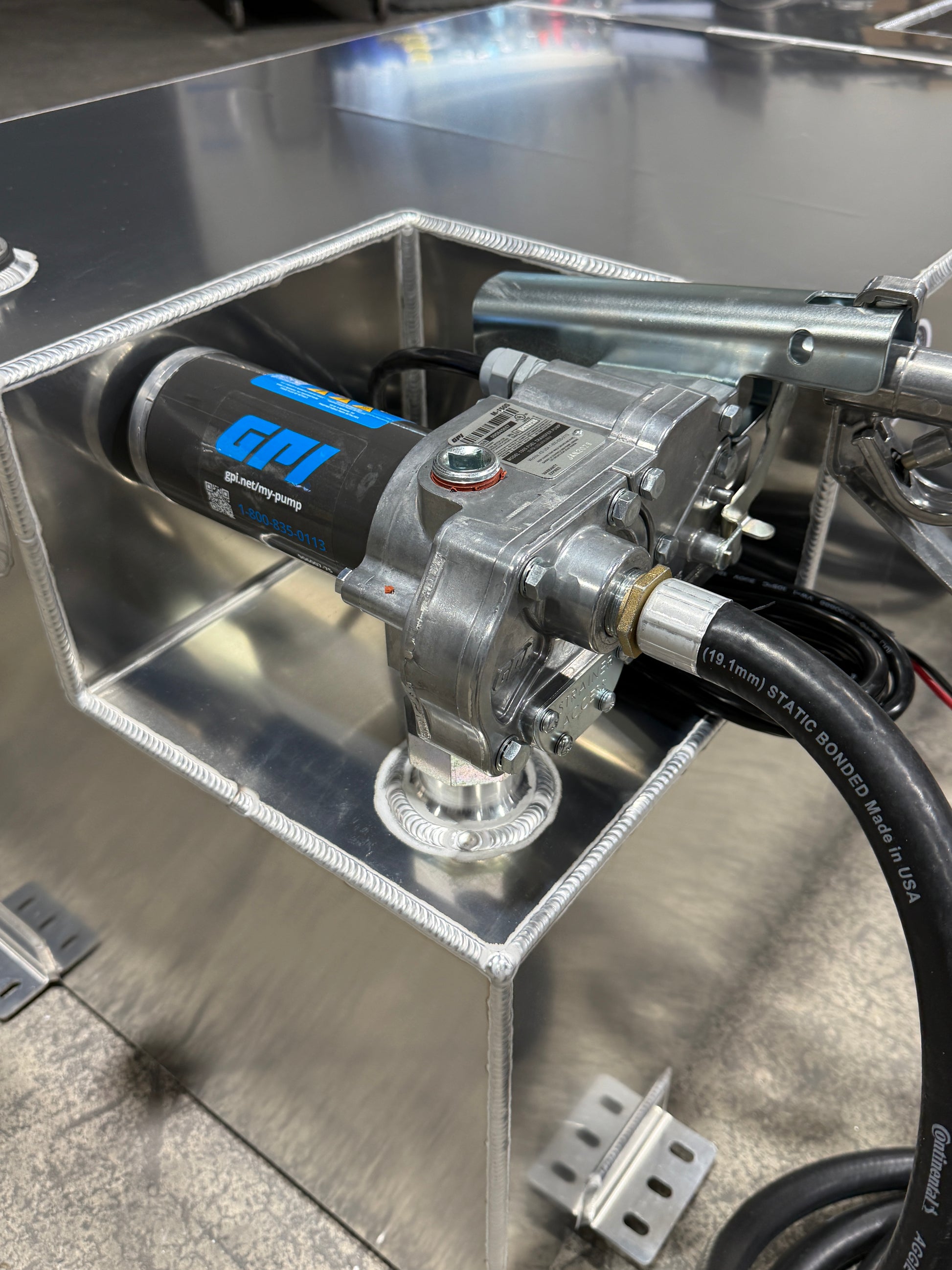

  • x2 GPI 12v 15GPM pump, hose and manual nozzle. CLICK HERE  for more info regarding the pump.
  • x2 1/2" NPT Rollover Vent
  • x2 Mechanical Fuel Gauge



You will need to supply the following.

  • Mounting Hardware
  • Vent hose and small filter
  • Electrical connectors to wire the supplied cord to your battery source.
  • Brass Fittings are ok to use and is recommended.
