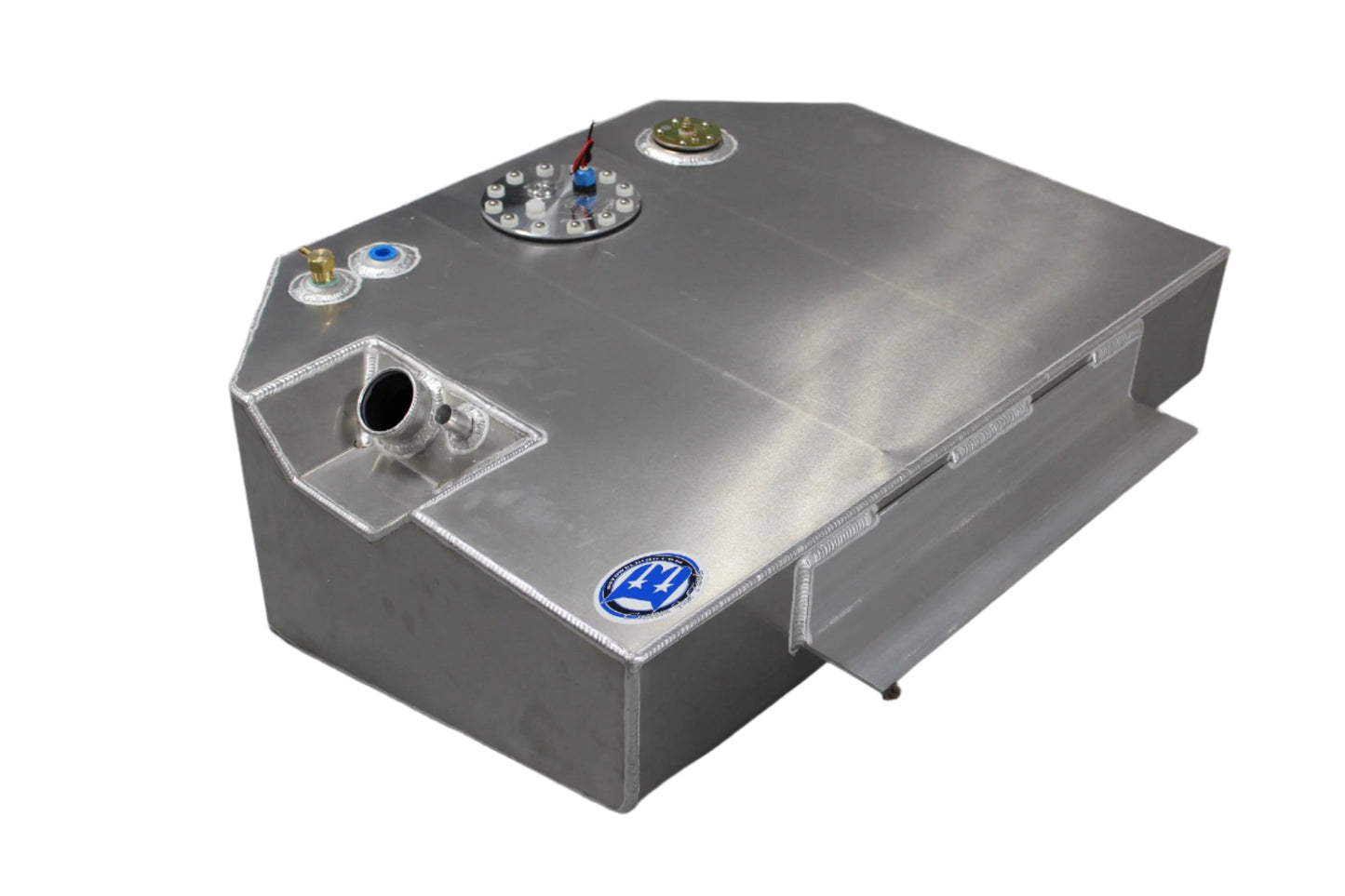

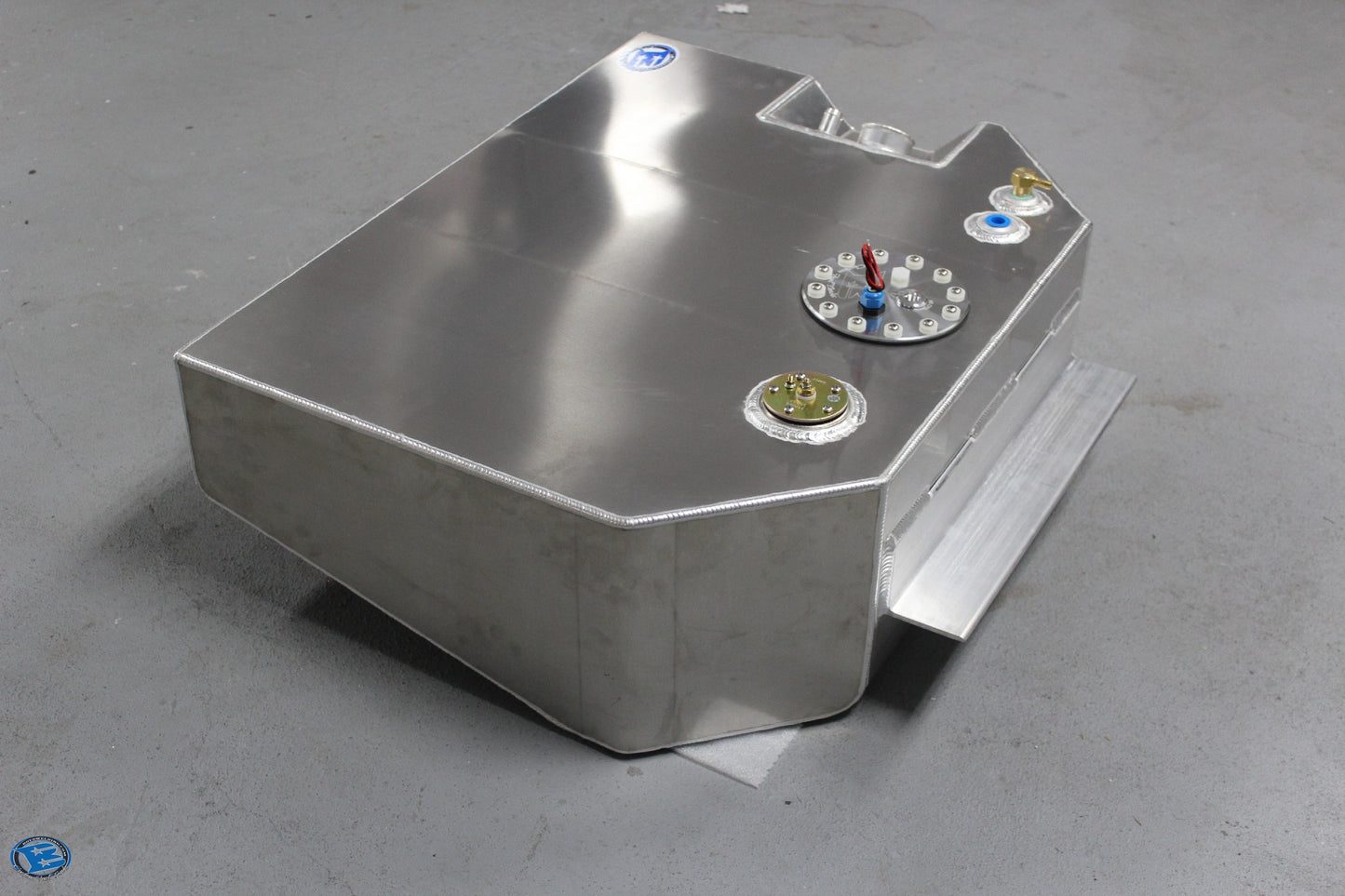

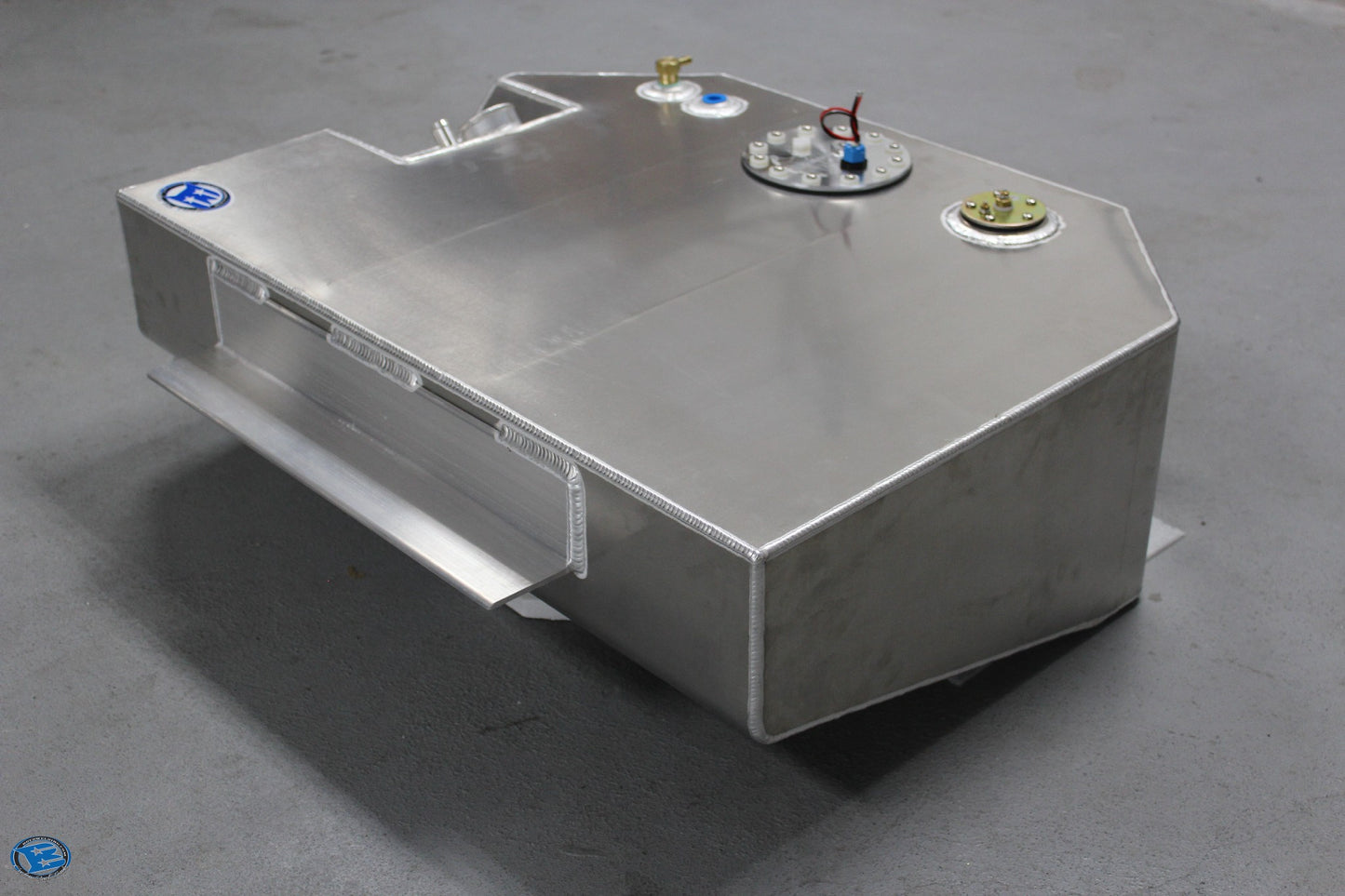

73-79 Ford Rear Mount EFI Tank W/ Aeromotive 340 Pump

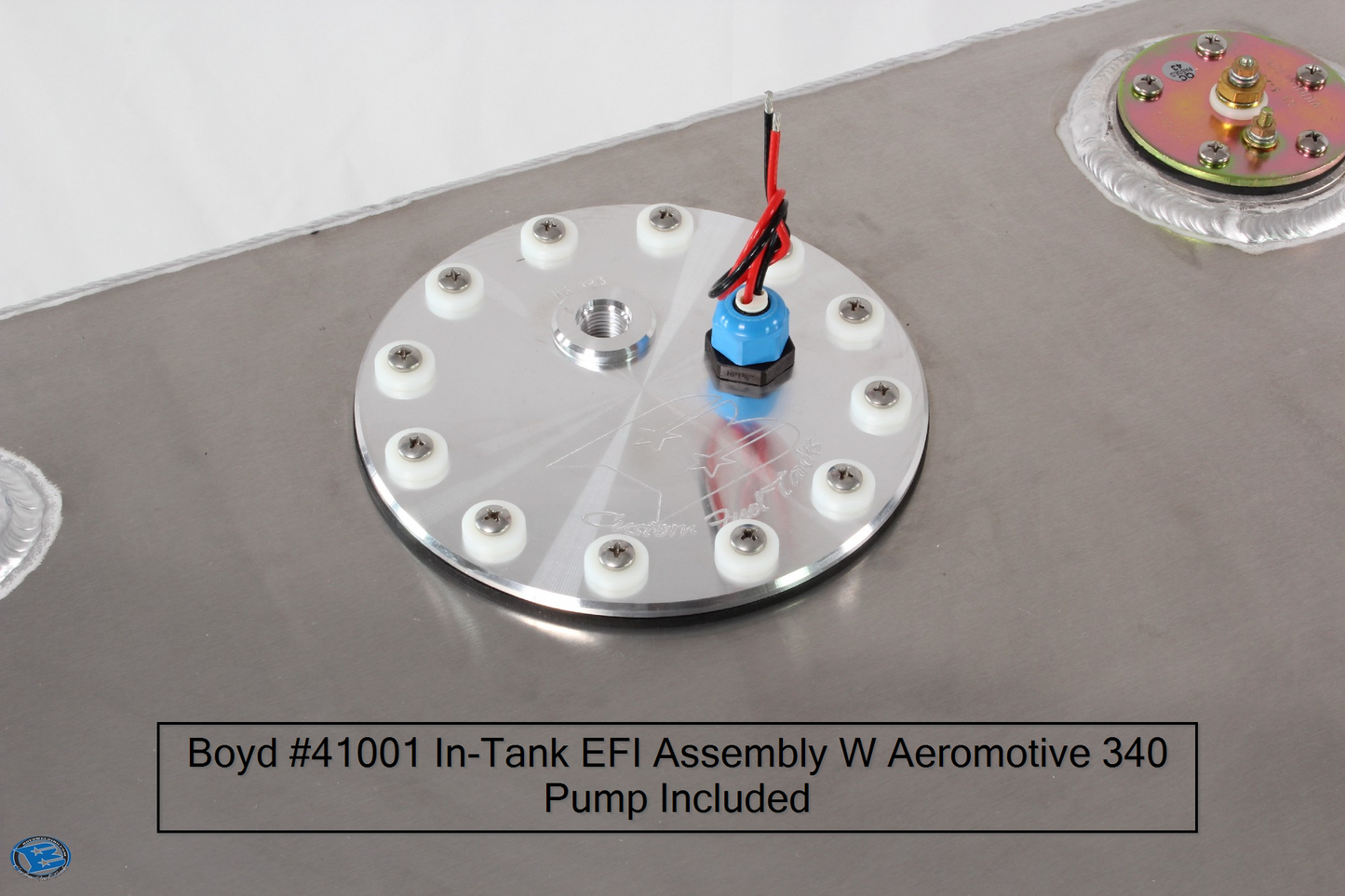

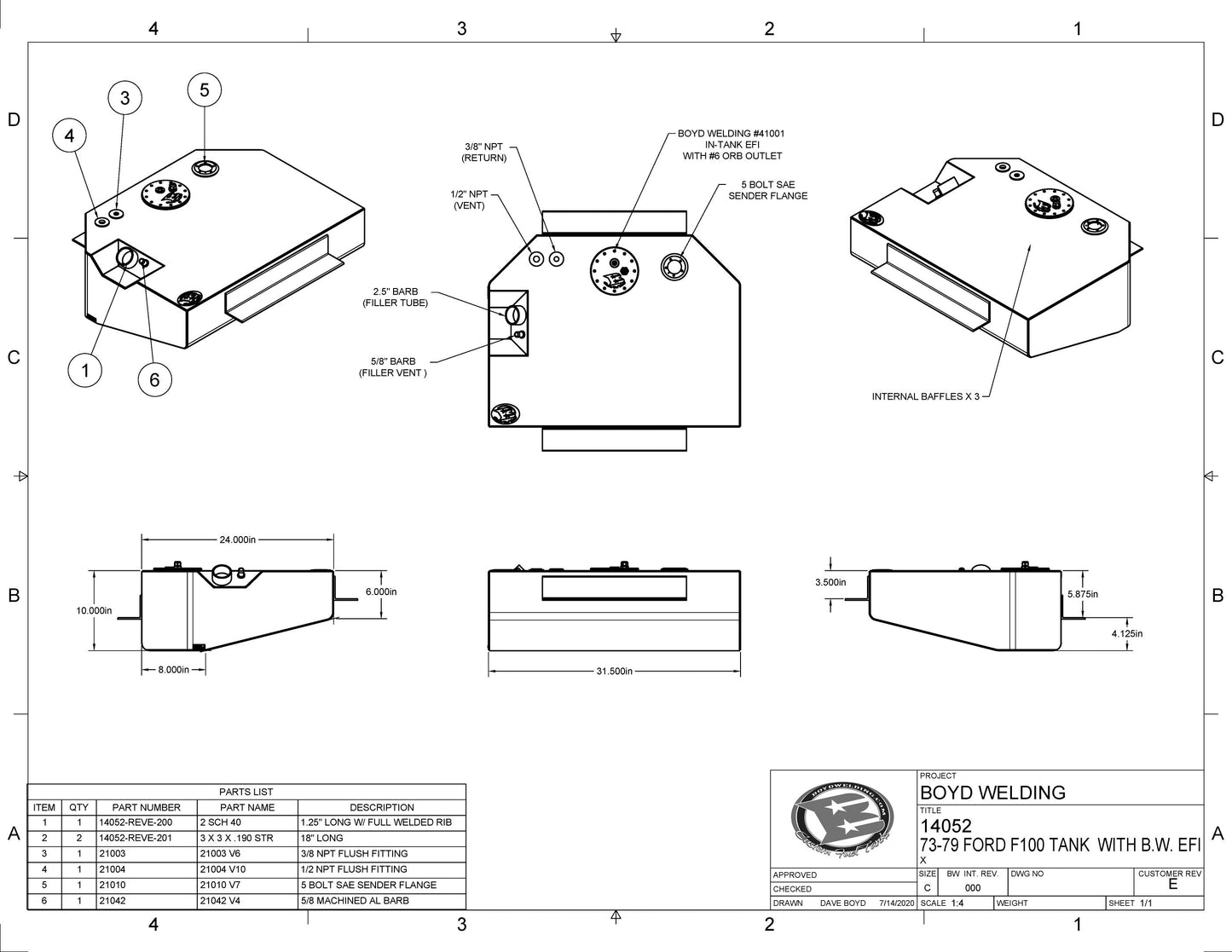

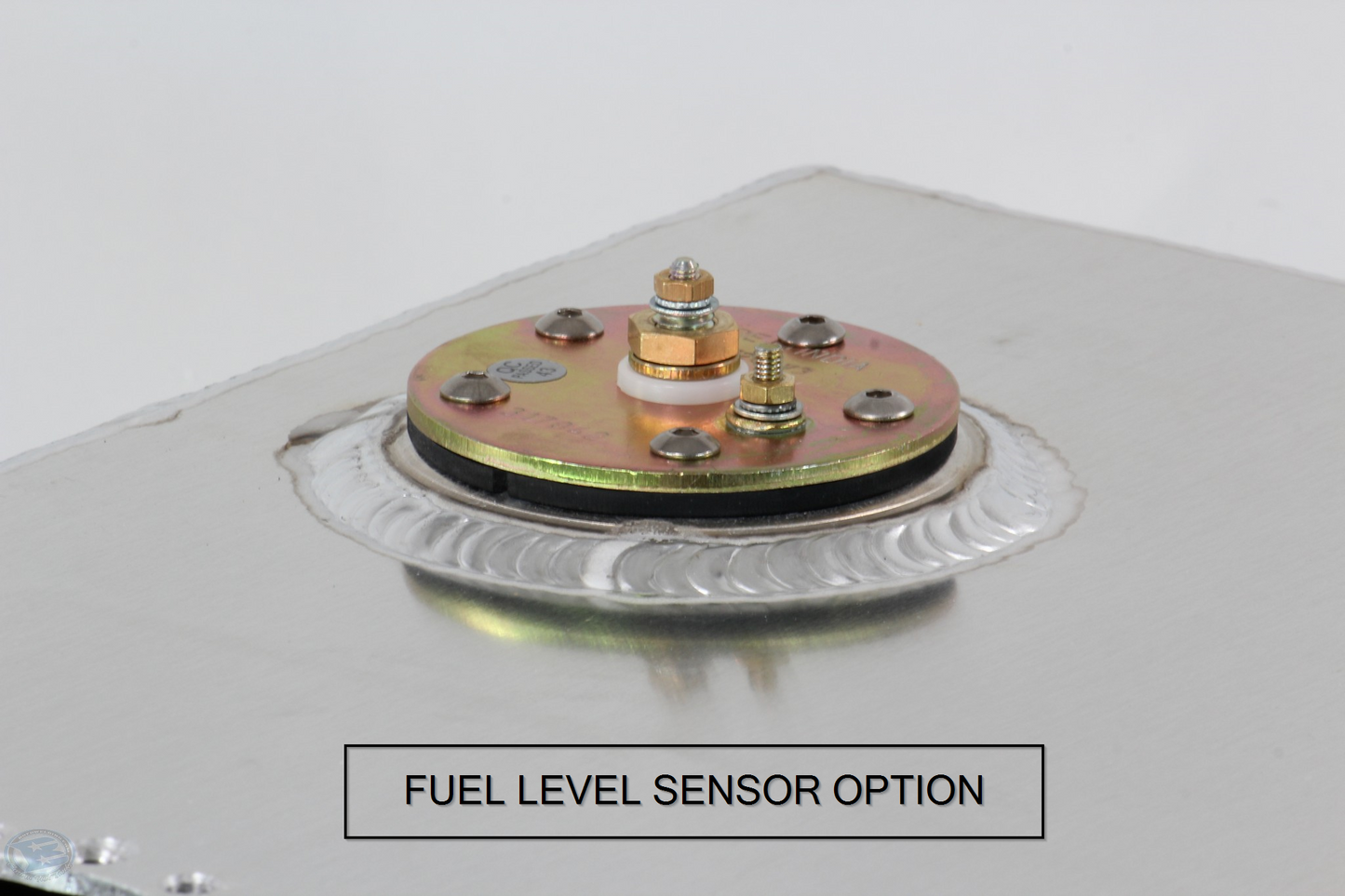

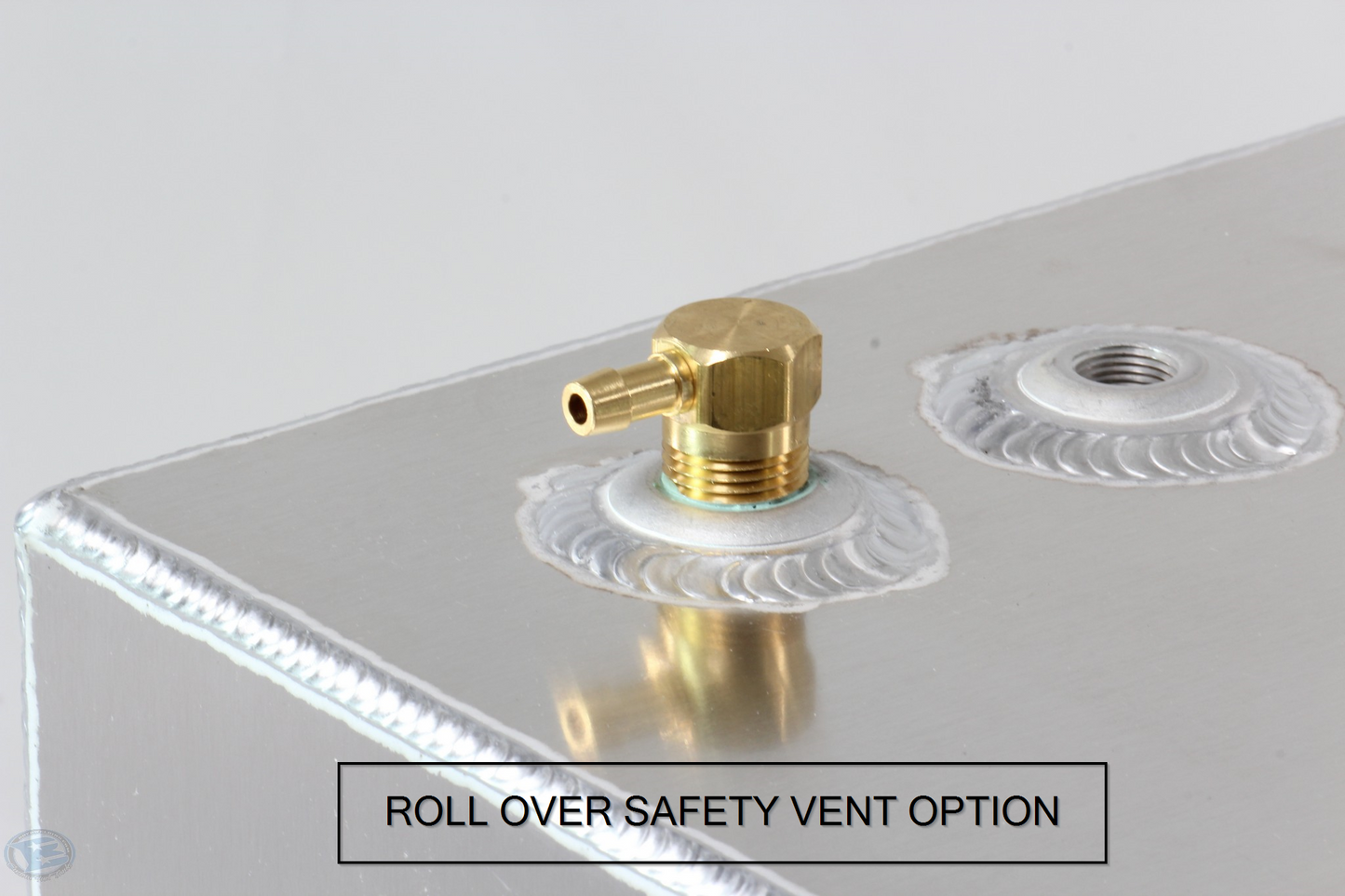

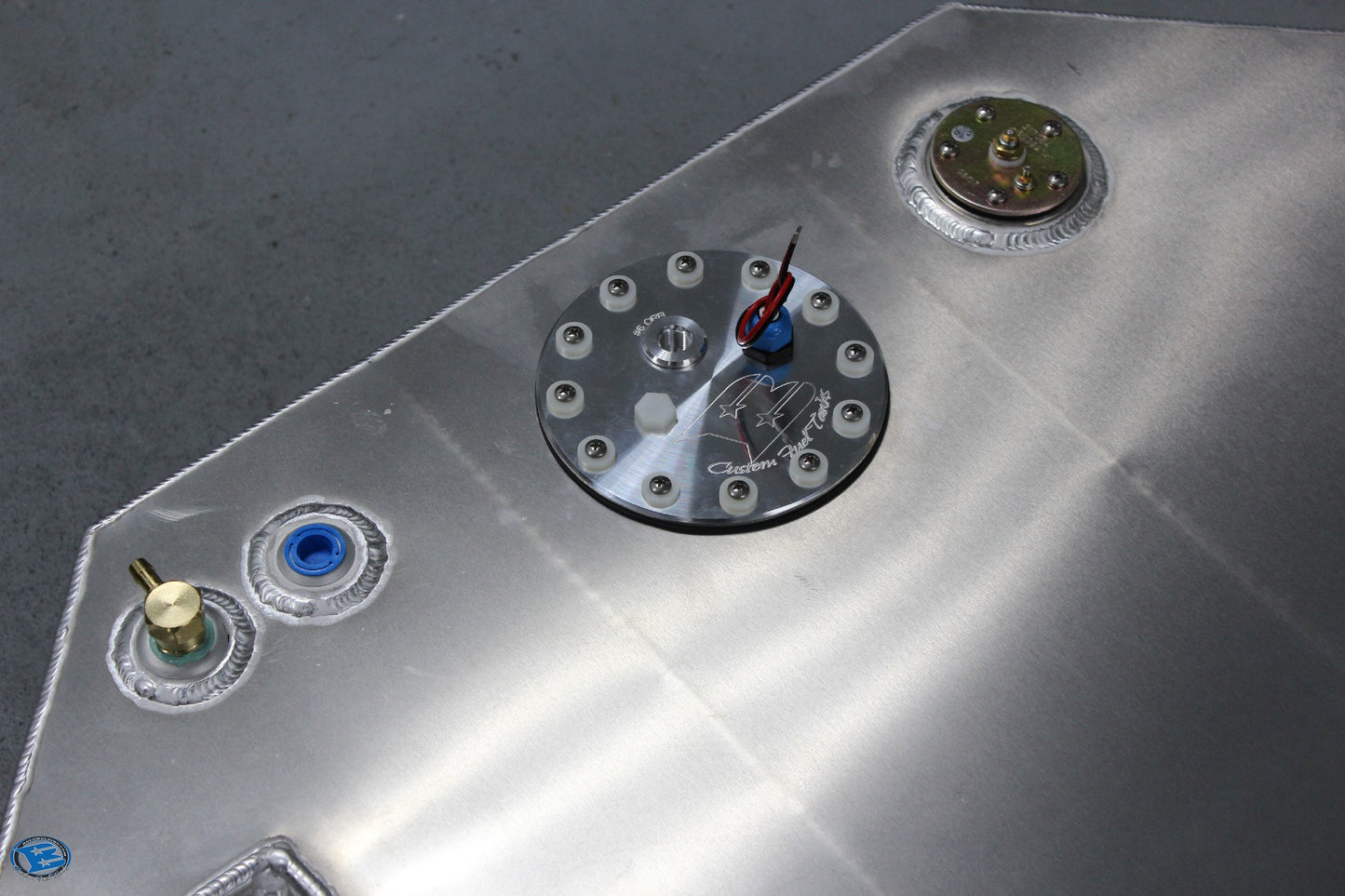

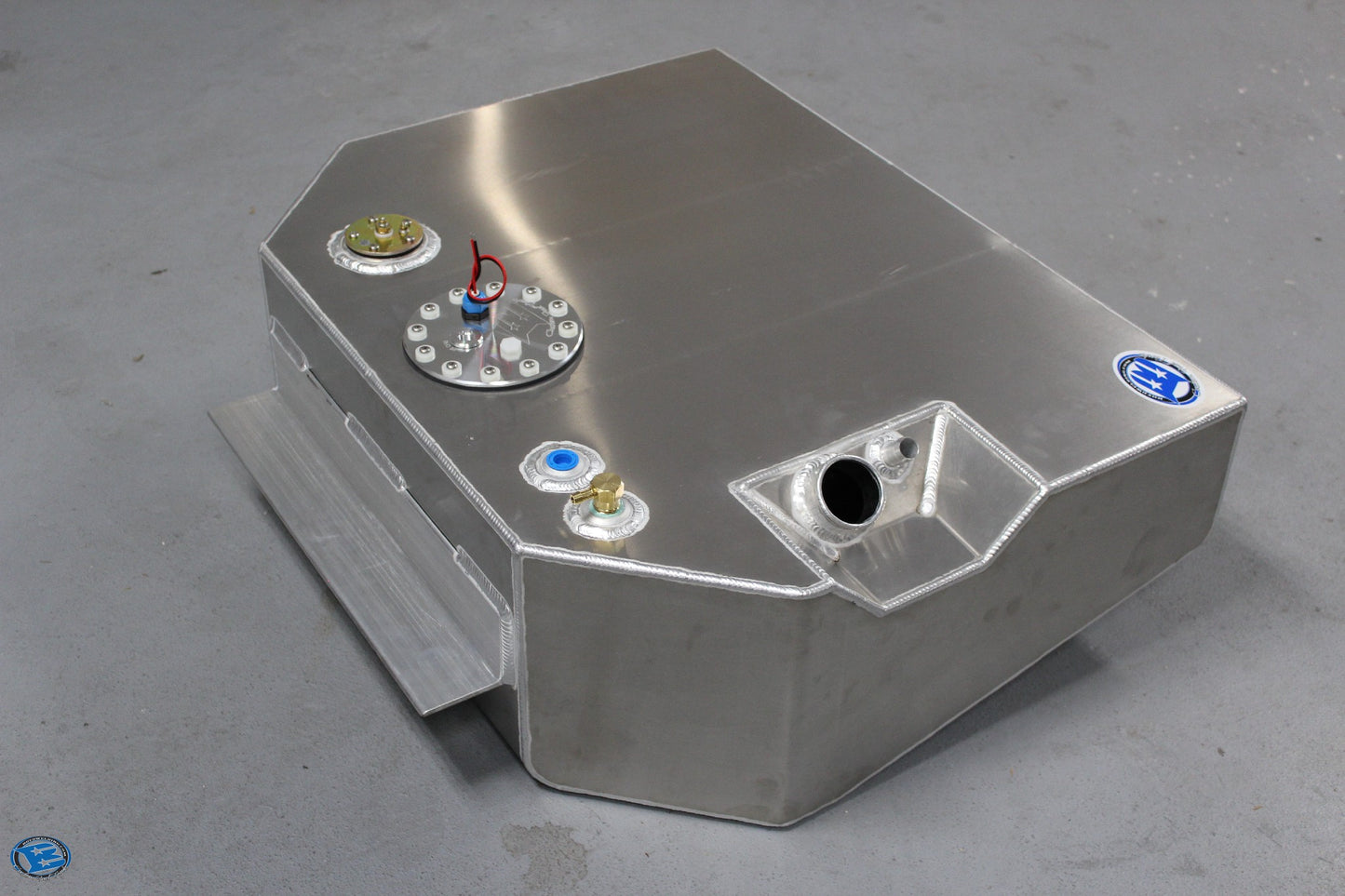

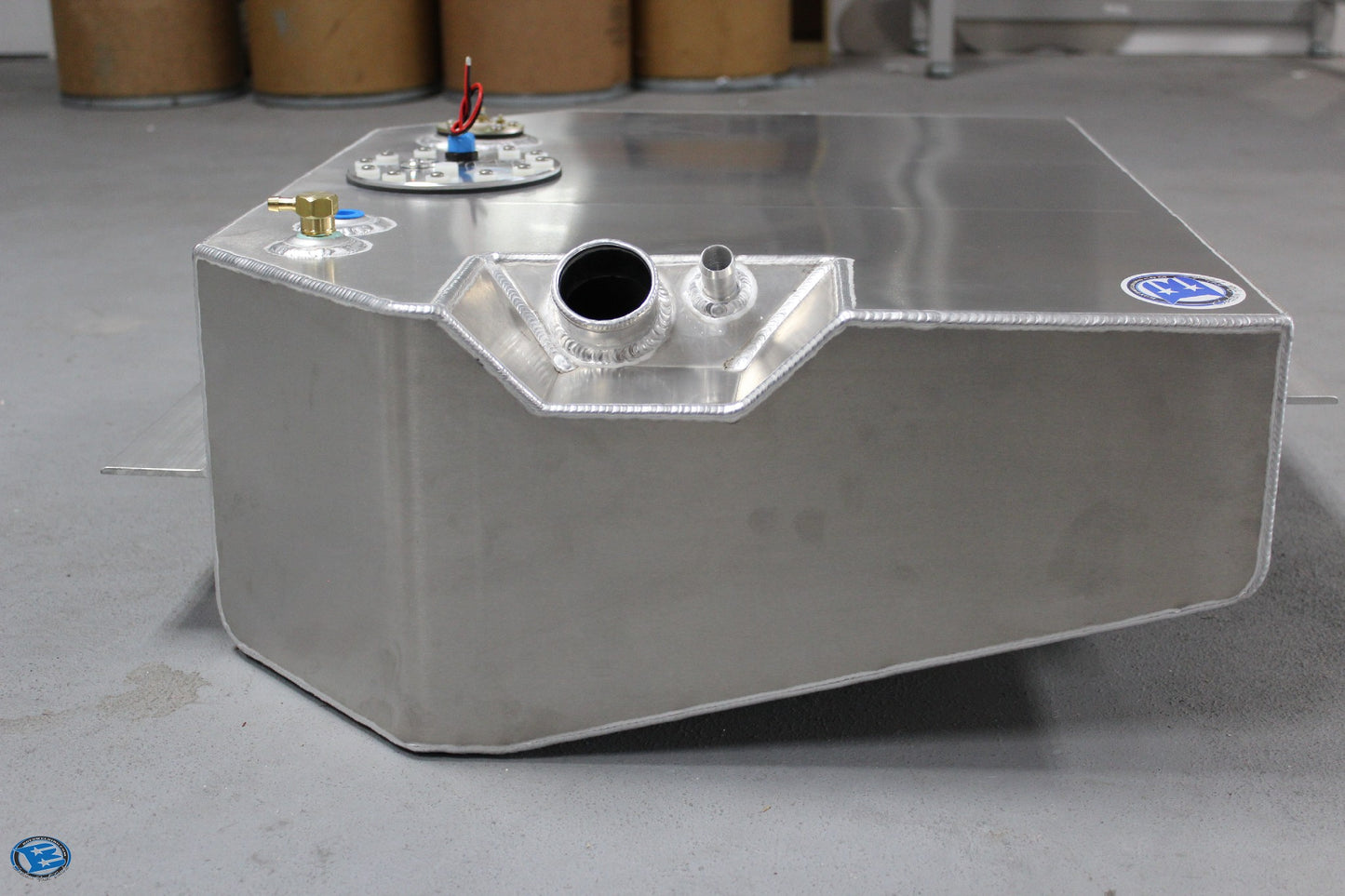

Tank Material: 1/8” 5052-H32 AluminumTank Dimensions: 31.5” x 24” x 10” Taper to 6”Approx Gallons: 23 approxFuel Fill: 2.25” Ribbed for HoseVent 1: 5/8” Ribbed for Hose Fill VentVent 2: ½” NPT Tank VentFuel Feed: Boyd 41001 In-Tank Aeromotive PumpReturn: 3/8” NPTSending unit Flange: YESBaffles: YES x3Mount Tabs: YES 3 x 3 x 3/16 Angle x2 places*This tank mounts in the F100 stock behind axle location using the stock fill location.* Pictures show optional accessories installed.
Beautiful quality welds I highly recommend them tank is perfect thank you glad to see there is still people in this world how do quality work and take pride in it
J
John Minor
Ordered a 79 F100 fuel tank and got a work of art!
Quick turn around, fair price and amazing workmanship! Best looking fuel tank i have ever seen, shame it will be hidden under the truck!
K
Kim Essen
Improper fit
The tank is not a factory replacement the fill tube comes out at the wrong angle causing the fill hose to be smashed flat against the bed of the truck stopping fuel from entering the tank
