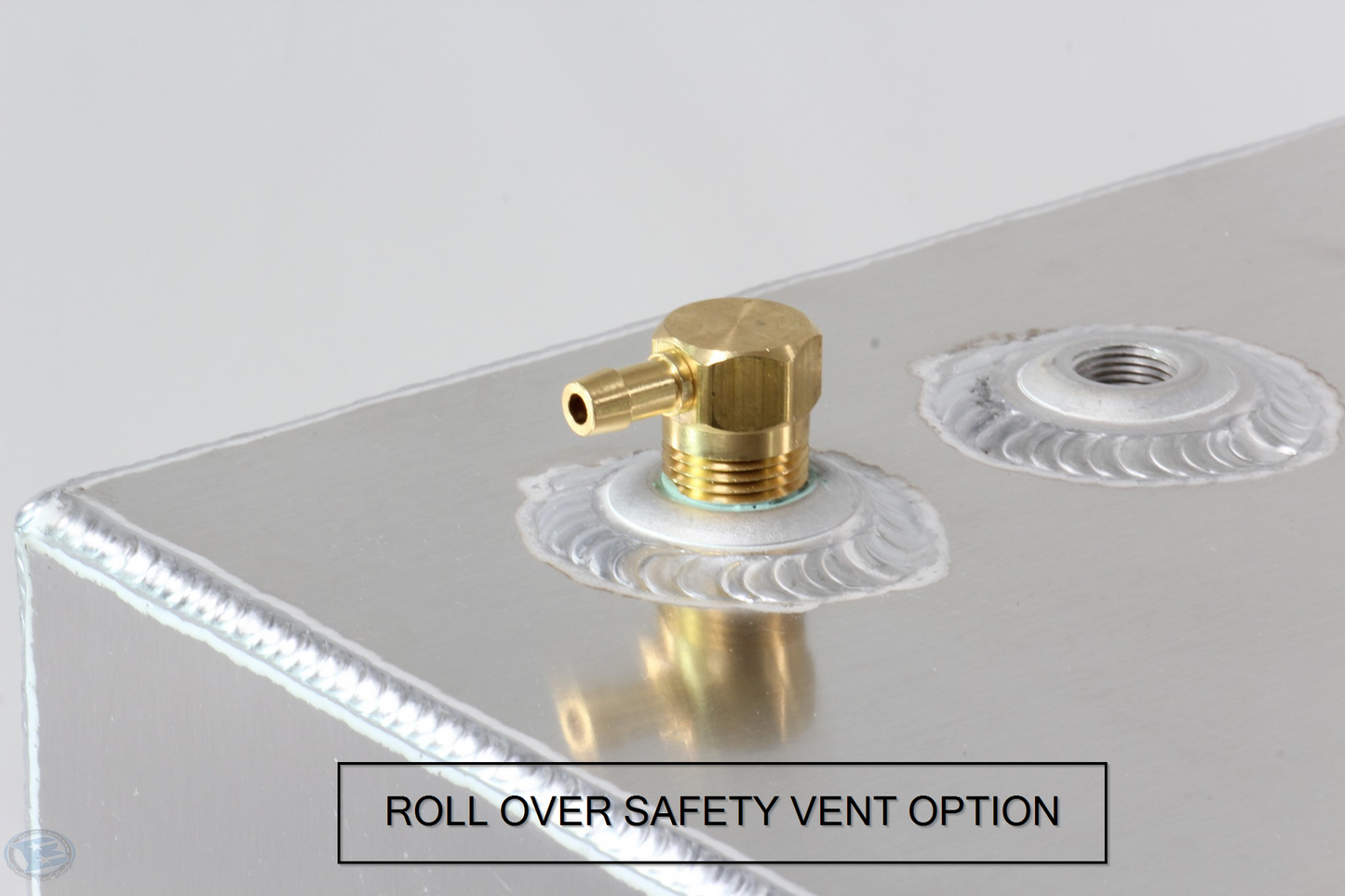

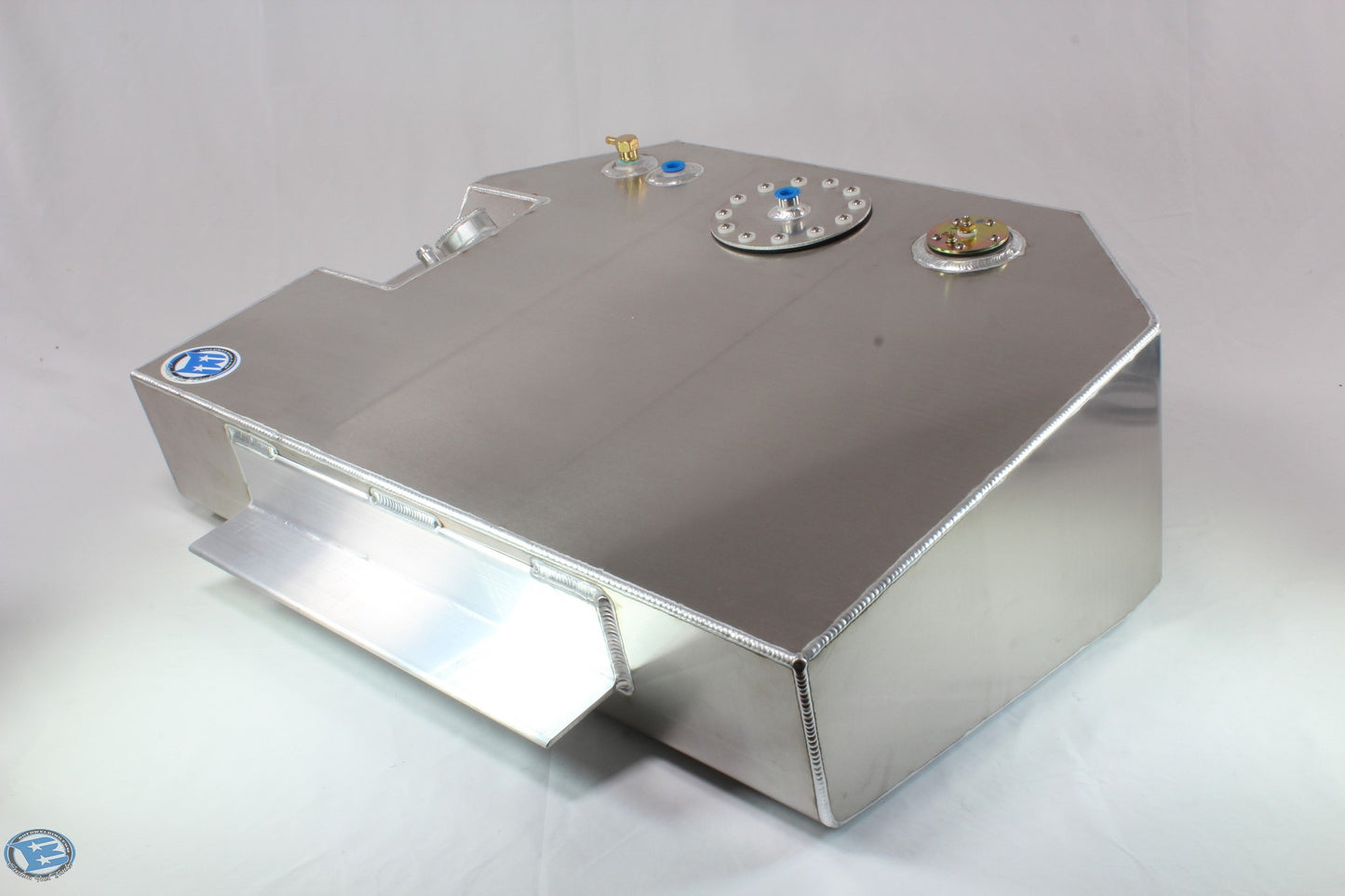

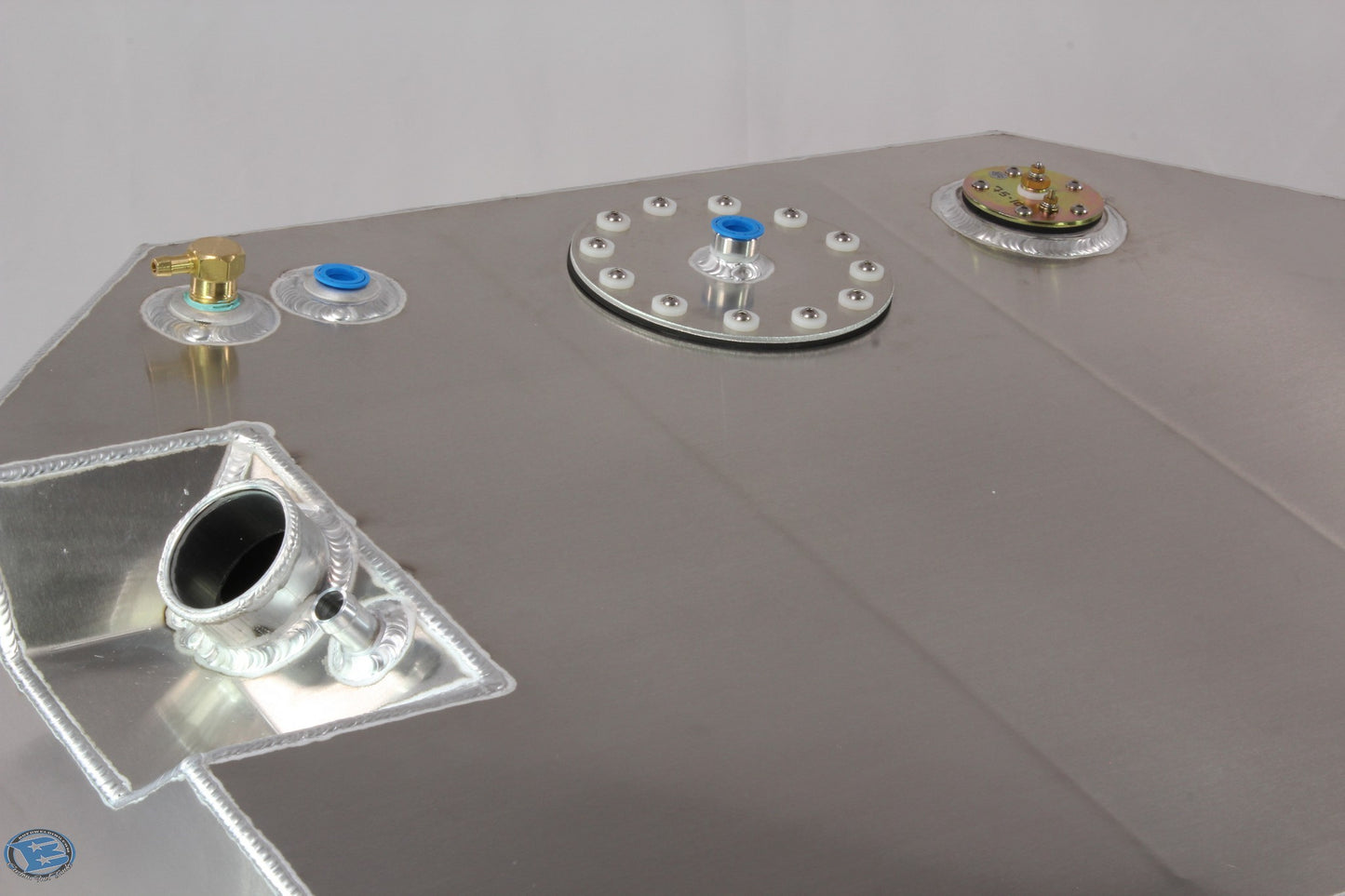

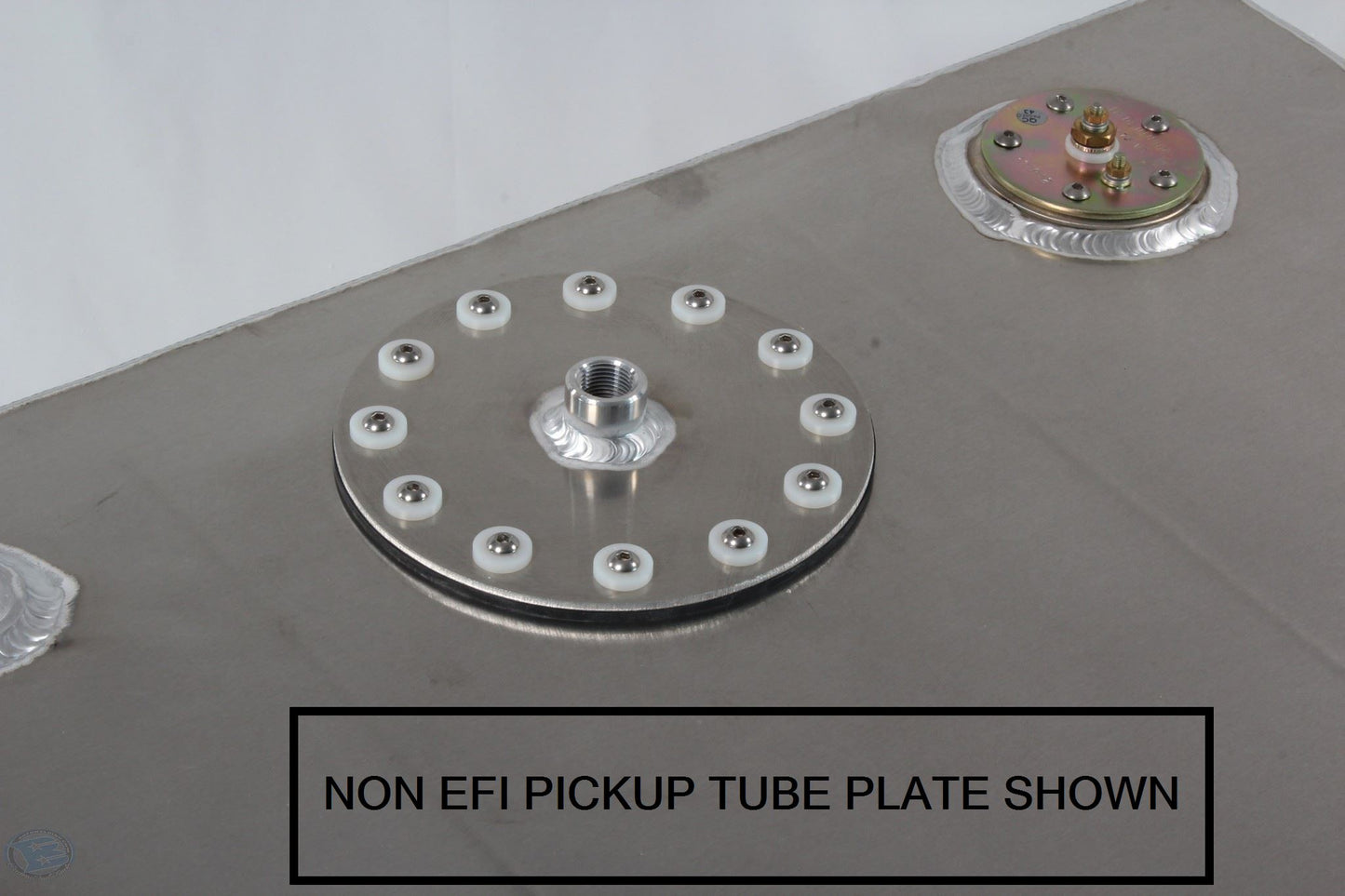

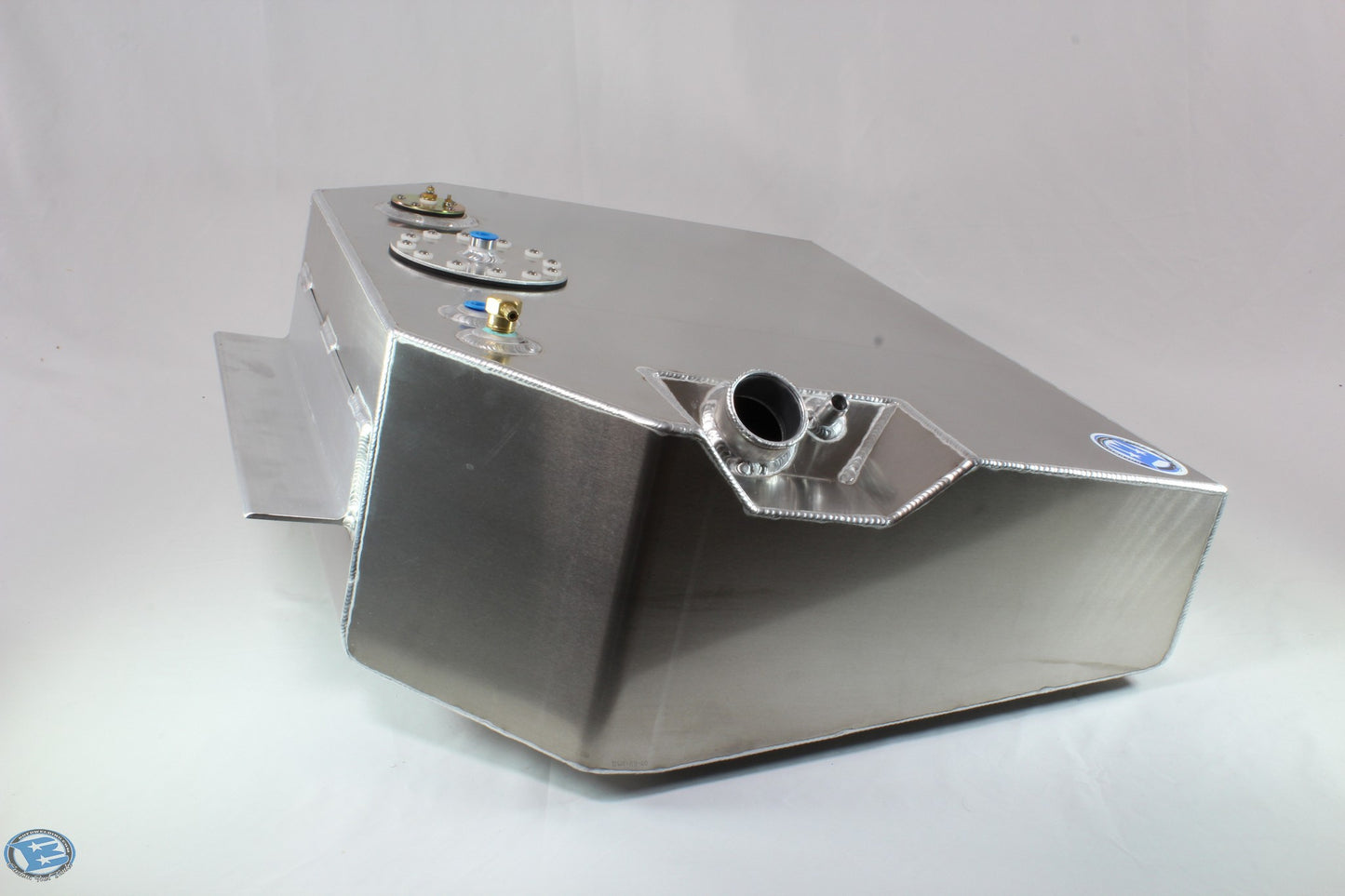

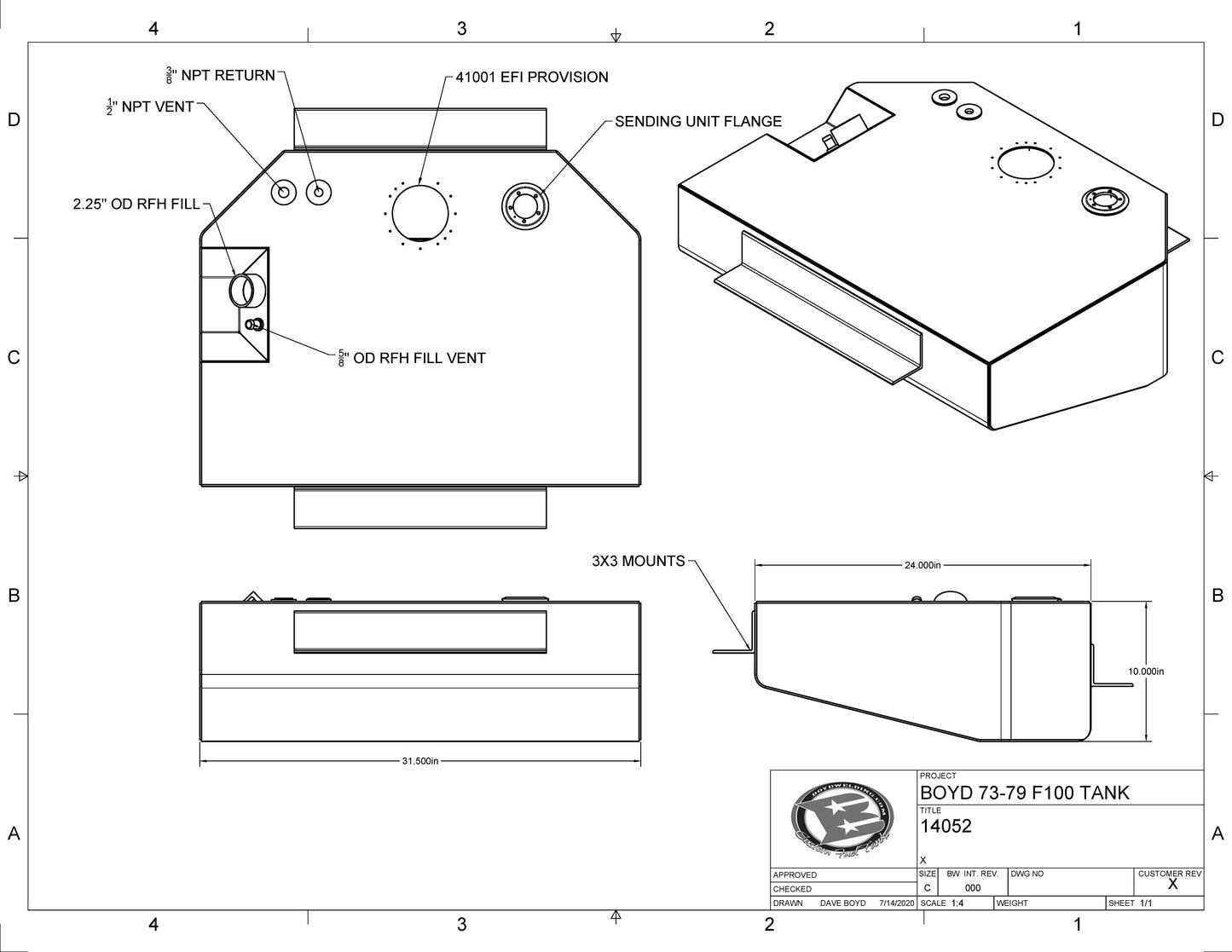

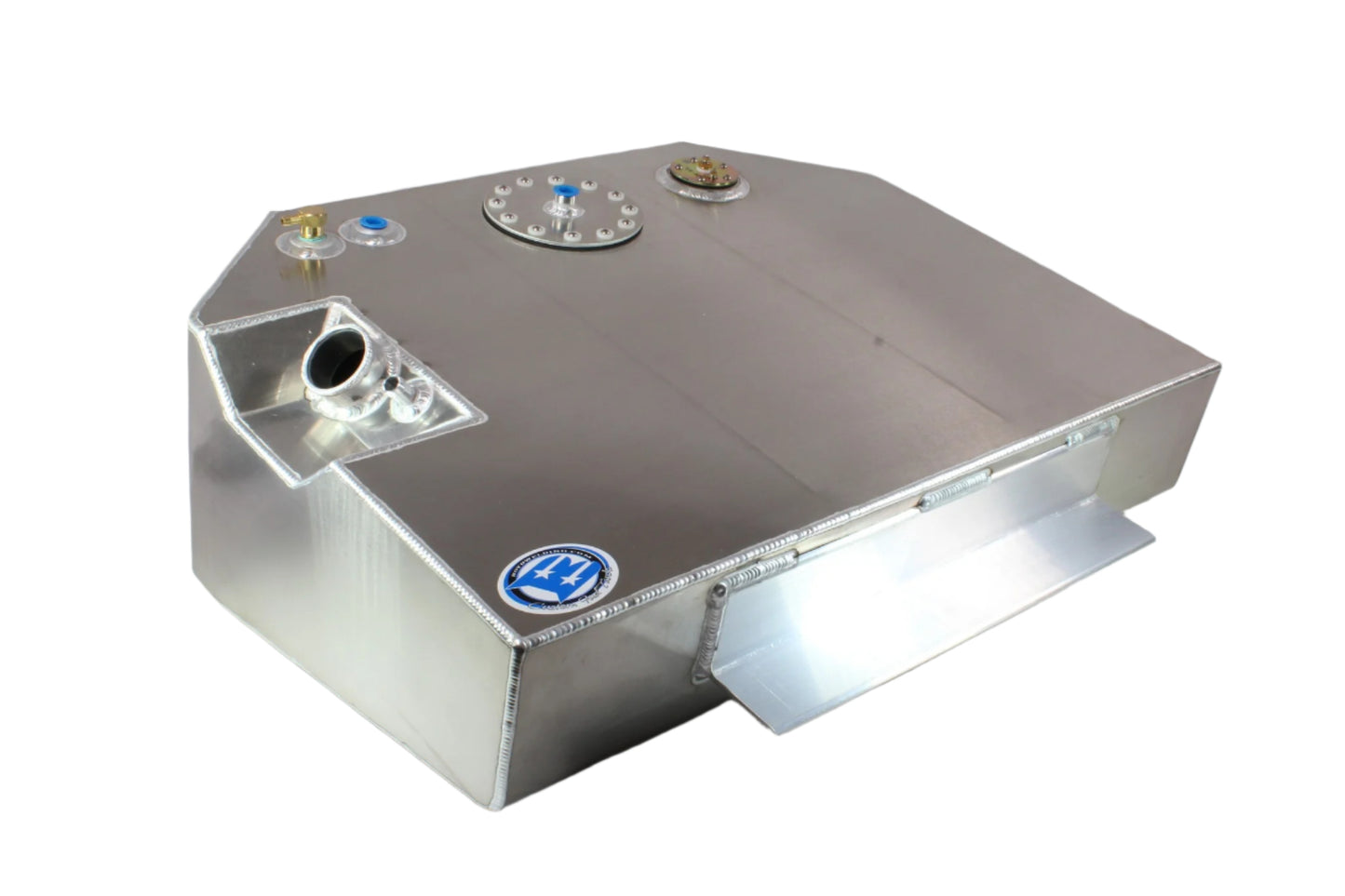

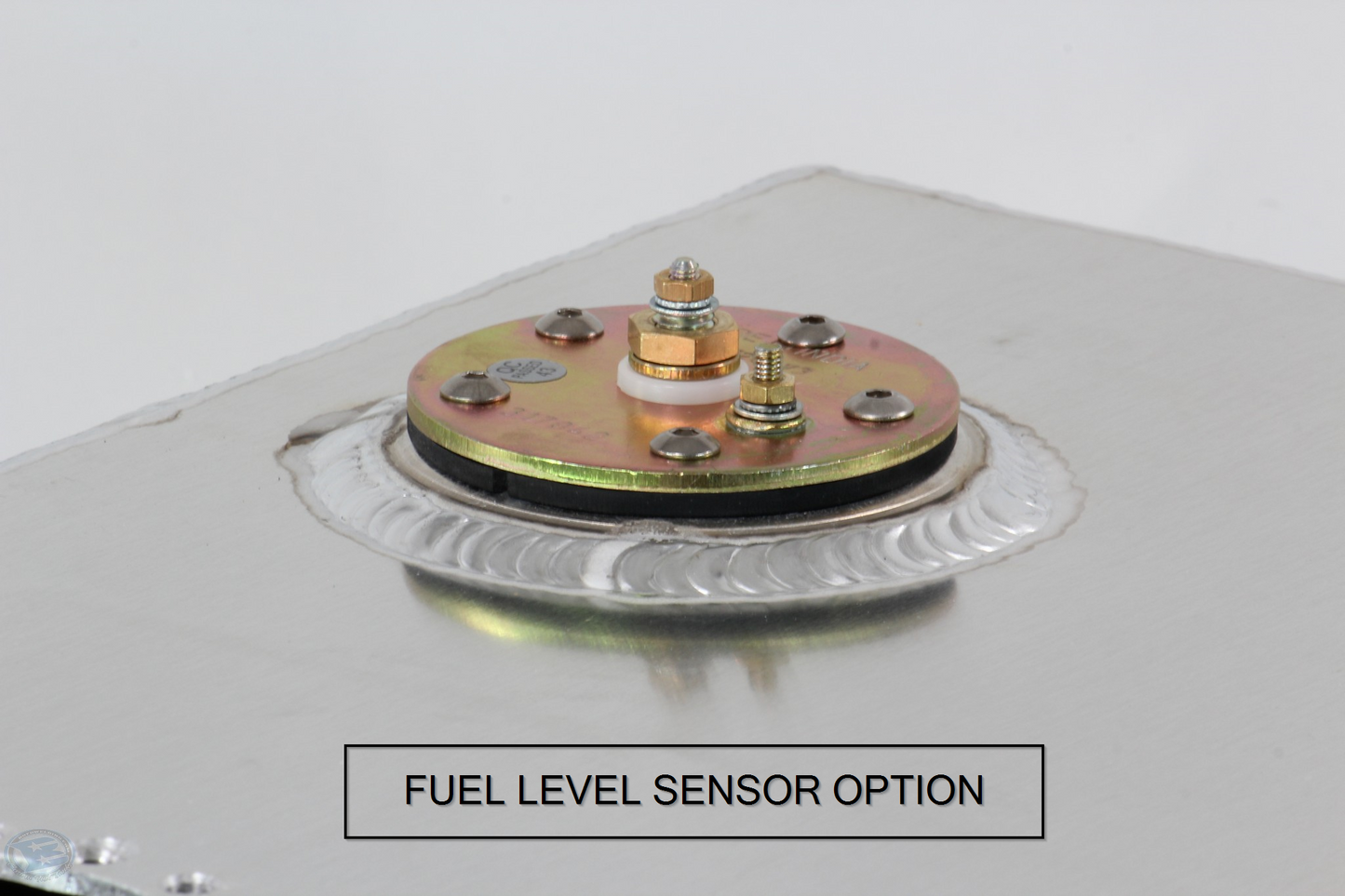

Tank Material: 1/8” 5052-H32 AluminumTank Dimensions: 31.5” x 24” x 10” Taper to 6”Approx Gallons: 23Fuel Fill: 2.25” Ribbed for HoseVent 1: 5/8” Ribbed for Hose Fill VentVent 2: ½” NPT Tank VentFuel Feed: 3/8" NPT PICKUP TUBE ON 12 BOLT PLATEReturn: 3/8” NPTSending unit Flange: YESBaffles: YES x3Mount Tabs: YES 3 x 3 x 3/16 Angle x2 places*This tank mounts in the F100 stock behind axle location using the stock fill location.* Pictures show optional accessories installed.
Really great piece that fits great and it super quality. Definitely will be sticking with these guys for my tank needs. (79 f150 project truck)
K
Ken Moore
F100 fuel tank
Beautiful piece very well built welds look great
J
JohnnyS
Absolutely beautiful tank.

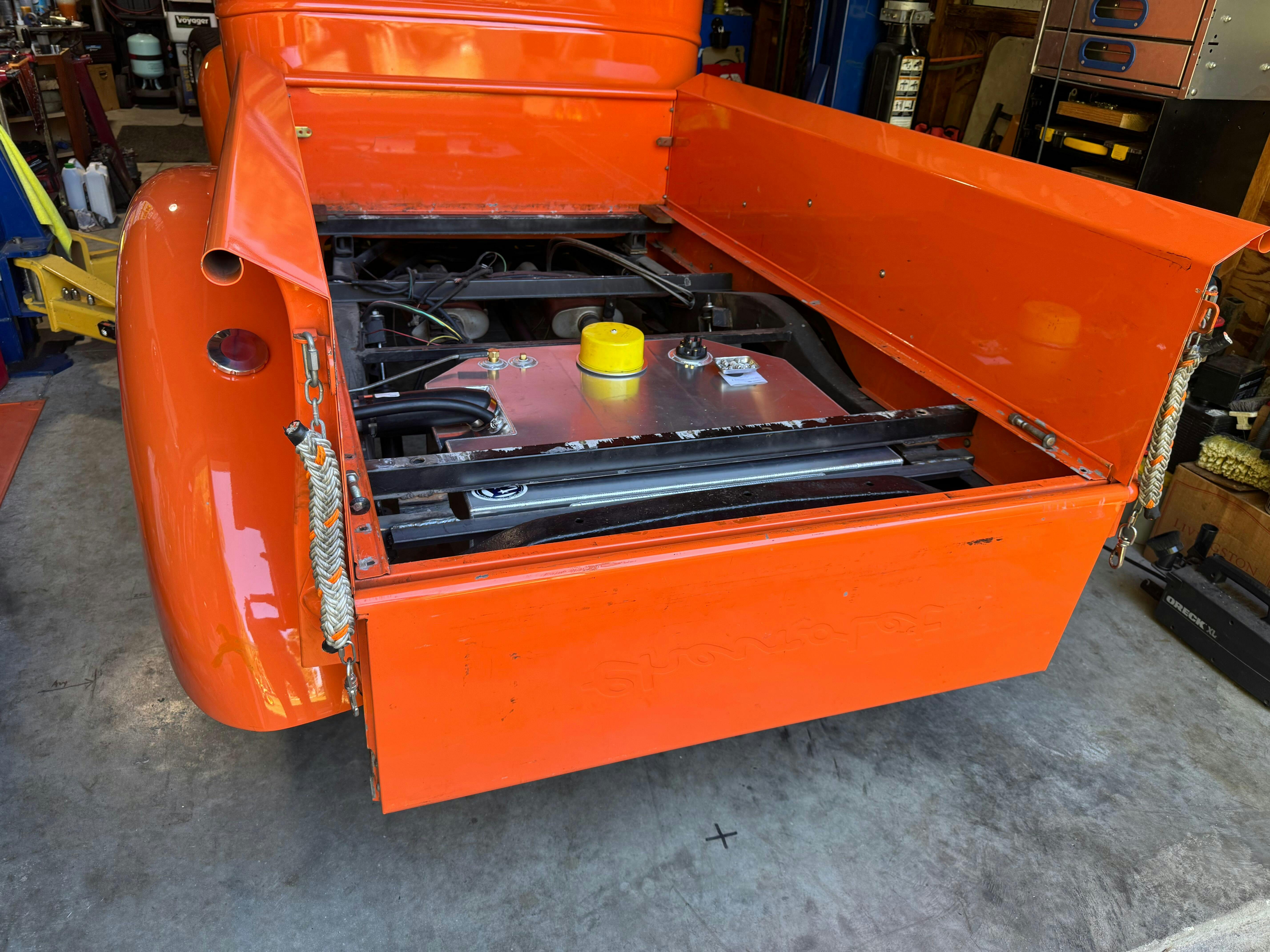

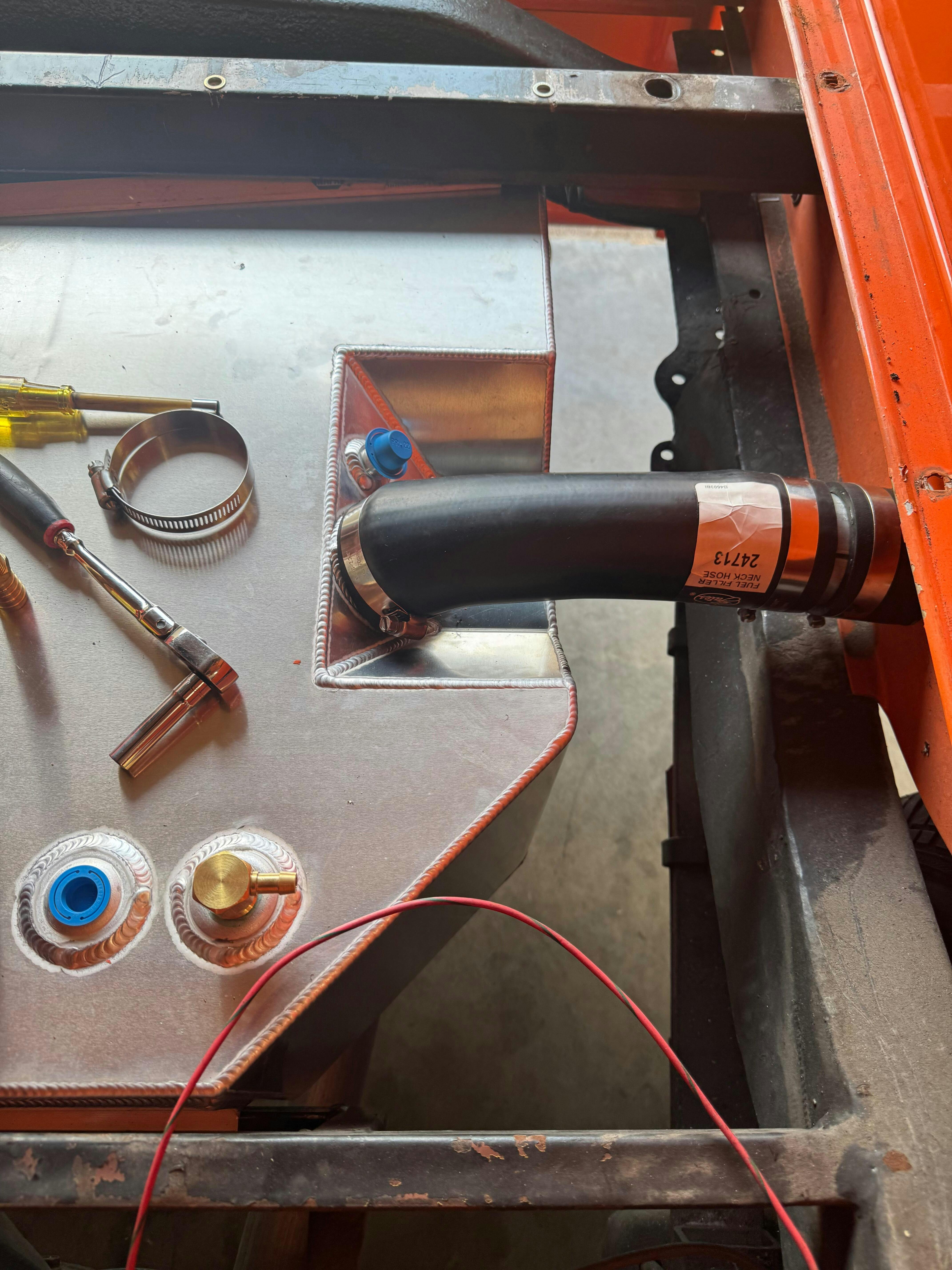

Tank was installed in a 1939 Chevrolet pick up truck. Filler neck location was perfect to route fill line through bed side under floor from left fender. Beautiful tank and welds. In my opinion no one even comes close in quality. Thank you Boyd’s
