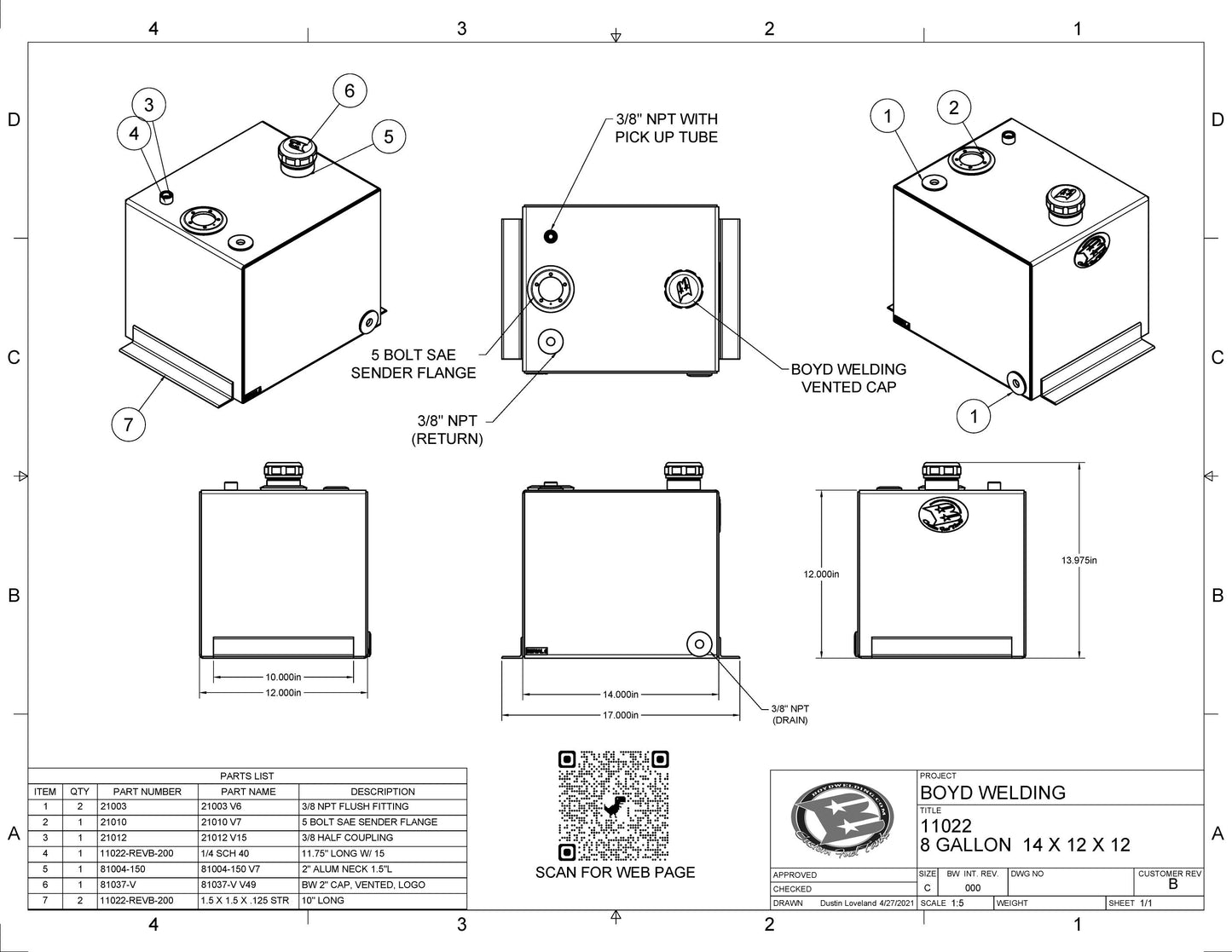

Tank Dimensions: 14"L x 12"W 12"H
Tank Overall Footprint: 17"L x 12" W x 12"H
Tank O'ALL Height W/Cap: 14"
Tank Thickness: 1/8"
Material Grade: 5052 Mill Aluminum
Approx Weight: 8
Tank Baffles: NO
Fill Cap: Vented Boyd 81037-V Cap
Vent: Cap
Draw: 3/8 NPT Pick Up Tube
Return: 3/8 NPT
Drain: 3/8 NPT
Sending unit flange: YES
Mounting Tabs: (2) 1.5" Angles 10" LONG
This tank comes standard with 1 pickup tube installed. You can add ADDITIONAL pickup tubes via the option drop downs. If you don't need additional pickup tubes then you choose "no additional pickup tube"

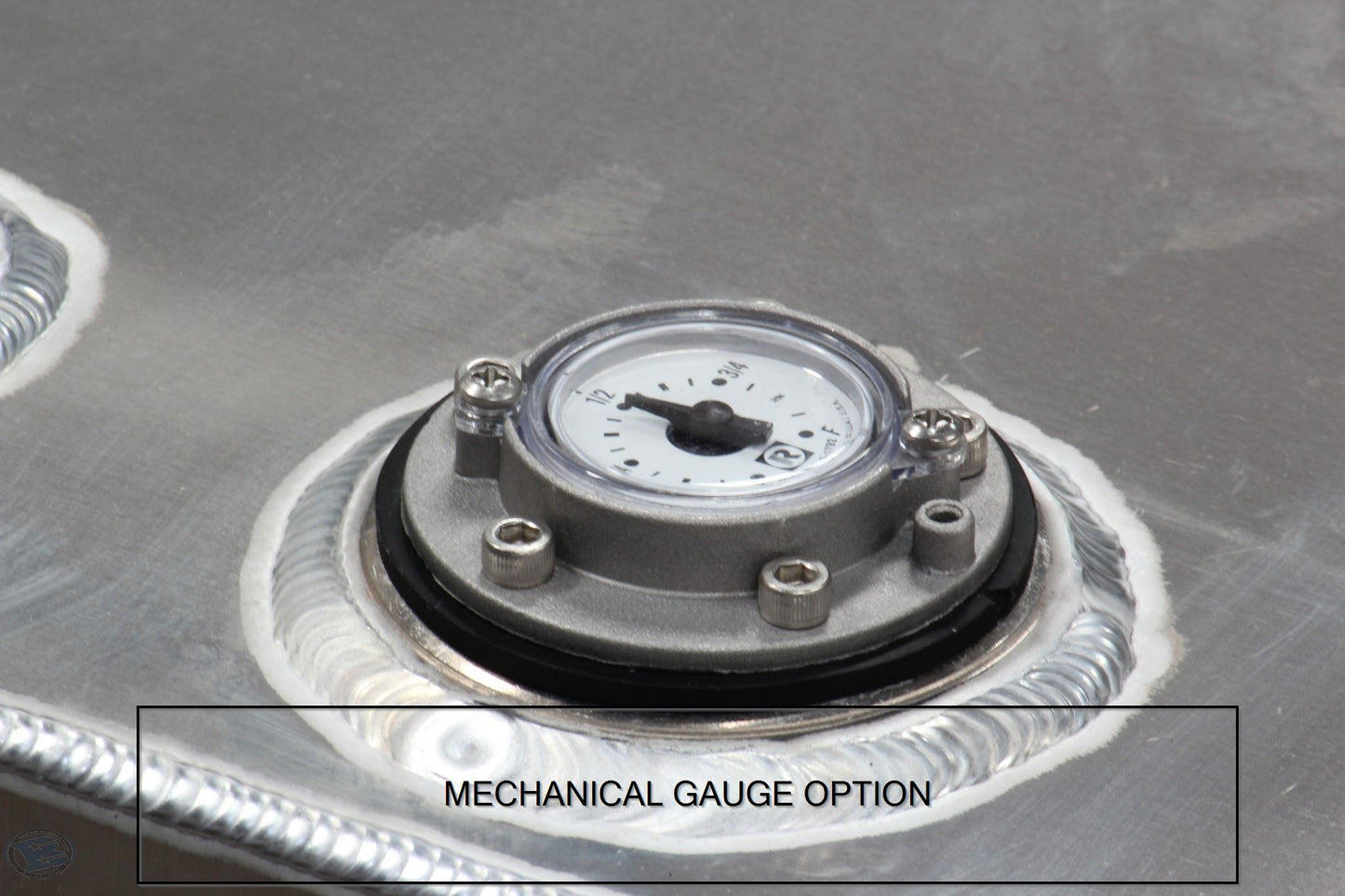

** PICTURE SHOWS OPTIONAL MECHANICIAL GAUGE INSTALLED
You will need to supply threaded fittings, plugs and hardware to complete your install based on your unique application.
