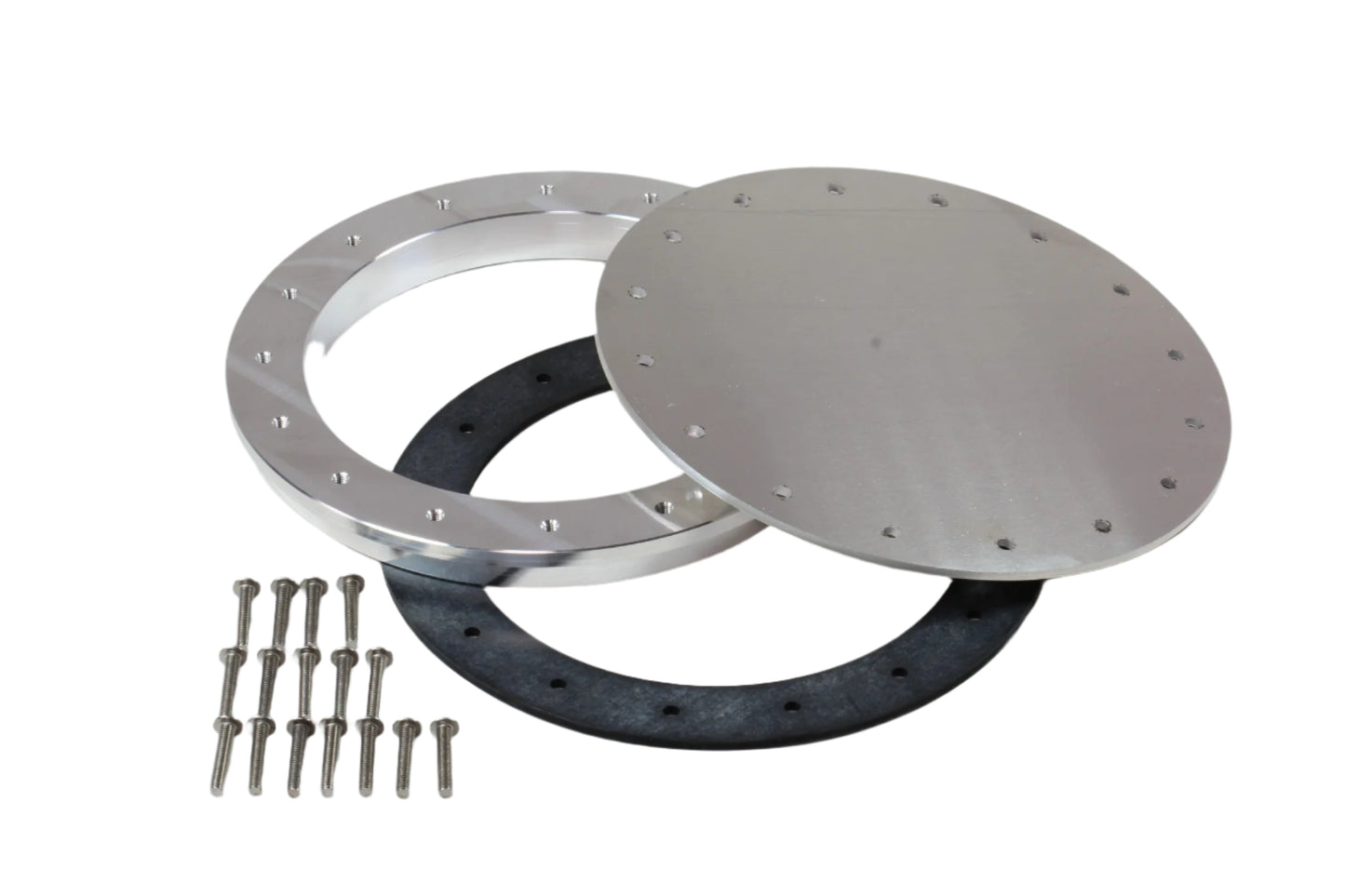

8" OD X 6" ID CNC Machined Aluminum Weld-In Tank Clean Out Flange
8" OD X 6" ID CNC Machined Aluminum Weld-In Tank Clean Out Flange
1 review
Availibilty : Typically In-stock, Additional QTY's available Contact us
In stock
SKU:44043
Regular price
$118.20
Regular price
Sale price
$118.20
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Material: 6061 T6 Aluminum
OD: 8.0”
ID: 6.0”
Bolt CL: 7.0”
Installed Height: .625" APPROX
Hole Cut out: 7.75"
Threads: x16 10-32 Blind Tapped
Gasket: YES - FKM Viton

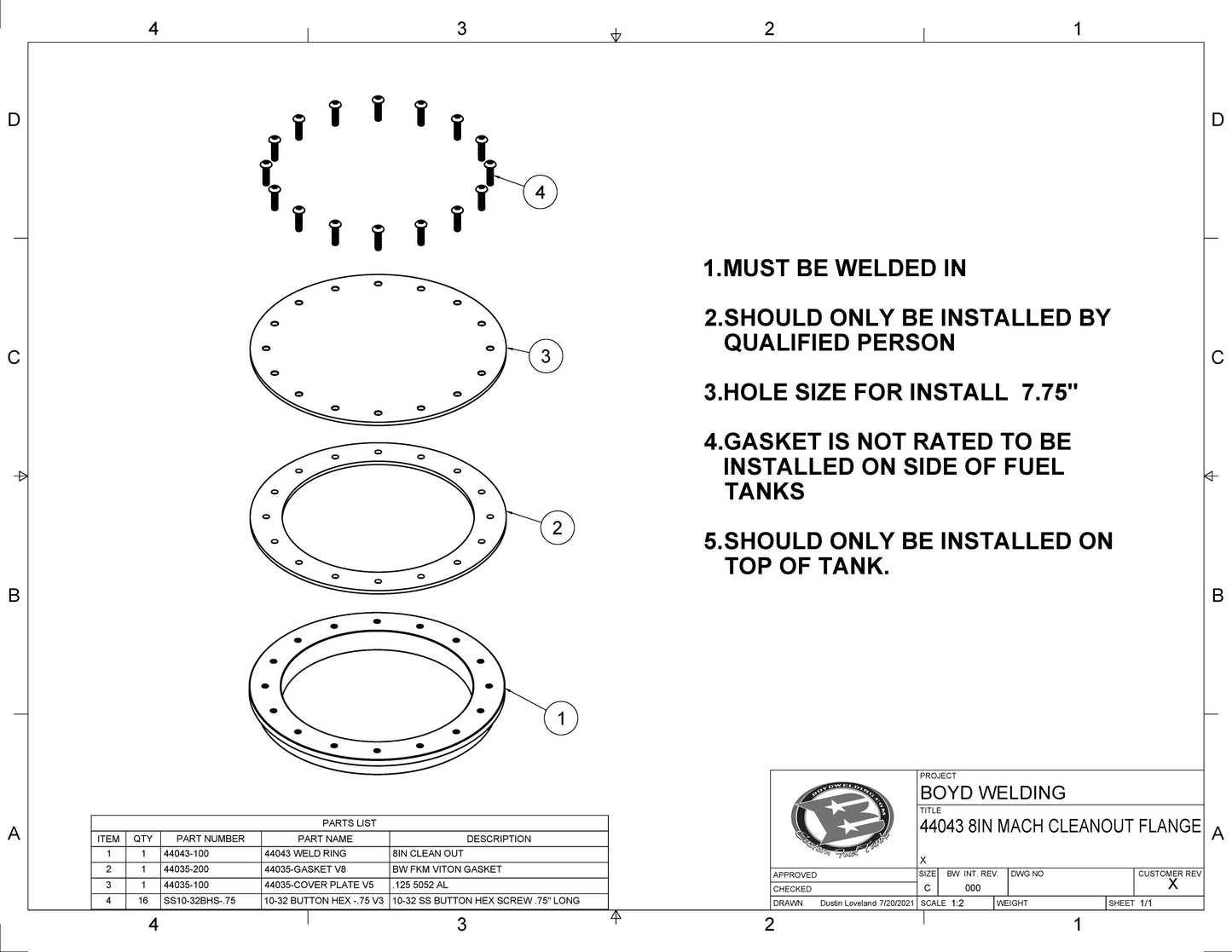

MUST BE WELDED IN.
The gasket provided with this flange is not rated for side wall installation on fuel tanks. This Item should be installed on the top plate of any fuel tank only.
