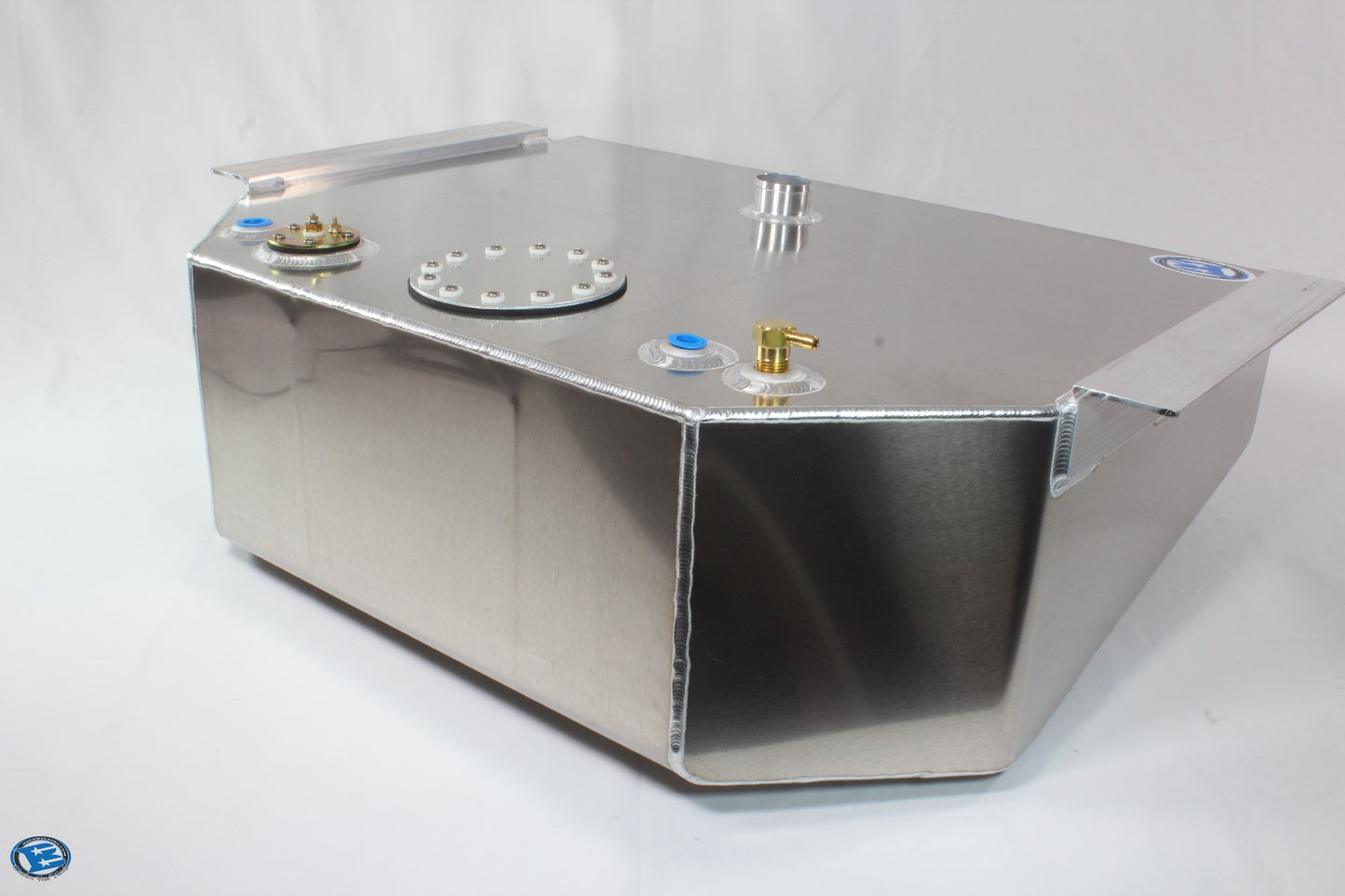

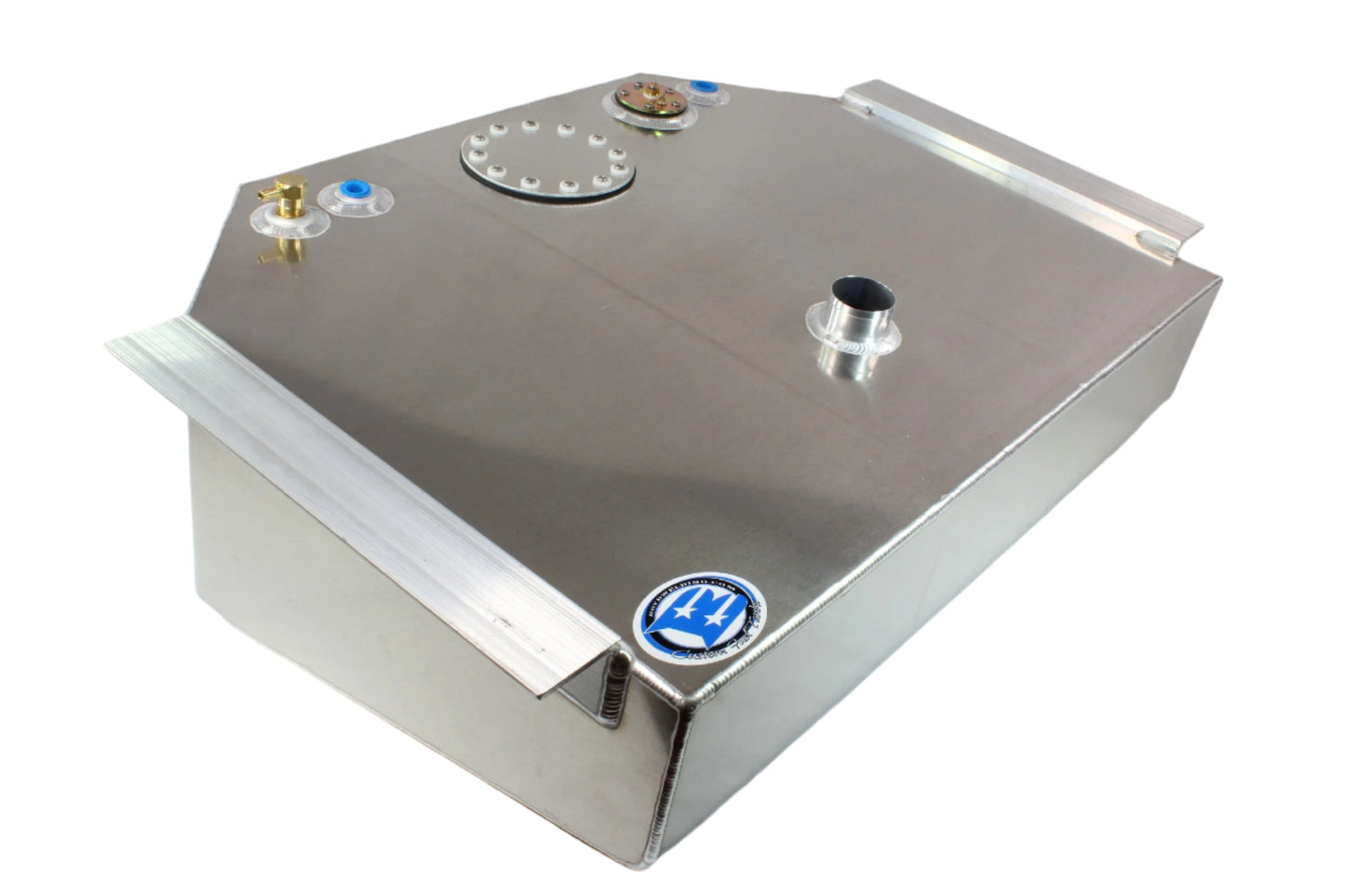

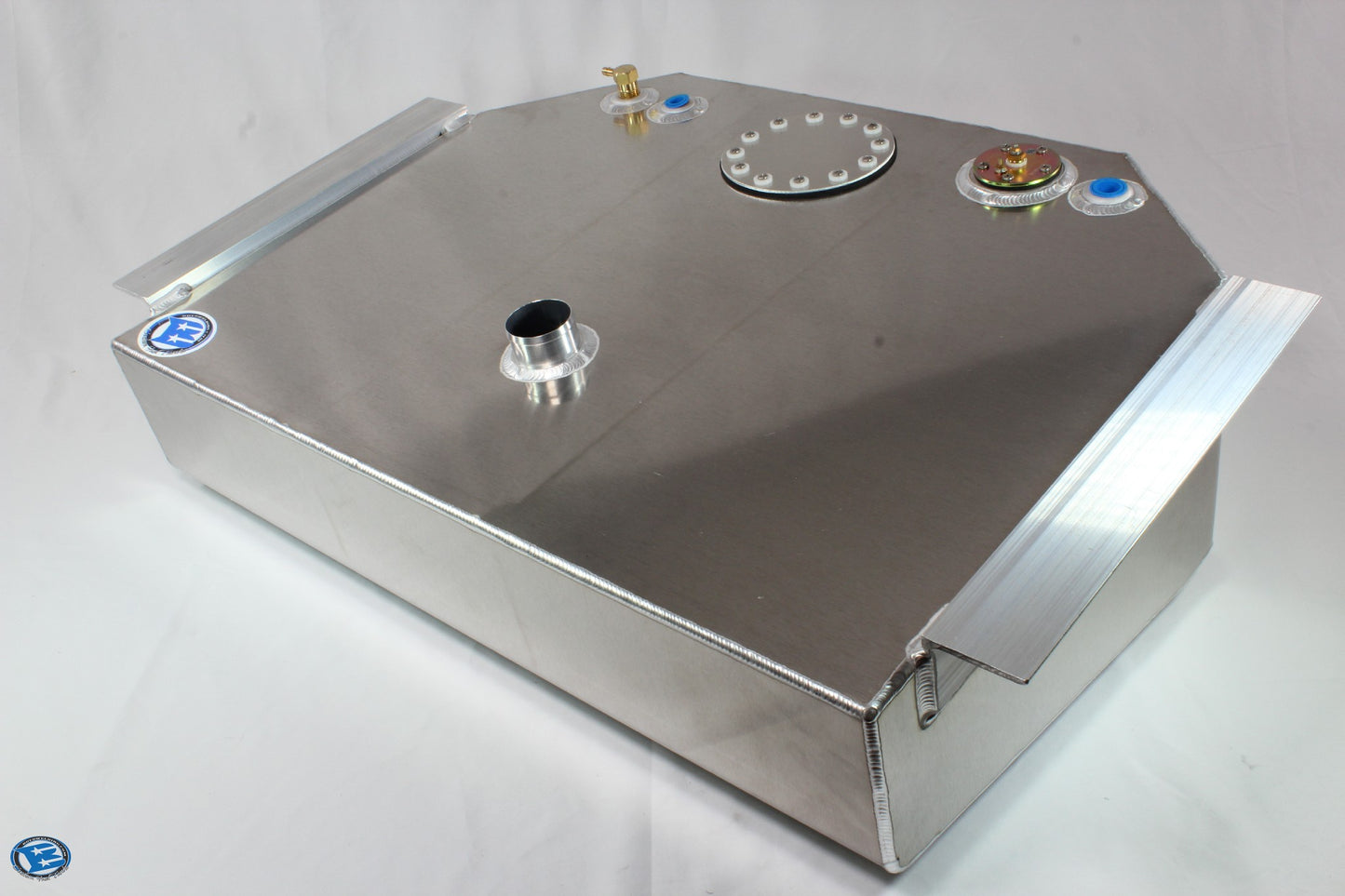

APPROX Gallons = 22
Tank Material = .125" 5052 Aluminum

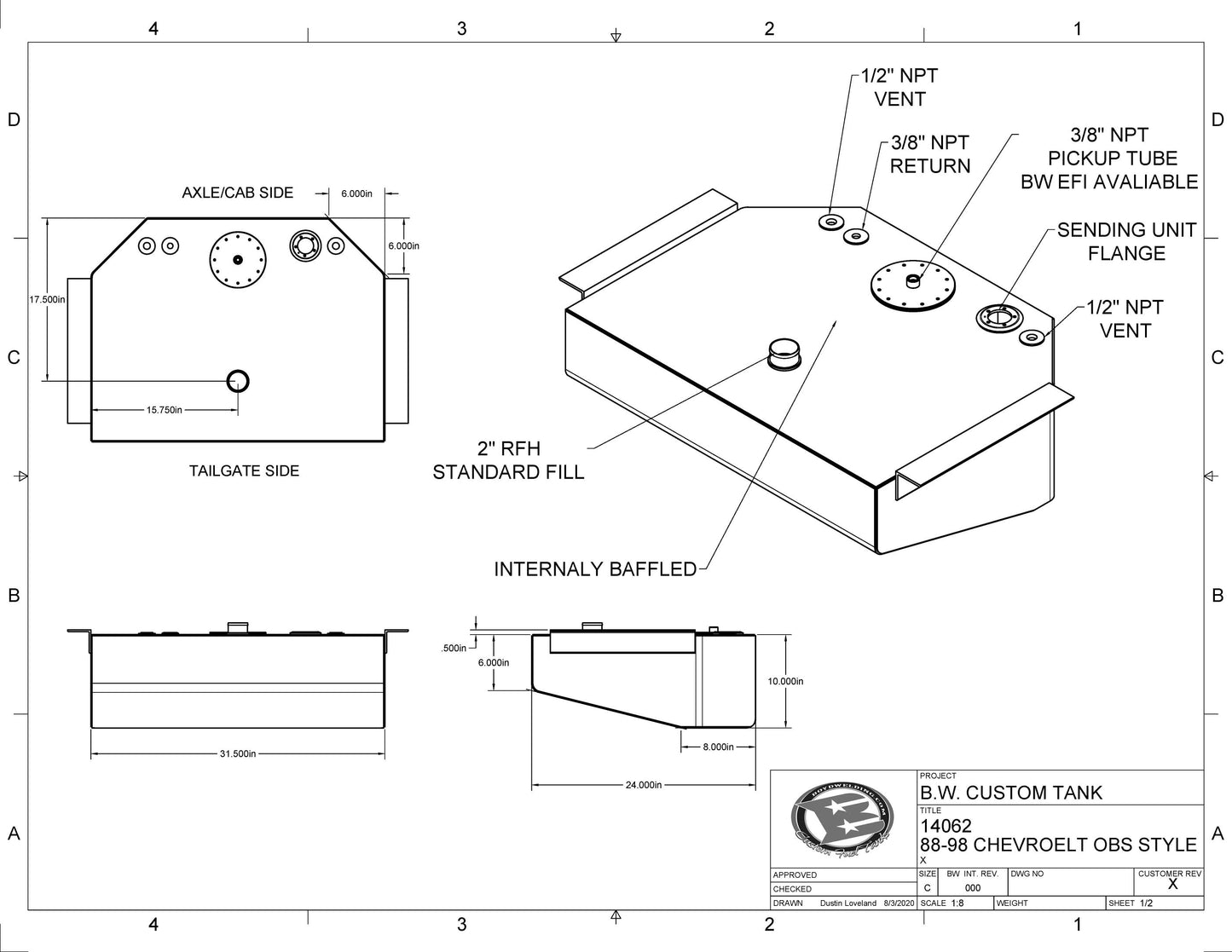

Tank Dimensions = 31.5" x 24" x 10" Taper to 6"
Tank Fill = 2" OD Ribbed For Hose (RFH) barb Only
Tank Vent = x2 1/2" NPT
Tank Return = 3/8" NPT
Fuel Sensor Flange = YES
Baffles = YES x3

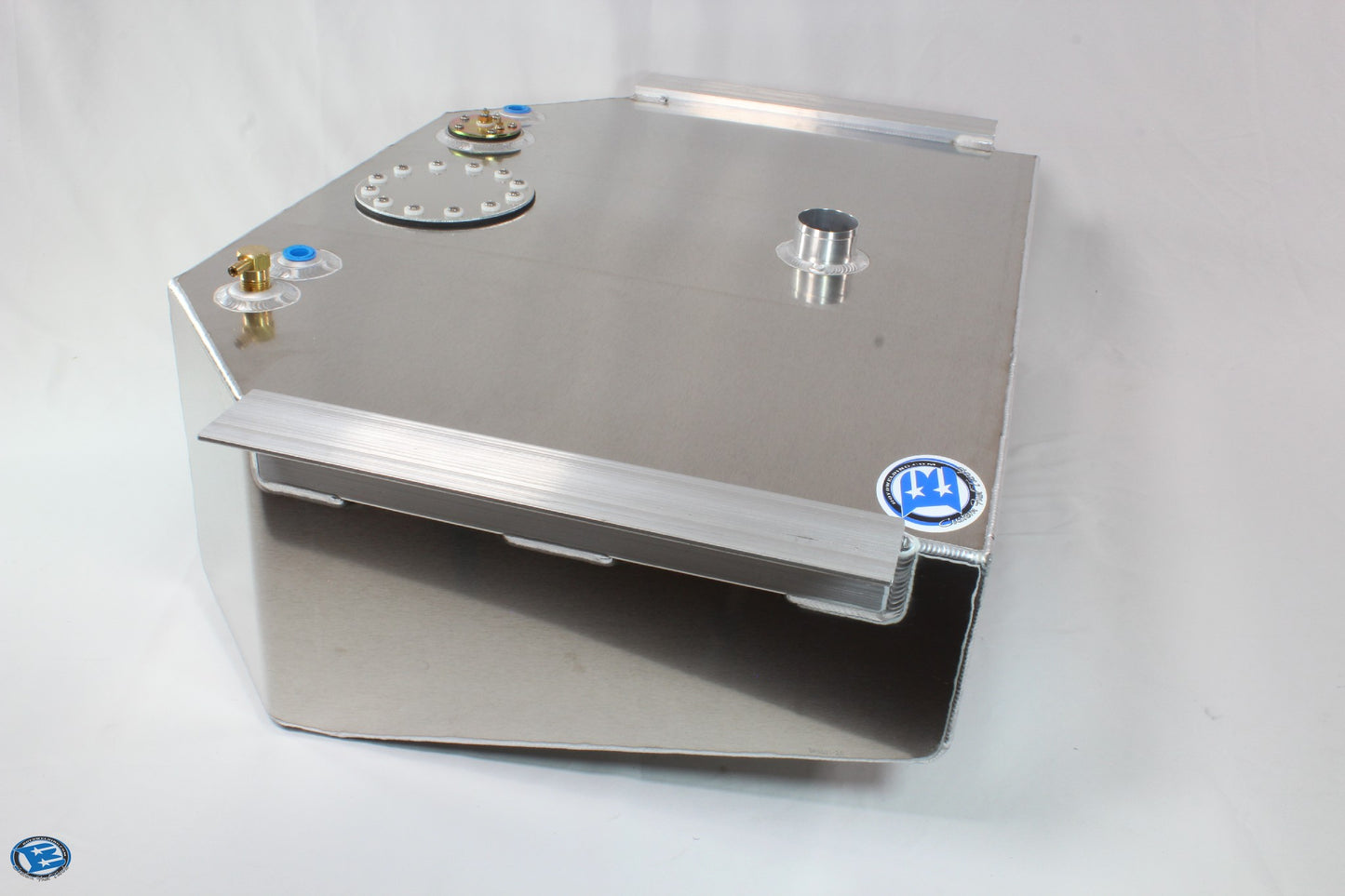

Mounting Tabs = YES

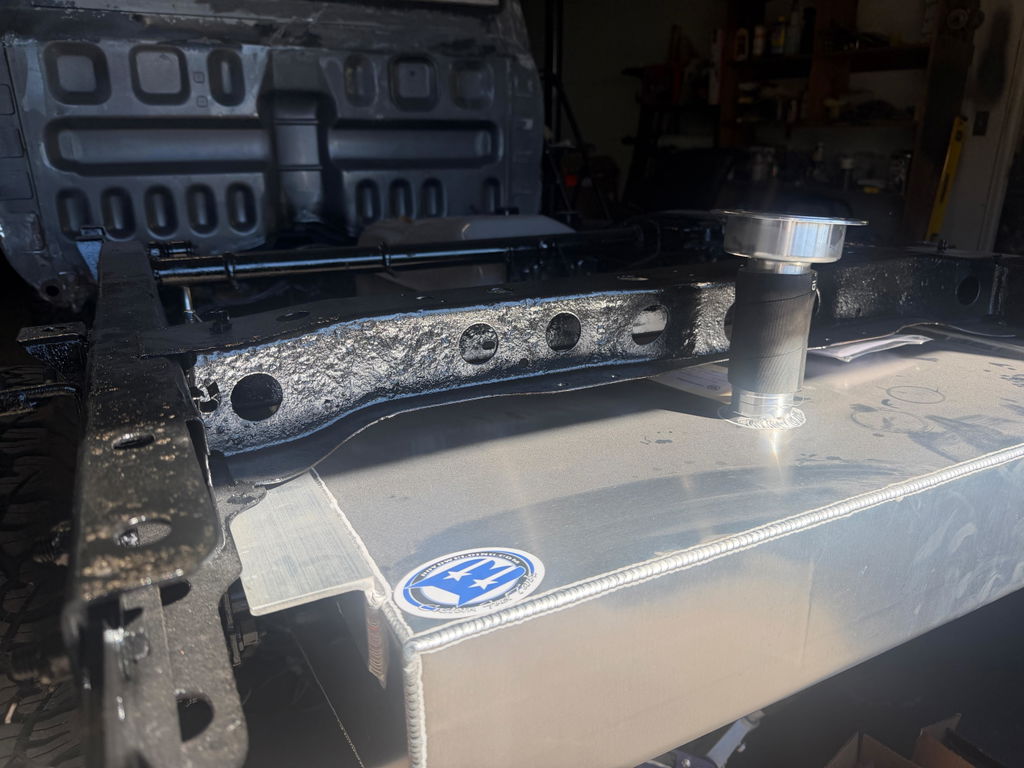

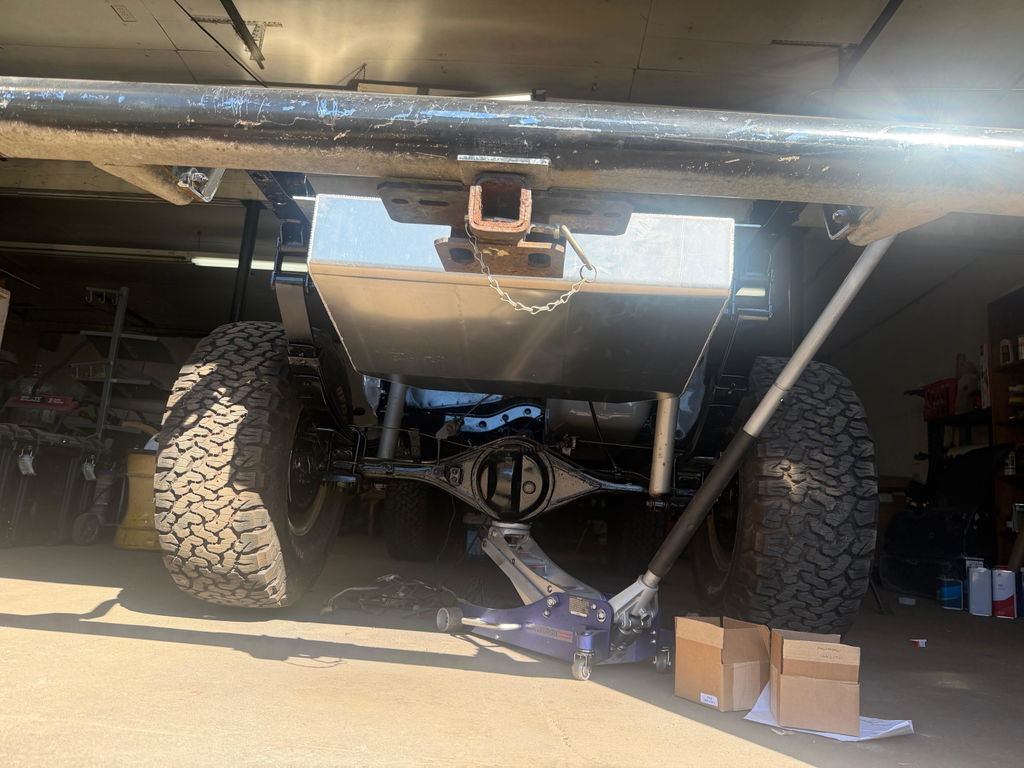

Each tank is intended to mount to the bottom of the frame rail. It is not necessary to remove the "X" Shape rear cross member as the tank will sit below it. The mounting tabs will require drilling and trimming to clearance frame rivets and bed mounting holes.
If you have removed that cross member when adding 4 link coil over or airbag kits, it is possible to mount the tank to the top of the frame rail. Additional fabrication to the bed floor will be required.
