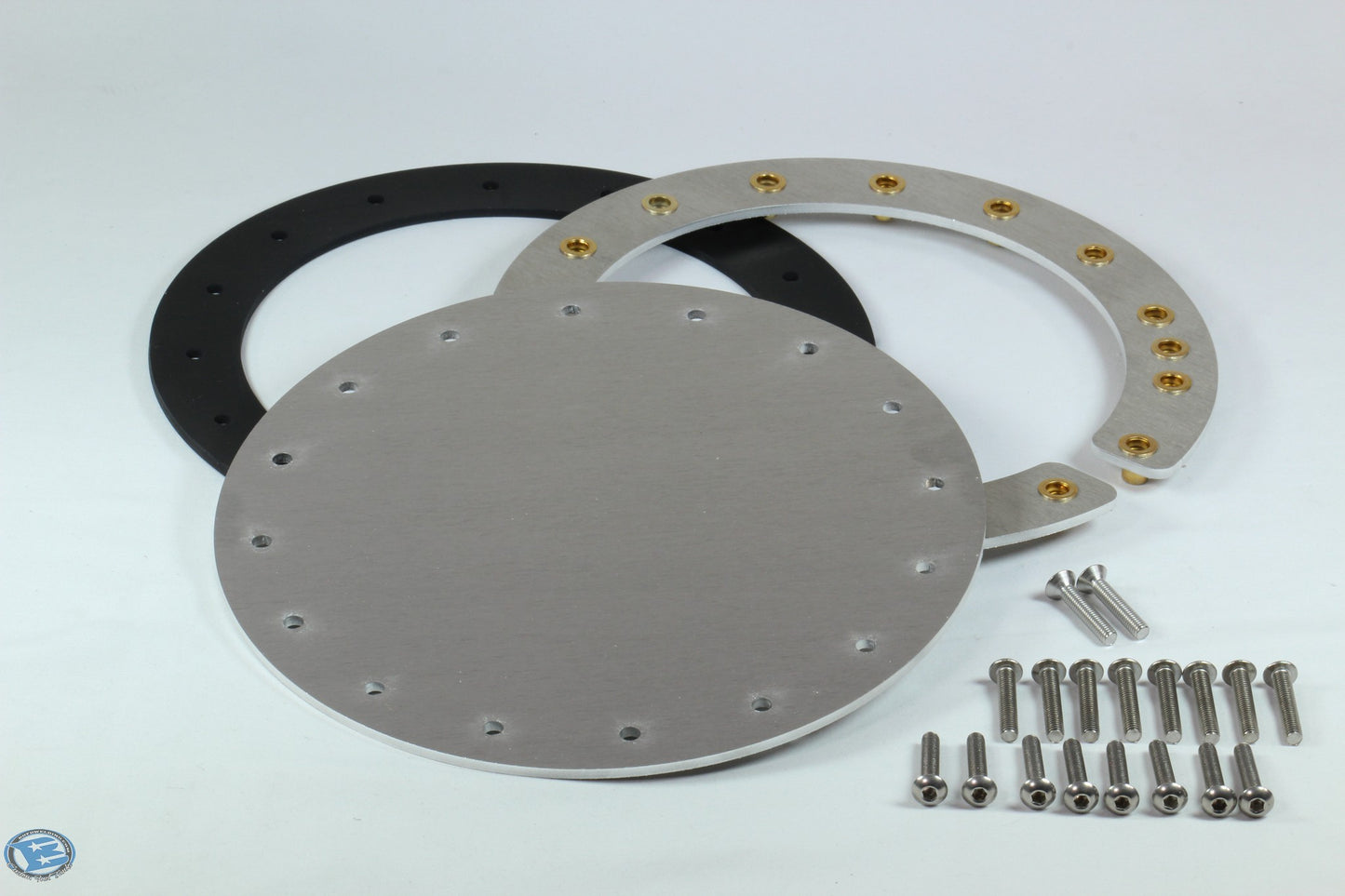

Aluminum 8"OD X 6"ID Bolt In Tank Clean Out Access Plate

Aluminum 8"OD X 6"ID Bolt In Tank Clean Out Access Plate

Availibilty : Typically In-stock

SKU:44035

Regular price $58.50
Regular price Sale price $58.50
Sale Sold out
Shipping calculated at checkout.
Material: 5052 Aluminum
OD: 8.0"
ID: 6.0"
Bolt CL : 7.0"
Installed Height: .250 +/-

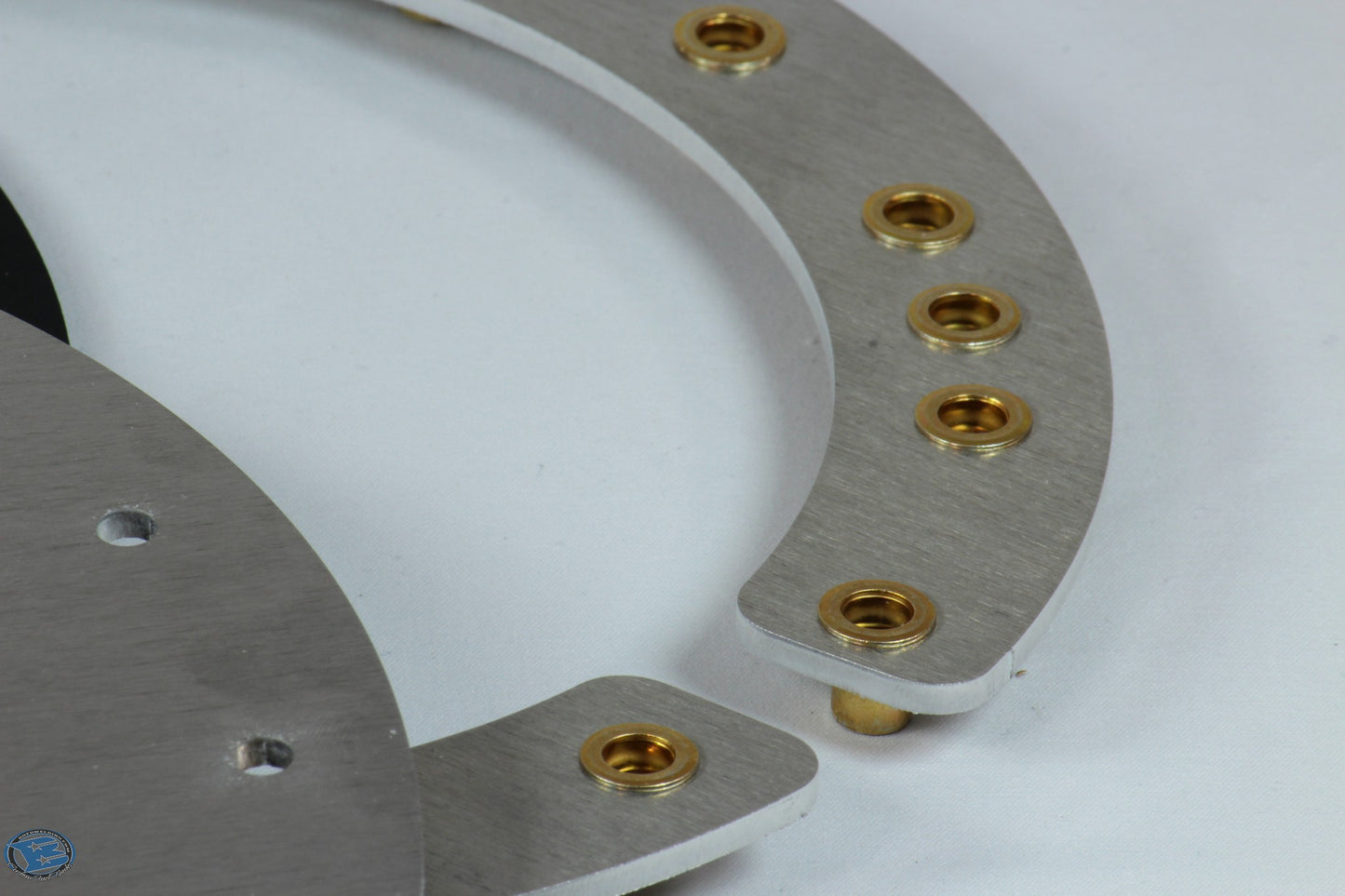

Threads: 10-32 Zinc Plated RIV-NUT

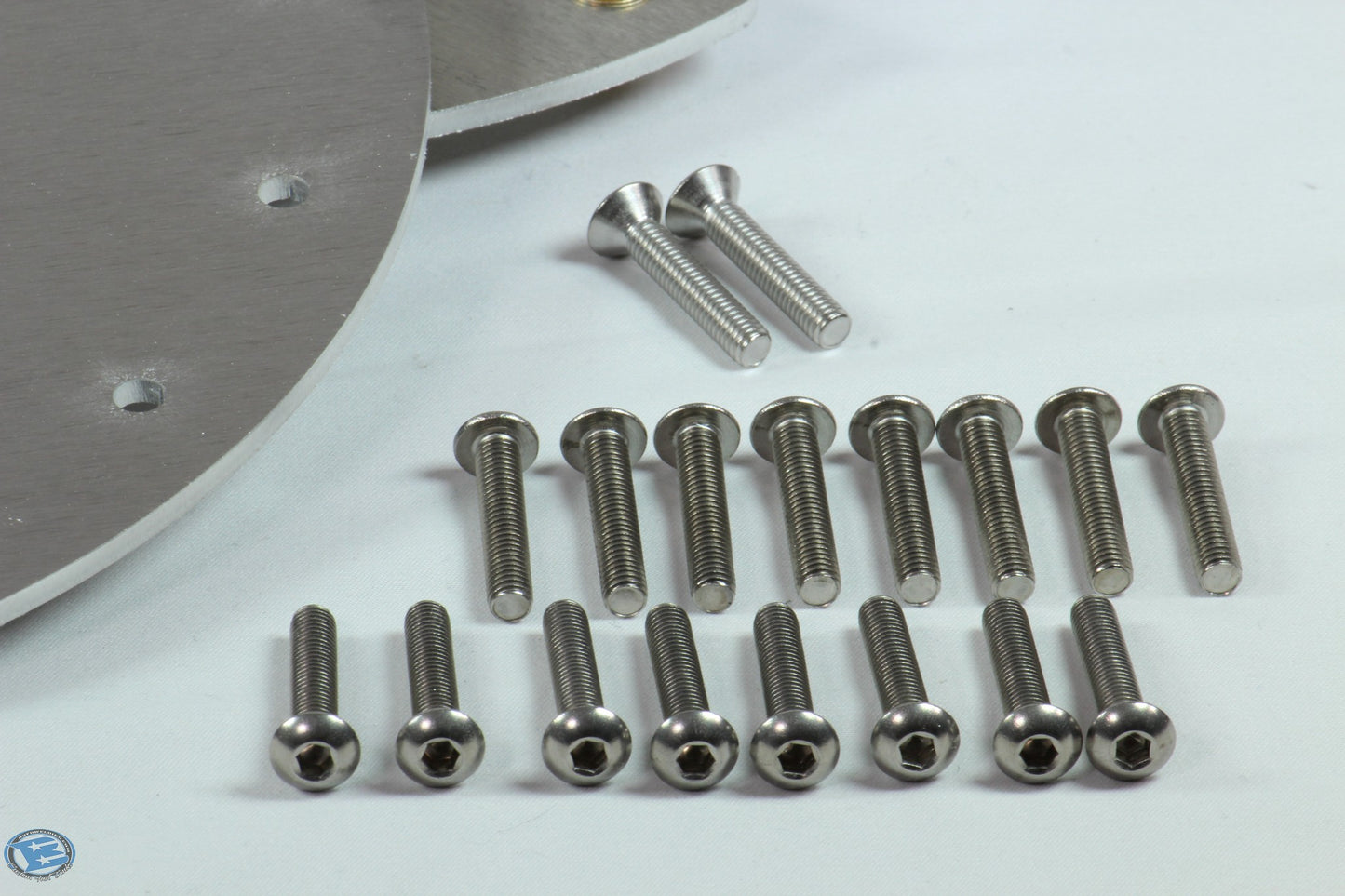

Hardware Included: Yes, Stainless Steel 10-32
Gasket: YES- FKM Viton
Cover Plate Thickness:  .125"  (1/8")
Bolt in Assembly, No Welding needed.

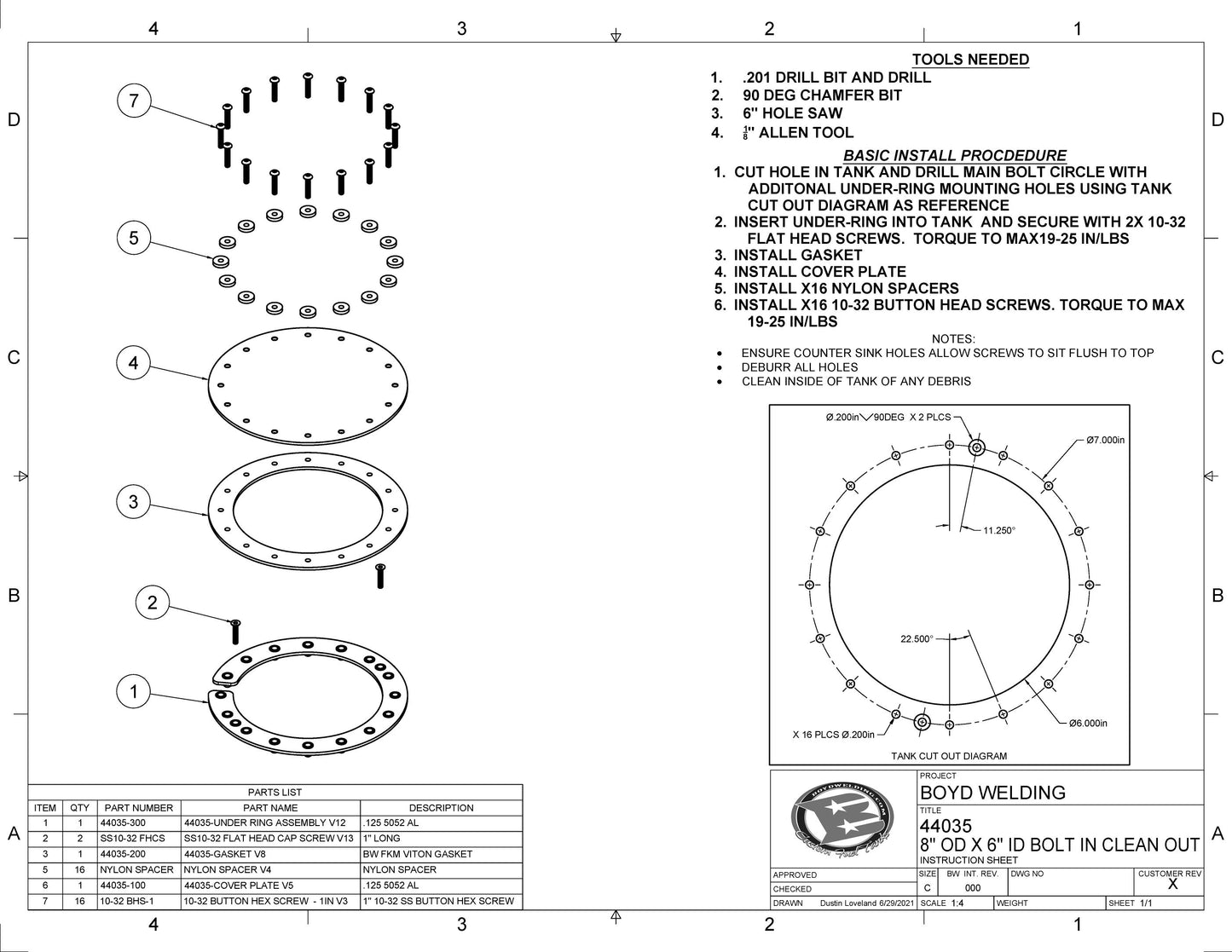

Installation tip: If laying out bolt pattern manually, use the gasket as a template for the center hole and bolt pattern.
Download Instructions Here
THIS ASSEMBLY IS INTENDED FOR TOP OF TANK USE ONLY. NOT TO BE USED FULLY SUBMERGED IN FUELS

View full details

Customer Reviews

Based on 5 reviews
60%
(3)
20%
(1)
0%
(0)
20%
(1)
0%
(0)
s
smitty
perfect fit and fast service

just what I needed and very responsive service

S
Sheryl
Excellent product, poor return policy!

If you are absolutely sure this is the product you want, it is a very good product at a good price, but don’t change your mind. As the return policy states it will cost you more to return it than it did for you to buy it! Otherwise, excellent product!

D
David Castle
Could use a full sized template.

I'm not a metal worker. I'm installing the plate and have to extrapolate the locations of the screw holes with a 3² inch diagram. I used a compass and ruler to find the screw locations but it was not perfect. I had to use the Dremel tool to open the holes up some to get the screws to fit. Now I worry my tanks might leak. So far I haven't noticed anything.
