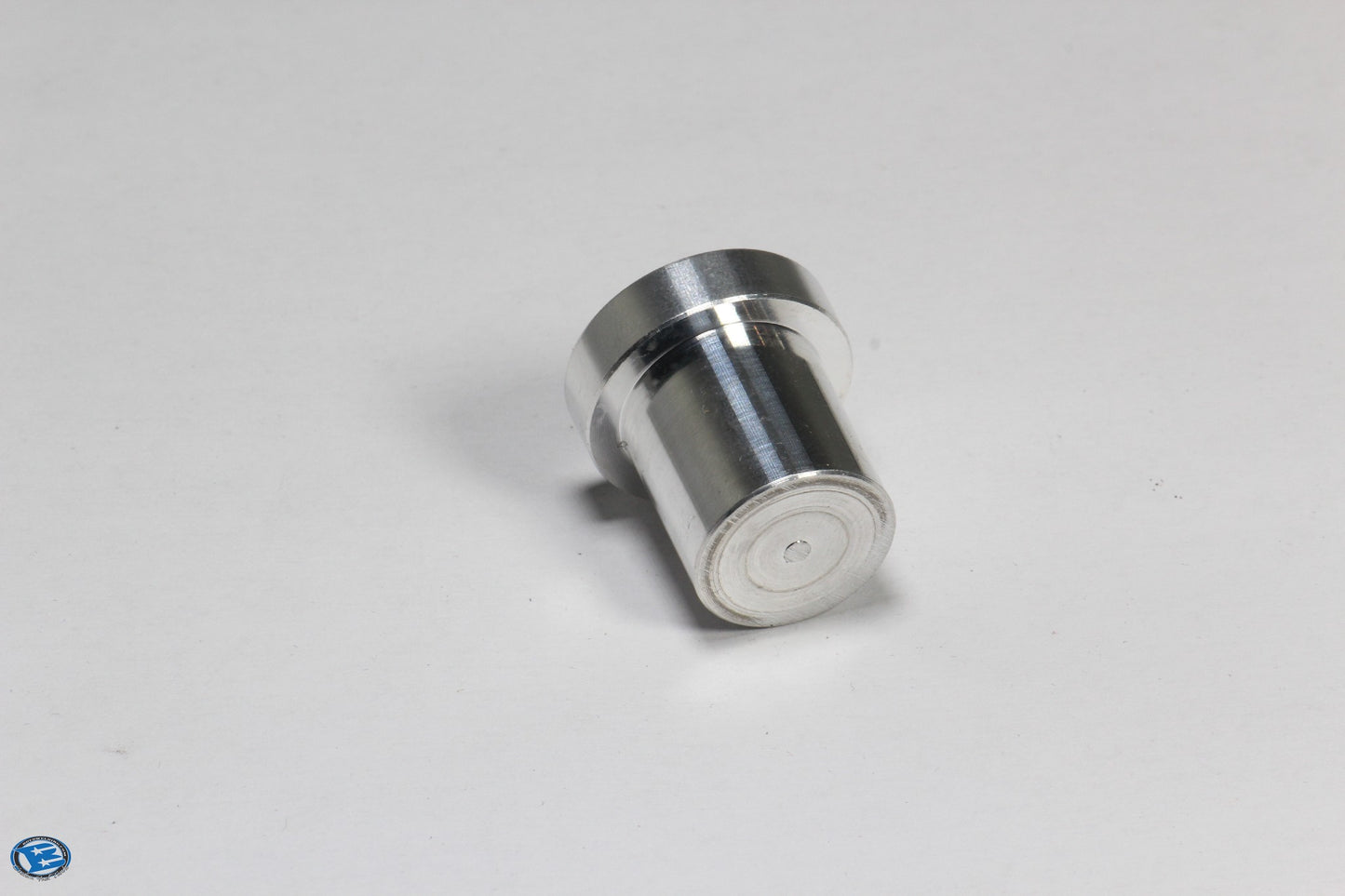

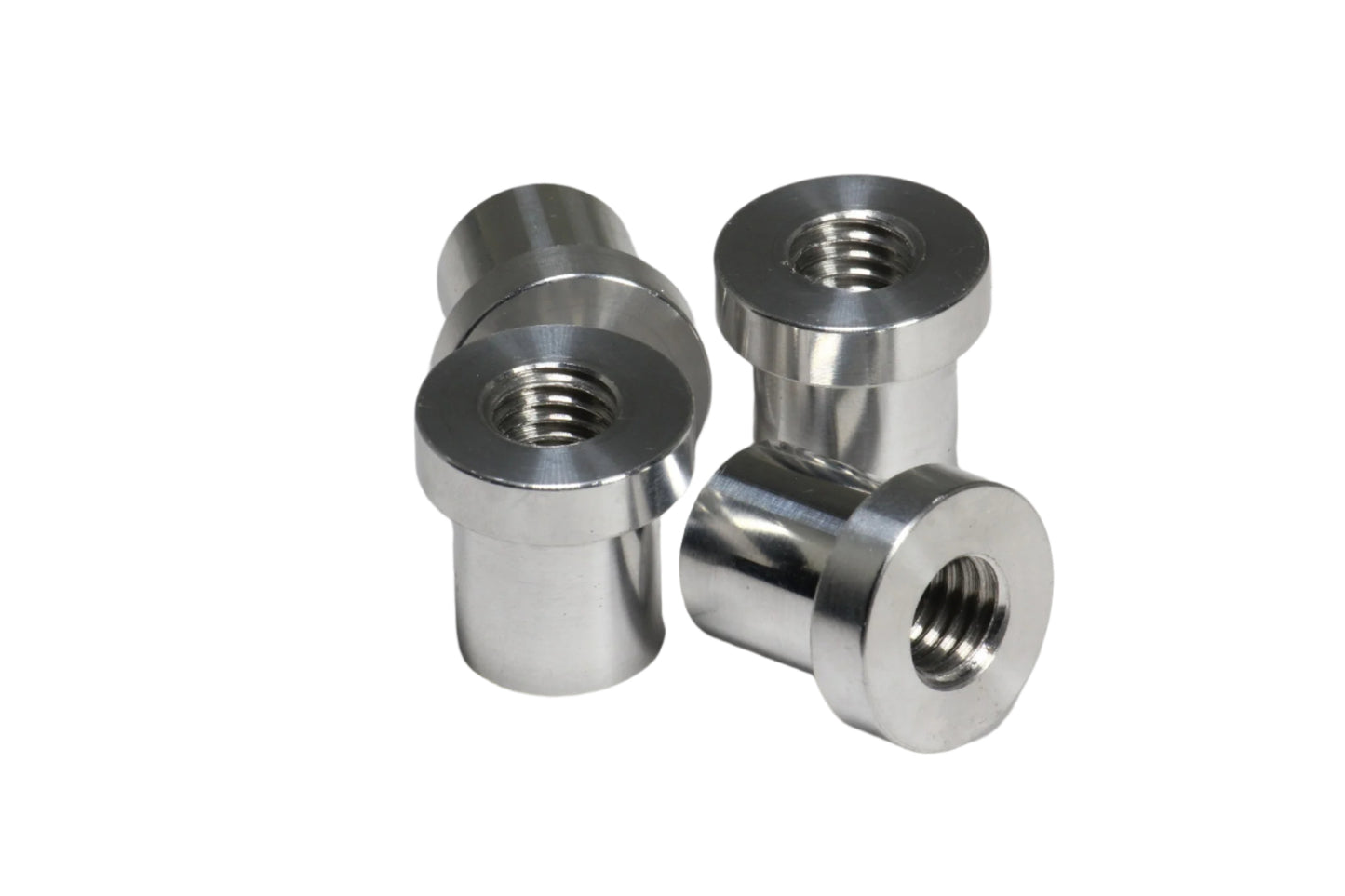

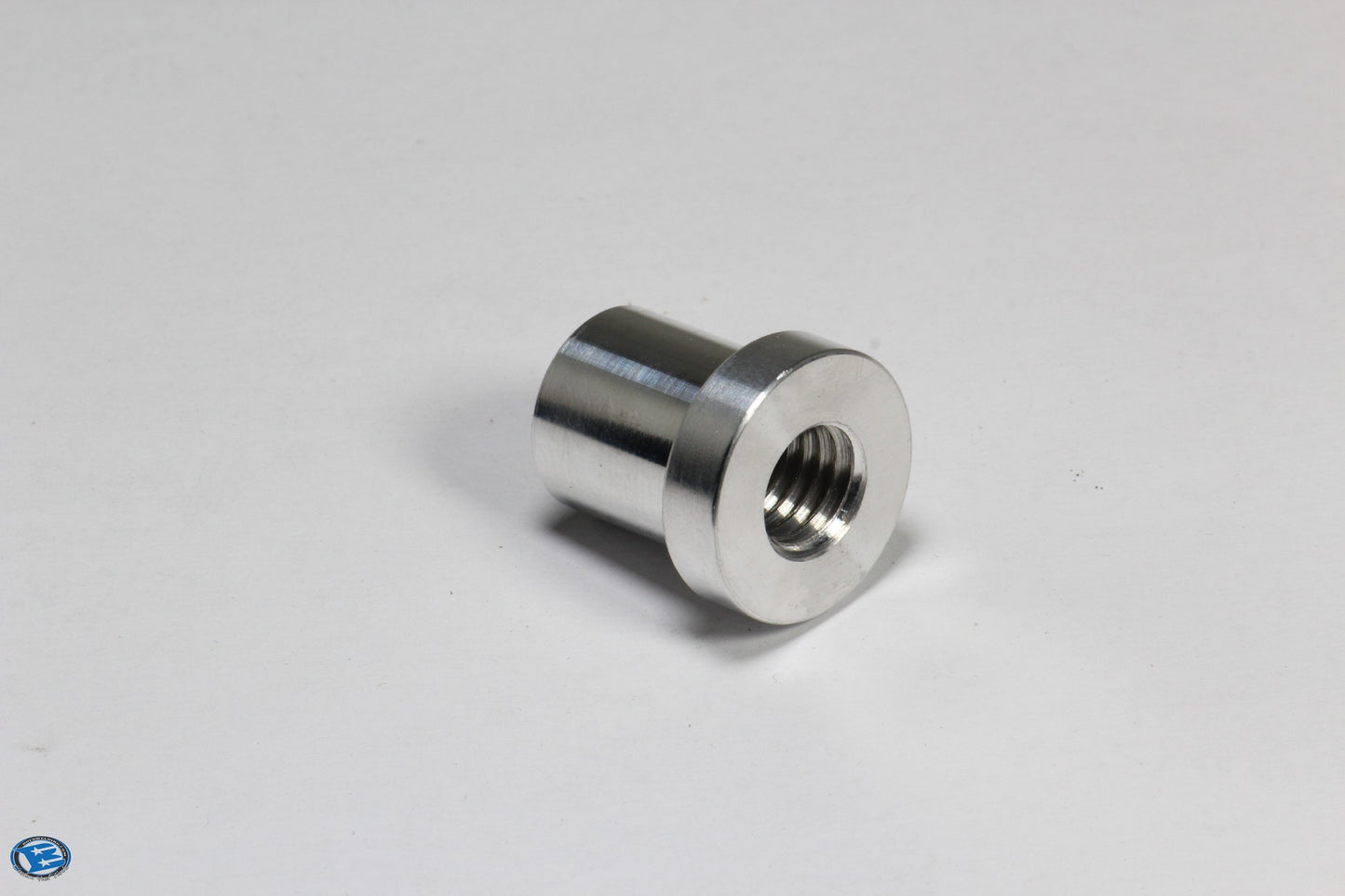

Material: 6061 Aluminum CNC Machined
OD(A): .500” +/-
OD (B): .375” +/-
Flange Thickness: .250” +/-
Overall Length = .750” +/-
Installed height= .250” +/-
Tank Hole Cut Size: .375”MIN / .500” MAX -This fitting must be welded in

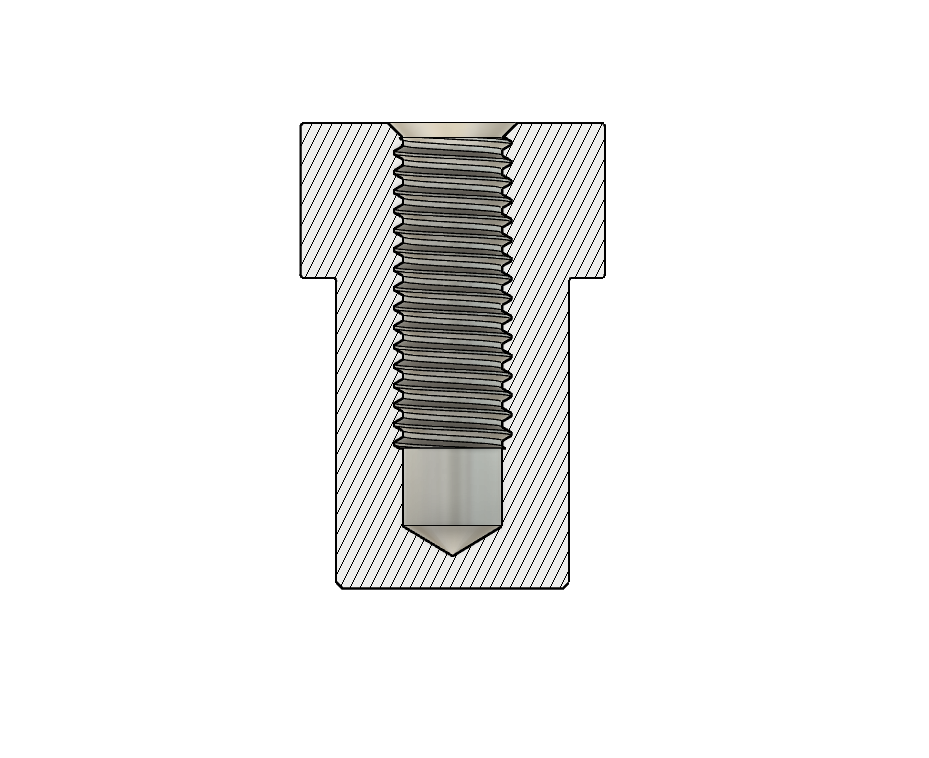

-This fitting is threaded blind so there will be no need to seal the threads
-This will provide threaded provisions in your assembly perfect for bolting steps, enclosures and other components.
- Could be welded to the inside of a tank to provide a perfectly flush threaded fitting that wont leak.
