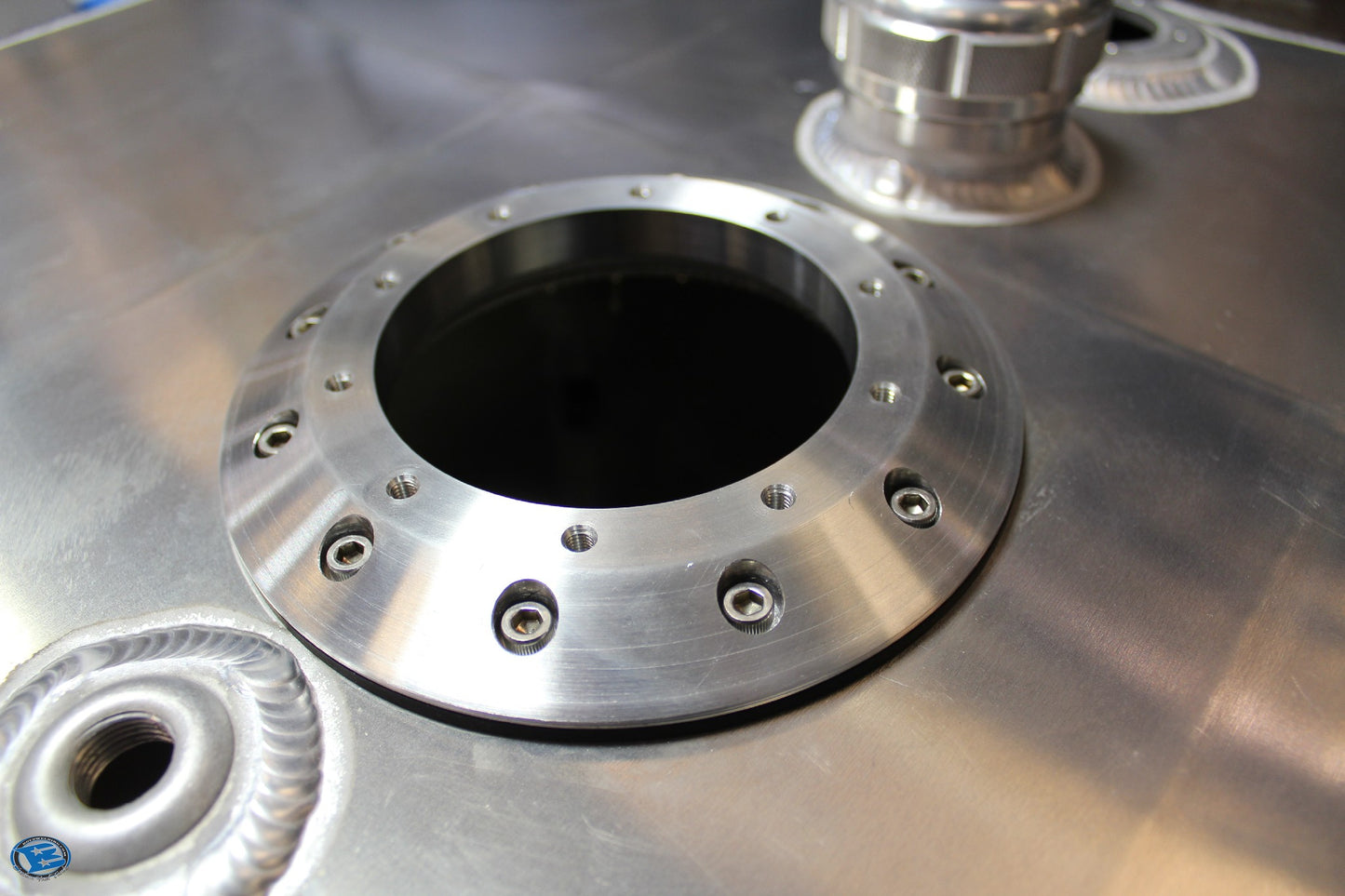

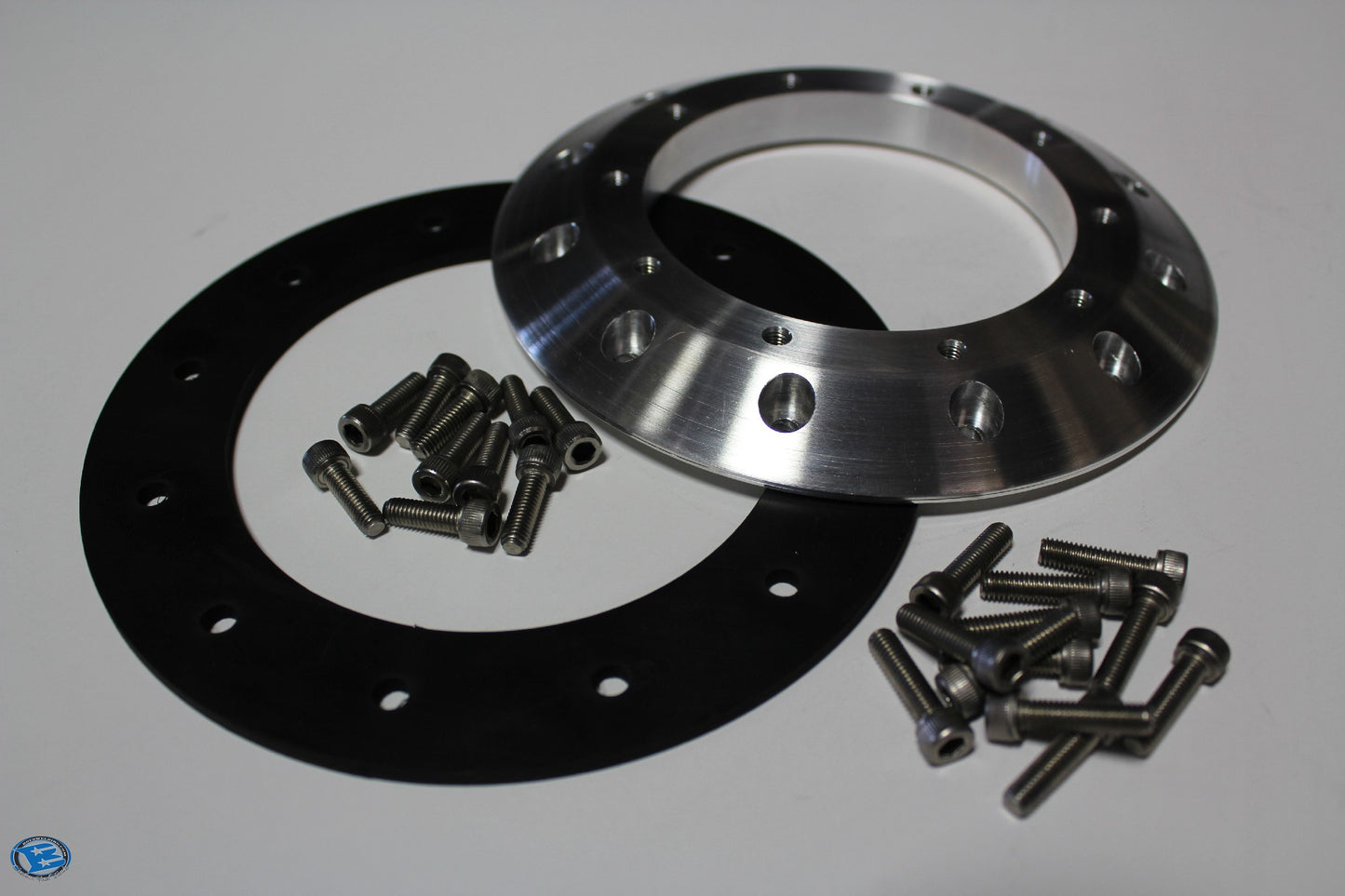

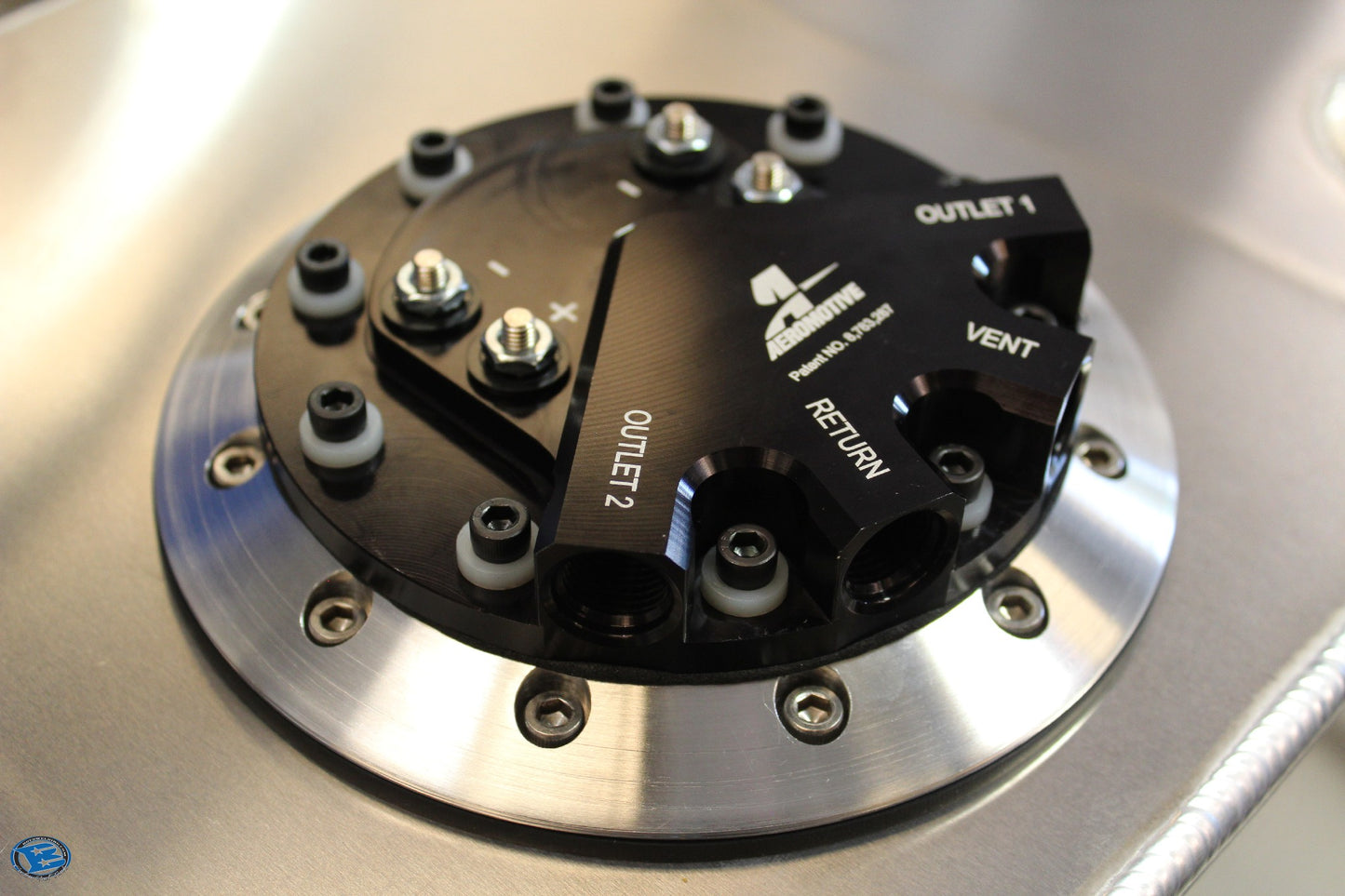

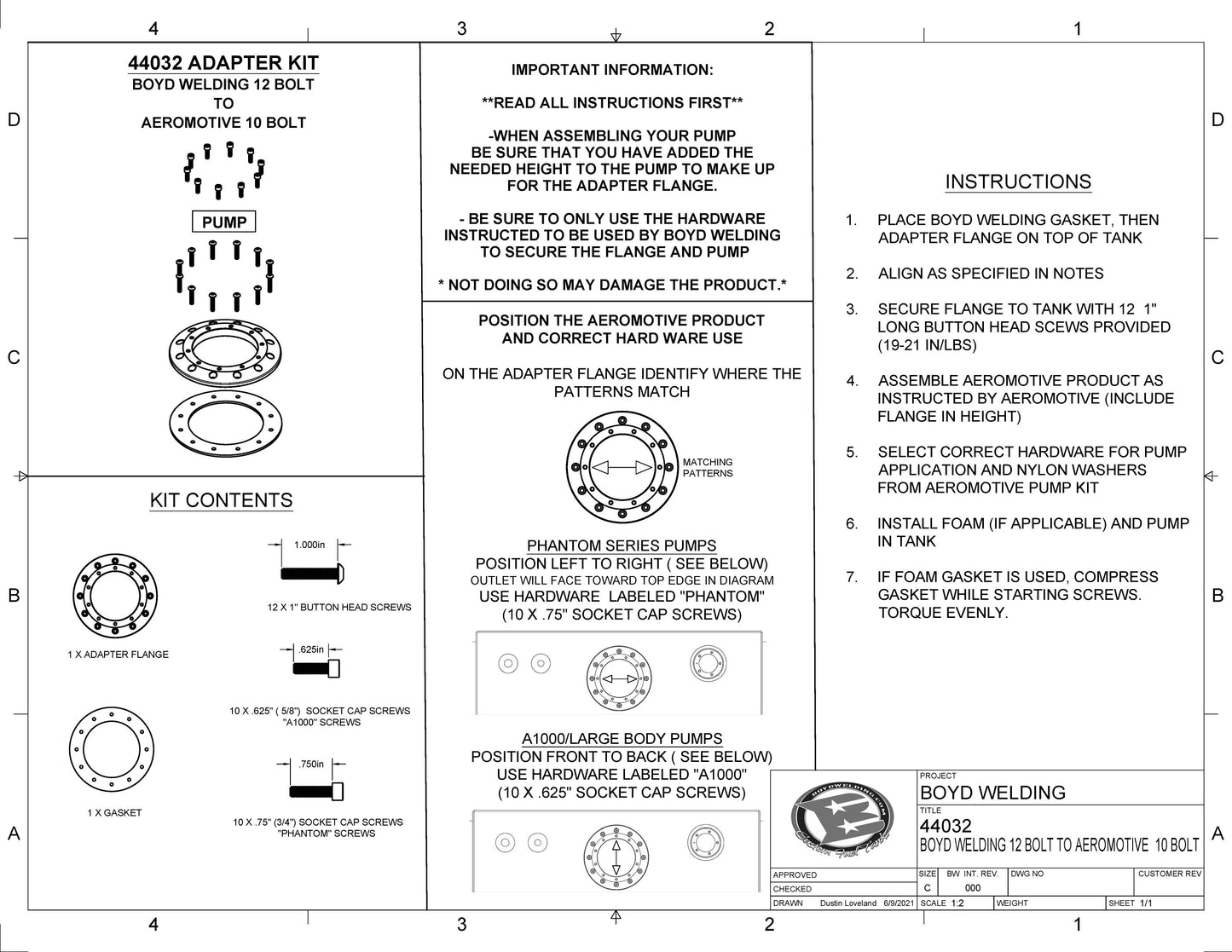

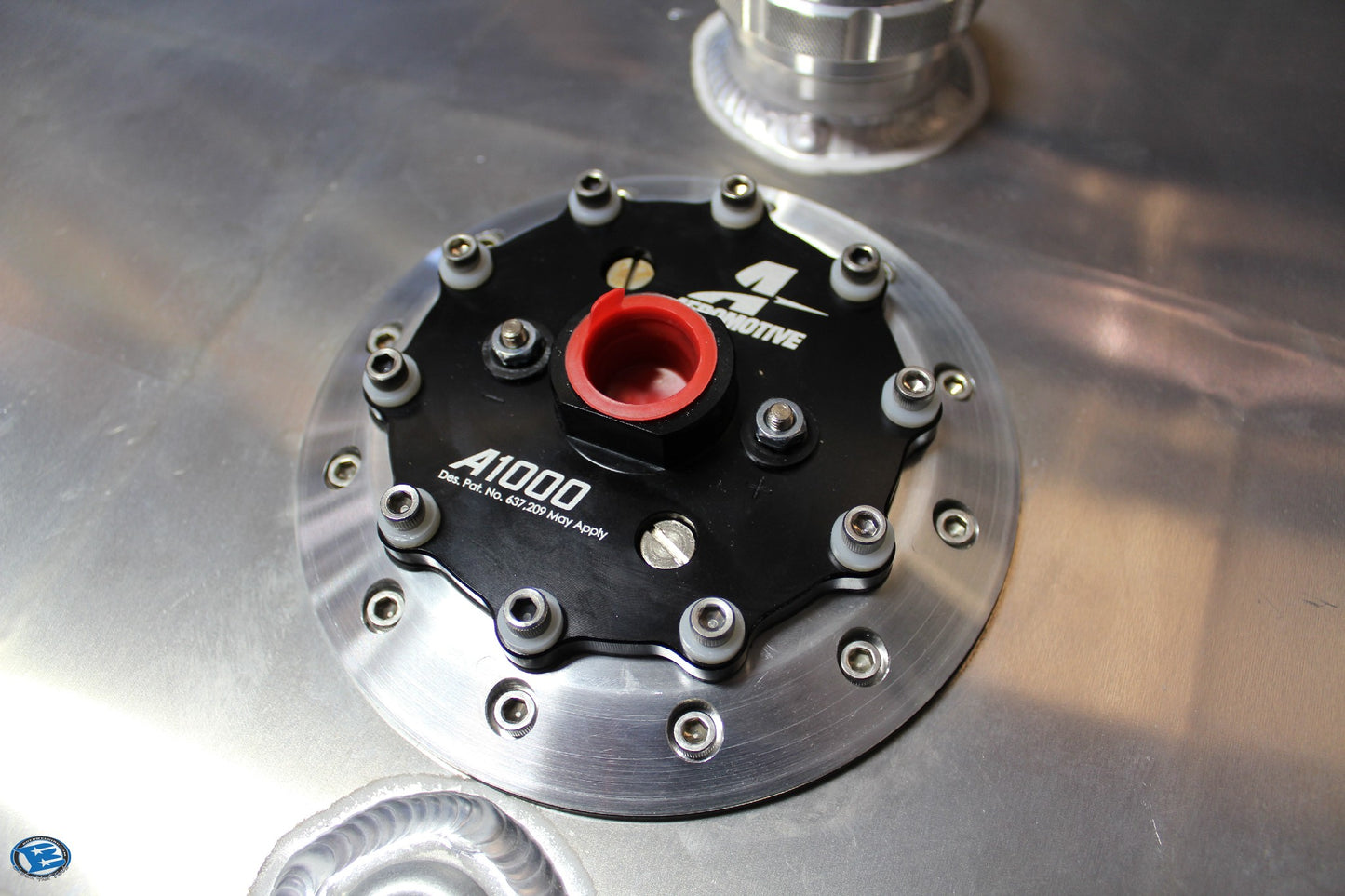

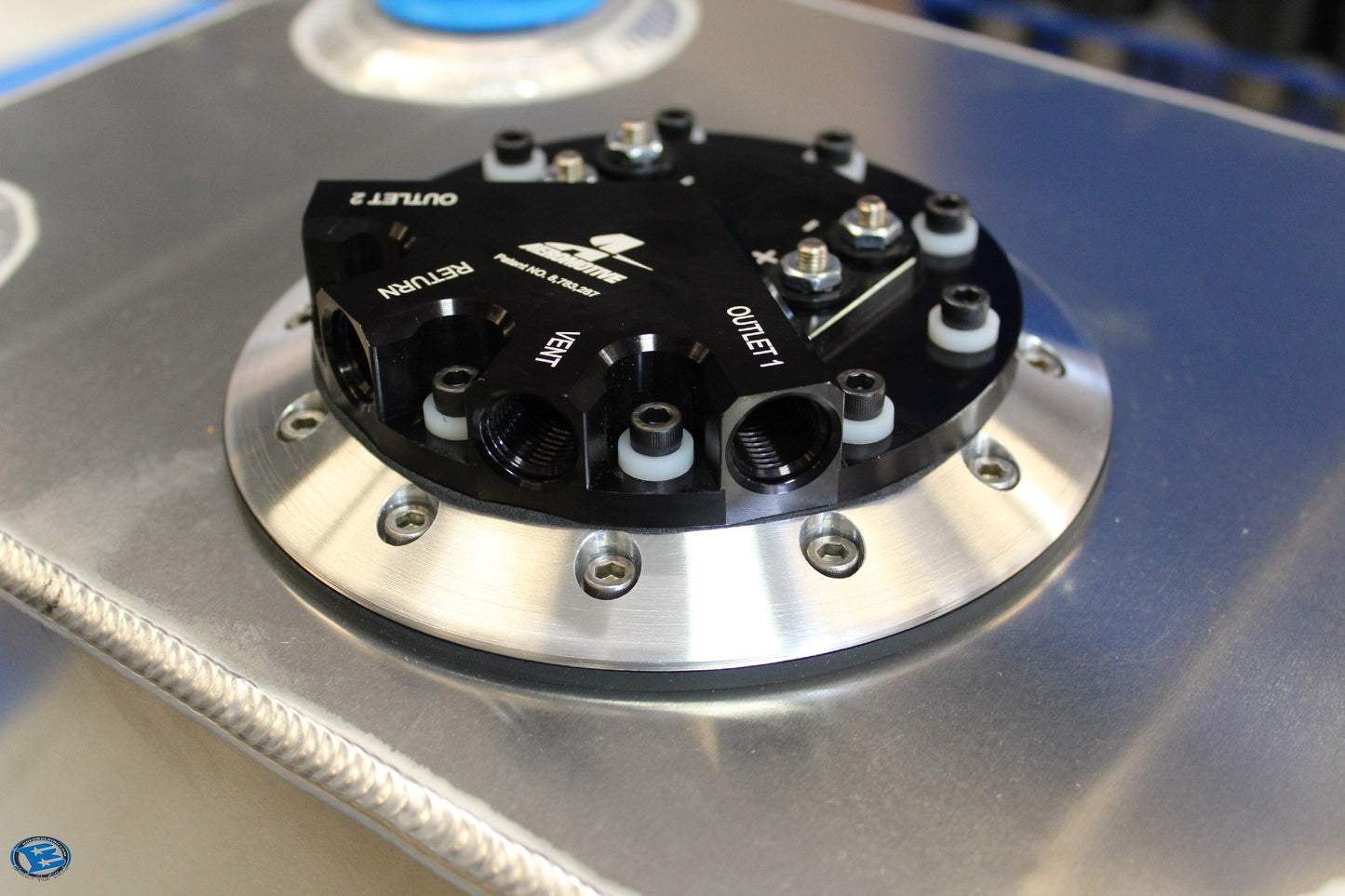

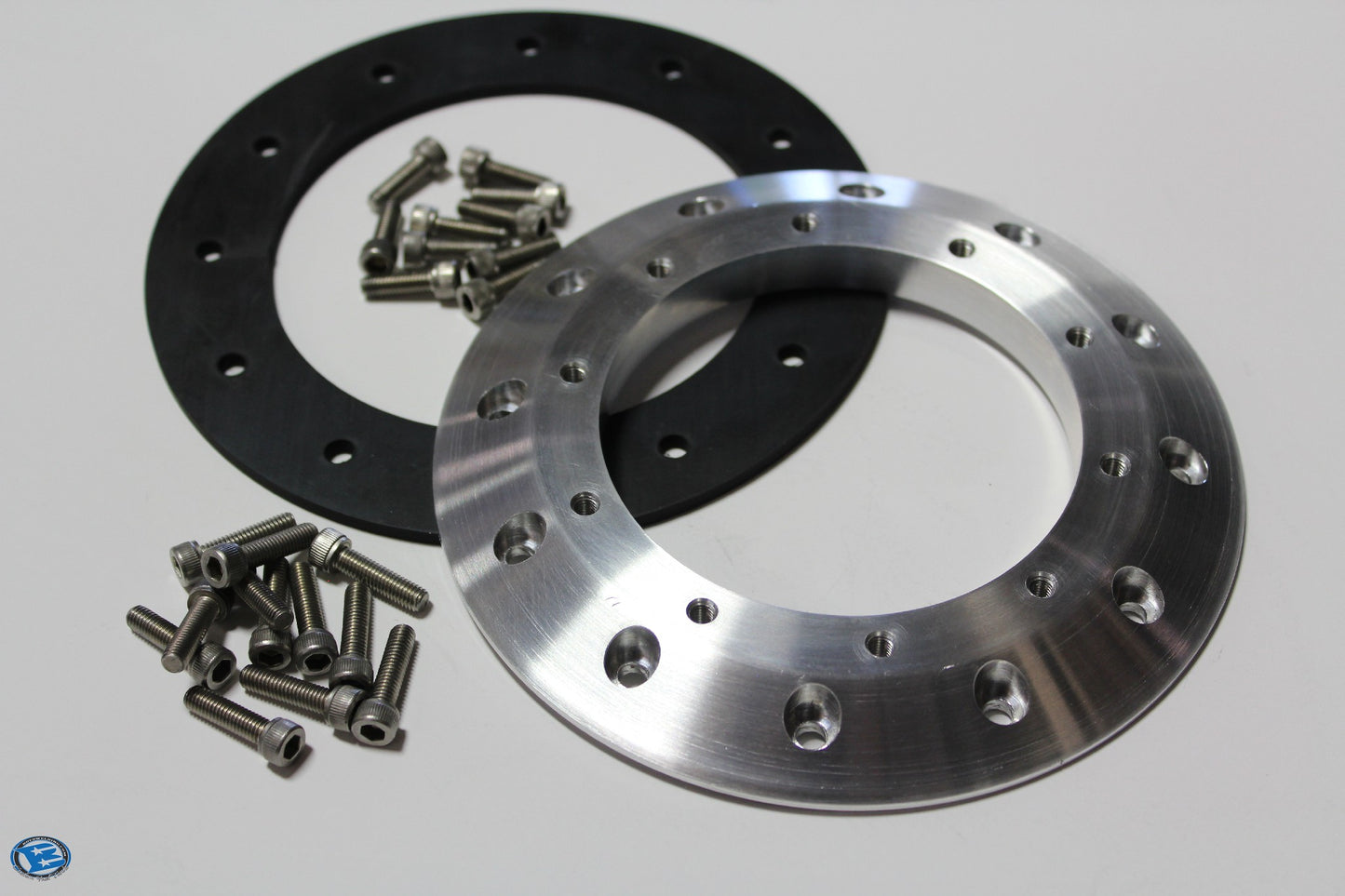

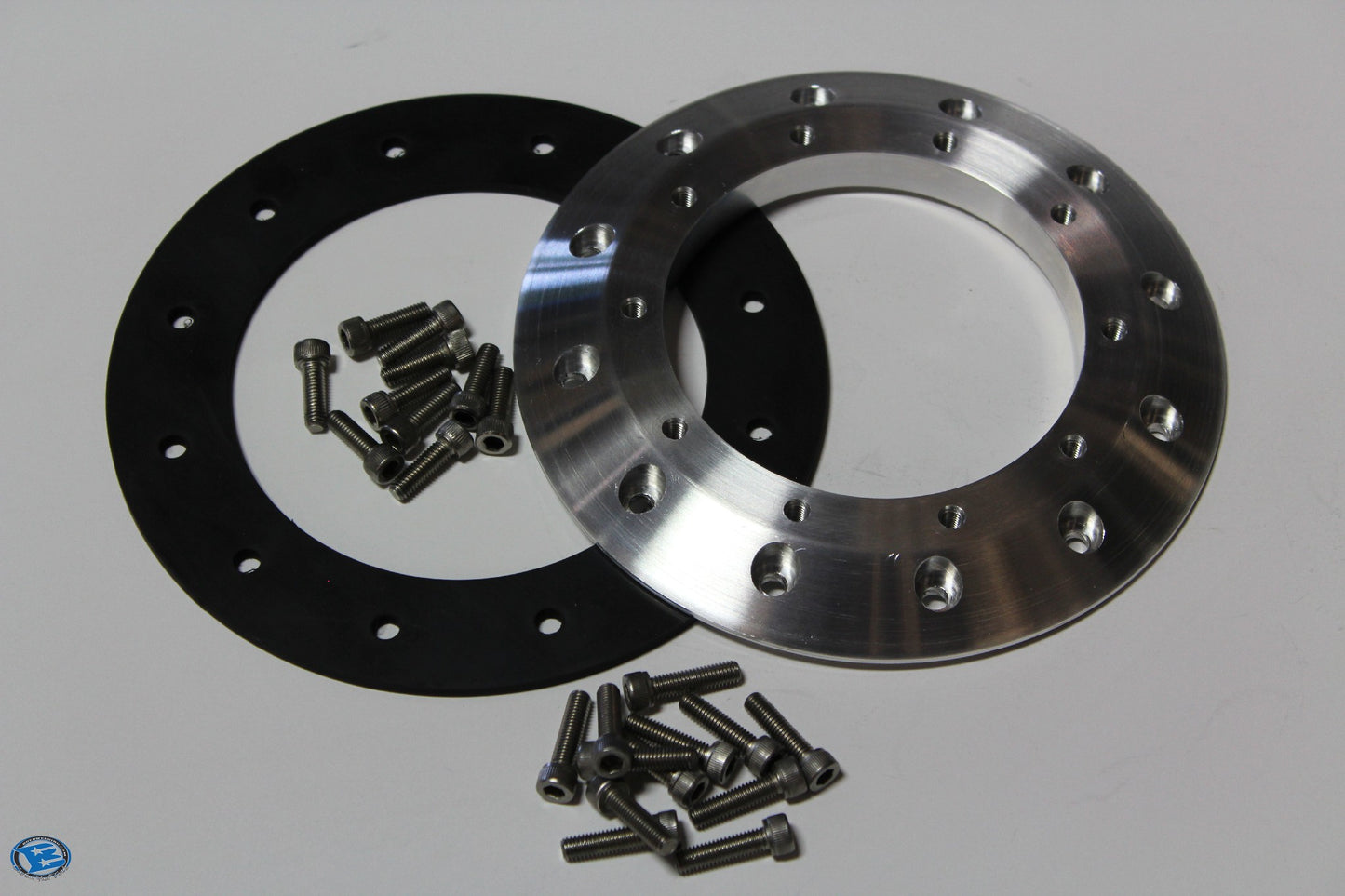

Product # 44032Material = CNC Machined 6061-T6 OD= 6.00" ID= 3.510" Height = 0.500" Installed height without pump = 0.625"Bolt Circle A (BW EFI) = x12 @ 5.00" BCL Bolt Circle B (Aeromotive) = x10 10-32 @ 4.00" BCLThis CNC machined aluminum adapter will allow you to adapt any Aeromotive phantom 340, A1000 or Eliminator in tank pump that utilizes the 10 bolt pattern to the Boyd Welding 12 bolt pattern.NOTE: THIS ADAPTER WILL NOT WORK WITH AEROMOTIVES TRIFEKTA #18311 OR PHANTOM DUAL 450 #18635 Kit Includes:1) CNC Machined Adapter Plate 1) BW EFI FKM Viton Gasket 12) 10-32 1" Stainless Screws (BW Pattern) 10) 10-32 3/4" Stainless Screws ( Aeromotive Pattern)You will use the pump gasket and nylon washers that was supplied with the Aeromotive pump you purchased. do not try to use the screws supplied with Aeromotive pumps.

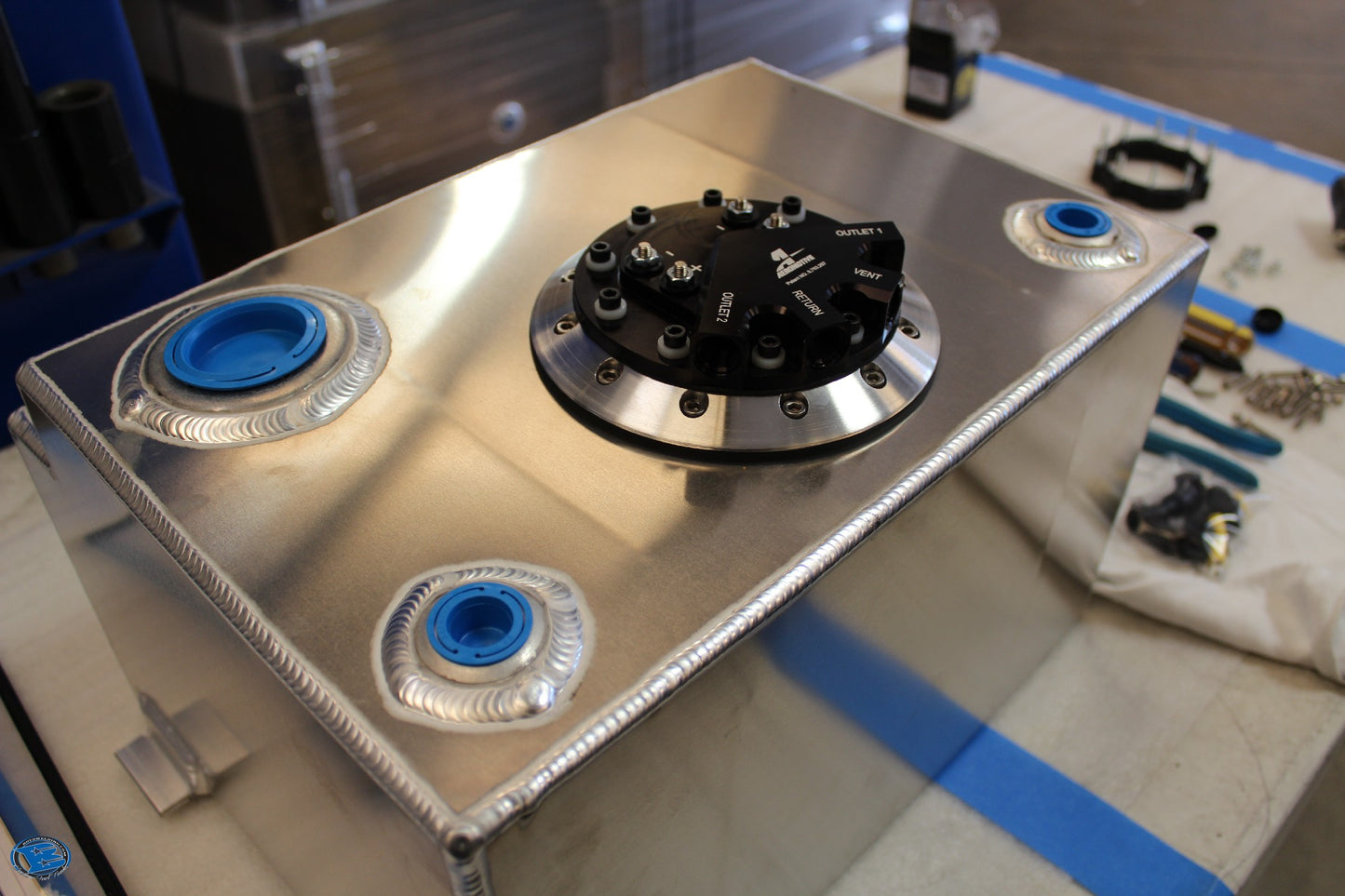

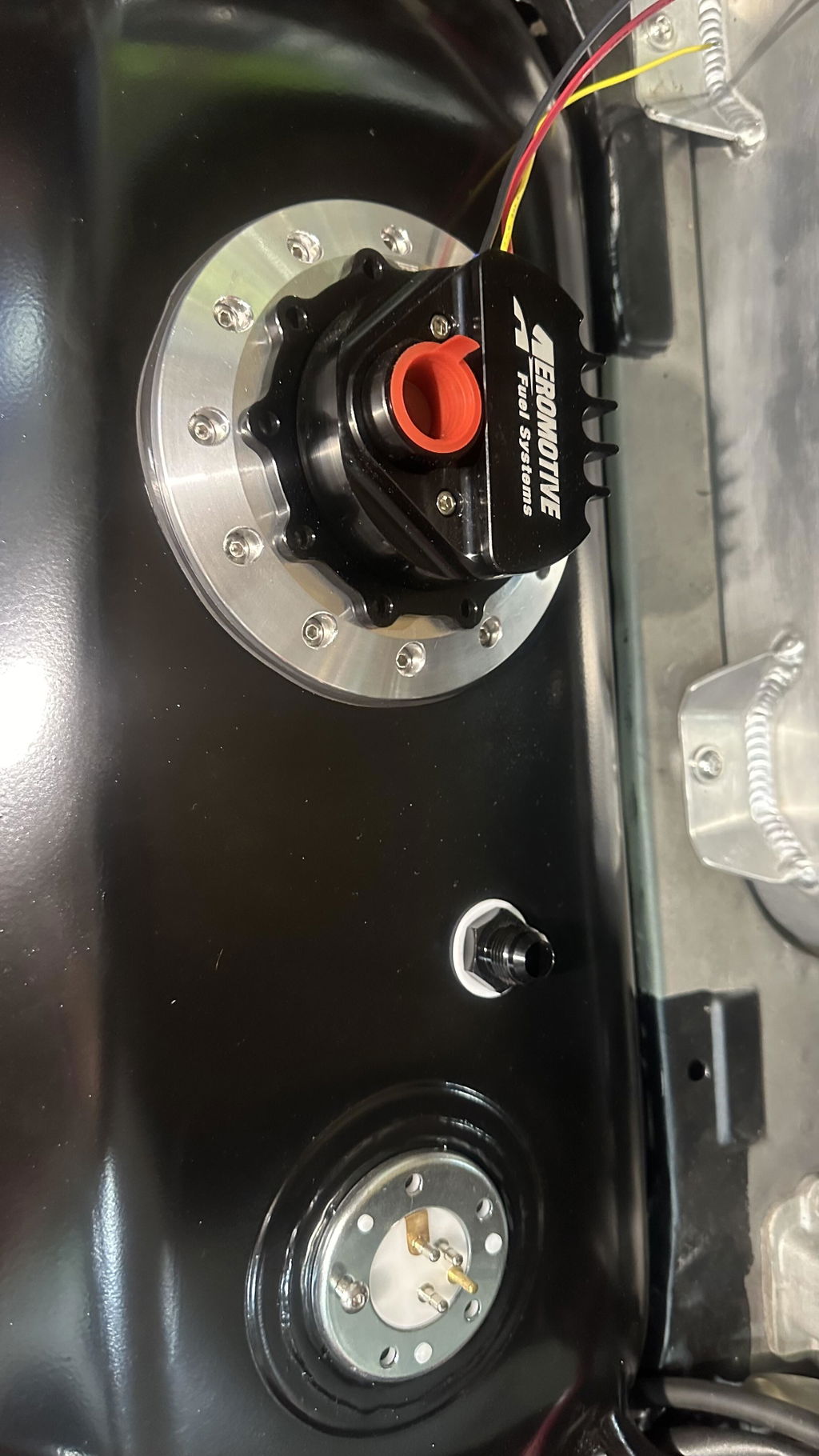

Bolted right into place. Excited to get the project rolling with the upgraded dual fuel pumps from aeromotive.
G
GERALD FUENTES
Not exactly what it's used for but it did exactly what I wanted!

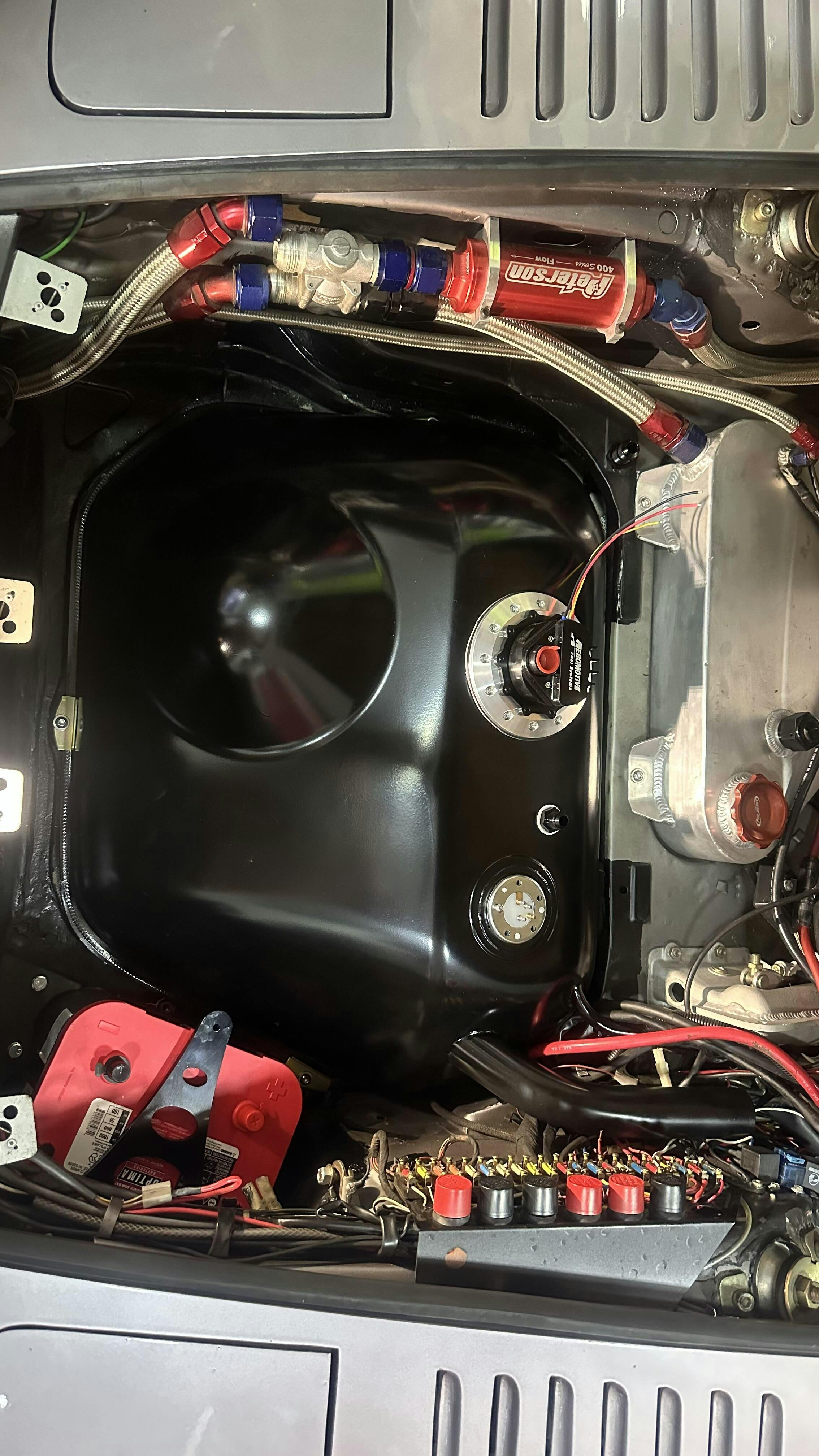

I wanted to add reinforcement to the mounting location of the Aeromotive in tank pump. The sheet metal was flexible at the placement spot. So adding this adapter worked out perfect giving me added strength to the tank top deck.
