Boyd 225 Series Aluminum CNC Machined Cap

Boyd 225 Series CNC Machined Aluminum Cap (#81060)

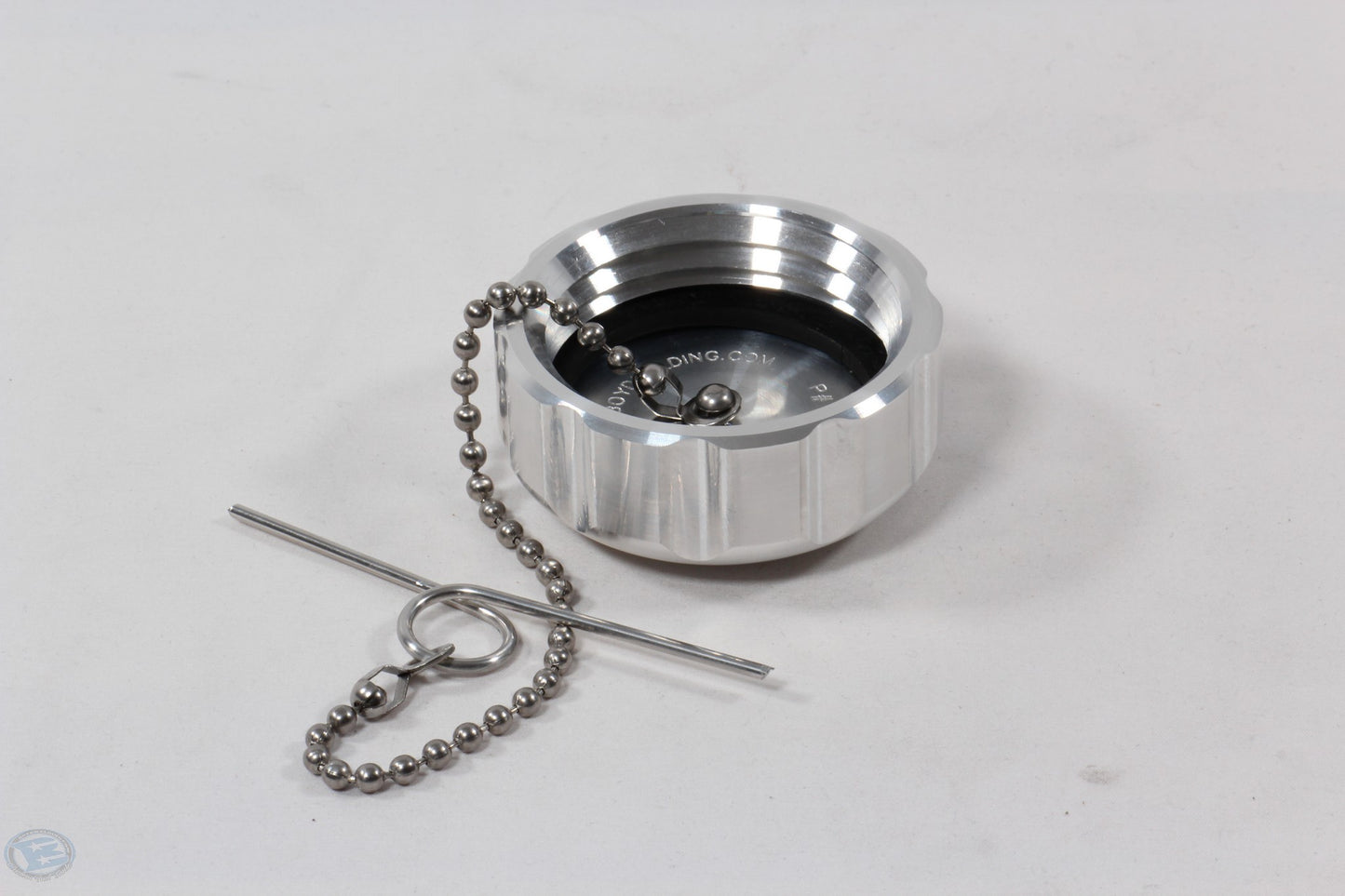

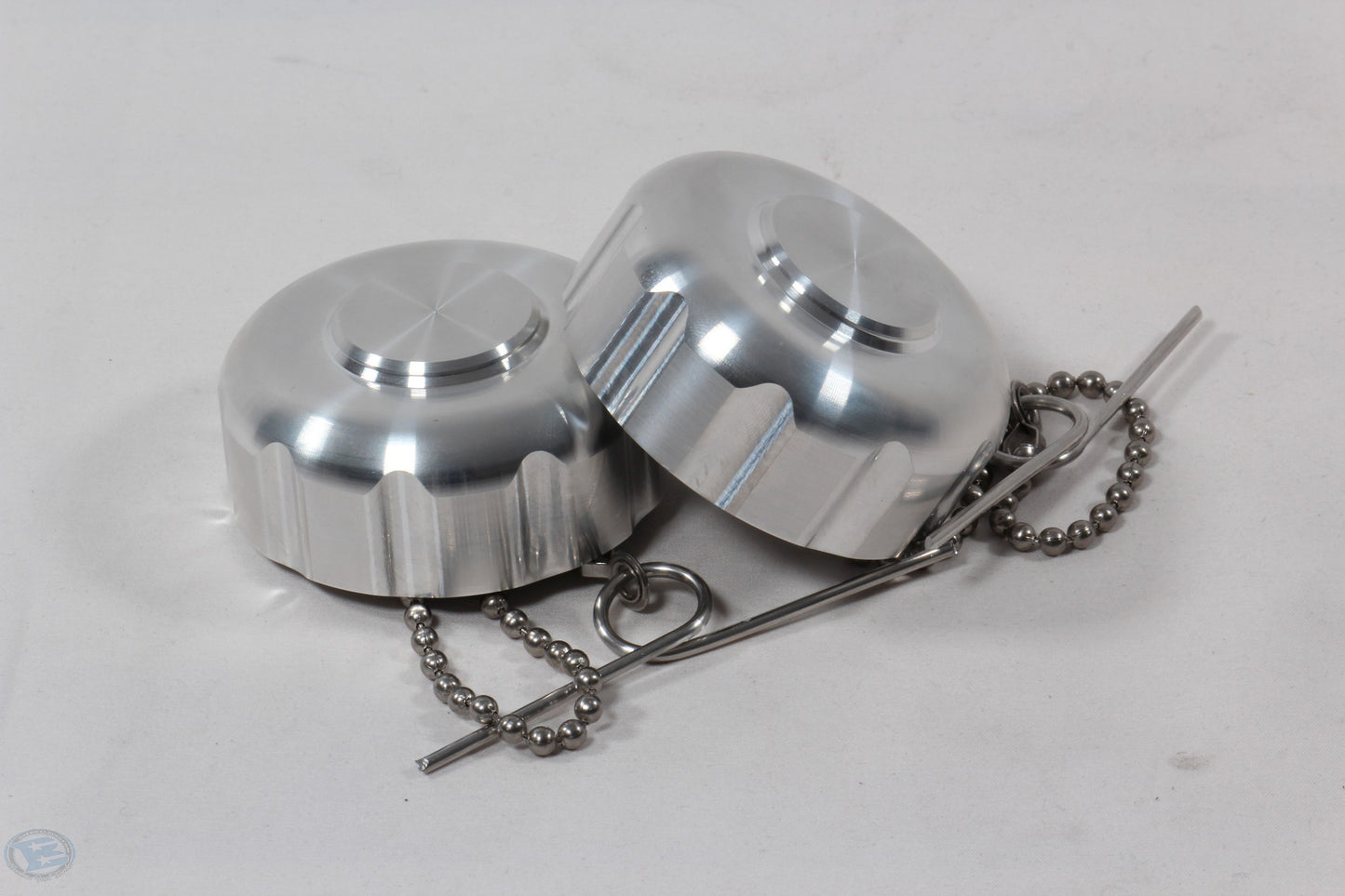

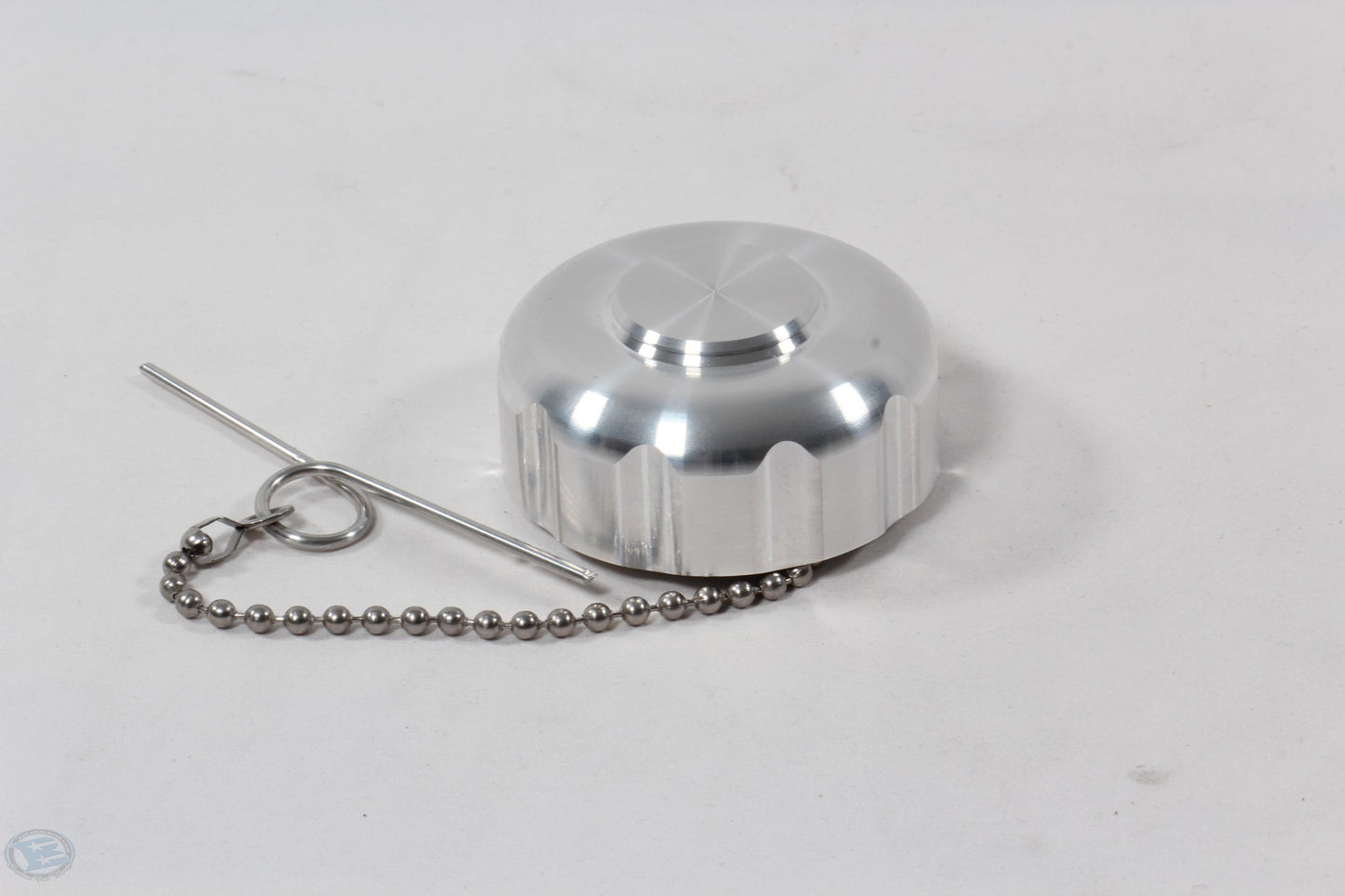

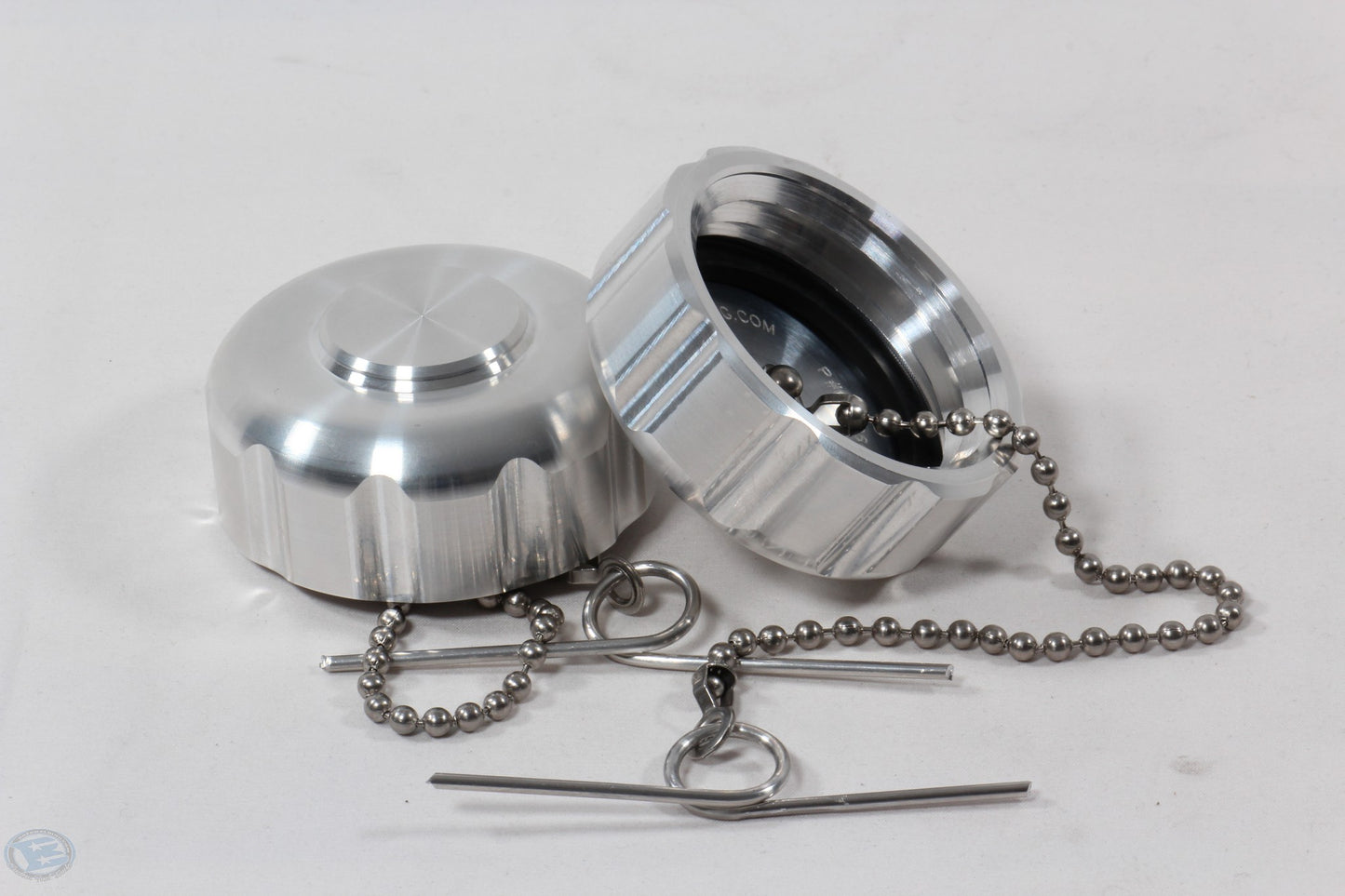

A CNC machined 6061-T6 aluminum fuel cap with 225 series 5 TPI modified buttress threads and a Viton gasket, made to fit our 225 series weld-in necks.

Specifications

• Product number: 81060
• Material: CNC machined 6061-T6 aluminum
• Thread: 225 series (2.25"), 5 TPI American modified buttress
• Cap OD: 2.69"
• Cap height: 1.23"
• Gasket: FKM Viton
• Lanyard: Stainless steel 8" lanyard with aluminum crossbar

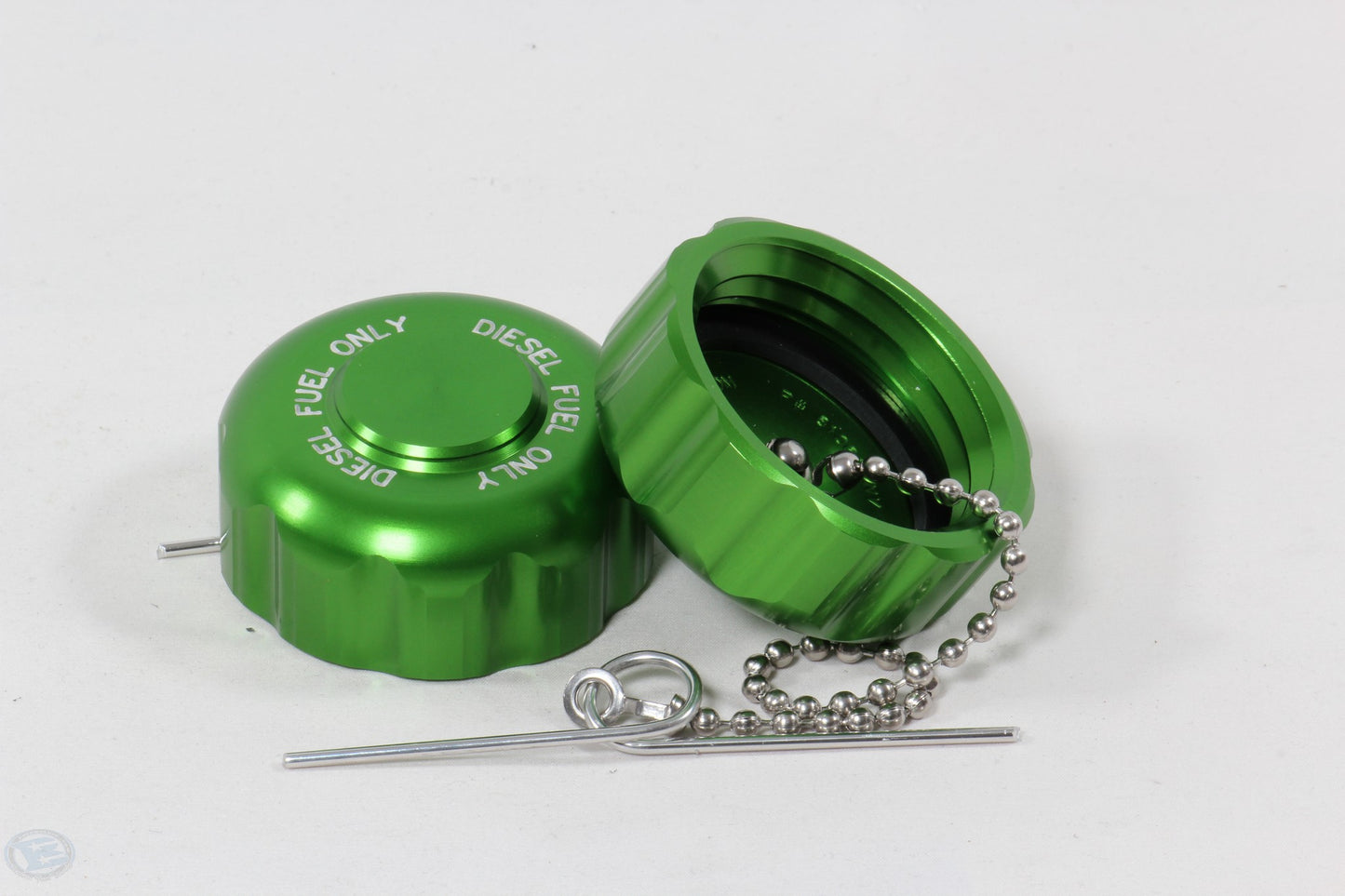

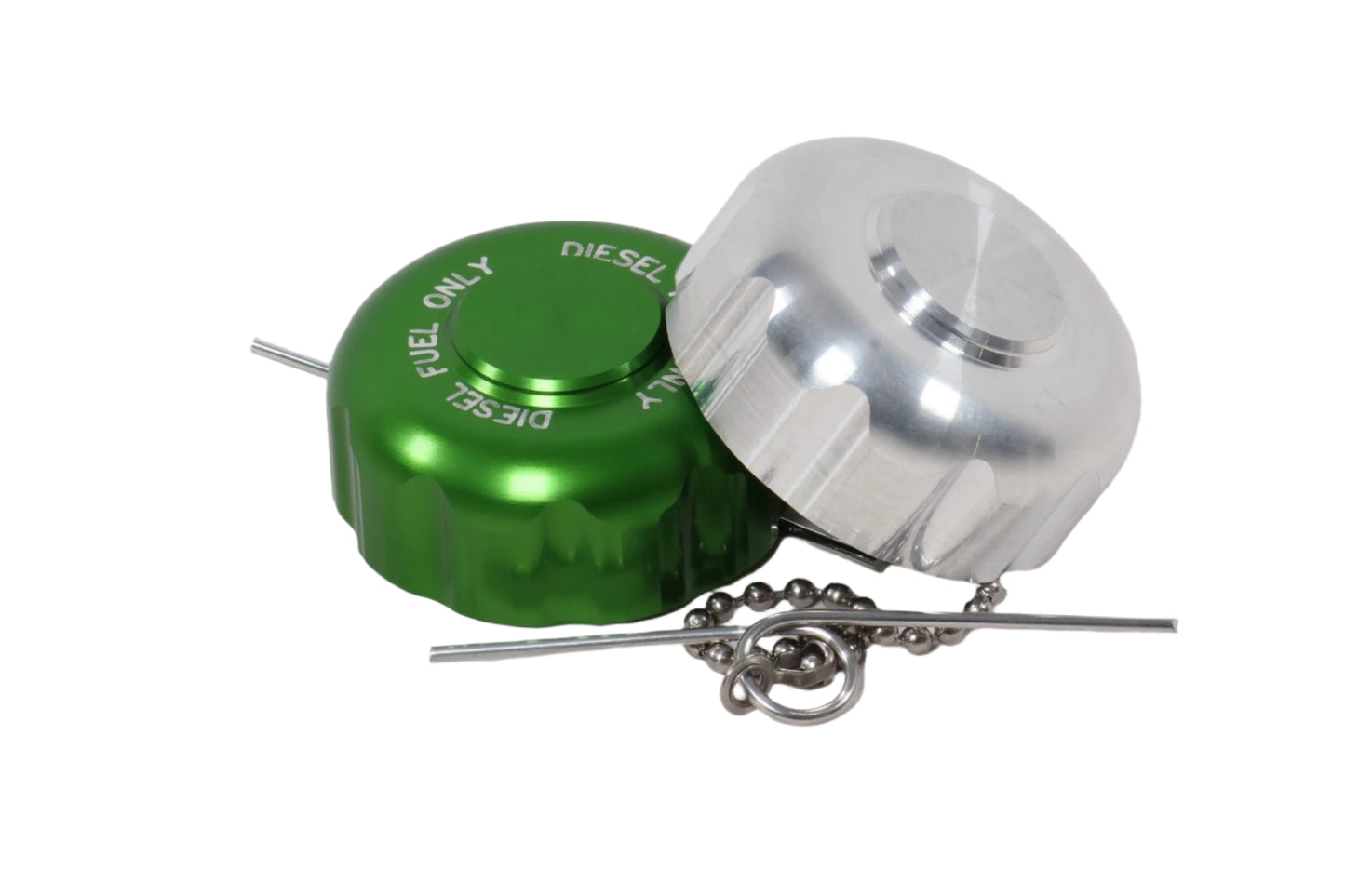

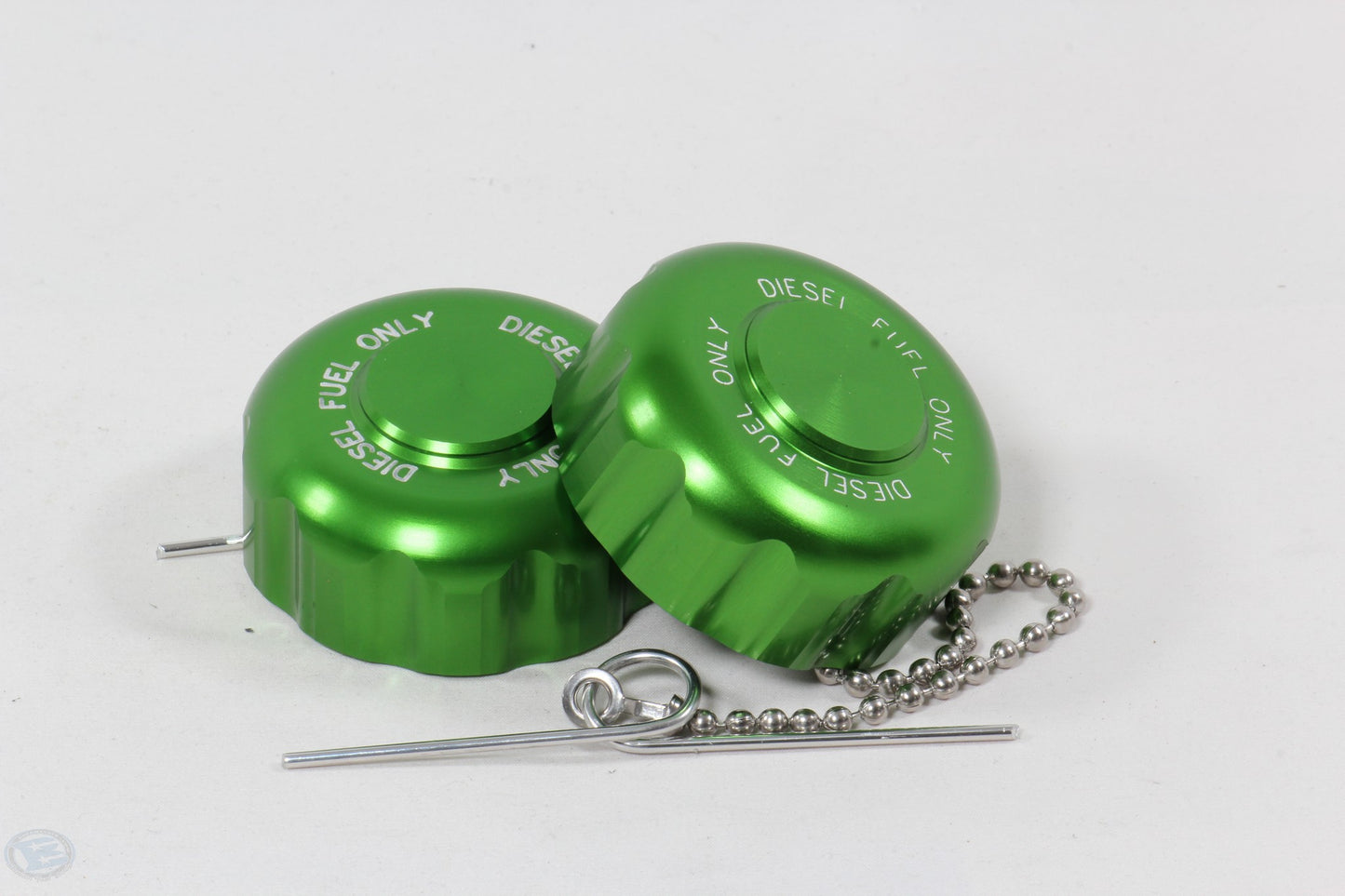

• Options: Vented (81060-V) or non-vented (81060-NV), in natural aluminum, or green for diesel fuel only (81060-V-GRN, 81060-NV-GRN)
• Drawing: 81060 cap drawing (PDF)
• Bulk pricing: available from 100 pieces

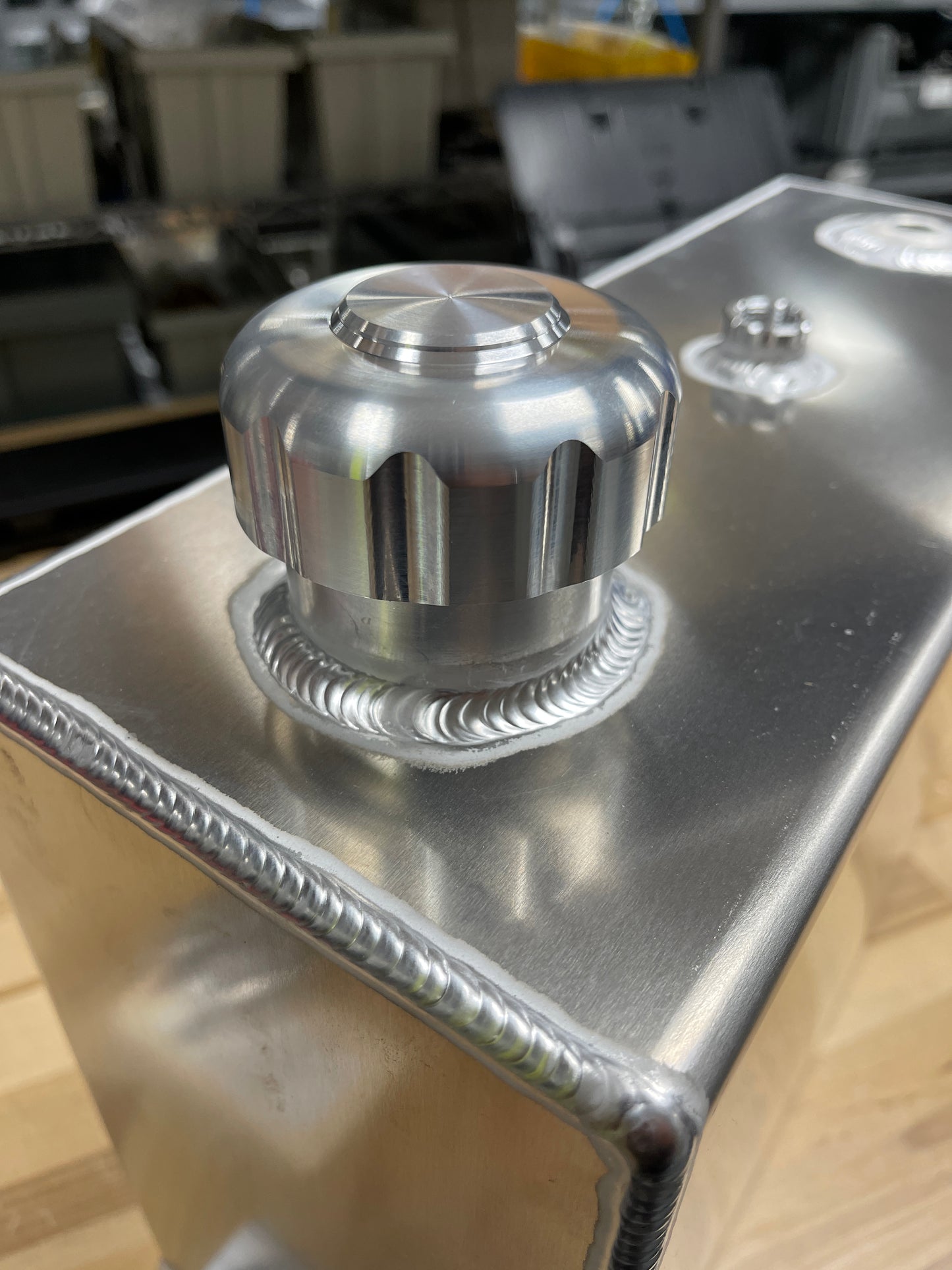

Fits These Necks

• Aluminum 225 Series 5TPI Buttress Threaded Neck (#27027)
• Steel 225 Series 5TPI Buttress Threaded Neck (#27027-ST)
• Stainless Steel 225 Series 5TPI Buttress Threaded Neck (#27027-SS)

Also fits Kelch brand 225 series necks. It may not fit Flambeau plastic tanks.

Vented caps: The vent is a groove machined into the threads that bypasses the gasket, so a vented cap will leak on a tank that moves, like in a truck bed. We recommend a non-vented cap with a vent port on the tank.

Note: Aluminum threads cross-thread and gall easily. Start every plug and fitting by hand and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.
