Boyd CNC Machined Universal Flush Mount Bed Floor Fill Kit
Boyd CNC Machined Universal Flush Mount Bed Floor Fill Kit
21 reviews
Availibilty : Typically In-stock
SKU:27042
Regular price
$105.00
Regular price
$0.00
Sale price
$105.00
Unit price
/
per
Product #27042
Cap:
- Material = 6061 CNC Machined Aluminum
- Threads =8 TPI
- Vented= NO
- Lanyard = NO
- Gasket = Buna O-ring
Neck:
- Material= 6061 CNC Machined Aluminum
- Threads= 8 TPI"
- OD = 4.975" Overall Flange
- ID = 3.300 ID - Overall Height = 2.5" - Bolt Hole = x6 .201 THRU 4.350" BCL (USE #10 Hardware)- Barb hose connection = 2" OD Installation:
-Bolt- IN
- Hole Cut Size = 3.760" MIN / 3.950" MAX (3-3/4" hole saw)

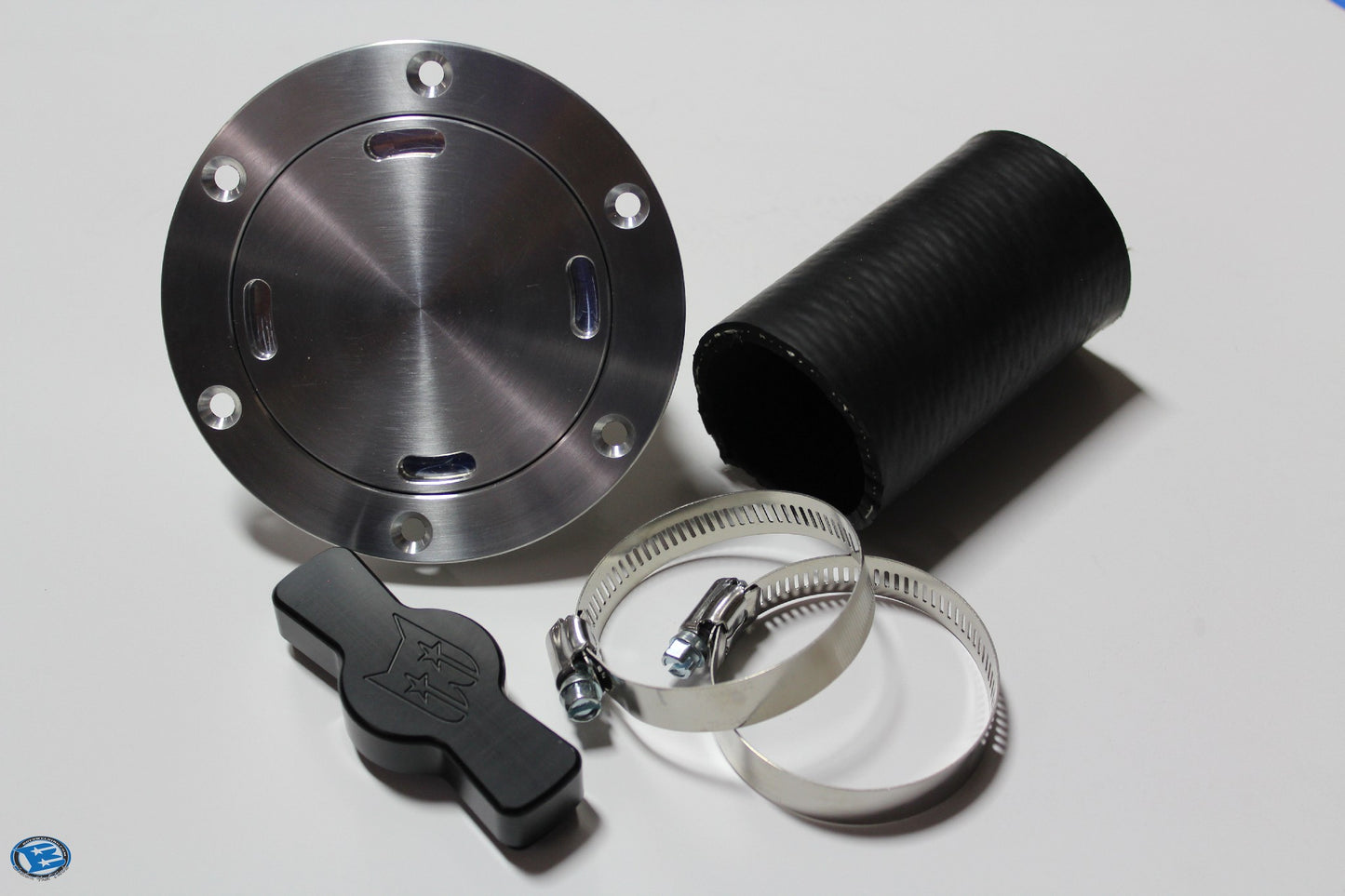

- Bolt hole Center = 4.350" Kit Includes:
- 1) CNC Machined CAP W/ Oring and Delrin Key
- 1) CNC Machined flush bed fill neck 2" RFH
- 1) 4" Long 2"ID Fuel Fill Hose - 2) Stainless worm clamps
****Hardware to mount to your bed floor not included*****
Q:I already purchased a bed fill C-10 tank with a Boyd cap, will this work with what I already have?
A: Yes, you will need to select "Yes"so we can provide extra parts in this kit to adapt the Flush Bed fill to the threaded neck. The procedure
to make this work is outlined in the instructions provided.
Cap:
- Material = 6061 CNC Machined Aluminum
- Threads =8 TPI
- Vented= NO
- Lanyard = NO
- Gasket = Buna O-ring
Neck:
- Material= 6061 CNC Machined Aluminum
- Threads= 8 TPI"
- OD = 4.975" Overall Flange
- ID = 3.300 ID - Overall Height = 2.5" - Bolt Hole = x6 .201 THRU 4.350" BCL (USE #10 Hardware)- Barb hose connection = 2" OD Installation:
-Bolt- IN
- Hole Cut Size = 3.760" MIN / 3.950" MAX (3-3/4" hole saw)
- Bolt hole Center = 4.350" Kit Includes:
- 1) CNC Machined CAP W/ Oring and Delrin Key
- 1) CNC Machined flush bed fill neck 2" RFH
- 1) 4" Long 2"ID Fuel Fill Hose - 2) Stainless worm clamps
****Hardware to mount to your bed floor not included*****
Q:I already purchased a bed fill C-10 tank with a Boyd cap, will this work with what I already have?
A: Yes, you will need to select "Yes"so we can provide extra parts in this kit to adapt the Flush Bed fill to the threaded neck. The procedure
to make this work is outlined in the instructions provided.
Share this with your friends
K
Kurt S. The Boyd Flush Mount Fill Kit is very high quality and will be a great addition to my F-100 build. I have not installed it yet, but it will work and look great.
m
michael wharton WOW what a nice piece. Lookes great and operates smoothly. Customer is be extremely satisfied. Installed in the bed of a 49 chevy truck bed.
M

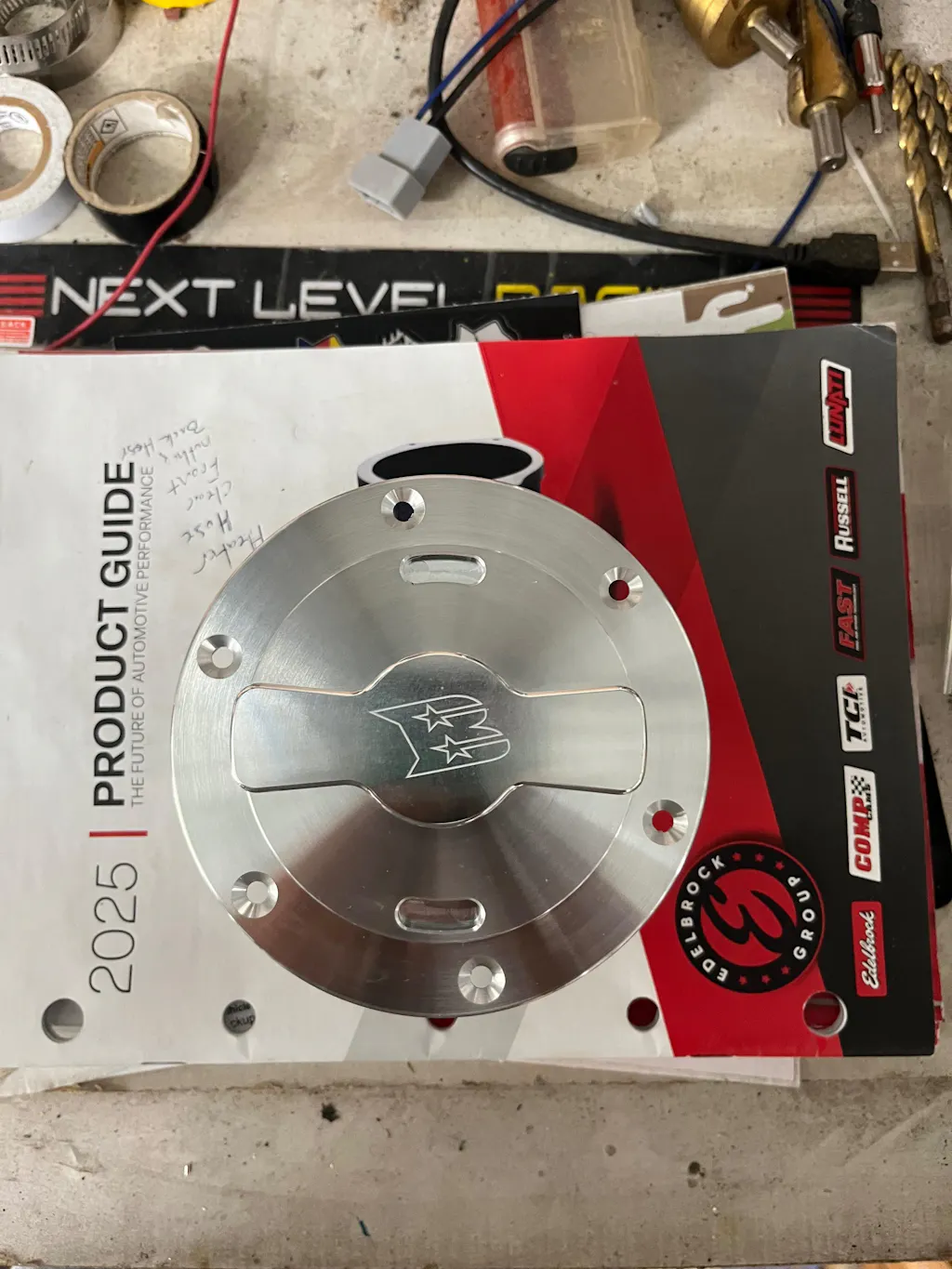

Mike Bleier I've been trying to contact you guys for over a week. With no responses on your social media, I even sent you pictures. What problem I'm having? Can you please have a technical support supervisor call me at area code 8186532568, so I can discuss my issue and hopefully resolve this. It's broken but we
