Boyd In-Tank Pump Assembly w Aeromotive 340 Pump
Boyd In-Tank Pump Assembly w Aeromotive 340 Pump
Availibilty : Typically In-stock
SKU:41001
If you already have a Boyd C10 or F100 tank and are looking to purchase the EFI pump upgrade, You simply choose the proper year range "C10 Tank Upgrade" from the drop down above.

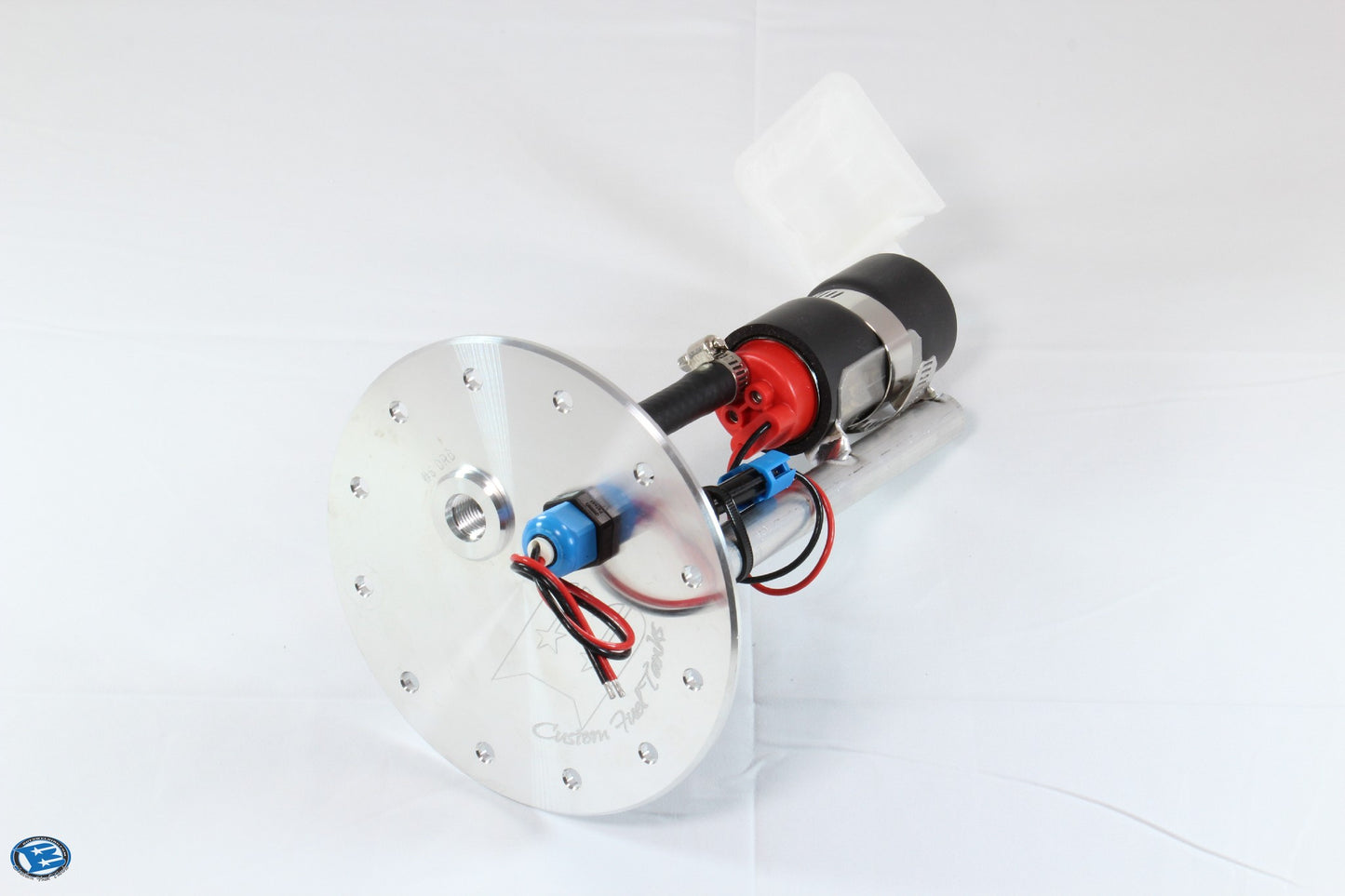

Boyd In-Tank Pump Assembly w Aeromotive 340 Pump. Click here for Pump Specs
-Bolt pattern matches any Boyd Welding 12 Bolt Pattern.
-Requires 4" hole in tank W x12 .201 Thru Holes on 5" BCL

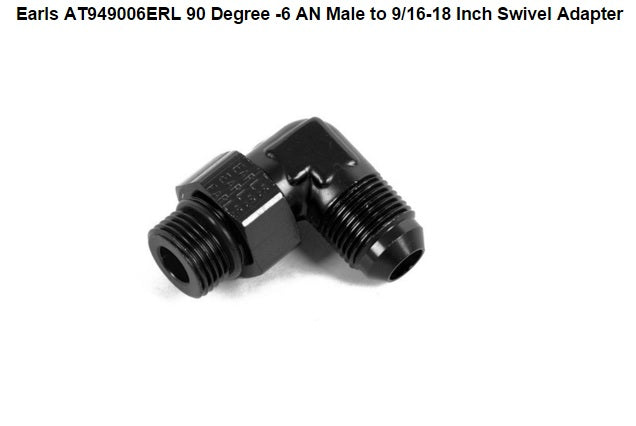

-Fuel Outlet is a -6 ORB Female, Sometimes referred to as a 9/16-18 Port. See pictures for recommended fitting. (not included)
-If using this for a custom tank you must have a separate return fitting on the tank. our plate does not have a revision for a return.

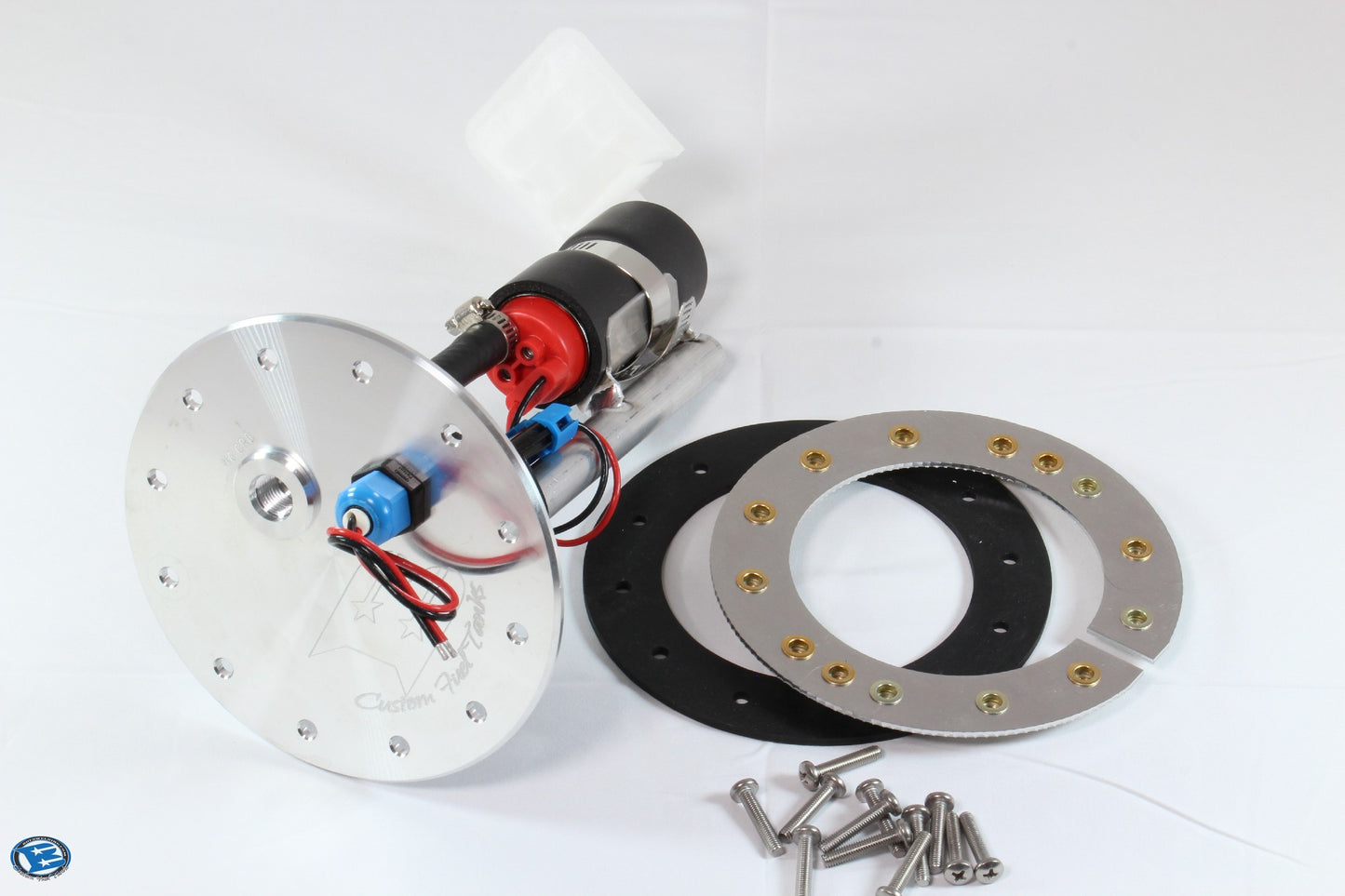

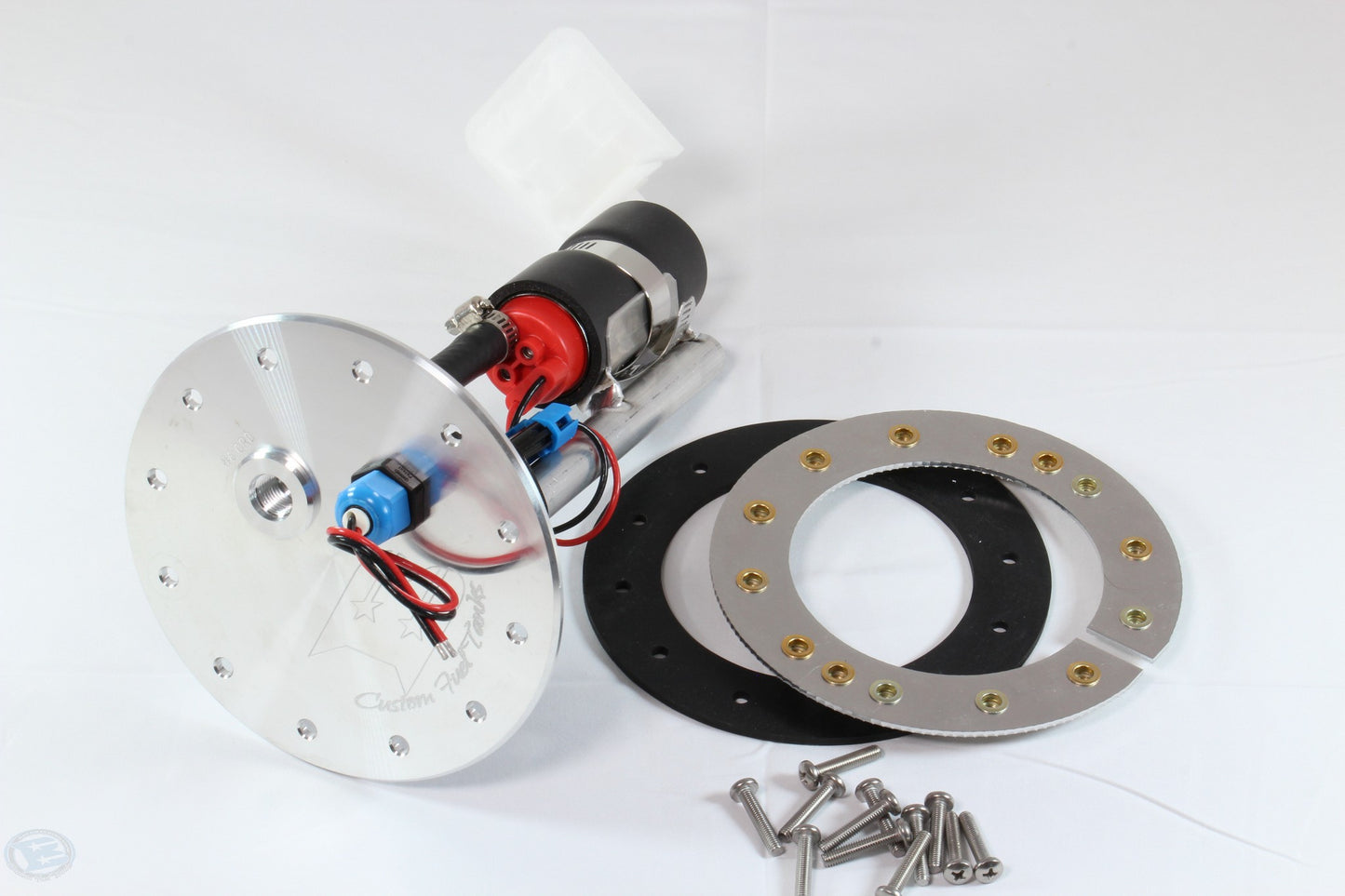

-Includes Under-ring, Gasket, Mounting Hardware
Our EFI Brackets are NOT DIY adjustable length. we build each one specific to the tank depth. you must measure and select your tank depth. We will assemble the pump hanger slightly shorter than the option you select to account for material thickness and inside dimensions.
Share this with your friends
A÷. High quality. Thank you
That make a great tank and pump that just drops in. High quality stuff
Purchased to convert from mechanical pump to electric setup. Installed right into my Boyd tank with zero issues. Well made, all the components were shipped well. All the fittings were what they said they were so plumbing was a piece of cake. Very happy with the performance. It feeds a 850 cfm double pumper on a big.block 540 with zero issues. Hands down this part is one of the cornerstones to the most stable fuel delivery I've had in my c10. You can see the install in the youtube video.
Boyd's tanks rule and this pump is sweet.
https://youtu.be/dRcREVyzEEM
