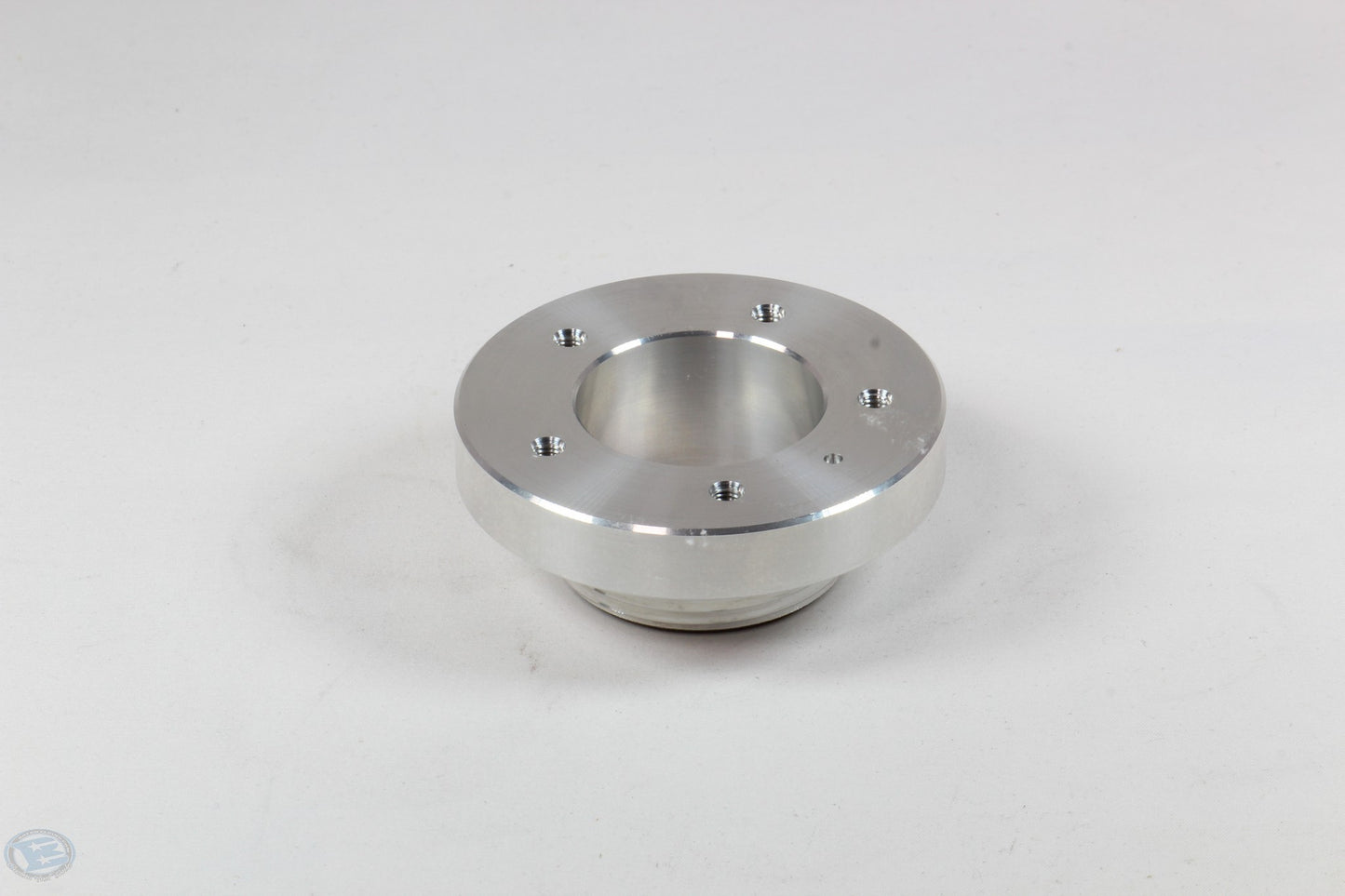

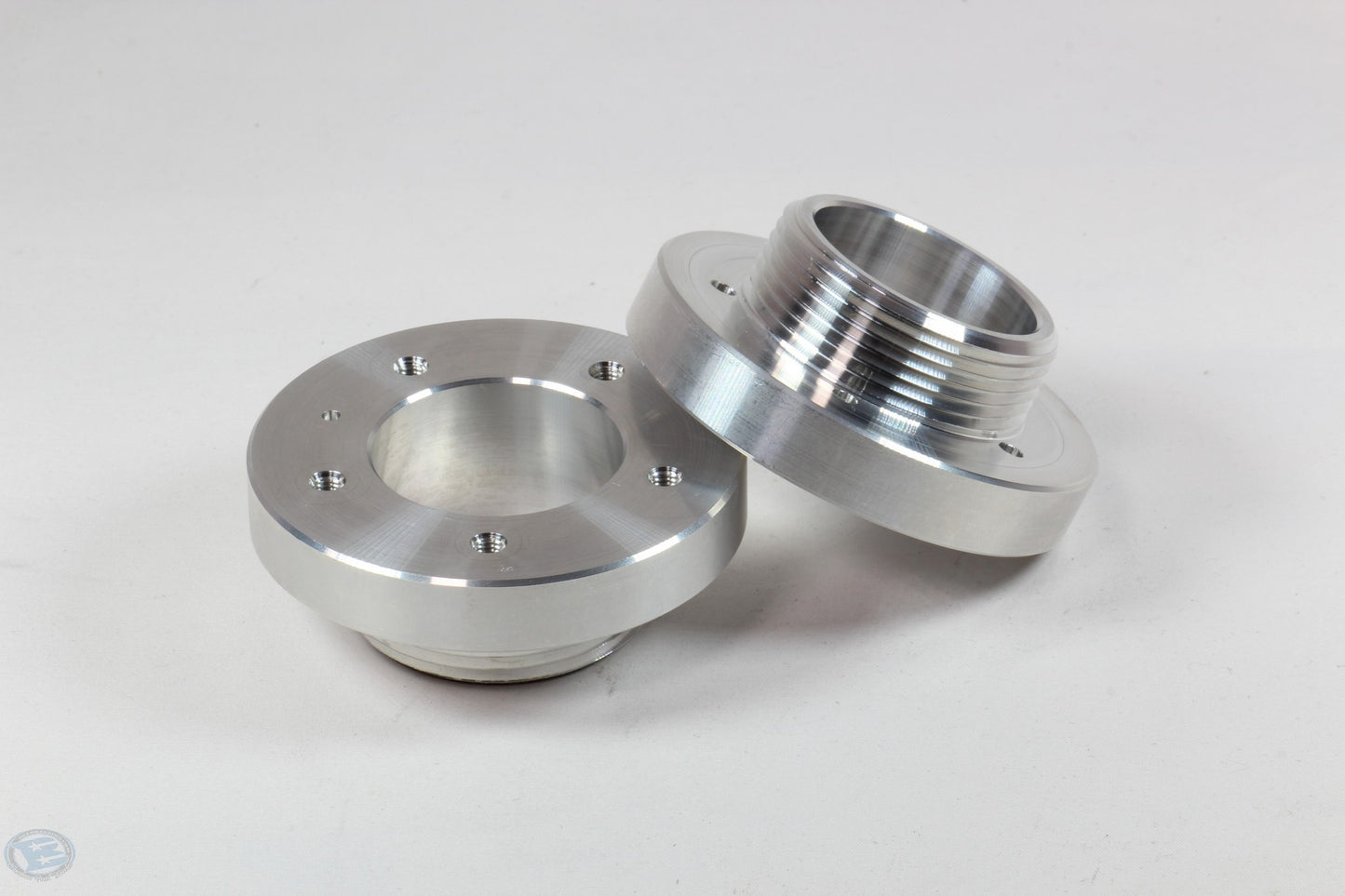

5 Bolt Sending Unit to 1.50" NPT Adapter
5 Bolt Sending Unit to 1.50" NPT Adapter
Availibilty : Typically In-stock
SKU:44042
Couldn't load pickup availability

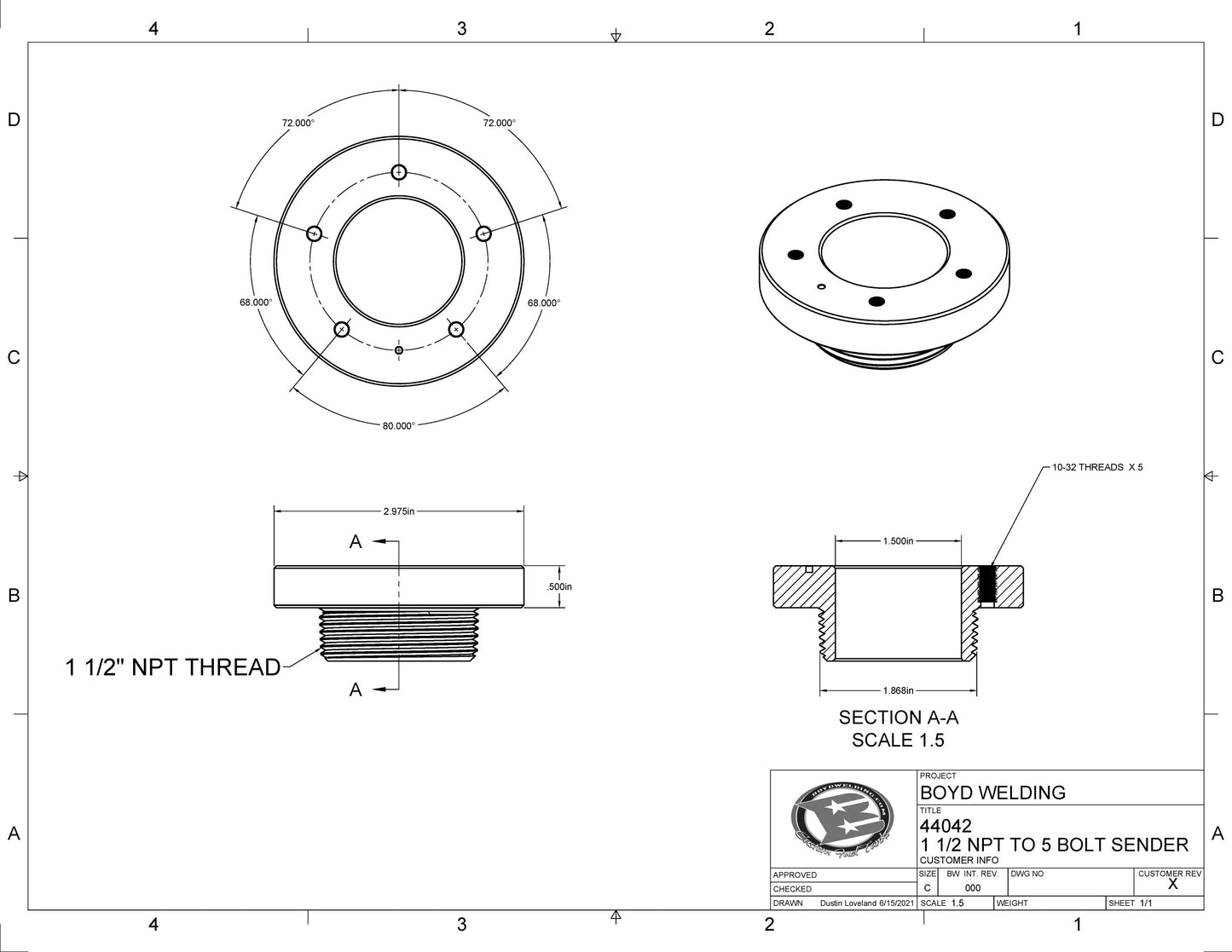

Material = CNC Machined 6061 T6
Flange OD = 2.975"
ID = 1.500"
Tapped holes = x5 10-32 .430 Deep on a 2.120" BCL
Male thread = 1.50" NPT
This Adapter allows you to adapt certain 5 bolt sending units to a 1.50" NPT fitting. This is Especially useful when it is not possible to add another port to your existing tank or if you want to add a fuel sensor to a Drum.
CRITICAL NOTE!!! The ID of this adapter is 1.50". This hole size WILL NOT work for EVERY sensor float on the market, you need to measure your float size and verify that it will pass thru this adapter first.
We have found that it DOES work with Rochester 9800, Wema SSL, Moeller swing arm mechanical BUT you should expect some accuracy issues at full because of the increased height.
Share this with your friends
I needed to install a 5 bolt fuel sender in my fuel tank that’s threaded 1.5” npt. Boyd Welding offers an adapter that works awesome. Thanks for the solution. Jimmy
This is definitely way to go because the screwing fuel centers they’re over priced and unnecessary and it’s very hard to get them out! So this conversion spacer works perfect
Wonderfully made, quality is first rate. Fast shipping... Exceeded my expectations.
