Isuzu NPR Replacement Aluminum Gasoline Tank

Direct Replacement Aluminum NPR Gasoline Tank

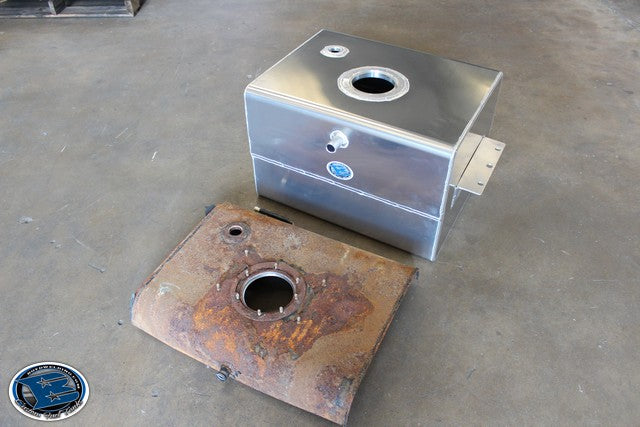

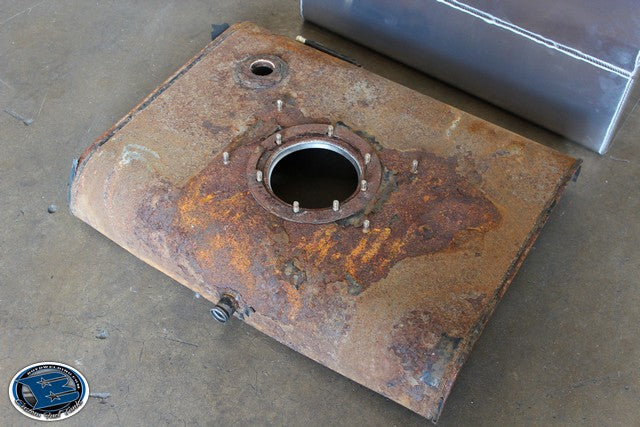

Fits 2004- 2009 NPR Gasoline ( may fit other years) as long as the fitting layout matches it should work. Cut away of old steel tank pictured that was used as reference.

This tank may fit other years however, Customer is responsible for confirming this is the correct tank for his/her application.

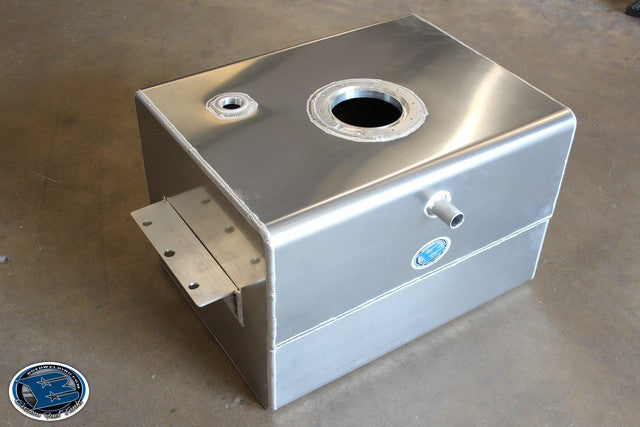

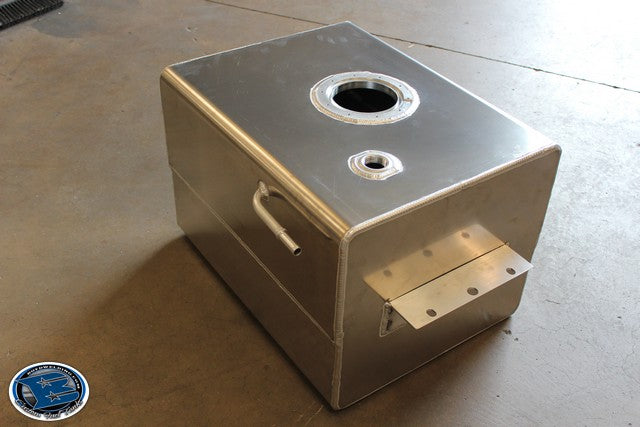

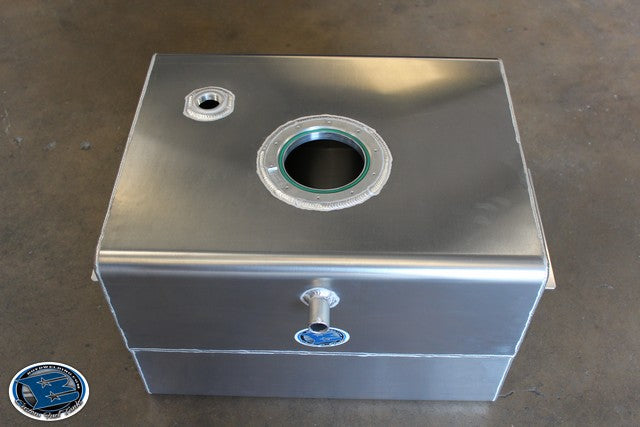

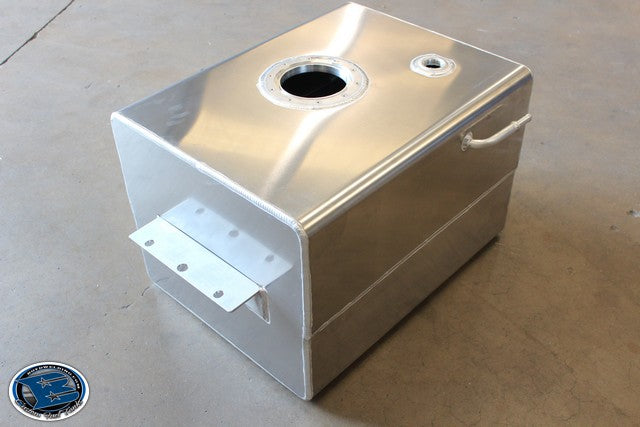

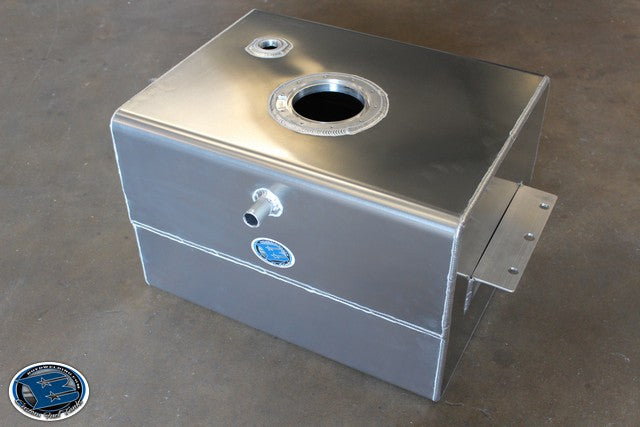

Pictures shown reflect tank exactly as it will be built. you will need to drop your tank and visually verify

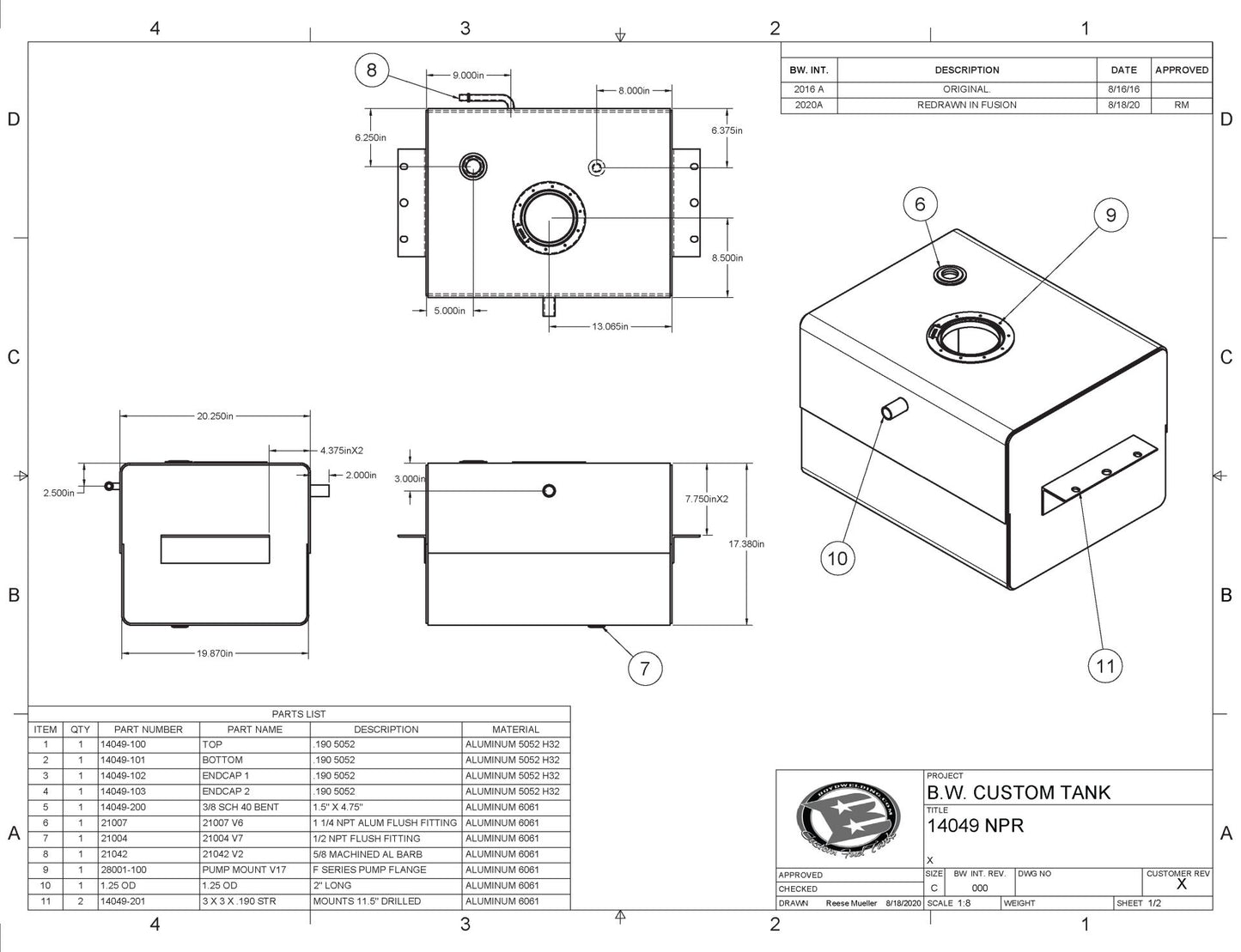

 Download Reference Drawing Here

Material = .190 5052 mill aluminum

Dimensions = 26.125"L x 20.125"w x 17.375"T

1.25" OD Fill pipe

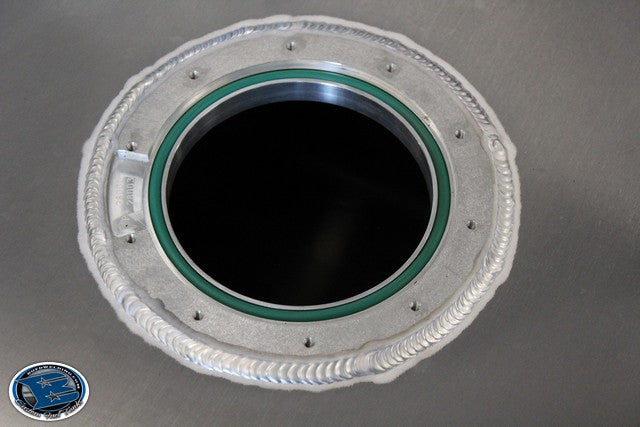

OEM Pump flange with cover ring and new gasket  (fits the Delphi FG0381 & FG0382 module assembly)
5/8" RFH Vent 90 DEG

-Does not come with provisions for shield over pump.

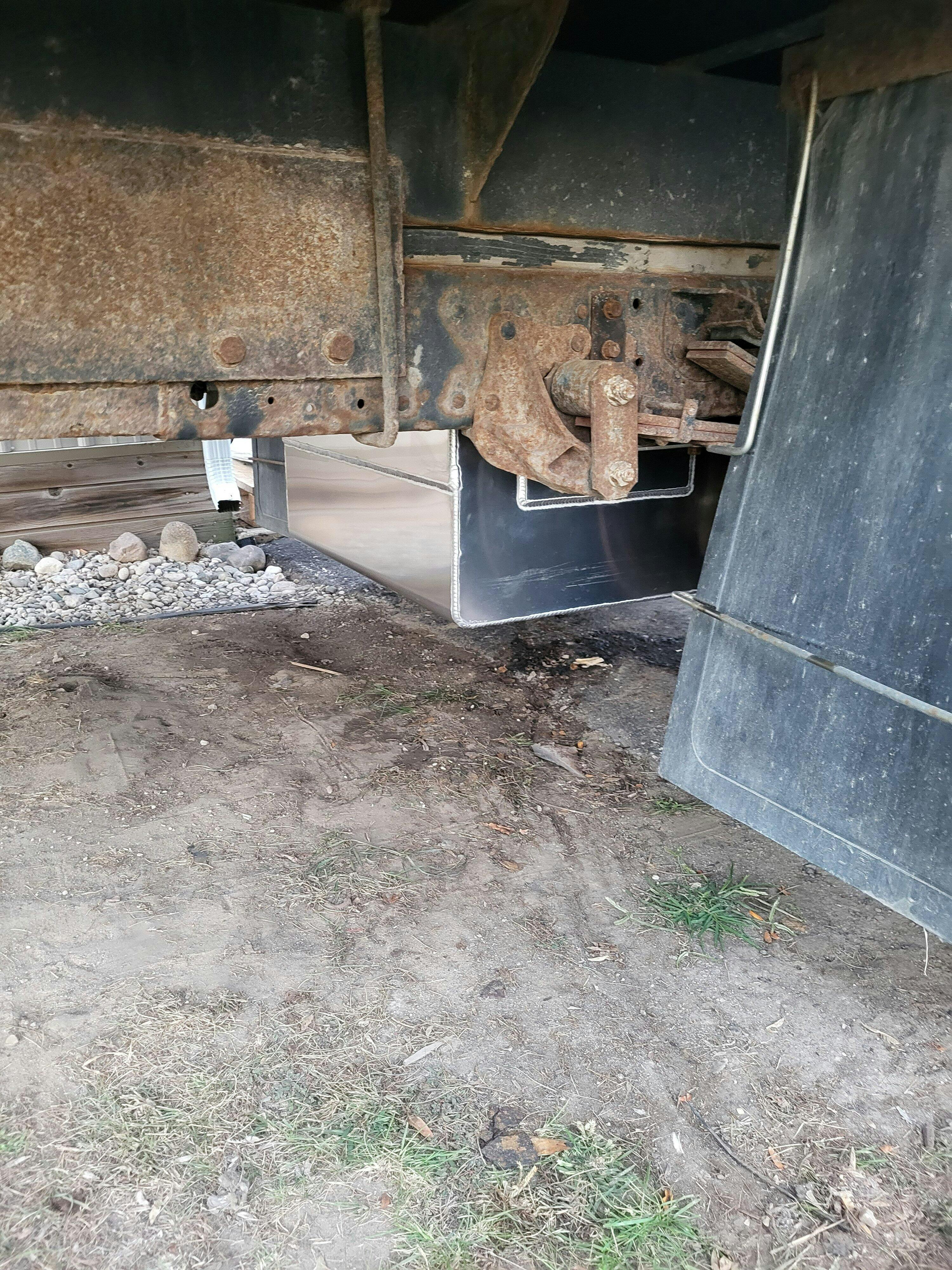

-Fits in the stock location using all stock pump and components
