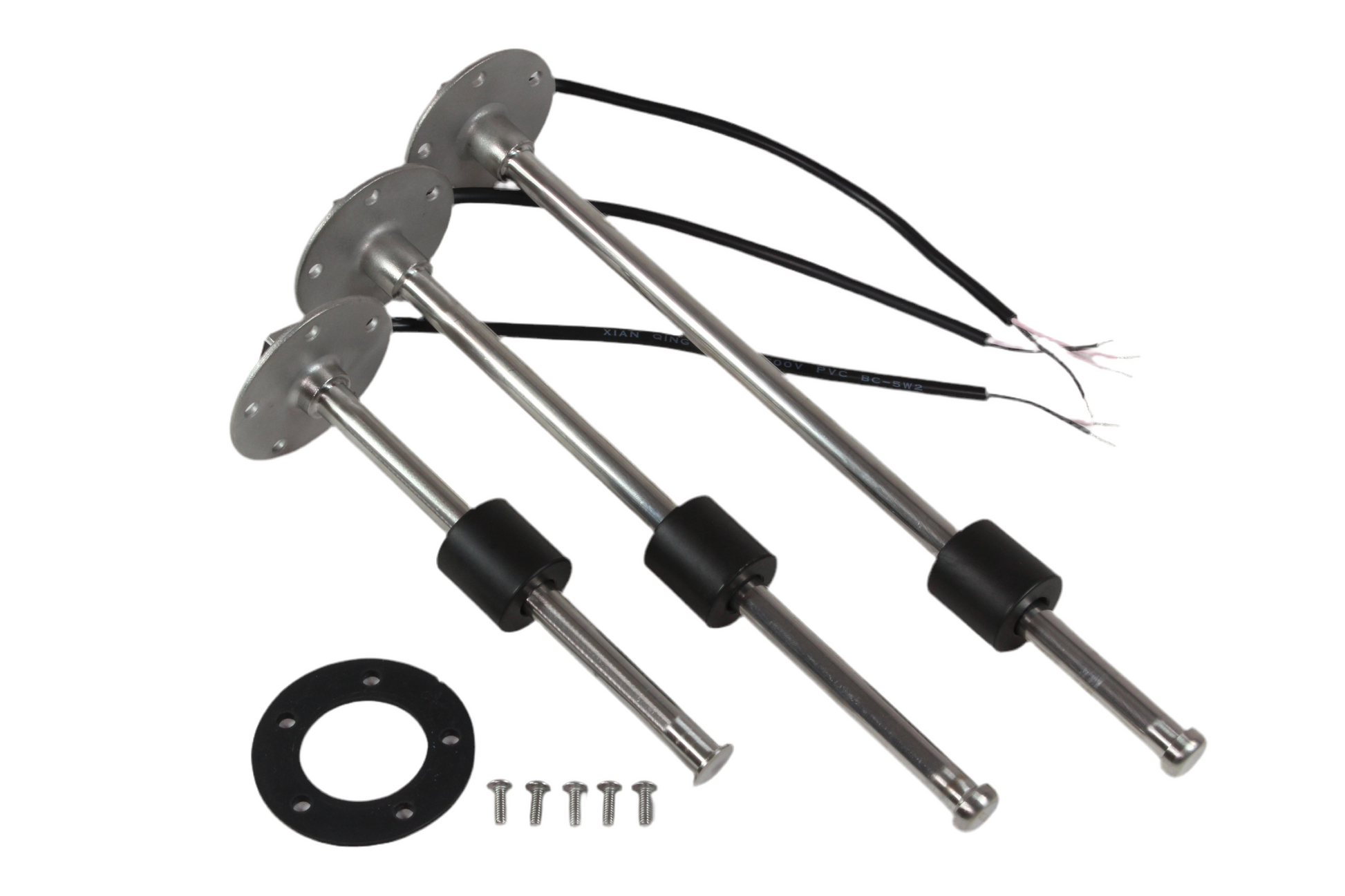

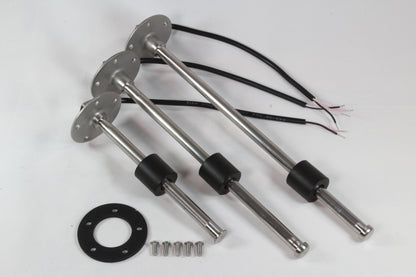

240-33 OHM Stainless Level Sensor

Liquid Level Sender with American standard output (240 ohms at empty, 33 ohms at full). It is based on ABYC standard, and are non-linear.

Range difference: + / – (R*1.5 % + 1 Ohm)

• 33 ohm at 100%
• 67.5 ohm at 75%
• 105 ohm at 50%
• 142.5 ohm at 25%
• 240 ohm at 0%

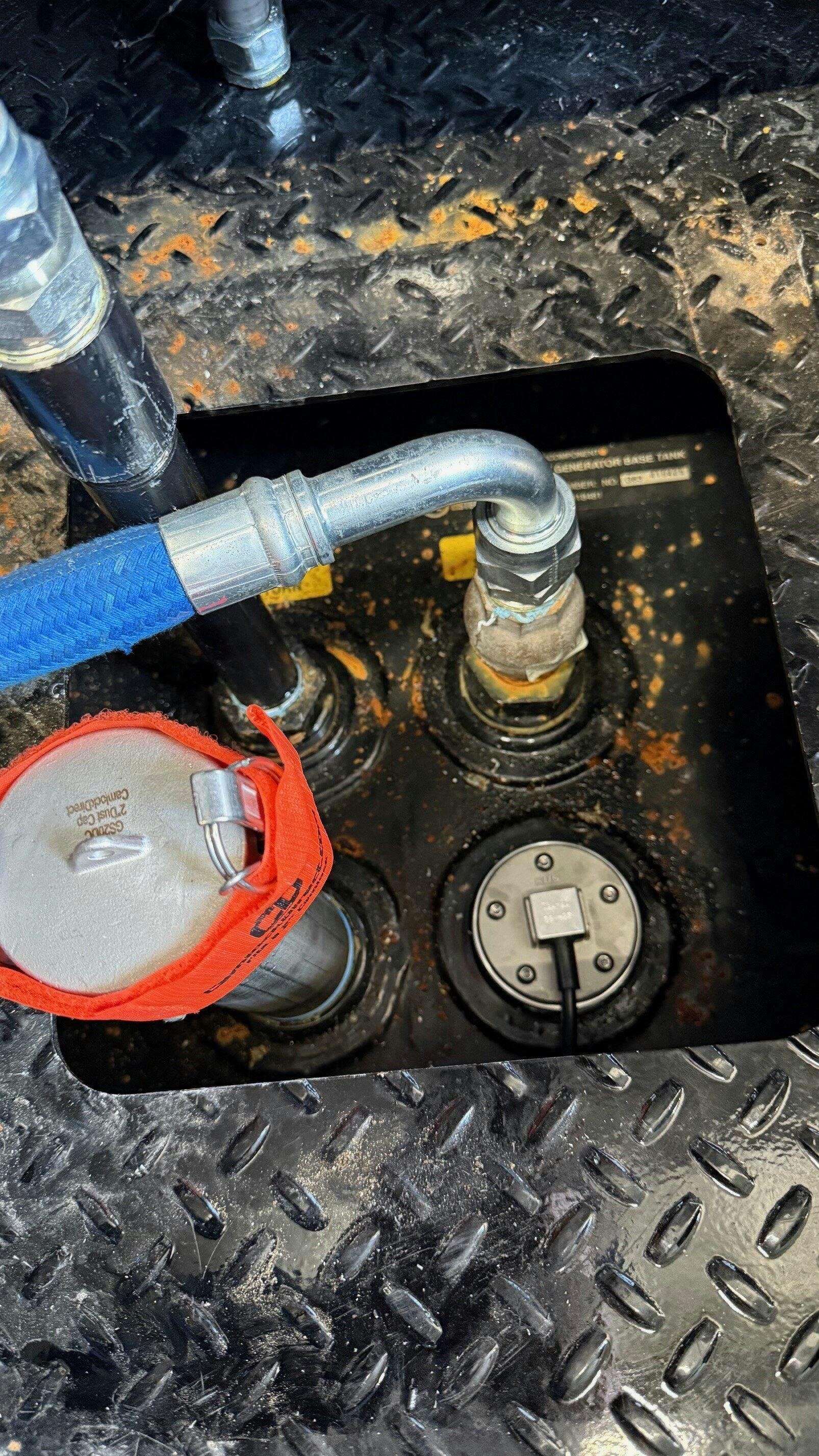

The electric liquid level sending units are widely used in marine, on-road, off-road, generator set, and industrial applications. The electric liquid level sending unit utilizes reed switch and magnetic field technology. The advantage of reed switch type level sender over thick-film swing arm type level sender is the reed switch’s durability and reliability. Additionally, in reed switch level senders the float is the only moving part of the sender, thereby minimizing potential mechanical failures.

Material:

• Body: SUS 316 Stainless Steel
• Cable: PVC
• Float: NBR
• Gasket: Viton
• Hardware: Stainless Steel 10-32

Mounting Methods: Standard SAE 5 hole pattern

Protection Rank: IP65

Output Signal:

• American Standard 240-33 ohms (240 ohms at empty, 33 ohms at full)

Resolution Range:

• 21mm

Operational Temperature: -40°F ~ +185°F (-40°C ~ +85°C)

Additional Information:

• Sending Unit Installation Guide
• Troubleshooting Guide
• Please note that we recommend a 1″ clearance from the bottom of plastic tanks and a 0.5″ clearance from the bottom of stainless steel/aluminum tanks.
