Male Weld-On Threaded Stud Aluminum

Availability: Typically In-stock, Additional QTY's available Contact us

47 in stock ready to ship

SKU:21140-1/4-20

$5.75

Sale Sold out

Shipping calculated at checkout.

THREAD SIZE 1/4-20 (21140-1/4-20) 5/16-18 (21140-5/16-18) 3/8-16 (21140-3/8-16) 1/2-13 (21140-1/2-13)

Quantity

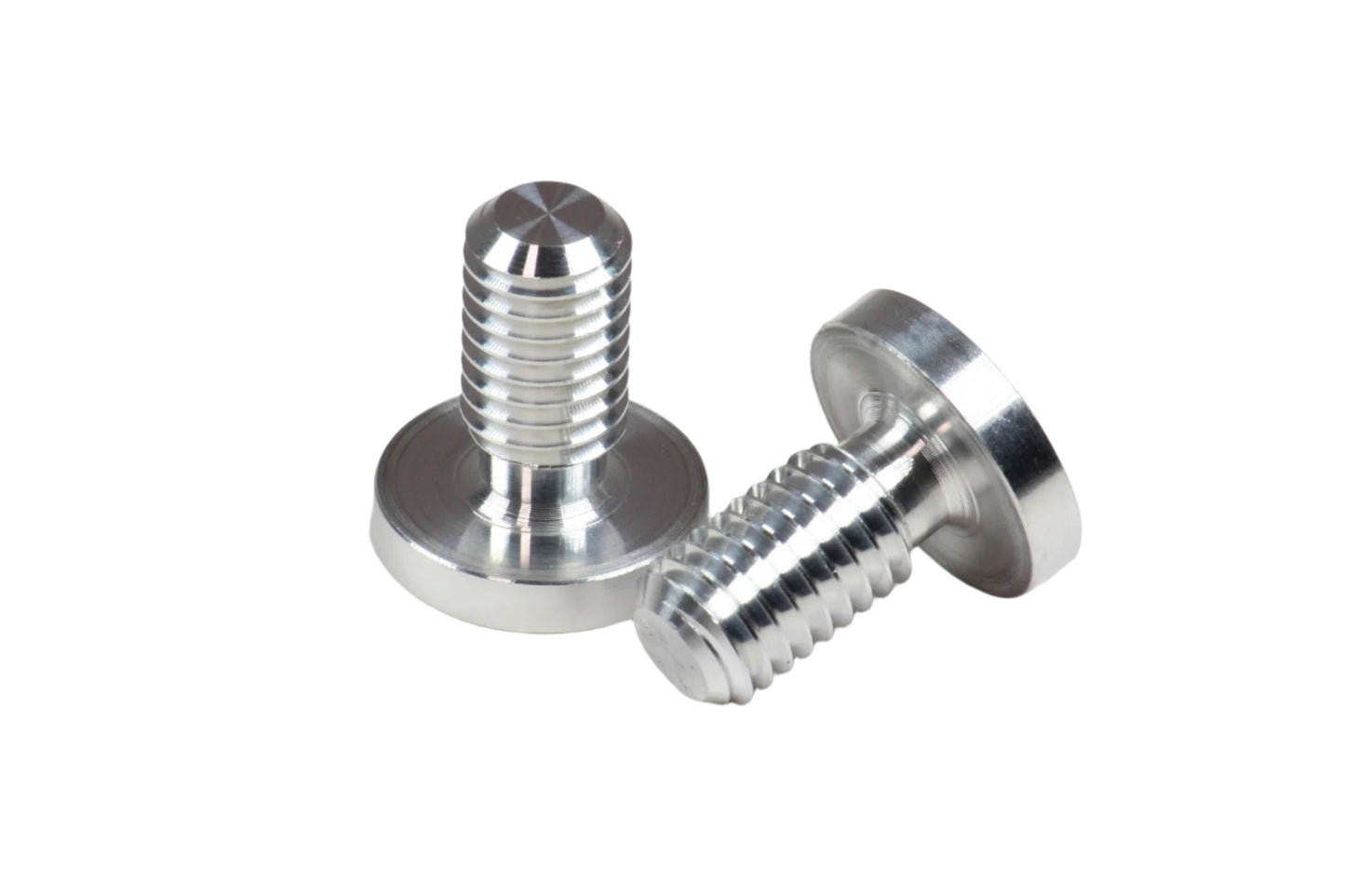

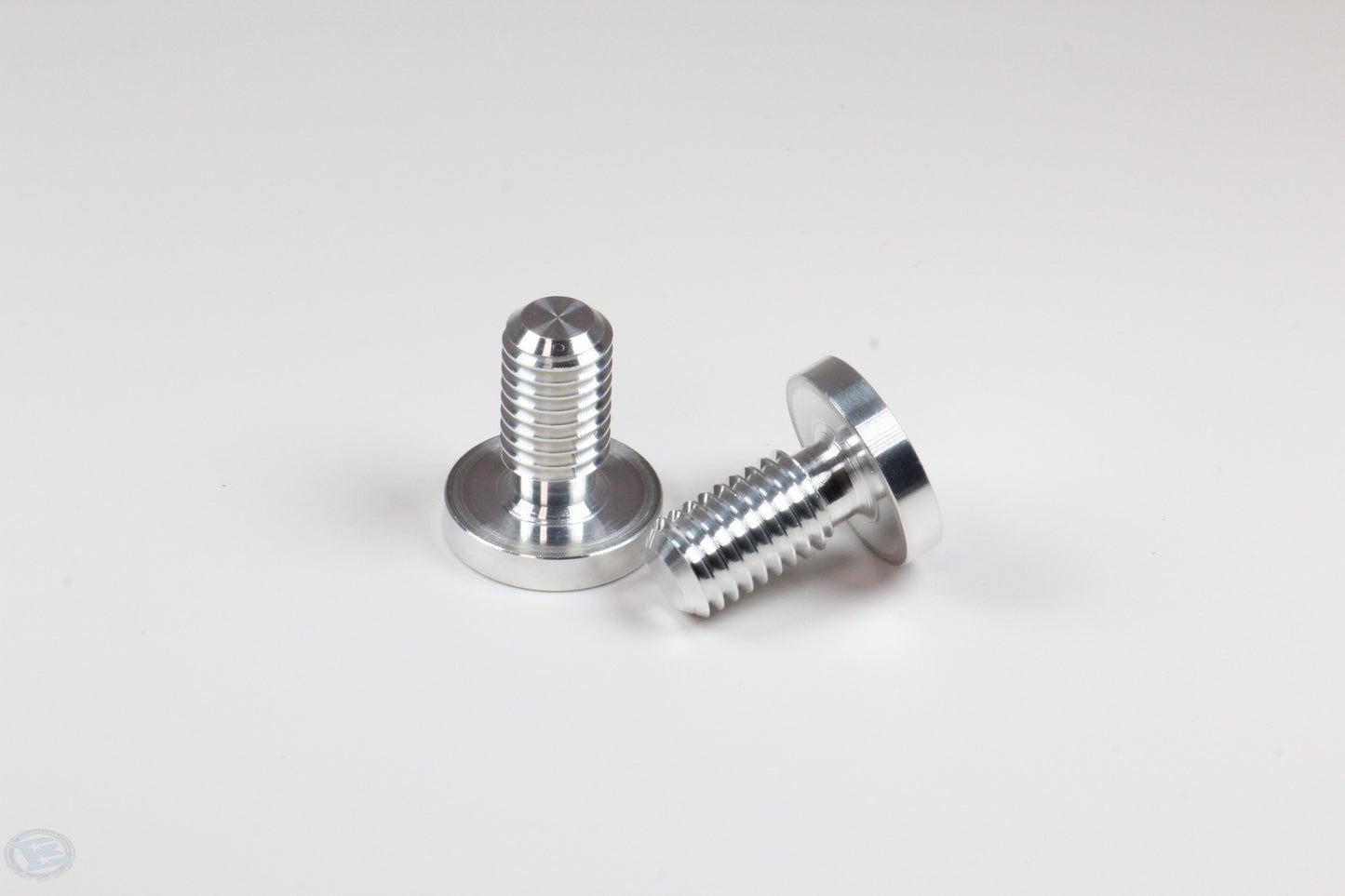

Male Weld-On Threaded Stud Aluminum

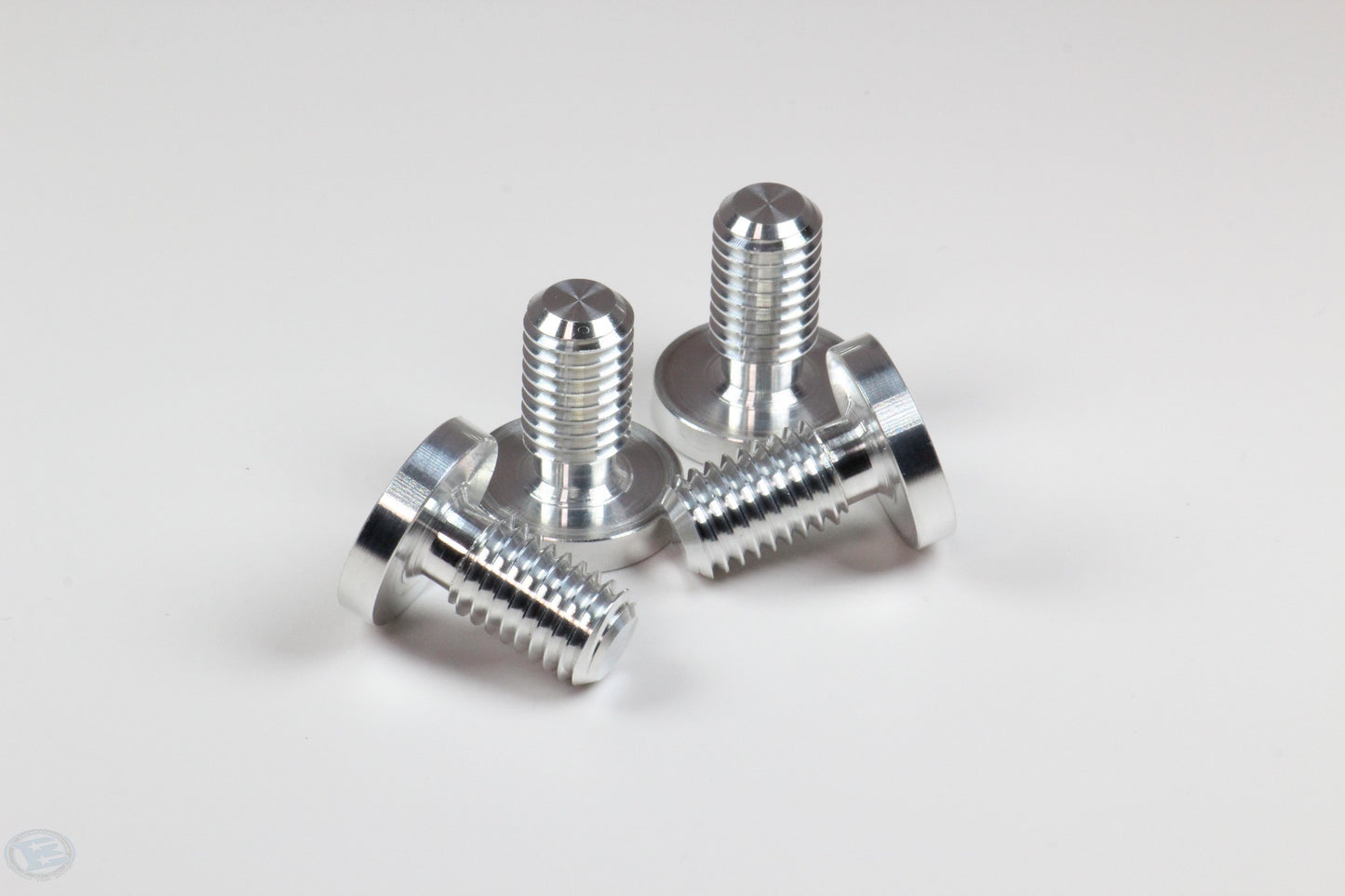

USA-made CNC-machined male weld-on threaded studs from 6061-T6 aluminum bar. For attaching covers, pumps, filters, or accessories to aluminum fabrications. Sold individually (photos may show multiples).

Made in USA (in-house)
6061-T6 aluminum
Not for primary tank securement / lifting
Not replaced after welding

Male weld-on threaded stud dimension diagram (A thread, B base OD, C overall, D thread length, E thread OD)

Part Number	(A) Thread	(B) Base OD	(C) Overall	(D) Thread Length	(E) Thread OD
21140-1/4-20	1/4-20	0.740"	1.150"	0.960"	0.245"
21140-5/16-18	5/16-18	0.74"	1.15"	0.96"	0.307"
21140-3/8-16	3/8-16	0.74"	1.15"	0.96"	0.369"
21140-1/2-13	1/2-13	0.975"	1.15"	0.96"	0.493"
