OEM Pump Adapter for Dodge / Chrysler
OEM Pump Adapter for Dodge / Chrysler
Availibilty : Typically In-stock
SKU:28007
Regular price
$99.50
Regular price
$0.00
Sale price
$99.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SKU 28007

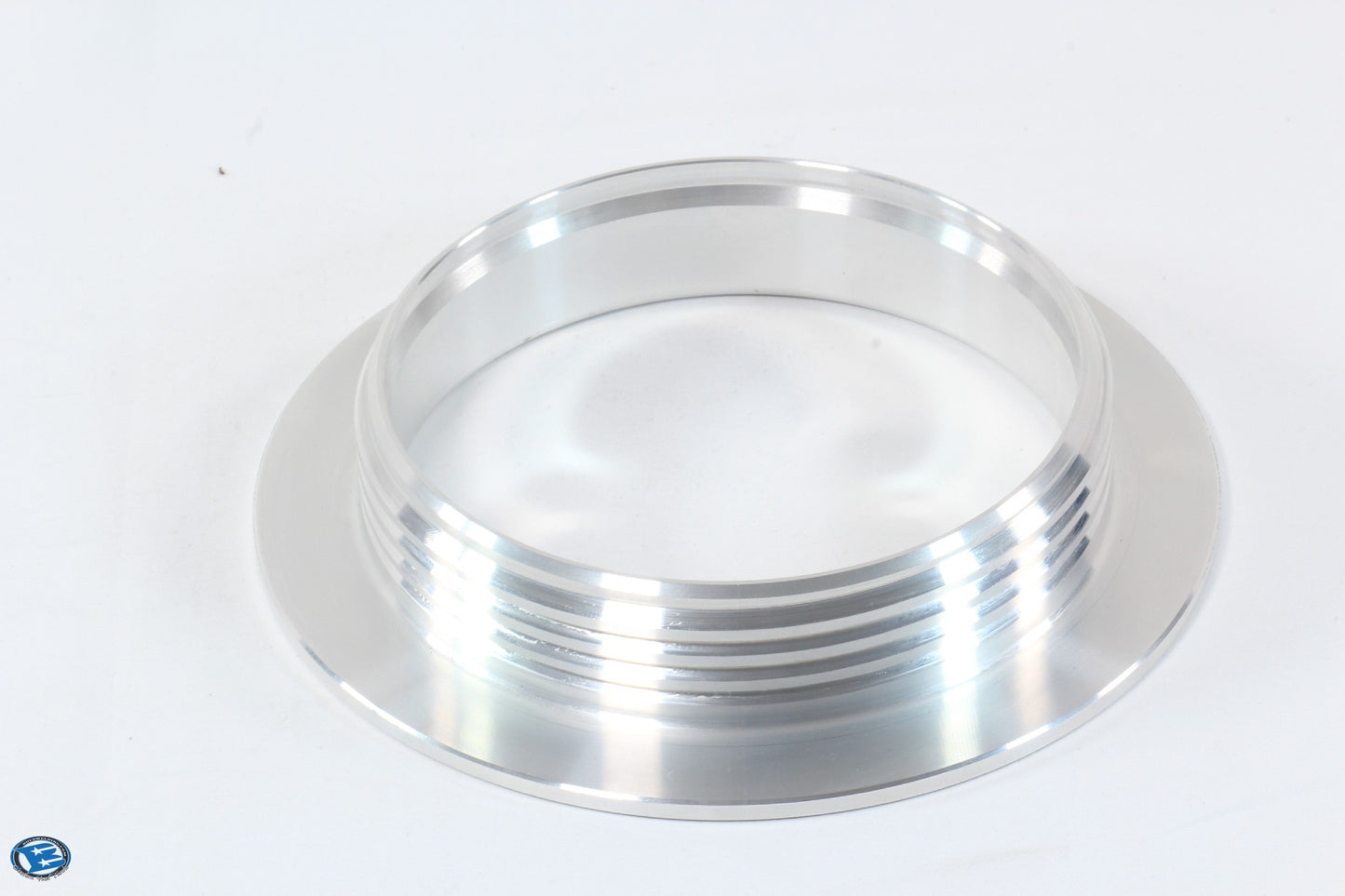

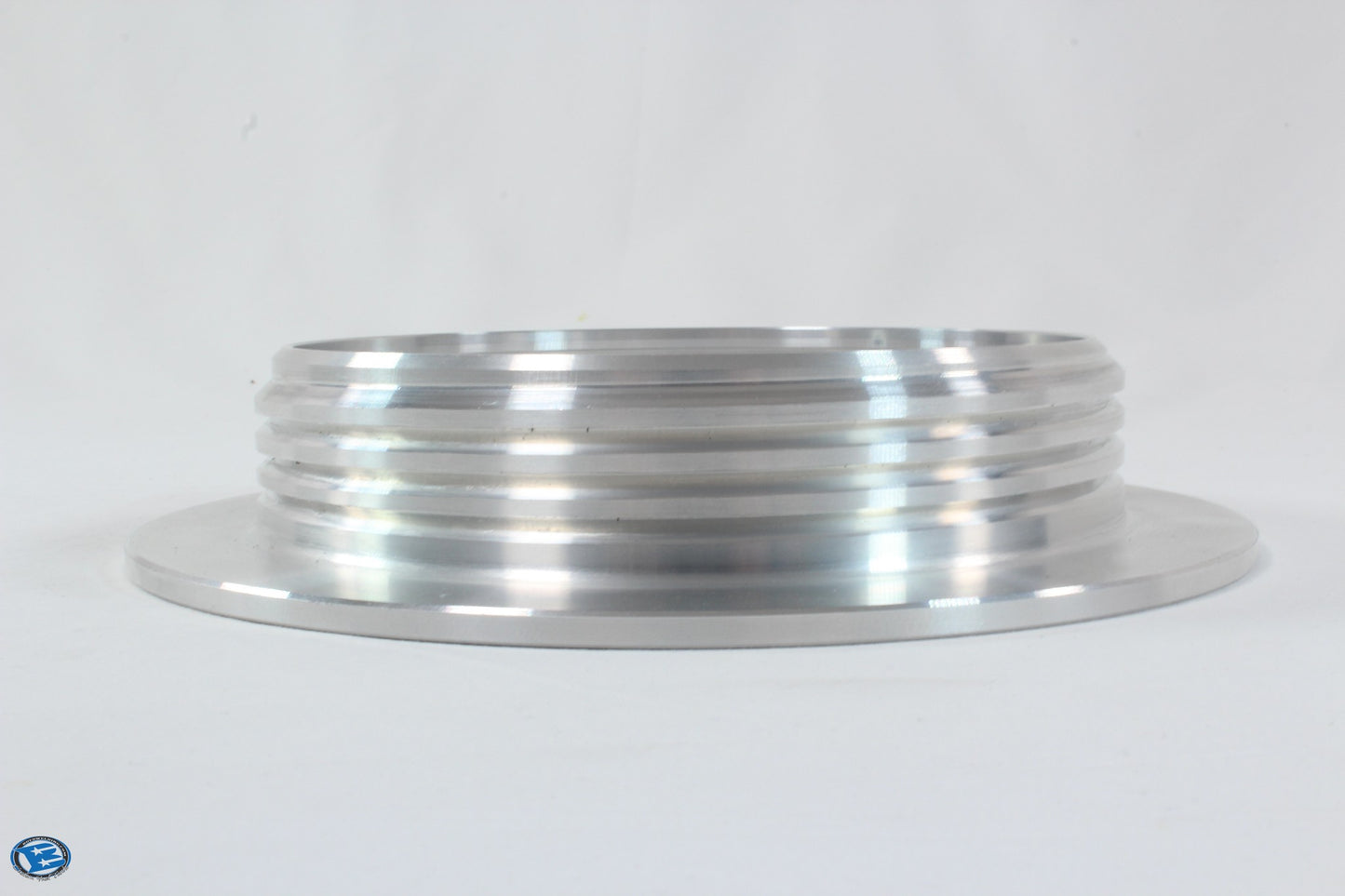

CNC Machined flange to adapt an OEM Dodge / Chryler in-tank pump assembly. You will re-use the stock pump gasket and plastic threaded lock nut.
Adapter Specs:
Material: 6061-T6 CNC Machined
OD of weld Flange = 7.750" +/-
OD Across threads = 6.015" +/-
ID OF Opening = 5.500" +/-
Total height of adapter installed = 1.437" +/-
Thread = 4 TPI Modified AM Butress
Installation Requirements
-Weld on flange requires welding. This should only be performed to BRAND NEW tanks. DO NOT WELD TO A TANK THAT HAS PREVIOUSLY HAD FUEL IN IT.
-Bolt on version comes with hardware and an under ring with RIV-NUTS and can be used on any tank material. a Gasket IS NOT included, you will need to make you own gasket.
-Top of tank installation, not recommended for submersion.
CNC Machined flange to adapt an OEM Dodge / Chryler in-tank pump assembly. You will re-use the stock pump gasket and plastic threaded lock nut.
Adapter Specs:
Material: 6061-T6 CNC Machined
OD of weld Flange = 7.750" +/-
OD Across threads = 6.015" +/-
ID OF Opening = 5.500" +/-
Total height of adapter installed = 1.437" +/-
Thread = 4 TPI Modified AM Butress
Installation Requirements
-Weld on flange requires welding. This should only be performed to BRAND NEW tanks. DO NOT WELD TO A TANK THAT HAS PREVIOUSLY HAD FUEL IN IT.
-Bolt on version comes with hardware and an under ring with RIV-NUTS and can be used on any tank material. a Gasket IS NOT included, you will need to make you own gasket.
-Top of tank installation, not recommended for submersion.
