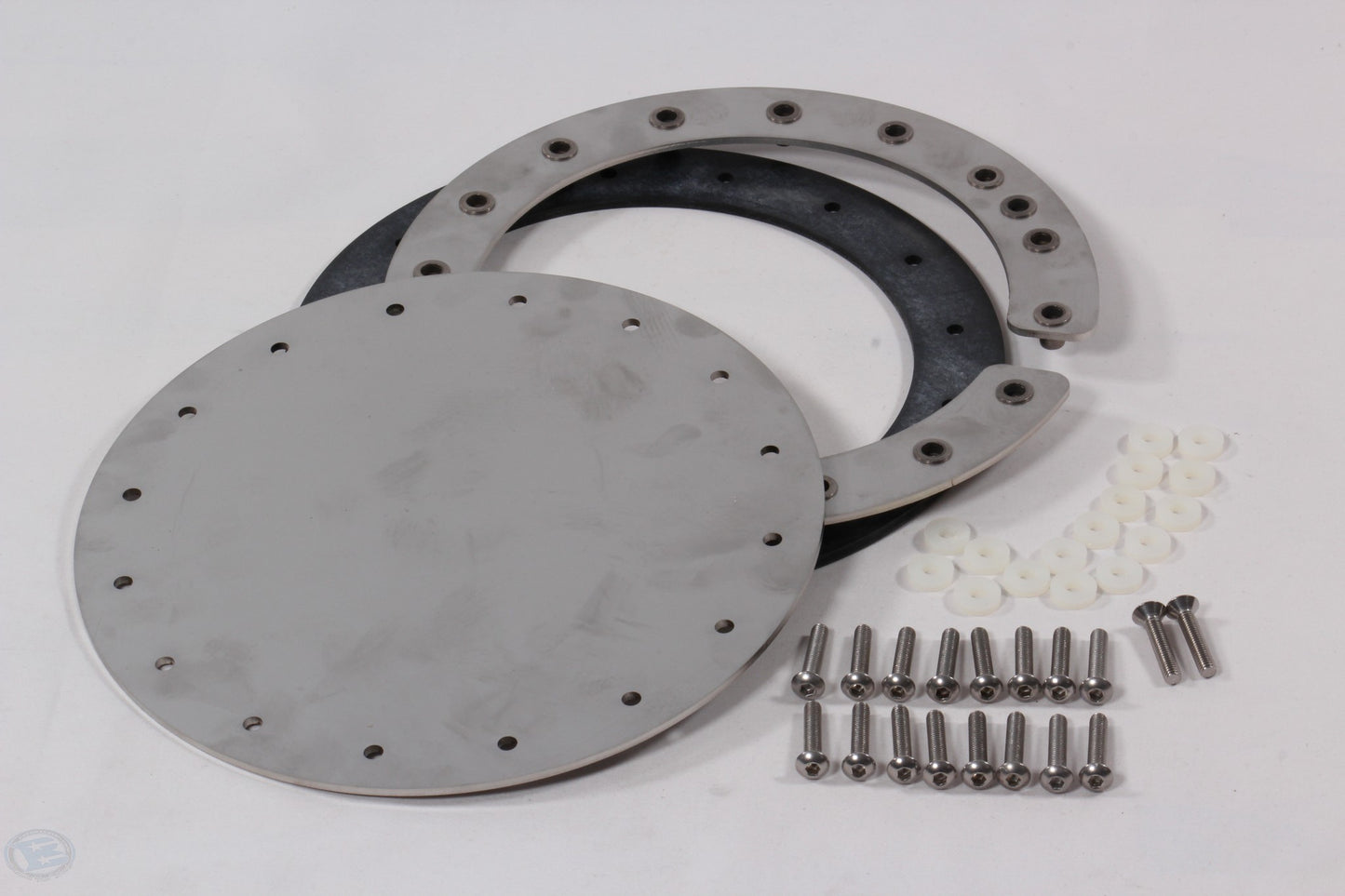

Stainless Steel 8"OD X 6"ID Bolt In Tank Clean Out Access Plate

Stainless Steel 8"OD X 6"ID Bolt In Tank Clean Out Access Plate

Availibilty : Typically In-stock

44035-SS

$157.25
$0.00 $157.25
Sale Sold out
Shipping calculated at checkout.

This cleanout is perfect for many applications where access to a tank is needed for cleanout or inspection.  These are best used on flat firm surfaces and will create a tight seal without any type of sealants as long as there is not any distortion of the tank surface, upper plate or loose screws.

it has come to our attention that many customers are utilizing this kit for a more economical repair to the Kubota BX series tractor tanks.  You must be aware, we did not design this kit for this application, have not performed this repair ourselves.  This kit may not be appropriate for this application it is 100% up to you, the customer, to determine if this kit and its components are appropriate. Our guarantee is only that we will ship the components as shown. We DO NOT GUARANTEE that you can create an appropriate seal in your application.

WILL NOT WORK WITH THE KUBOTA BX TANK FIX. THE PLATE IS TOO BIG.  SEE OUR ALUMINUM 6" X 4" CLEANOUT HERE.

Material: 304 Stainless Steel 2B (Mill Finish)
OD: 8.0"
ID: 6.0"
Bolt CL : 7.0"
Installed Height: .250 +/-
Threads: 10-32 Stainless Steel RIV-NUT
Hardware Included: Yes, Stainless Steel 10-32
Gasket: YES- FKM Viton
Cover Plate Thickness:  .104"  (12GA)
Bolt in Assembly, No Welding needed.
  • THIS ASSEMBLY IS INTENDED FOR TOP OF TANK USE ONLY. NOT TO BE USED FULLY SUBMERGED IN FUELS
  • Stainless steel threads are known for galling, you must ensure that all holes are accurately aligned and oversized to avoid rubbing of the hardware to the tank material.
  • Anti seize should be used on all threads.
