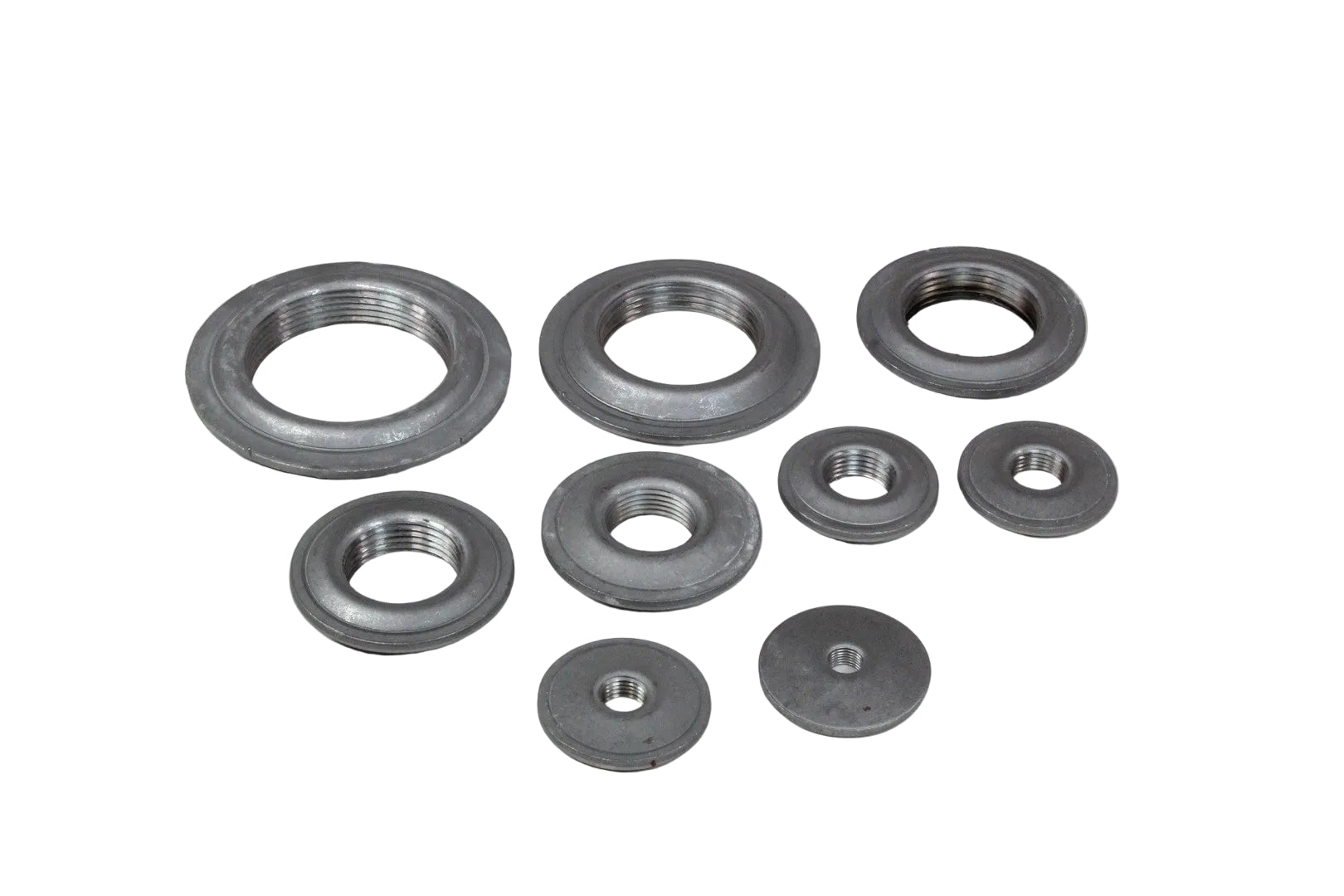

Steel Flanged Weld on Tank Fitting

Steel Flanged Weld on Tank Fitting

Availability: Typically In-stock, Additional QTY's available Contact us

1722 in stock ready to ship

22001

$2.25
$2.25
Sale Sold out
Shipping calculated at checkout.
Thread Size

Steel Flanged Weld-on Tank Fitting (Stamped)

USA-made NPT steel weld flanges stamped from 1018 CR flat bar. Sizes 1/8"–2" NPT. Common uses: fuel, hydraulic, and water tanks.

  • Made in USA
  • Quality-checked with L1 thread gauge
  • Not replaced after welding

NPT sizes refer to the pipe that threads into the fitting. Threads have a 1.8° taper — male fittings typically tighten 1 turn or less past hand-tight. Use appropriate thread sealant.

NPT ID OD TPI Thickness Installed Height Hole Cut
1/8" 0.35" 1.75" 27 .27" .22" .750"
1/4" 0.46" 1.75" 18 0.27" 0.22" .750"
3/8" 0.58" 1.75" 18 .27" .22" 1"
1/2" .73" 1.75" 14 .27" .22" 1"
3/4" .92" 2.37" 14 0.31" 0.25" 1.25"
1" 1.17" 2.37" 11.5 0.31" 0.25" 1.5"
1.25" 1.49" 2.86" 11.5 0.4" 0.25" 2"
1.5" 1.75" 3.39" 11.5 0.437" 0.31" 2.25"
2" 2.21" 3.84" 11.5 0.5" .36" 2.75"

Documents: NPT weld fittings guide (PDF) | NPT weld fittings guide | Weld fittings product guide
