Steel Blind Threaded Boss With Shoulder

Steel Blind Threaded Boss With Shoulder

Availibilty : Typically In-stock, Additional QTY's available Contact us

25 in stock ready to ship

22070-BLIND-1/4-20

$5.75
$5.75
Sale Sold out
Shipping calculated at checkout.
Thread Size
Material: 1018 CF Steel Bar

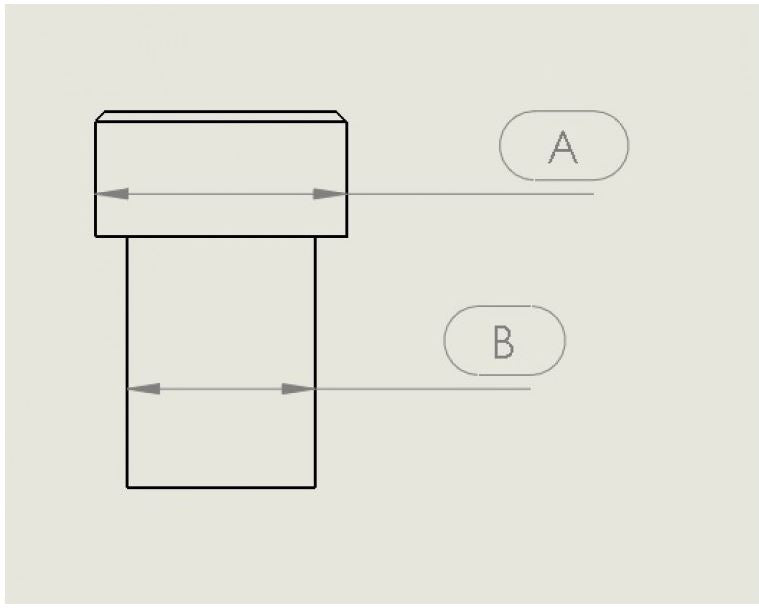

OD(A): 1.00” +/-
OD (B): .730” +/-
Flange Thickness: .250” +/-
Overall Length = 1.125" +/-
Installed height= .250” +/-
Threads: Choose options below
Tank Hole Cut Size: .730”MIN / 1.00” MAX
SOLD INDIVIDUALLY

-This fitting must be welded in
-This fitting is threaded blind so there will be no need to seal the threads
-This will provide threaded provisions in your assembly perfect for bolting steps, enclosures and other components.
- Could be welded to the inside of a tank to provide a perfectly flush threaded fitting that wont leak.
- Not Rated for lifting applications
Custom sizes and Bulk QTY runs available.  contact us with your specific needs sales@boydwelding.com
View full details

Quick Order List Below

If these products are eligible for Bulk QTY Discounts, the pricing will be shown properly once you add to the cart.
