Steel Machined NPT Flanged Weld Bung
Steel Machined NPT Flanged Weld Bung
Availability: Typically In-stock, Additional QTY's available Contact us
16 in stock ready to ship
SKU:22012
Regular price
$10.40
Regular price
Sale price
$10.40
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

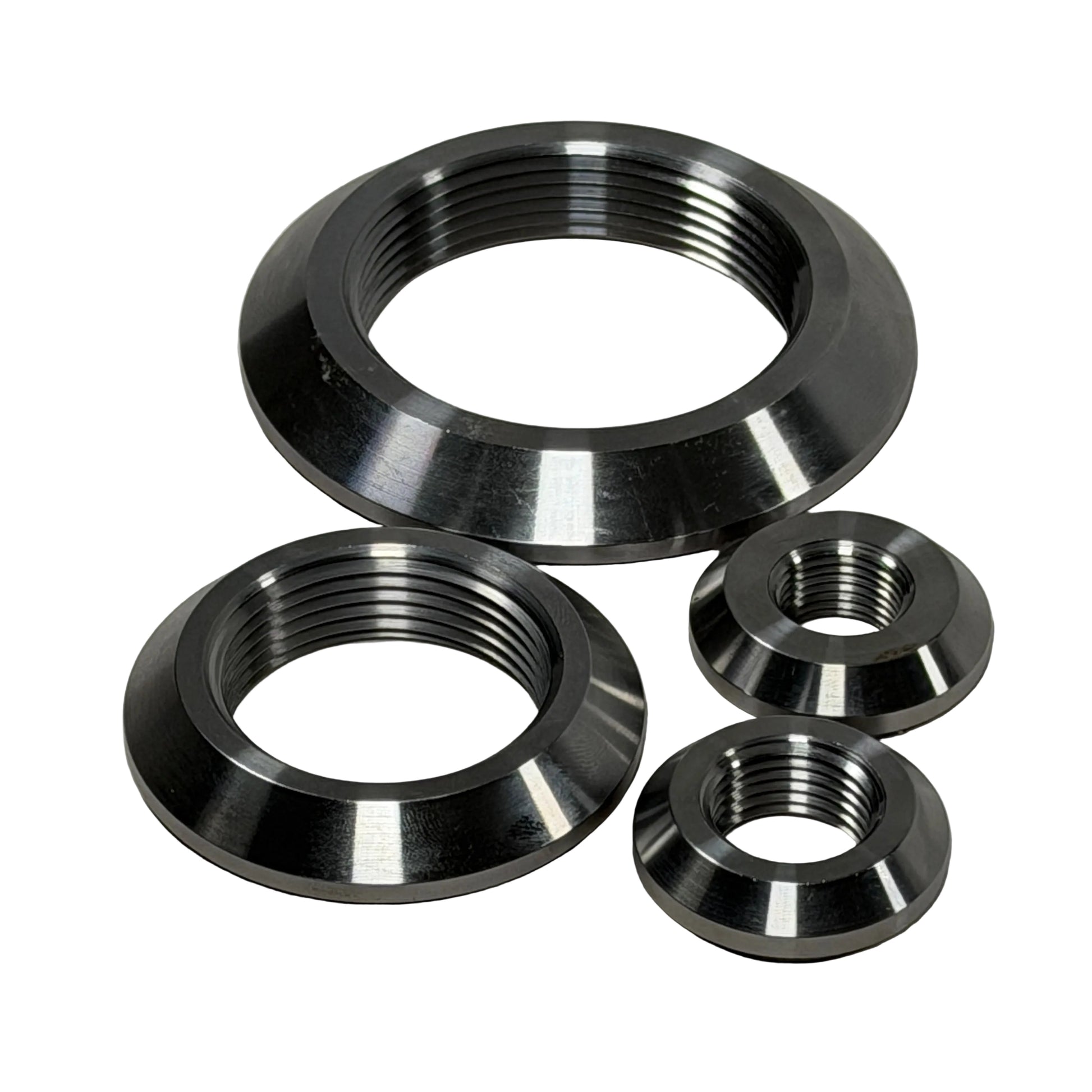

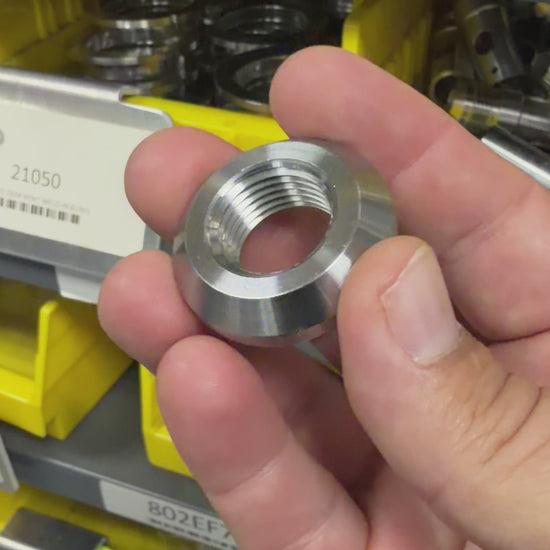

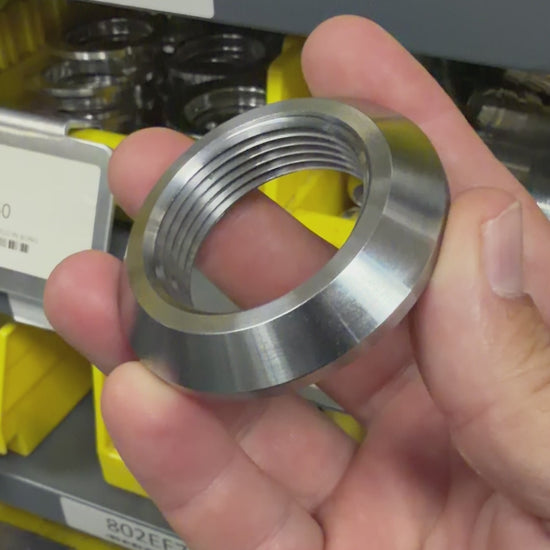

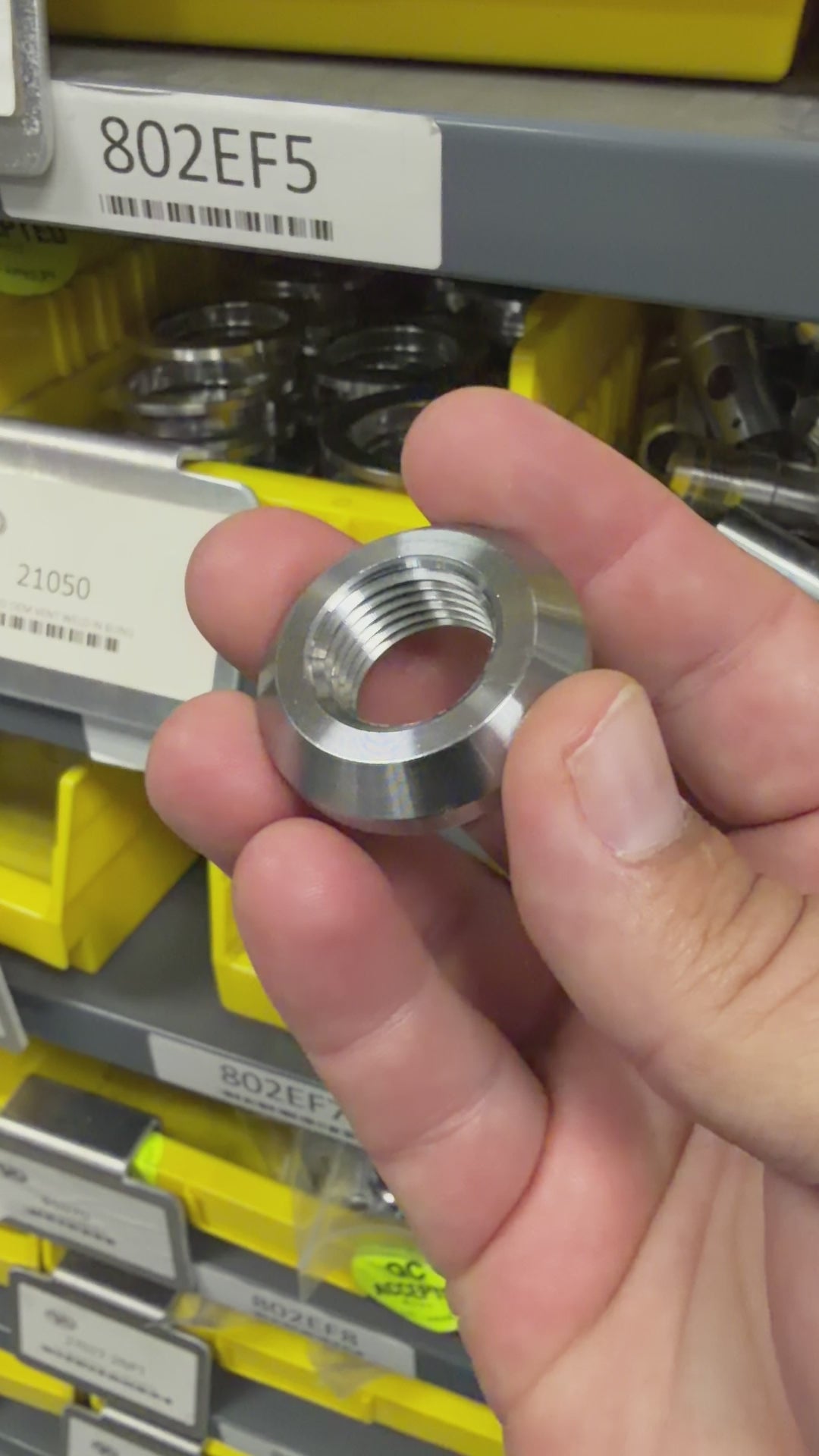

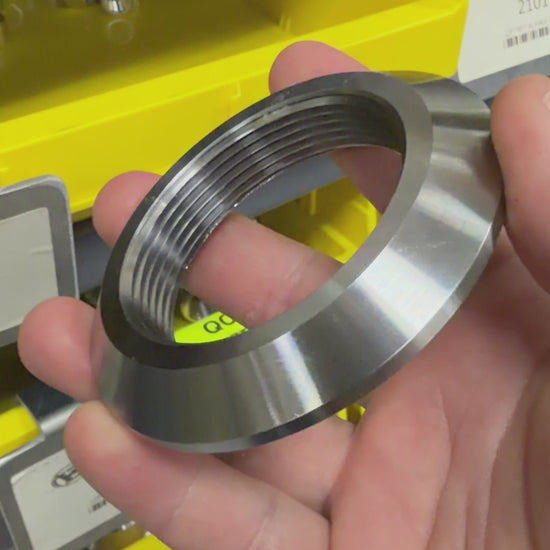

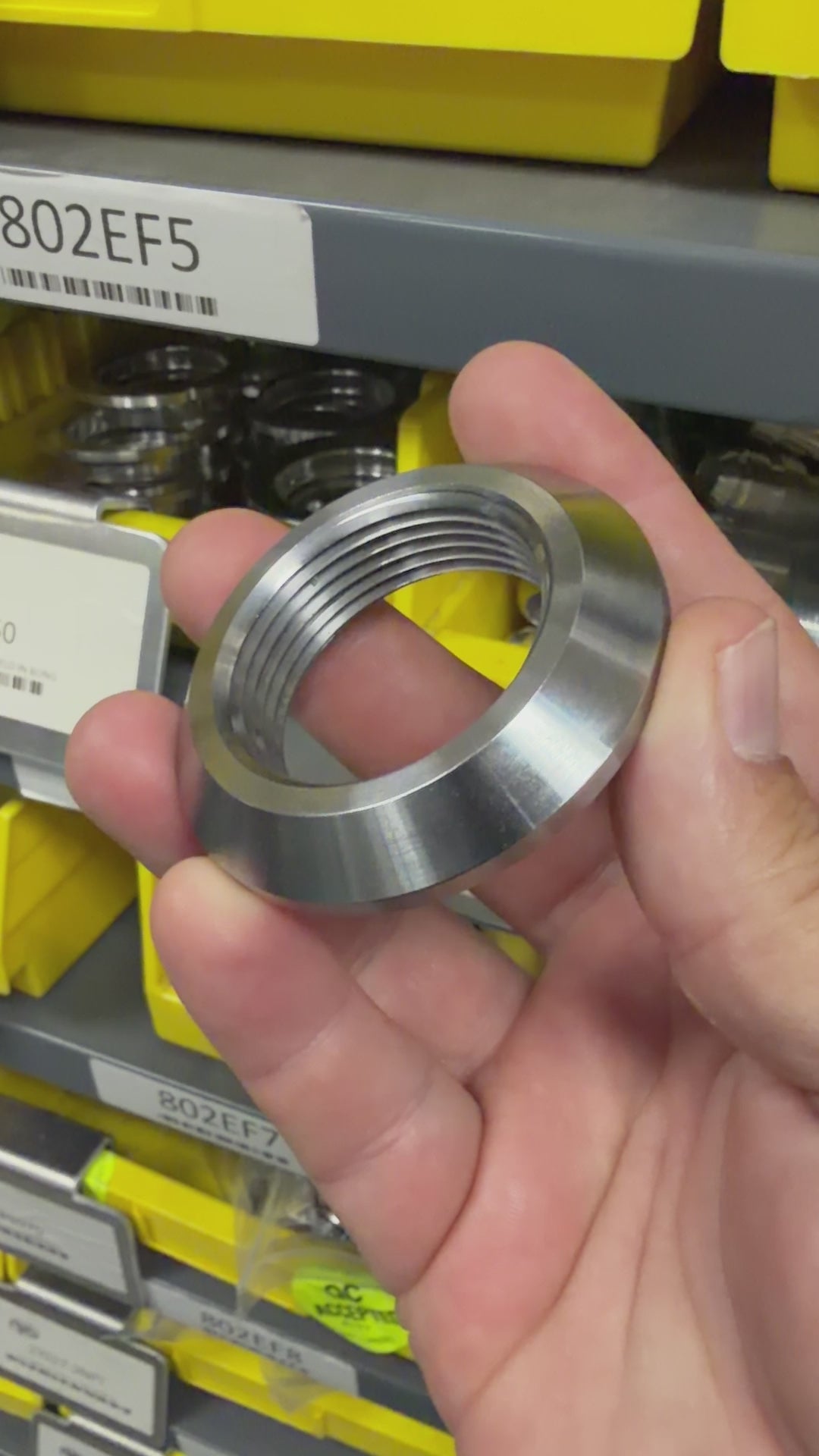

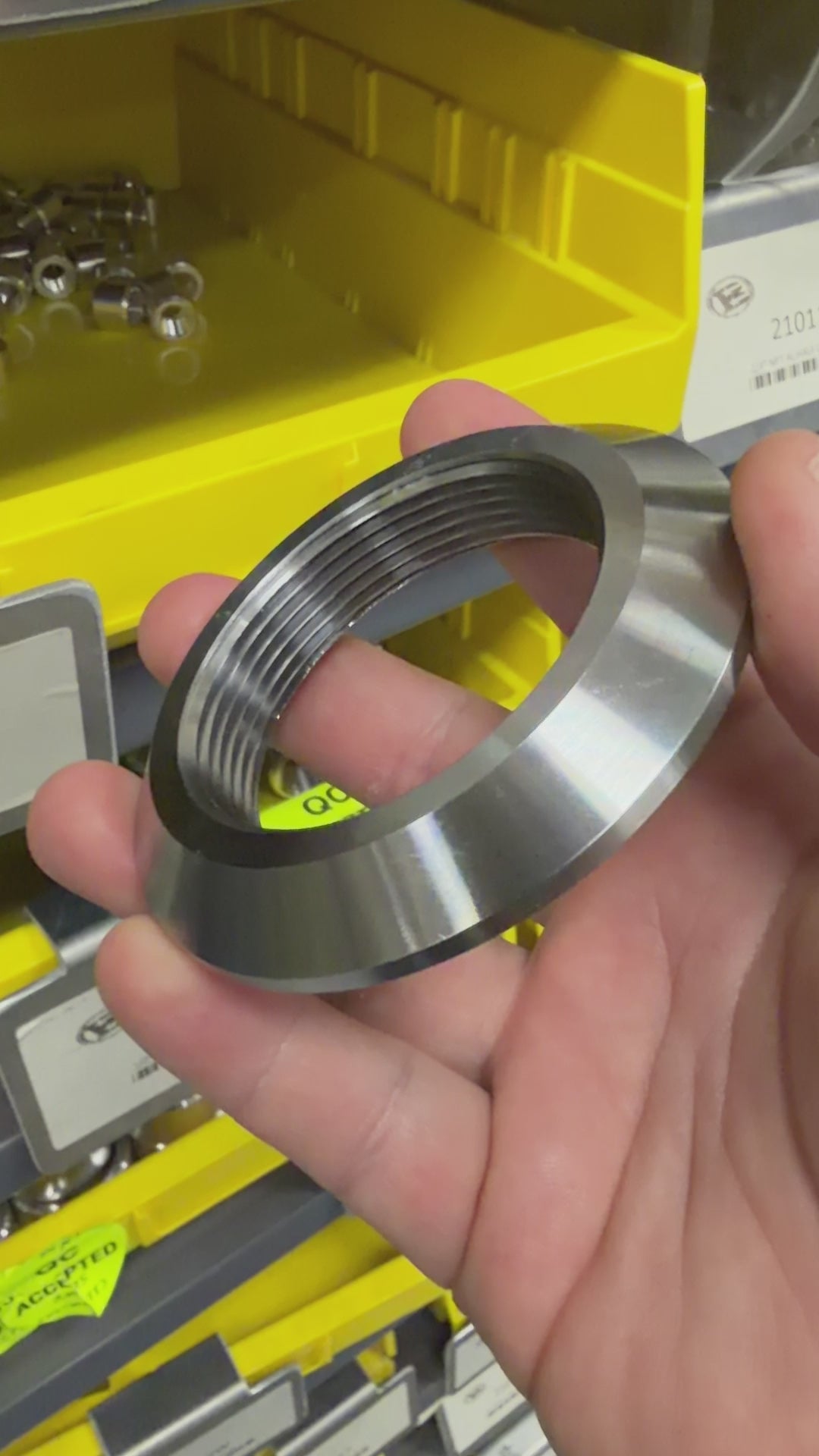

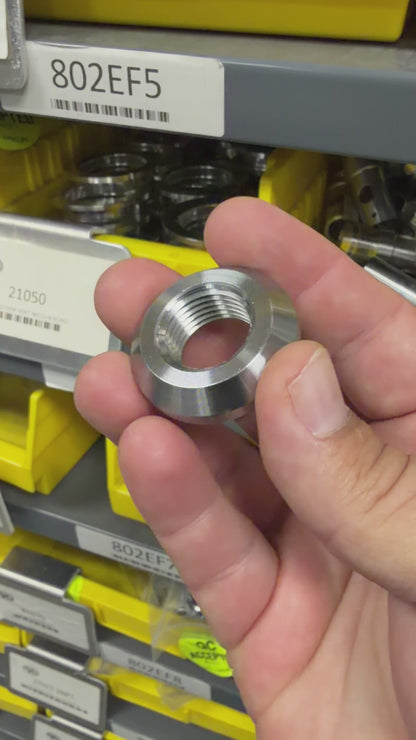

Steel Machined NPT Flanged Weld Bung
USA-made CNC-machined NPT flanged weld bungs from 1018 steel bar. Sizes 1/8"–2" NPT. For fuel, hydraulic, and water tanks where higher precision is needed.
- Made in USA (in-house)
- Thread profile per ASME B1.20.1
- Quality-checked with L1 thread gauge
- Not replaced after welding
NPT sizes refer to the pipe that threads into the fitting. Threads have a 1.8° taper — male fittings typically tighten 1 turn or less past hand-tight. Use appropriate thread sealant.
| SKU | NPT | (A) Max OD | (B) Shoulder | (C) Height | (D) Overall | Hole Cut |
|---|---|---|---|---|---|---|
| 22012 | 1/8" | 1.490" | .875" | 0.246" | 0.406" | .875–1.0" |
| 22013 | 1/4" | 1.490" | .875" | .246" | .406" | .875–1.0" |
| 22014 | 3/8" | 1.490" | 1.190" | .309" | .469" | 1.190–1.25" |
| 22015 | 1/2" | 1.490" | 1.190" | .309" | .469" | 1.19–1.25" |
| 22016 | 3/4" | 1.749" | 1.312" | .340" | .500" | 1.312–1.375" |
| 22017 | 1" | 2.490" | 1.688" | .360" | .500" | 1.68–1.75" |
| 22018 | 1.25" | 2.490" | 1.938" | .403" | .563" | 1.93–2.0" |
| 22019 | 1.5" | 2.990" | 2.250" | .418" | .578" | 2.25–2.375" |
| 22020 | 2" | 3.490" | 2.625" | .434" | .594" | 2.62–2.75" |
