55-59 Chevrolet Truck Rear Mount Aluminum Tank

55-59 Chevrolet Truck Rear Mount Aluminum Tank

Availability : Ships in 2-4 Weeks or Less

SKU:14026

Regular price $501.60
Regular price Sale price $501.60
Sale Sold out
Shipping calculated at checkout.
Quantity

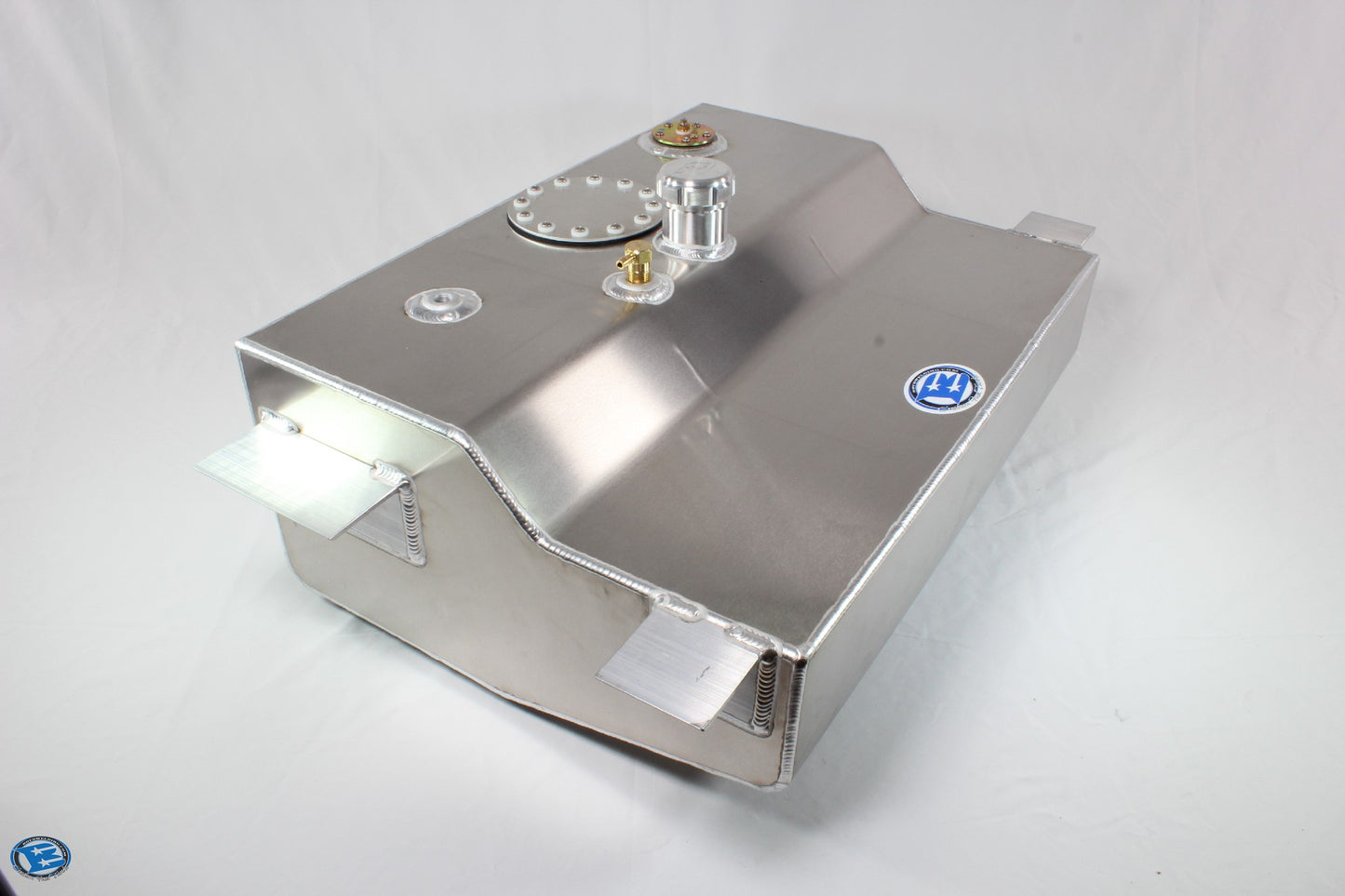

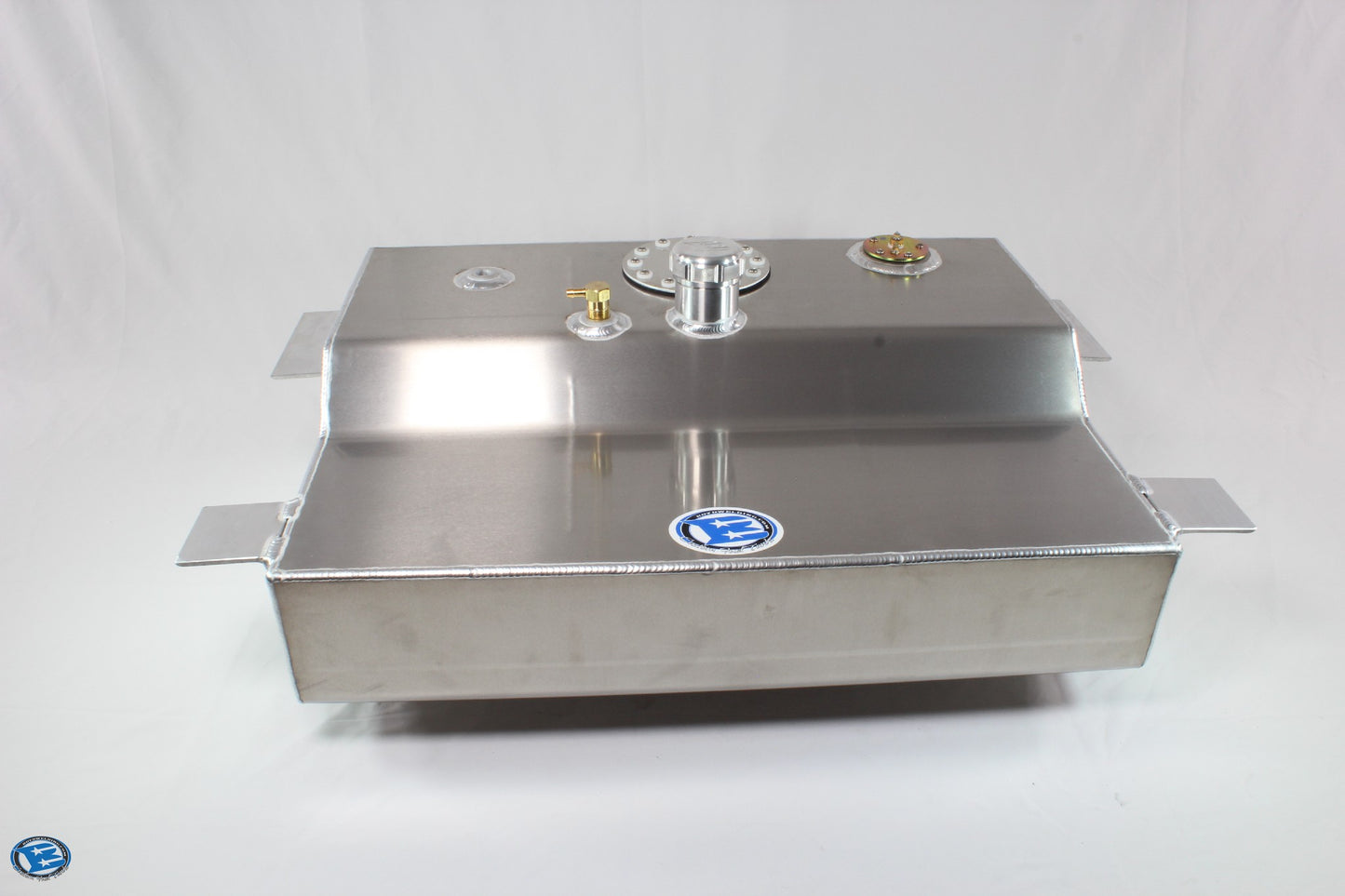

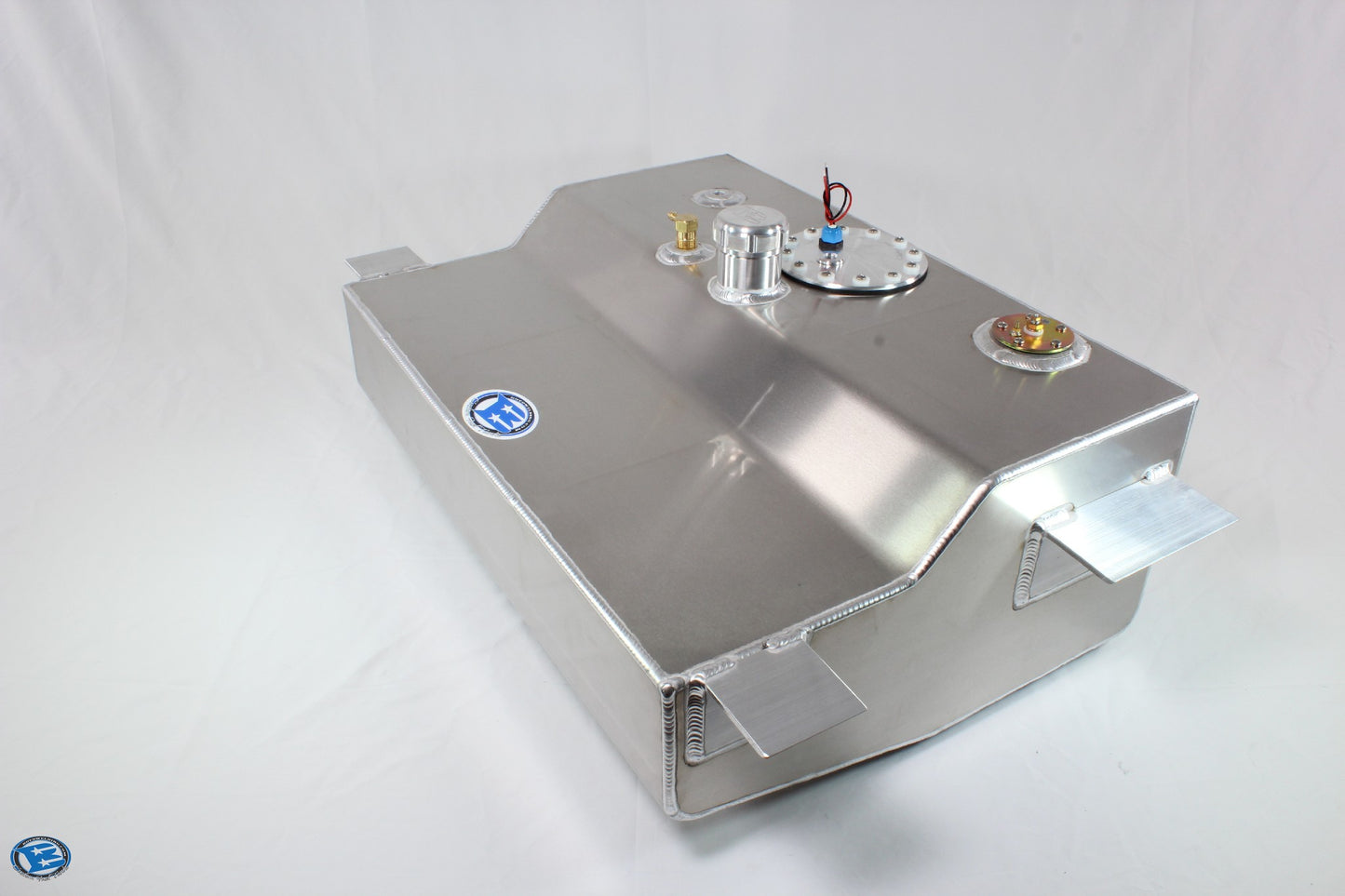

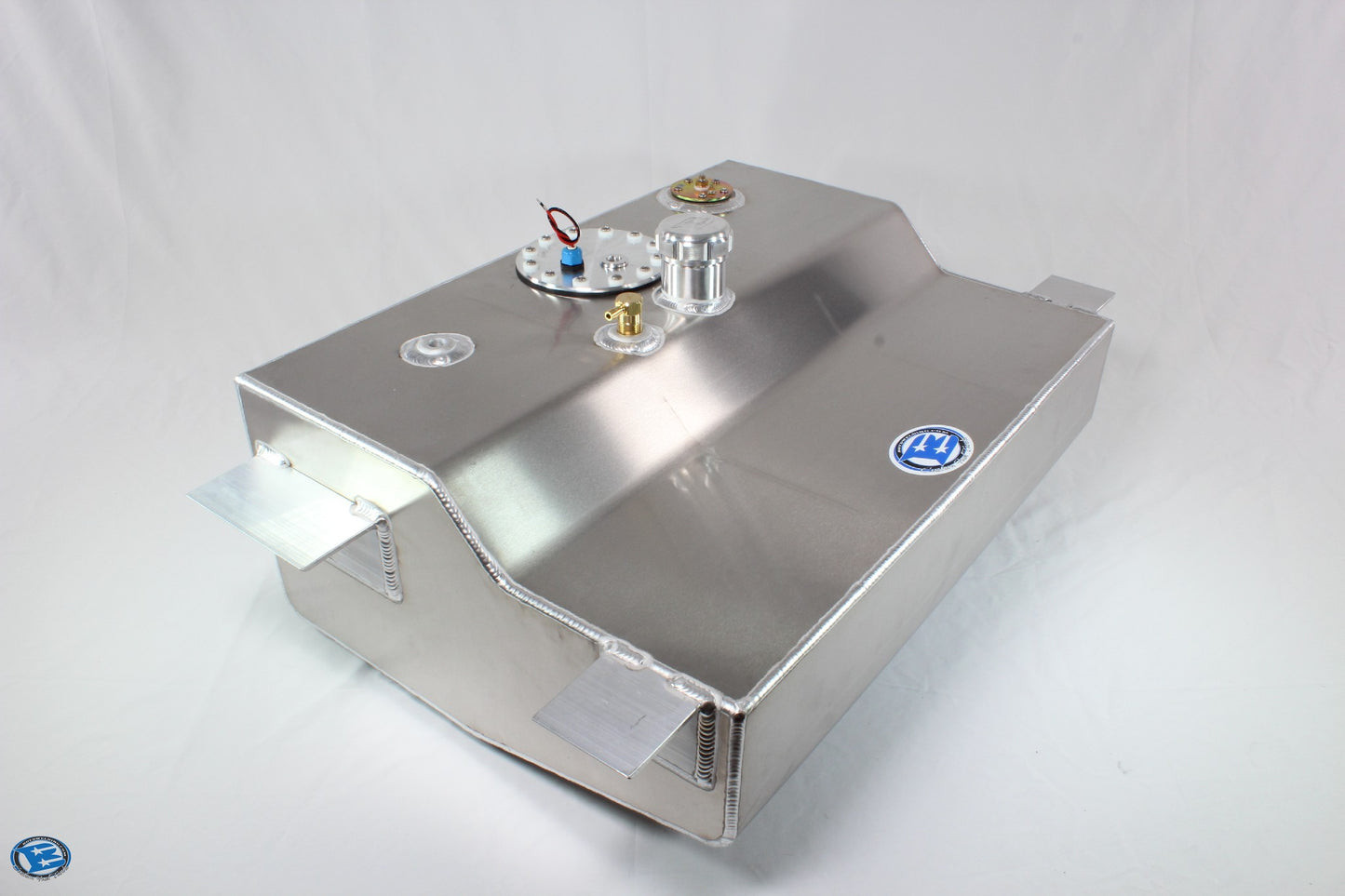

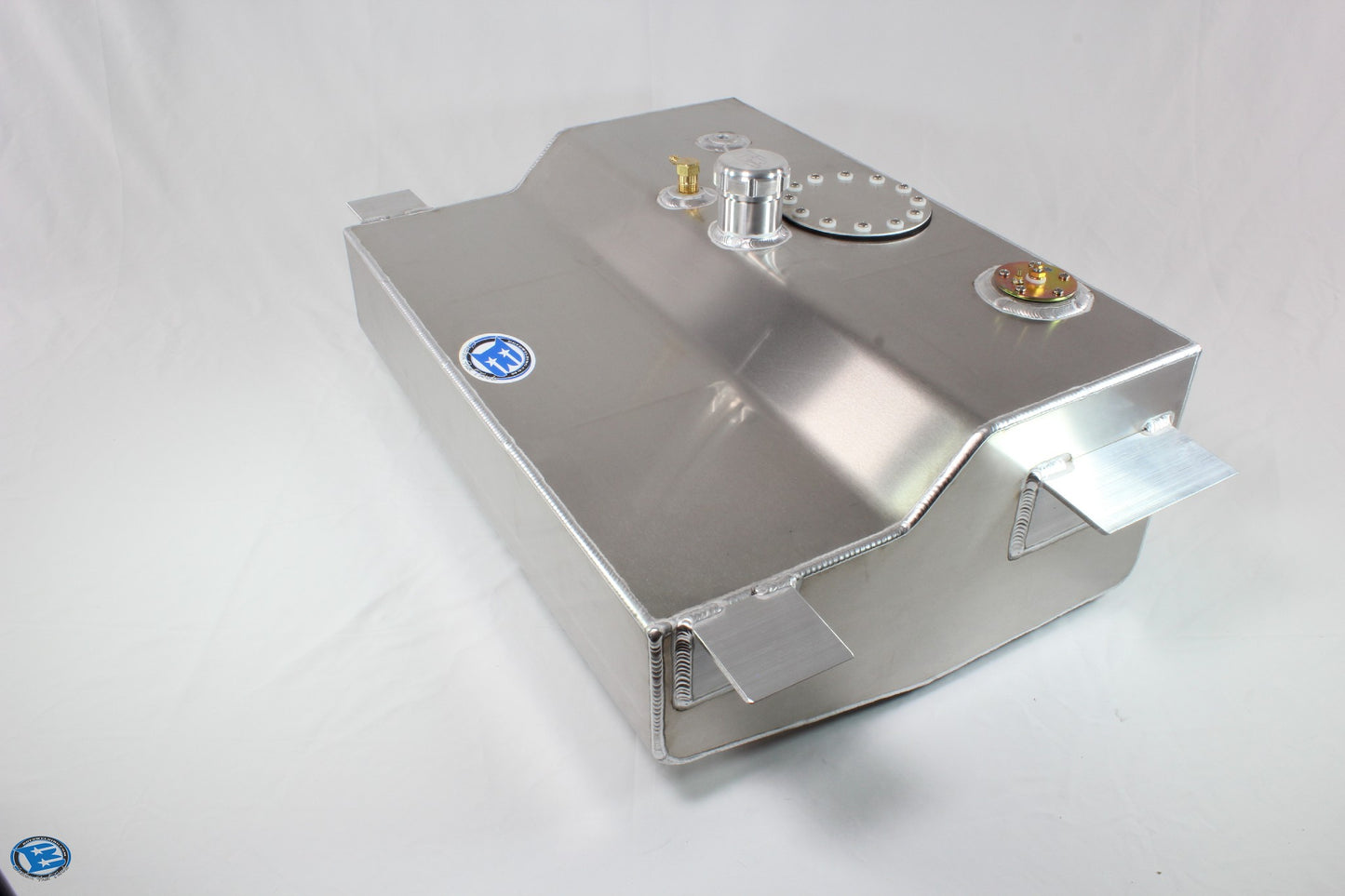

1955–1959 Chevrolet Truck Rear Mount Aluminum Fuel Tank

A Better Tank for Your Task Force Truck

An original 1955–59 Chevy truck tank is more than 65 years old. This rear-mount aluminum tank replaces it with a baffled tank that's ready for a carburetor today and an in-tank EFI pump later.

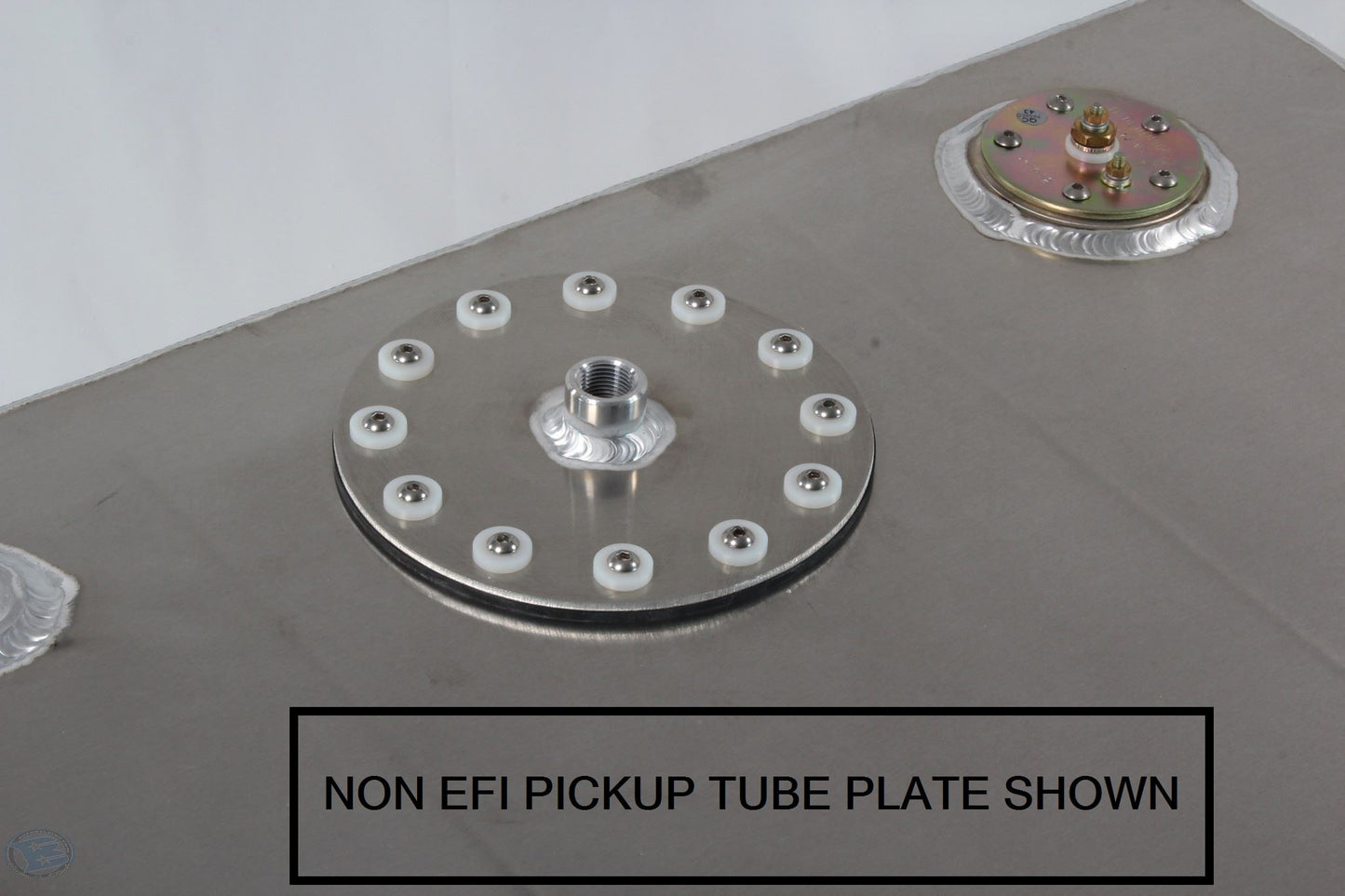

Product #14026 is one tank for EFI or NON EFI. Pick no pump for the 3/8" NPT pickup tube plate, or have us install a Boyd #41001 Stealth 340 assembly or an Aeromotive Phantom or A1000 pump. All of them fit this tank.

Specifications | Tank Options | Included | Not Included | FAQ

Built in Ocala, FL: Specifications

  • Product number: 14026
  • Fits: 1955–1959 Chevrolet truck
  • Capacity: Approximately 16 gallons
  • Body: 28" L x 20" W x 10" H
  • Mounting tabs: 3" on both sides
  • Hangs below frame: About 8"
  • Material: 0.125" 5052 aluminum, mill finish
  • Weight: Approximately 30 lb dry
  • Baffles: 3: two main baffles and a middle baffle around the pump area
  • Fill: 2" bed fill with non-vented threaded cap, 3" tall; center fill only, on the truck centerline
  • Tank vent: 1/2" NPT
  • Return: 3/8" NPT
  • Sending unit: Flange included
  • Fuel outlet: NON EFI: 3/8" NPT pickup tube in plate. EFI: #6 ORB with the Boyd #41001 Stealth 340 assembly, or #10 ORB with the optional A1000 pump (2021 revision; legacy tanks have a 3/8" NPT bottom fitting for the pickup)
  • Pump provision: Boyd 12-bolt EFI pattern, same tank for EFI or NON EFI
  • Drain: None
  • Pressure test: 5–8 psi
  • Fuels: Gasoline or diesel
  • Warranty: 2-year limited structural
  • Returns: 30 days
  • Lead times are shown under Availability on each product page.

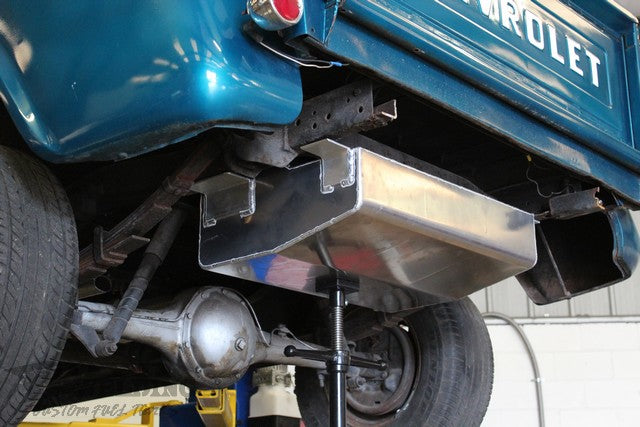

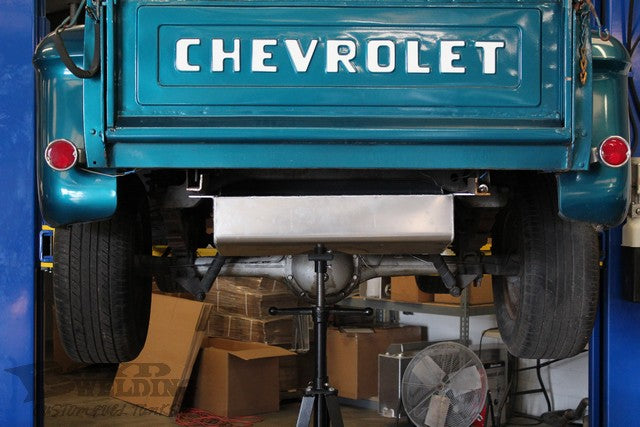

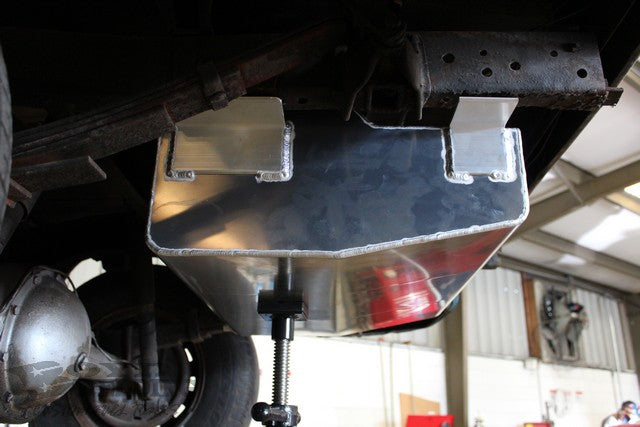

How It Fits Your Truck

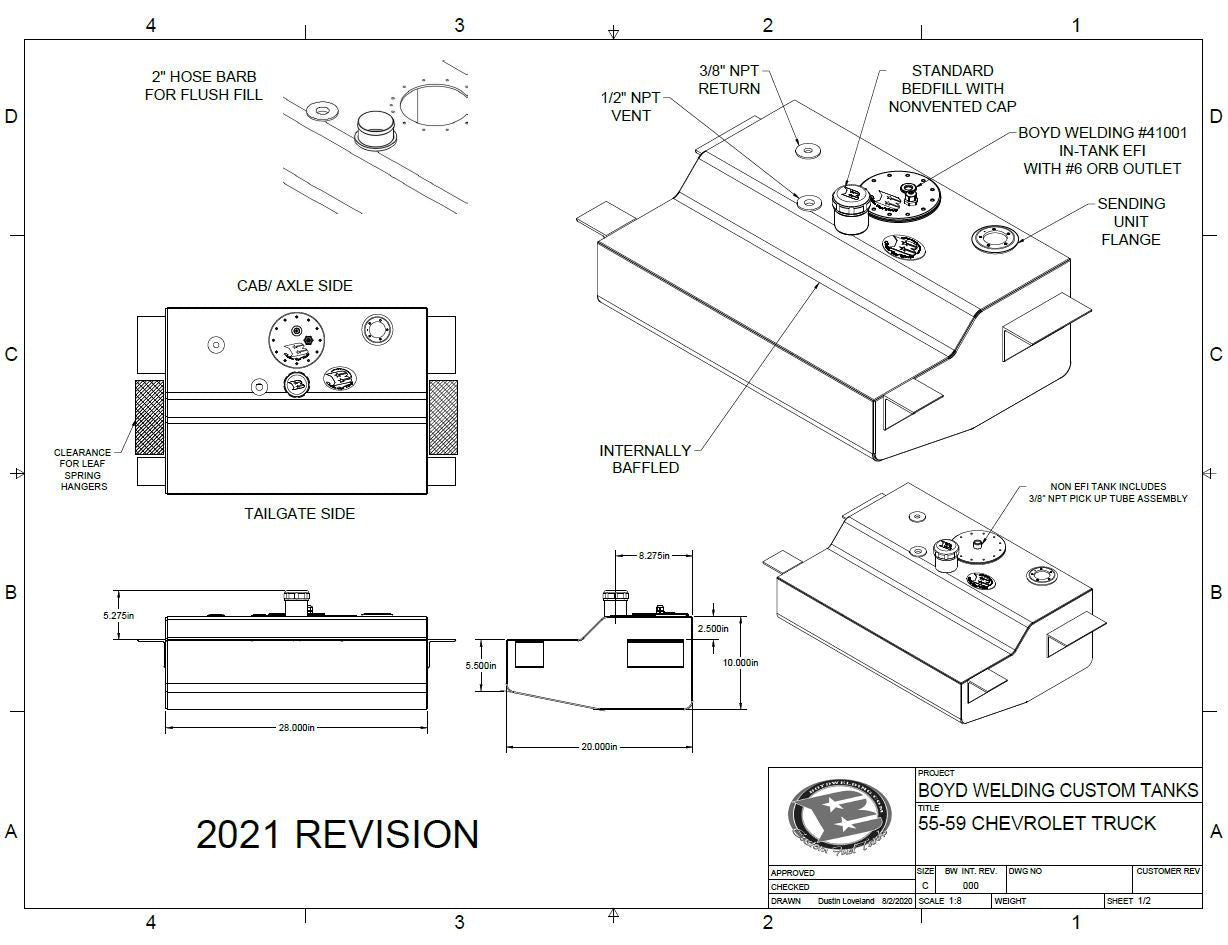

Measure your truck before ordering. The tank mounts at the rear of the truck. The reference drawing marks the cab/axle side and the tailgate side and shows the clearance for the leaf spring hangers. We don't offer a mounting kit for this tank, so supply your own hardware or fabricate your own mounting.

Center fill only. The fill sits on the centerline of the truck and may require cutting or trimming the bed strip (wood or metal) for clearance. The standard cap stops just below the bed floor, so you'll need an access door, or add the flush floor fill kit.

See the 55–59 Chevy truck tank installation and setup guide before you start.

Choose Your Fuel System: Tank Options

Photos show the rollover safety vent and sending unit options installed.

In-Tank Pump Options (the tank is the same for EFI or NON EFI)

The Aeromotive 340 isn't internally regulated, so a fuel pressure regulator and a return line are required.

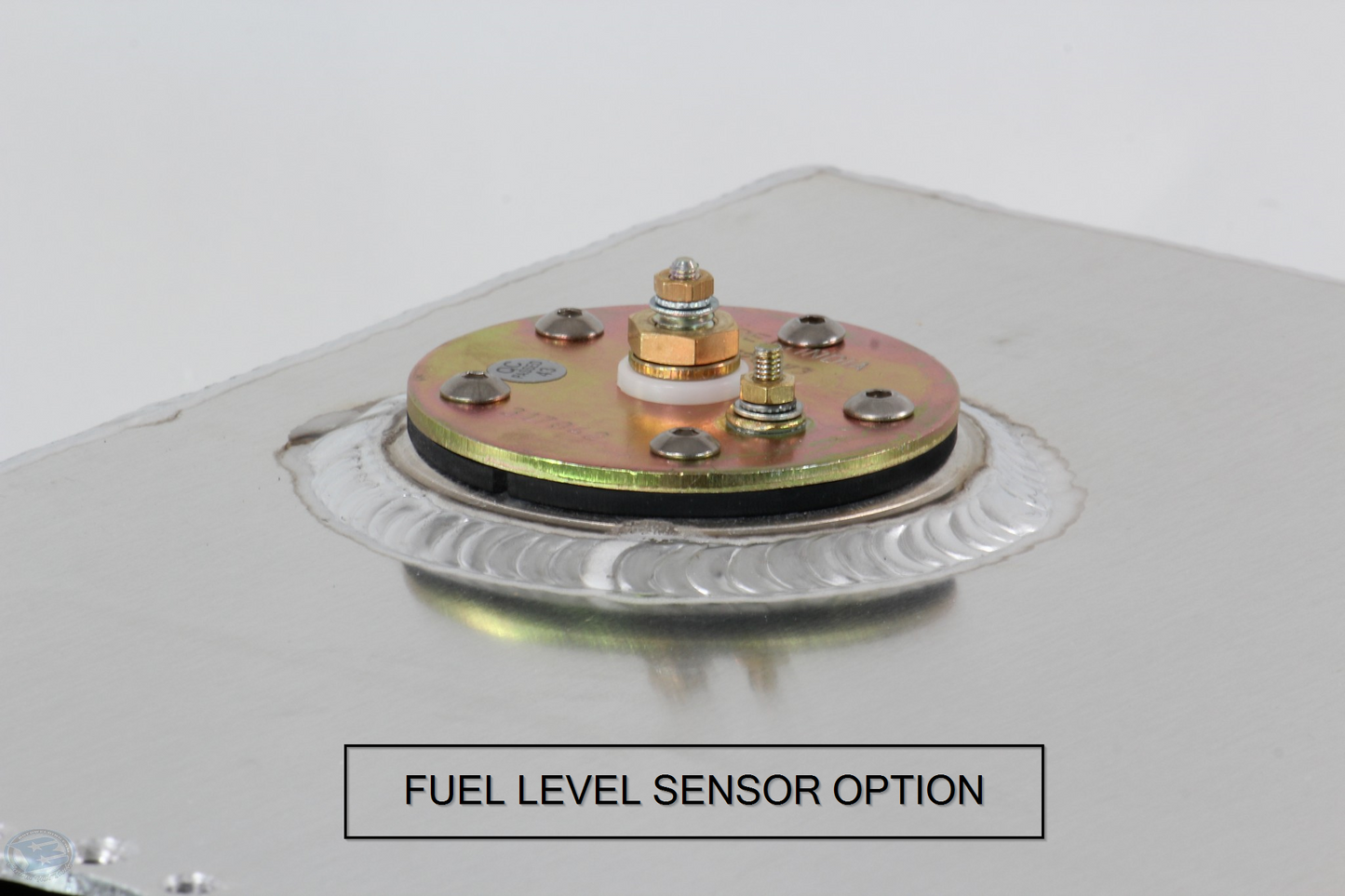

Fuel Level Sensor Option (a sensor or block-off must be installed to use the tank)

  • No Sensor - Flange only - I have my own sensor (choose this for the 0-30 ohm stock-gauge sender)

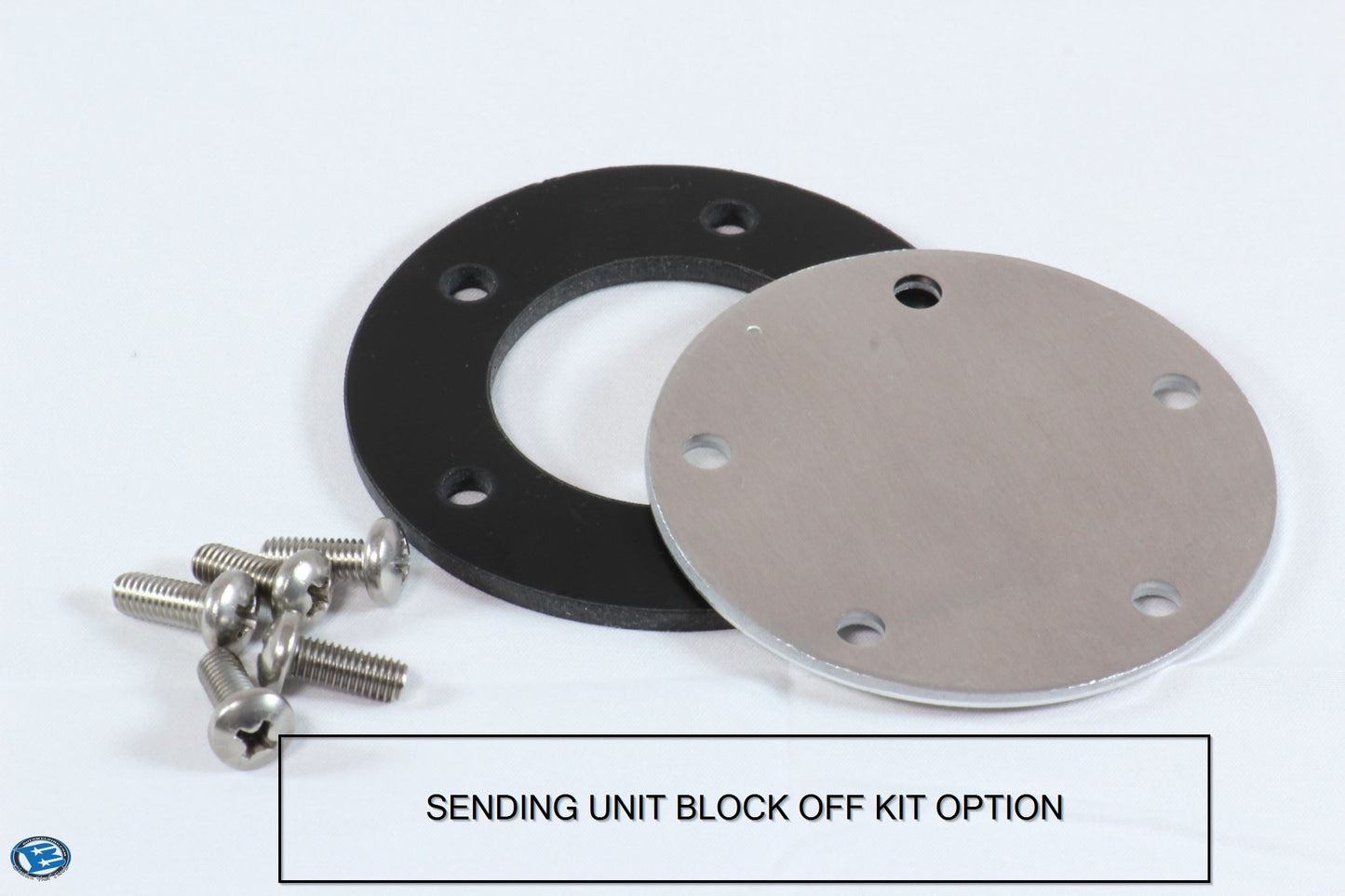

  • Install #33004 Sending Unit Flange Blockoff Kit
  • Install 0-90 OHM Sensor
  • Install 240-33 OHM Sensor

Flush Bed Floor Fill Option

  • No Thanks
  • Add Boyd #27042 Flush Mount Bed Floor Kit (mounts in the bed floor and connects to the tank with the supplied hose)
  • No Floor Fill Kit - 2in OD Barb only

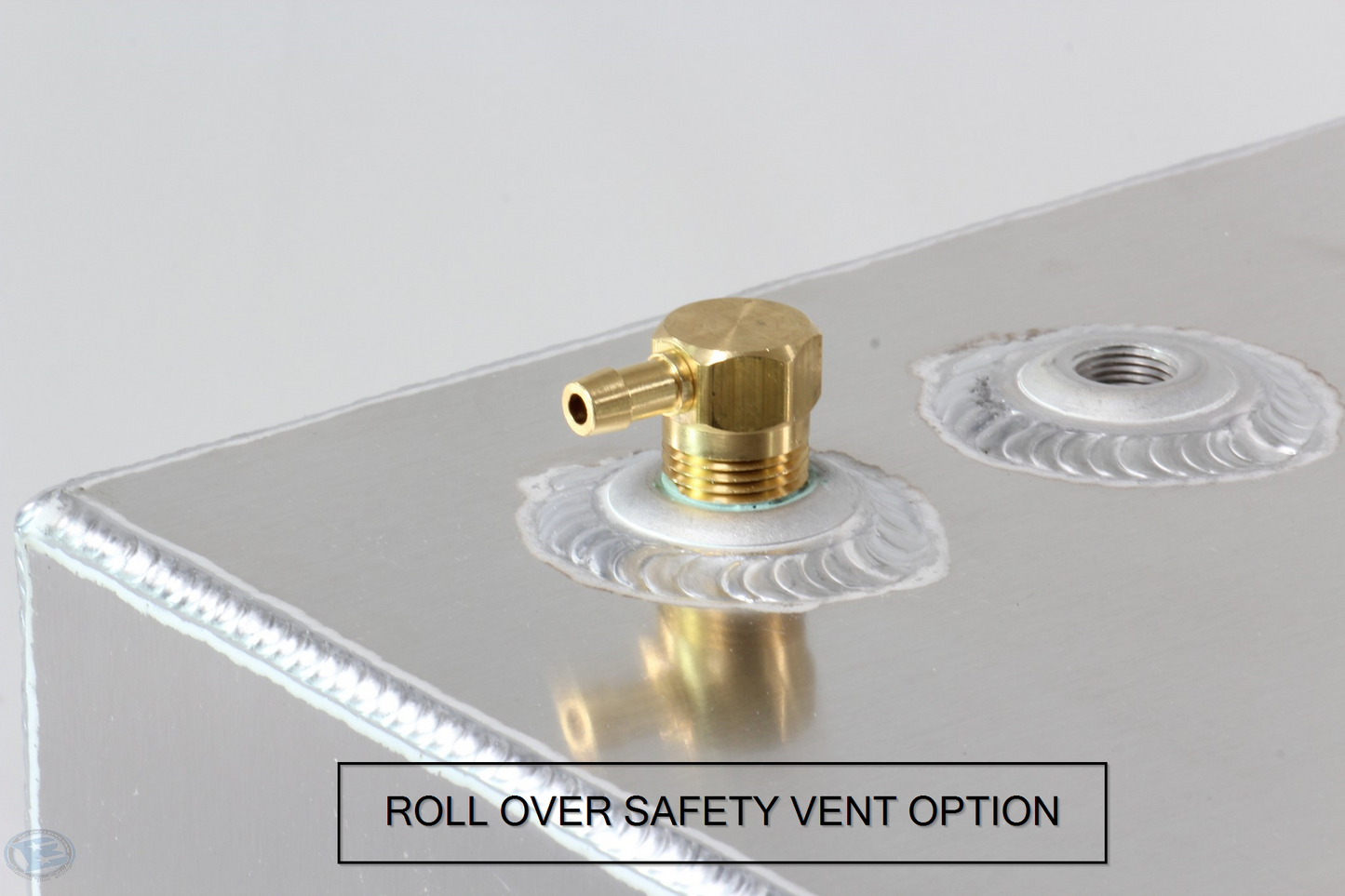

Rollover Safety Vent Option (either way, plumb the vent to a vapor canister or filter)

  • No Rollover Vent Installed- Tank Bung Only
  • Install #32001 Rollover Vent

What's in the Box

  • Tank with the centerline bed fill and sending unit flange
  • 3/8" NPT pickup tube plate (no pump) or your chosen pump assembly, installed
  • Any other options you select

What You'll Still Need

  • Fuel pump (no-pump tank), or a fuel pressure regulator (EFI)
  • Feed line, plus a return line if used, and fittings
  • Pump wiring and relay (EFI)
  • Vent hose to a vapor canister or filter
  • Level sensor or block-off, unless selected
  • Mounting hardware
  • Thread sealant rated for fuel

Installing It Right

  • This tank has no drain. The thread care below applies to the vent, return, outlet and sending unit fittings.
  • Plumb the 1/2" NPT tank vent with hose to a vapor canister or filter, with or without the rollover vent. Never block off a tank vent port.
  • Install a sensor or the block-off kit before adding fuel.
  • Aluminum threads cross-thread and gall easily. Start every plug and fitting by hand and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.

Keep the rear crossmember. On 1955-1987 Chevrolet C10 tanks, removing the rear crossmember for a Panhard bar suspension can crack the tank at the mounts, and that damage is not covered by our two-year limited structural warranty. If your suspension kit calls for removing it, ensure to replace it. Read the full note

Frequently Asked Questions

Which fuel level sensor should I choose?
Stock 1955–59 Chevy truck gauges use a 0-30 ohm sensor. We don't currently offer 0-30 ohm, so we recommend the Classic Instruments #SN36 sender, which is easy to install yourself; choose "No Sensor - Flange only." With aftermarket digital gauges the ohm range matters less; follow the gauge maker's instructions, and if in doubt choose 0-90 ohm. Sensors we don't list are available from Auto Meter, Classic Instruments, VDO, Holley and others.

Do I need a mounting kit?
We only offer a mounting kit for 63–72 C10 trucks. For this tank, supply your own hardware or fabricate your own mounting.

Where is the bed fill, and can it be moved?
The fill is center only, on the centerline of the truck. Depending on your bed, you may need to cut or trim the bed strip (wood or metal) for clearance. We don't offer this tank with any other fill position.

What's the difference between the bed fill and the flush floor fill?
The standard threaded cap and neck stand about 3" tall and stop just below the bed floor, so you'll need an access door to reach the cap. With the floor fill option, the tank gets a 2" hose barb and the flush fill kit mounts in the bed floor, connecting to the tank with the supplied rubber hose and clamp.

Can I run a carburetor with this tank?
Yes. The tank is the same for EFI or NON EFI. Choose no pump and you get the 3/8" NPT pickup tube plate, unless you plan to run an in-tank pump with a carb bypass regulator.

If I buy it without a pump, can I upgrade later?
Yes. Every tank has the same EFI baffling and provision, so you can add our Boyd #41001 in-tank pump assembly any time.

Do the Aeromotive Phantom pumps fit this tank?
Yes. The Aeromotive #18688 Single 340 Phantom, #18309 Dual 340 Phantom and #18310 Phantom Flex 450 all fit this tank, and we install them for you.

How far below the frame does the tank hang?
About 8".

Which fuels can I use?
Gasoline or diesel.

Does the tank have a drain?
No. This tank has no drain.

How much does the tank weigh?
Approximately 30 lb dry.

Is the tank pressure tested?
Yes, at 5–8 psi.

Is shipping free?
Yes, on orders over $100 to the lower 48 states.

Drawings and Install Guide
