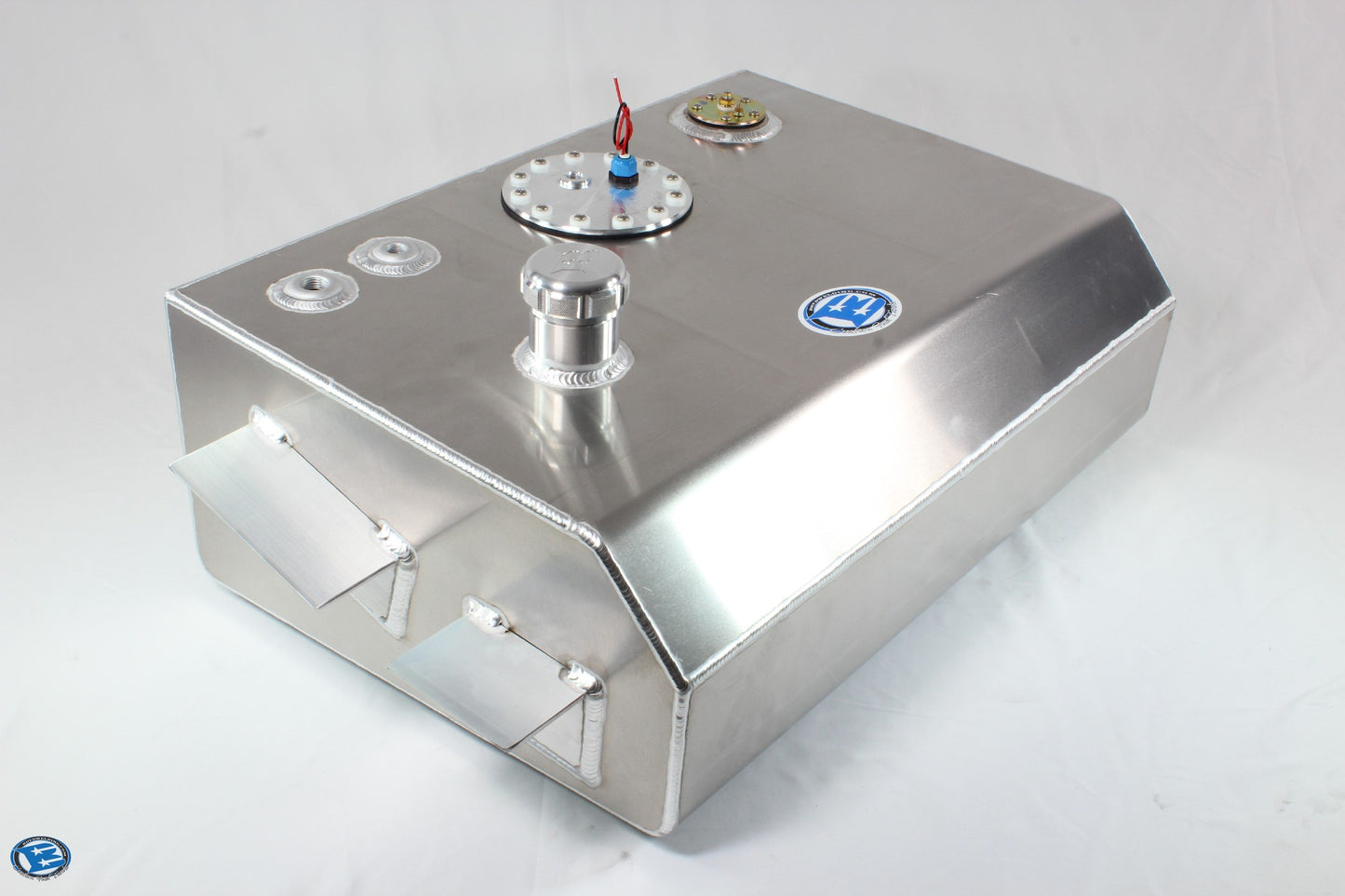

73-87 C10 Bed Fill EFI Aluminum Tank W Aeromotive 340 In tank pump

73-87 C10 Bed Fill EFI Aluminum Tank W Aeromotive 340 In tank pump

Availability : Ships in 1-2 weeks or Less

SKU:14040

Regular price $864.00
Regular price Sale price $864.00
Sale Sold out
Shipping calculated at checkout.
Quantity

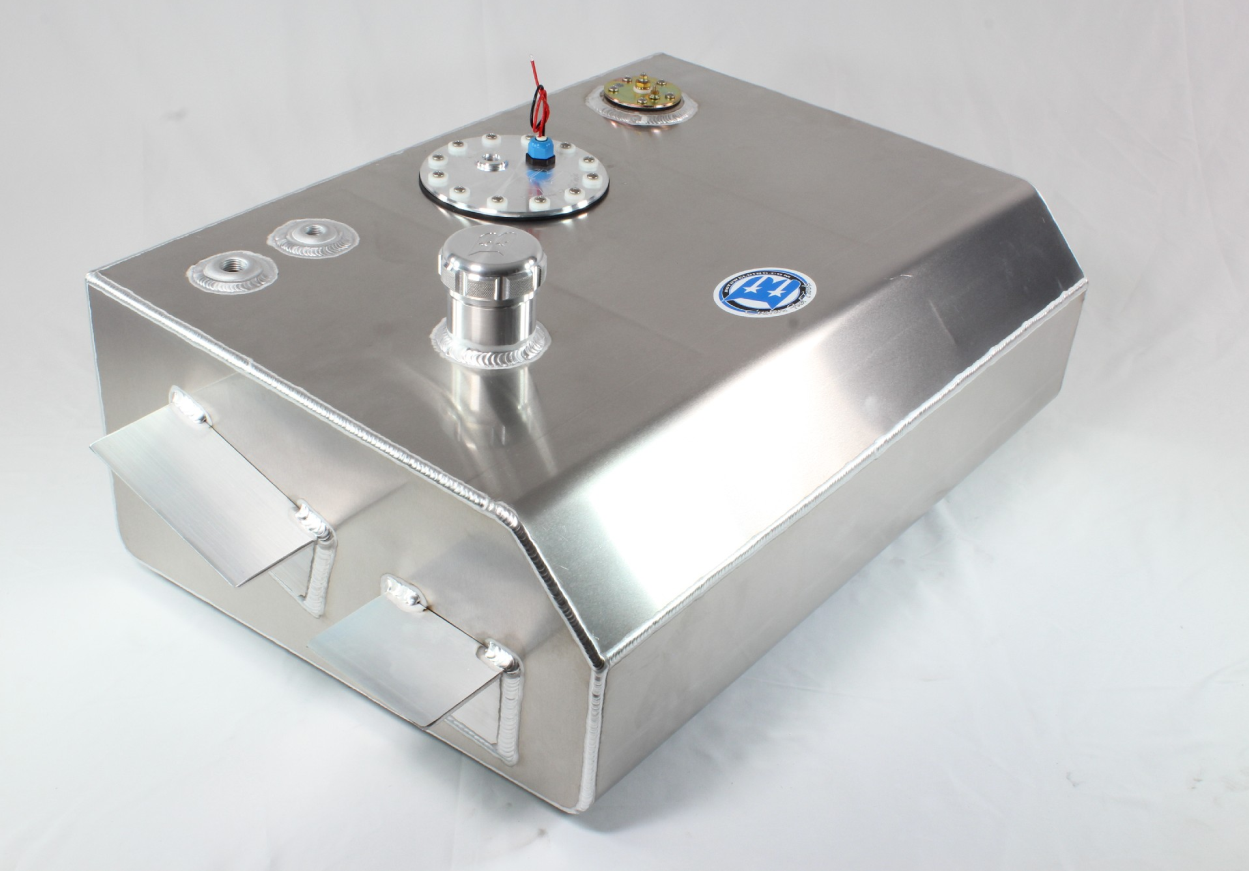

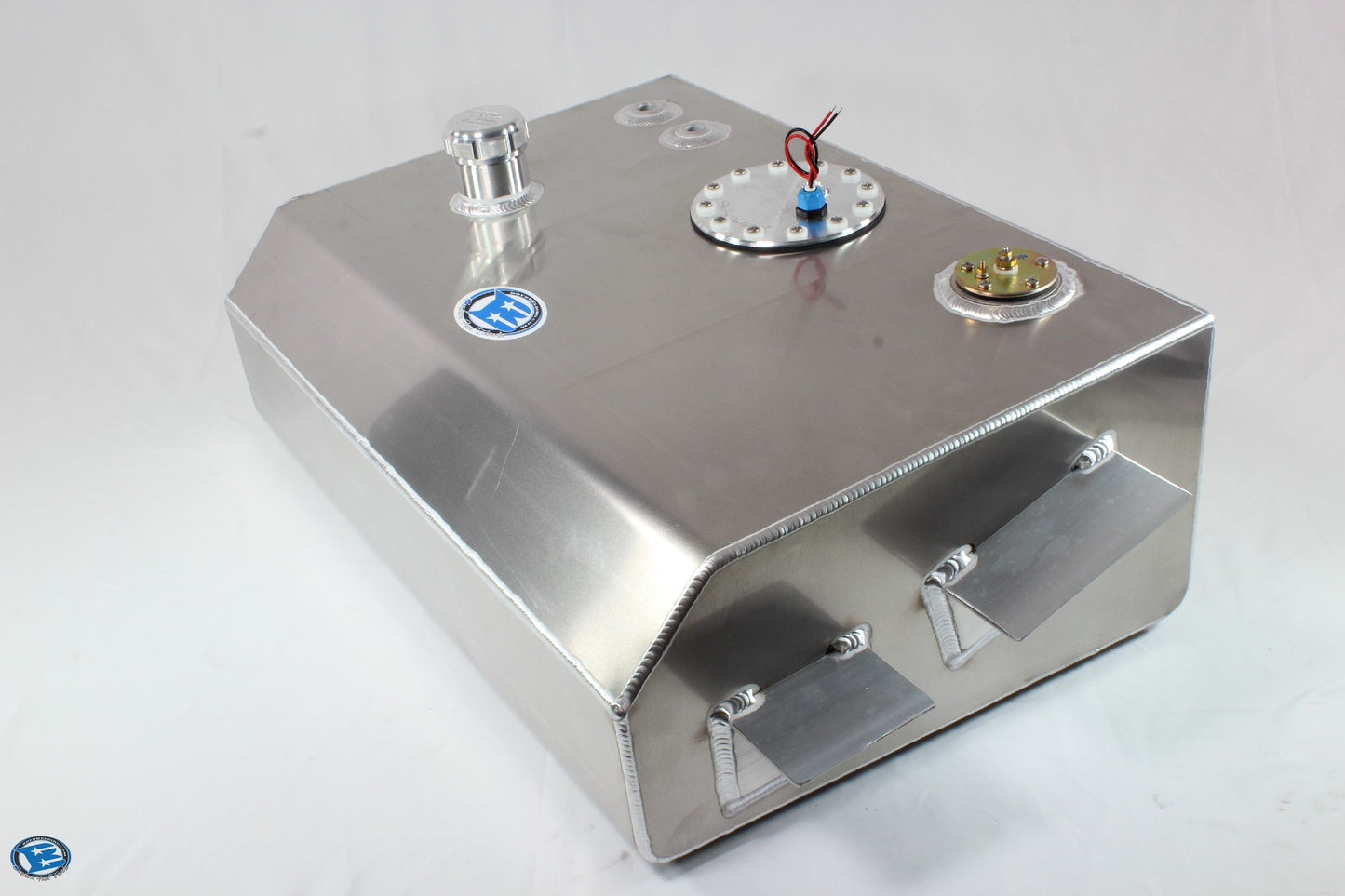

1973–1987 Chevy C10 Bed Fill EFI Aluminum Fuel Tank with Aeromotive Stealth 340 In-Tank Pump

A Better Tank for Your Square Body C10

An original 1973–87 C10 tank is more than 35 years old and wasn't built for fuel injection. This aluminum tank mounts to the bottom of the frame rails with no cutting of the frame or bed crossmembers.

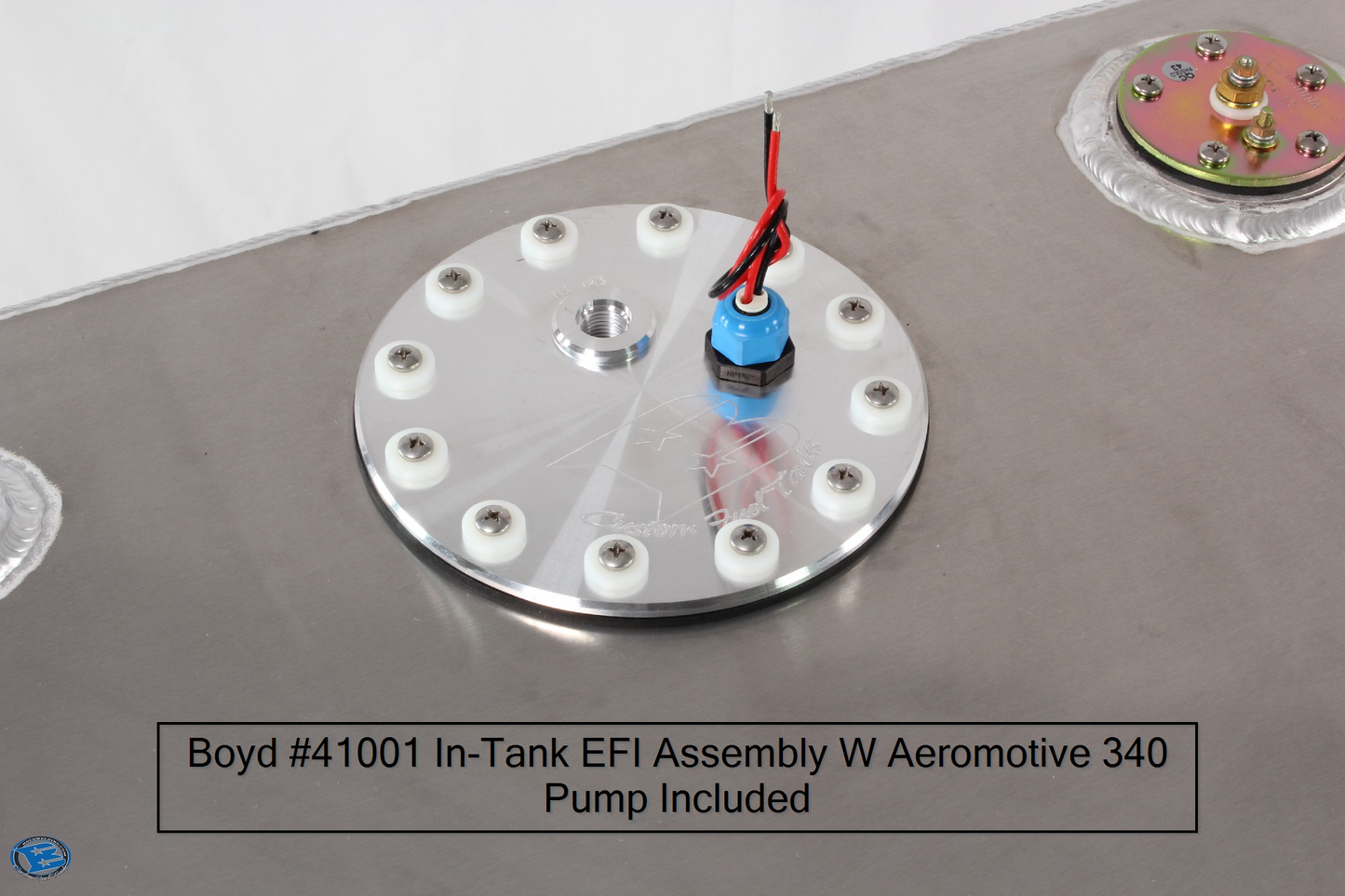

Product #14040 comes with the Aeromotive Stealth 340 in-tank pump installed on our fabricated aluminum bracket.

Specifications | Tank Options | Included | Not Included | FAQ

Built in Ocala, FL: Specifications

  • Product number: 14040
  • Fits: 1973–1987 Chevy C10
  • Capacity: Approximately 19 gallons
  • Body: 26.5" L x 19" W x 10", tapering to 8"
  • Mounting tabs: 3" on both sides
  • Material: 0.125" aluminum
  • Baffles: 3: two main baffles and a middle baffle around the pump area
  • Fill: 2" bed fill with non-vented threaded cap, 3" tall; 7.75" from center toward the driver side (center optional)
  • Tank vent: 1/2" NPT
  • Return: 3/8" NPT
  • Sending unit: Flange included
  • Pump: Aeromotive Stealth 340 in-tank pump on our fabricated aluminum bracket; #6 ORB outlet
  • Hangs below frame: About 7" near the axle and 5" near the bumper
  • Warranty: 2-year limited structural
  • Lead times are shown under Availability on each product page.

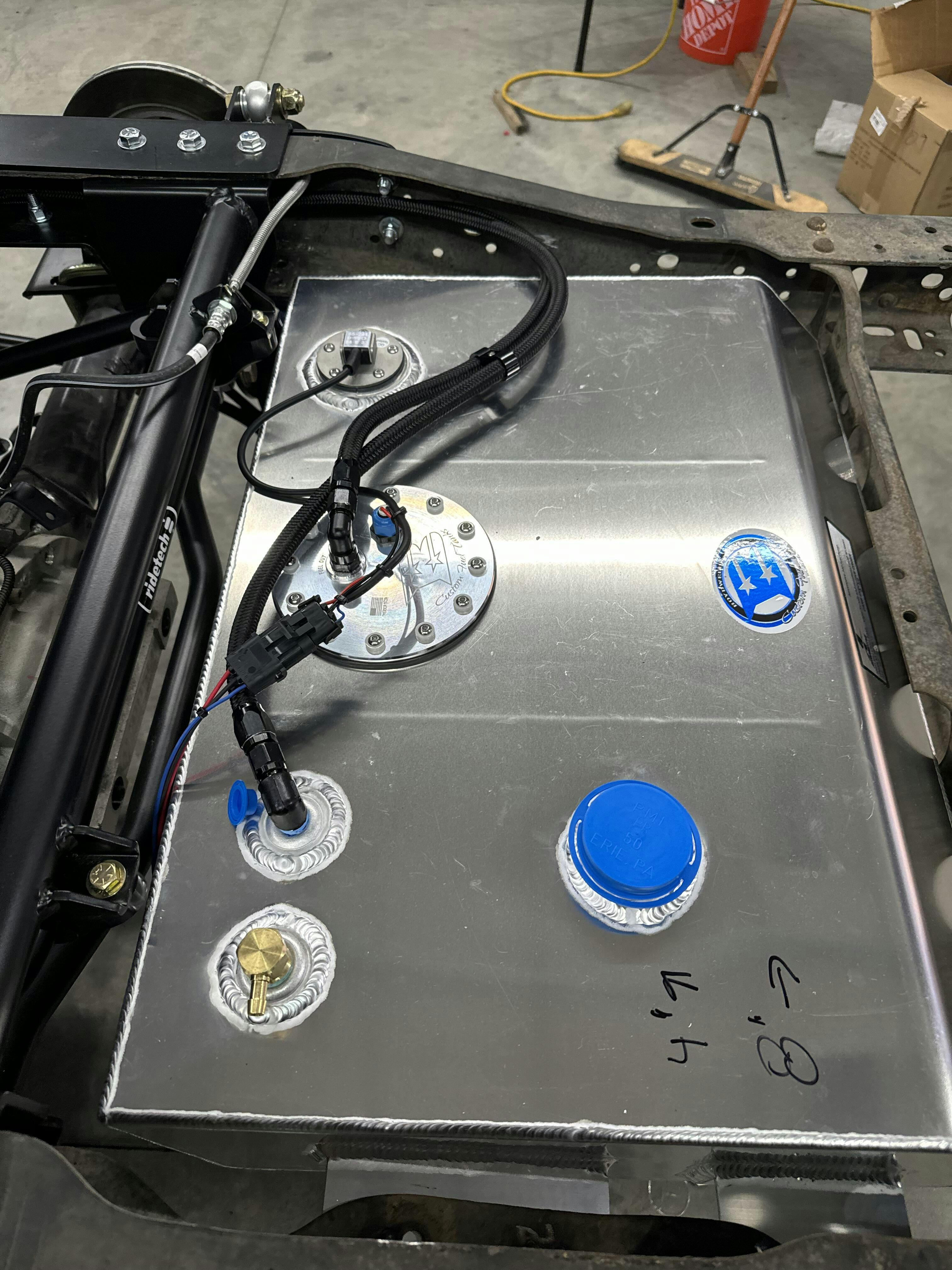

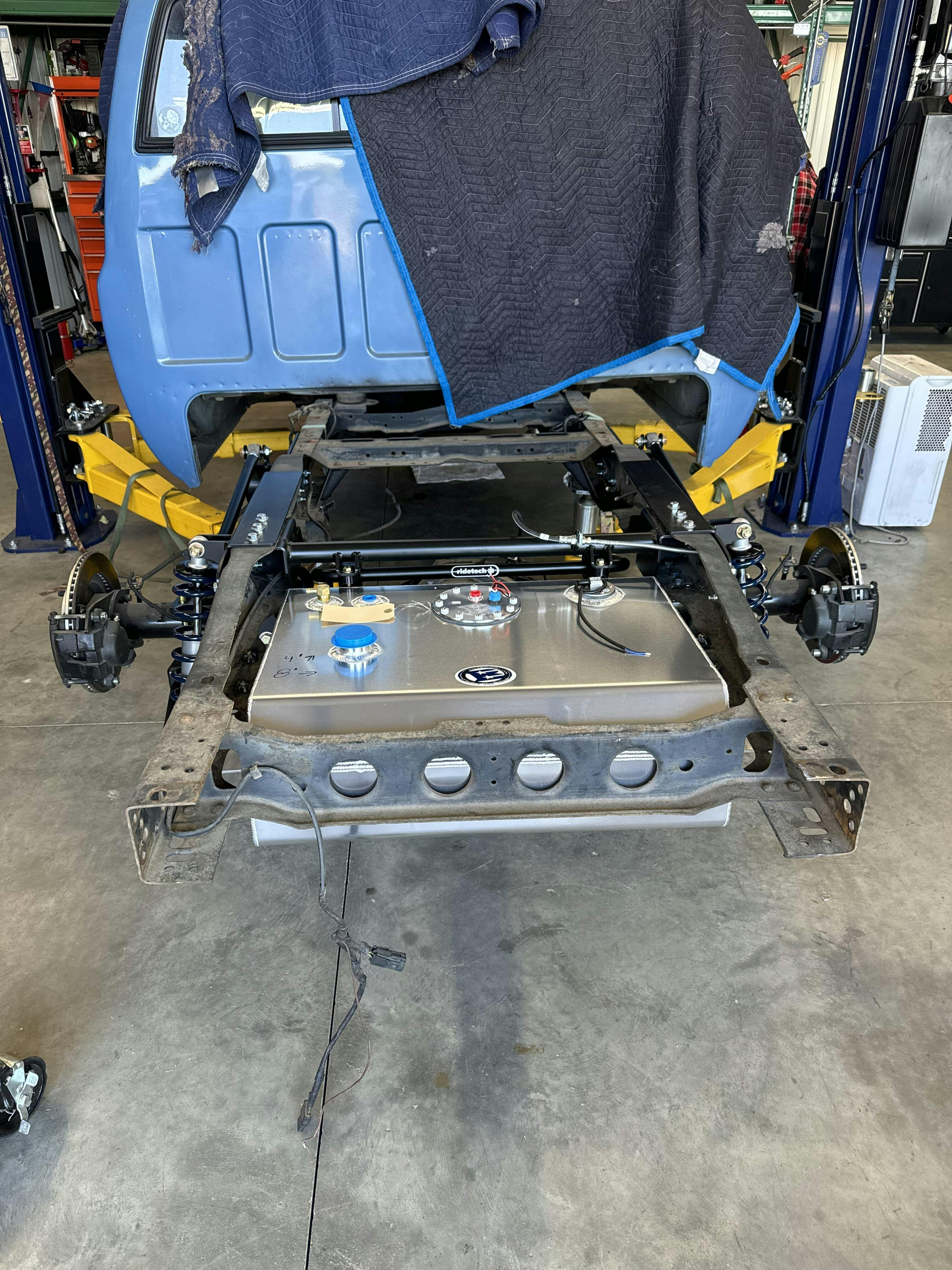

How It Fits Your Square Body

Measure your truck before ordering. The tank mounts to the bottom of the frame rails on its 3" tabs. We don't offer a 73–87 mounting kit, so supply your own hardware or fabricate your own mounting.

The standard cap sits just below the bed floor, so you'll need an access door, or add the flush floor fill kit. The 7.75" driver-side offset lands on the largest board of a wood floor.

Choose Your Fill and Fuel System: Tank Options

The Aeromotive 340 isn't internally regulated, so a fuel pressure regulator and a return line are required.

Bed Fill Position

  • No Change - Standard D-Side Position
  • Center Fill Position (requires modifying the center bed strip on a wood floor)

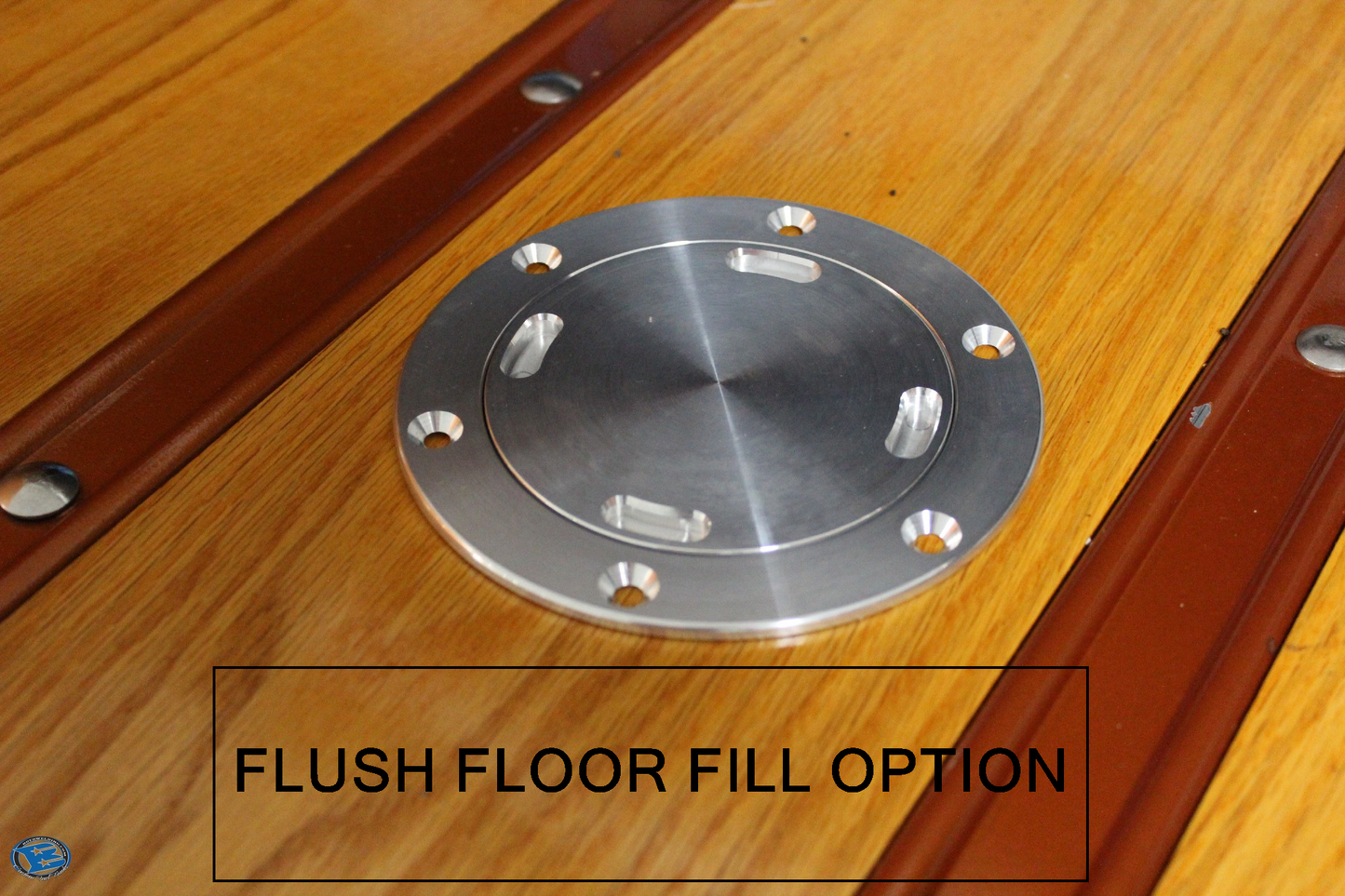

Flush Bed Floor Fill Option

  • No Thanks- Standard Bed Fill Cap and neck is fine.
  • Add Boyd #27042 Flush Mount Bed Floor Kit (mounts in the bed floor and connects to the tank with the supplied hose)
  • No Floor Fill Kit - 2in barb only

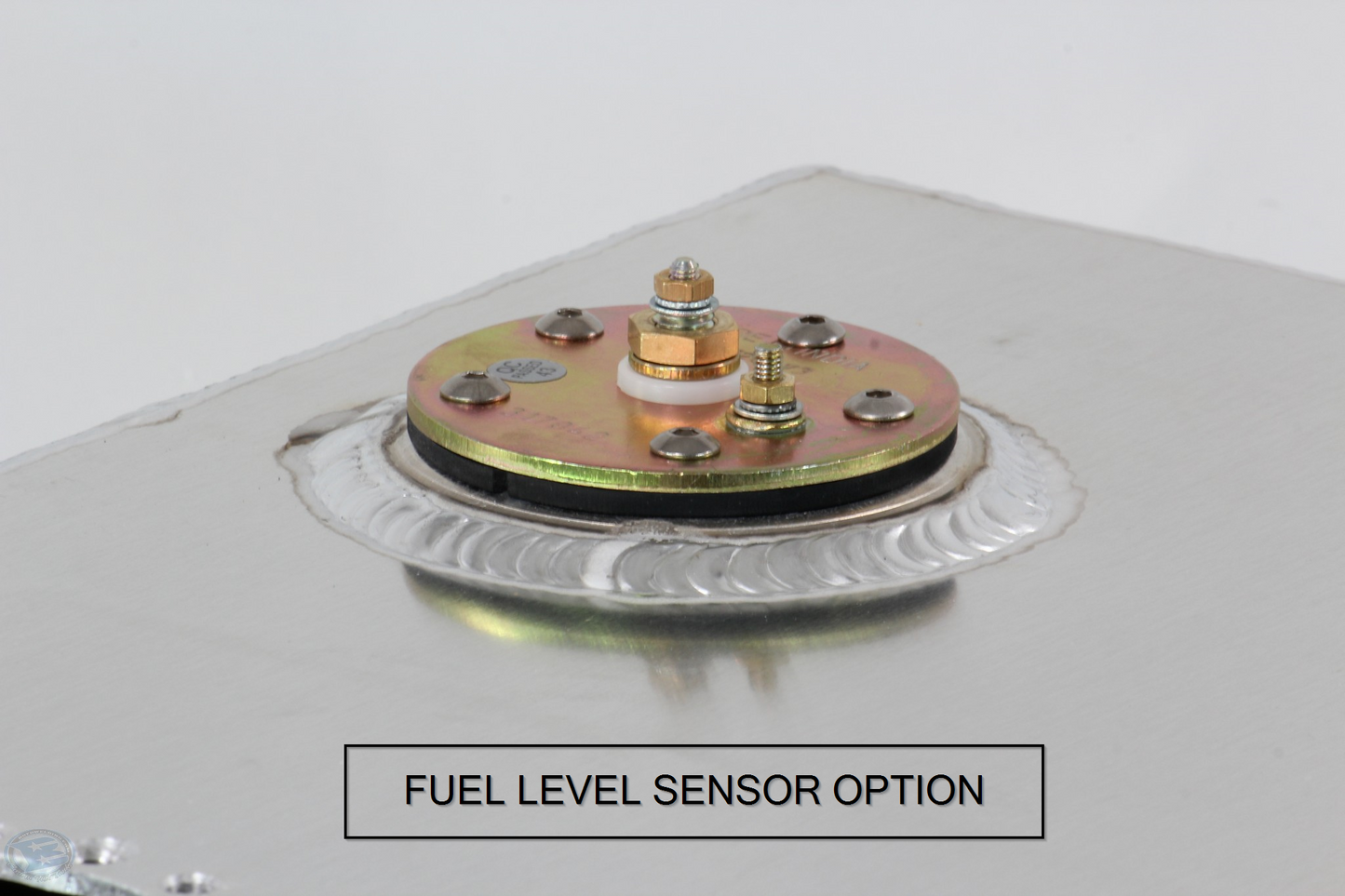

Fuel Level Sensor Option (a sensor or block-off must be installed to use the tank)

  • No Sensor - Flange only - I have my own sensor
  • Install #33004 Sending Unit Flange Blockoff Kit
  • Install 0-90 OHM Sensor (stock 1967–87 C10 gauges)
  • Install 240-33 OHM Sensor

Gauge reading wrong? See our Fuel Level Sensor Troubleshooting Guide.

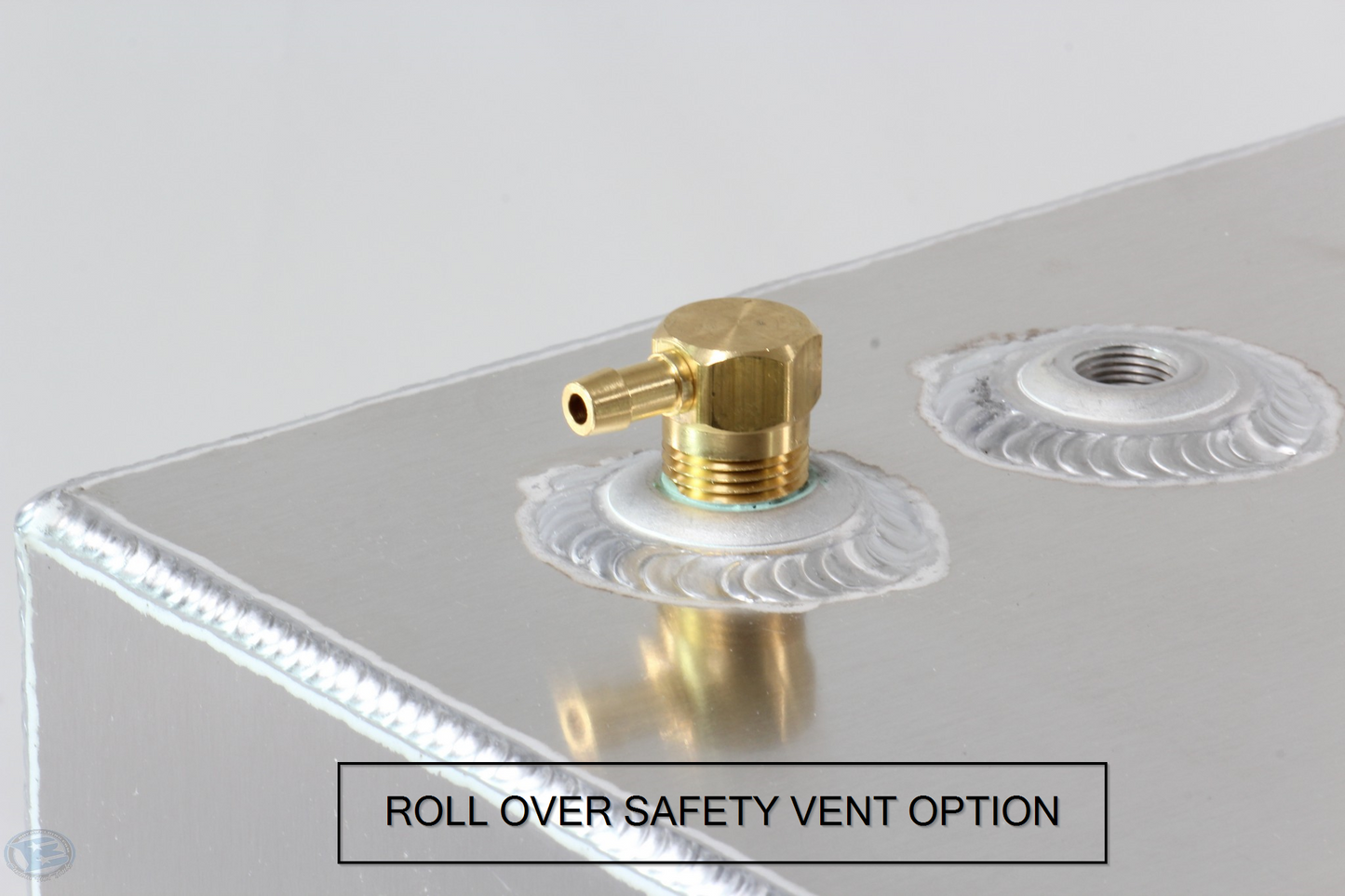

Rollover Safety Vent Option (either way, plumb the vent to a vapor canister or filter)

  • No Rollover Vent Installed- Tank Bung Only
  • Install #32001 Rollover Vent

What's in the Box

  • Tank with your chosen fill and sending unit flange
  • Aeromotive Stealth 340 on our fabricated aluminum bracket, installed
  • Any other options you select

What You'll Still Need

  • Fuel pressure regulator
  • Feed and return lines, fittings, pump wiring and relay
  • Vent hose to a vapor canister or filter
  • Level sensor or block-off, unless selected
  • Mounting hardware
  • Thread sealant rated for fuel

Installing It Right

  • Plumb the 1/2" NPT tank vent with hose to a vapor canister or filter, with or without the rollover vent. Never block off a tank vent port.
  • Install a sensor or the block-off kit before adding fuel.
  • Aluminum threads cross-thread and gall easily. Start every plug and fitting by hand and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.

Keep the rear crossmember. On 1955-1987 Chevrolet C10 tanks, removing the rear crossmember for a Panhard bar suspension can crack the tank at the mounts, and that damage is not covered by our two-year limited structural warranty. If your suspension kit calls for removing it, ensure to replace it. Read the full note

Frequently Asked Questions

Which fuel level sensor should I choose?
For 1967–87 C10 trucks with stock gauges, choose 0-90 ohm. With aftermarket digital gauges the ohm range matters less; follow the gauge maker's instructions. If in doubt, choose 0-90 ohm. Sensors we don't list are available from Auto Meter, Classic Instruments, VDO, Holley and others.

If I don't choose a sensor, do I still get the flange?
Yes. Every C10 tank has the sending unit flange. To use the tank before you pick a sensor, install a block-off kit with gasket.

Do I need a mounting kit?
We only offer a mounting kit for 63–72 C10 trucks. For the 73–87 tank, supply your own hardware or fabricate your own mounting.

Why is the bed fill offset instead of centered?
The neck sits 7.75" from center toward the driver side so it lands in the center of the largest board on a wood floor. Center fill is available, but a stock wood floor has a metal strip at center, so the bed floor needs modification.

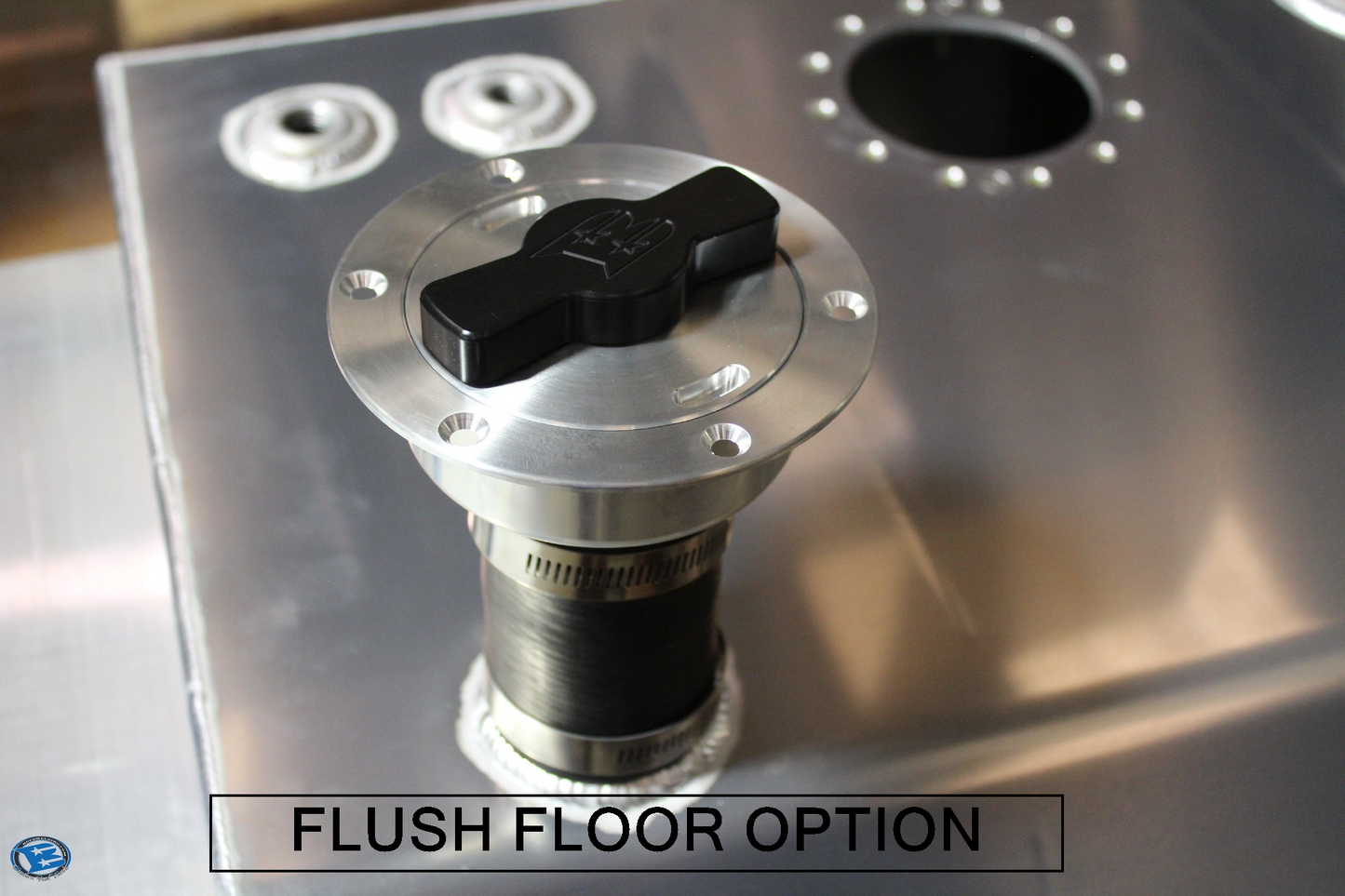

What's the difference between the bed fill and the flush floor fill?
The standard threaded cap and neck stand about 3" tall and stop just below the bed floor, so you'll need an access door to reach the cap. With the floor fill option, the tank gets a 2" hose barb and the flush fill kit mounts in the bed floor, connecting to the tank with the supplied rubber hose and clamp.

How far below the frame does the tank hang?
About 7" at the deepest point near the axle and 5" closest to the bumper.

Is the tank baffled?
Yes. Every tank is built as an EFI tank, with 2 main baffles and a middle baffle around the pump area.

What is a -6 ORB outlet?
Our EFI assemblies use an O-ring boss outlet because of the pressure. -6 ORB is the female equivalent of a standard -6 AN fitting, sometimes called 9/16-18 for its thread. Use whichever -6 ORB fitting suits your plumbing.

What pressure does the Aeromotive 340 run at?
It's proven at 58–60 psi for mid-range LS swaps. It isn't internally regulated, so you need a regulator and a return: either an inline regulator returning to the tank, or a regulator in the fuel rails returning to the tank.

Can I get this bracket with a different pump?
No. We don't offer this bracket with other pumps. For larger pumps, see the 73–87 Choose Your Own Aeromotive Pump tank.

Is shipping free?
Yes, on orders over $100 to the lower 48 states.

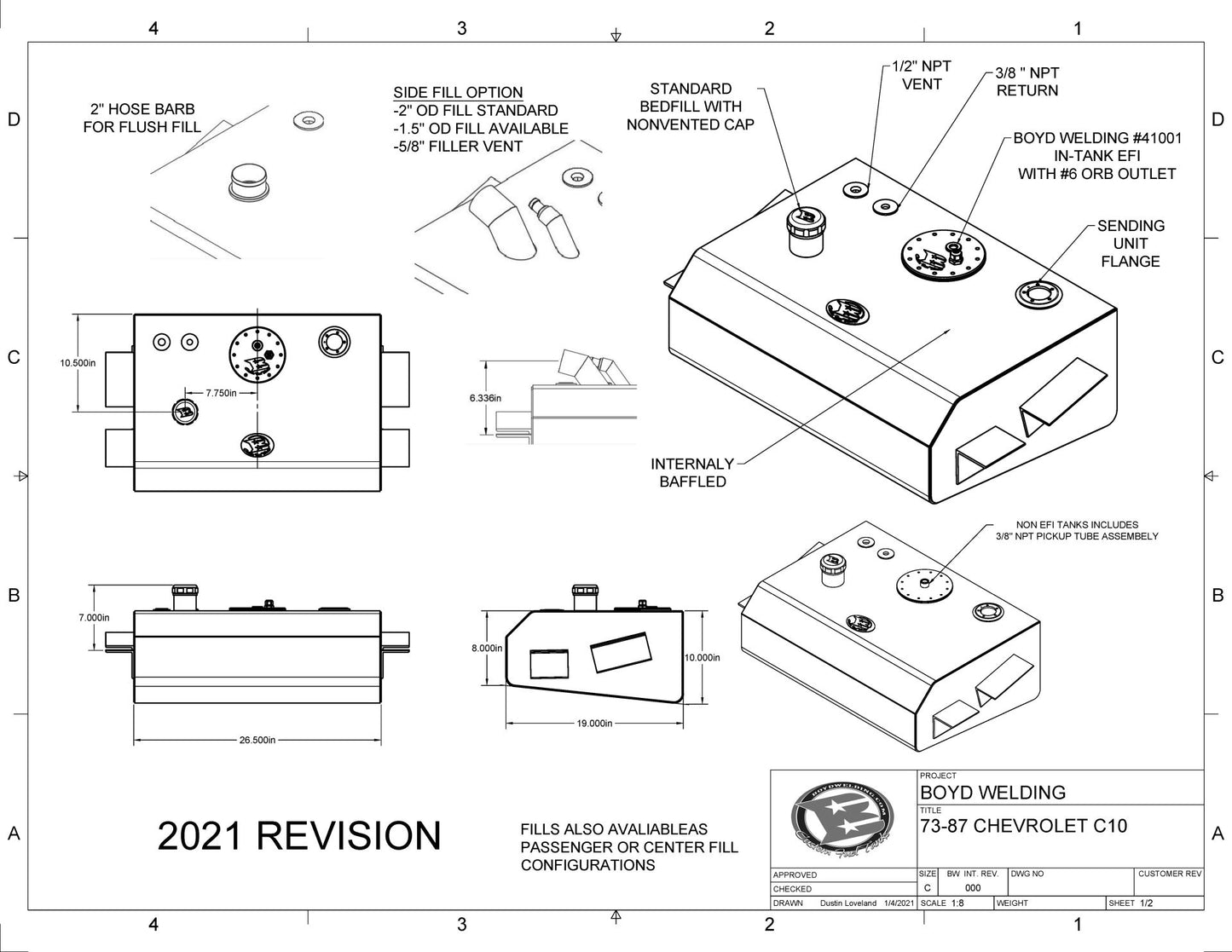

Drawings and Install Guide
