Boyd 63-72 C10 Tank Choose Aeromotive Pump From Selection
Boyd 63-72 C10 Tank Choose Aeromotive Pump From Selection
Availibilty : Ships in 2-4 Weeks or Less
SKU:14017-NP
Couldn't load pickup availability
WILL FIT YEARS 63-72 C10 Tank without any modifications to the frame or bed floor when mounted to the bottom.
Years 63-66 K10 & possibly Other year K10's it may be required to modify or move the rear crossmember
Product Number: 14017-NP
This tank is built with the Aeromotive 10 bolt pattern, flat bottom and baffling to support any Aeromotive Phantom, Brushless or Eliminator pumps that utilize their 10 bolt pattern. This tank will NOT work with a Trifekta pumps or #18365 Phantom Dual 450.
If you choose "No Pump" from the selection you are simply requesting that we don't install a pump and we will ship the tank with an open bolt pattern. You will need to supply your own Aeromotive product to use this tank. We do not build pickup tube plates for this tank.
It is required that you purchase an Aeromotive pump assembly to use this tank
For more information about the different pumps visit our PUMPS SECTION of our website.
images may show additional options or configurations.
Tank Dimensions: 26.5 x 19 x 10Mounts are 3" on both sidesTank Material: .125 Aluminum

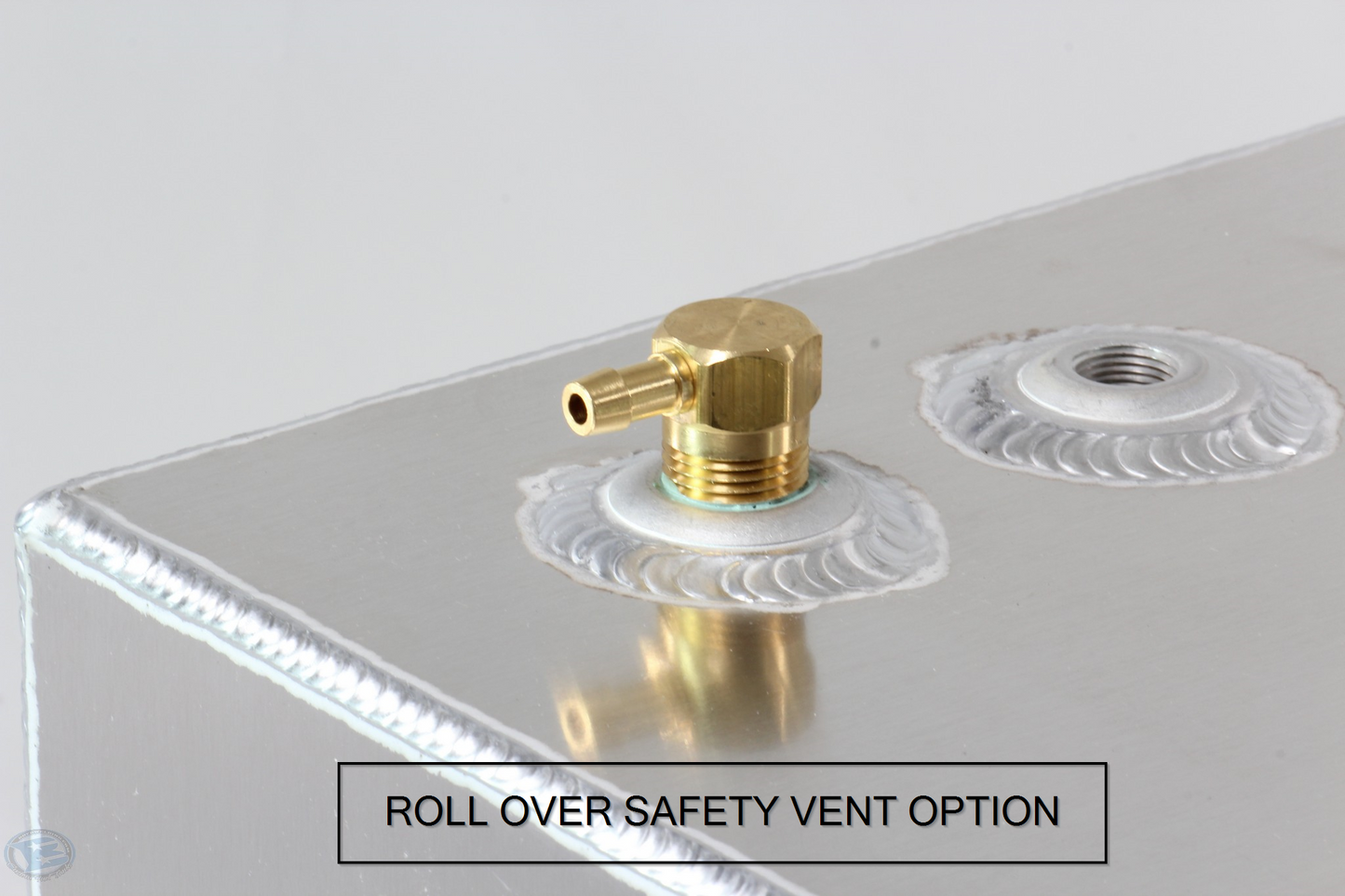

1/2" NPT Vent
3/8" NPT Return
3 Baffles
Approx 19 Gallons
Please note: Boyd Welding is the tank manufacturer only. We do not recommend or advise which pump is proper for your application. We recommend consulting a mechanic, tuner or Aeromotive's tech department to discuss your fueling needs.
Share this with your friends
Im building a 67 C-10 for drag n drive events. I called explained my application and fuel requirements. First of all, they took in all my information and flagged the issues that I was gonna have. My Aeromotove fuel pump assembly was going to work with tank I needed. The flange mounting for my Aeromotive duel 450 pump was different 10 hole pattern then the standard 10 hole Aeromotive flange. Boyd’s Tank has been pondering on producing these flanges, but hadn’t really done it in production yet. After a few conversations with them, they were able to produce the correct flange. I needed for my application and gave me a reasonable time for custome built tank . But they beat my expectations by a good month. I had a tank in less than 10 days which helped keep my build on track. I am very grateful for all their knowledge , , ,their caring and their interest in your build to make sure you get the correct tank and applications needed to make it work. They asked detailed questions about venting , check valve safety etc and make suggestions. The tank fits very nice and neatly between the back rails fitting perfectly . The side fill between the bed and back rail has great clearance to help with for hidden a tail light filler . I can’t thank them They’re a great company to deal with making Hot Rodding Super fun.
Received it 2 weeks earlier than expected! was delivered in great condition. Just what I needed.
Very happy with the tank. Well made, thick aluminum, top notch quality.
