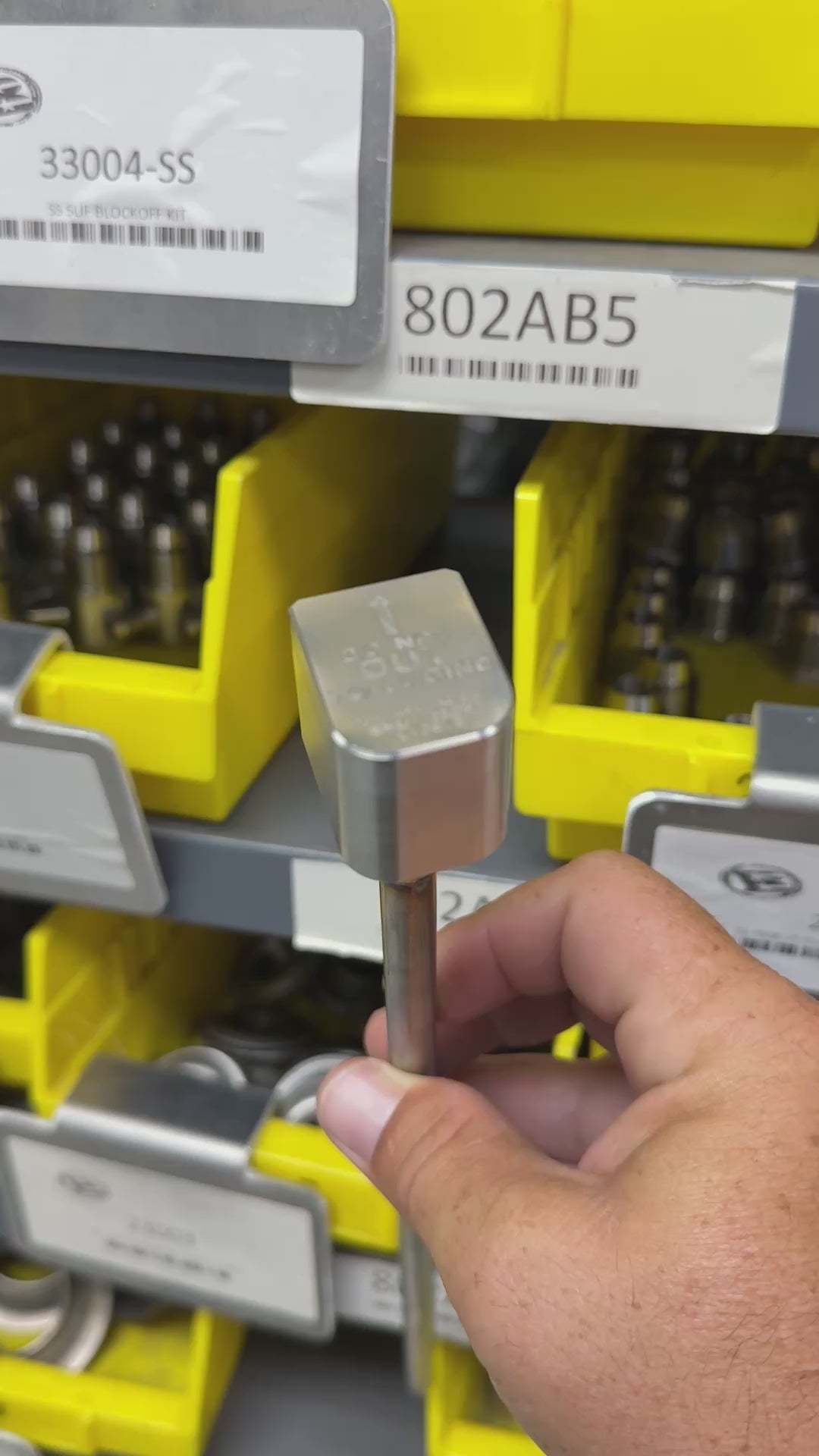

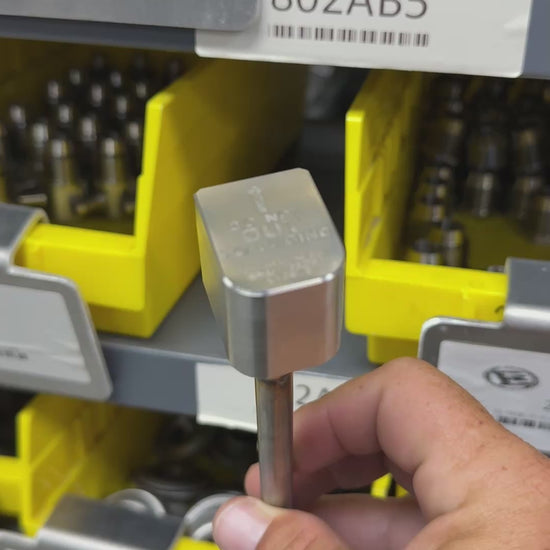

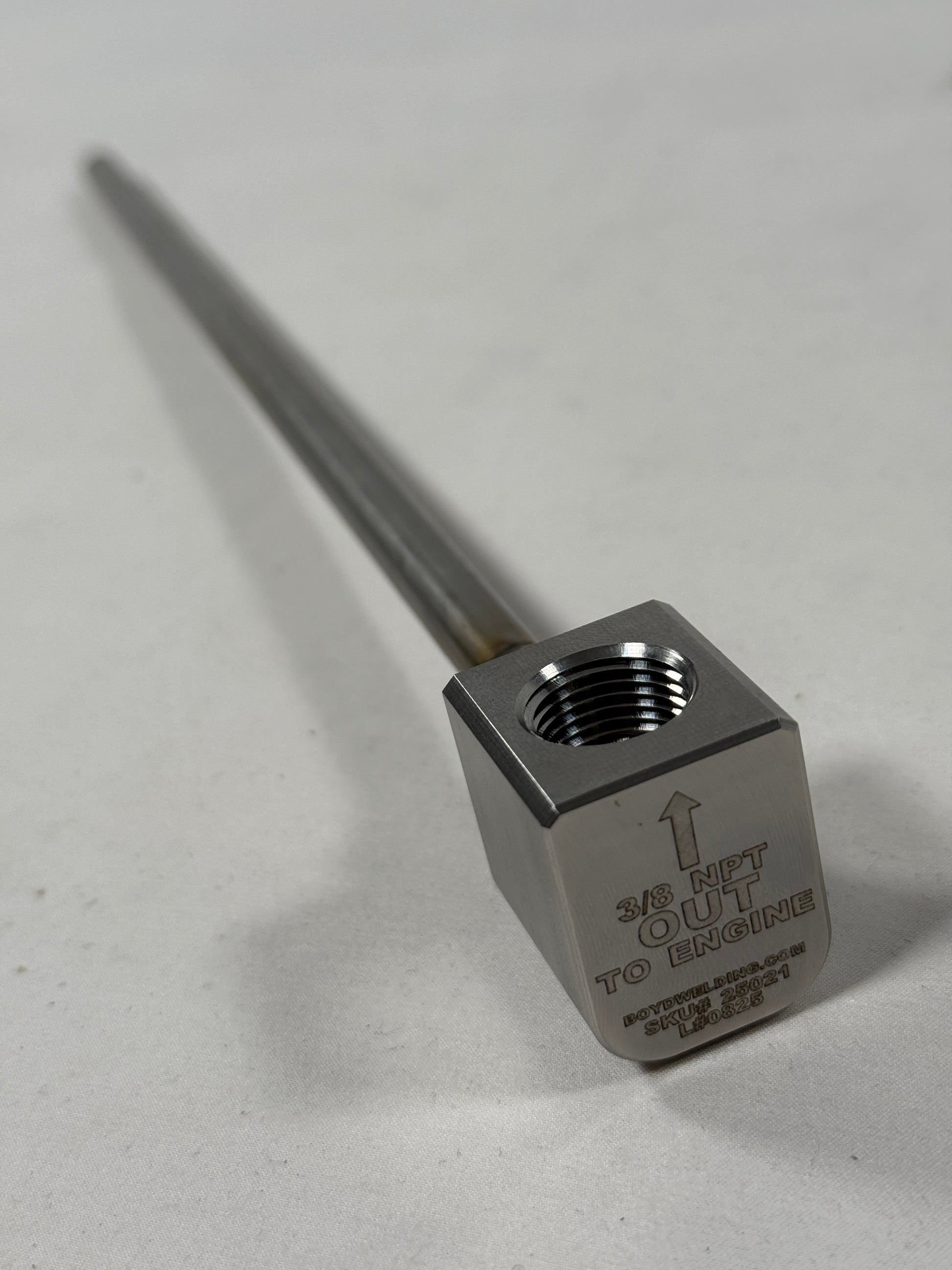

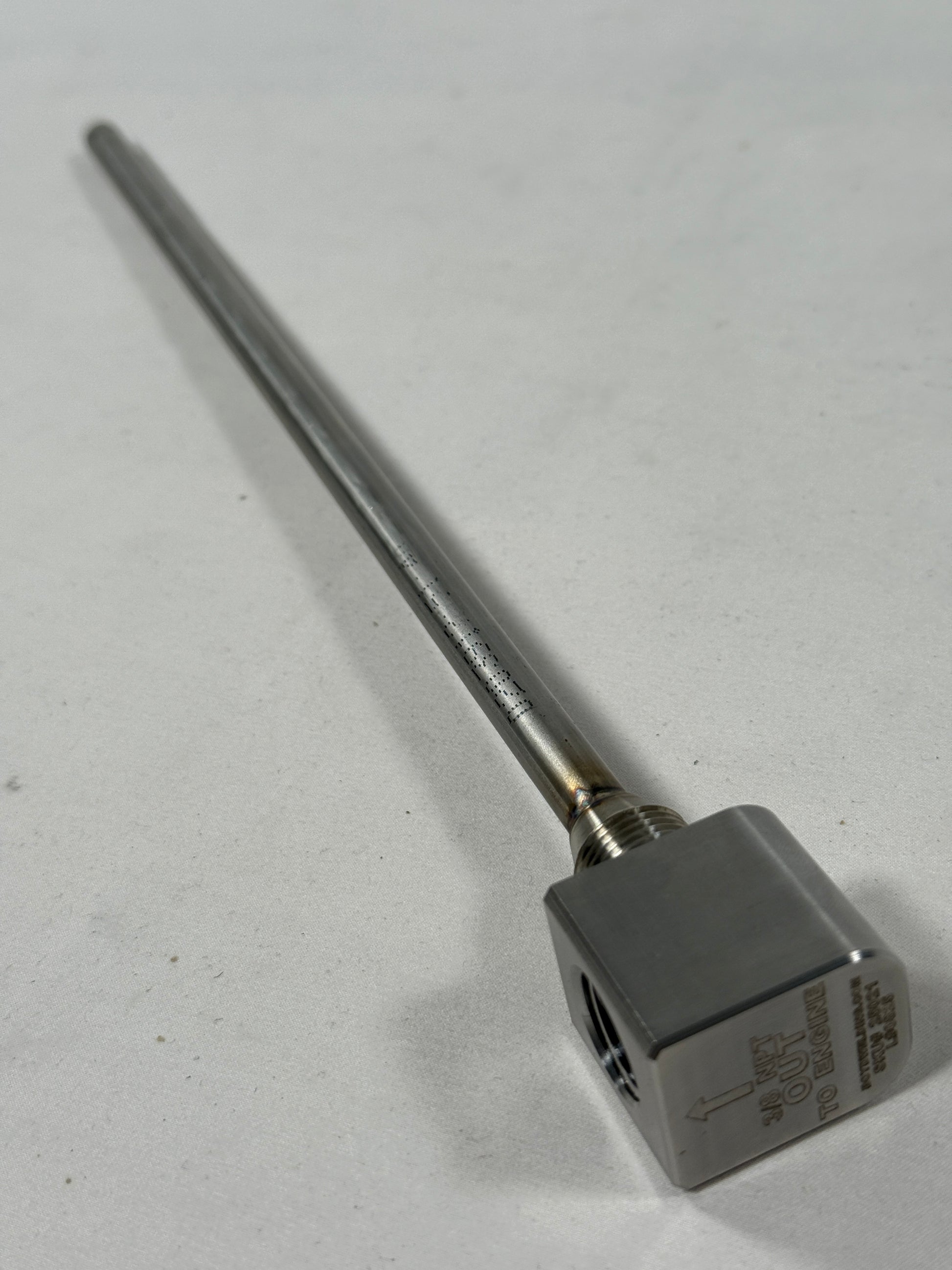

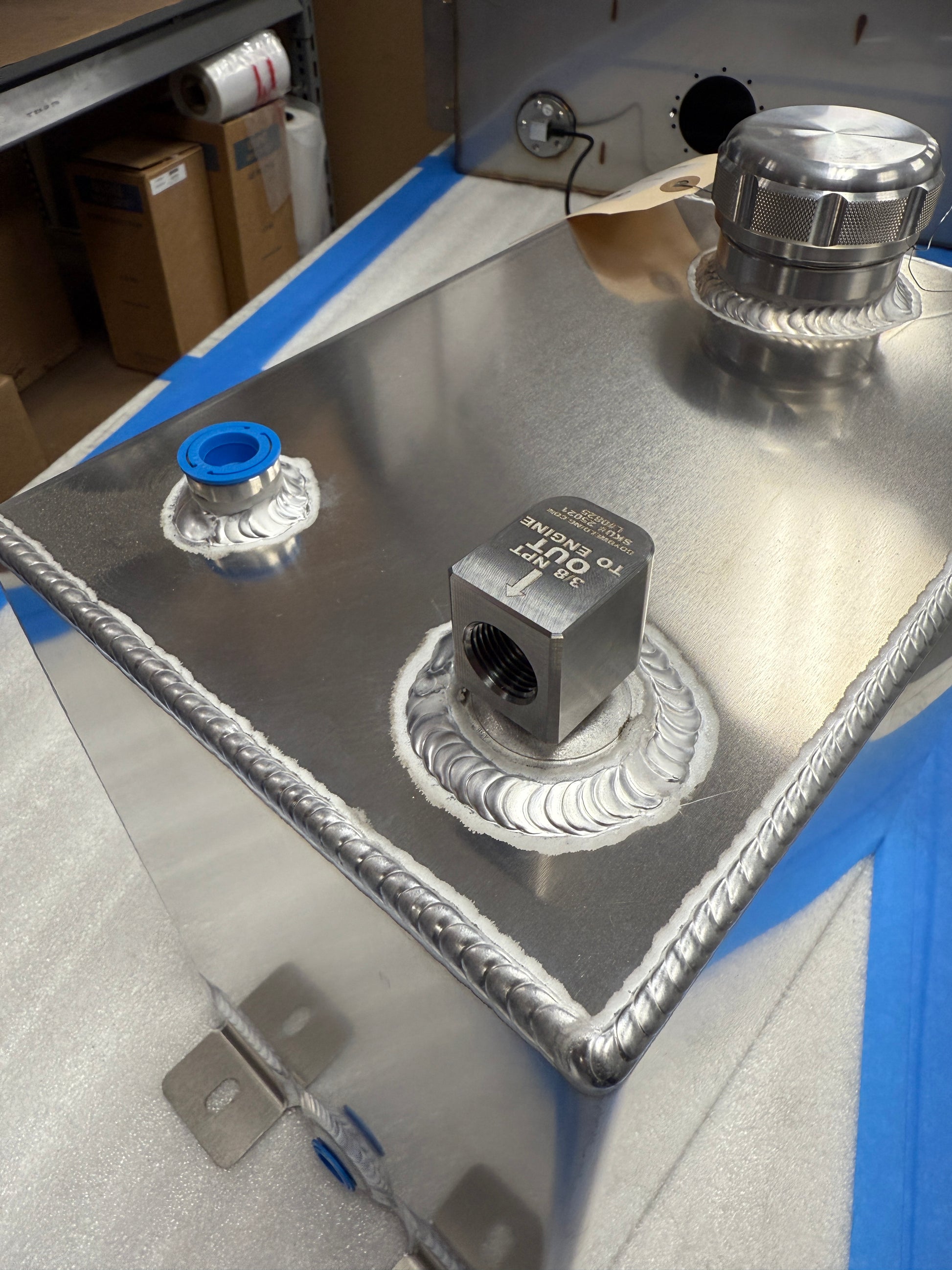

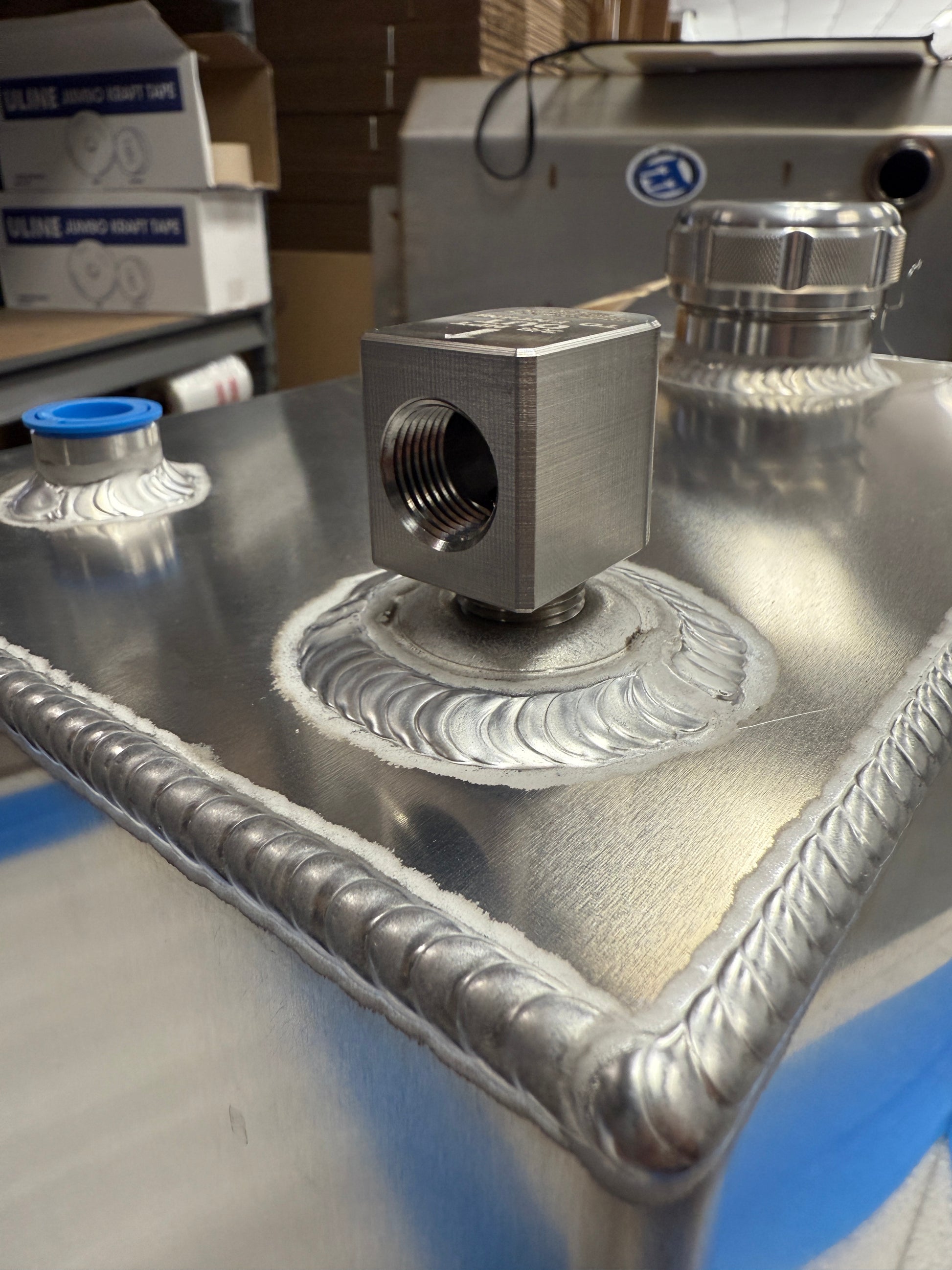

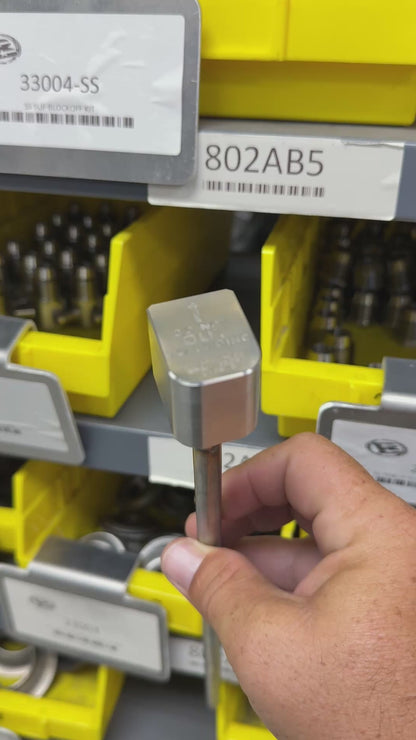

This Boyd 90 DEG Pickup tube is CNC Machined from 304 Stainless Steel and provides a TRUE un-restricted .312 flow. This size is most commonly found on all general gasoline equipment including marine and automotive applications.
This pickup tube permanently fixes the 2 most common issues with all other pickup tubes on the market, (1) Our tube will never fall off and drop into the tank, Our tube Is fully TIG welded to the head and pressure tested to 100+ PSI. (2) Our tube is made from 304 Stainless Steel, it will not rust, corrode or crack.
MATERIAL: 304 Stainless Steel
OD Thread =3/8" NPT Male (3/8" NPT Female Required in Tank)
ID Thread =3/8" NPT Female
Tube ID = .312 +/-
Minimum Tank Depth =2"
Maximum Tank Depth = 48"
Screen=NO
Overall Installed Height= 1-3/8"

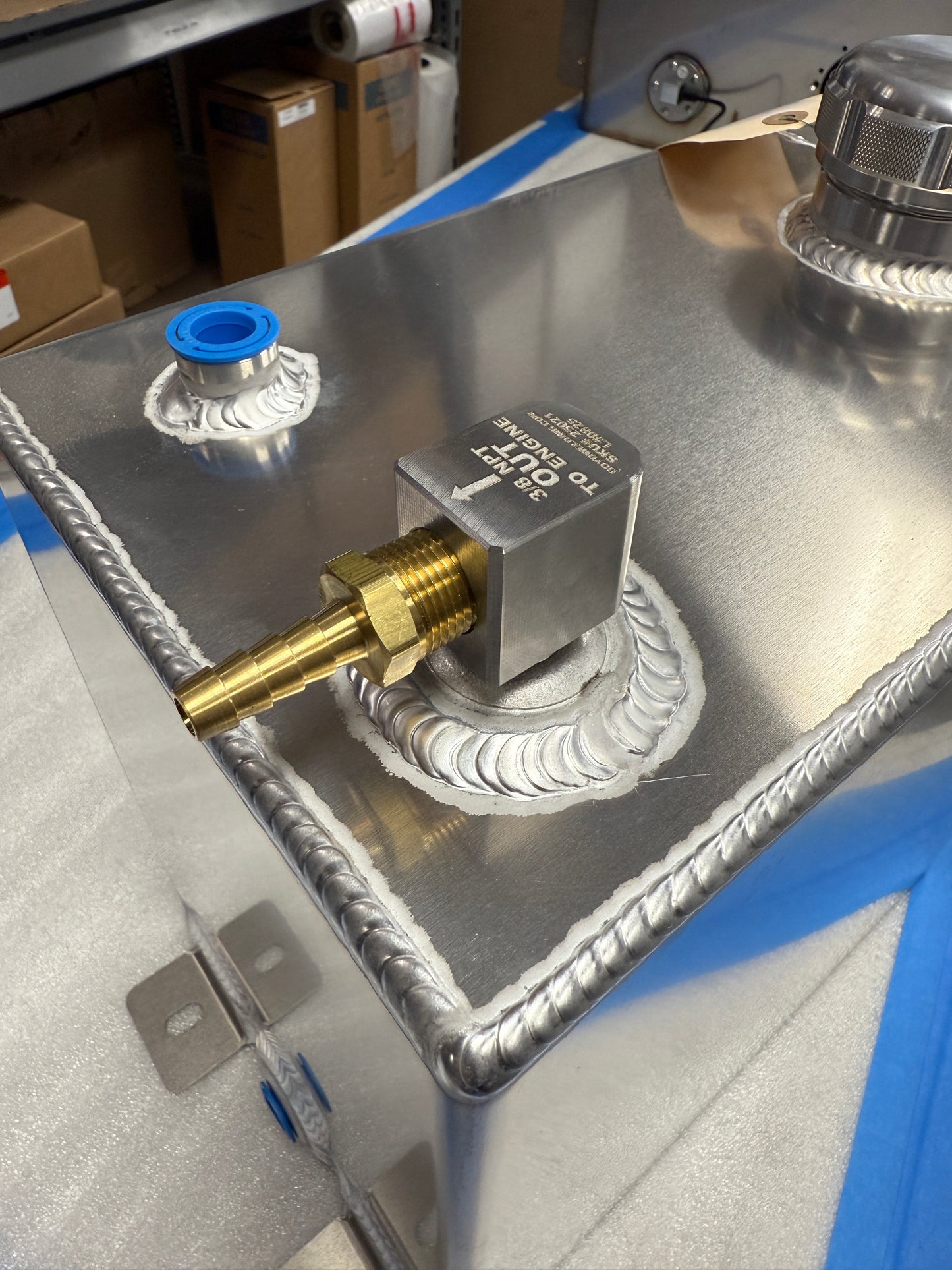

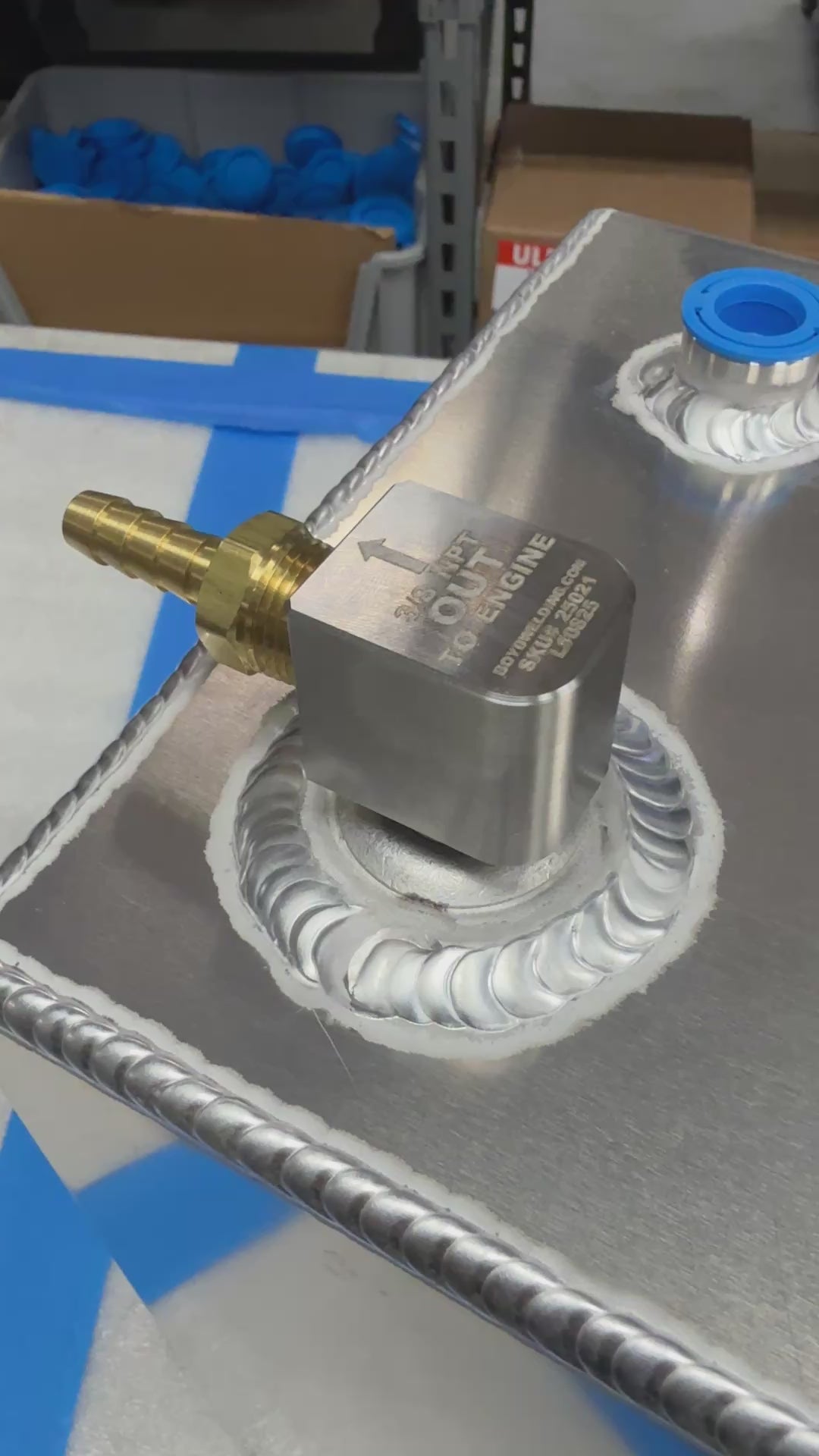

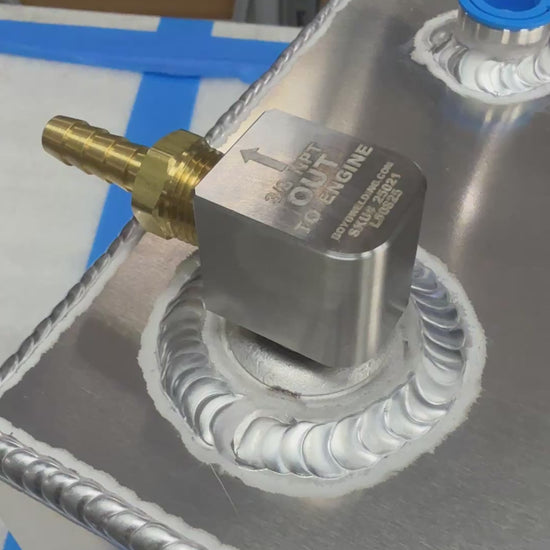

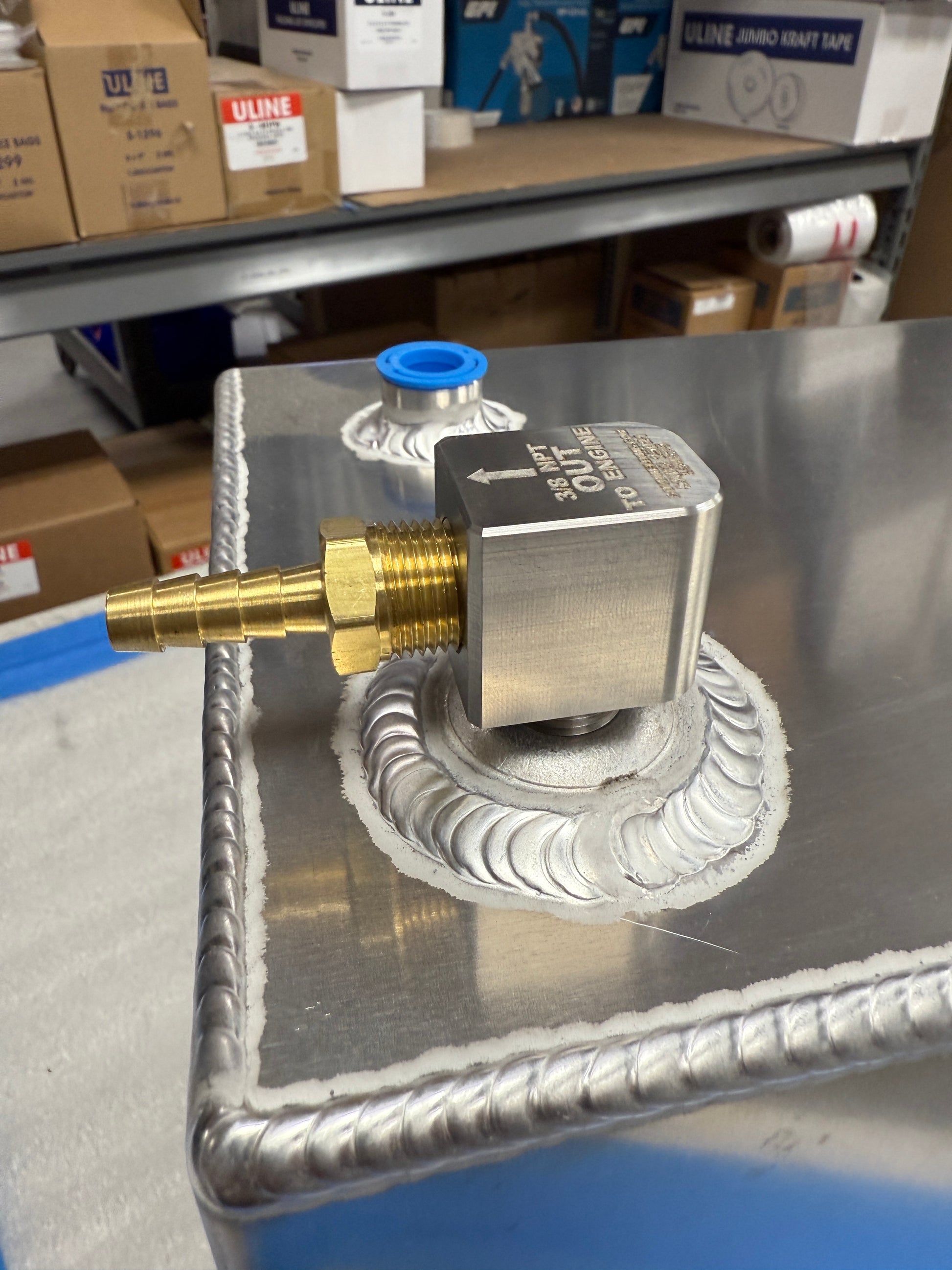

Hose Barb shown in pictures not included.
***** When installed properly you should leave approx .250" from the bottom of tank to bottom of pickup tube.
Custom Lengths or thread sizes are possible with 50PC MOQ production runs. Email us your details to sales@boydwelding.com.
The SS pickup tube was a beautiful high quality piece which installed flawlessly.
I also ordered the 2” vented fill cap with short filler neck and was very pleased with the entire order
T
Tim
Nice Pickup Tube!
If you are rebuilding your fuel system on your boat start with this pickup tube. No more worries about corrosion or a plastic pickup tube breaking off from getting brittle. Just imagine all of the sloshing that a 20 year old plastic pickup tube has bee through. It's time for an upgrade.
