.500 ID x 1/2 NPT 90 DEG Stainless Steel Replacement Pickup Tube

.500 ID x 1/2 NPT 90 DEG Stainless Steel Replacement Pickup Tube

Availability: Typically In-stock, Additional QTY's available Contact us

40 in stock ready to ship

SKU:25019-12

Regular price $98.50
Regular price Sale price $98.50
Sale Sold out
Shipping calculated at checkout.
Tube Length
Quantity

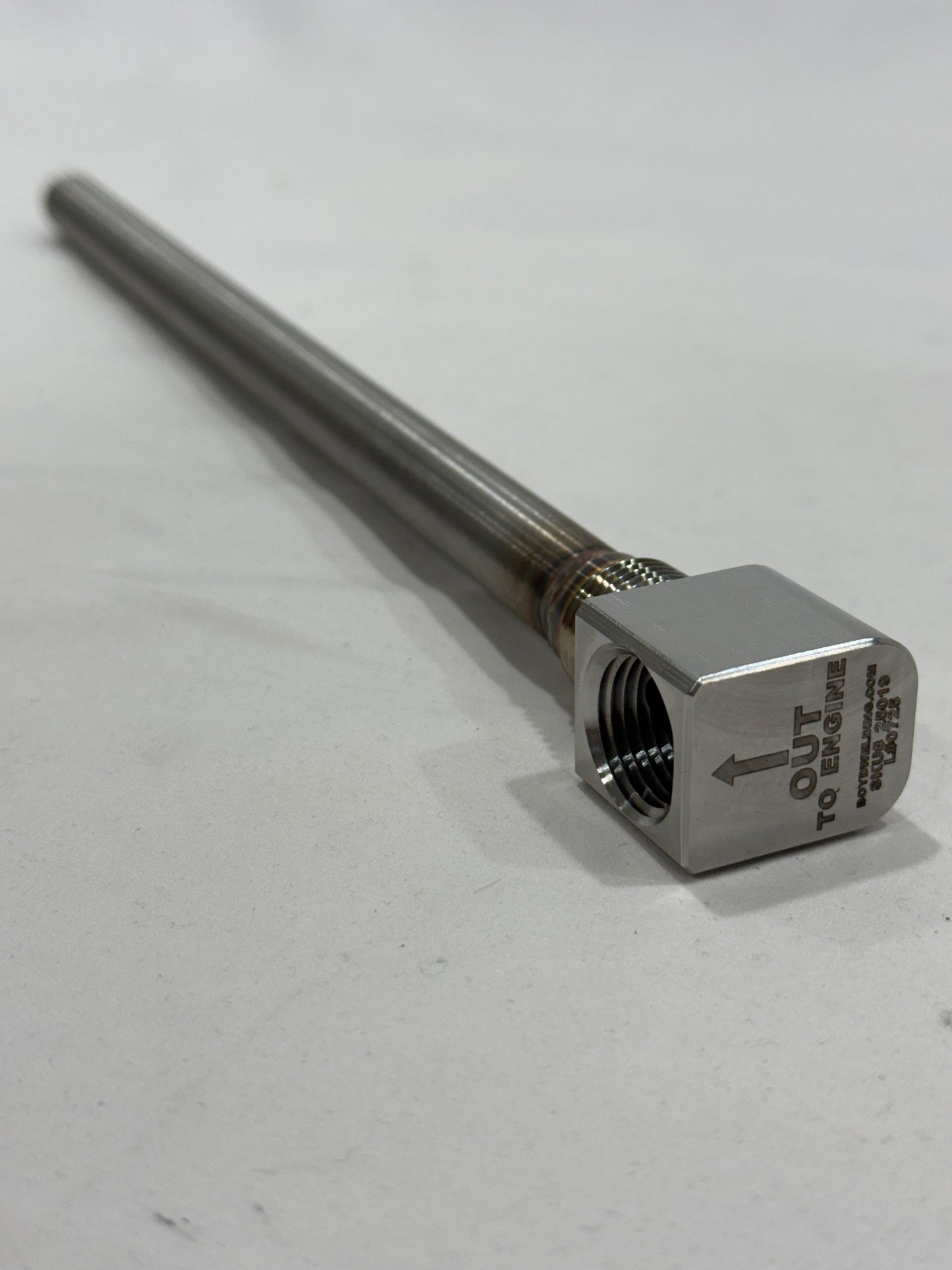

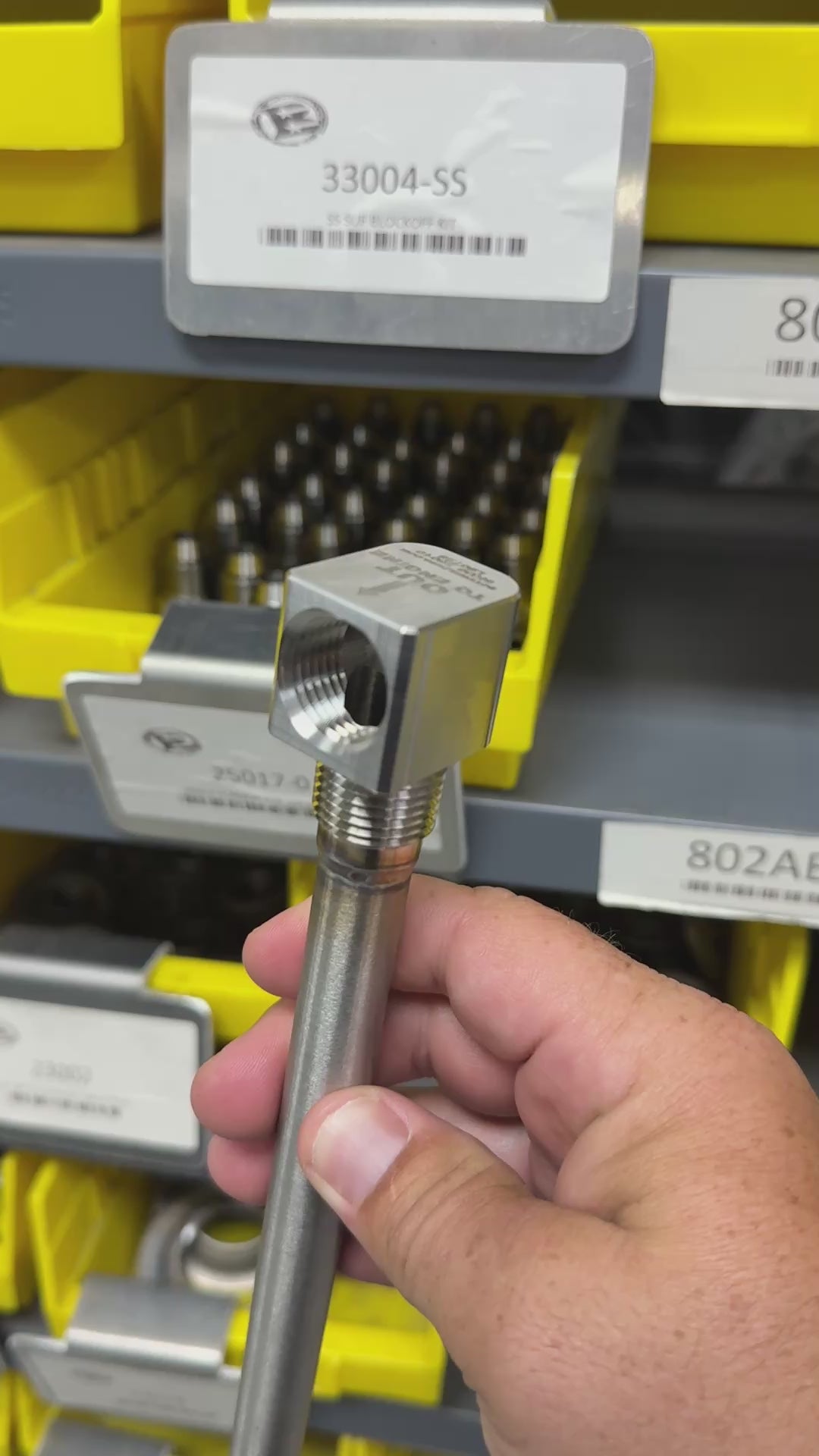

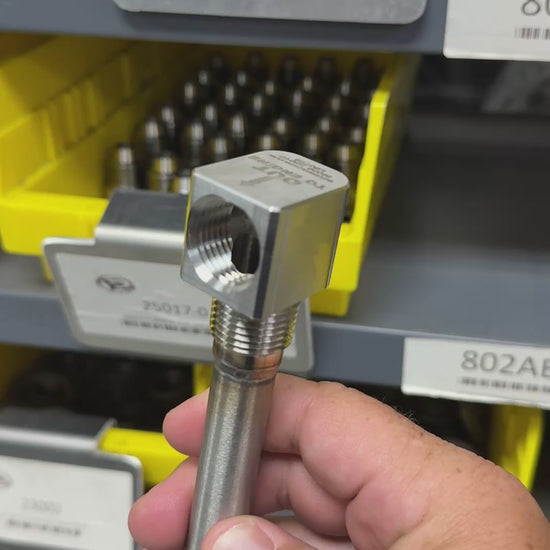

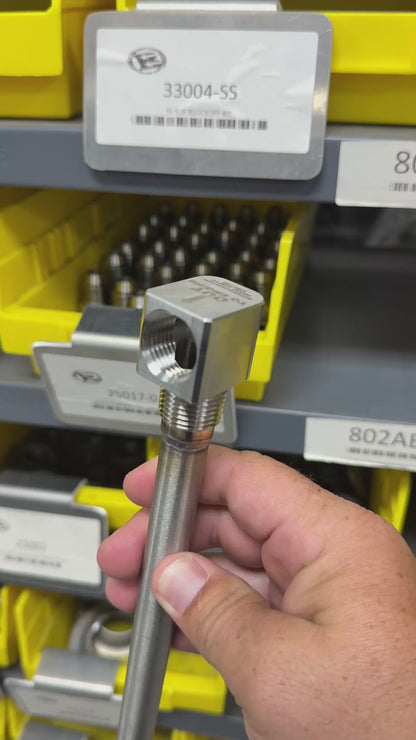

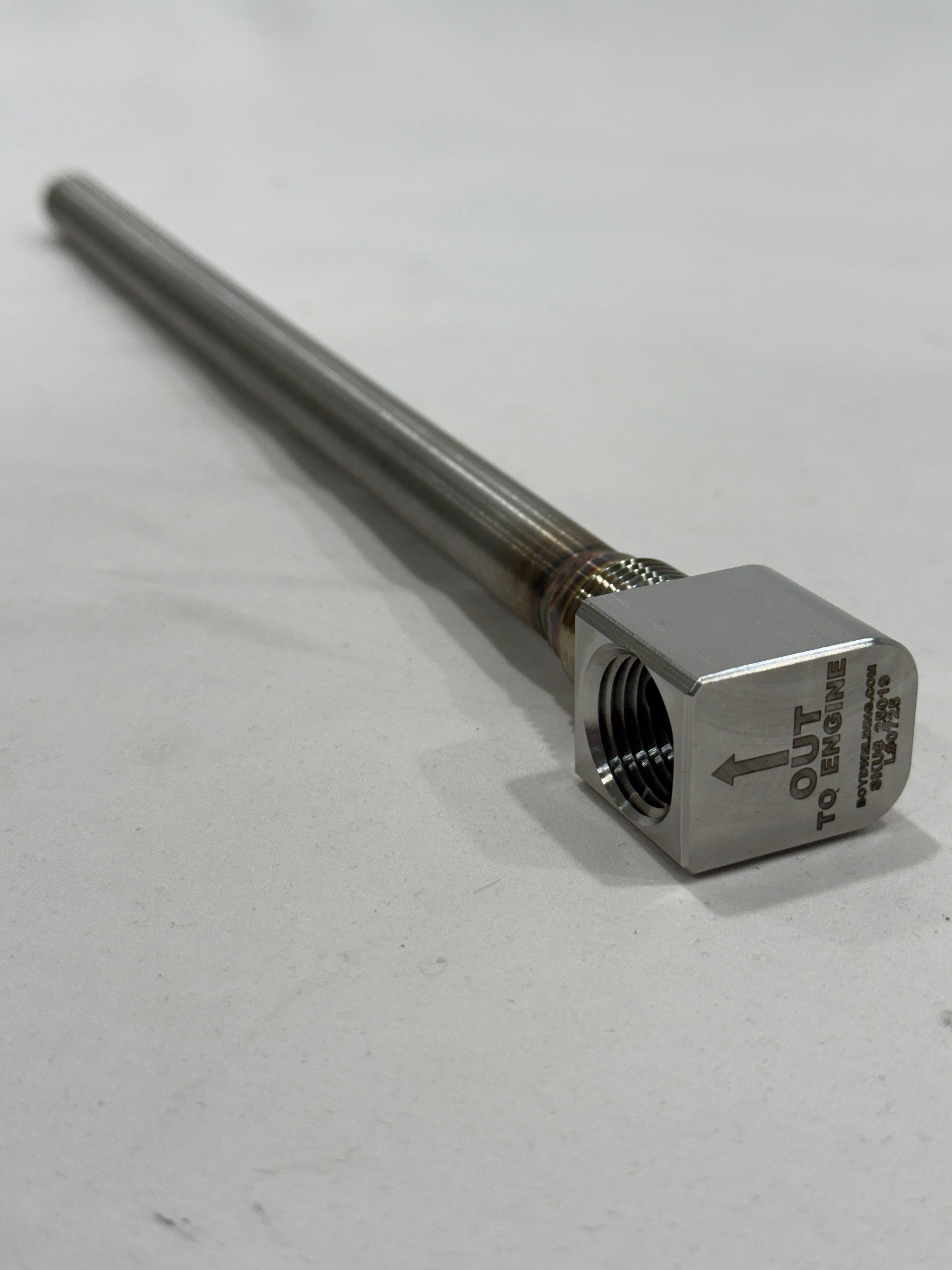

.500 ID x 1/2" NPT 90° Stainless Steel Pickup Tube (#25019)

A replacement pickup tube CNC machined in-house from 304 stainless steel, with a true, unrestricted .500" ID for large outboard and diesel engines. The tube is fully TIG welded to the head, so it can't fall into the tank, and stainless won't rust, corrode or crack.

Technical Specifications

  • Product number: 25019 (25019-12, -18, -24, -36)
  • Material: 304 stainless steel, CNC-machined 90° head
  • Construction: Tube fully TIG welded to the head, pressure tested to 100+ psi
  • Tank thread: 1/2" NPT male (needs a 1/2" NPT female port in the tank)
  • Outlet: 1/2" NPT female, 90°, marked "OUT TO ENGINE"
  • Tube ID: .500" (approx.)

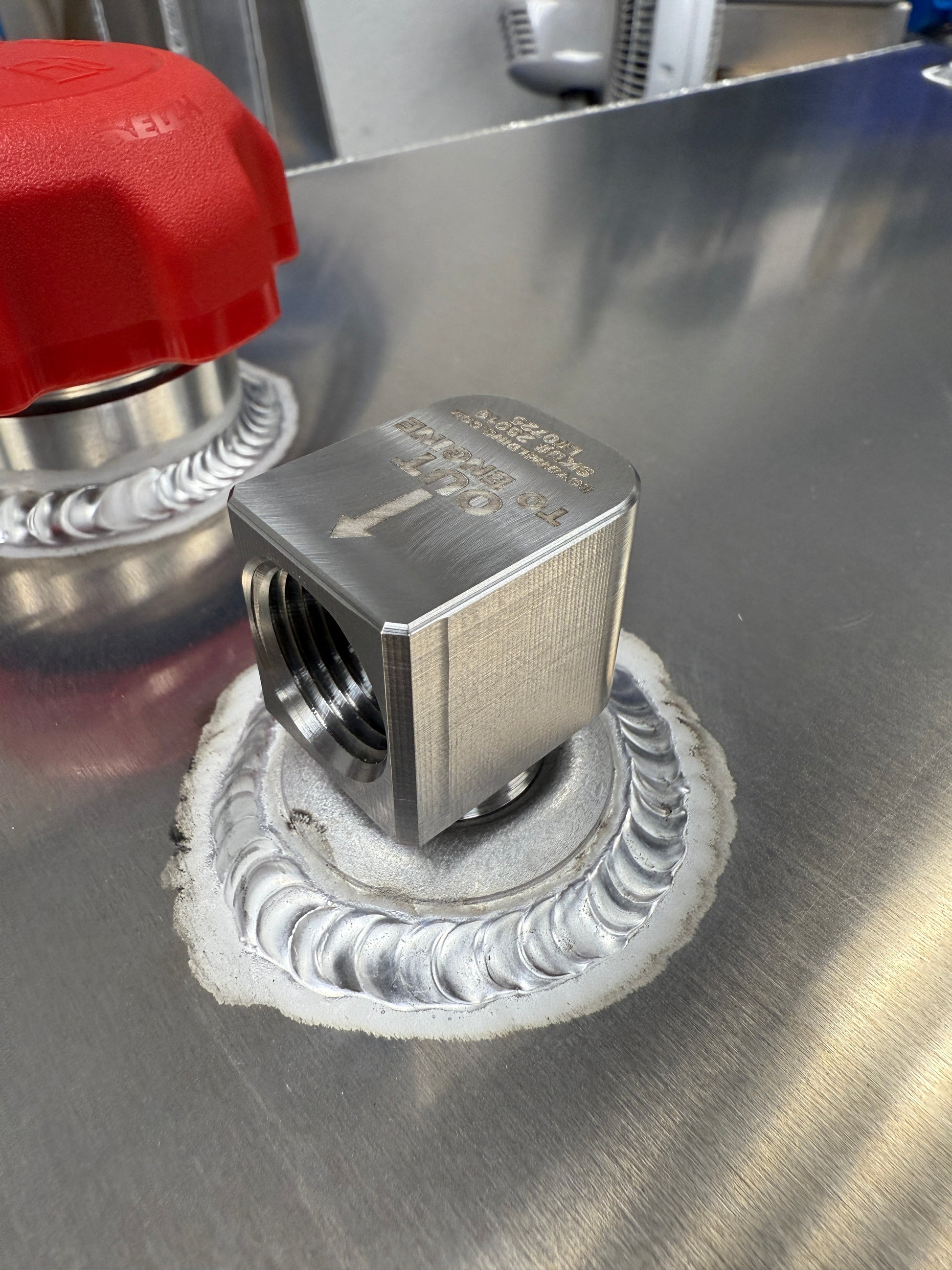

  • Installed height: 1-3/8" above the tank port
  • Minimum tank depth: 2"
  • Screen: None
  • Fuel: Gasoline or diesel
  • Warranty: 1 year

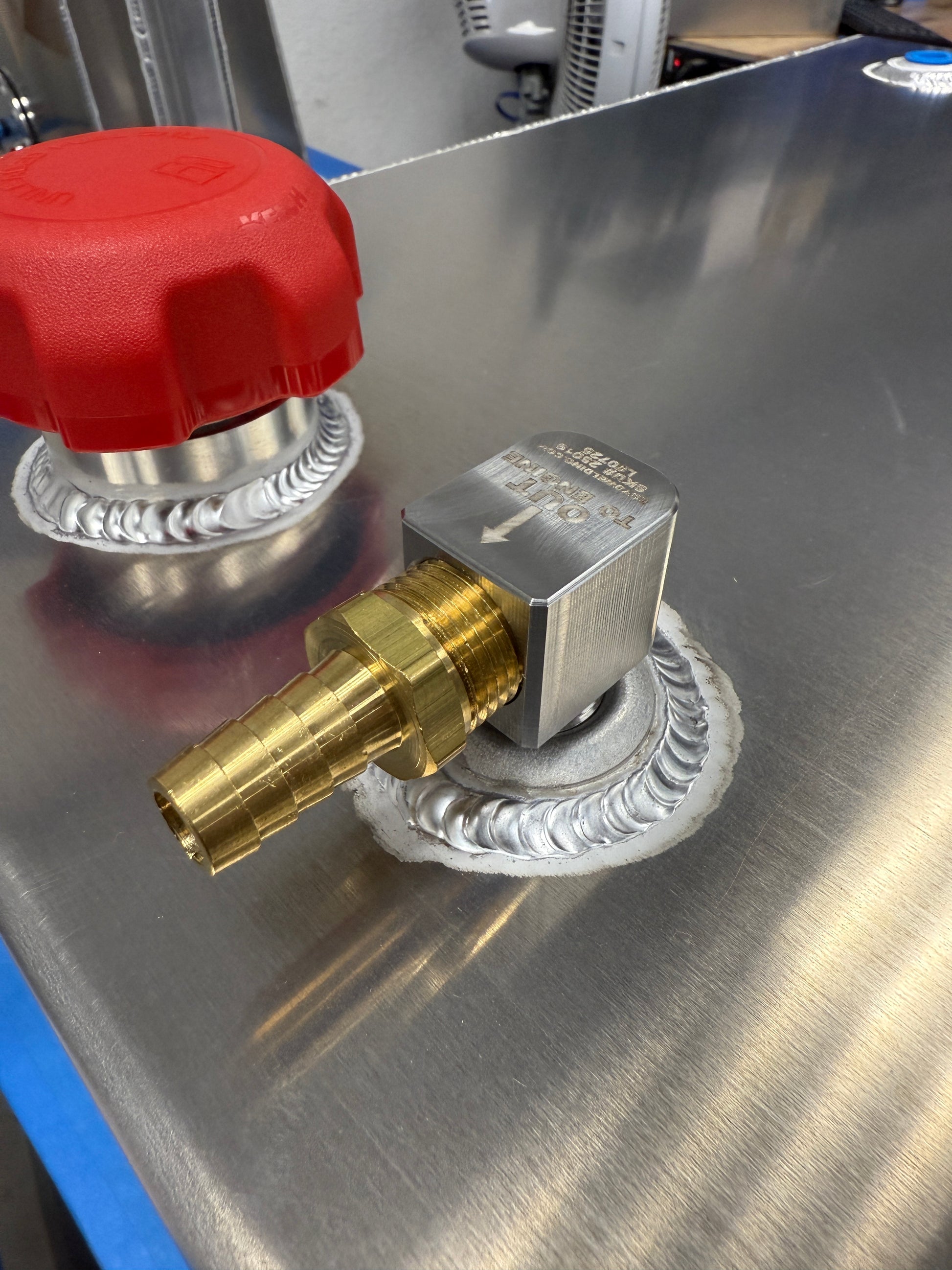

  • Not included: Hose barb or outlet fitting (the barb in the photos is not included)
  • Custom lengths / threads: 50 piece minimum
  • Bulk pricing: available from 50 pieces

Length Chart

Tube length (from under the head) SKU
12" 25019-12
18" 25019-18
24" 25019-24
36" 25019-36

Tube can be cut to fit your tank; leave about .250" off the tank floor.

Install Notes

  • In aluminum tanks and bungs: Aluminum threads cross-thread and gall easily. Start every plug and fitting by hand and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.

FAQ

What port does it thread into?
A 1/2" NPT female port or bung in the tank.

What connects to the outlet?
Any 1/2" NPT male fitting, such as a hose barb or AN adapter. The fitting is not included.

How do I choose a length?
Measure the tank depth at the port. When installed, the bottom of the tube should sit about .250" off the tank floor. Choose the next length up from the chart and cut the tube to fit.

Does it have a screen?
No.

Can the tube come loose in the tank?
No. The tube is fully TIG welded to the head and pressure tested to 100+ psi.

What fuels can I use?
Gasoline or diesel.

What is the warranty?
1 year.

Do you make custom lengths or thread sizes?
Yes, with a 50 piece minimum. Email your details to Sales@boydwelding.com.

Do you offer bulk pricing?
Yes, on orders of 50 pieces or more. Contact us for a quote.
