LEAD TIME 5-10 BUSINESS DAYS + SHIPPING
* Pictures may show optional accessories installed. depending upon the options you choose your tank may vary slightly from shown.

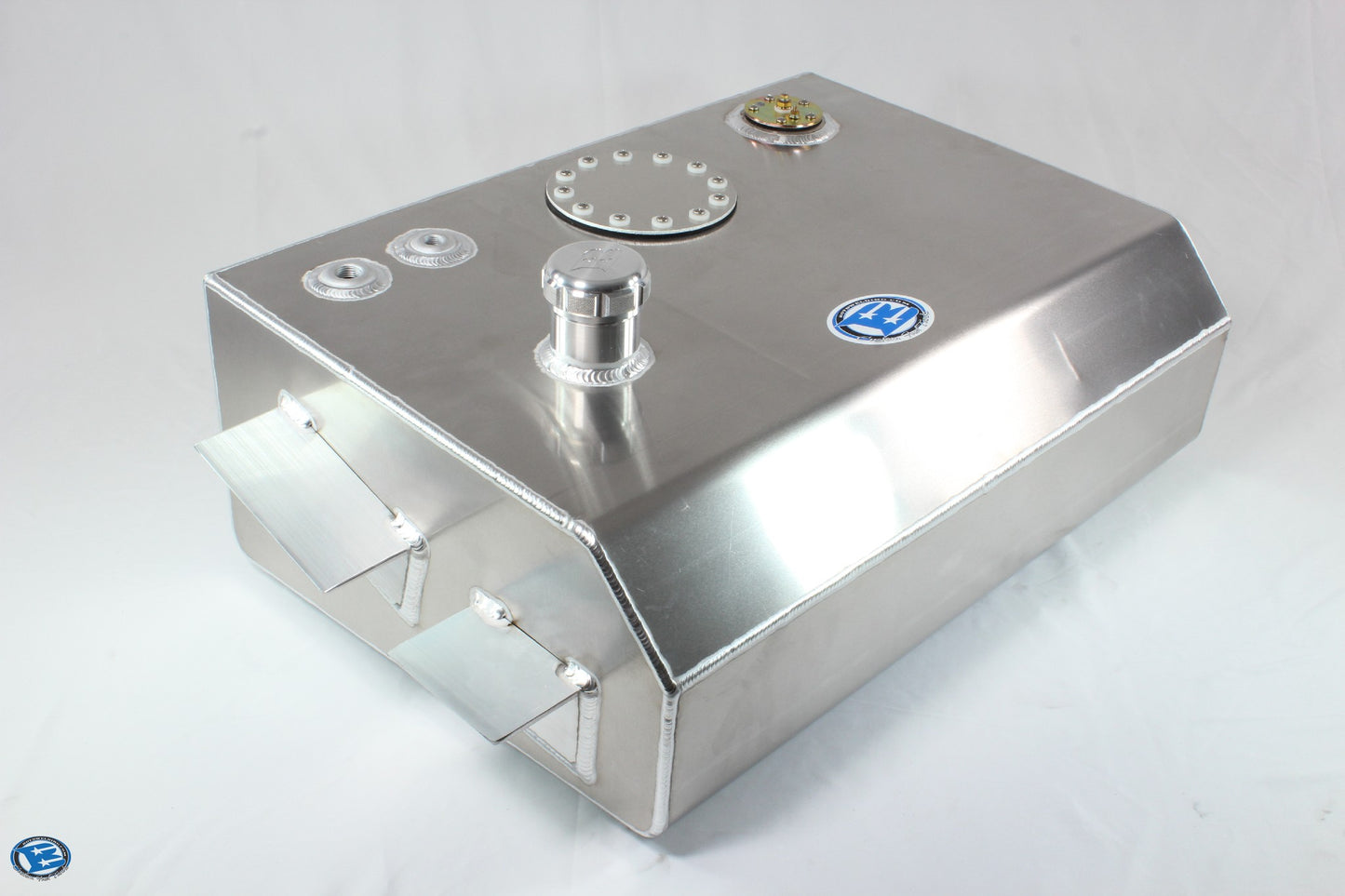

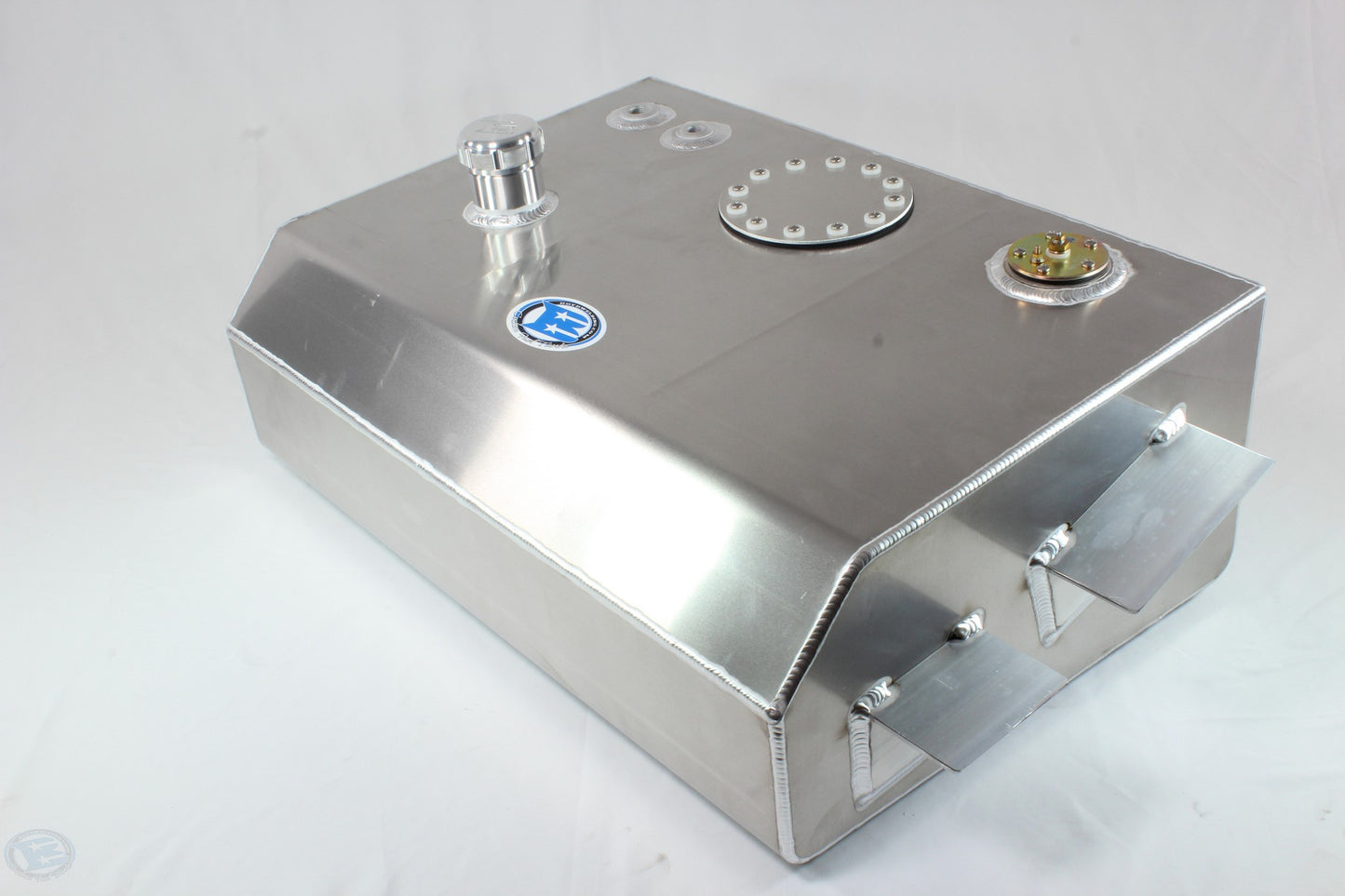

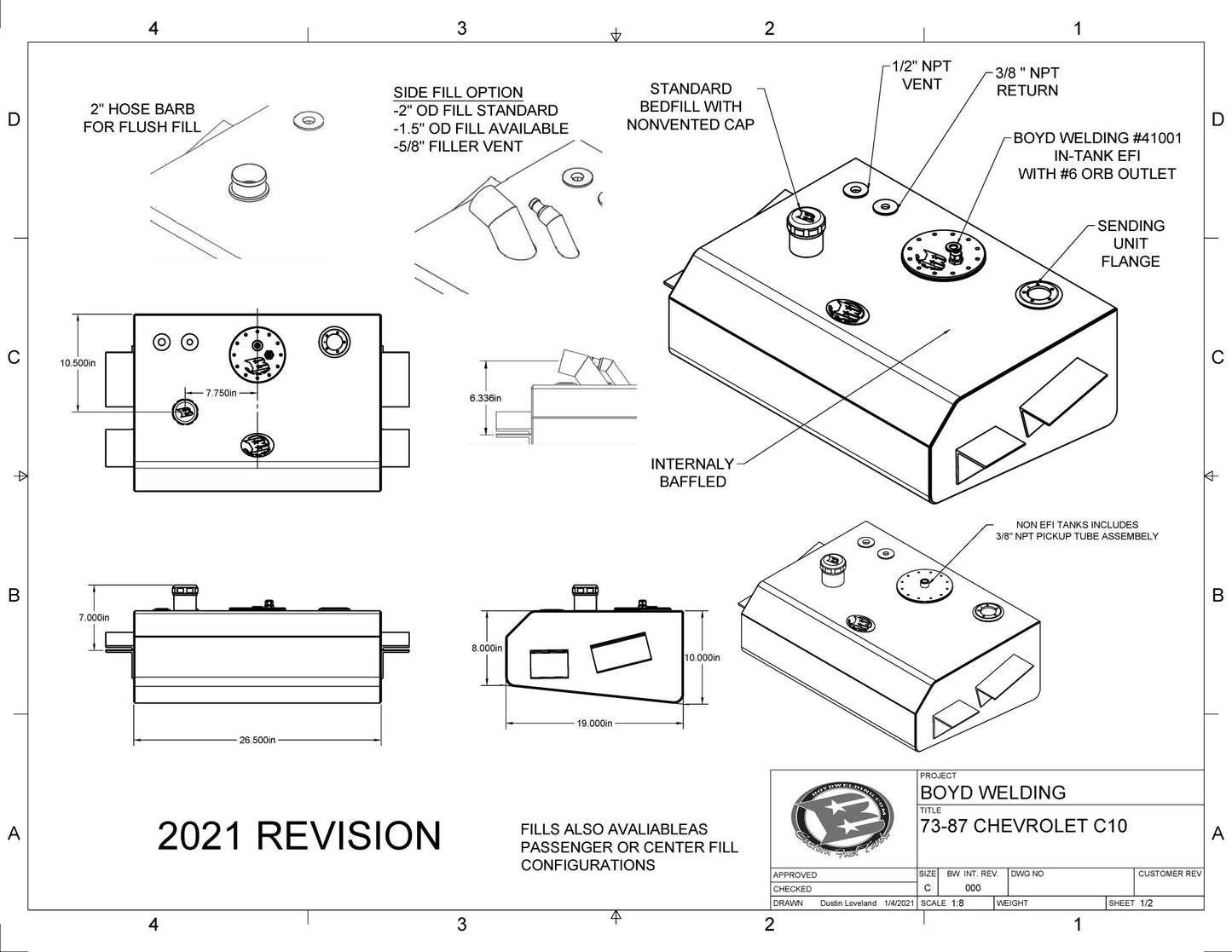

-Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum

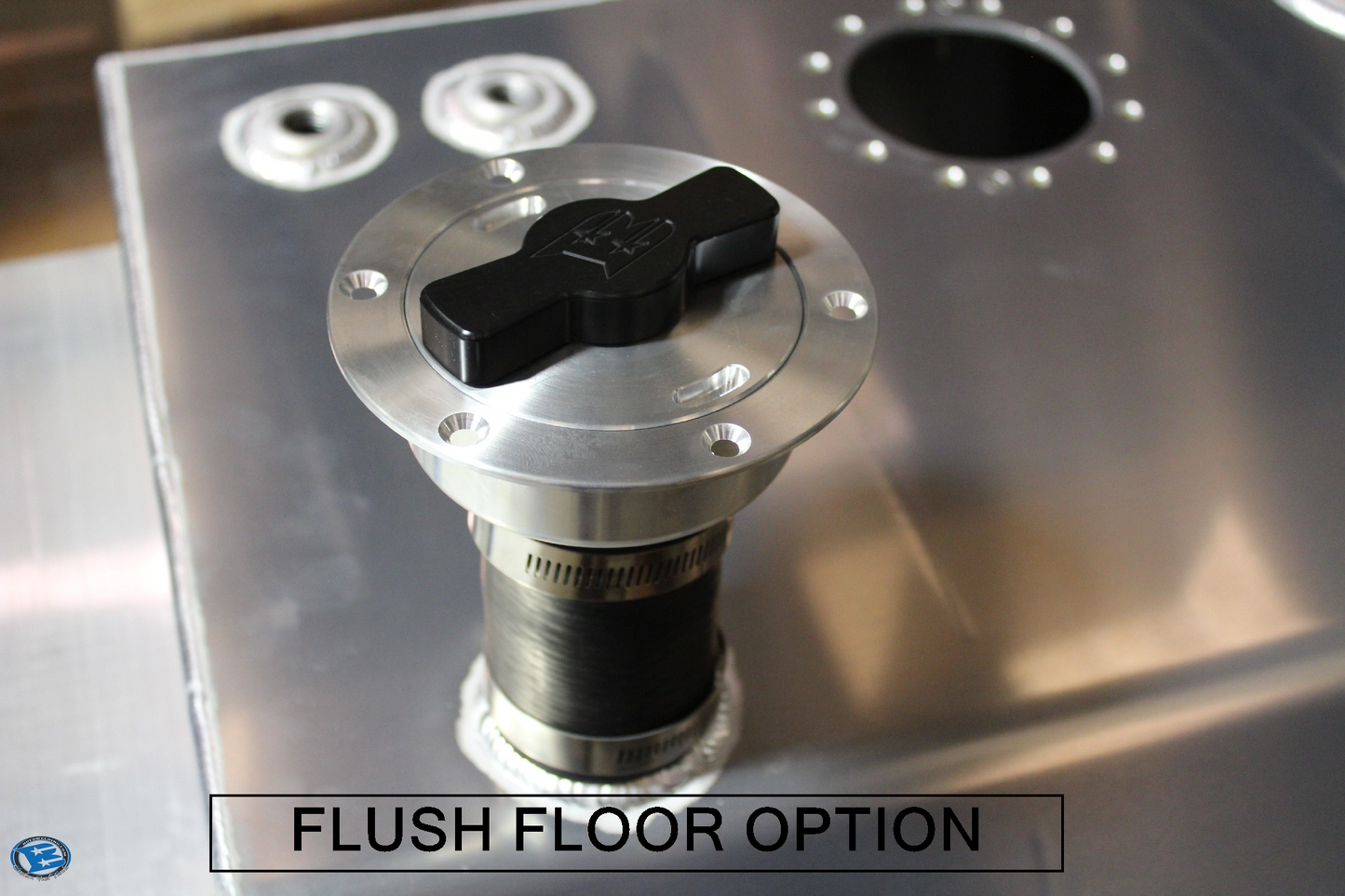

- 2" Bed Fill, 3" tall
- 1/2" NPT Vent
- 3/8" NPT Return

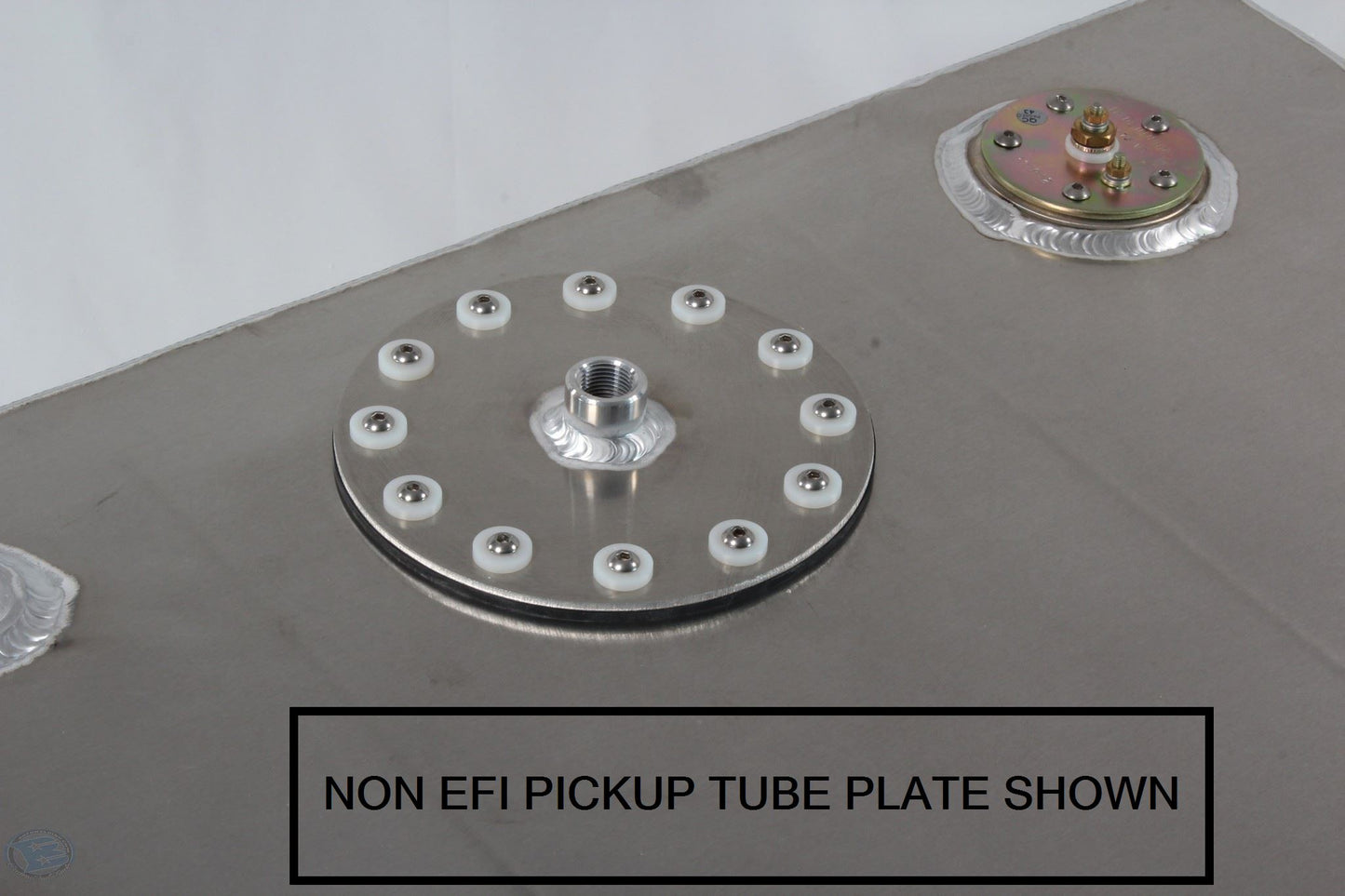

-3/8" NPT Pickup Tube in Plate
- 3 Baffles
-Approx 19 Gallons
- This tank is a NON-EFI but we have constructed the tank so that you can upgrade to our in-tank EFI system in the future.
Frequently Asked Questions:
Q: How Far down are the mounting tabs?
A: The dimensions vary to match the contour of the frame
Q: How Tall is the fill neck?
A: The fill neck is approx 3" tall.
Q: Are there Baffles in the Tank?
A: Yes, There are 3 baffles in the tank.

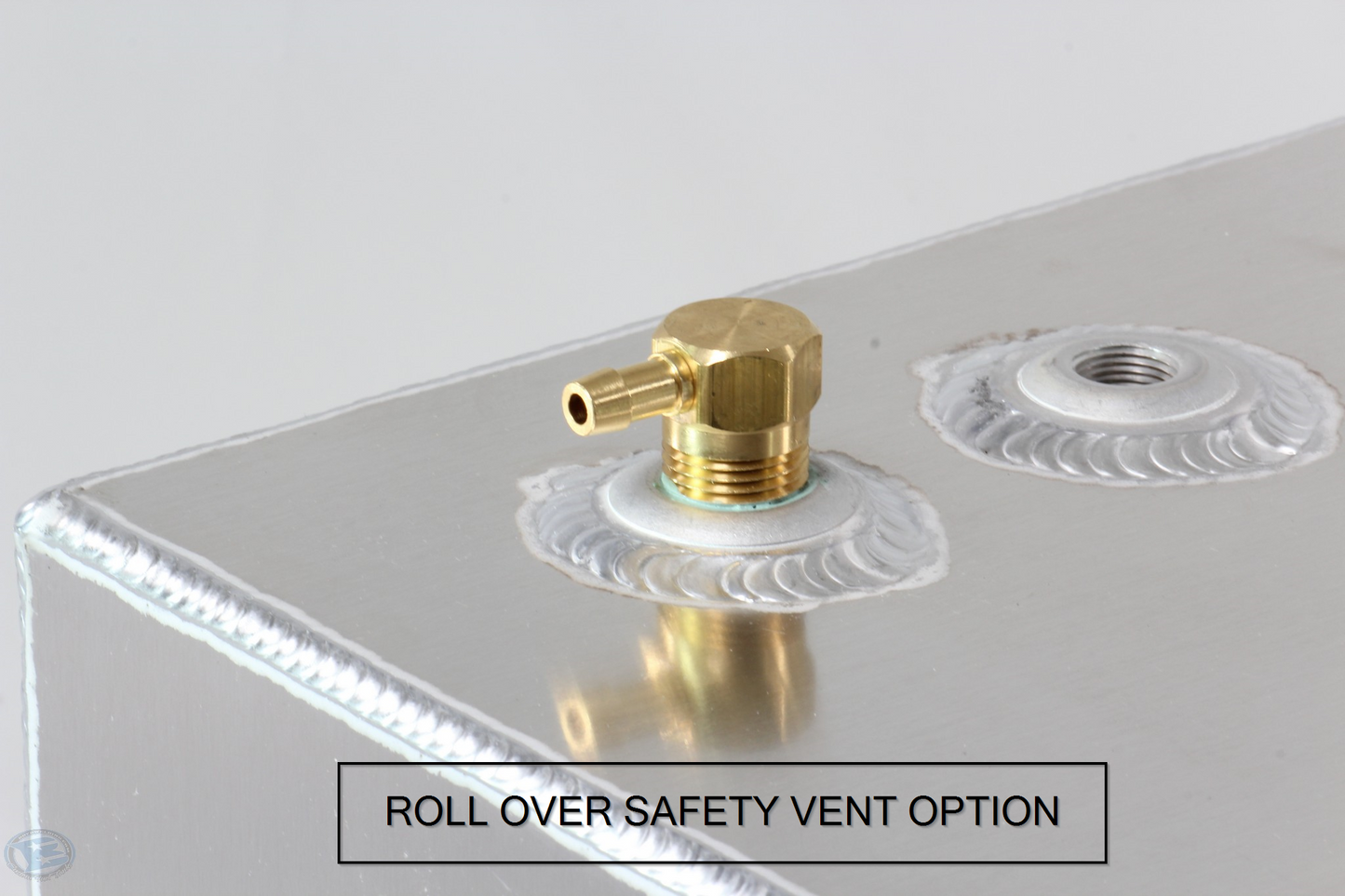

Q: What is the Roll Over Safety Vent? Do i need it?
A: The Rollover Safety Vent is a simple ball check valve device that will allow the tank to vent when in the normal operating position. In the event of an accident causing a rollover the ball will drop and block off the vent port so that fuel does not leak out. For safety I would always recommend purchasing the Rollover Safety vent option.
Q: I Currently have a carbureted engine but may want to go EFI in the future. Can i upgrade this tank to EFI?
A: Yes, We have designed our tank with the EFI provision and baffling to allow you to upgrade to EFI using our Aeromotive in-tank pump system. All you will need to purchase is the pump system, remove the cover plate and bolt in the pump system using the same hardware.
