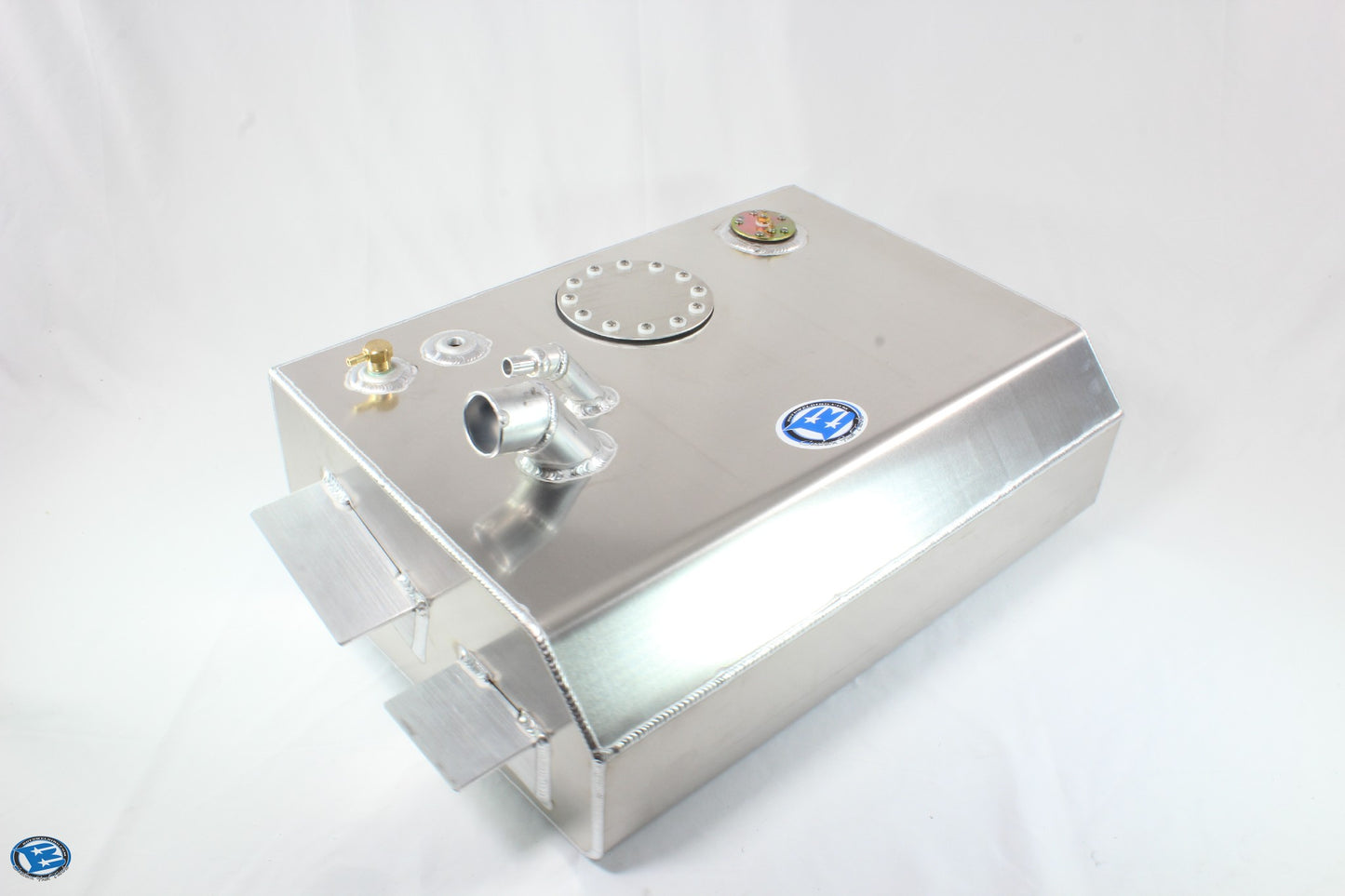

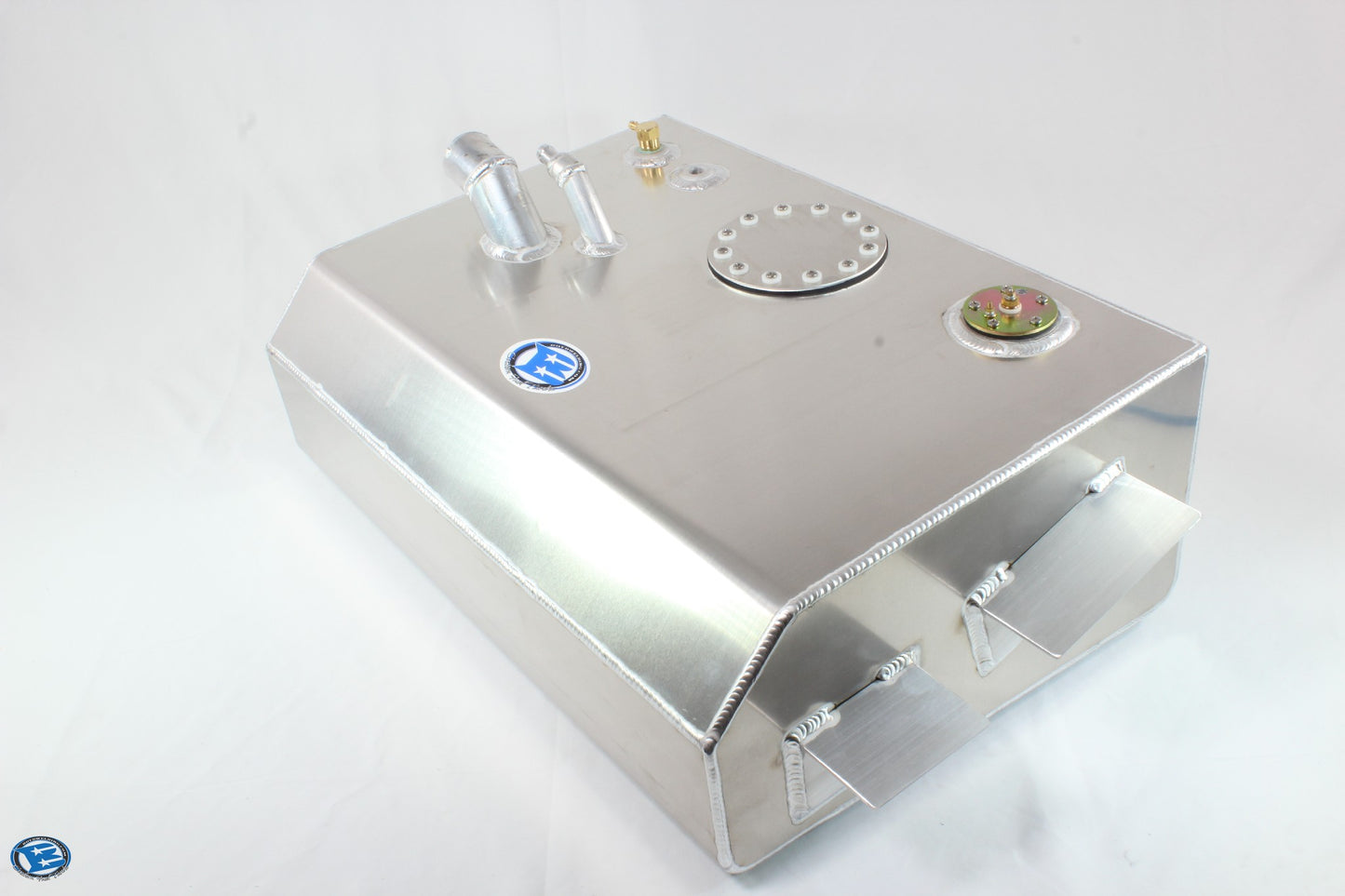

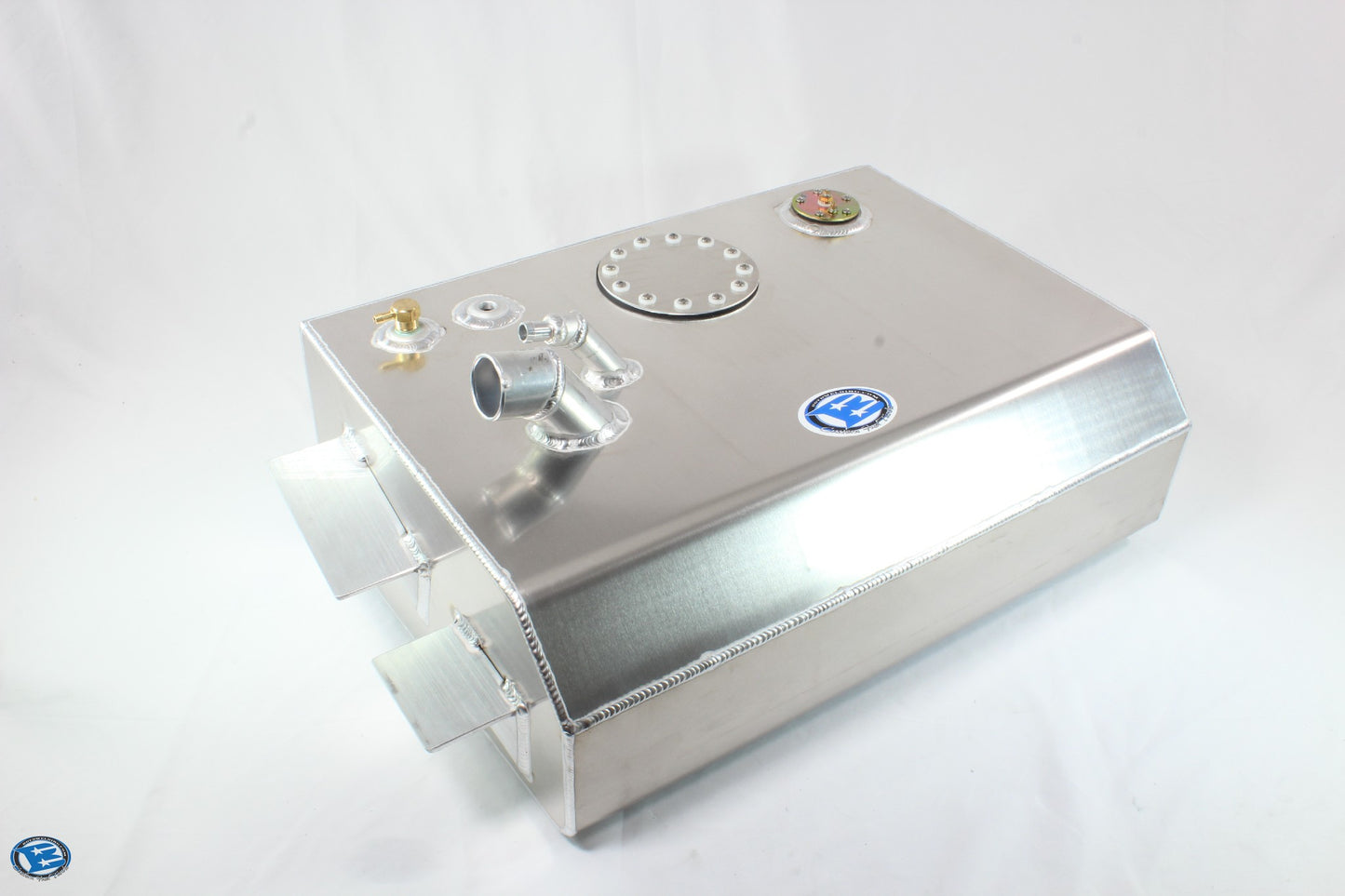

1973–1987 Chevy C10 Side Fill NON EFI Aluminum Fuel Tank
A Better Tank for Your Square Body C10
An original 1973–87 C10 tank is more than 35 years old. This aluminum tank mounts to the bottom of the frame rails with no cutting of the frame or bed crossmembers.
Product #14039 is the NON EFI version with a 3/8" NPT pickup tube plate. It's built with the same EFI baffling and provision as our EFI tanks, so you can upgrade later.
Specifications | Tank Options | Included | Not Included | FAQ
Built in Ocala, FL: Specifications
- Product number: 14039
- Fits: 1973–1987 Chevy C10
- Capacity: Approximately 19 gallons
- Body: 26.5" L x 19" W x 10", tapering to 8"
- Mounting tabs: 3" on both sides
- Material: 0.125" aluminum
- Baffles: 3: two main baffles and a middle baffle around the pump area
- Fill: 2" OD side fill, 3.4" overall tall (1.5" OD and passenger side optional)
- Fill neck vent: 5/8" OD ribbed-for-hose barb
- Tank vent: 1/2" NPT
- Return: 3/8" NPT
- Sending unit: Flange included

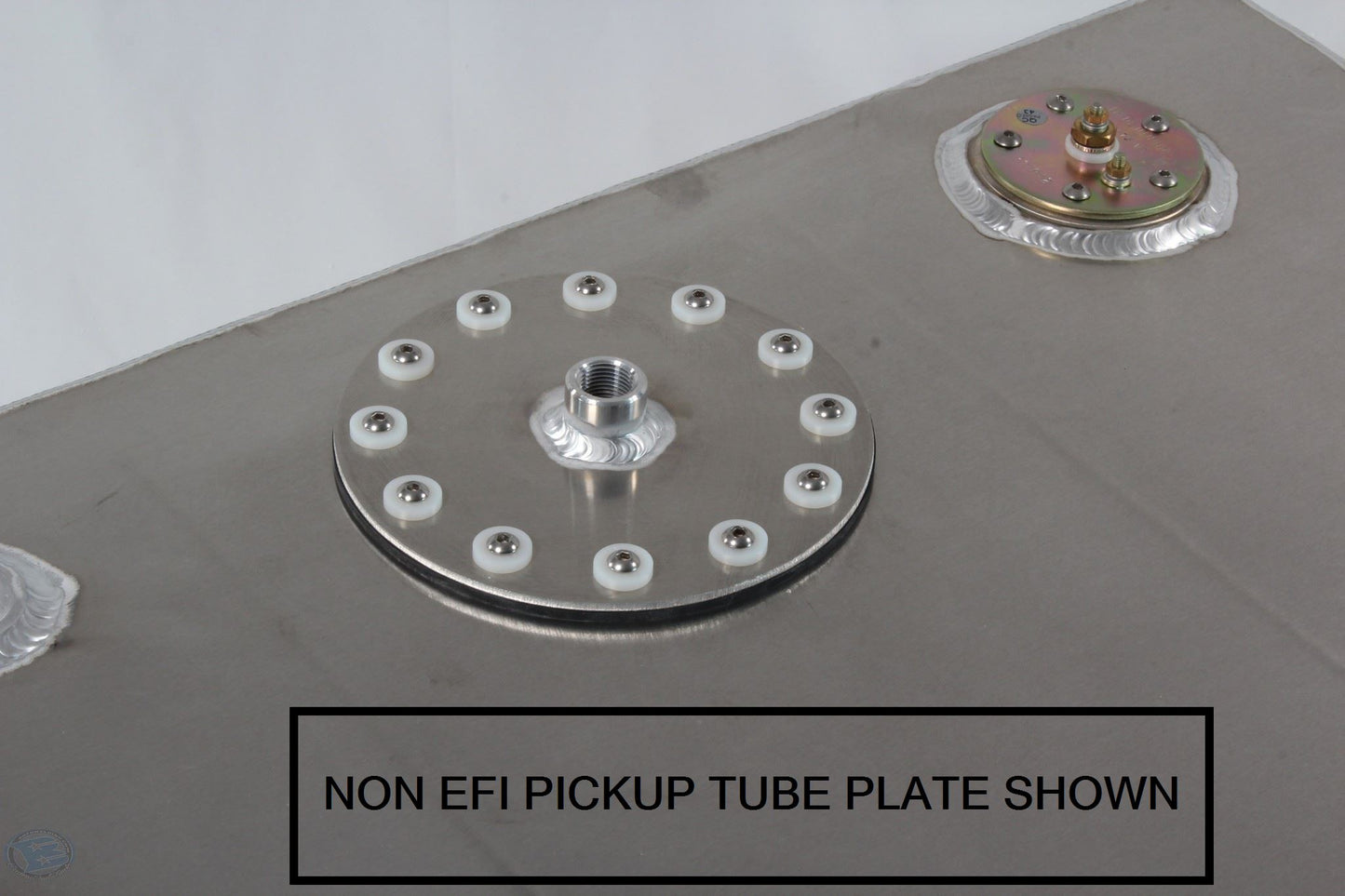

- Fuel outlet: 3/8" NPT pickup tube in plate (2021 revision; legacy tanks have a 3/8" NPT bottom fitting)
- Hangs below frame: About 7" near the axle and 5" near the bumper
- Warranty: 2-year limited structural
- Lead times are shown under Availability on each product page.
How It Fits Your Square Body
Measure your truck before ordering. The tank mounts to the bottom of the frame rails on its 3" tabs. We don't offer a 73–87 mounting kit, so supply your own hardware or fabricate your own mounting.
The side fill neck connects by hose to your filler housing, so no bed floor access door is needed.
Choose Your Fill and Fuel System: Tank Options
No pump is included; the pickup tube plate feeds the pump of your choice. When you go EFI, add the Boyd #41001 in-tank pump assembly.
Side Fill Neck Options
- Standard 2.0in OD Facing Driver Side (recommended)
- 1.5in OD Facing Driver Side (works with a Blazer-style fill)
- 2.0in OD Facing Passenger Side
- 1.5in OD Facing Passenger Side

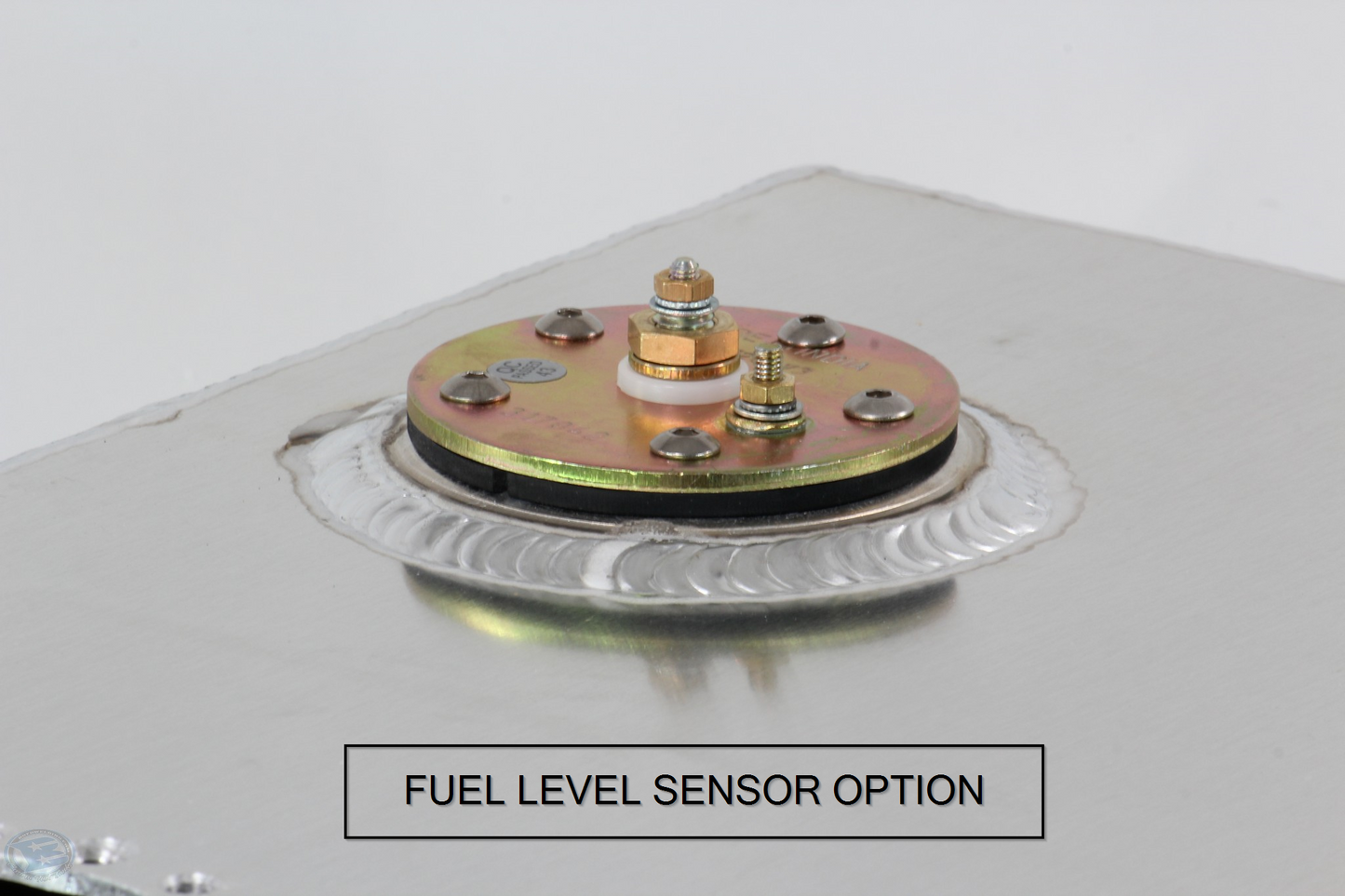

Fuel Level Sensor Option (a sensor or block-off must be installed to use the tank)
- No Sensor - Flange only - I have my own sensor
- Install #33004 Sending Unit Flange Blockoff Kit
- Install 0-90 OHM Sensor (stock 1967–87 C10 gauges)
- Install 240-33 OHM Sensor
Gauge reading wrong? See our Fuel Level Sensor Troubleshooting Guide.

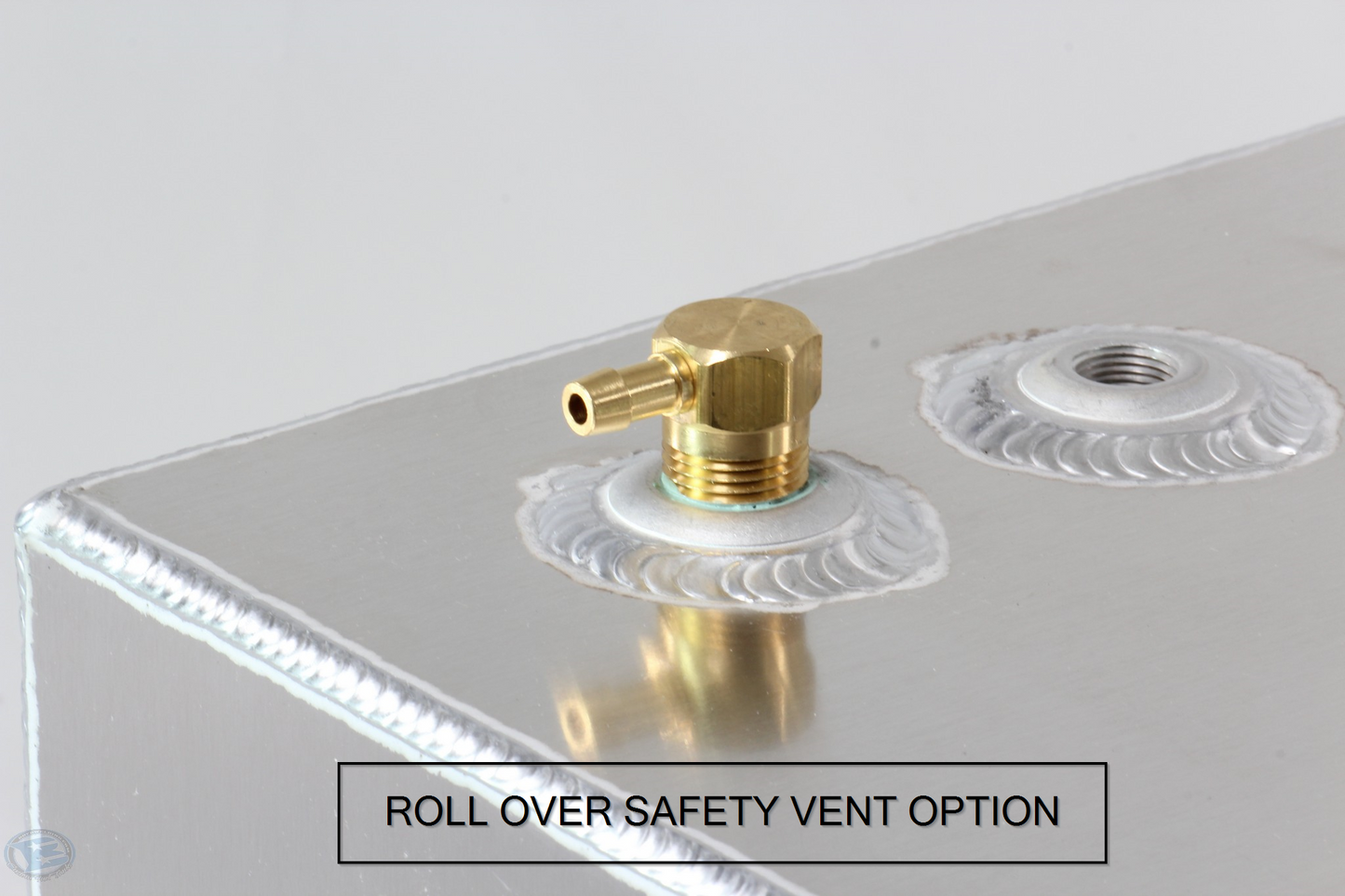

Rollover Safety Vent Option (either way, plumb the vent to a vapor canister or filter)
- No Rollover Vent Installed- Tank Bung Only
- Install #32001 Rollover Vent
What's in the Box
- Tank with your chosen side fill neck, 5/8" fill neck vent barb and sending unit flange
- 3/8" NPT pickup tube plate, installed
- Any other options you select
What You'll Still Need
- Fuel pump
- Feed line, plus a return line if used, and fittings
- Vent hose to a vapor canister or filter
- Level sensor or block-off, unless selected
- Mounting hardware
- Fill hose, filler housing and fill neck vent hose
- Thread sealant rated for fuel
Installing It Right
- Plumb the 1/2" NPT tank vent with hose to a vapor canister or filter, with or without the rollover vent. Never block off a tank vent port.
- Connect the 5/8" fill neck vent barb to the barb on the back of your fill neck housing.
- Install a sensor or the block-off kit before adding fuel.
- Aluminum threads cross-thread and gall easily. Start every plug and fitting by hand and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.
Keep the rear crossmember. On 1955-1987 Chevrolet C10 tanks, removing the rear crossmember for a Panhard bar suspension can crack the tank at the mounts, and that damage is not covered by our two-year limited structural warranty. If your suspension kit calls for removing it, ensure to replace it. Read the full note
Frequently Asked Questions
Which fuel level sensor should I choose?
For 1967–87 C10 trucks with stock gauges, choose 0-90 ohm. With aftermarket digital gauges the ohm range matters less; follow the gauge maker's instructions. If in doubt, choose 0-90 ohm. Sensors we don't list are available from Auto Meter, Classic Instruments, VDO, Holley and others.
If I don't choose a sensor, do I still get the flange?
Yes. Every C10 tank has the sending unit flange. To use the tank before you pick a sensor, install a block-off kit with gasket.
Do I need a mounting kit?
We only offer a mounting kit for 63–72 C10 trucks. For the 73–87 tank, supply your own hardware or fabricate your own mounting.
How do I plumb the side fill?
Connect the 5/8" fill neck vent barb to the barb on the back of your fill neck housing. You still need to plumb the 1/2" NPT tank vent with hose to a vapor canister or other method.
What is the rollover safety vent?
A ball check valve that lets air in and out. In a rollover the ball drops and blocks the vent so fuel can't leak out, and a small float reduces fuel slosh into the vent hose. The vent must still be plumbed to a canister or filter; never block off a tank vent port.
How far below the frame does the tank hang?
About 7" at the deepest point near the axle and 5" closest to the bumper.
Is the tank baffled?
Yes. Every tank is built as an EFI tank, with 2 main baffles and a middle baffle around the pump area.
If I buy the NON EFI tank, can I upgrade later?
Yes. Every tank has the same EFI baffling and provision, so you can add our Boyd #41001 in-tank pump assembly any time.
Can I get your pump hanger without a pump?
No. Our pump hangers are only sold fully assembled with an Aeromotive pump installed. You can buy a NON EFI tank and fabricate your own hanger for the provision.
Is shipping free?
Yes, on orders over $100 to the lower 48 states.

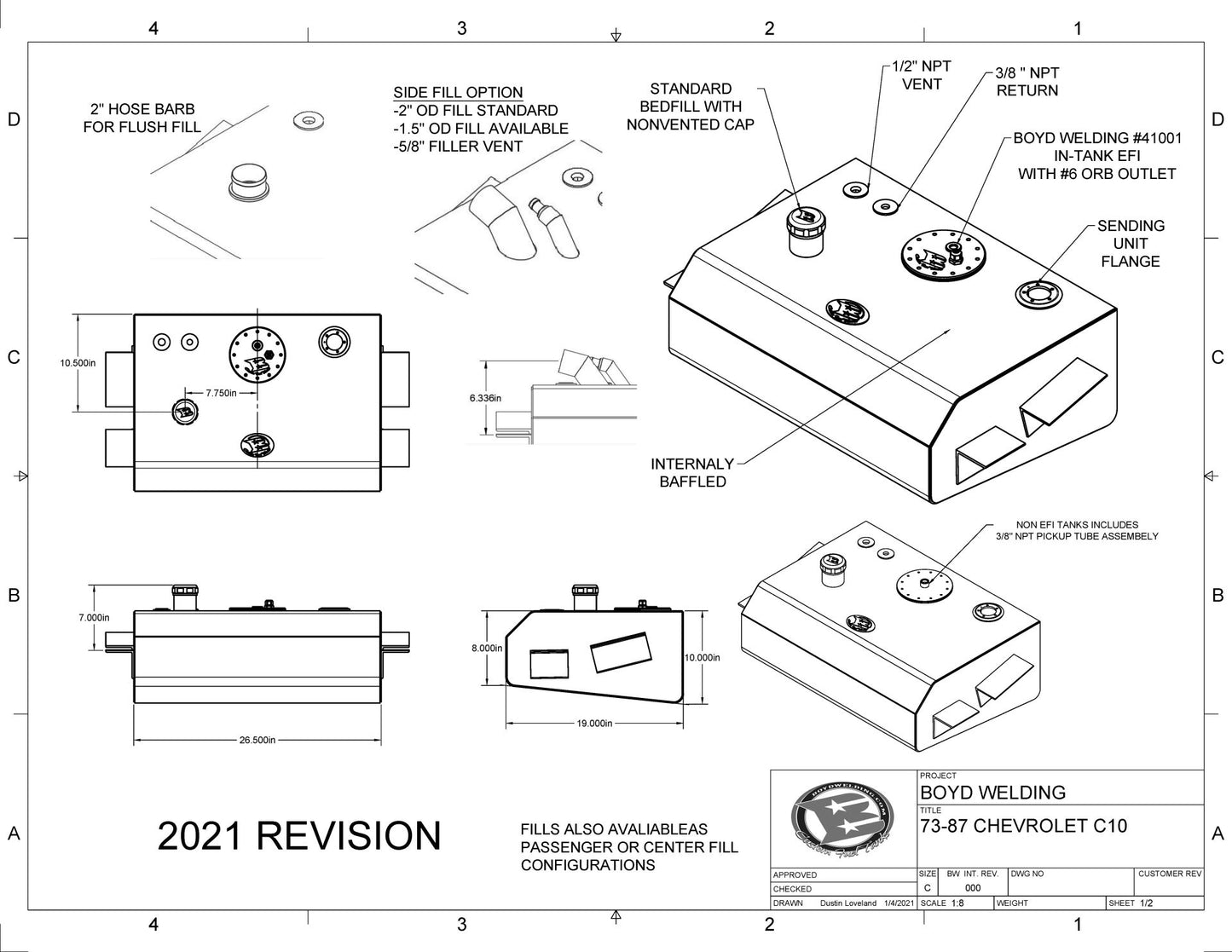

Drawings and Install Guide
