35 Gallon 48x12x18 Aluminum Tank W Pump

Availabilty : Ships in 1-2 weeks or Less

SKU:13004-DP

$1,686.60

Sale Sold out

Shipping calculated at checkout.

Pump Position Driver Side Position Passenger Side Position

Quantity

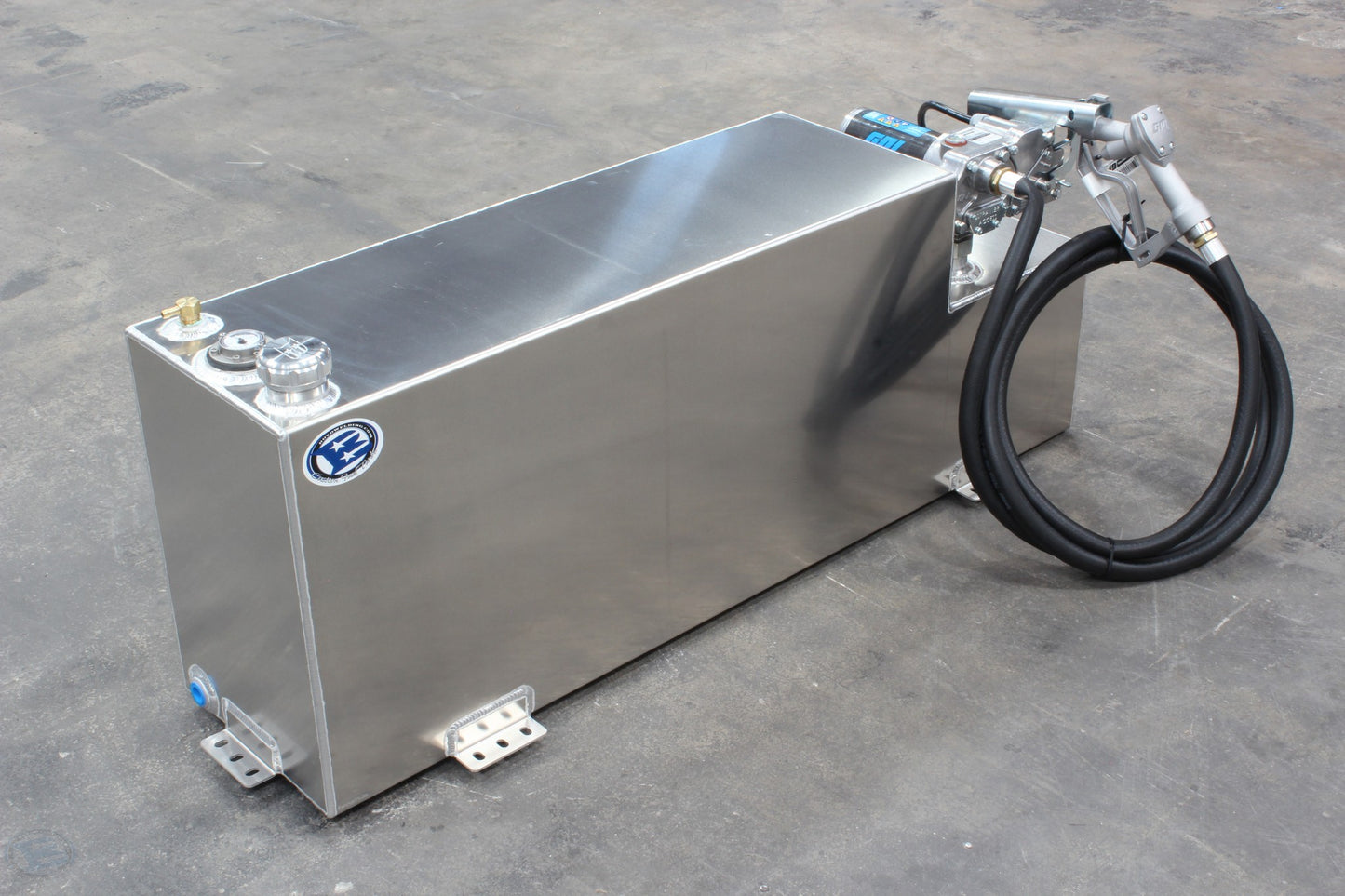

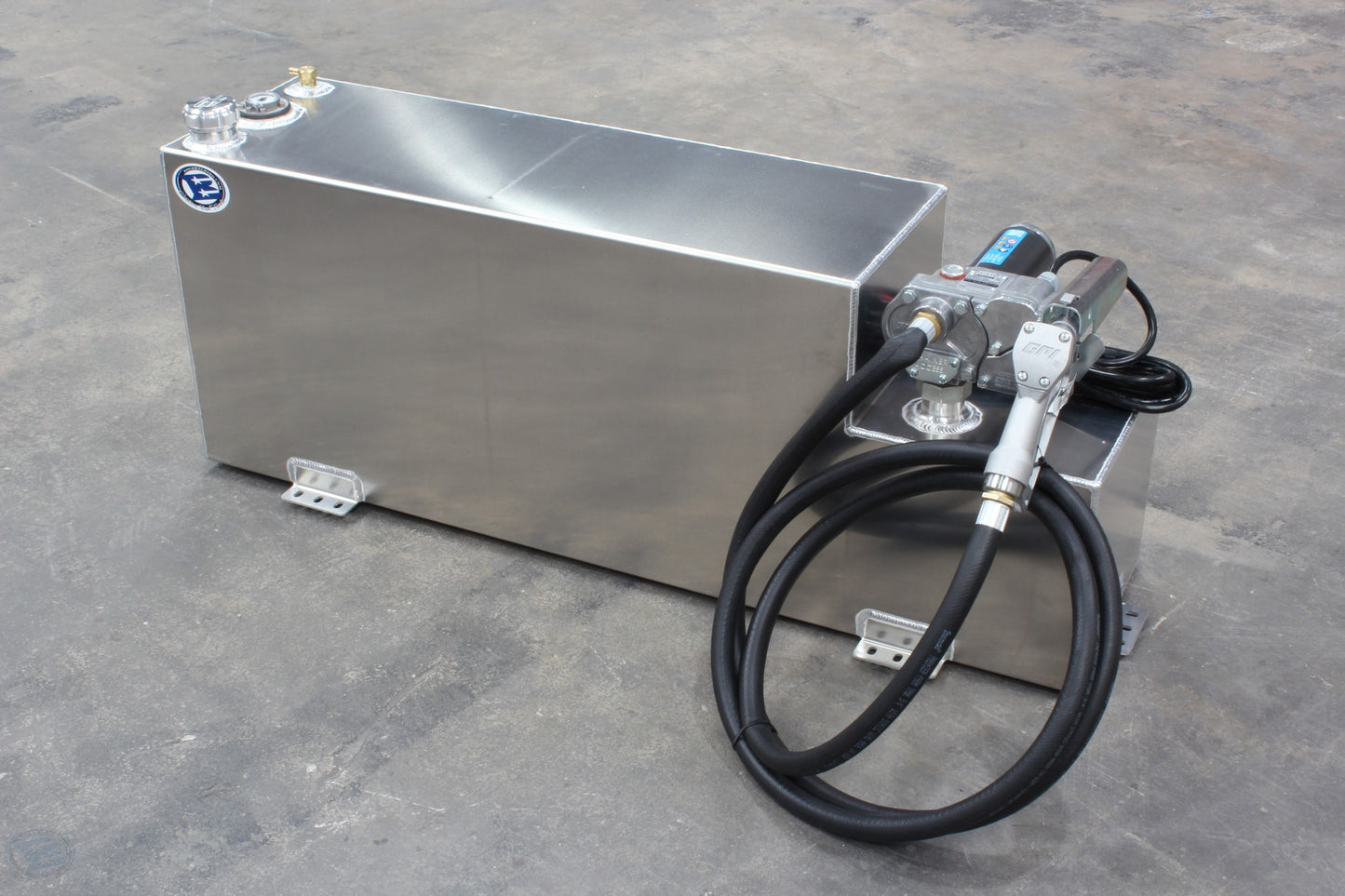

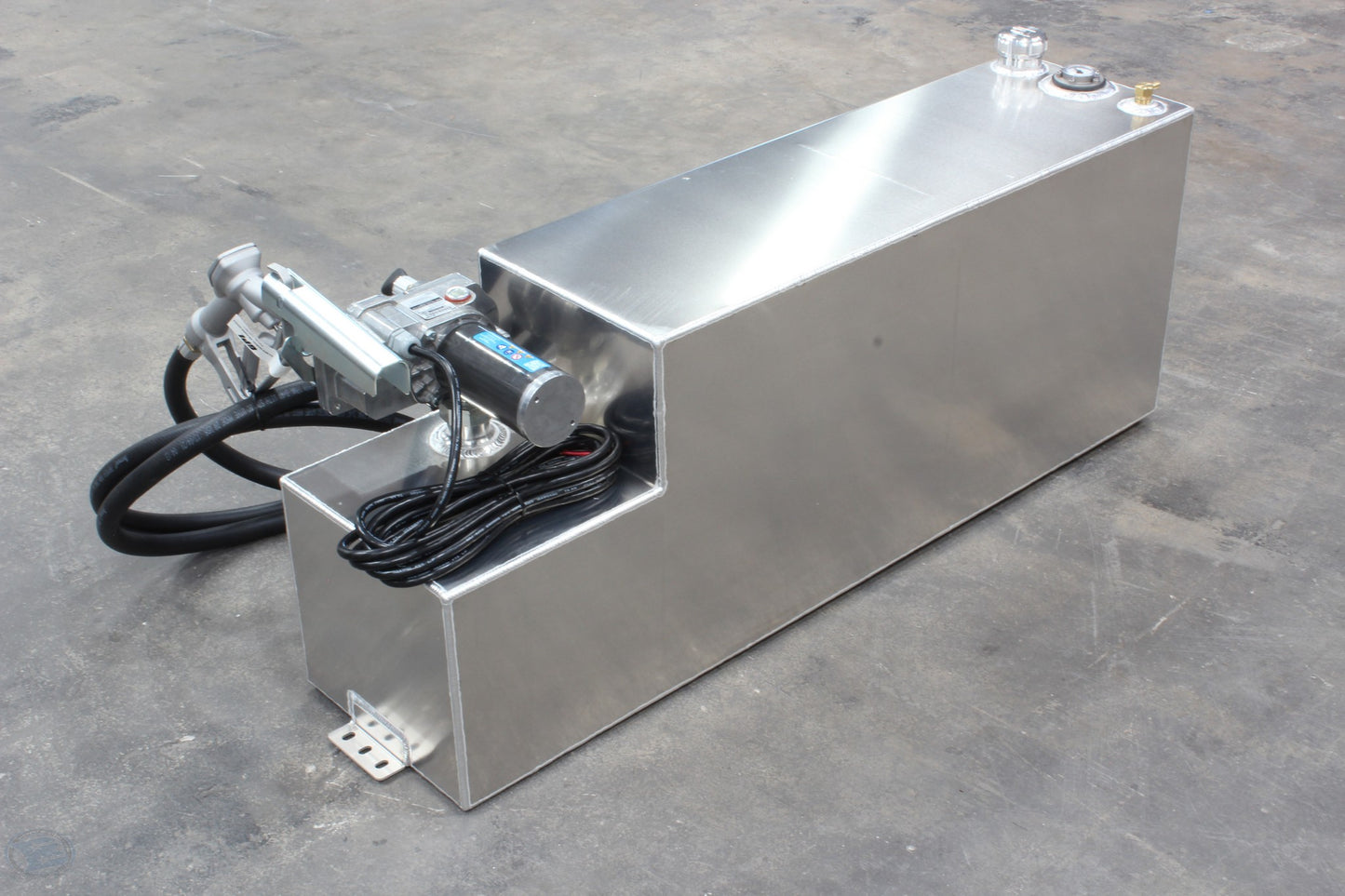

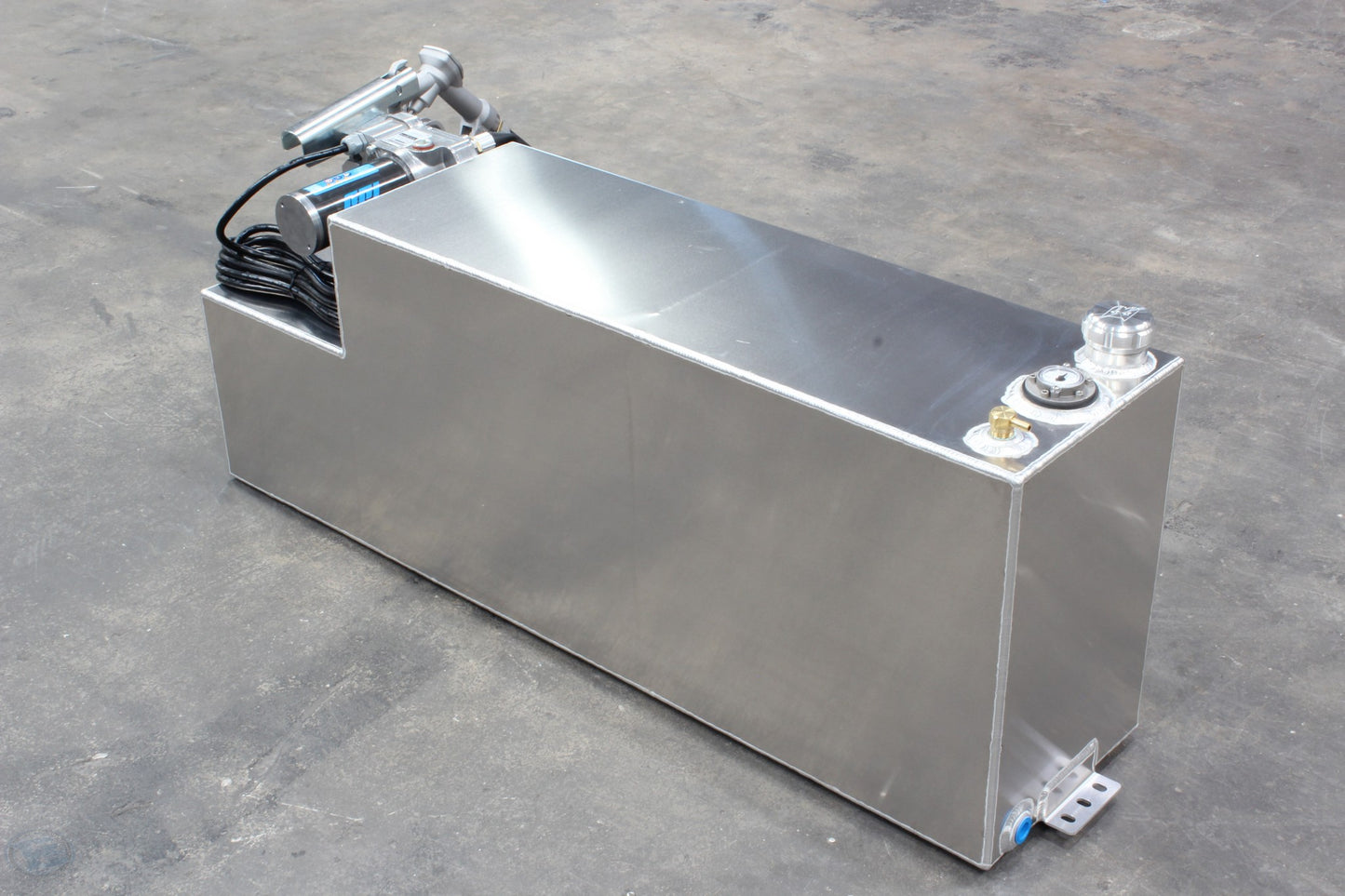

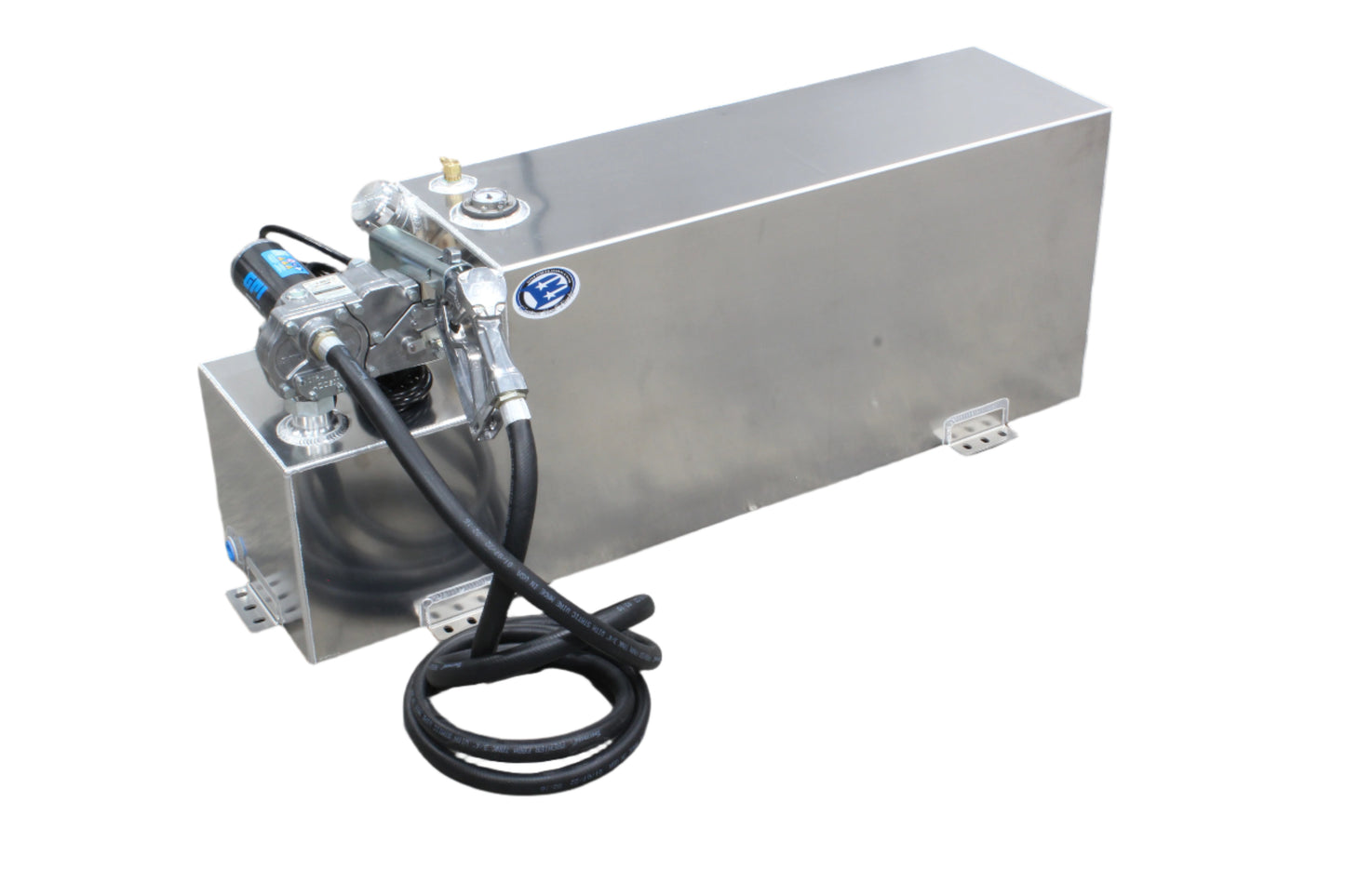

35-Gallon Aluminum Fuel Tank for Gasoline or Diesel, with Installed GPI 12V 15 GPM Transfer Pump

The Boyd Welding 35-gallon tank, product number 13004, is built from 0.125-inch 5052 mill-finish aluminum with two internal baffles and AWS-certified welds, and every tank is pressure leak tested at 5–8 psi. It ships as a complete unit with an installed GPI 12V 15 GPM transfer pump, a 12-foot hose, a manual nozzle, a rollover vent, and a mechanical fuel gauge.

Choose a driver-side or passenger-side pump pocket. This tank is sold only as a complete tank-and-pump unit. It's backed by a 2-year limited structural warranty from the date of purchase and ships in 1–2 weeks or less, with free LTL freight shipping to the lower 48 states.

Fuel and Use

This tank and all included components are compatible with both gasoline and diesel. Every tank is fully pressure tested and inspected following the 49 CFR 393.67 liquid fuel tank guidelines.

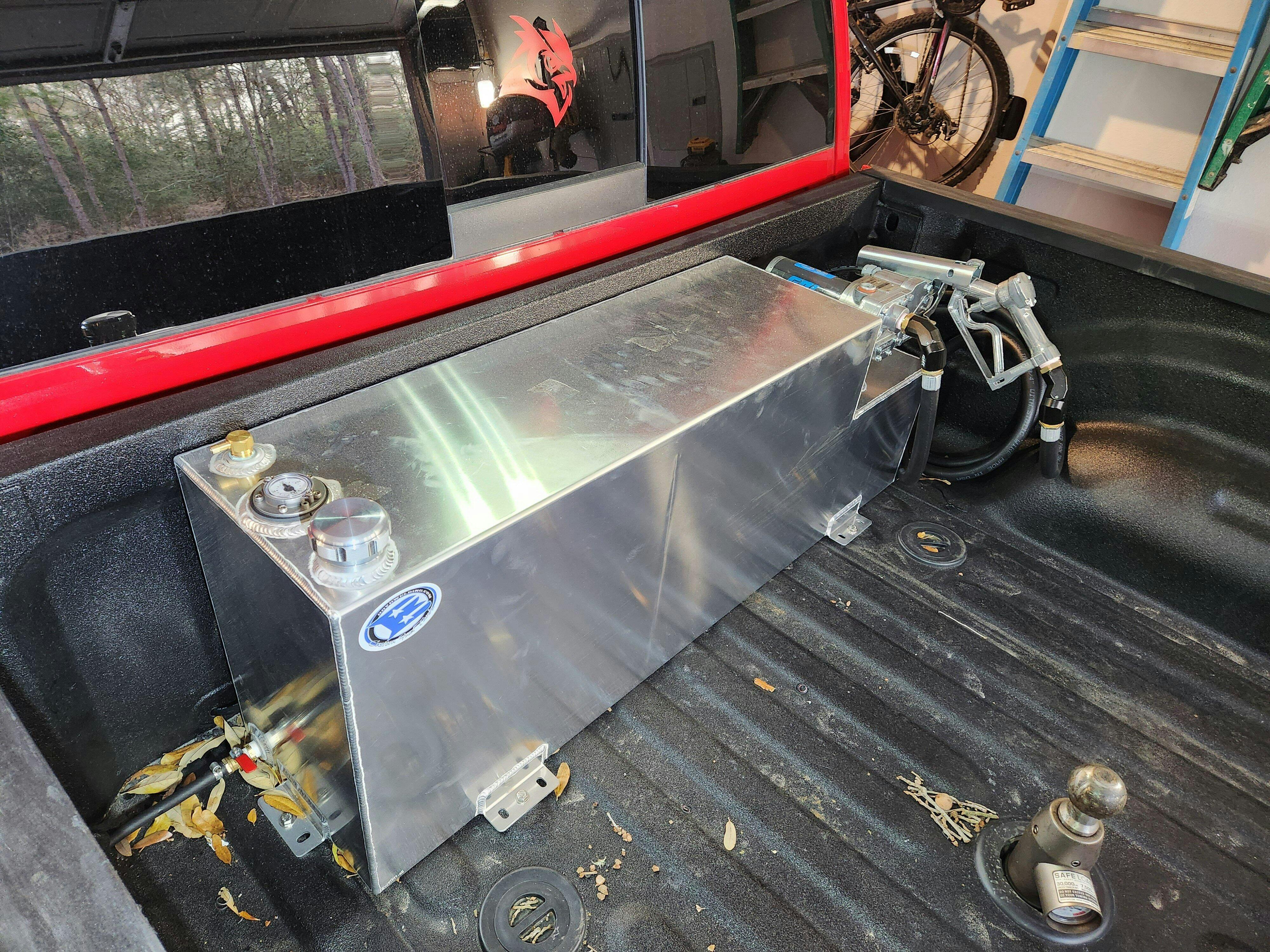

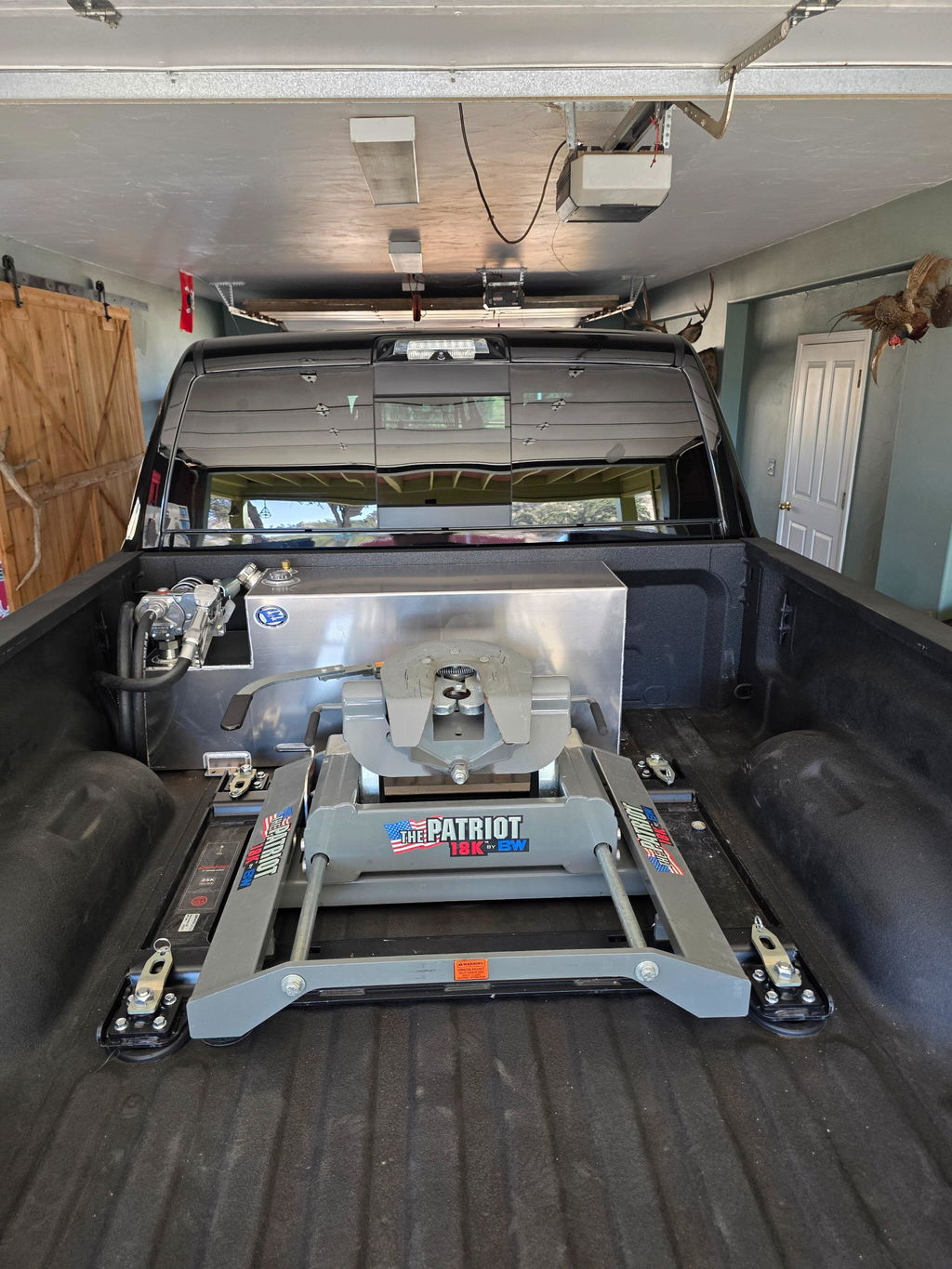

Truck Bed and Bed Cover Fit

At just 12" wide, this tank is a compact option for trucks where bed space is tight. Fit depends on your truck, bed, and cover, so measure before you order.

Measure your specific application before ordering. The tank body measures 48" L × 12" W × 18" H. Make sure the larger 51" × 13.5" mounting footprint fits your bed space and that the 20" overall height, including the fill cap, clears the underside of your bed cover. Allow for any mounting materials, cover rails, or supports, and for the pump and its connections in the position you choose.

Before you order, see our Transfer Tank Install and Fitment Guide for fit checks, pump positions, and install steps.

Construction and Quality

Made in Ocala, FL USA using USA Materials
CNC Machined Billet Weld Fittings, Cap and Neck
Every tank pressure leak tested at 5–8 psi
AWS-certified welds
Boyd-exclusive pump mounting and pump securement brackets
0.125-inch 5052 mill-finish aluminum construction with two internal baffles

Tank Specifications

Product number: 13004
Capacity: 35 gallons
Tank body dimensions: 48" L × 12" W × 18" H
Mounting footprint: 51" L × 13.5" W
Height including fill cap: 20"
Material: 5052 mill-finish aluminum
Material thickness: 1/8" (0.125")
Listed tank dry weight: 68 lb
Approximate full weight: About 280 lb with gasoline, about 315 lb with diesel
Internal baffles: 2
Fill cap: Boyd 2-inch non-vented cap, part number 81037-NV
Vent connection: 1/2-inch NPT, with rollover vent installed
Pump draw connection: Custom EZ-Spin adapter for the GPI M150S
Sending-unit flange: Included, with mechanical gauge installed
Return connection: None
Drain connection: One 1/2-inch NPT port
Mounting tabs: Four tabs
Pressure test: 5–8 psi, every tank tested
Compatible fuels: Gasoline and diesel
Warranty: 2-year limited structural warranty from the date of purchase

Pump-Position Options

Driver-side pocket, 13004-DP. The fill is 2" from the back of the tank to its center.
Passenger-side pocket, 13004-PP. The fill is 10" from the back of the tank to its center.

Choose the side you'll fuel from most often, and check the drawing for that position before you order. The notch in this tank is compatible only with the GPI M150S 12-volt pump with an EZ-Spin collar.

Included Equipment

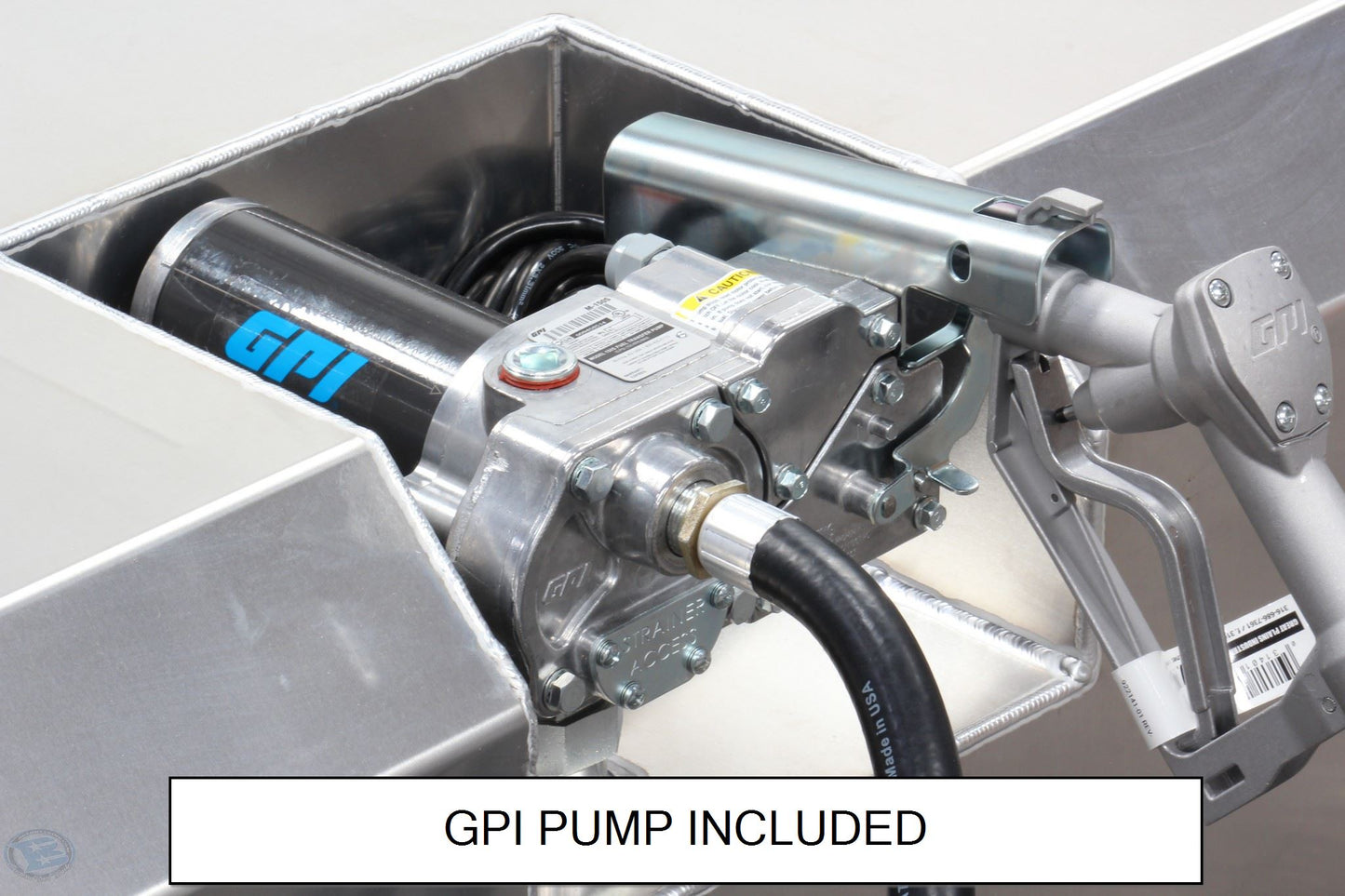

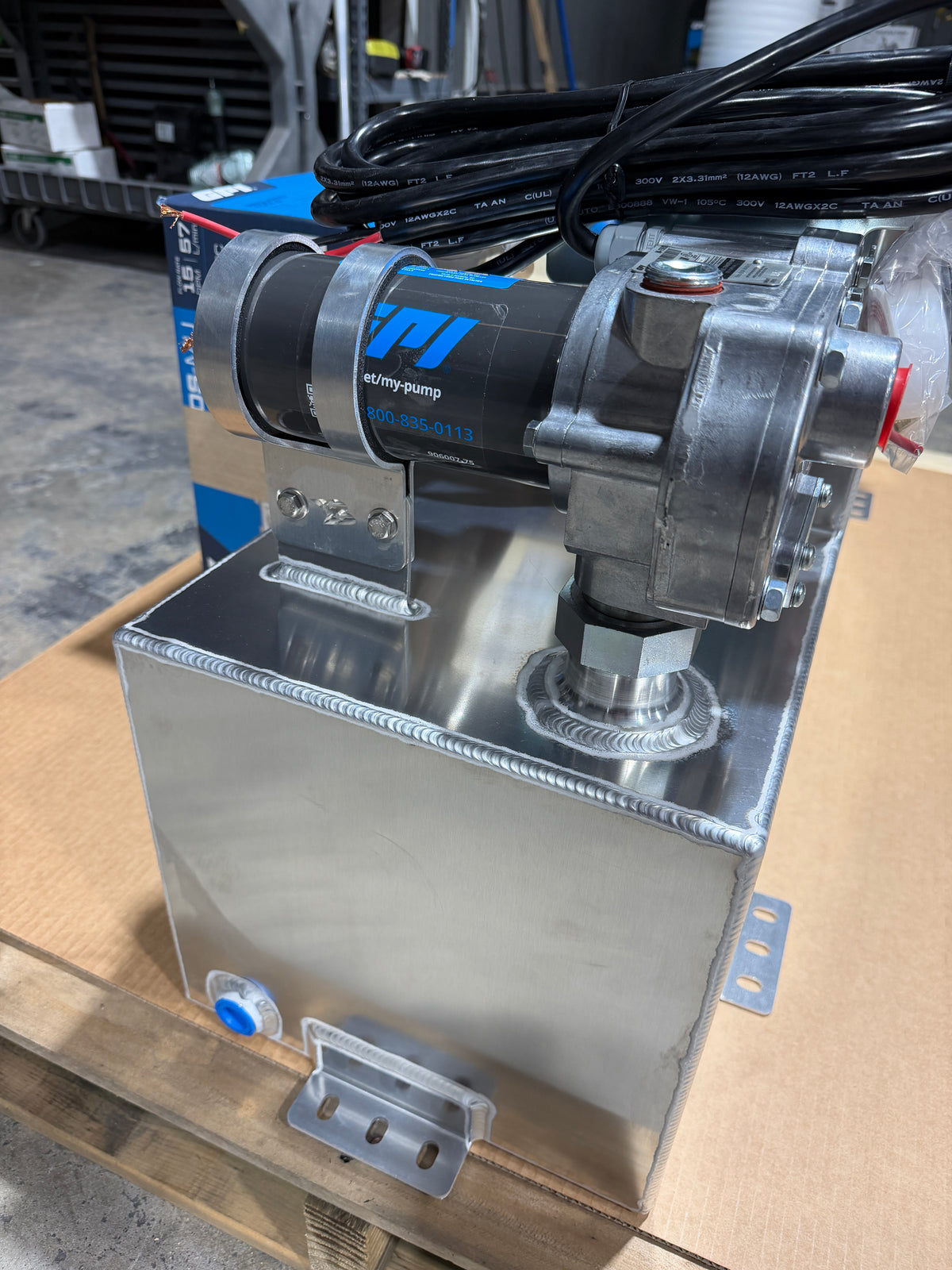

Installed GPI 12V 15 GPM transfer pump
12-foot hose and manual nozzle

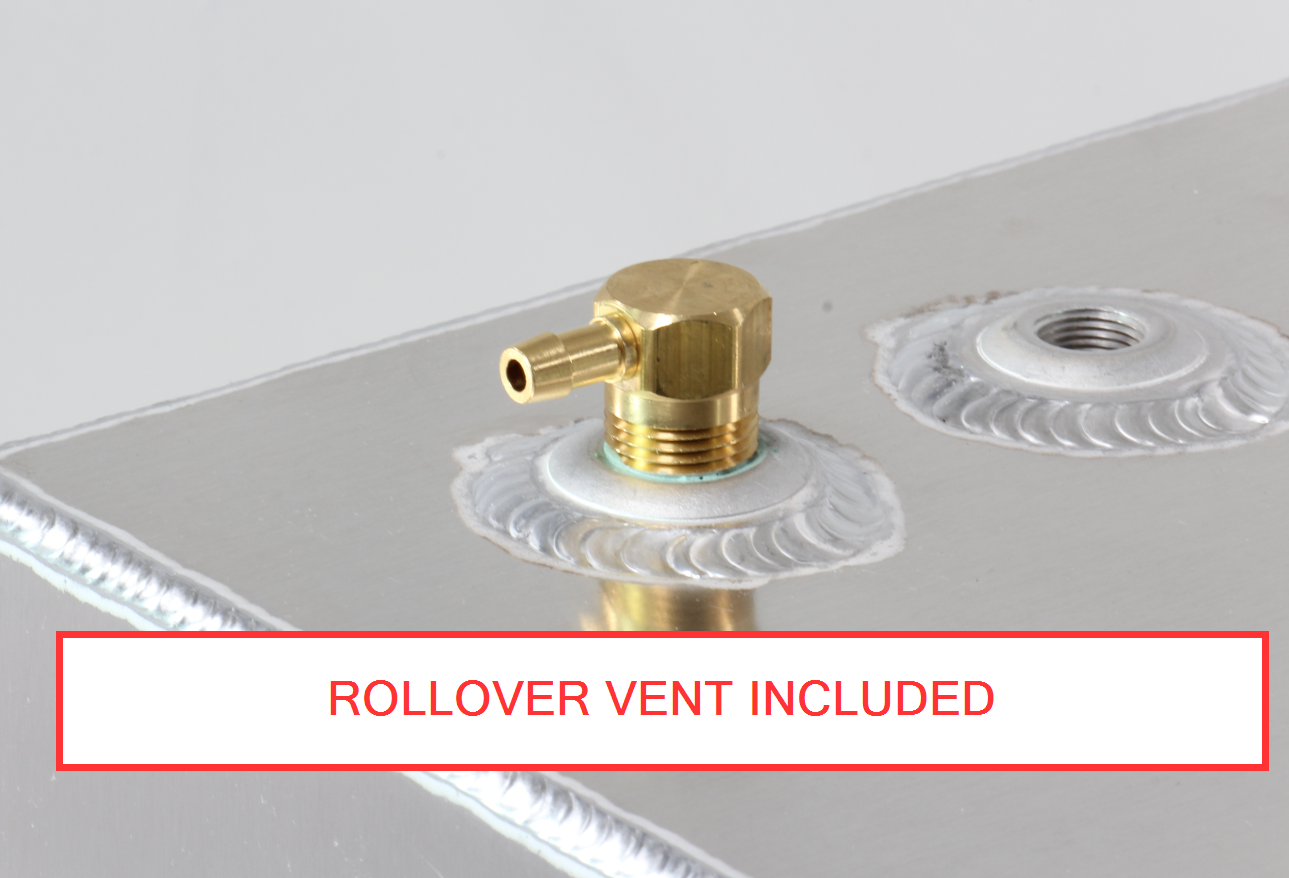

1/2-inch NPT rollover vent

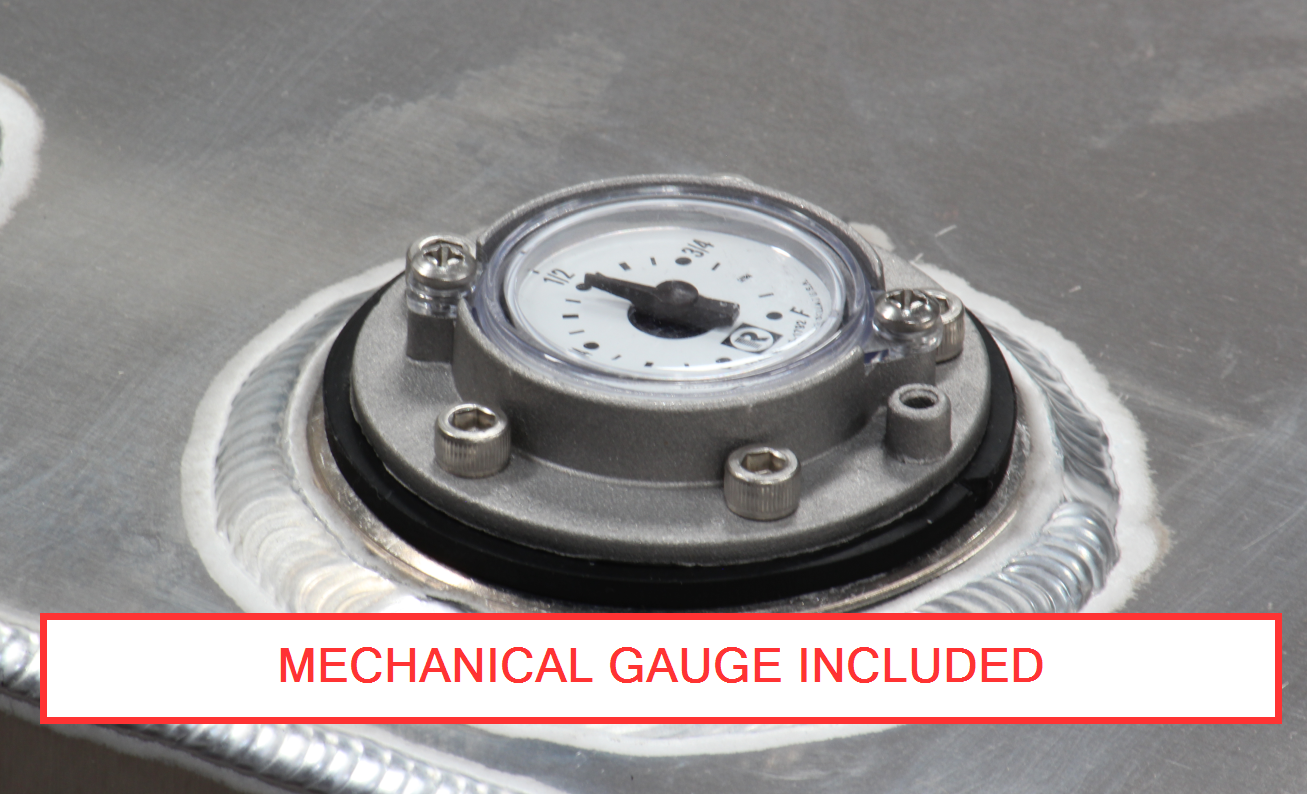

Mechanical fuel gauge
1/2-inch brass drain plug, supplied for installation
Roll of PTFE thread-seal tape

Required Items Not Included

Mounting hardware
Vent hose and small filter
Electrical connectors for wiring the pump cord to your battery

Installation Notes

The drain plug is supplied but not installed. Remove the blue shipping plug and install the drain plug before adding any fuel. Blue plugs are for shipping only and must never be used with liquid.

Protect the threads. Aluminum threads can cross-thread and gall easily. Start plugs and fittings by hand, and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.

Brass fittings are recommended.

Frequently Asked Questions

Can I put gasoline in this tank?
Yes. The tank and all included components are compatible with both gasoline and diesel.

Is it DOT compliant?
Our tanks are not guaranteed to meet DOT requirements, and no special permit is provided. Check the regulations for your use before installing.

Will it fit under my tonneau cover?
The tank is 20" tall including the fill cap. Measure from your bed floor to the underside of your cover, and allow for any mounting materials and cover rails. Also confirm that the 51" × 13.5" mounting footprint fits your available bed space.

What else do I need to install it?
Mounting hardware, a vent hose and small filter, and electrical connectors for your battery.

Which pump position should I choose?
Choose the side you'll fuel from most often, and check the drawing for that position before you order.

Can I buy the tank without the pump?
No. It's sold only as a complete tank-and-pump unit.

What's the warranty?
A 2-year limited structural warranty from the date of purchase.

How long does shipping take?
It ships in 1–2 weeks or less, and LTL freight shipping is free to the lower 48 states.

Reference Drawings and Pump Details

Explore Other Tank Sizes

Looking for a different capacity? Explore these tank-and-pump options:

Prefer Stainless Steel?

Our 304 stainless steel tank-and-pump units come with a driver-side pump position:

35-Gallon Stainless Steel Tank with Pump, 48" × 12" × 18" (same size in stainless)
60-Gallon Stainless Steel Tank with Pump, 48" × 20" × 17"
75-Gallon Stainless Steel Tank with Pump, 48" × 24" × 18"

Outfitting a Service Body Truck?

Working with a minimum 48" space? Our 70- and 100-gallon service-body aluminum tanks feature a shorter 47.5" tank length to fit within that space. Both include a GPI 15 GPM pump. Check the full dimensions, mounting requirements, and pump clearances for your installation before ordering.
