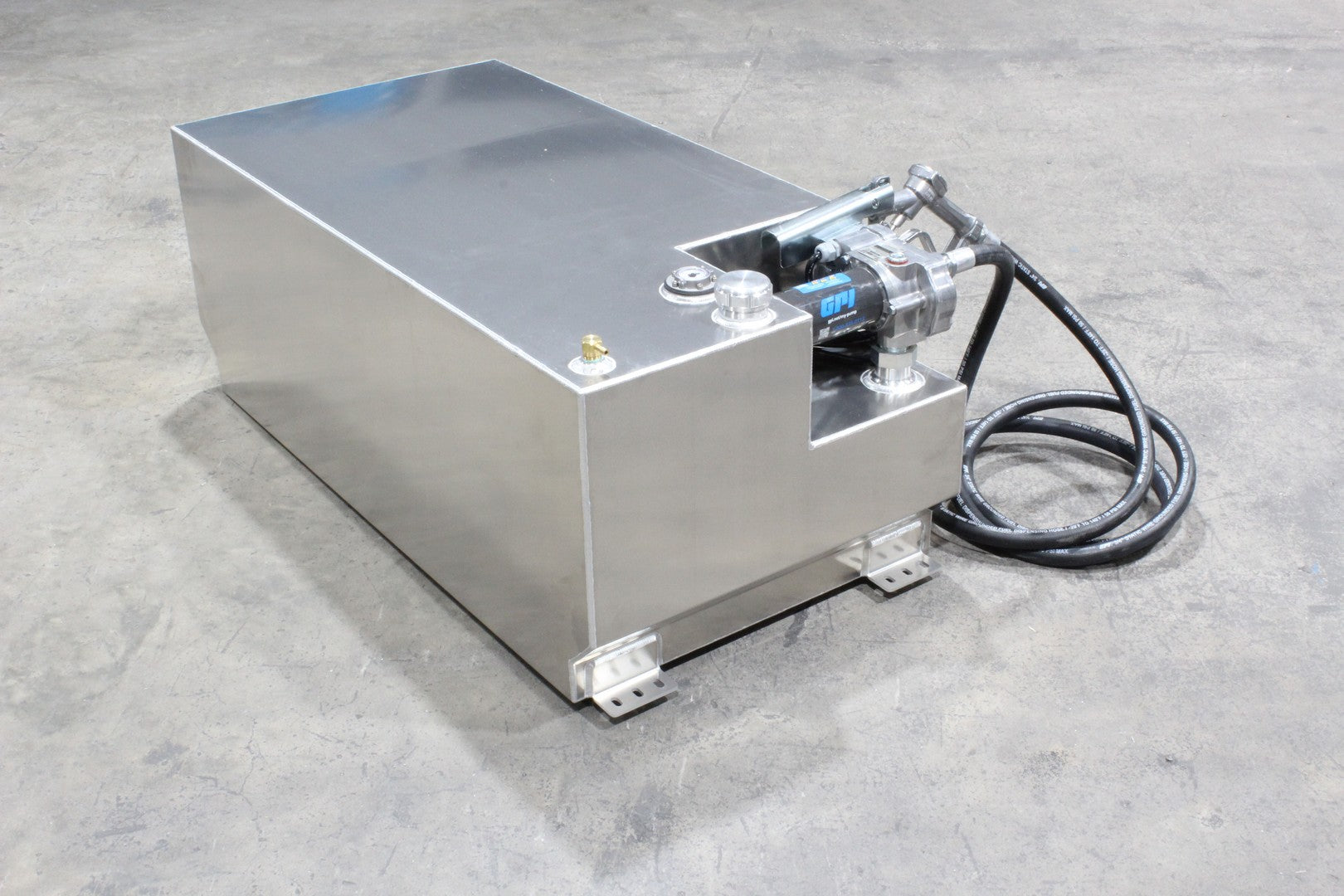

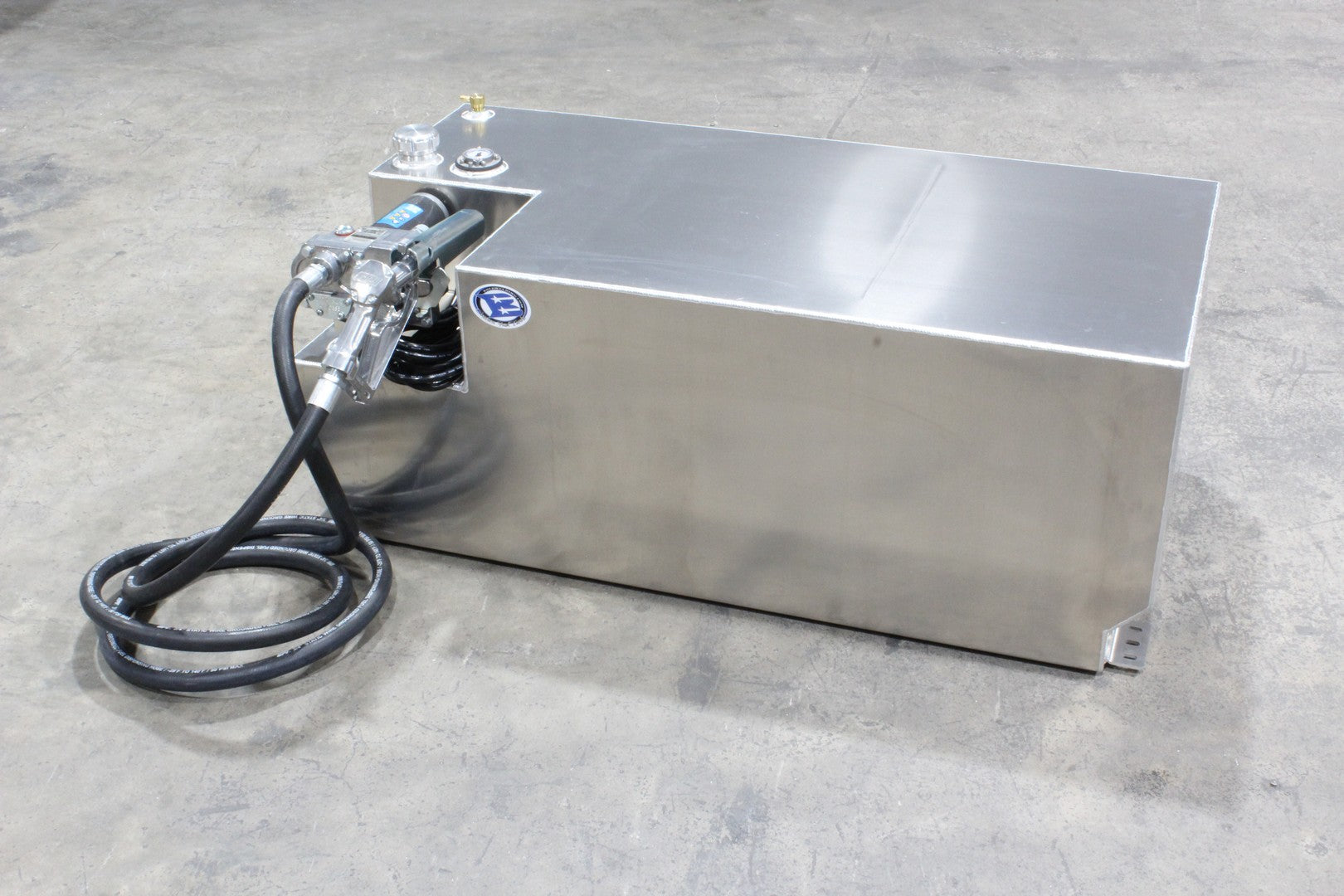

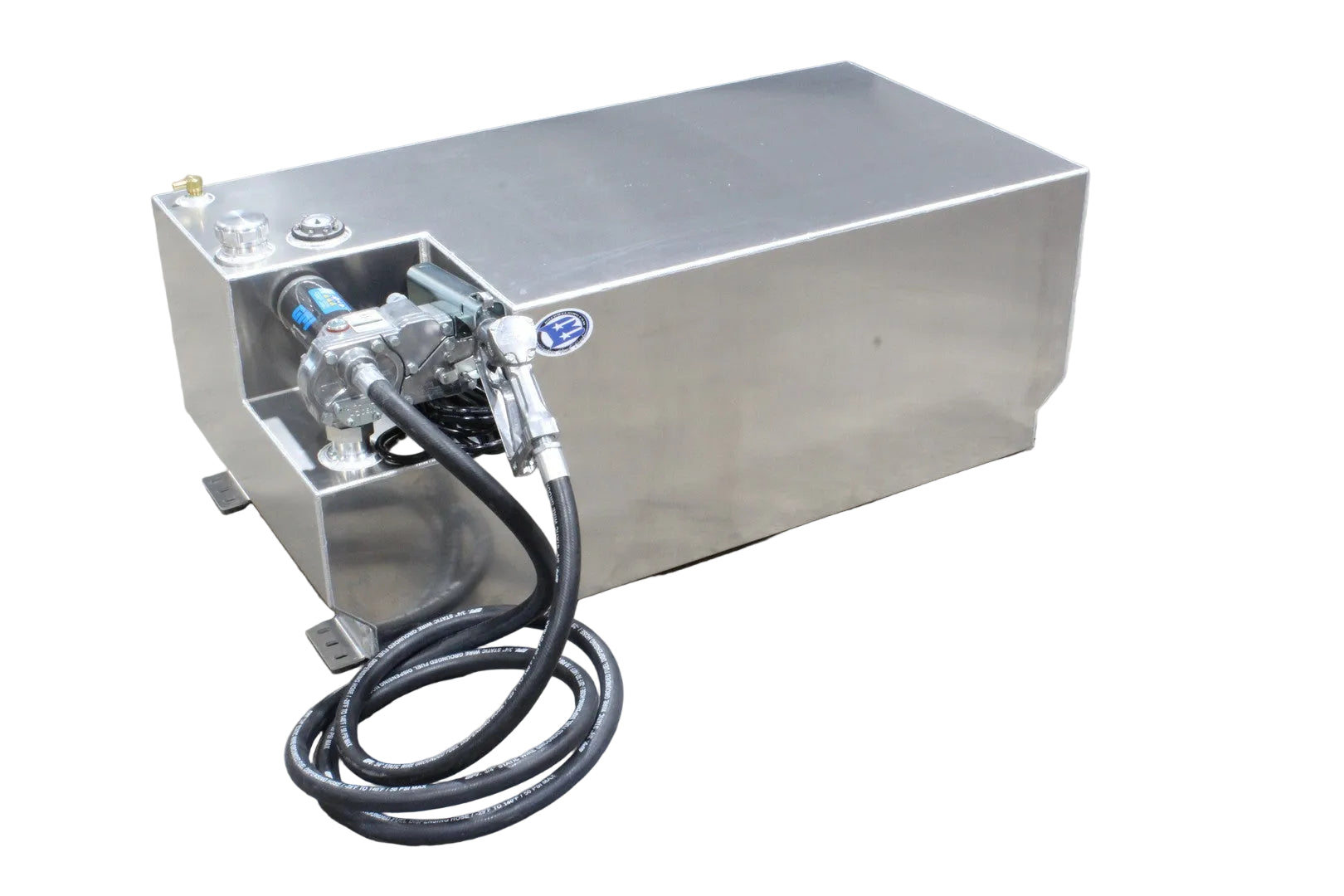

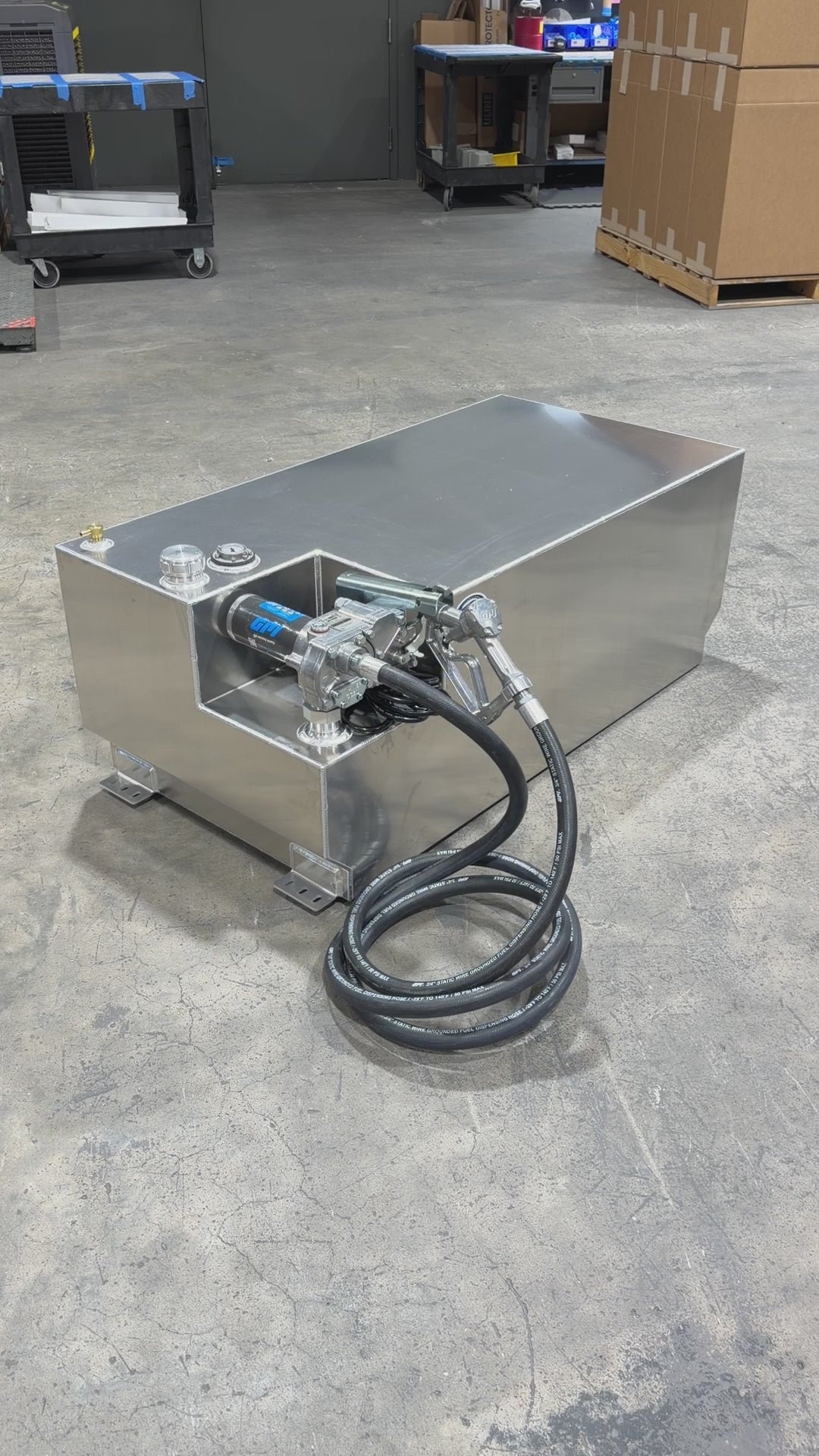

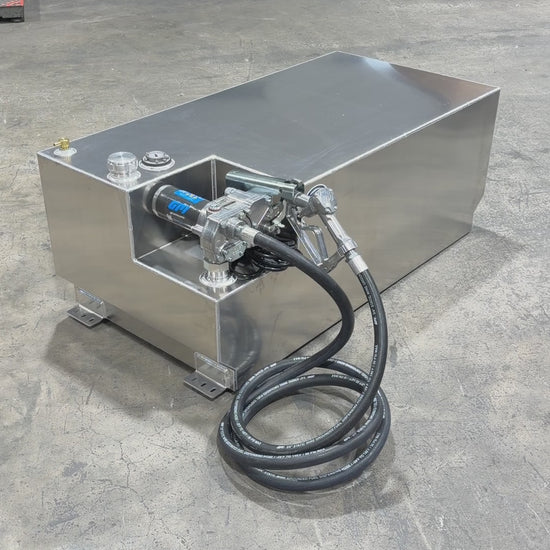

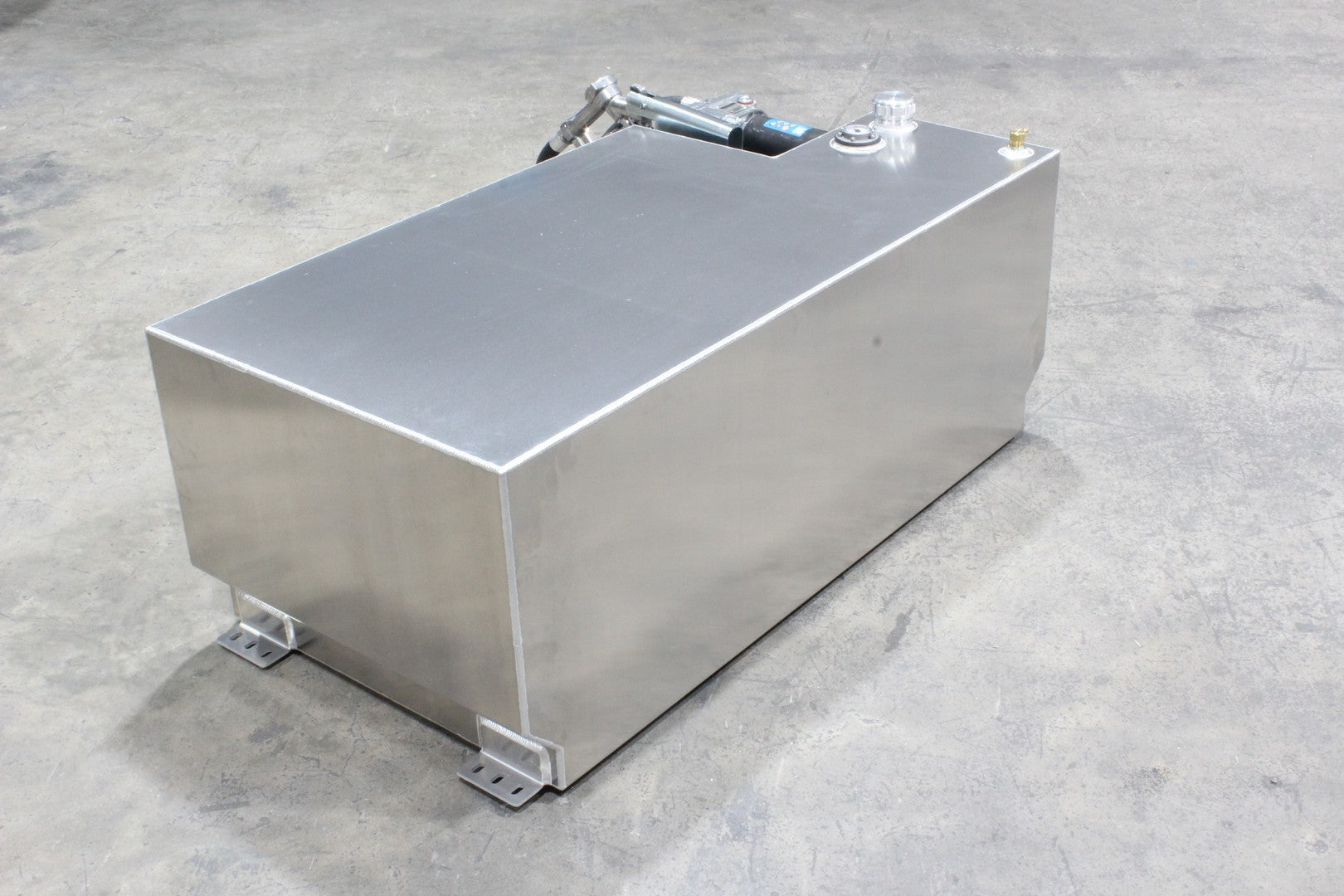

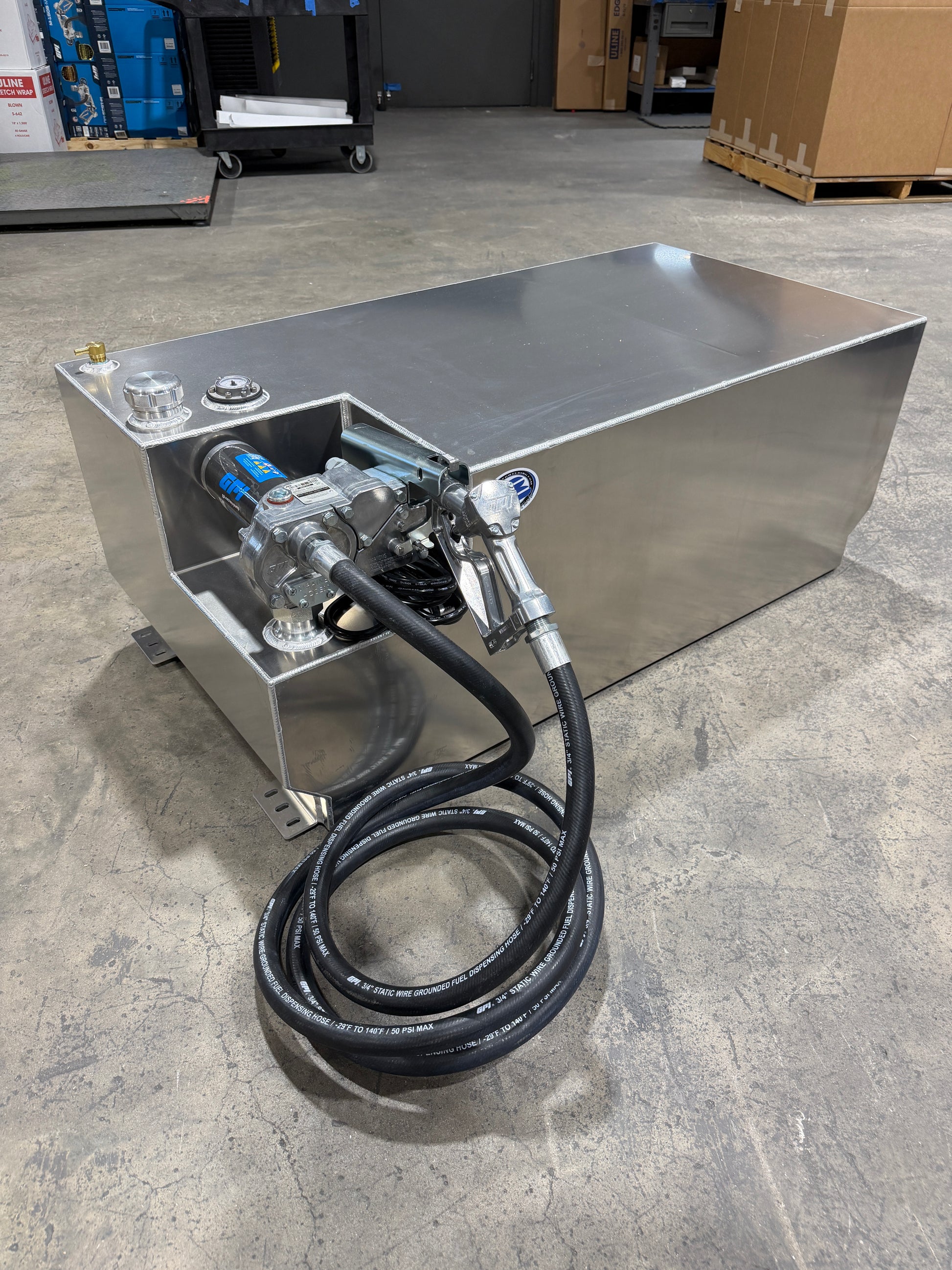

70 Gallon 47.5x24x18 Service Body Aluminum Tank W GPI 15GPM Pump Included

70 Gallon 47.5x24x18 Service Body Aluminum Tank W GPI 15GPM Pump Included

Tank Body Dimensions: 47.5L x 24W x 18H
Tank Height W/Cap = 20"
Tank Material: .125 Aluminum

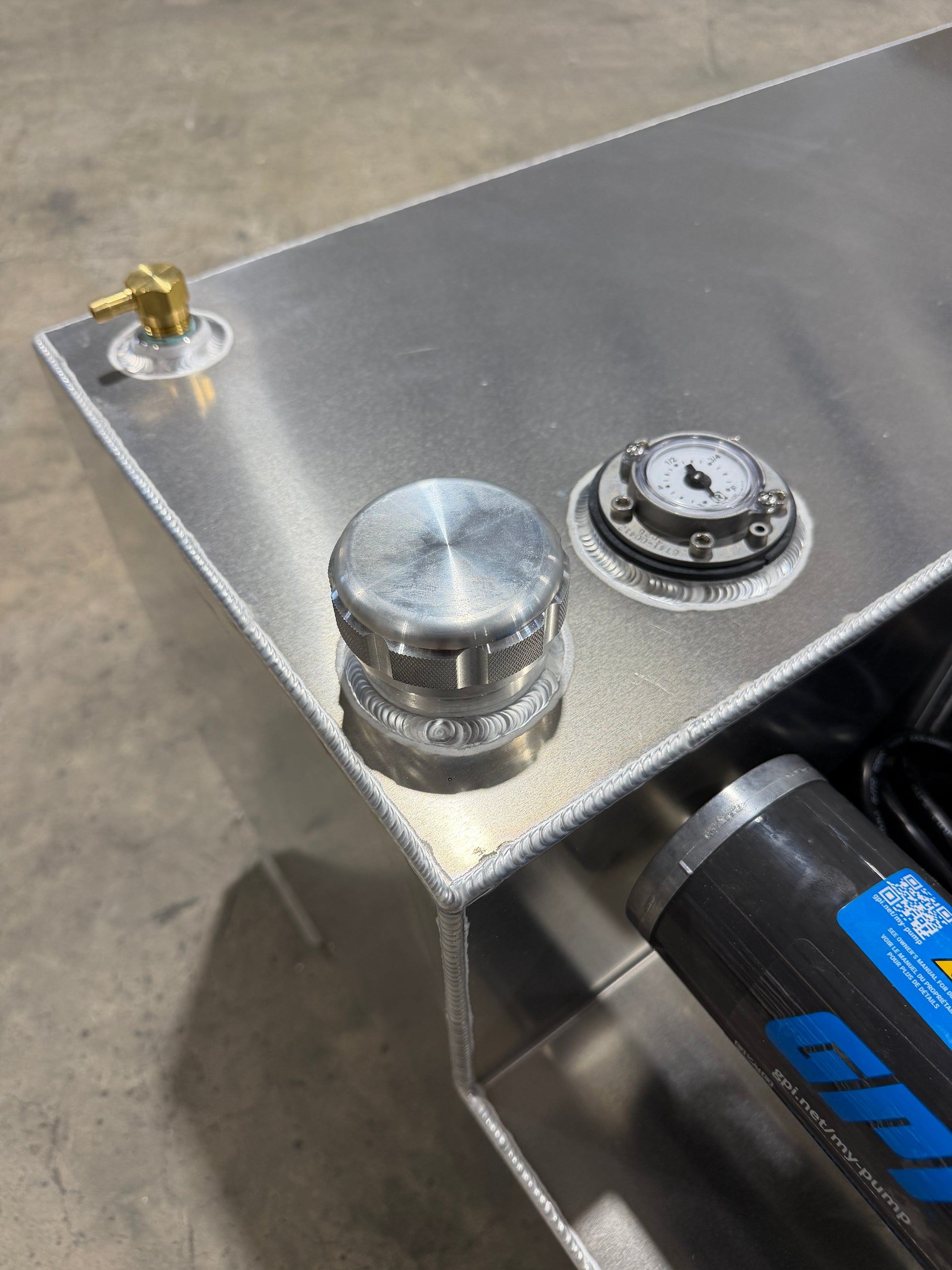

(1) Boyd 2" Non Vented Cap
(1) 1/2" NPT Vent W/ Rollover Vent
(1) Sending unit Flange W Mechanical Gauge
(2) Baffles

Tank Dry Weight = 87#

Dimensions from back of tank to center of cap

• Driver Pocket = 10.5"
• Passenger Pocket = 21.5

REFERENCE DRAWING #13030-DPR DRIVER POCKET

REFERENCE DRAWING # 13030-PPR PASSENGER POCKET

**Sold as a complete unit only, We do not sell the tank only without the pump installed.

Items INCLUDED with this tank

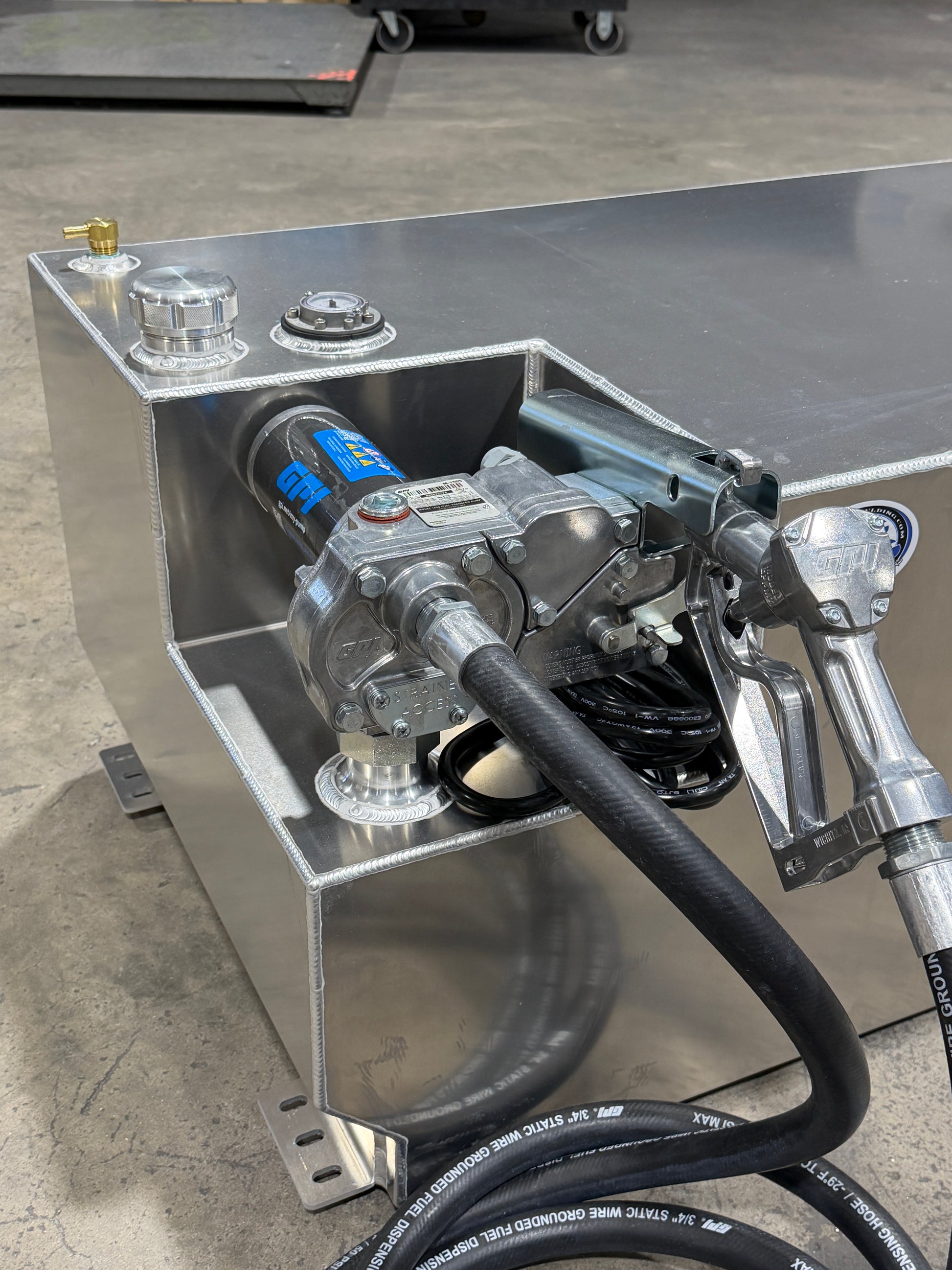

• GPI 12v 15GPM pump, hose and manual nozzle. CLICK HERE  for more info regarding the pump.
• 1/2" NPT Rollover Vent
• Mechanical Fuel Gauge

• Roll PTFE Teflon Tape

Items NOT INCLUDED with this tank

• Mounting Hardware, You will need to supply your own bolts

• Vent hose and small filter
• Electrical connectors to wire the supplied cord to your battery source.
