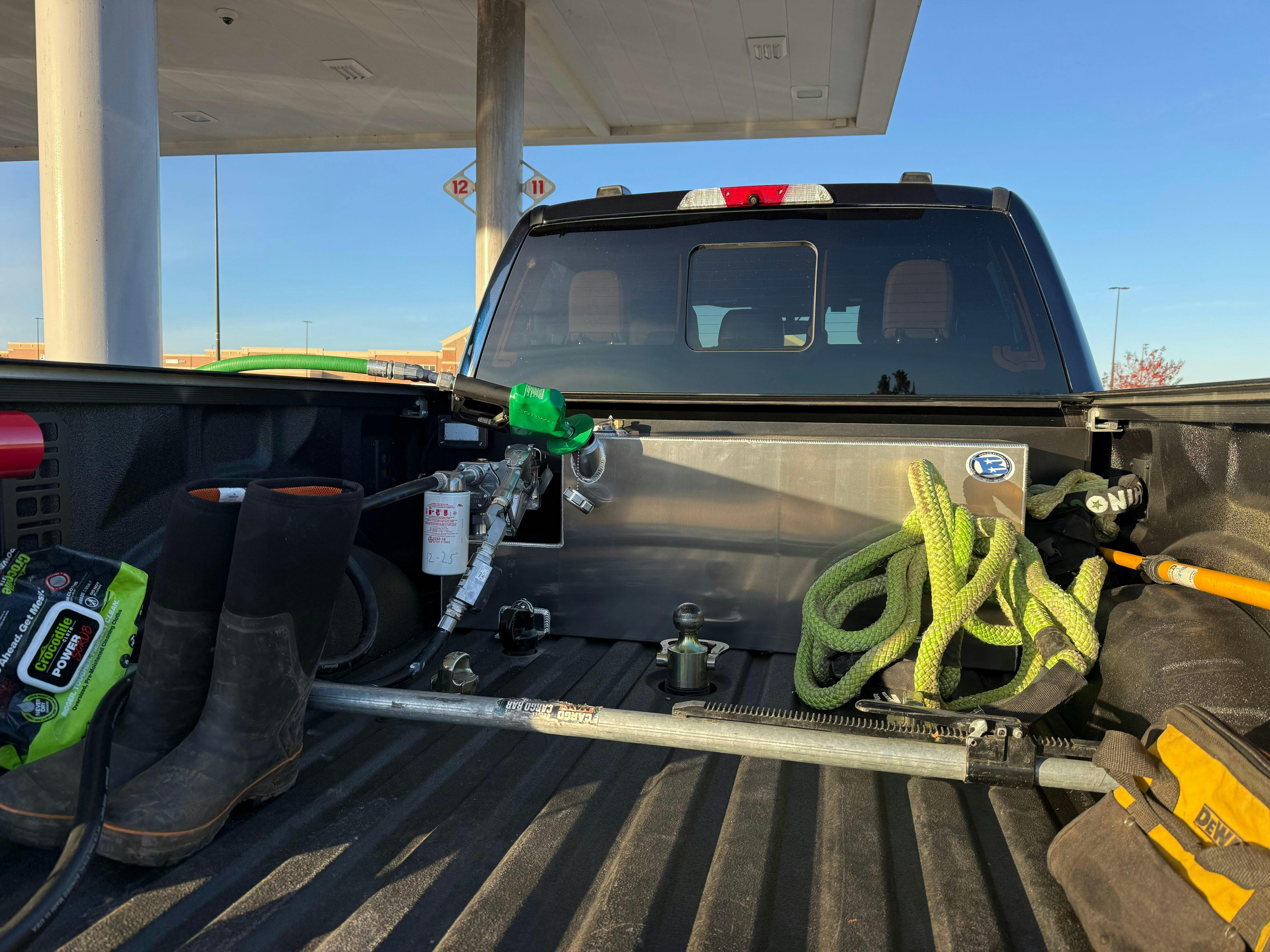

• Boyd Welding 50 gallon roll top step aluminum fuel tank with installed GPI 15 GPM pump
  • 50 gallon roll top step tank with GPI pump and hose

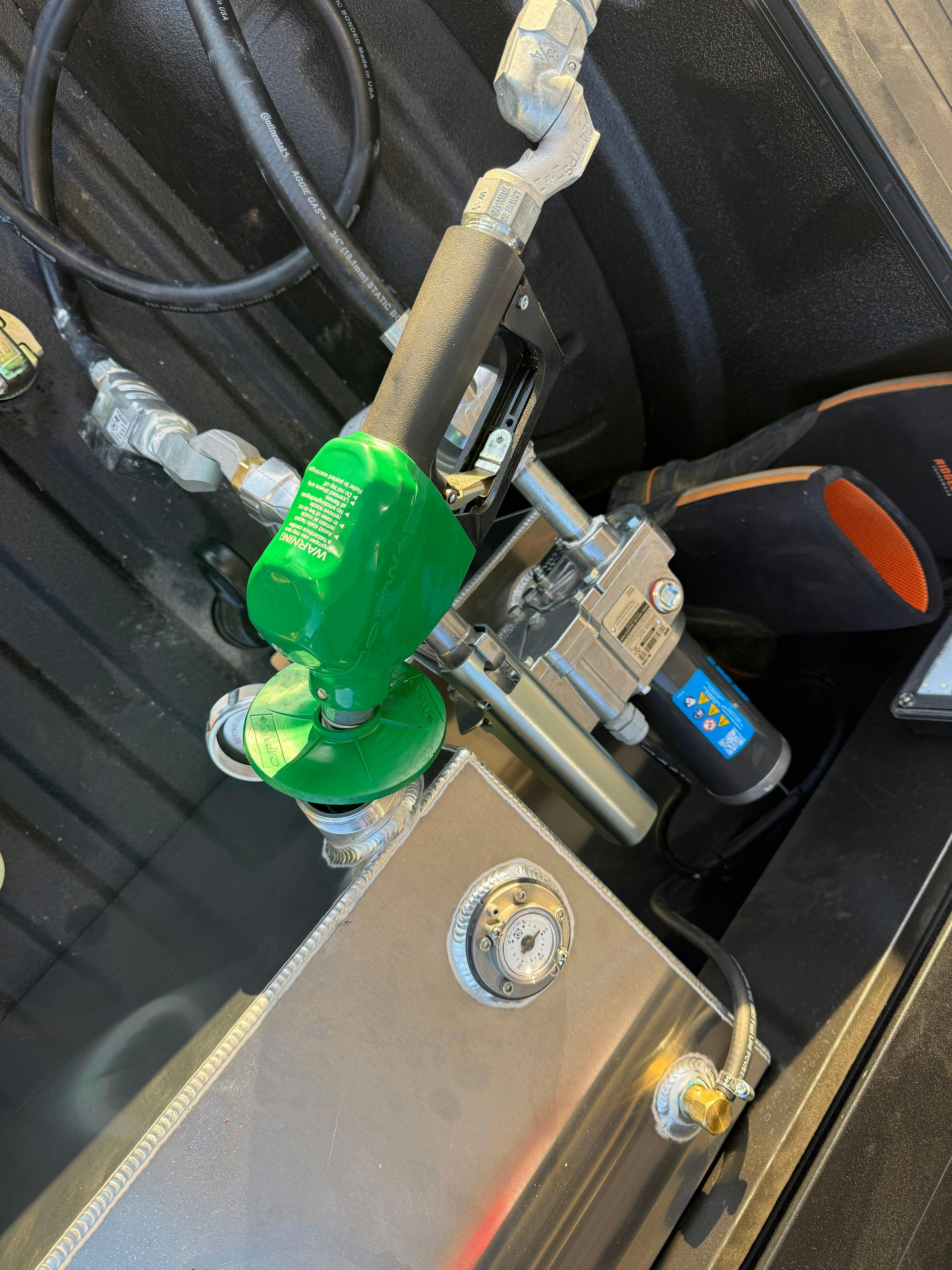

  • 50 gallon aluminum step tank side view with pump, hose, and nozzle
  • Rear view of the 50 gallon roll top tank showing the 8x11 step for the cover housing

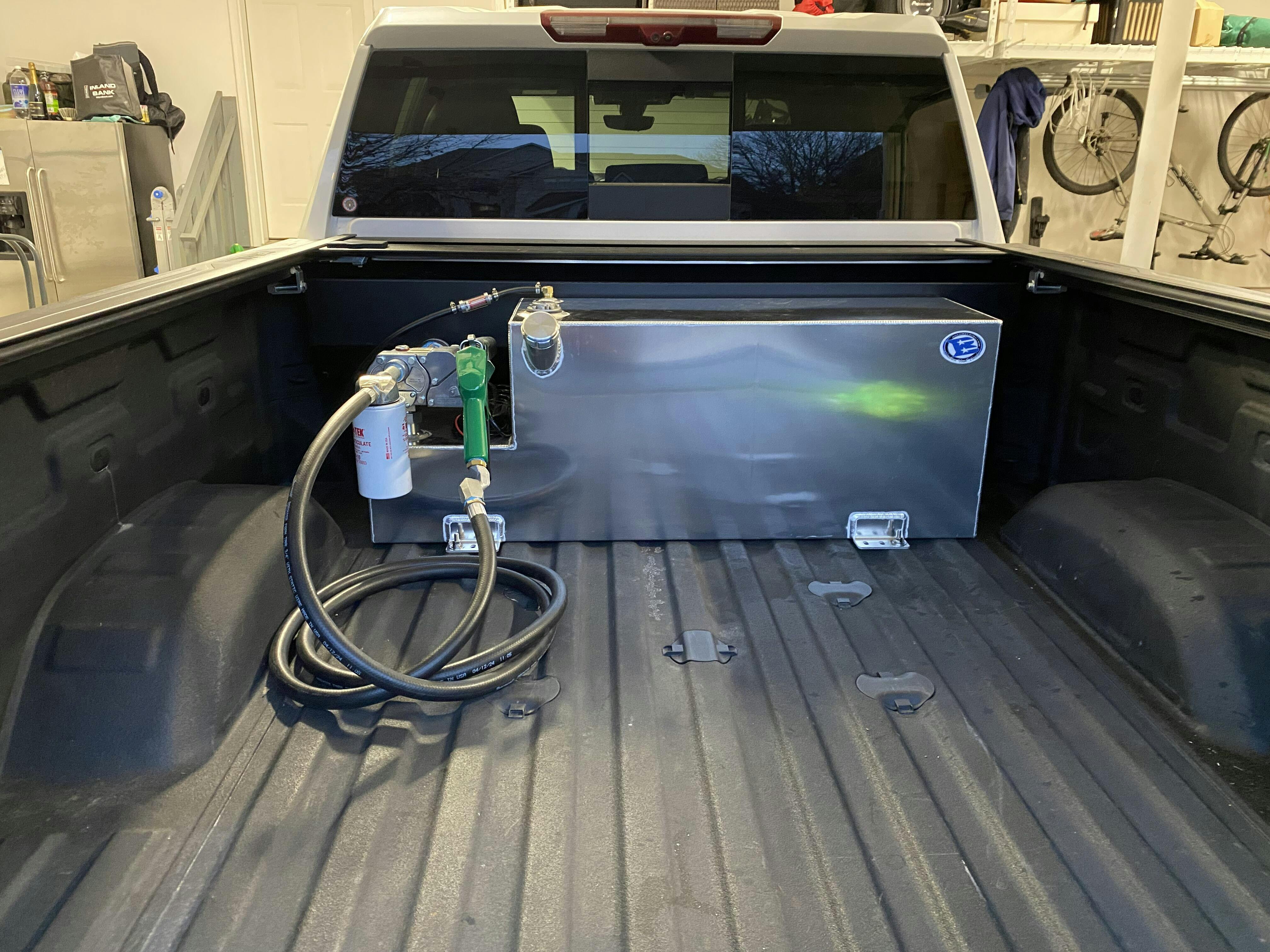

  • 50 gallon step tank with GPI pump and coiled 12-foot hose
  • 48x24x17.5 roll top step aluminum tank with driver-side GPI pump
  • Mechanical fuel gauge included on the tank's sending-unit flange
  • 1/2-inch NPT rollover vent included on the aluminum fuel tank
  • GPI pump included with the Boyd aluminum fuel tank

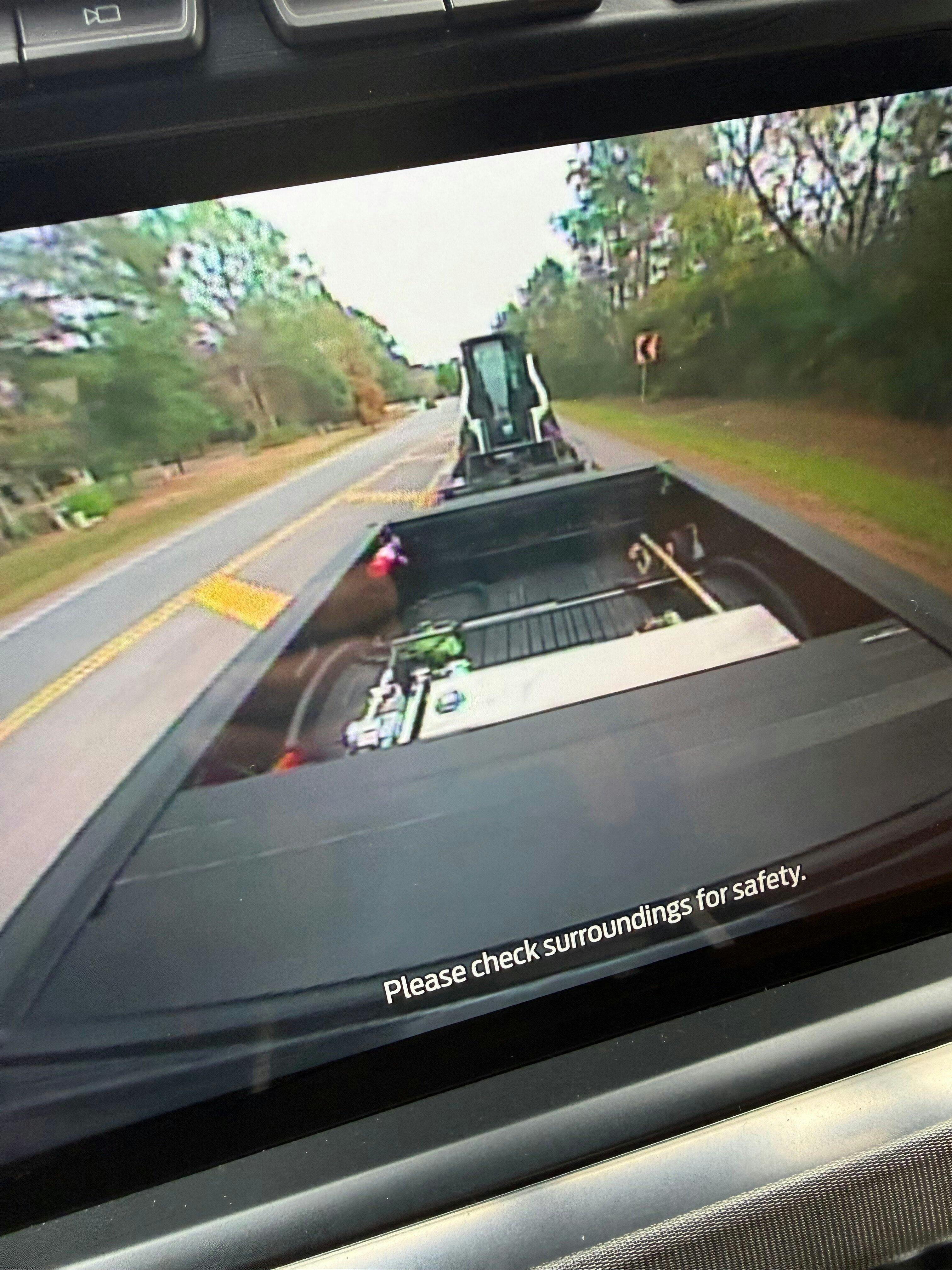

  • Roll-N-Lock roll top cover closing over the 50 gallon step tank in a truck bed
1 10

50 Gallon Roll Top Step 48x24x17.5 Aluminum Tank W GPI 15GPM Pump Installed

50 Gallon Roll Top Step 48x24x17.5 Aluminum Tank W GPI 15GPM Pump Installed

Availability : Ships in 1-2 weeks or Less

13007-DP

$2,271.36
$2,271.36
Sale Sold out
Shipping calculated at checkout.

50-Gallon Roll Top Step Aluminum Fuel Tank for Gasoline or Diesel, with Installed GPI 12V 15 GPM Transfer Pump

The Boyd Welding 50-gallon roll top step tank, product number 13007, is designed for full-size trucks with a Retrax or similar electric or manual roll top cover. Its stepped design uses the space under the roll top housing and still lets your cover close fully. It's built from 0.125-inch 5052 mill-finish aluminum with two internal baffles and AWS-certified welds, and every tank is pressure leak tested at 5–8 psi. It ships as a complete unit with an installed GPI 12V 15 GPM transfer pump, a 12-foot hose, a manual nozzle, a rollover vent, and a mechanical fuel gauge.

This tank is sold only as a complete tank-and-pump unit. It's backed by a 2-year limited structural warranty from the date of purchase and ships in 1–2 weeks or less, with free LTL freight shipping to the lower 48 states.

Fuel and Use

This tank and all included components are compatible with both gasoline and diesel. Every tank is fully pressure tested and inspected following the 49 CFR 393.67 liquid fuel tank guidelines.

Roll Top Cover Fit

The 8" × 11" step is shaped to clear the roll top cover's housing at the front of the bed, so you get fuel capacity without giving up your cover. Fit depends on your truck, cover, and hitch setup, so measure before you order.

Measure your specific application before ordering. The tank body measures 48" L × 24" W × 17.5" H. Make sure the 52" × 26" mounting footprint fits your bed space and that the 19" overall height, including the fill cap, clears your cover's housing and latches. Allow for any mounting materials, cover rails, or supports, and for in-bed hitch hardware. Use the published drawing to check your truck.

Before you order, see our Transfer Tank Install and Fitment Guide for fit checks, pump positions, and install steps.

Known Fitment Issues

This isn't a complete list. Other fit issues may exist depending on your truck, cover, and hitch configuration.

  • 2025 Ram 2500 with a Roll-N-Lock cover: the latch and tank cap interfere on height.
  • 2026 Ford F-250 with a Retrax cover: the cover fits fine, but the tank mounts interfere with the OEM in-bed hitch puck system.

Construction and Quality

  • Made in Ocala, FL USA using USA Materials
  • CNC Machined Billet Weld Fittings, Cap and Neck
  • Every tank pressure leak tested at 5–8 psi
  • AWS-certified welds
  • Boyd-exclusive pump mounting and pump securement brackets
  • 0.125-inch 5052 mill-finish aluminum construction with two internal baffles

Tank Specifications

  • Product number: 13007-DP
  • Capacity: 50 gallons
  • Tank body dimensions: 48" L × 24" W × 17.5" H
  • Step dimensions: 8" × 11"
  • Mounting footprint: 52" L × 26" W
  • Height including fill cap: 19"
  • Material: 5052 mill-finish aluminum
  • Material thickness: 1/8" (0.125")
  • Listed tank dry weight: Approximately 84 lb
  • Approximate full weight: About 390 lb with gasoline, about 440 lb with diesel
  • Internal baffles: 2
  • Fill cap: Boyd machined non-vented cap, part number 81037
  • Vent connection: 1/2-inch NPT, with rollover vent installed
  • Pump draw connection: Custom EZ-Spin adapter for GPI EZ-Spin pumps
  • Sending-unit flange: Included, with mechanical gauge installed
  • Return connection: None
  • Drain connection: None
  • Mounting tabs: Four tabs, 2" × 2" sheet-metal angle, 4" long, slotted
  • Pressure test: 5–8 psi, every tank tested
  • Compatible fuels: Gasoline and diesel
  • Warranty: 2-year limited structural warranty from the date of purchase

Pump Position

This tank is available with a driver-side pump pocket only (13007-DP). The notch is compatible only with the GPI M150S 12-volt pump with an EZ-Spin collar, which is included.

Included Equipment

  • Installed GPI 12V 15 GPM transfer pump
  • 12-foot hose and manual nozzle
  • 1/2-inch NPT rollover vent, installed
  • Mechanical fuel gauge, installed
  • Roll of PTFE thread-seal tape

Required Items Not Included

  • Mounting hardware
  • Vent hose and small filter
  • Electrical connectors for wiring the pump cord to your battery

Frequently Asked Questions

Can I put gasoline in this tank?
Yes. The tank and all included components are compatible with both gasoline and diesel.

Is it DOT compliant?
Our tanks are not guaranteed to meet DOT requirements, and no special permit is provided. Check the regulations for your use before installing.

Will it work with my roll top cover?
It's designed for Retrax and similar electric or manual roll top covers on full-size trucks. The tank is 19" tall including the fill cap, and the 8" × 11" step sits under the cover housing. Measure your housing, latches, and any in-bed hitch hardware against the published drawing, and check the known fitment issues above.

Does it have a drain?
No. This tank does not have a drain port.

What else do I need to install it?
Mounting hardware, a vent hose and small filter, and electrical connectors for your battery.

Can I get the pump on the passenger side?
No. This tank is available with a driver-side pump pocket only.

Can I buy the tank without the pump?
No. It's sold only as a complete tank-and-pump unit.

What's the warranty?
A 2-year limited structural warranty from the date of purchase.

How long does shipping take?
It ships in 1–2 weeks or less, and LTL freight shipping is free to the lower 48 states.

Reference Drawing and Pump Details

Explore Other Tank Sizes

Looking for a different capacity? Explore these tank-and-pump options:

Prefer Stainless Steel?

Our 304 stainless steel tank-and-pump units come with a driver-side pump position:

Outfitting a Service Body Truck?

Working with a minimum 48" space? Our 70- and 100-gallon service-body aluminum tanks feature a shorter 47.5" tank length to fit within that space. Both include a GPI 15 GPM pump. Check the full dimensions, mounting requirements, and pump clearances for your installation before ordering.
