60 Gallon 48x20x17 Aluminum Tank W/ GPI 15GPM Pump Installed

Availabilty : Ships in 1-2 weeks or Less

SKU:13009-DP

$2,028.71

Sale Sold out

Shipping calculated at checkout.

Pump Position Driver Side Pocket Center Pocket Passenger Side Pocket

Quantity

60-Gallon Aluminum Fuel Tank for Gasoline or Diesel, with Installed GPI 12V 15 GPM Transfer Pump

The Boyd Welding 60-gallon tank, product number 13009, is built from 0.125-inch 5052 mill-finish aluminum with two internal baffles and AWS-certified welds, and every tank is pressure leak tested at 5–8 psi. It ships as a complete unit with an installed GPI 12V 15 GPM transfer pump, a 12-foot hose, a manual nozzle, a rollover vent, and a mechanical fuel gauge.

Choose from driver-side, center, or passenger-side pump pockets. This tank is sold only as a complete tank-and-pump unit. It's backed by a 2-year limited structural warranty from the date of purchase and ships in 1–2 weeks or less, with free LTL freight shipping to the lower 48 states.

Fuel and Use

This tank and all included components are compatible with both gasoline and diesel. Every tank is fully pressure tested and inspected following the 49 CFR 393.67 liquid fuel tank guidelines.

Truck Bed and Bed Cover Fit

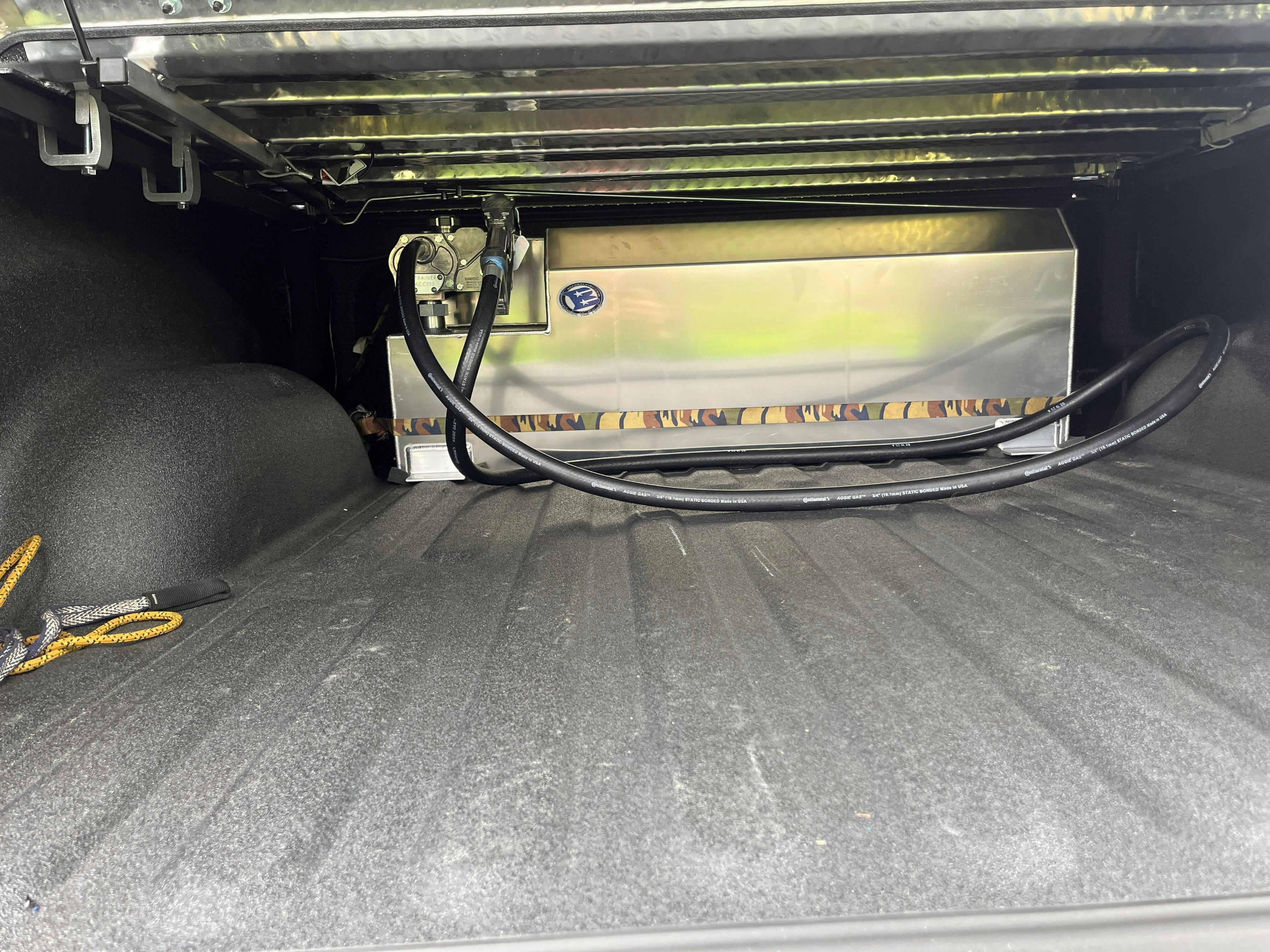

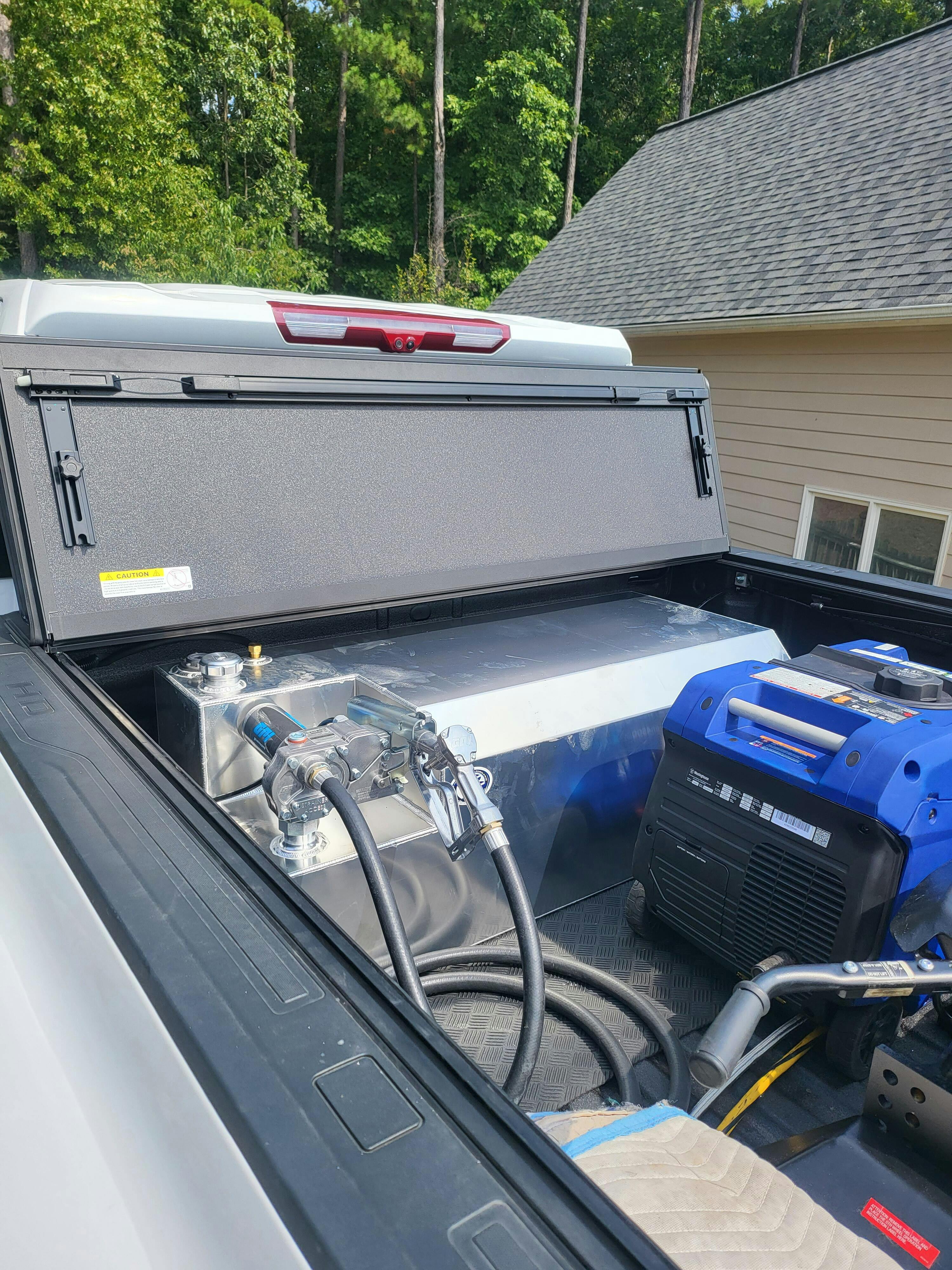

The tank's low profile lets it sit below the bed rails in many Ford, Chevy, GMC, and Ram trucks. Fit depends on your truck, bed, and cover, so measure before you order.

Measure your specific application before ordering. The tank body measures 48" L × 20" W × 17" H. Make sure the larger 52" × 22" mounting footprint fits your bed space and that the 19" overall height, including the fill cap, clears the underside of your bed cover. Allow for any mounting materials, cover rails, or supports, and for the pump and its connections in the position you choose. Below-bed-rail fit does not guarantee clearance under every bed cover.

Before you order, see our Transfer Tank Install and Fitment Guide for fit checks, pump positions, and install steps.

Construction and Quality

Made in Ocala, FL USA using USA Materials
CNC Machined Billet Weld Fittings, Cap and Neck
Every tank pressure leak tested at 5–8 psi
AWS-certified welds
Boyd-exclusive pump mounting and pump securement brackets
0.125-inch 5052 mill-finish aluminum construction with two internal baffles

Tank Specifications

Product number: 13009
Capacity: 60 gallons
Tank body dimensions: 48" L × 20" W × 17" H
Mounting footprint: 52" L × 22" W
Height including fill cap: 19"
Material: 5052 mill-finish aluminum
Material thickness: 1/8" (0.125")
Listed tank dry weight: Approximately 76 lb
Internal baffles: 2
Fill cap: Boyd machined non-vented cap, part number 81037
Vent connection: 1/2-inch NPT
Pump draw connection: Custom EZ-Spin adapter for GPI EZ-Spin pumps
Sending-unit flange: Included
Return connection: None
Drain connections: Two 1/2-inch NPT ports
Mounting tabs: Four tabs
Pressure test: 5–8 psi, every tank tested
Compatible fuels: Gasoline and diesel
Warranty: 2-year limited structural warranty from the date of purchase

Pump-Position Options

Driver-side pocket, 13009-DP
Center pocket, 13009-CP
Passenger-side pocket, 13009-PP

Choose the side you'll fuel from most often, and check the drawing for that position before you order. The notch in this tank is compatible only with the GPI M150S 12-volt pump with an EZ-Spin collar.

Included Equipment

Installed GPI 12V 15 GPM transfer pump
12-foot hose and manual nozzle
1/2-inch NPT rollover vent
Mechanical fuel gauge
1/2-inch brass drain plugs, supplied for installation
Roll of PTFE thread-seal tape

Required Items Not Included

Mounting hardware and bolts
Vent hose and small filter
Electrical connectors for wiring the pump cord to your battery

Installation Notes

The drain plugs are supplied but not installed. Remove the blue shipping plugs and install the appropriate drain plugs before adding any fuel. Blue plugs are for shipping only and must never be used with liquid.

Protect the threads. Aluminum threads can cross-thread and gall easily. Start plugs and fittings by hand, and never install them dry. Thread damage from dry-fitted plugs or hardware isn't covered under warranty.

Brass fittings are recommended.

Frequently Asked Questions

Can I put gasoline in this tank?
Yes. The tank and all included components are compatible with both gasoline and diesel.

Is it DOT compliant?
Our tanks are not guaranteed to meet DOT requirements, and no special permit is provided. Check the regulations for your use before installing.

Will it fit under my tonneau cover?
The tank is 19" tall including the fill cap. Measure from your bed floor to the underside of your cover, and allow for any mounting materials and cover rails. Also confirm that the 52" × 22" mounting footprint fits your available bed space.

What else do I need to install it?
Mounting hardware and bolts, a vent hose and small filter, and electrical connectors for your battery.

Which pump position should I choose?
Choose the side you'll fuel from most often, and check the drawing for that position before you order.

Can I buy the tank without the pump?
No. It's sold only as a complete tank-and-pump unit.

What's the warranty?
A 2-year limited structural warranty from the date of purchase.

How long does shipping take?
It ships in 1–2 weeks or less, and LTL freight shipping is free to the lower 48 states.

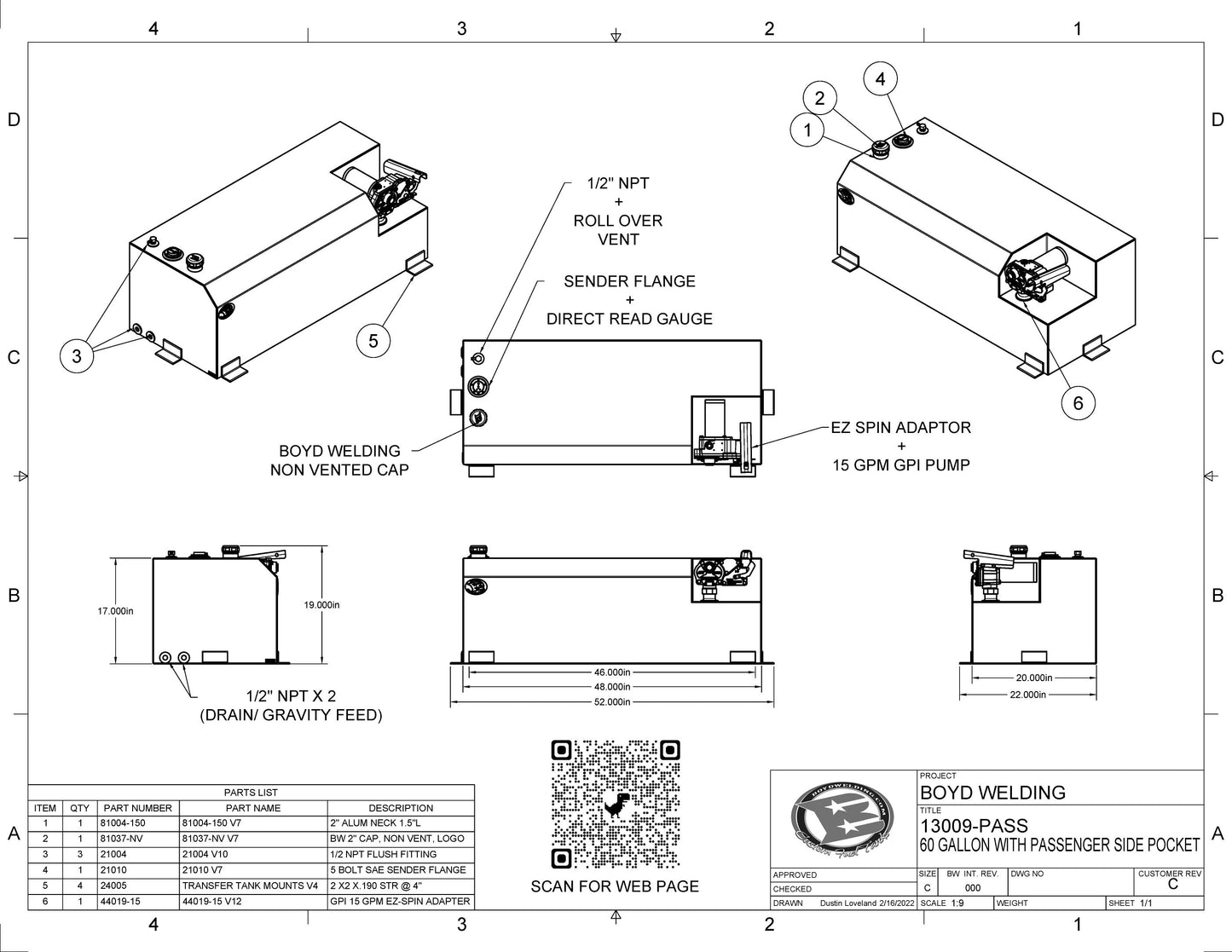

Reference Drawings and Pump Details

Explore Other Tank Sizes

Looking for a different capacity? Explore these tank-and-pump options:

Prefer Stainless Steel?

Our 304 stainless steel tank-and-pump units come with a driver-side pump position:

60-Gallon Stainless Steel Tank with Pump, 48" × 20" × 17" (same size in stainless)
35-Gallon Stainless Steel Tank with Pump, 48" × 12" × 18"
75-Gallon Stainless Steel Tank with Pump, 48" × 24" × 18"

Outfitting a Service Body Truck?

Working with a minimum 48" space? Our 70- and 100-gallon service-body aluminum tanks feature a shorter 47.5" tank length to fit within that space. Both include a GPI 15 GPM pump. Check the full dimensions, mounting requirements, and pump clearances for your installation before ordering.
