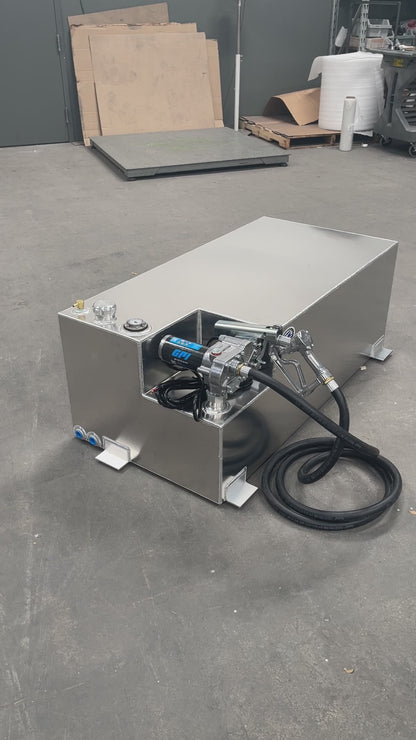

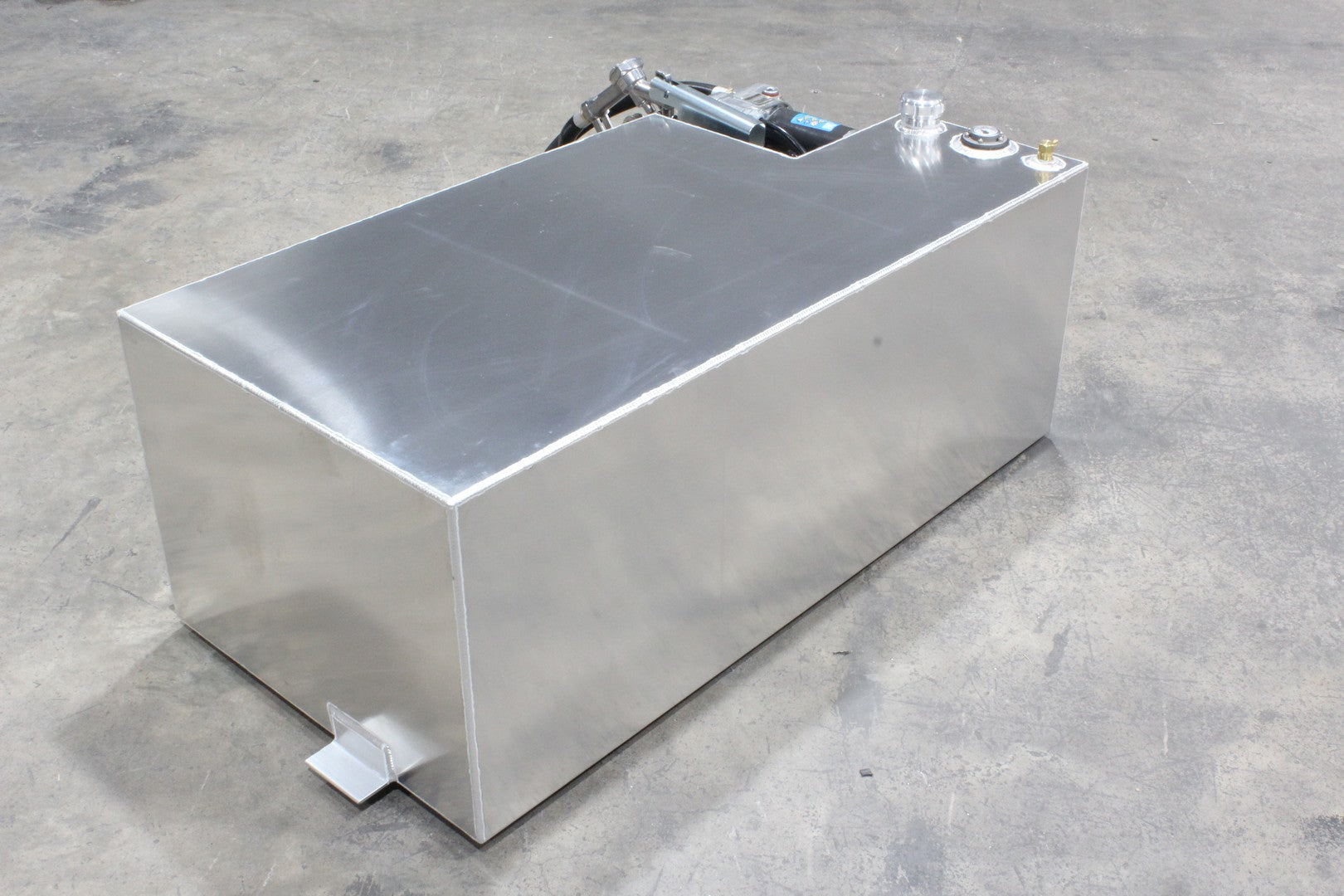

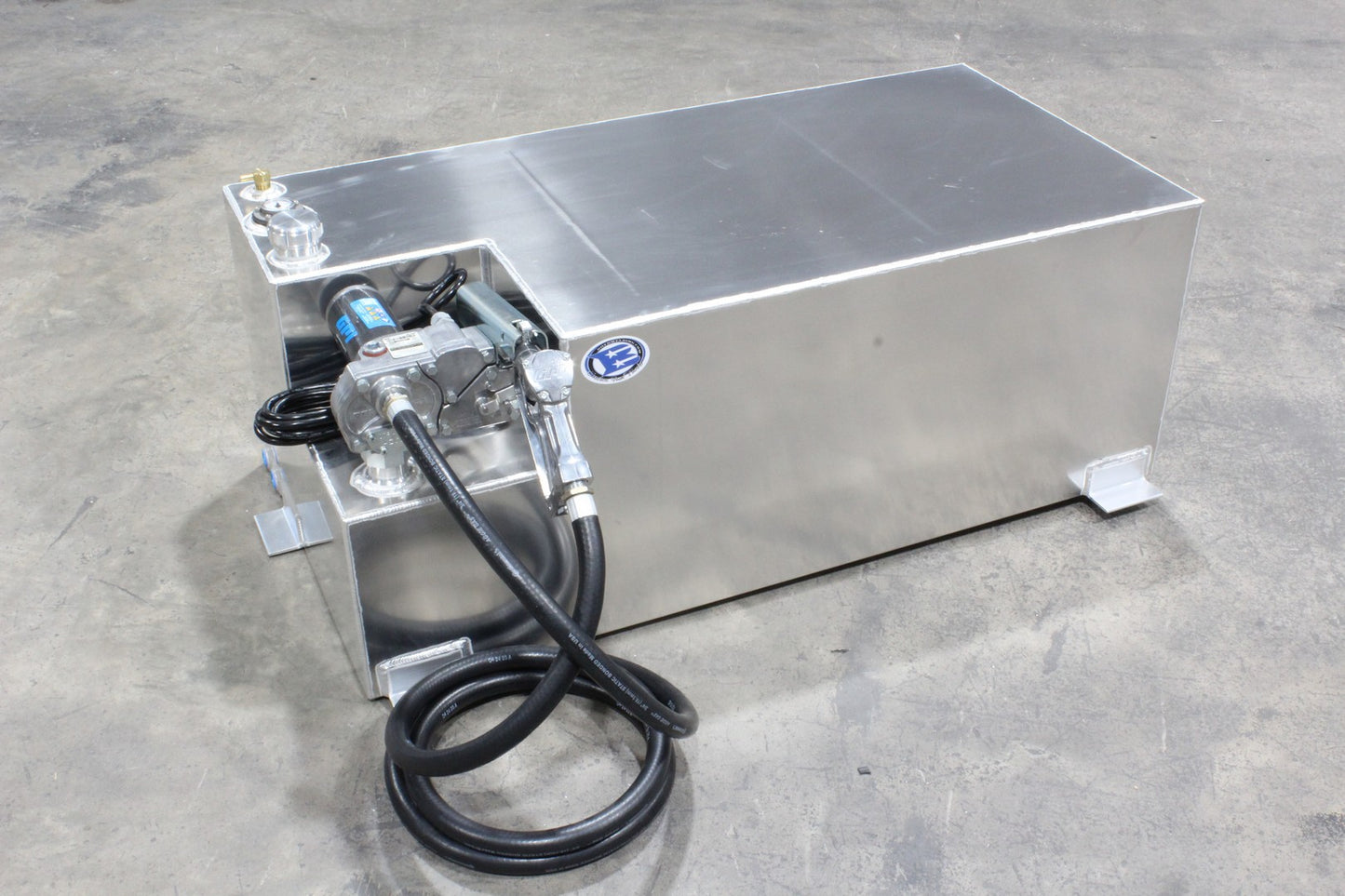

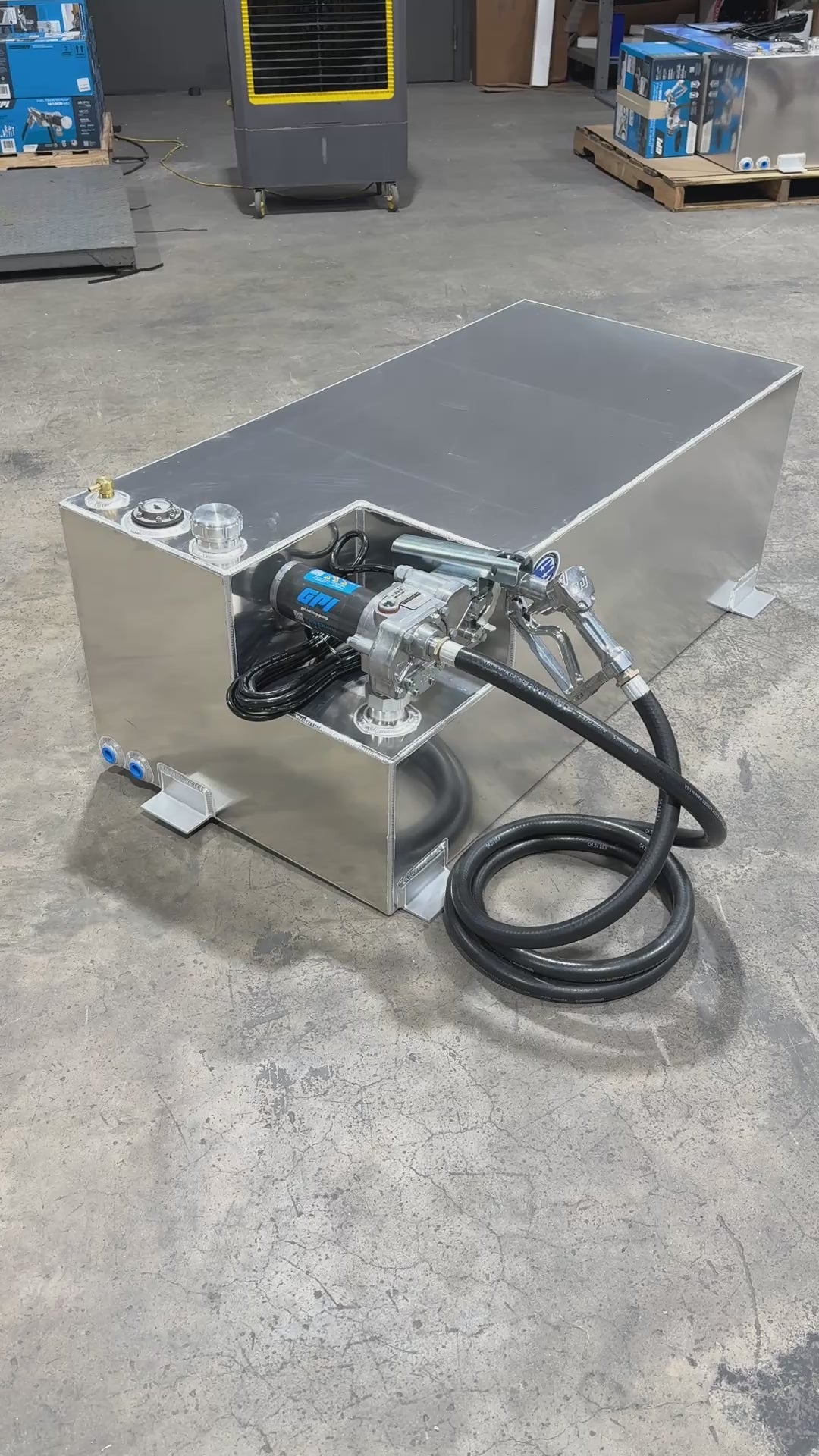

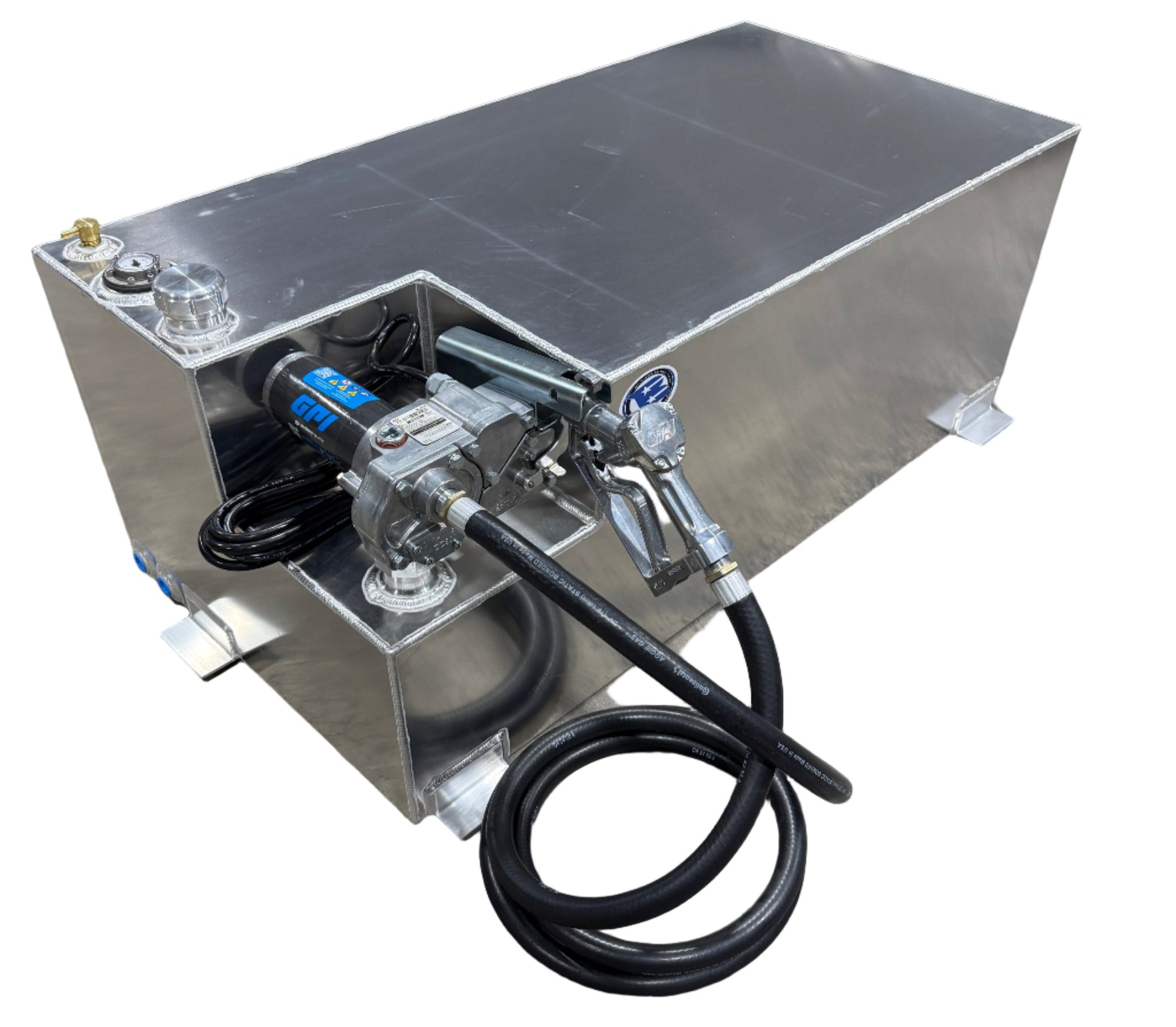

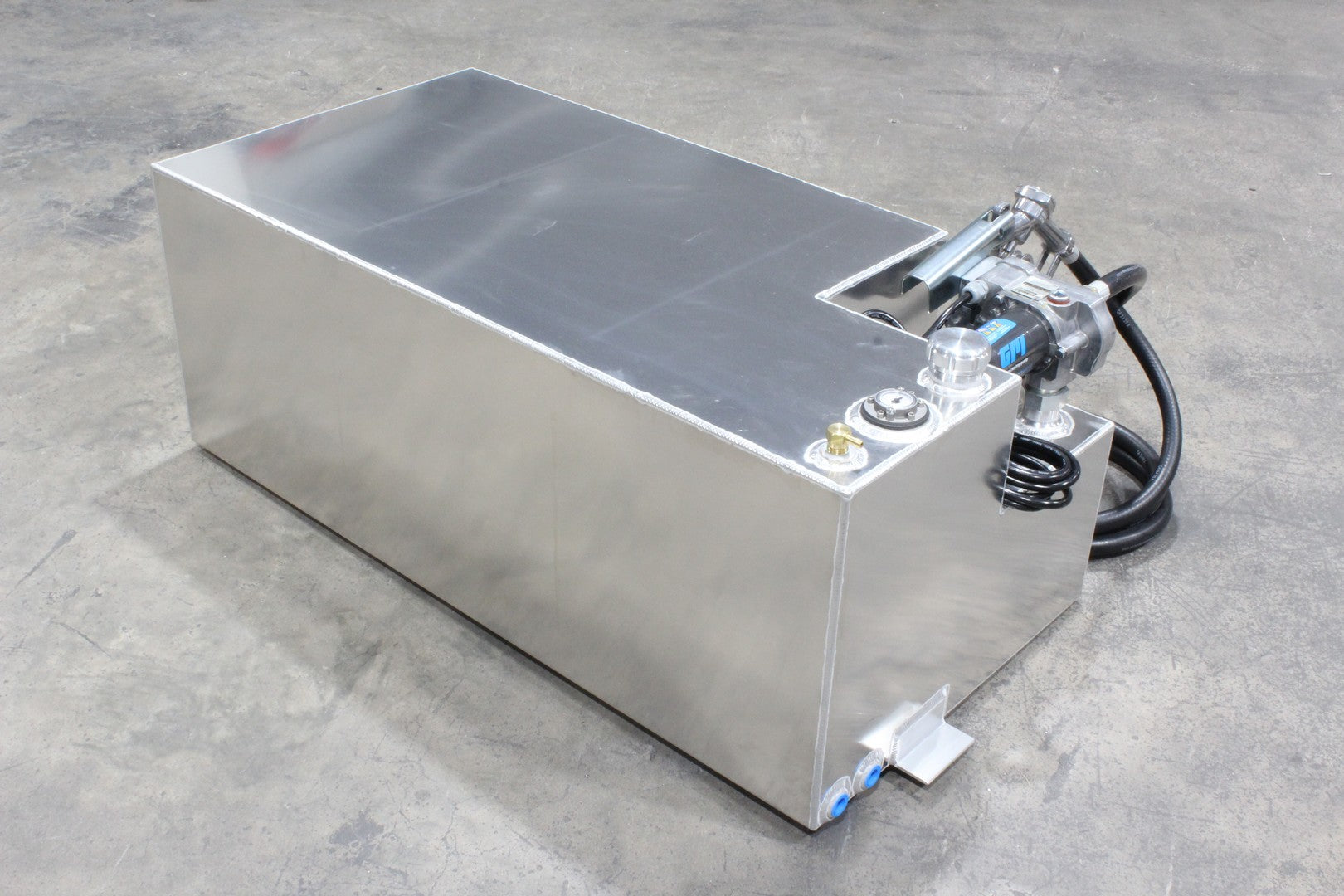

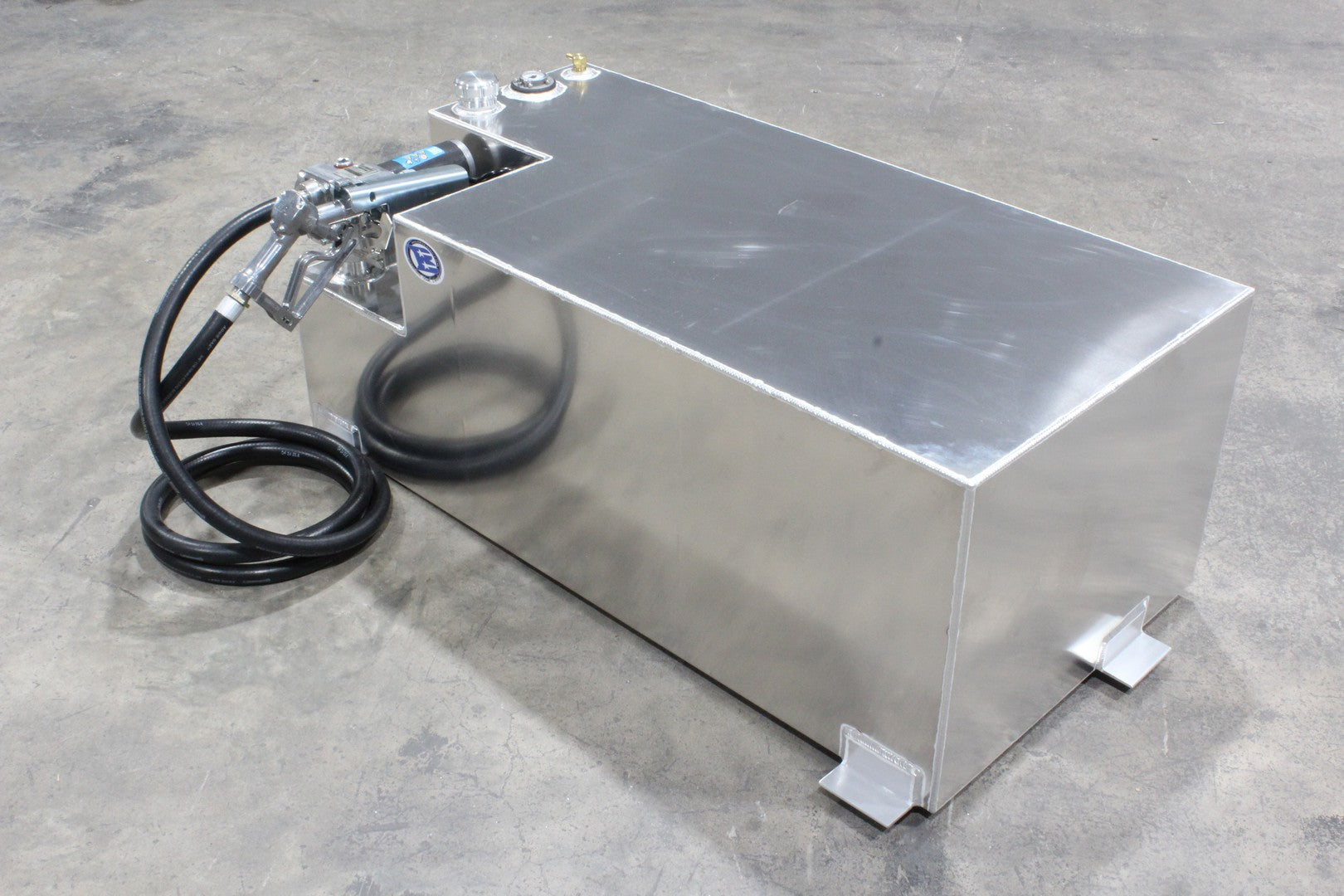

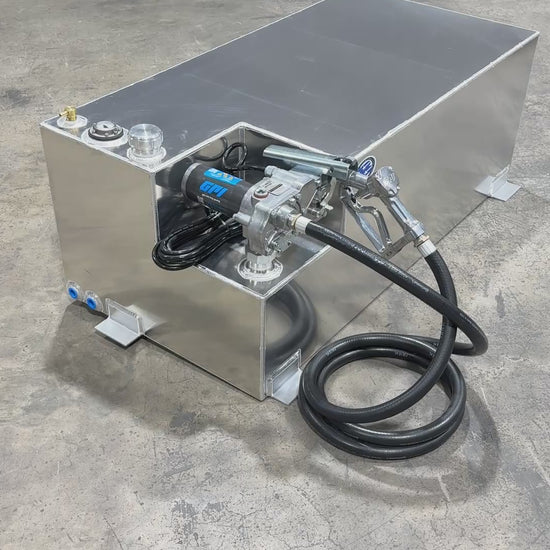

75 Gallon 48x24x18 Aluminum Tank W GPI 15GPM Pump Included

75 Gallon 48x24x18 Aluminum Tank W GPI 15GPM Pump Included

Tank Body Dimensions: 48L x 24W x 18H
Tank Height W/Cap = 20"
Tank Material: .125 Aluminum

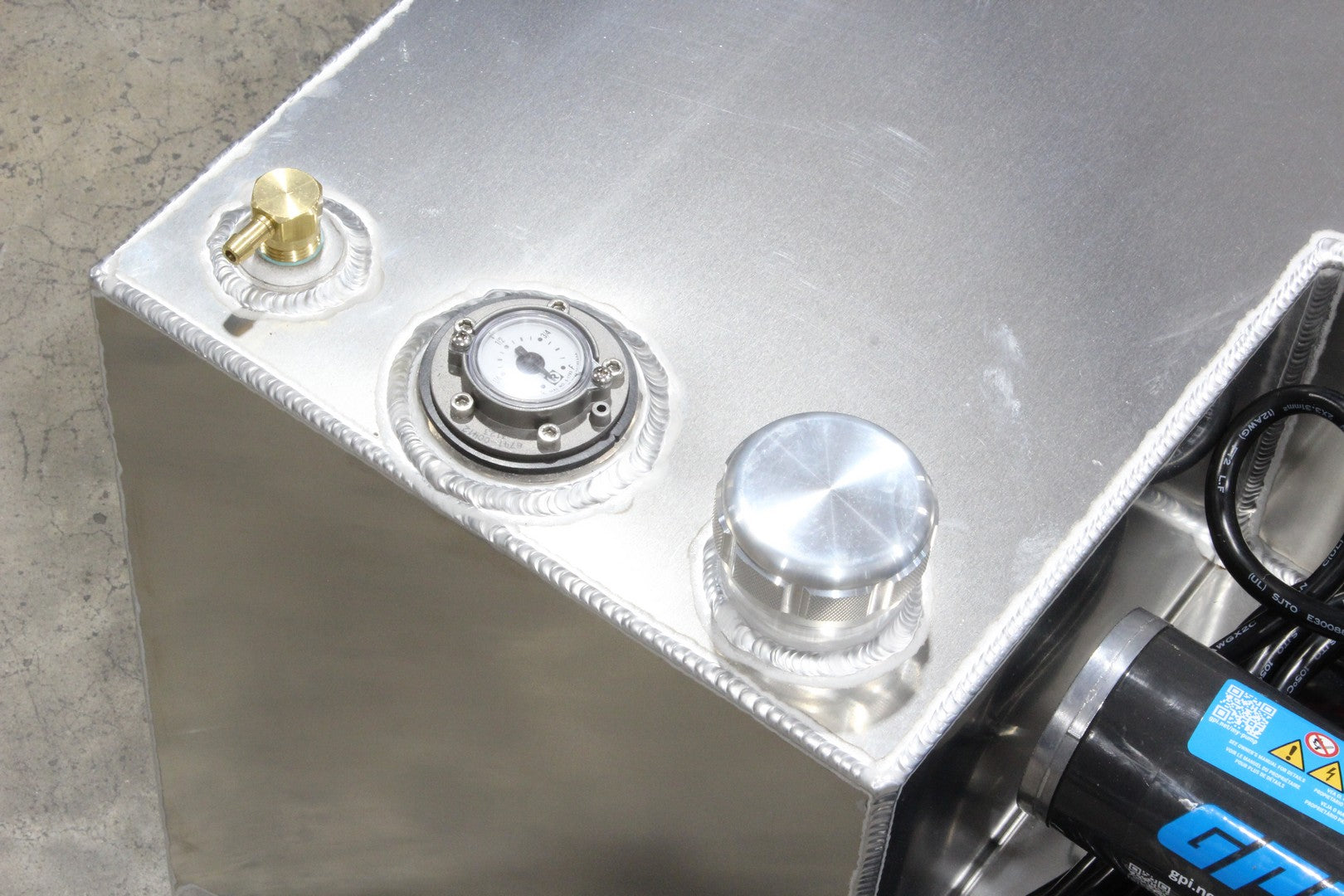

(1) Boyd 2" Non Vented Cap
(1) 1/2" NPT Vent
(2) 1/2" NPT DRAINS
(1) Sending unit Flange
(2) Baffles

Tank Dry Weight = 87#

Dimensions from back of tank to center of cap

• Driver Pocket = 10.5"
• Center Pocket = 10.5"
• Passenger Pocket = 10.5"

REFERENCE DRAWING #13013-DP DRIVER POCKET

REFERENCE DRAWING #13013-CP CENTER POCKET

REFERENCE DRAWING # 13013-PP PASSENGER POCKET

**Sold as a complete unit only, We do not sell the tank only without the pump installed.

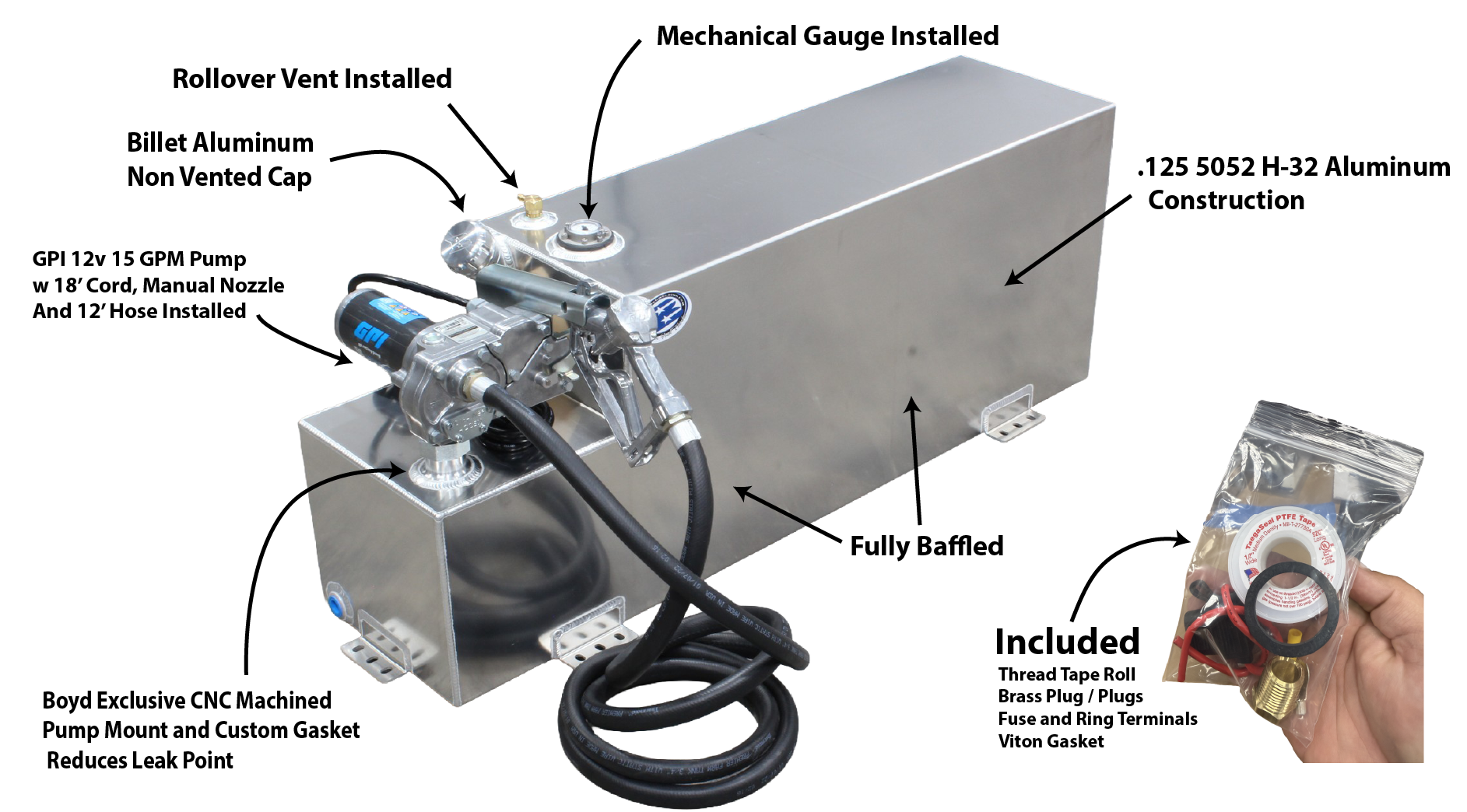

Items INCLUDED with this tank

• GPI 12v 15GPM pump, hose and manual nozzle. CLICK HERE  for more info regarding the pump.
• 1/2" NPT Rollover Vent
• Mechanical Fuel Gauge
• 1/2" Brass Drain Plug to be installed
• Roll PTFE Teflon Tape

Items NOT INCLUDED with this tank

• Mounting Hardware, You will need to supply your own bolts

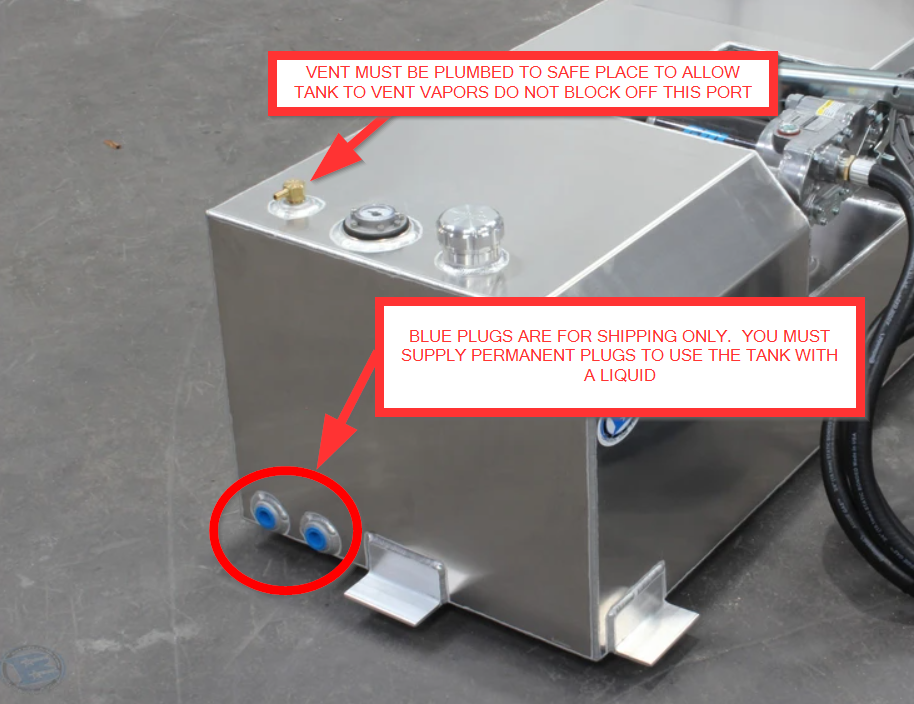

• Drain Plugs will be provided but not installed. BLUE PLUGS ARE FOR SHIPPING ONLY AND MUST BE REMOVED BEFORE ANY LIQUID IN TANK.
• Vent hose and small filter
• Electrical connectors to wire the supplied cord to your battery source.
• Brass Fittings are ok to use and is recommended.
